USER MANUAL GLI34 LOTUSGRILL

Charcoal Table Grill

Type G340

KÄYTTÖOHJE

Pöytägrilli

Tyyppi G340

MODE D'EMPLOI

Black cylindrical object with yellow trim and label '11' on top, no readable text or symbols on the body

DEU - Lieferumfang

3D rendering of a metal mesh tray with ribbed sides and a labeled section (no text or symbols)

1 2 3 4 5 6 7 8 9 10 Patent no. EP183 Wederma

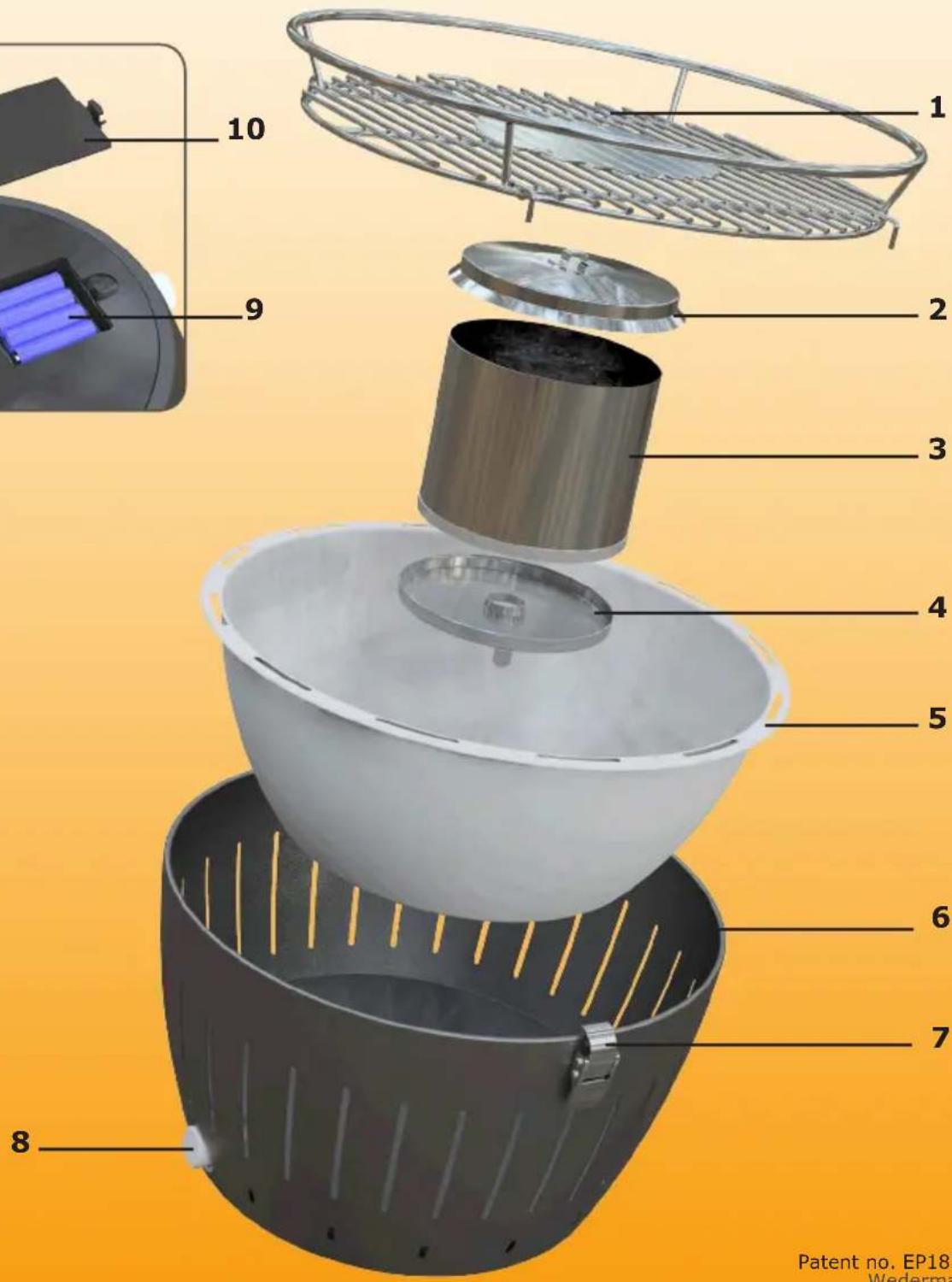

ENG - List of Components

1 - 1 x Grill Grid
2 - 1 x Charcoal Container Cover
3 - 1 x Charcoal Container
4 - 1 x Ignition Plate
5 - 1 x Inner Bowl
6 - 1 x Outer Bowl with integrated Battery Case
7 - 2 x Latch
8 - 1 x On/Off Switch for Heat Regulation with Light Indicator
9 - 4 x Battery AA 1,5V DC
10 - 1 x Battery Case Cover
11 - 1 x Carrying Bag
12 - 1 x Instruction Manual

ITA - Distinta componenti

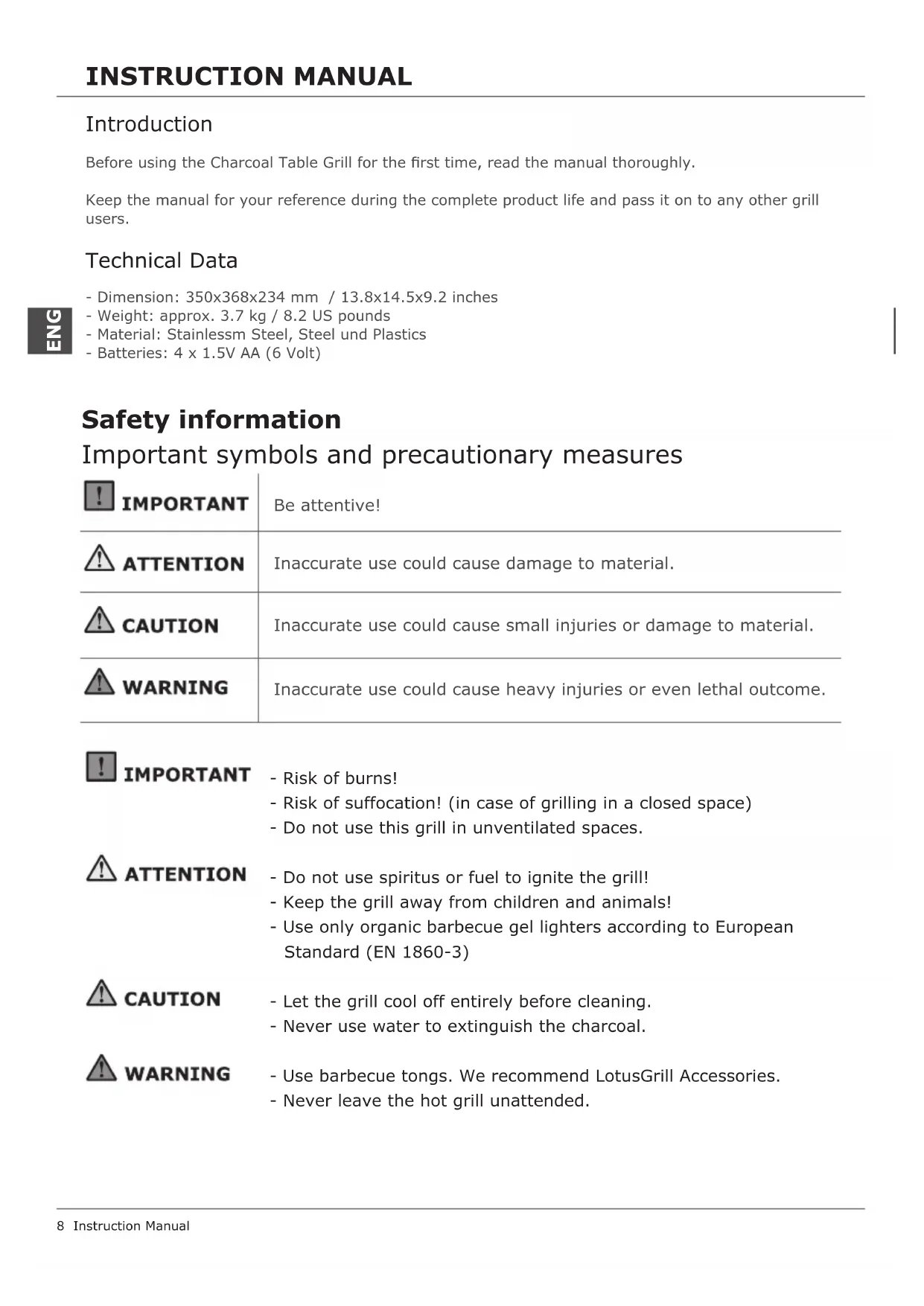

Before using the Charcoal Table Grill for the first time, read the manual thoroughly.

Keep the manual for your reference during the complete product life and pass it on to any other grill users.

Technical Data

• Dimension: 350x368x234 mm / 13.8x14.5x9.2 inches
• Weight: approx. 3.7 kg / 8.2 US pounds
• Material: Stainlessm Steel, Steel und Plastics
• Batteries: 4 x 1.5V AA (6 Volt)

Safety information

Important symbols and precautionary measures

IMPORTANT	Be attentive!
ATTENTION	Inaccurate use could cause damage to material.
CAUTION	Inaccurate use could cause small injuries or damage to material.
WARNING	Inaccurate use could cause heavy injuries or even lethal outcome.

IMPORTANT	- Risk of burns!- Risk of suffocation! (in case of grilling in a closed space)- Do not use this grill in unventilated spaces.
ATTENTION	- Do not use spiritus or fuel to ignite the grill!- Keep the grill away from children and animals!- Use only organic barbecue gel lighters according to European Standard (EN 1860-3)
CAUTION	- Let the grill cool off entirely before cleaning.- Never use water to extinguish the charcoal.
	- Use barbecue tongs. We recommend LotusGrill Accessories.- Never leave the hot grill unattended.

Safety information

Secure handling and disposal of used batteries

Please note: Only use commercially approved AA-batteries.

Remember to dispose batteries properly according to local regulation, i.e. at a battery collection point.

Batteries may not be disposed with domestic waste.

Proper disposal of charcoal

Dispose charcoal in proper non-combustible or metal containers only. Do not dispose in plastic or inflammable containers.

Environmentally friendly disposal of electrical equipment

Please dispose your old grill at proper collection points, which the manufacturer can point out to you at request. Do not dispose your old device with domestic waste.

Intended Use

The LotusGrill may be used to grill meals using charcoal. Do not use this grill in unventilated spaces.

All guidelines provided in this manual must be observed.

The LotusGrill grill is intended for private use only!

Assembly: General Information

Read the assembly instructions carefully and follow the safety information. Be sure to have enough time at your disposal. Create ample space. Remove grill from packaging!

Assembly: Preparation

Check list of components and chart to make sure all items are included in delivery:

• Remove the pre-assembled grill grid and charcoal container.
• Take off packaging.

First Use

The Charcoal Container may contain a thin oil film on the metal net, due to its production process. This oil can cause smoke only in the first use.

Maintenance and Storage

IMPORTANT

The grill must cool off completely before cleaning.

CAUTION

Do not use water to cool off the hot grill. Burns and scalding might occur.

Clean grill grid, inner bowl and other dirty parts after each use. The grill must cool off entirely before cleaning, otherwise burning injuries might occur.

Grill grid and inner bowl are dishwasher safe or can be cleaned with standard washing-up liquid.

Clean outer bowl (containing electronic unit) only with wet cloth or brush.

Do not use acidic, solvent or other flammable liquids.

Remove batteries during a longer period of storage.

The charcoal container is a wear part and should be exchanged occasionally.

Warranty

The LotusGrill has a 2-years-warranty from date of purchase against manufacturing defects, given that it was used according to instructions of use. For proof of warranty, please retain your sales receipt with indicated date of purchase.

Abrasion, rust, deformation or staining of parts exposed directly to flame (especially stainless steel parts) are normal wear after use and are under no circumstance considered to be manufacturing defects.

Assembly and Operation Instructions Assembly

1. Open the battery case at the bottom of the outer bowl ^(6) . Insert four AA batteries ^(7) . Mind polarity. Close the battery case.
2. Place the inner bowl ^(5) into the outer bowl ^(6) .

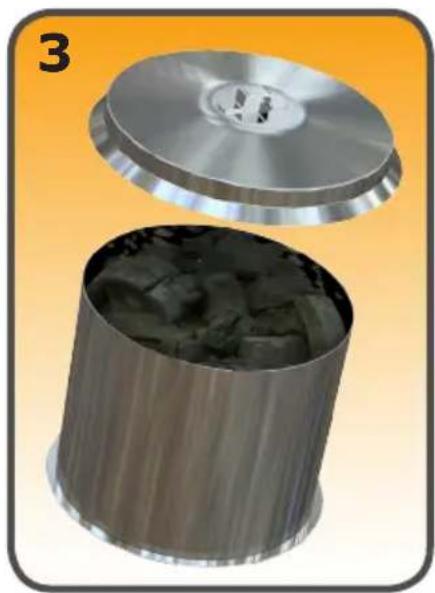

3. Fill charcoal container ^(3) with approx. 250g of Lotus Special Charcoal*. Put cover on charcoal container ^(2) .
4. Apply a circular layer of lighter gel on ignition plate ^(4) , approx 10 mm (0.4 inches) wide. Place ignition plate ^(4) into inner bowl ^(5) .
5. Turn the round ventilation control button on outer bowl ^(6) on. Turn it clockwise to maximum position.

IMPORTANT

In order not to quench the flame, the ventilation needs to be turned on.

CAUTION

Do not touch the flame!

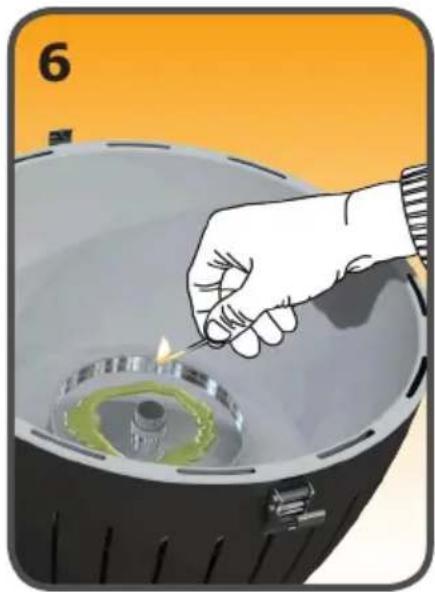

1. Light gel with a match.
2. Put the cover ^(2) on the filled charcoal container ^(3) and place container on ignition plate ^(4) . Within a short period of time, the charcoal will be glowing.

CAUTION

Place the charcoal container carefully and evenly on the ignition plate!

1. Put the grill grid ^(1) on top of the inner bowl ^(5) . Make sure to insert the four metal legs into the slots of the inner bowl ^(5) . Both metal loops at the side of the grill grid ^(1) have to be aligned with the latches.
2. Hook the latches into the metal loops, and pull down to lock the device. The grill is now a connected and compact unit.
3. After approx. 3-4 minutes, LotusGrill is ready for use. Use the On/Off Switch for heat regulation ^(8) to regulate heat.

Avant-propos

3D rendered image of two dark, curved mechanical components (no text or symbols visible)

Grillzange 2

Grill Tongs 2

Pince à barbecue 2

3D illustration of a hairbrush with a long handle and textured grip (no text or symbols)

Pinsel

Brush

Pinceau

Pennello

Pincel

Sivellin

Pensel

Кисточка

Kwast

Art.-Nr.:

- P-LI-22

- P-RO-22

- P-GE-22

Charcoal Container with Cover

Metallic cylindrical container with lid and square top, no visible text or symbols

LOTUSGRILL® DER NAUCHWIKTE POLYSCHWILEBANLL LOTUS SICHENKHITSSBRENNPASTE SAVETY FOG. 60L. 35 Gesuchsanatate Sicherheits- brenpaste für den LotusGrill. Derf nicht für Bemirskapitalhermer verwendet werden. Zusammensertung: Ethanol, Fairstoft 36 Ocularis safety fuel gel for use with LotusGrill. Sart suitable for methylated asphalt. humers. Composition: Ethanol, colouring agent. Ethanol 200 ml

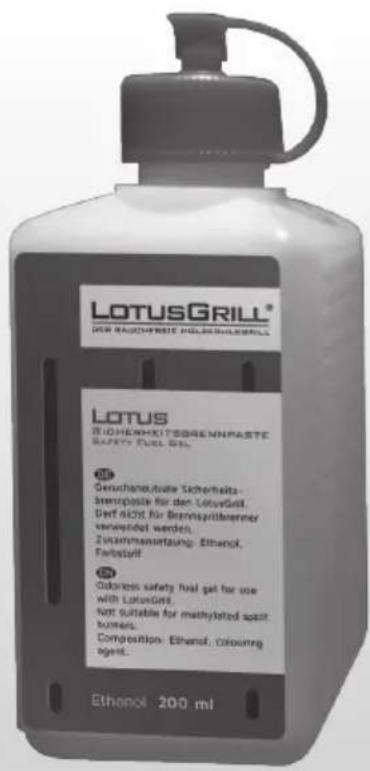

Lotus Brennpaste

Lotus Lighter Gel

Lotus gel allume-feu

Close-up of a battery pack with three blue cylindrical cells, shown from top and side views (no text or symbols)

Close-up of a white bowl placed on top of a black plastic appliance against an orange background (no text or symbols visible)

3D rendering of a metallic cylindrical container with a lid and internal granular material, shown from above and below (no text or symbols)

Illustration of a red bottle dispensing green liquid onto a metallic circular object (no text or symbols)

Illustration of a hand holding a pen with a blue arrow pointing to it, no text or symbols present

Illustration of a hand using a tool to lit a flame inside a gas stove burner (no text or symbols)

3D rendering of a cylindrical device with a lid above a black cylindrical container containing a flame (no text or symbols visible)

Two views of a portable stove burner with a mesh basket and lid, shown against an orange background (no text or symbols)

Exterior view of a portable electric heater with mesh grille and internal fan (no text or symbols visible)
