USER MANUAL ICM 22038 IKRA
Translation of the original instructions Cordless lawn mower
Senior Product Manager
Ikra
Fiedler
GmbH

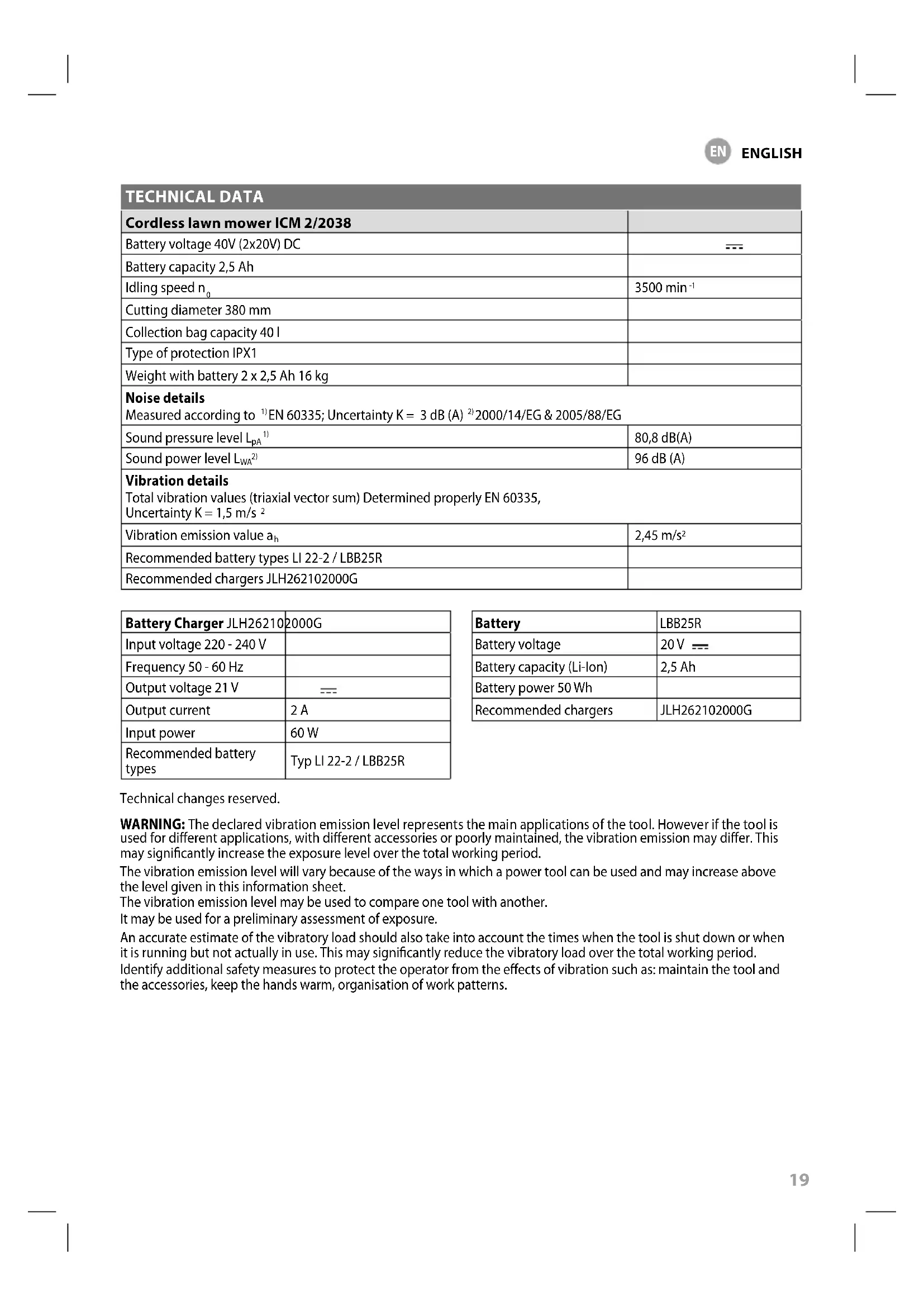

| Battery Charger JLH26210 | 2000G |
| Input voltage 220 - 240 V | |
| Frequency 50 - 60 Hz | |
| Output voltage 21 V | --- |
| Output current | 2 A |
| Input power | 60 W |
| Recommended battery types | Typ LI 22-2 / LBB25R |
| Battery | LBB25R |
| Battery voltage | 20 V —— |
| Battery capacity (Li-Ion) | 2,5 Ah |
| Battery power 50 Wh | |
| Recommended chargers | JLH262102000G |
Technical changes reserved.
WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.
The vibration emission level may be used to compare one tool with another.
It may be used for a preliminary assessment of exposure.
An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
SYMBOLS
DANGER!
Non-observance will result in the risk of serious injury or death to oneself or others.
WARNING
Non-observance will result in the risk of injury to oneself or others.
CAUTION
Non-observance will result in the risk of injury to oneself or others.
NOTE
These give details or further information on what has already been said, in the aim to prevent damage to the machine.
Warning/caution!
Please read the instructions carefully before starting the machine.
Read the Operating Instructions! Save all warnings and instructions for future reference.
Wear eye protective goggles!
Wear ear protectors!
Wear safety cut through resistant shoes with safety sole and steel toe!
Take the replaceable battery from the appliance before any extension, cleaning and servicing works.
Warning against thrown-off items Do not let other persons get near due to foreign objects being thrown off.
Keep fingers and feet away. Warning against sharp knives. Knives keep running for a short time after the appliance is switched off.
Switch the appliance off and remove the contact key before any adjustment, cleaning and servicing work.
Warning against dangerous voltage Be careful when going backwards - risk of tripping!
Keep dry at all times. Do not expose the appliance to rain and do not use it in wet or moisture conditions.
CAUTION Blades run down. Wait until all rotating parts have stopped.
ldling speed n_0
Cutting diameter
Weight
Battery voltage Direct Current Battery capacity
Battery voltage / Direct Current Battery capacity Battery power
Output voltage Direct Current Output current
Input voltage / AC Current Frequency, Input power
Recommended battery types
Sound power level
CE marking
Protect the battery against temperatures above 45^
Protect the battery against heat and fire.
Protect the battery against water and moisture.
Safety class II
Charger to be used in closed spaces only.
Fuse
Do not dispose electric tools, batteries/re-chargeable batteries together with household waste material. Electric tools and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.
Li-ion
Li-Ion
Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.
SPECIFIED CONDITIONS OF USE
The cordless lawn mower has been designed to cut small to medium-sized grass areas in private gardens by the house or in hobby gardens. Due to the physical danger to the user and other persons, the lawn mower may not be used for other purposes.
WARNING
Risk of injury
The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Please note that permissible uses for the tool could be limited by national regulations. It is necessary to comply with the regulations applicable in the country where the truck is used.
Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit.
SAFETY INSTRUCTIONS
Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly.
Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties.
Never allow children or people unfamiliar with these instructions to use the lawn mower.
Local regulations may stipulate the minimum age of the user.
Keep children and other persons including animals in a safe distance when using the appliance.
Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
DANGER!
Warning: This power tool generates an electromagnetic fi eld during operation. Under certain circumstances, this fi eld may affect active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend that individuals with medical implants consult your physi-cian and the manufacturer of the medical implant before operating the machine.
WARNING
Wear personal protective equipment.
Always wear goggles when using the machine.
- Wear ear protectors!
- Wear solid shoes and long trousers.
- Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.
- Use protective gloves when handling the blades.
Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.
Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not blunt, worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;
Do not use the appliance if you are tired, ill, under influence of drugs, alcohol drinks or medicaments.
Do not overreach. Keep proper footing and balance at all times. Be careful when going backwards - risk of tripping!
Provide adequate lighting or good lighting conditions when working with the machine. Poor lighting/light conditions represent a high safety risk.
Avoid operating the equipment in wet grass, where feasible;
Walk! Never run!
Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.
Always operate rotary machines with wheels at a right angle to the slope and not up and down.
Pay maximum attention when turning around and pulling the appliance to you.
WARNING
Risk of injury
Rotating blades may lead to serious injuries by cutting or amputating parts of the body.
- Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.
- All protection covers and safety devices must be correctly attached to operate the device.
- Never remove the collection bag when the machine is being operated.
- Do not start the engine before your feet are in a safe distance from the cutting tools.
- Do not incline the appliance when being started.
- Do not start the appliance when you are standing in front of the ejection opening.
- Never touch under the housing body when the engine is running. Keep a distance from the ejection opening at all times.
- Avoid any inadvertent starting of the engine. Make sure, that the control lever is always in 'Start' position when you pull the starter rope.
- Any works / adjusting on the machine to be only performed with the engine switched off, contact key taken out and when the mowing blade is not moving.
WARNING
Risk of injury
Thrown-off stones or soil may lead to injuries.
- Before mowing, check the area to be mowed for any undesirable objects.
- Make sure the collection bag is properly suspended.
-
Wear safety goggles when working.
-
Stop the machine and take out the contact key. Wait until all rotating parts have stopped and the unit has cooled down. Take out the key.whenever you leave the lawnmower.
- To release a blocked blade.
- Clean the mower or do any other works before checking the mower.
- Check the machine if working perfectly after catching an undesirable object. Repairs must be executed before putting the machine into operation again..
If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately. General - ly, vibrations are a warning against operating failure. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.
The ON/OFF switch and safety switch must not be locked.
When working with this machine, do not use spare parts other than those recommended by us. Using spare parts not recommend by us can result in serious injuries to persons or damage to the machine.
Despite the observance of the operating instructions there still may be some hidden residual risks.
CAUTION
Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.
Vibration damping systems are no guaranteed protection against white finger disease or carpal tunnel syndrome. Therefore, it is necessary to carefully check the state of your fingers and wrist if you have regularly used the appliance for a long time. If any symptom of the diseases above appears, seek medical advice immediately. To reduce the white finger disease risk, keep your hands warm and take regular breaks during your work.
CAUTION
Hearing damage
A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!
When working with the device, a certain level of noise cannot be avoided. Noisy work should be scheduled for hours, during which it is allowed by statute or other local regulations. Adhere to any applicable rest times and limit your working time to the necessary minimum time. For your personal protection and the protection of people nearby, suitable hearing protection must be worn.
Noise emission information in accordance with the German Product Safety Act (ProdSG) and the EC Machine Directive: the noise pressure level at the place of work can exceed 80 dB(A). In such cases the operator will require noise protection (e.g. wearing of ear protectors).
Please do also consider any local regulations concerning noise protection!
BATTERY
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.
WARNING
Risk of fire! Risk of explosion!
Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.
Never charge the battery in an environment with acids and easily flammable materials.
Protect the battery against heat and fire.
Battery to be used at the ambient temperatures between 10^ and +40^ only.
Never put the battery on heaters and do not expose it to strong sunlight for a long time.
After being subject to heavy load, let the battery cool down first.
Short circuit - do not bridge the accumulator contacts with metal parts.
The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.
MAINTENANCE
DANGER!
Switch the appliance off and remove the contact key before any adjustment, cleaning and servicing work. Wait until all rotating parts have stopped and the appliance has cooled down.
Keep hands away from all cutting edges and moving parts. Fingers can be pulled into cutting carriage and be cut or crushed.
After every work stint, clean the machine thoroughly to remove all dust and debris, and repair or replace any faulty parts.
Check the collection bag at regular intervals for any wear and aging.
Clean the ejection opening and cover at regular intervals. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!
Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.
Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition;
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts. Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage.
Please contact our service department if you need accessories or spare parts.
STORAGE
The appliance must be stored in a dry place and protected from frost.
Lock the device in a proper place to protect it from unauthorised use.
Let the engine cool down, before you store the device in a closed room.
FAILURE REMOVAL
| Defect | Cause | Removal |
| The motor does not start | Battery is empty Charge the battery | |
| Battery is defective Contact customer service | ||
| Contact key is not inserted Refer to the instructions in these operating instructions. | ||
| Main switch or safety arch is not controlled Refer to the instructions in these operating instructions. | ||
| Unsteady running, strong vibrations | Blade is damaged Replace the blade | |
| Blade is loose Check and tighten the blade clamping | ||
| Poor mowing/catching performance | Blade is blunt Have the blade sharpened or replaced | |
| Battery is defective Contact customer service | ||
| Collection bag is blocked Empty the collection bag | ||
| Mowing height adjustment not regulated Adjust the mowing height | ||
| Grass is not collected blocked | ed channel Clean the ejection channel | |
| Full collection bag Empty the collection bag | ||
| Too wet grass | Cut in dry weather |
DISPOSAL
If your device should become useless somewhere in the future or you do not need it any longer, do not dispose of the device together with your domestic refuse, but dispose of it in an environmentally friendly manner.
Please dispose of the device itself at an according collec- ting/recycling point. By doing so, plastic and metal parts can be separated and recycled. Information concerning the disposal of materials and devices are available from your local administration.
Batteries are not to be put into the rubbish. As a consumer you are legally obliged to return used batteries and accumulators. At the end of the duration of your apparatus, the batteries or accumulators have to be taken from the apparatus, disposing of them separately. You have the possibility of delivering your old batteries and accumulating
tors to the local collecting points of your municipality or to your dealer or to the distribution centers.
Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery.
WARRANTY
For this tool, the company provides the end user - independently from the retailer's obligations resulting from the purchasing contract - with the following warranties: The warranty period is 24 months beginning from the hand-over of the device which has to be proved by the original purchasing document. For commercial use and use for rent, the warranty period is reduced to 12 months. Wearing parts, rechargeable batteries and defects caused by the use of non fitting accessories, repair with parts that are not original parts of the manufacturer, use of force,
strokes and breaking as well as mischievous overloading of the motor are excluded from this warranty. Warranty replacement does only include defective parts, not complete devices. Warranty repair shall exclusively be carried out by authorized service partners or by the company's customer service. In the case of any intervention of not authorized personnel, the warranty will be held void. All postage or delivery costs as well as any other subsequent expenses will be borne by the customer.
EC DECLARATION OF CONFORMITY
We, ikra GmbH, Schlesierstraße 36, D-64839 Munster, declare under our sole responsibility that the Cordless lawn mower ICM 2/2038,
to which this declaration relates corresponds to the relevant basic safety and health requirements of Directives
2006/42/EC (Guideline of Machines)
2014/30/EU (EMC-Guideline)
2011/65/EU (RoHS-Guideline)
2000/14/EC + 2005/88/EC (noise directive)
For the relevant implementation of the safety and health requirements mentioned in the Directives, the following standards and/or technical specification(s) have been respected:
EN 60335-1:2012+A13:2017
EN 60335-2-77:2010
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
Conformity assessment method to annex VI / Directive 2000/14/EC
Notifi ed Body: 0036, TUV SUD Industrie Service GmbH, Westendstraße 199, 80686 München, Germany
Measured sound power level 91,4 dB (A)
Guaranteed sound power level 96 dB (A)
The year of manufacture is printed on the nameplate and can be additionally retrieved via the consecutive serial number.
Munster, 2019-05-09
Senior Product Manager
Matthias
Fiedler
Maintenance of technical documentation: Matthias Fiedler, Ikra GmbH, Schlesierstrasse 36, 64839 Munster, Germany
CARACTERISTIQUES TECHNIQUES
CONDITIONS DE GARANTIE
Ma Senior Product Manager
Ikra
Fiedler
GmbH
La documentation technique est conservée par: Matthias Fiedler, Ikra GmbH, Schlesierstrasse 36, 64839 Munster, Germany
DATI TECHNICI
Senior Product Manager
Ikra
GmbH
Latest service addresses can be found under
Drujba1, 5038 Str, near block 86a
1592 Sofz
+35924830225
+35929786477
markovad@dezmomotors.com
FR Ikra Service France
GB BGR8 Ltd. c/o Seabourne Group
South Portway Close
Round Spinner
GB-Northampton,NN38RH
UK/N.Ireland:03448243524
customerservice@b-gr8.co.uk
GR Panos Vrontanis & Cc
3 Molas Street
13679 Aharnes
+302102402020
+302102463300
sales@bulbocenter.gr
HR VAR-ERCO d.o.o
Stipana Vilova 14A
10090 ZAGREB
+385915713164
+38513454906
var.ero@gmail.com
HU Tooltechnic Kft
Budaorci 165
1112 Bu
+3613304465
+3612836550
info@tooltechnic.net
IN Agritech Floritech Inc.
206 - B Rajindera Arihant Tower
B-1 Community Centre Janak Puri
New Delhi - 110058/India
+91 1145662679
+91 11 25597432
info@agriforitech.com
IR BGR8 Ltd. c/o Seabourne Group
South Portway Close. Round Spinney North Portway NUIG CRU
Northampton, NN3 8RH
+353 1890 8823 74
+441133851115
enquiries@gardenhomepower.com
I1 Ikra Service Italia. by BRUMAR
Loc. Valgera 110/B
14100ASTI(AT)
+390141477309
+390141440385
brumargp@brumargp.it
JO Taha & Qashou Agri Co.(LLC
205 Mekka Street
Amman 11821, Jordan
+962658502
+96265825728
info@tahaandqashou.net
LT ikra Lithuania
Kalvarijug.206
08314 Vilnius
+37064176434/ +37064915665
~一 parduotuve@fokusgroup.it
LU Bobinage Georges Back
53 Rue Nic. Meyers
4918 Bascharage
+352 507622
35250480C
MK FEROELEKTKD.O.O.
Str.Nikola Parapunov br.35A/3
1000 Skopje
+38923063190
+38923063190
tero@t-home.mk
MD | OLSOM S.R.L.
Mateyici Str., 38/1
2009 Chisinau
+37322214075
+37322225009
olsommtd@googlemail.com
SEikra Service Sweden
Verkstadsgatan 8
57341Tranas
+46763268982
l krawinbladh@gmail.com
SI | BIBIRO d.o.o.
Trzaskacosta 233
1000 Ljubljana
+38612584868
+38612564867
bibiro.ljubljana@sio1.net
SK AGF Invest s.r.o.
Hlinkova 365/39
95201 Vrable
+4210262859549
+4210262859052
info@agfinvestsk
TR ZIMAS Ziraat Makinalari San. ye Tic.A.S
1202/1 Sokak No:101/G Yenisehir
35110 IZMIR
+902324364618/4594094
+902324364619
info@zimasziraat.com
UA I TOB,TK,EBpoiHcTpymeHT
(LLC "TC "Euroinstrument")
6yn.1.Nence,79
04080 M. Knis, Ykpalha
+38(044)332-2412/+38(068)42441-55
ikra@eurotools.com.ua
