TDF2501W - Deep fryer Tomado - Free user manual and instructions

Product type	Electric deep fryer
Brand	Tomado
Model	TDF2501W
Oil capacity	2.5 litres
Power	1800 W
Temperature range	130 °C to 190 °C (adjustable in 15 °C increments)
Dimensions (approx.)	30 x 30 x 30 cm
Weight (approx.)	3 kg
Tank material	Non-stick coating
Basket	Frying basket with foldable handle
Lid	With window and permanent metal anti-odor filter
Indicator lights	Power indicator (red) and thermostat indicator (green)
Safety	Safety thermostat, do not immerse, do not use unsupervised
Maintenance	Clean with a damp cloth and dish soap; do not use abrasive products
Filter	Permanent metal filter (cleanable)
Release handle	Lid opening button
Usage	Household use only
Warranty	24 months
Included accessories	Basket, lid with filter, instruction manual

Frequently Asked Questions - TDF2501W Tomado

What is the oil capacity of the Tomado TDF2501W deep fryer?

The oil capacity is 2.5 litres, between the minimum and maximum level marks.

How to adjust the temperature on the TDF2501W?

Turn the thermostat knob. The indicated temperatures are 130°C, 160°C and 190°C. Each intermediate point corresponds to an increase of 15°C.

How to clean the Tomado TDF2501W deep fryer?

Let it cool down, then clean the tank and lid with a damp cloth and dish soap. The basket and filter can be cleaned in warm soapy water. Never immerse the appliance body.

What type of oil or fat to use?

You can use liquid frying oil or blocks of fat. If using blocks, first set to 130°C to melt them. Filter the oil every 8 to 12 uses.

How to change the oil in the deep fryer?

Let the oil cool down, then pour it through the spout into a container. Do not pour it down the sink. Clean the tank and replace with new or filtered oil. Make sure to respect the level between min and max.

What to do if the deep fryer no longer heats?

Check that the plug is properly connected and that the thermostat is not set to 0. If the red indicator does not light up, check your electrical installation. Do not attempt to repair the appliance yourself.

Is it possible to fry frozen foods?

Yes, but dry them well beforehand and only fill the basket halfway to avoid a large temperature drop. Be careful of oil splashes.

How to use the basket correctly?

Fold the handle upwards until it clicks, fill the basket (max 2/3), then lower it gently into the oil. After cooking, hang the basket on the edge of the tank to drain.

The deep fryer makes a loud noise during cooking, is this normal?

Yes, it is normal. It is condensation droplets falling into the hot oil. This does not affect the appliance's operation.

Where to find spare parts or accessories?

Visit the website www.tomado.com/support to order spare parts or accessories.

USER MANUAL TDF2501W Tomado

White TOMADO food fryer with control knobs and a green indicator (no visible text or symbols on the device body)

PRODUCT OMSCHRIJVING

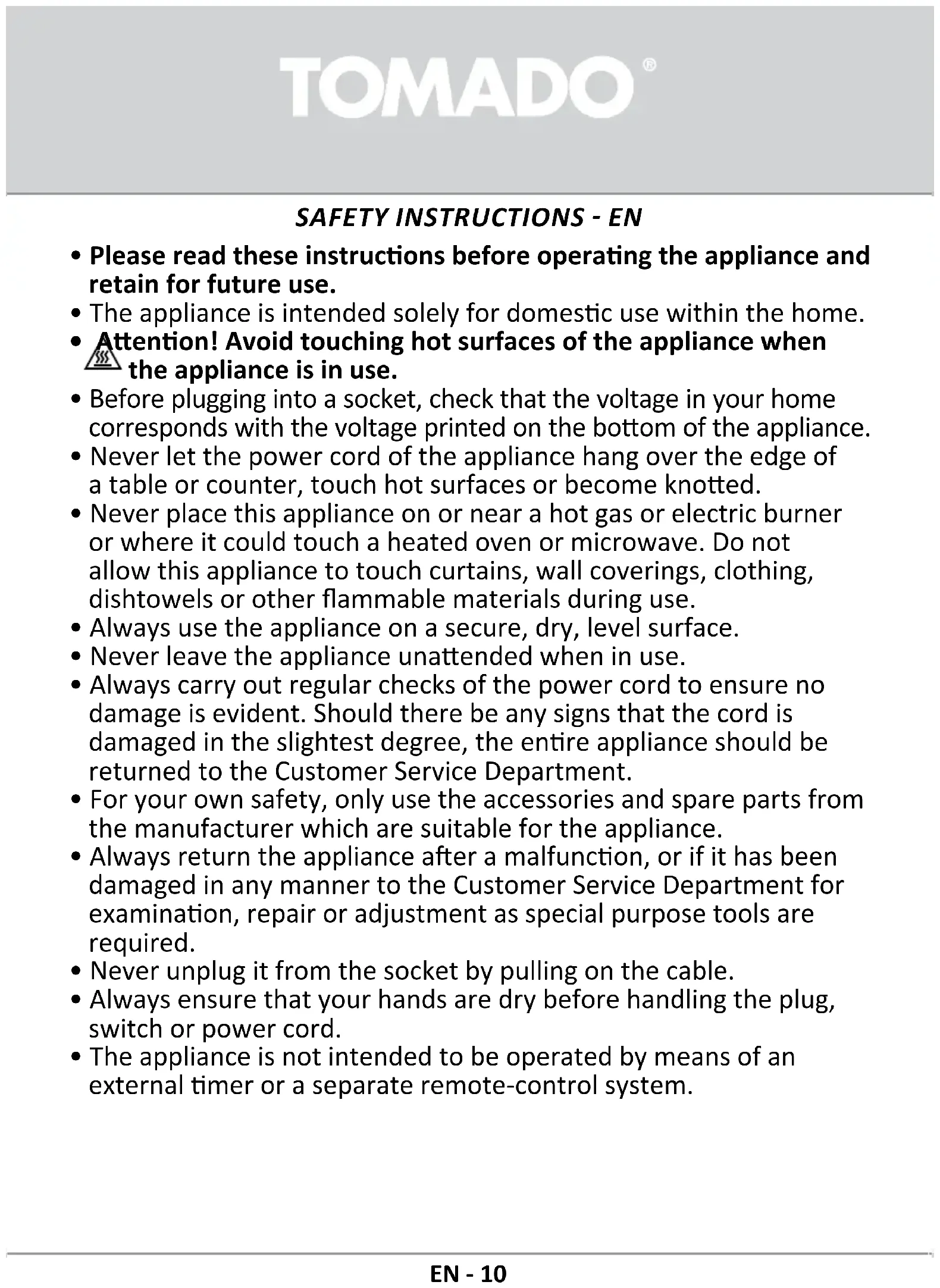

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.

• Attention! Avoid touching hot surfaces of the appliance when the appliance is in use.

• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.

• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• Never unplug it from the socket by pulling on the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

TOMADO®

• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and maintenance shall not be made by children.
• Children must not play with the appliance.
• Cooking appliances should be positioned in a stable situation with the handles positioned to avoid spillage of hot liquids.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• Ensure the lid and the reservoir do not contain any water before filling the fryer with oil.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• This appliance is only intended to be used in household and not in:

- staff kitchen areas, in shops, offices and other working environments;

- by clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments

- farm houses.

• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse the appliance, power cord and plug in water or any other liquid to protect against electrical hazards.

TOMADO®

- If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

TOMADO®

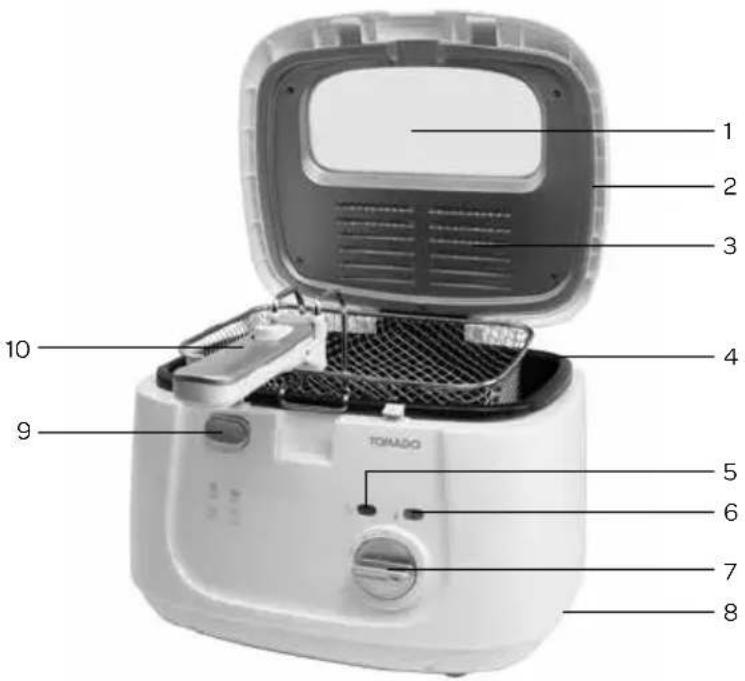

APPLIANCE DESCRIPTION

1. Window
2. Lid
3. Filter
4. Reservoir with non-stick coating
5. Control light - power
6. Control light - thermostat
7. Thermostat button
8. Handle notch
9. Lid OPEN button
10. Basket with foldable handle

BEFORE THE FIRST USE

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any visible damage, possible from transportation. Place the appliance on a stable and heat resistant surface.

Open the lid by pushing the open button. Remove the lid by pulling it straight up from the fryer. Remove the basket.

Wipe the exterior of the fryer and the reservoir only with a damp cloth and dry thoroughly.

Clean the lid and the basket in the dishwasher. Ensure that the parts are dried thoroughly before use. Place the lid back on the fryer.

Fill the reservoir with frying fat to a level between the minimum and maximum level, ca. 2.5 liters. The frying fat can never be under or over the minimum or maximum level. Inside the reservoir you find the two lines indicating the minimum and maximum level.

If you wish to use solid fat, cut the blocks to small pieces. Plug the fryer in and set the thermostat to 130^ C. Wait until the solid fat is melted and check the level. Adjust the thermostat to the desired temperature.

FRYING

• Place the fryer on a stable and heat resistant surface.
• Plug the fryer in. The red thermostat lamp will light up.
• Turn the thermostat button to the right to the desired temperature. On the fryer only 130°-160°-190° are indicated. The markings around the thermostat button correspond each with an increase of 15 degrees.
• As soon as the desired temperature is reached, the green controllamp goes out. The thermostat and the thermostatlamp will toggle On and Off as the thermostat in the fryer maintains the correct temperature.
  • The fryer is now ready to use.
• Fold out the handle, make sure it locks and take the basket out of the fryer.
• Add the desired quantity of food to the basket. Do not add too much food at one time (never more than 2/3). Food should be as dry as possible or reduce the amount of water getting into the oil. Shake the ice off of frozen products above the sink.
• Lower the basket slowly into the oil. If you lower too fast, the oil can splash.

TOMADO®

• Close the lid properly.
• Push the button to lower the handle back down in the housing of the fryer.
• When the food is fried, open the lid with the open button. Be careful: the damp is hot.
• Fold out the handle, make sure it locks and lift the basket out of the oil. Carefully shake the excess fat of and hang the basket with the holding lug to the edge of the reservoir to drain away the oil.
  • Take the basket out of the fryer and serve the food.
• Place the basket back and close the lid.

AFTER FRYING

When you have finished frying, turn the thermostat to 0 and pull the plug from the socket.

Leave the fryer to fully cool for several hours before moving the fryer. If you want to move the fryer always use both hands.

TIPS

• Note: during and after frying it is possible that drops of condensed water fall into the hot oil. The hard noise you can hear, is the reaction of the water with the oil/fat and is normal. It does not influence the use of the fryer.
• Note: Battered or coated food, like fish, may stick to the basket. To prevent this, lower the basket and than place the food in the fryer.
• Never salt the product before or during cooking. This will soil the oil.
• For the best results it is advisable not to fry with a full basket. Fry frozen products in even smaller portions, because they contain more water and cause the oil to cool down too much.
• If you make your own fries, dry them thoroughly after washing to make sure there will be no water in the oil. Fry the fresh fries in two times. The first time (pre-cooking) 5 to 10 minutes on 170 degrees. Lift the basket, let the oil drain and let the fries cool down for several minutes. For the second time turn the temperature control (cooking) to 190 degrees and cook the fries in 2 to 4 minutes. Lift the basket after frying and let the oil drain.

CLEANING & MAINTENANCE

Always unplug the fryer and let it cool down completely. The oil/fat can be used longer, if you filter it regularly. Replace the oil/fat regularly, after 8 to 12 times.

Filter the oil/fat when it is cold. Pour the oil/fat through the spout in a clean bowl. Clean the reservoir with hot water and a mild detergent. Thoroughly dry the reservoir.

Pour the oil/fat back in the reservoir through a fine sieve. Check each time if the level of the oil/fat is between the minimum and maximum level.

When replacing the oil/fat, follow the same steps as described before.

Liquid frying fat can be poured back in to the bottles.

When using solid fat, turn the fryer on and wait until the fat loosens from the wall. Remember to remove the basket.

Now remove the solid block of fat and wrap it in e.g. old newspapers.

Throw away used fat in the original packaging, or when using solid fat, wrapped in newspapers.

Never wash away fat or oil through the sink.

The lid is provided with a permanent metal filter and soaks up the smells, but lets the steam through. Clean the lid regularly to prevent a clogged filter.

Clean the lid and the basket with hot water and a mild detergent. Ensure that the parts are dried thoroughly after cleaning.

TOMADO®

Clean the reservoir with hot water and a mild detergent. Thoroughly dry the reservoir.

Clean the exterior of the fryer with a damp cloth and when needed a mild detergent.

Never use any abrasives! Never immerse the appliance, power cord or plug in water or other liquids.

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the applicable rules in your country for the separate collection of electric and electronic products.

By disposing of the product correctly, you prevent negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100%, return packaging material separately.

TOMADO®

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support
