Product Type	Deep Fryer
Brand	Tomado
Model	TM-1944
Dimensions (L x W x H)	Approx. 30 x 20 x 20 cm
Weight	Approx. 2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1500 W
Oil Capacity	1.5 L
Temperature Range	150°C - 190°C
Adjustable Thermostat	Yes
Indicator Light	Power and ready lights
Cool-Touch Handle	Yes
Non-Stick Coating	Yes, on inner bowl
Frying Basket	Removable, with handle
Oil Drain	Yes, with spout
Overheat Protection	Yes
Auto Shut-Off	Yes, when basket is lifted
Cleaning	Removable parts dishwasher safe; wipe exterior with damp cloth
Spare Parts Available	Basket, lid, handle
Repair Index	Repairable by authorized service
Certification	CE compliant

Frequently Asked Questions - TM-1944 Tomado

How do I set the temperature on my Tomado TM-1944 deep fryer?

Turn the thermostat knob to your desired temperature, typically between 150°C and 190°C. The indicator light will turn off once the oil reaches the set temperature.

What type of oil should I use?

Use high-smoke-point oils like canola, peanut, or sunflower oil. Avoid olive oil as it burns easily.

How much oil do I need?

Fill the oil to the max fill line inside the bowl, usually about 1.5 liters. Do not overfill.

How do I clean the deep fryer?

Unplug and let cool. Remove the oil and dispose. Wash the basket, lid, and inner bowl with warm soapy water or in the dishwasher (top rack). Wipe the exterior with a damp cloth.

Why does the power light turn off during use?

The power light may turn off when the thermostat reaches the set temperature. This is normal. It cycles on and off to maintain temperature.

Is the handle heat-resistant?

Yes, the handle is cool-touch designed to stay safe to the touch during frying.

What should I do if the deep fryer overheats?

The fryer has overheat protection that will automatically shut it off. Unplug and let it cool before restarting.

Can I fry frozen foods directly?

Yes, but shake off excess ice to avoid oil splatter. Lower the basket slowly.

How often should I change the oil?

Change oil after 6-8 uses or when it becomes dark, smelly, or starts smoking.

Where can I find replacement parts?

Contact Tomado customer service or visit their website for spare parts like baskets, lids, and handles.

USER MANUAL TM-1944 Tomado

Diagram of a white bread maker with attached dish, showing internal components and parts (no text or labels)

Congratulations on your purchase of this high-quality product. Read these instructions carefully, so that you can make the best use of this deep fryer, these instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always get the best result from the appliance. You will also save time and avoid any problems. We hope that you will enjoy using this deep fryer.

BEFORE USE

First read all instructions before use and retain for later reference. Only plug this appliance into an earthed socket.

Before first use, remove the packing materials; tear down the protection films in the lid and outer case (PIs. pay attention to environment protection). Then, wash the accessories and the inner pan in warm water. Dry ten well before use. Make sure that the electrical parts remain dry. The deep fryer is equipped with an adjustable thermostat and indicator lamps.

IMPORTANT SAFEGUARD INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed: Read all instructions.

• In case of damage, caused through not paying attention to this instruction manual, the warranty expires at once. The manufacturer/Importer does not accept any liability for damage caused as a result of ignorance of the user manual, careless usage or the usage against the instructions in this manual.
• This product can only be used according to its rated information printed on the rating label.
  • Make sure the national voltage supply is in compliance with the rating label information. If you have any doubt about the way of operating the product or you

are not sure about the compliance of the ratings with the national power supply please contact an authorized electrician/service centre.

• The socket must be designed that the attached plug will fit into it.
- This product is for indoor use only! It is not suitable for outdoor use.
- Please prevent the product to be exposed to excessive dirt and humidity.
- Any other way of operating the product, except the described one, will lead to dangers such as short circuit, fire or else. It is not allowed to modify this product in any way and the housing has not to be opened, otherwise the product will not be any longer in compliance with its safety class.
- Never connect or disconnect the plug with wet hands.
- Never leave the appliance unattended during use.
- Never unplug the plug by pulling the power supply cord. Always pull the plug itself.
- During installation/cleaning, please pay attention that the power supply cord will not be squeezed or damaged.
- Always disconnect the appliance from the mains and allow the product to cool down to room temperature; before storing away the appliance; before cleaning or maintenance; after use; if you are not going to use it for a long period of time.
- Clean the product itself with a slightly damp cloth.
- Never replace a damaged power supply cord by yourself. In such case, or in case of malfunction, contact an authorized electrician/service centre for examination, repair or adjustment because special tools are required.
- Products, which are operated on mains supply, do not belong into the hands of children.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.

TOMADO®

Instruction manual

TM-1944

• Keep the appliance and its cord out of reach of children less than 8 years.
• Keep out of the reach of children and never leave the unit unattended when switched on.
  • Make sure that the power supply cord does not come into contact with any parts, which generate excessive heat.
• If you assume that the operating of the product without danger is not any longer possible please make sure that the product will be disconnected and not used any longer. The safe operating of this product is not any longer possible, if: the product or the power supply cord is damaged in any way; the product does not work any longer; after a longer storage under unfavourable conditions; after heavy damage through transportation.
• Never place the deep fryer directly into corners and under flammable materials such as curtains, cupboards etc.
• Never immerse the plug or the appliance in water or other liquid.
• The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
• Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket pull the plug itself, not the cord).
  • Do not move the device when the fat is liquid/hot.
• Keep the lid tightly closed during use.
• Please always use the frying basket for deep-frying.
• Warning: never mix fats and oils, as the deep fat fryer could spill over, even the mixing of various types of oil and fat with one another is dangerous.
• If the deep fat fryer should catch fire, do not under any circumstances attempt to extinguish the flames with water, instead, replace the lid and suffocate the flames with a damp cloth.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

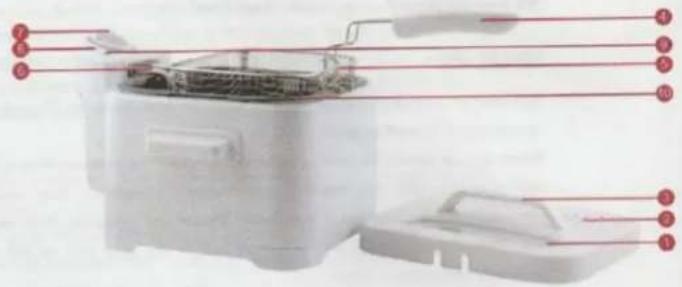

PARTS DESCRIPTION

1. Window
2. Detachable filter(inside)
3. Handle of lid
4. Handle of basket
5. Basket
6. Detachable heating element
7. Thermostat knob
8. Indication lamp on/off
9. Temperature light
10. Detachable inner tank

TOMADO®

Instruction manual

TM-1944

• Never switch on the deep fryer without oil or fat, as this could damage the machine. Also, do not place any other liquids such as water or other substances in the pan.
• Place the deep fryer on a dry, stable surface. Since the deep fryer becomes hot during use, make sure that it is not too close to other objects.
• Fill the deep fryer with the desired amount of oil or fat. Make sure that it is filled not less than minimum level and not higher than the maximum level as indicated on the inside of the appliance. For best results, we recommend that you do not mix different kinds of oil together.
• Connect the plug into a power outlet.
• Set the thermostat to the required temperature setting, which is suitable for what you are frying. Consult the temperature table. (Cooking instructions on food packaging often state the temperature to use).
• The oil fat is heated to the required temperature within 20 to 25 minutes.
• Use the handle to place the basket into the deep fryer.
• Place the food to be deep-fried into the basket. For best result, put dry food into the basket.
• Lower the basket into the oil slowly to prevent excessive bubbling.
  • The indicator light will go out when the temperature you have selected has been reached. Always wait until the selected temperature has been reached. To keep the oil at the selected temperature, the thermostat repeatedly goes on and off, and the indicator light as well.
• Raise the basket again when the frying time has elapsed.
  • After frying let the product drip dry, never shake the basket.
• Set the thermostat to the lowest level.
• Remove the plug from the outlet.
  • Rinse the handle and the basket after use, and dry thoroughly.

- Once the deep fryer has completely cooled off, you can replace the basket in the appliance and store it. Store the deep fryer, with the lid close, in a dark, dry place. In this way, you can leave the oil and the basket in the deep fryer when storing.

TO REPLACE THE OIL

Make sure that the deep fryer and the oil have totally cooled off before replacing the oil [remove the plug from the socket]. Replace the oil regularly. This is definitely necessary if the oil becomes dark or takes on a different odour. In any case, replace the oil once after every 10 times' usage. Replace the oil all at once; do not mix old and new oil. Discarded oil is a burden to the environment. Do not throw on the normal rubbish bin, but follow the guidelines of the municipal waste collector in your area.

CLEANING AND MAINTENANCE

• Clean the deep fryer on both the inside and outside regularly.
• Clean the outside of the deep fryer with a damp cloth and dry with a soft, clean cloth.
  • Never use abrasive cleaners or sponges.
• The basket and the handle can be cleaned in warm, soapy water. Dry well before using again.
• When replacing the oil you can also clean the inside of the deep fryer. Empty the deep fryer and first clean the inside with a paper towel and then with a cloth dipped in soapy water. Then wipe with a damp cloth and allow to dry thoroughly.
• All components, with the exception of the electrical parts, may be cleaned in warm soapy water. Dry thoroughly before use.
• Dishwasher cleaning is not recommended.

TOMADO®

Instruction manual

TM-1944

TIPS

• Always place the deep fryer on a stable surface and keep all flammable materials away.
• Make sure that the deep fryer is not near or on a switched-on hot plate.
• Before use the deep fryer must be filled with the required amount of oil or fat.
- Never use the deep fryer without oil or fat because this could damage the unit.
- Never move the deep fryer during use. The oil becomes very hot and you can get burned. Wait to move the deep fryer until the oil has cooled off.
- This deep fryer is protected with a thermal safety device, which switches the machine off automatically if it overheats.
- Never immerse the unit in water.
- Never leave the deep fryer unattended while in use. Always ensure the safety of children if they are near the deep fryer.
- If the deep fryer and/or cord are damaged, they must be repaired by a professional service department.
- Do not try to repair the unit by yourself, neither to replace a damaged cord. This requires special tools.
- Be sure not to damage the heating element. (Do not bend or dent.)

SAFETY THERMAL CUT-OUT

In the event of overheating, the thermal cutoff will switch off the deep fat fryer. This can happen if the deep fat fryer is not filled with sufficient oil or solid frying fat is melted in the deep fat fryer. In the case of solid fat, the heating element is unable to radiate the produced heat quickly enough. If the safety thermal cut-out switches off the deep fat fryer, proceed as follows:

• Unplug the fryer, allow the oil or fat to cool down completely;
• The deep fat fryer is now ready to use again,

TECHNICAL DATA

Type nr: TM-1944

Operating voltage: 230V \~ 50Hz

Power: 2000W

Dimensions:

Product measurements: 320 x 300 x 215mm

Net weight: 2.35 kg

TOMADO®

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
• The warranty runs from the date of purchase; we advise you to carefully save your receipt.
• Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
• The warranty certificate has to be filled in by the sales person at the moment of purchase.
• Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
• The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
• The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
  • TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.
• Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumentenservice

Antwoordnummer 19016

NL-1000 VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

TOMADO®

Bedienungsanleitung

TM-1944

Diagram of a white bread maker with attached stand-in box and handle, showing internal components (no text or labels)

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
