USER MANUAL TM-5518 Tomado

Modern stainless steel food microwave oven with control buttons and a rotary knob (no visible text or symbols)

Gebruiksaanwijzing

Mode d'emploi

Instruction manual

Bedienungsanleitung

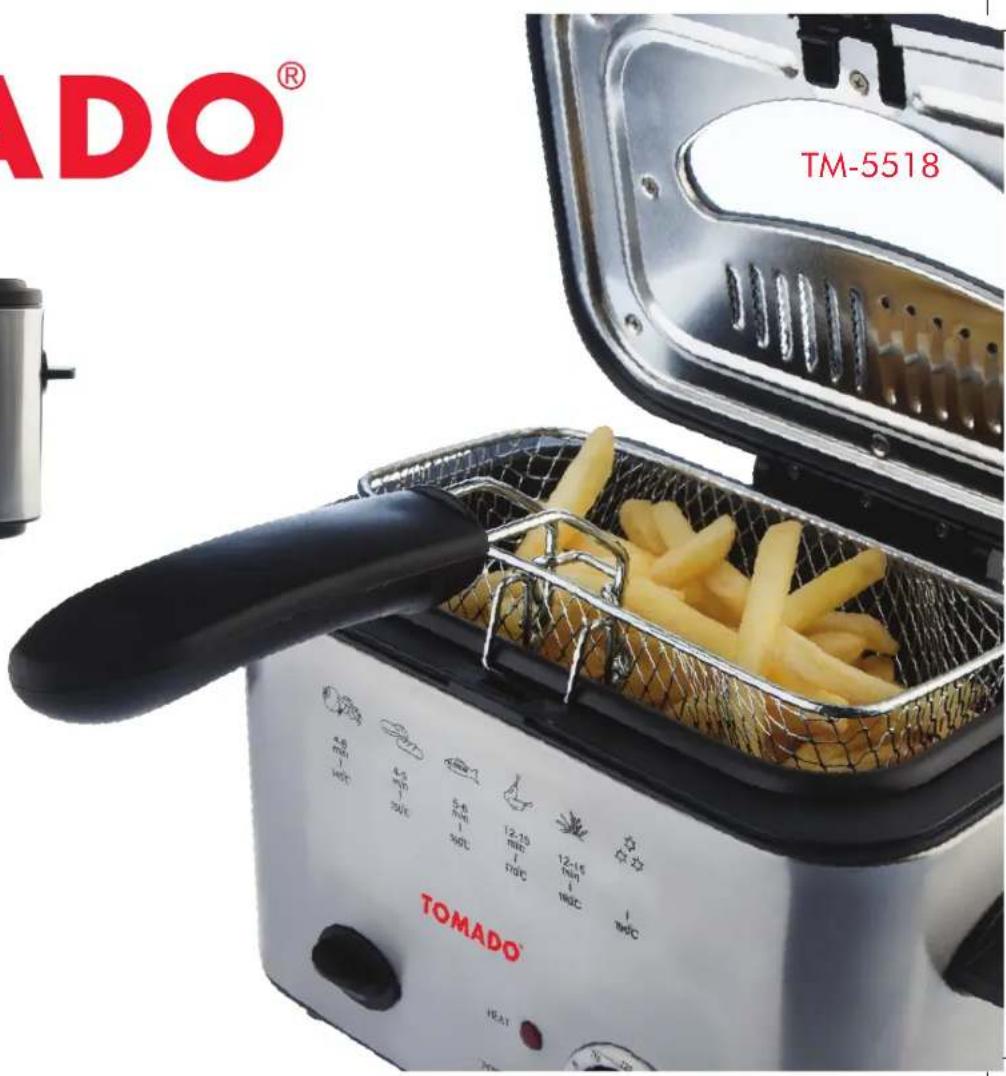

Deep-fryer

ADO® TM-5518 TOMADO® HEAT

TOMADO®

Gebruiksaanwijzing / Mode d'emploi / Instruction manual / Bedienungsanleitung TM-5518

Geachte klant,

Labeled diagram of a cooking appliance with numbered parts for identification

Labeled diagram of a cooking appliance showing interior components and parts with numbered annotations

Congratulations on your purchase of this high-quality product. Read the instruction manual carefully to get the best results from the deep-fryer. These instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always achieve excellent results.

We hope that you will enjoy using this deep-fryer.

SAFETY INSTRUCTIONS

General Information

• Read these instructions carefully and keep them in a safe place.
• Only use the appliance as described in this instruction manual.
• Any damage caused by failure to observe this instruction manual will immediately void the warranty. The manufacturer/importer accepts no liability for damages caused by failure to observe this instruction manual, careless use of the appliance or use that is not in accordance with the instructions set out in this instruction manual.
• Keep the appliance out of the reach of children.

• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities (including children), or anyone lacking sufficient knowledge or expertise, unless supervised by or following instruction from someone responsible for their safety.

• Keep the appliance and its cord out of reach of children under 8 years of age.
  • Children must be strictly supervised to prevent them from treating the appliance like a toy.

• Do not allow unsupervised children to clean or maintain this appliance.
• Always remove the plug from the plug socket and allow the appliance to cool down:
• before moving the appliance
• before storing the appliance
• before assembling or disassembling parts
• before cleaning the appliance or performing maintenance
• after using the appliance
• Repairs may only be carried out by a qualified service centre*.
  * Qualified service centre: the manufacturer's or importer's after-sales service department, which is authorised and competent to perform such repairs so that any danger is avoided. In the event of any problems, please return the appliance to this department.
• Before use, check that the mains power supply voltage is the same as the voltage indicated on the appliance.
  • Always plug the appliance into an earthed plug socket.
• Regularly check the power cord for damage.

Electricity and heat

• Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service centre.
• Do not use any appliance with a damaged cord or plug or after the appliance has shown signs of defects, has fallen or has been damaged in any way. Return the appliance to the manufacturer or the nearest qualified service centre for inspection, repairs or electrical or mechanical modifications.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Make sure the power cord does not come into contact with hot surfaces or steam.
• Always remove the plug from the power socket before moving the appliance.
• Do not operate the appliance by means of an external time switch or a separate remote control system.
• If an extension lead is required, use a 10 amp power cord. Power cords with a lower amp rating may burn out. When positioning the power cord, make sure that it cannot be pulled on or tripped over.
• Avoid overloading by not connecting too many appliances to a group.
• Do not use any other high power appliances in the same group, to avoid overloading.

• Never immerse the appliance, the plug or the housing in water or other liquids, to avoid the risk of electric shock.

• Do not touch the appliance if it has fallen into water. Remove the plug from its socket, turn off the appliance and do not use it again.

• Do not use the appliance in close proximity to hot objects such as a hob or oven.

Using the appliance

• This appliance is intended for domestic and similar use, such as:
• in staff kitchens in shops, offices and other working environments
• on farms
• by hotel or motel guests or guests in other residential settings

• in bed-and-breakfast establishments or similar environments.

• The use of accessories not recommended by the manufacturer of the appliance may result in personal injury.

• Only use this appliance indoors, in dry areas and away from water.
• Never immerse the appliance or the plug in water or any other liquid. This may result in a fatal electric shock!
• Do not use the appliance outdoors or on wet surfaces, to avoid the risk of electric shock.

• Place the appliance on a stable, level surface from which it cannot fall onto the floor.

• Place the appliance on a heat-resistant surface and not, for example, on varnished furniture.

• Place the appliance at least 50 cm from a wall or inflammable materials (such as curtains, candles or cloths).
• Place the appliance on a stable and flat surface, not too close to hot objects or naked flames (such as hobs or hotplates).
• Remove the plug from its socket when the appliance is not in use and for cleaning.
• Do not allow the power cord to hang over sharp edges, and keep it away from hot objects and naked flames.
• Never use the appliance if the power cord or plug shows any signs of damage, if the appliance has fallen on the ground or in the event of any other form of damage. In such cases, take the appliance to a qualified person for inspection and, if necessary, have it repaired.
• Never allow unsupervised children to use electrical household appliances. Children are unable to assess the dangers associated with the incorrect use of electrical appliances.
  • Children who are close to the appliance or who are using it must always be kept under adult supervision.

• Never leave the appliance unattended whilst it is in use.

• Only use the appliance for deep-frying food. Damage may be caused if you use the appliance for other purposes.

• Keep the appliance clean, since it comes into direct contact with foodstuffs.
• Only pick up the appliance by its handle, as certain parts of the appliance become hot during use. You may suffer a serious burn if you touch hot parts of the appliance.
• Remove food products from the deep-fryer on time and prepare them at the correct temperature. Otherwise, they may burn and produce smoke.

Warning

Do not touch the metal parts of the appliance when in use. These parts become very hot.

DESCRIPTION OF PARTS

Labeled diagram of a cooking appliance with numbered parts for identification

1. Deep-fryer basket
2. Lid
3. Inner lid
4. Filter
5. Housing handle
6. Power cord and plug
7. Temperature switch
8. 'HEAT' indicator lamp (heating element on)
9. 'POWER' indicator lamp (appliance active)
10. Lid opener
11. Viewing window
12. Deep-fryer basket handle

OPERATION

You can use this deep-fryer to fry small quantities of snacks, such as spring rolls, chicken wings and fries. Ideal for preparing a savoury snack.

USING FOR THE FIRST TIME

• Remove all packaging from the appliance.
• Clean the appliance. See 'Cleaning and Maintenance'.
• Attach the handle to the deep-fryer basket. Squeeze both ends of the handle together for this, fitting them between the eyes of the basket's handle holder. Slowly release the handle and make sure that both ends lock into the eyes of the basket. Tilt the handle until it clamps onto the deep-fryer basket (see also the picture in the description of parts).
• Fill the appliance with oil or liquid fat. See "Using the appliance".
• Continue with the procedure set out in 'Using the appliance'.

USING THE APPLIANCE

Filling the Appliance with oil or fat

• Open the lid by pressing the lid opener.
• Use the handle to remove the deep-fryer basket from the appliance.
• Fill the deep-fryer with the required amount of oil or liquid fat. Make sure that the deep-fryer is filled to the minimum level and no higher than the maximum level indicated on the inside of the appliance. For best

results we recommend never mixing different types of oil.

• Insert the plug into the mains power socket. The 'POWER' indicator lamp will illuminate.
• Set the temperature switch to 140^ . The 'HEAT' indicator lamp will illuminate.
• The "HEAT" indicator lamp will go out when the selected temperature has been reached. Always wait until the selected temperature has been reached. During use the temperature indicator lamp will illuminate and extinguish as the thermostat maintains the oil or the fat at the set temperature.

Deep-frying

• Insert the plug into the mains power socket. The 'POWER' indicator lamp will illuminate.
• Set the temperature switch to the desired temperature. The 'HEAT' indicator lamp will illuminate.
• The "HEAT" indicator lamp will go out when the selected temperature has been reached. Always wait until the selected temperature has been reached. During use the temperature indicator lamp will illuminate and extinguish as the thermostat maintains the oil or the fat at the set temperature.
• Use the handle to remove the deep-fryer basket from the appliance.
• Place the food to be deep-fried in the basket. For best results we recommend placing dry food in the basket.
• Slowly submerse the deep-fryer basket into the appliance.
  • Make sure that the frying oil or fat does not pass over

the edge of the appliance. If this is about to happen, you will have put too much in the basket and you will have to remove some of it.

• Close the lid.
• While frying, the appliance automatically keeps the frying oil or fat at the set temperature. The 'HEAT' indicator lamp will therefore light up sometimes to indicate that the heating element is doing its job.
• Lift the basket up again once the frying time has passed.
  • After removing the frying basket allow the oil to drain from the food you fried; never shake the basket.
• Set the thermostat to its lowest setting ("OFF" position).
• Remove the plug from the mains power socket.

NOTE

• Remove the food from the appliance on time.
  Otherwise the food may get burnt and give off smoke.
• Regularly replace the frying oil or the liquid frying fat. Fat or oil quality diminishes each time you use it for frying, as well as becoming contaminated with food remains.
• Never switch on the deep-fryer without oil or liquid fat, as this could damage the machine. Never pour any other liquids, such as water or other substances, into the deep-fryer.

CLEANING AND MAINTENANCE

Before cleaning the appliance, always switch it off, unplug it from the electricity supply and allow it to cool down completely.

Cleaning

• Never immerse the appliance or power cord in water, or in any other liquid. This may cause an electric shock or a short circuit.
• Do not clean the appliance with an aggressive or abrasive cleaner or with a sharp object, such as a hard brush or a knife.
• First remove any oil or fat still inside the appliance:
• Make sure that the oil or fat has cooled down completely.
• Frying oil or fat should be disposed of at a special-purpose collection point.
• Clean the frying basket, the inner pan and the lid using hot water and washing-up liquid. Dry them thoroughly.
• Clean the outside of the appliance only with a moist cloth and thoroughly dry the outside afterwards.

Replacing the filter

• Open the lid.
  • Unscrew the metal inner lid.
• Remove the filter present from the lid.
• Place the new filter.
  • Reattach the metal inner lid.

STORAGE

Store the appliance and the accessories in a dry place. After long storage periods without use, drain the oil or fat from the appliance and store the oil or fat separately.

TECHNICAL DATA

TM-5518

Power: 1200 W

Voltage: 230 V - 50 Hz

Capacity 1.2 litres

TOMADO®

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
• The warranty runs from the date of purchase; we advise you to carefully save your receipt.
• Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
• The warranty certificate has to be filled in by the sales person at the moment of purchase.
• Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
• The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
• The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
  • TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.
• Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumentenservice

Antwoordnummer 19016

NL - 1000 VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Labeled diagram of a cooking appliance showing interior components and parts with numbered annotations

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
