UH8 F2D XI 2 - Freezer HOTPOINT - Free user manual and instructions

Product type	Freezer
Brand	Hotpoint
Model	UH8 F2D XI 2
Cooling technology	Automatic frost-free (No Frost)
Defrost	Automatic
Main functions	Smart screen, Power failure alarm, Temperature alarm, Door open alarm, Party mode, Shock freezing, Quick freezing, Eco night function, Freezing control
Ice maker	Yes, removable
Interior lighting	LED
Freezing capacity (max/24h)	Consult the rating plate
Dimensions	Not specified (see installation guide)
Net weight	Not specified
Power supply	220-240 V ~ 50 Hz (standard estimate)
Energy class	Not specified
Noise level	Normal operating sounds (whistling, humming, gurgling, cracking, rumbling)
Installation	Rear space of at least 50 mm
Cleaning	Damp cloth with warm water and neutral detergent; do not use steam cleaner
Door reversal	Possible (see instructions at the end of the manual)
After-sales service	Contact with model and serial number (on rating plate)

Frequently Asked Questions - UH8 F2D XI 2 HOTPOINT

How to activate the Quick Freeze function?

To activate the Quick Freeze function, press the corresponding button (usually a snowflake). The function will deactivate automatically after 50 hours. You can also deactivate it manually to save energy.

What to do in case of power failure alarm?

When power is restored, the audible and visual alarm will sound. Press the Alarm stop button once to deactivate it. Check the condition of the food: if it is thawed but cold, consume within 24 hours; if it is refrozen, it is advisable to discard it.

How to clean the interior of the freezer?

Unplug the appliance. Clean with a soft cloth soaked in warm water and a neutral detergent (for internal walls). Never use a steam cleaner or abrasive products. Dry with a soft cloth.

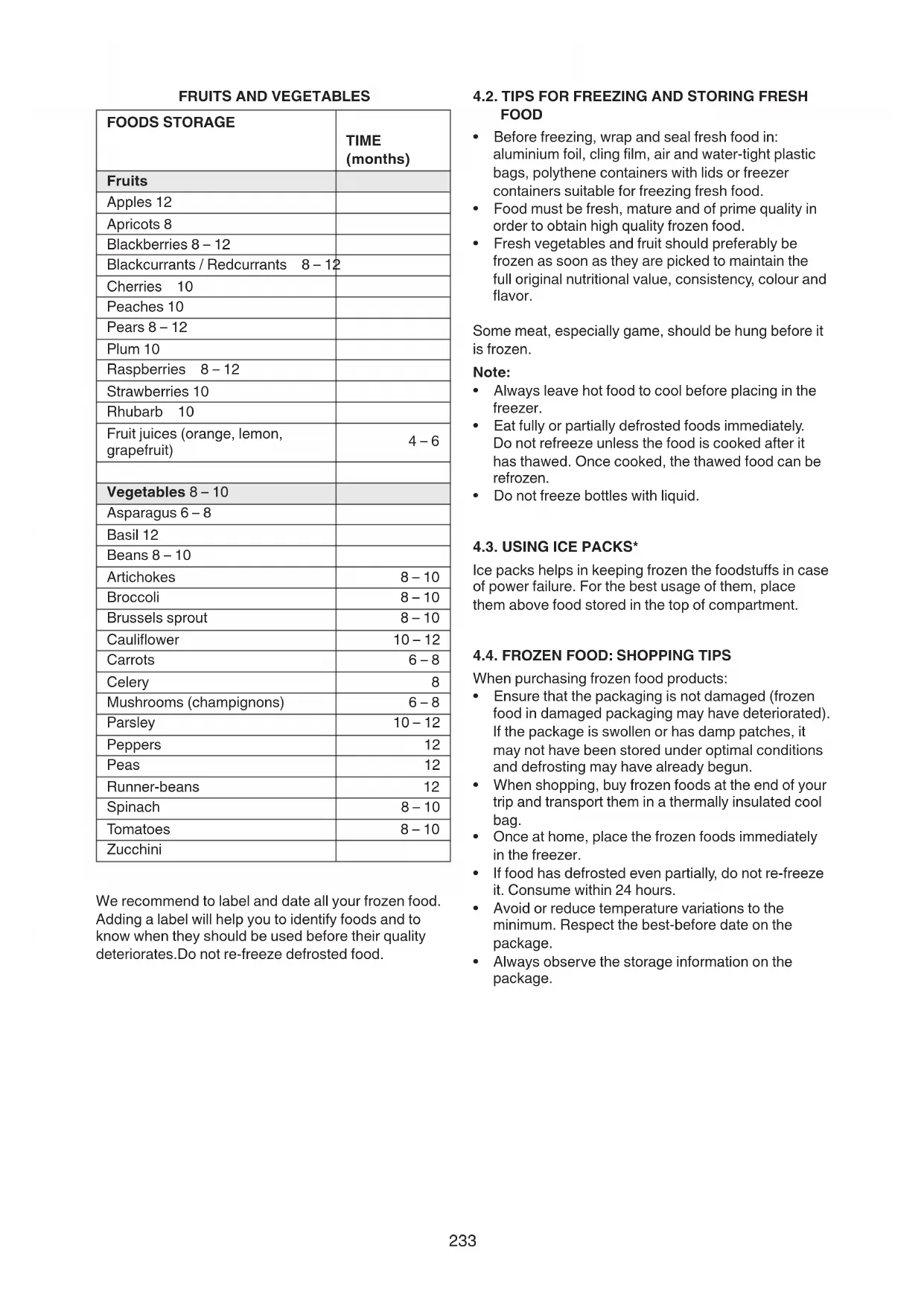

What is the storage time for frozen foods?

The duration varies by food: beef 8-12 months, pork/veal 6-9 months, chicken 5-7 months, fruits 8-12 months, vegetables 8-12 months. Consult the detailed table in the manual for each category.

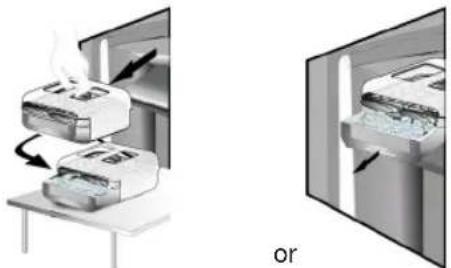

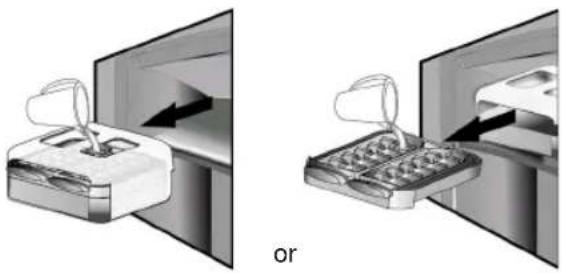

How to use the ice maker?

Remove the ice tray, fill it with drinking water to a maximum of 2/3, replace it in the compartment. Wait about 4 hours. To retrieve the ice cubes, turn the levers clockwise to drop them into the storage bin.

How to adjust the freezer temperature?

Use the control panel to adjust the temperature. The settings are visible on the display. For optimal storage, set between -18°C and -22°C. Consider the ambient temperature and frequency of opening.

What to do if the door is left open too long?

An audible and visual alarm will trigger after 2 minutes. To stop it, close the door or press the Alarm stop button once. The alarm will reset automatically.

How to install two appliances (freezer and refrigerator) side by side?

Place the freezer on the left and the refrigerator on the right. Use the attachment kit (available from after-sales service) to secure them together. The left side of the refrigerator is equipped with an anti-condensation device.

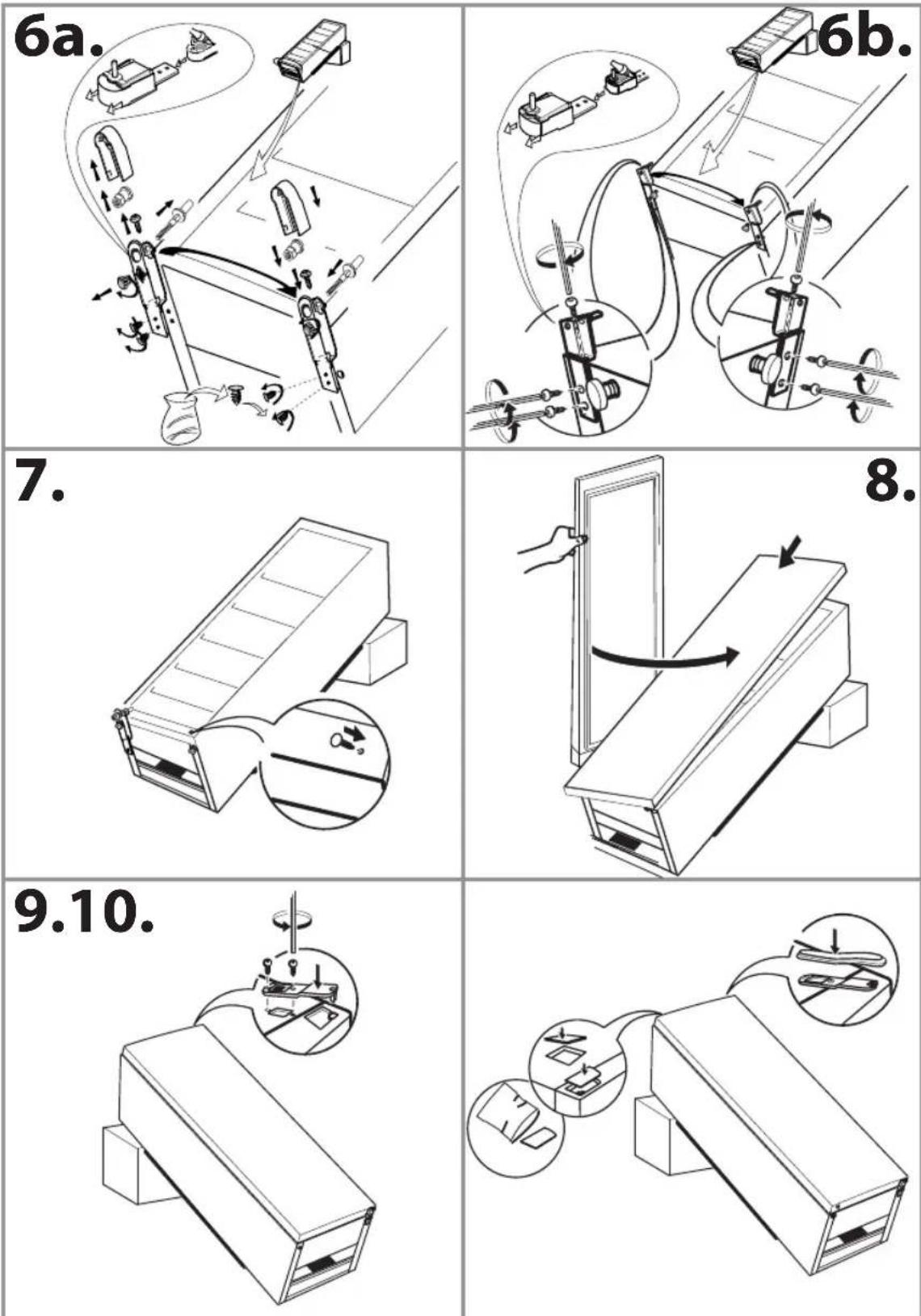

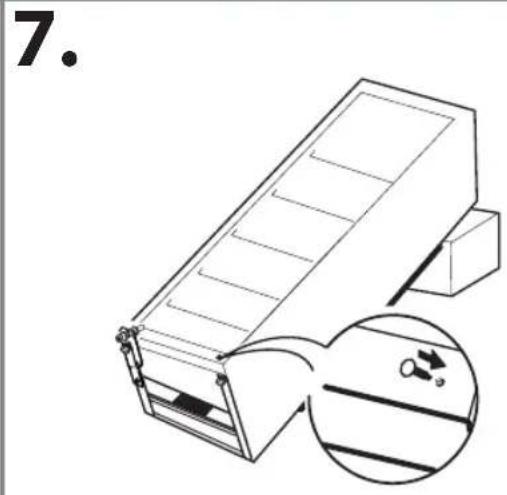

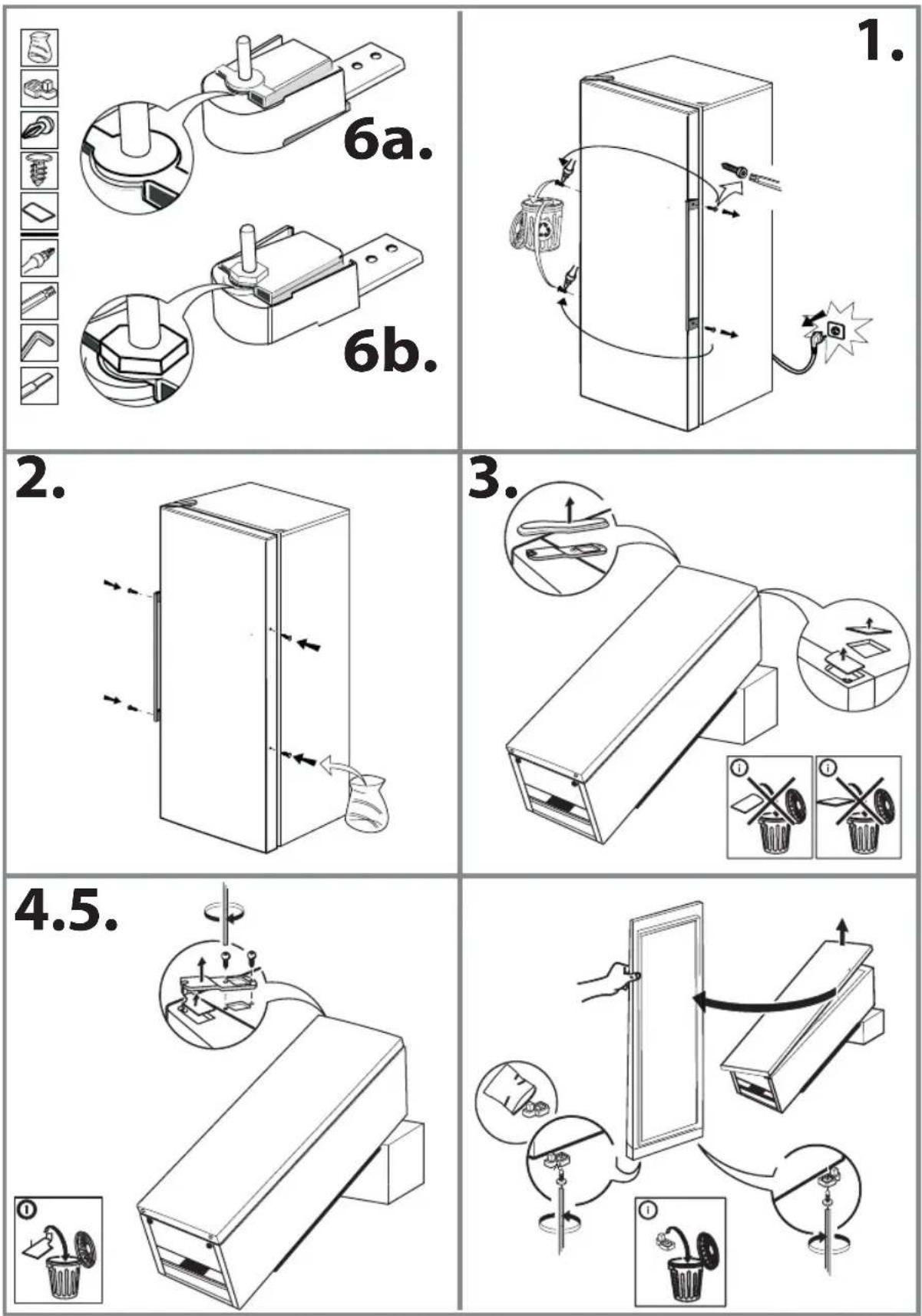

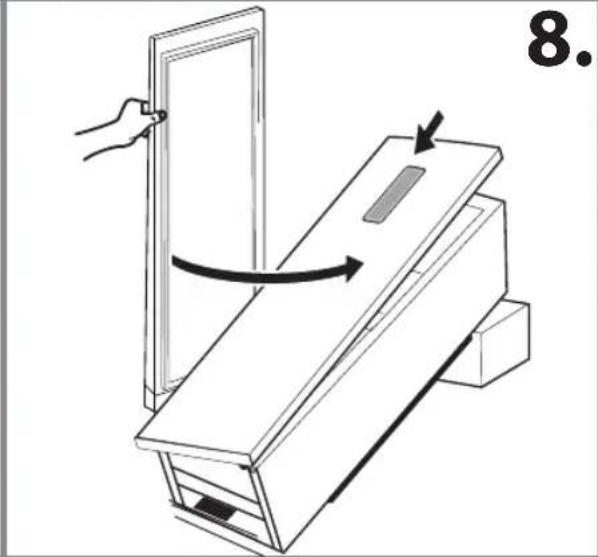

How to reverse the door opening direction?

Follow the detailed instructions provided at the end of the manual (versions 1 and 2). This operation can be done yourself or by after-sales service (not covered by warranty).

How to save energy with the Eco Night function?

Activate the Eco Night function at the start time of the reduced rate (e.g., 8 PM). The indicator light turns on. The appliance consumes less energy during the day and more at night, adapting its consumption to off-peak hours. Deactivate it by pressing again.

USER MANUAL UH8 F2D XI 2 HOTPOINT

Close-up of wooden clothespins and clips, no text or symbols visible

Bedienungsanleitung Használati útmutató Пайдалану нýskaulylýs Brukerveiledning Instrukcja obsługi

Black and white photo of multiple glass bottles with black lids, arranged in a row (no visible text or labels)

Close-up of several empty glasses with no visible text or markings

Close-up of a white industrial fan or vent with perforated grille and mounting bracket (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a battery being inserted into a device, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Illustration of a hand holding a small circular object, possibly a device or component (no text or symbols visible)

Two grayscale images showing a printer being placed on top of a table, with arrows indicating motion (no text or symbols)

Crack Crack

Illustration of a person sitting on a globe next to a cabinet with a bag labeled 'Better', no text or symbols present.

Illustration of three different hand gestures: a hand holding a button, a closed-out box, and a hanging clock with 'Click' label (no text or symbols on objects)

6. ПРЕПОРЪКА В СЛУЧАЙ НА НЕИЗПОЛЗВАНЕ НА УРЕДА

6.1. ОТСЪСТВИЕ/ВАКАНЦИЯ

Diagram of a heat exchanger with cooling unit and water flow, showing heat transfer process (no text or symbols)

8. ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

8.1. ПРЕДИ ДА СЕ ОБЪРНЕТЕ КЪМ ОТДЕЛА ЗА СЛЕДПРОДАЖБЕНО ОБСЛУЖВАНЕ...

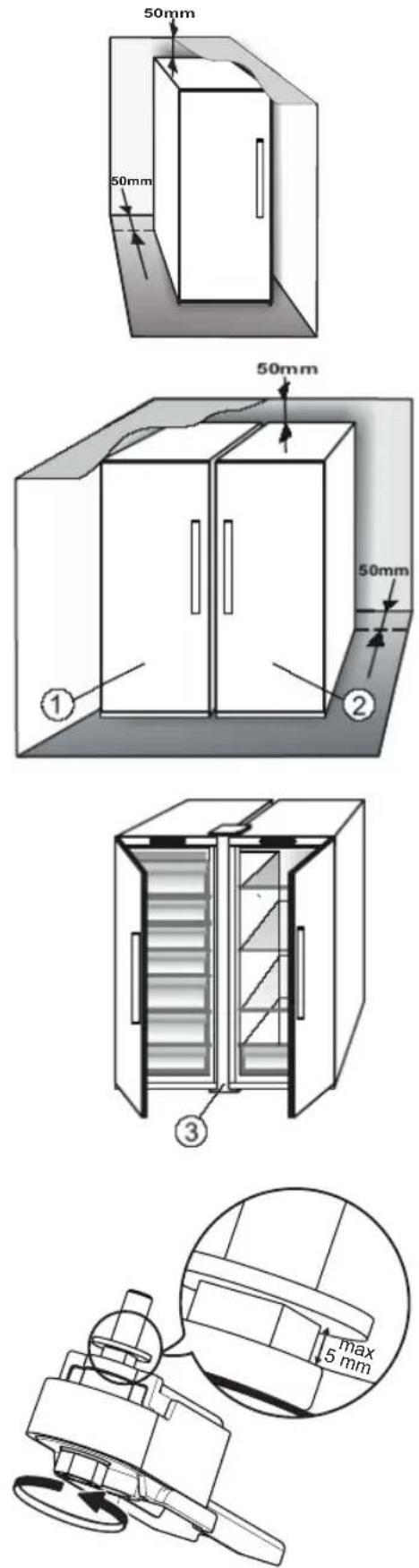

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

2. FUNKCE

2.1. CHYTRÍY DISPLEJ\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a device, labeled 'nebo' (no text or symbols on the devices themselves)

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a circular button with an arrow, next to a computer monitor (no visible text or symbols)

Two industrial printing machines with heat transfer arrows, one emitting smoke and the other showing internal components (no text or symbols)

2.13. OSVĚTLOVACÍ SYSTÉM LED\*

Diagram showing a device emitting heat from a cooling tower with a magnified view of its internal structure (no text or symbols present)

8. JAK ODSTRANIT PORUCHU

8.1. NEŽ SE OBRÁTÍTE NA SERVISNÍ STŘEDISKO...

50mm 50mm 50mm ① ② ③ max 5 mm

2. FUNKTIONER

2.1. SMART DISPLAY\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a device, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a small circular object with a curved arrow, next to a rectangular object (no text or symbols visible)

Two grayscale images showing a printer being placed on top of a table, with arrows indicating motion and the text 'eller' below (no readable text or symbols)

Diagram showing a device emitting heat from a fan array, with a magnified view of the fan array (no text or symbols present)

8. FEJLFINDINGSOVERSIGT

8.1. F∅R SERVICEAFDELINGEN KONTAKTES...

Luku 2: TOIMINNOT 46

2.1. SMART-NÄYTTÖ* 46
2.2. VIRTA-/VALMIUSTILA....46
2.3. SÄHKÖKATKOHÄLYTYS....46
2.4. LÄMPÖTILAHÄLYTYS 46
2.5. OVI AUKI -HÄLYTYS 46
2.6. PARTY-TILA* 47
2.7. SHOCK FREEZE -PAKASTUSTOIMINTO* 47
2.8. PIKAPAKASTUS* 47
2.9. ECO NIGHT -TOIMINTO (YÖSÄHKÖTAKSA) * 48
2.10. PAKASTUKSEN HALLINTA* 48
2.11. AUTOMAATTINEN HUURTUMISENESTO (NO FROST)...... 48
2.12. ICE MATE* 49
2.13. LED-VALOJÄRJESTELMÄ* 49

Luku 3: KÄYTTÖ....49

3.1. PAKASTEIDEN SÄILYTYSMÄÄRÄN LISÄÄMINEN 49
3.2. HUOMAUTUKSIA 49

Luku 4: VINKKEJÄ RUOAN SÄILYTYKSEEN ....50

4.1. PAKASTEIDEN SÄILYTYSAIKA....50
4.2. PAKASTAMISEN JA TUORETUOTTEIDEN SÄILYTYKSEN VIHJEITÄ.... 51
4.3. JÄÄPAKETTIEN KÄYTTÖ* 51
4.4. PAKASTEET: OSTOSVINKKEJÄ....51

Luku 5: TOIMINTAÄÄNET ....52

Luku 6: SUOSITELTAVAT TOIMENPITEET, JOS LAITETTA EI KÄYTETÄ ....53

6.1. PITKÄ POISSAOLO / LOMA-AIKA 53
6.2. SIIRTÄMINEN 53
6.3. SÄHKÖKATKO....53

Luku 7: LAITTEEN HUOLTO JA....53

Luku 8: VIANETSINTÄOPAS....54

8.1. ENNEN KUIN OTAT YHTEYTTÄ HUOLTOON.... 54

8.2.VIAT 55

Luku 9: HUOLTOPALVELU....55

Muut:

OVEN KÄTISYYDEN VAIHTAMINEN (VERSIO 1)....251

OVEN KÄTISYYDEN VAIHTAMINEN (VERSIO 2) 253

PAKASTIMEN SISÄOSIEN IRROTUS/ASENNUS 255

HUOM.:

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

2. TOIMINNOT

2.1. SMART-NÄYTTÖ\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a tray, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a circular object with a knob, no visible text or symbols

Illustration of two industrial machines with heat transfer arrows, one emitting smoke and the other cooling it (no text or symbols)

2.13. LED-VALOJÄRJESTELMÄ\*

Diagram of a heat exchanger with cooling unit and water flow, showing heat transfer process (no text or symbols)

8. VIANETSINTÄOPAS

8.1. ENNEN KUIN OTAT YHTEYTTÄ HUOLTOON...

50mm 50mm 50mm ① ② ③ max 5 mm

2. FONCTIONS

2.1. ÉCRAN INTELLIGENT\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a screen, with no visible text or symbols.

Diagram of a device with two circular components and an upward arrow, no visible text or symbols

Hand holding a small circular object, possibly a button or knob, with no visible text or symbols.

Two grayscale images showing a printer being placed on a table, with arrows indicating motion (no text or symbols)

2.13. SYSTÈME D'ÉCLAIRAGE DEL\*

Illustration of a bottle pouring liquid into a glass container, next to a computer monitor and a scroll (no text or symbols)

Crack Crack

Illustration of a globe, a cabinet, and a person holding a bag with 'Bett' label (no other text or symbols)

Illustration of three basic electrical switch symbols: a hand pressing down, a box with a vertical pole, and a hanging button labeled 'Click' (no text or numbers present)

6. RECOMMANDATION EN CAS DE NON-UTILISATION DE L'APPAREIL

6.1. ABSENCE/VACANCES

Diagram of a heat exchanger with cooling fins and a magnified view showing internal flow (no text or labels)

8. GUIDE DE DÉPANNAGE

8.1. AVANT DE CONTACTER LE SERVICE APRÈS-VENTE...

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a computer, labeled 'oder' (no text or symbols on the devices themselves)

Diagram of a device with two circular components and an upward arrow, no visible text or symbols

Hand holding a circular button next to a card (no text or symbols visible)

Two industrial printing machines with steam rising from a table, one emitting smoke and the other cooling down (no text or symbols visible)

2.13. LED LICHTANLAGE\*

Crack Crack

Illustration of four different objects: a tree, a globe, a server with a bag, and a box labeled 'Bertz' (no text or symbols on objects)

Three simple icons showing a door, a refrigerator, and a hanging lamp (no text or symbols)

Diagram of a heat exchanger with cooling unit and internal cooling chamber, showing heat transfer process (no text or labels)

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being placed on a monitor, one with a handle and arrow, the other with a tray and lid (no text or symbols)

Diagram of a device with two circular components and an upward arrow, no visible text or symbols

Hand holding a small circular object with an arrow, next to a rectangular device (no text or symbols visible)

Two grayscale illustrations showing a printer being processed from a tray, with no visible text or symbols.

Illustration of three industrial components: a globe with a tree, a cabinet with a bag, and a container labeled 'Berry' (no text or symbols on objects)

Crack Crack

Three simple icons showing a hand pointing at a panel, a cabinet, and a hanging lamp (no text or symbols)

6. AJÁNLÁSOK ARRA AZ ESETRE, HA NEM HASZNÁLJA A KÉSZÜLÉKET

6.1. TÁVOLLÉT/NYARALÁS

Diagram of a heat exchanger with cooling unit and water flow, showing heat transfer process (no text or symbols)

50mm 50mm 50mm ① ② ③ max 5 mm

2. ФУНКЦИЯЛАР

2.1. SMART DISPLAY (СМАРТ ДИСПЛЕЙ)\*

Close-up of a hand pressing a button on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a screen, labeled 'Hemece' (no text or symbols on the devices themselves)

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Illustration of a hand holding a circular object, possibly a device or tool, with no visible text or symbols.

Illustration of a wine bottle pouring liquid into a glass, with a computer setup and a separate device (no text or symbols visible)

Illustration of three industrial components: a globe, a server unit, and a person holding a bag labeled 'Berrie' (no text or symbols on objects)

Crack Crack

Three simple line drawings: a hand pointing at a panel, a cabinet, and a hanging lamp (no text or symbols)

Diagram showing a device emitting heat from a cooling tower with a magnified view of its internal structure (no text or symbols present)

50mm 50mm 50mm ① ② ③ max 5 mm

2. FUNKSJONER

2.1. SMART DISPLAY\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a screen, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a circular button on a credit card (no text or symbols visible)

Illustration of a printer being processed with a stack of paper, showing internal components and motion arrows (no text or symbols)

2.13. LED-LYS SYSTEM\*

Diagram of a heat exchanger with cooling fins and a magnified view showing internal flow (no text or symbols)

8. FEILS∅KINGSLISTE

8.1. F∅R DU KONTAKTER SERVICEAVDELINGEN...

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

Close-up of a hand pressing a button on a surface, no visible text or symbols

Two diagrams showing a device being placed on a screen, with one panel open and the other showing a tray (no text or symbols)

Diagram of a device with two circular components and an upward arrow, no visible text or symbols

Illustration of a hand holding a small circular object, possibly a button or knob, with no visible text or symbols.

Illustration of two industrial machines in a processing room, one emitting smoke and the other cooling it with a label 'lub' (no text or symbols on the devices themselves)

2.13. SYSTEM OŚWIETLENIA LED\*

Illustration of three objects: a tree with a hand, a globe with a grid, and a server unit with a bag (no text or symbols)

Crack Crack

Illustration of three basic electrical circuit components: a hand inserting a component into a box, a cabinet with a hanging lamp, and a button labeled 'Click' (no text or symbols on the devices themselves)

6. ZALECENIA W PRZYPADKU NIEUŻYWANIA URZĄDZENIA

6.1. NIEOBECNOŚĆ/WAKACJE

Diagram showing a device emitting heat from a fan array, with a magnified view of the fan array (no text or symbols present)

8. INSTRUKCJA ROZWIĄZYWANIA PROBLEMÓW

8.1. PRZED ZWRÓCENIEM SIĘ DO SERWISU TECHNICZNEGO...

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a computer, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Aguarde até que os cubos de gelo estejam formados (recomendamos que aguarde cerca de 4 horas).

Hand holding a circular button next to a card (no text or symbols visible)

Two grayscale images showing a printer being placed on a table, with arrows indicating motion or process direction (no text or symbols)

2.13. SISTEMA DE LEDS\*

Illustration of a bottle pouring liquid into a glass tube, next to a refrigerator and a coiled bed (no text or symbols)

Illustration of three objects: a person with a hat, a globe, and a server unit (no text or symbols)

Crack Crack

Illustration of three basic electrical circuit components: a hand inserting a socket, a box with a hanging lamp, and a button labeled 'Click' (no text or symbols on the devices themselves)

Diagram showing a device emitting heat from a cooling tower with a magnified view of its internal structure (no text or symbols)

50mm 50mm 50mm ① ② ③ max 5 mm

2. FUNCTII

2.1. AFIŞAJ INTELIGENT\*

Close-up of a hand pressing a button on a surface, no visible text or symbols

Two diagrams showing a device being inserted into a screen, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a small circular object with a curved line, next to a rectangular device (no text or symbols visible)

Two grayscale images showing a steaming machine being processed, with no visible text or symbols.

2.13. SISTEM DE ILUMINARE CU LED-URI\*

Crack Crack

Illustration of three objects: a person with a hat, a globe, and a server unit (no text or symbols)

Illustration of three basic electrical circuit components: a hand inserting a component into a box, a cabinet with a hanging lamp, and a button labeled 'Click' (no text or symbols on the devices themselves)

6. RECOMANDĂRI ÎN CAZUL NEUTILIZĂRII APARATULUI

6.1. ABSENTĂ / VACANTĂ

Diagram showing a device emitting heat from a cooling tower with a magnified view of its internal structure (no text or symbols)

8. GHID DE REMEDIERE A DEFECTIUNILOR

8.1. ÎNAINTE DE A CONTACTA SERVICIUL DE ASISTENTĂ TEHNICĂ...

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a computer monitor, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a circular button on a credit card (no text or symbols visible)

Two grayscale images showing a steaming machine being placed on a table, with arrows indicating motion (no text or symbols)

2.13. СВЕТОДИОДНОЕ ОСВЕЩЕНИЕ\*

Crack Crack

Three simple icons showing a hand pressing a button, a closed box, and a hanging lamp (no text or symbols)

Diagram showing a device emitting heat from a cooling tower with a magnified view of its internal structure (no text or symbols present)

1.3. NASTAVENIE DVIER (AK JE K DISPOZÍCII)

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

2. FUNKCIE

2.1. INTELIGENTNÝ DISPLEJ\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a computer, labeled 'alebo' (no text or symbols on the devices themselves)

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a small circular object with a curved arrow, next to a rectangular device (no text or symbols visible)

Two industrial machines with steam rising from one to the other, labeled 'alebo' (no text on machines themselves)

2.13. LED OSVETLOVACÍ SYSTÉM\*

Diagram of a heat exchanger with cooling fins and a magnified view showing internal flow (no text or labels)

8. PRÍRUČKA NA RIEŠENIE PROBLÉMOV

8.1. SKÔR AKO SA OBRÁTITE NA POPREDAJNÝ SERVIS...

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a tray, with no visible text or symbols.

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a small circular object with an arrow, next to a rectangular device (no visible text or symbols)

Illustration of three industrial or commercial scenes: a person with a tree, a globe-like structure, and a cabinet labeled 'Brecht' (no readable text beyond labels)

Crack Crack

Three simple electrical circuit components: a switch, a cabinet, and a lamp (no text or symbols visible)

6. RECOMENDACIONES EN CASO DE FALTA DE USO DEL ELECTRODOMÉSTICO

Diagram of a heat exchanger with cooling fins and a magnified view showing internal flow (no text or labels)

INNEHÅLLSFÖRTECKNING

Kapitel 1: INSTALLATION ....201

1.1. INSTALLERA APPARATEN 201
1.2. INSTALLERA TVÅ APPARATER 201
1.3. JUSTERA LUCKORNA (I FÖREKOMMANDE FALL) 201

Kapitel 2: FUNKTIONER ......202

2.1. SMART DISPLAY* 202
2.2. PÅ/STANDBY 202
2.3. STRÖMAVBROTTSLARM 202
2.4. TEMPERATURLARM 202
2.5. DÖRRLARM 202
2.6. PARTYLÄGE* 203
2.7.SHOCK FREEZE* 203
2.8. SNABBINFRYSNING* 203
2.9. ECO NIGHT-FUNKTION (NATTLÄGE) * 204
2.10.FREEZE CONTROL* 204
2.11. AUTOMATISK AVFROSTNING (NO FROST) 204
2.12. ICE MATE* 205
2.13. LED-BELYSNINGSSYSTEM* 205

Kapitel 3: ANVÄNDNING ......205

3.1. ÖKA FÖRVARINGSUTRYMMET I FRYSEN 205
3.2. ANMÄRKNINGAR.... 205

Kapitel 4: TIPS FÖR LIVSMEDELSFÖRVARING....206

4.1. FÖRVARING AV FRYST MAT 206
4.2. TIPS FÖR INFRYSNING OCH FÖRVARING AV FÄRSK MAT 207
4.3. ANVÄNDA FRYSKLAMPARNA* 207
4.4. FRYST MAT: TIPS NÄR DU HANDLAR....207

Kapitel 5: FUNKTIONSLJUD....208

Kapitel 6: OM APPARATEN INTE ANVÄNDS....209

6.1. FRÅNVARO/SEMESTER 209
6.2.FLYTT 209
6.3. STRÖMAVBROTT 209

Kapitel 7: RENGÖRING OCH UNDERHÅLL....209

Kapitel 8: FELSÖKNING ......210

8.1. INNAN DU KONTAKTAR SERVICEORGANISATIONEN.... 210
8.2.FEL 211

Kapitel 9: SERVICE ......211

Övrigt:

BAKÅTSVÄNGANDE LUCKA (VERSION_1) 251

BAKÅTSVÄNGANDE LUCKA (VERSION_2) 253

TA BORT/SÄTTA I FRYSENS INVÄNDIGA DELAR.... 255

OBS!

50mm 50mm 50mm ① ② 50mm ③ max 5 mm

2. FUNKTIONER

2.1. SMART DISPLAY\*

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a container, labeled 'eller' (no text or symbols on the devices themselves)

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Hand holding a circular button on a credit card (no text or symbols visible)

Two grayscale images showing a printer being processed, with one emitting smoke and the other showing a close-up of its internal structure (no text or symbols)

2.13. LED-BELYSNINGSSYSTEM\*

Diagram of a heat exchanger with cooling unit and water flow, showing internal heat distribution (no text or labels)

8. FELSÖKNING

8.1. INNAN DU KONTAKTAR SERVICEORGANISATIONEN...

50mm 50mm 50mm 50mm ① ② ③ max 5 mm

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two diagrams showing a device being inserted into a computer, with no visible text or symbols.

Diagram of a mechanical component with two circular features and an upward arrow, no visible text or symbols

Hand holding a circular button next to a card (no text or symbols visible)

Two industrial printing machines in operation, one emitting smoke and the other showing internal components (no text or symbols visible)

Illustration of a person reading a globe, a globe with grid pattern, and a server unit (no text or symbols)

Crack Crack

Three simple electrical circuit components: a switch, a box, and a hanging tag (no text or symbols)

Diagram of a heat exchanger with cooling unit and water flow, showing internal heat distribution (no text or labels)

ENGLISH Instructions for use Page 226

INDEX

Chapter 1: INSTALLATION....227

1.1. INSTALLING SINGLE APPLIANCE 227
1.2. INSTALLING TWO APPLIANCES 227
1.3. ADJUST DOORS (IF AVAILABLE) 227

Chapter 2: FUNCTIONS ......228

2.1. SMART DISPLAY* 228
2.2.ON/STAND BY 228
2.3. BLACK OUT ALARM 228
2.4. TEMPERATURE ALARM 228
2.5.DOOR OPEN ALARM 228
2.6. PARTY MODE* 229
2.7. SHOCK FREEZE* 229
2.8.FAST FREEZE* 229
2.9. ECO NIGHT FUNCTION (NIGHT TIME RATE) * 230
2.10. FREEZE CONTROL* 230
2.11.AUTOMATIC NO FROST 230
2.12. ICE MATE* 231
2.13. LED LIGHT SYSTEM* 231

Chapter 3: USE....231

3.1. HOW TO INCREASE FREEZER STORAGE CAPACITY 231
3.2. NOTES 231

Chapter 4: FOOD-STORAGE TIPS....232

4.1.STORAGE TIME OF FROZEN FOODS....232
4.2. TIPS FOR FREEZING AND STORING FRESH FOOD 233
4.3. USING ICE PACKS* 233
4.4. FROZEN FOOD: SHOPPING TIPS 233

Chapter 5: FUNCTIONAL SOUNDS ......234

Chapter 6: RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE......235

6.1. ABSENCE / VACATION 235
6.2.MOVING 235
6.3. POWER FAILURE 235

Chapter 7: MAINTENANCE AND CLEANING....235

Chapter 8: TROUBLESHOOTING GUIDE ......236

8.1. BEFORE CONTACTING AFTER-SALES SERVICE.... 236
8.2. FAILURES 237

Chapter 9: AFTER-SALES SERVICE....237

Others:

REVERSE DOOR SWING (VERSION_1)....251

REVERSE DOOR SWING (VERSION_2) 253

REMOVING/INSERT THE FREEZER INTERIOR 255

NOTE:

The instructions apply to several models, so there may be differences. Sections which only apply to certain appliances are indicated with an asterisk (*).

Functions which are dedicated specially for your already bought model of product you will find in QUICK START GUIDE.

1. INSTALLATION

1.1. INSTALLING SINGLE APPLIANCE

To guarantee adequate ventilation, leave a space on both sides and above the appliance.

The distance between the rear of the appliance and the wall behind the appliance should be at least 50mm.

A reduction of this space will increase the Energy consumption of product.

1.2. INSTALLING TWO APPLIANCES

During installing the freezer ① and the fridge ② together ensure that the freezer is located on the left and the fridge on the right (as shown on the drawing). Left side of refrigerator is equipped with special device in order to avoid condensation problems between appliances.

We recommended installing two appliances together using the linking-kit ③ (as shown on the drawing). You can buy it in Service.

1.3. ADJUST DOORS (IF AVAILABLE)

To level the doors using the adjustable lower hinge (select models)

If the refrigerator door is lower than the freezer door, raise the refrigerator door by turning the adjustment screw counterclockwise using a M10 wrench.

If the freezer door is lower than the refrigerator door, raise the freezer door by turning the adjustment screw counterclockwise using a M10 wrench.

50mm 50mm 50mm ① ② ③ max 5 mm

2. FUNCTIONS

2.1. SMART DISPLAY\*

This function can be used to save energy. Please follow the instructions contained in the Quick Start Guide to activate/deactivate the function. Two seconds after activation of the Smart Display, the display goes off. To adjust the temperature or use other functions, it is necessary to activate the display by pressing any button. After about 15 seconds without performing any action, the display goes off again. When function is deactivated the normal display is restored. The Smart Display is automatically disabled after a power failure. Remember that this function does not disconnect the appliance from the power supply, but only reduce the energy consumed by external display.

Note: The declared appliance energy consumption refers to operation with the Smart Display function activated. This function is available only on the model with User Interface on the door.

2.2. ON/STAND BY

This function turns On/Stand-by the freezer compartments. To put the product in Stand-by, press & hold the On/Stand-by button ⏻ for 3 seconds. When the appliance is in Stand-by, the light inside the freezer compartment does not work. Remember that this operation does not disconnect the appliance from the power supply. To switch the appliance On again, simply press the On/Stand-By button ⏻

2.3. BLACK OUT ALARM

After a power blackout, your product is designed to automatically monitor the temperature in the freezer when electricity is resupplied. If the temperature in the freezer rises above freezing level, the Black Out indicator ☑ turns on, the Alarm indicator ⚠ blinks and the acoustical alarm sounds when electricity is resupplied.

To reset the alarm press the Stop Alarm button ⚠ just once.

In case of Black Out Alarm, the following actions are recommended:

• If the food in the freezer is unfrozen but still cold, all the food in the freezer should be eaten within the next 24 hours.
• If the food in the freezer is frozen, this indicates the food was thawed and then refrozen when electricity was re-supplied which degrades taste, quality and nutritional value and also could be unsafe. It is recommended to not consume the food but to dispose of the entire content of the freezer. The Black Out Alarm is designed to provide guidance on food quality in the freezer in the event of electricity black out. This system does not guarantee food quality or safety and consumers are advised to use their own judgment in evaluating food quality in freezer compartment.

2.4. TEMPERATURE ALARM

The acoustic alarm sounds and temperature indicator (°C) blinks. The alarm is activated when:

• The appliance is connected to the power supply after prolonged disuse
• The freezer compartment temperature is too high
• The quantity of fresh foods loaded into the freezer exceeds that indicated on the rating plate

- The freezer door has been left open for a long time. To mute the alarm buzzer press Stop Alarm button ⚠ just once. The Alarm indicator ⚠ is automatically turned-off as soon as the freezer compartment reaches a temperature below -10°C and the temperature set indicator (°C) stop blinking and shows the chosen setting.

2.5. DOOR OPEN ALARM

The Alarm icon lights up blinking and the acoustic alarm sounds. The alarm is activated when the door is left open for more than 2 minutes. To disengage the door alarm close the door, or press once Stop Alarm button to mute the acoustic alarm.

2.6. PARTY MODE\*

Use this function to chill drinks inside the freezer compartment. 30 minutes after selection (the time required to chill a 0.75 l bottle without the glass breaking), the symbol flashes, an acoustic alarm sounds: remove the bottle from the freezer compartment and press the Stop Alarm button to disable the alarm.

Important: do not leave the bottle inside the freezer compartment longer than the time necessary for chilling.

2.7. SHOCK FREEZE\*

The “Shock Freeze” compartment is specifically designed to freeze up to 2 kg of fresh food extremely quickly. The ultra-fast “Shock Freeze” function minimizes the formation of ice crystals inside the food as it freezes, thus ensuring it is of the best possible quality when defrosted prior to consumption. When the “Shock Freeze” function is not active, the compartment can be used as normal for traditional freezing or for the storage of already frozen foods.

Note: When the Shock Freeze function is active you may hear a humming sound. This is absolutely normal and is caused by airflow that permits optimum cold distribution inside compartment.

Activating and deactivating the "Shock Freeze" function:

1. Make sure at least 12 hours have passed since the last time the "Shock Freeze" function was activated (if at all). Do not activate the function more frequently than once every 12 hours.
2. Make sure that the "Fast Freeze" function is not active: "Shock Freeze" and "Fast Freeze" functions cannot be active together at the same time.
3. Empty the "Shock Freeze" compartment.
4. Activate the "Shock Freeze" function by briefly touching the button on the control panel: the icon lights up and the fans on the bottom of the compartment come on, increasing the flow of cold air and accelerating the freezing process as a result.
5. Place the food to be frozen inside the compartment, a few centimeters (min. 2 cm) away from the fans on the back of the compartment, so that cold air can circulate.
6. To achieve maximum freezing speed, we recommend not to deactivate the "Shock Freeze" function until its automatic deactivation, keeping closed the door
7. The "Shock Freeze" function is automatically deactivated 4-5 hours after its activation: the indicator switches off and the fans are deactivated. The "Shock Freeze" function may nevertheless be switched off at any time as desired, by briefly pressing the button on the control panel: the indicator switches off and the fans are deactivated.

Attention:

• Incompatibility with the “Fast Freeze” function To guarantee optimal performance, the “Shock Freeze” and “Fast Freeze” functions cannot be used at the same time. Therefore, if the “Fast Freeze” function has been already engaged, it has to be disengaged first to activate the “Shock Freeze” function (and vice-versa).
• If the fans in the Shock Freeze compartment do not start working

After the “Shock Freeze” function has been activated, it may happen that the indicator lights up as expected, but the fans do not start working. This is normal and means that freezer defrosting is in progress. At the end of the defrosting phase (maximum duration: 1.5 hours), the fans will automatically start working and the “Shock Freeze” process will begin as normal.

- If the indicator does not light up

If, after the button ✦ is pressed, the icon ⏻ lights up: in this case the ✦ button has been pressed for too long. To activate the “Shock Freeze” function, first deactivate the Fast Freeze function (holding the ⏻ button for 3 seconds, then briefly touch the ✦ button, without keeping it pressed for more than 1 second.

2.8. FAST FREEZE\*

The amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance rating plate.

This function can be used for optimum appliance performance, 24 hours before placing fresh food in the freezer. Please follow the instructions contained in the Quick Start Guide to activate/deactivate the function. After placing fresh food in the freezer, 24 hours on Fast Freeze function is generally sufficient; After 50 hours the Fast Freeze function automatically deactivates.

Attention:

In order to save energy, when freezing small amounts of food, the fast freeze function can be deactivated after a few hours.

- Incompatibility with the "Shock Freeze" function

To guarantee optimal performance, the “Shock Freeze” and “Fast Freeze” functions cannot be used at the same time. Therefore, if the “Fast Freeze” function has been already engaged, it has to be disengaged first to activate the “Shock Freeze” function (and vice-versa).

2.9. ECO NIGHT FUNCTION (NIGHT TIME RATE) \*

The Eco Night function enables appliance energy consumption to be concentrated in the reduced rate hours (generally at night), when electricity is readily available and costs less than during the daytime (only in countries that utilise a time based multi-rate system - check energy rates with the local electricity company). To activate the function, press the button ⚙ at the reduced rate start time (depending on the specific rates plan). For example, if the reduced rate starts at 8 p.m., press the button ⚙ at that time. When the Eco Night indicator ⚙ is ON, the function is ON. Once the function is activated, the appliance automatically adapts energy consumption according to the time selected, i.e. consuming less energy during the day than at night.

IMPORTANT: To operate properly, the function must be on during the night and day. The function remains on until deactivated (or it is deactivated in case of a power failure or appliance switch-off). To deactivate the function, press the button 🎨 again. When the Eco Night indicator 🔗 is OFF, the function is OFF.

Note: The declared appliance energy consumption refers to operation with the Eco Night function deactivated.

2.10. FREEZE CONTROL\*

Freeze Control is an advanced technology that reduces temperature fluctuations in the whole freezer compartment to minimum, thanks to an innovative air system, totally independent from the fridge. Freeze burns are significantly reduced and food preserves its original quality and color.

To activate the Freeze Control choose the function from the menu, set to >ON< and press OK button to confirm the selection. To deactivate this function repeat the same procedure setting to >OFF<.

The function works properly in a defined range of temperature: between -22^ and -24^ .

When the function is engaged and the current temperature in the freezer is set to the warmer set point than -22^ , the temperature is automatically set to -22^ to match the working range.

If the function is engaged and the user modify the freezer temperature out of the working range, the function is automatically switched off.

In case of Fast freezing is engaged, the function “Freeze control” is inhibited until the Fast Freezing function switched off.

2.11. AUTOMATIC NO FROST

This product is designed to defrost automatically according to conditions of use and ambient humidity No Frost freezers provide chilled air circulation around the storage areas and prevent the formation of ice, thereby completely eliminating the need for defrosting. Frozen items don't stick to the walls, labeling stays legible and storage space remains neat and clear.

2.12. ICE MATE\*

HOW TO MAKE ICE CUBES

You can remove the ice cube tray by pulling it towards you.

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

WARNING: fill with potable water only (maximum level = 2/3 of the overall capacity).

Two diagrams showing a device being inserted into a screen, with no visible text or symbols.

Place again the Ice Mate in freezer compartment, or reinsert the ice cube tray within the Ice Mate. Take care not to spill water.

Diagram of a device with two circular components and an upward arrow, no text or symbols present

Wait until the ice cubes are formed (it is recommended to wait for about 4 hours).

NOTE: Ice Mate is removable. It can be placed in horizontal position anywhere in the freezer compartment or taken out of the appliance when ice-making is not required.

3. USE

3.1. HOW TO INCREASE FREEZER STORAGE CAPACITY

You can increase storage capacity in the freezer compartment by:

• removing the baskets / flaps* to allow the storage of big products.
• placing the food products directly on the freezer shelves.
• removing the Ice Mate*.
• removing bottle rack*.

HOW TO TAKE ICE CUBES

Make sure that the storage bin is in place under the ice tray. If not, slide into place.

Twist one of levers firmly in the clockwise direction until the tray twists slightly. The ice cubes fall into the

storage bin.

Hand holding a small circular object, possibly a button or icon, with no visible text or symbols.

Repeat Step 2 for the other half of the tray, if necessary. To get ice, slightly lift up the storage bin and pull it towards you.

NOTE: if you prefer, you can remove the entire Ice Mate from the appliance, to take the ice cubes wherever is convenient for you (for example: directly on the table).

Two grayscale illustrations showing a steaming machine being placed on a table and another with a closed lid, both without any text or symbols.

2.13. LED LIGHT SYSTEM\*

The light system inside the freezer compartment uses LEDs light, allowing a better lightning as well as very low energy consumption. If the LED light system does not work, please contact the Service to replace it.

3.2. NOTES

• Do not block the air outlet area (on the back wall inside the product) with food products.
• If the freezer is provided with a flap, it is possible to maximize the storage volume by removing the flap.
• All shelves, flaps and pull-out baskets are removable.
• The internal temperatures of the appliance may be affected by the ambient temperature, frequency of door opening, as well as location of the appliance. Temperature setting should take into consideration these factors.
• Unless otherwise specified the appliance accessories are not dishwasher safe.

4. FOOD-STORAGE TIPS

The freezer is the ideal storage location for store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

The maximum number of kilograms of fresh food that can be frozen within a 24-hour period is indicated on the rating plate (…kg/24h).

If you have a little quantity of food to store in the freezer, we recommend to use the coldest areas of your freezer compartment, corresponding to the upper or the middle area, depending on your model (see the product sheet to know which is the area where is suggested to freeze fresh food).

4.1. STORAGE TIME OF FROZEN FOODS

The table shows the recommended storage time for frozen fresh foods.

FOODS STORAGE	TIME(months)
Meat
Beef 8 – 12
Pork, veal 6 – 9
Lamb 6 – 8
Rabbit 4 – 6
Mince / offal 2 – 3
Sausages 1 – 2
Poultry
Chicken 5 – 7
Turkey 6
Giblets 2 – 3
Crustaceans
Molluscs creab, lobster 1 – 2
Creab, lobster 1 – 2
Shellfish
Oyster, shucked	1 – 2

Fish
“fatty” (salmon, herring, mackerel)	2 – 3
“lean” (cod, sole)	3 – 4
Stews
Meat, poultry	2 – 3
Dairy products
Butter	6
Cheese	3
Double cream 1 – 2
Ice-cream 2 – 3
Eggs	8
Soups and sauces
Soup	2 – 3
Meat sauce	2 – 3
Pate	1
Ratatouille	8
Pastry and bread
Bread	1 – 2
Cakes (plain)	4
Gateaux (cakes)	2 – 3
Crepes	1 – 2
Uncooked pastry	2 – 3
Quiche	1 – 2
Pizza	1 – 2

FRUITS AND VEGETABLES

FOODS STORAGE	TIME(months)
Fruits
Apples 12
Apricots 8
Blackberries 8 – 12
Blackcurrants / Redcurrants 8 – 12
Cherries 10
Peaches 10
Pears 8 – 12
Plum 10
Raspberries 8 – 12
Strawberries 10
Rhubarb 10
Fruit juices (orange, lemon, grapefruit)	4 – 6
Vegetables 8 – 10
Asparagus 6 – 8
Basil 12
Beans 8 – 10
Artichokes	8 – 10
Broccoli	8 – 10
Brussels sprout	8 – 10
Cauliflower	10 – 12
Carrots	6 – 8
Celery	8
Mushrooms (champignons)	6 – 8
Parsley	10 – 12
Peppers	12
Peas	12
Runner-beans	12
Spinach	8 – 10
Tomatoes	8 – 10
Zucchini

We recommend to label and date all your frozen food. Adding a label will help you to identify foods and to know when they should be used before their quality deteriorates. Do not re-freeze defrosted food.

4.2. TIPS FOR FREEZING AND STORING FRESH FOOD

• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.
• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavor.

Some meat, especially game, should be hung before it is frozen.

Note:

• Always leave hot food to cool before placing in the freezer.
• Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.
• Do not freeze bottles with liquid.

4.3. USING ICE PACKS\*

Ice packs helps in keeping frozen the foodstuffs in case of power failure. For the best usage of them, place them above food stored in the top of compartment.

4.4. FROZEN FOOD: SHOPPING TIPS

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, buy frozen foods at the end of your trip and transport them in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the freezer.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid or reduce temperature variations to the minimum. Respect the best-before date on the package.
• Always observe the storage information on the package.

5. FUNCTIONAL SOUNDS

Sounds coming from your appliances are normal since it has a number of fans and engines to regulate performances that switch on and off automatically.

Some of the functional sounds can be reduced through

• Leveling the appliance and installing it on an even surface
• Separating and avoiding contact between the appliance and furniture.
• Checking if the internal components are correctly placed.
• Checking if bottles and containers are not in contact with each other.

Some of the functional sounds you might hear:

A hissing sound when switching on the appliance for the first time or after a long pause.	A gurgling sound when refrigerant fluid enters into the pipes.	BRRR sound is from the compressor running.
Buzzing sound when water valve or fan start working.	A cracking sound when compressor starts or when ready ice drops into ice box abrupt clicks when compressor switches on and off.	The CLICK is from the thermostat which adjusts how often the compressor is running.

6. RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE

6.1. ABSENCE / VACATION

In case longer absence its recommended to use up food and to disconnect the appliance to save energy.

6.2.MOVING

1. Take out all internal parts.
2. Wrap them well, and fix them together with adhesive tape so that they do not bang together or get lost.
3. Screw the adjustable feet so that they do not touch the support surface.
4. Close and fix door with adhesive tape and, again using adhesive tape, fix the power cable to the appliance.

6.3. POWER FAILURE

In the event of a power failure, call the local office of your electricity supply company and ask how long it is going to last.

Note: Bear in mind that a full appliance will stay cold longer than a partially filled one.

If ice crystals are still visible on the food, it may be frozen again, although flavour and aroma may be affected.

If food is found to be in a poor condition, it is best to throw it away.

For power failures lasting up to 24 hours.

1. Keep the door of the appliance closed. This will allow the stored food to stay cold as long as possible.

For power failures lasting more than 24 hours.

1. Empty the freezer compartment and arrange the food in a portable freezer. If this type of freezer is not available and, likewise, no artificial ice packs are available, try to use up the food, which is more easily perishable.

2. Empty the ice tray.

7. MAINTENANCE AND CLEANING

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent specifically for refrigerator interiors. Never use abrasives. Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion. Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth.

Do not use steam cleaners.

Condenser placed in the rear of the appliance should be cleaned regularly using a vacuum cleaner.

Important:

• The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances, but with a dry cloth.
• The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean them with a vacuum cleaner.
• To remove or insert the glass shelf, move up the front part of the shelf to pass the stopper.

Diagram showing a heat exchanger with cooling fins and a magnified view of the interior (no text or symbols)

8. TROUBLESHOOTING GUIDE

8.1. BEFORE CONTACTING AFTER-SALES SERVICE...

Performance problems often result from little things you can find and fix yourself without tools of any kind.

PROBLEM SOLUTION
The appliance is not working: • Is the power cable plugged into a live socket with the proper voltage?Have you checked the protection devices and fuses of the electrical system in your home?
If there is water in the defrost pan:	• This is normal in hot, damp weather. The pan can even be half full. Make sure the appliance is level so that the water does not overflow.
If the edges of the appliance cabinet, which come in contact with the door seal, are warm to the touch:	• This is normal in hot weather and when the compressor is running.
If the light does not work: • Have you checked the protection devices and fuses of the electrical system in your home?Is the power cable plugged into a live socket with the proper voltage?In case the LEDs are broken the user must call the Service for exchange of the same type available only at our After-sales Service Centers or authorized dealers.
If the motor seems to run too much:	• Motor running time depends on different things: number of door openings, amount of food stored, temperature of the room, setting of the temperature controls.Is the condenser (back the appliance) free of dust and fluff?Are the door properly closed?Are the door seals properly fitted?On hot days or if the room is warm, the motor naturally runs longer.If the appliance door has been left open for a while or if large amounts of food have been stored, the motor will run longer in order to cool down the interior of the appliance.
If the appliance temperature is too high:	• Are the appliance controls correctly set?Has a large amount of food been added to the appliance?Check that the door is not opened too often.Check that the door close properly.
If the doors do not open and close properly:	• Check that food packages are not blocking the door.Check that the internal parts or automatic ice maker are not out of position.Check that the door seals are not dirty or sticky.Ensure the appliance is level.

8.2. FAILURES

In the event of operation alarms, they will also be displayed in the digits LEDs, (e.g. Failure1, Failure 2, etc...) call After-sales Service and specify the alarm code. The acoustic alarm sounds, the Alarm icon lights up and the F letter on the digit display blinks according to failure code described below:

Failure code Visualization
Error 2	F letter blink on/off at 0,5 sec. Blinks ON 2 times then remain off for 5 seconds. Pattern repeats.	x2
Error 3	F letter blink on/off at 0,5 sec. Blinks ON 3 times then remain off for 5 seconds. Pattern repeats.	x3
Error 6	F letter blink on/off at 0,5 sec. Blinks ON 6 times then remain off for 5 seconds. Pattern repeats.	x6

9. AFTER-SALES SERVICE

Before contacting After-Sales Service:

Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.

If, after performing the checks described in the Troubleshooting Guide and switching the appliance on again, your appliance still does not work properly, contact the After-sales Service, explain the problem.

Specify:

• the model and appliance serial number (stated on the rating plate),
• the nature of the problem,

SERVICE

0000 000 00000

• the Service number (the number after the word SERVICE on the data plate on the inside of the appliance),
- your full address,
- your telephone number and area code.

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

ÍNDEX

50mm 50mm 50mm ① ② 50mm ③ max 5 mm

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Two-step diagram showing a device being inserted into a computer (no text or symbols present)

Simple diagram of a device with two circular components and an upward arrow, no text or symbols present.

Illustration of a hand holding a circular object with a curved arrow, no text or symbols present

Illustration of a printer being placed on a table with arrows indicating motion (no text or symbols)

Close-up of a mechanical component with a highlighted section, possibly part of a device or assembly (no visible text or symbols)

2.13. SISTEMA DE LLUM LED\*

Illustration of three industrial components: a tree, a globe with a grid, and a server unit (no text or symbols)

Crack Crack

Three simple line drawings: a hand inserting a button into a wall, a cabinet with a handle, and a lamp with a circular icon (no text or symbols)

6. RECOMANACIONS EN CAS DE NO FER SERVIR L'APARELL

6.1. ABSÈNCIES / VACANCES

Diagram of a heat exchanger with cooling fins and a magnified view showing internal flow (no text or symbols)

Technical diagram illustrating mechanical assembly with labeled components and motion arrows, likely from an engineering or manufacturing context.

Technical line drawing of a mechanical device with an inset showing a warning symbol (no text or labels present)

Diagram of a door opening operation with arrows indicating motion, no text or symbols present

9.10.

Diagram illustrating a device's internal components and assembly, with arrows indicating assembly or processing steps.

(2)

Technical diagram illustrating a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Diagram illustrating three steps of fabric cutting or rolling process, labeled 1, 2, and 3 with arrows indicating direction and movement.

1

Diagram showing a mechanical assembly with a component and a close-up of a window (no text or symbols)

3

Technical diagram showing a door opening with dimension标注 of -10cm and a hand inserting a component into a cabinet.

2

Diagram showing a hand placing a component labeled '3' into a container with a tool, and a dashed line indicating a reference point.

4

3 2 click1

Technical diagram showing a mechanical assembly with numbered components and a cross-sectional view of a component.
