USER MANUAL DWMSCP4570VW Tripp Lite

Portrait Video Wall with Security

Model: DWMSCP4570VW

Technical line drawing of a mechanical lifting or bracket assembly (no text or symbols)

Español 17 • Français 33 • Русский 49 • Deutsch 65

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200x200/300x300

200x400/400x400

400x600

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Important Safety Instructions

CAUTION

• Read the entire instruction manual before you start assembly and installation. Do not begin installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have questions about any of the instructions or warnings, contact Tripp Lite Support.
• Use with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Mounts must be attached as specified in these instructions. Improper installation may result in damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• Ensure the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Use the mounting screws provided, tighten them firmly, but DO NOT OVERTIGHTEN the mounting screws. Overtightening can cause damage to the items. This greatly reduced their holding power.
  • This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
  • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Check that the bracket is secure and safe to use at regular intervals (at least every three months).

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Images may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

Simple line drawing of a rectangular frame with rounded corners and a horizontal line inside (no text or symbols)

A

Wall Plate (x1)

C
Adapter Bracket (x2)

D
VESA Adapter (x2)

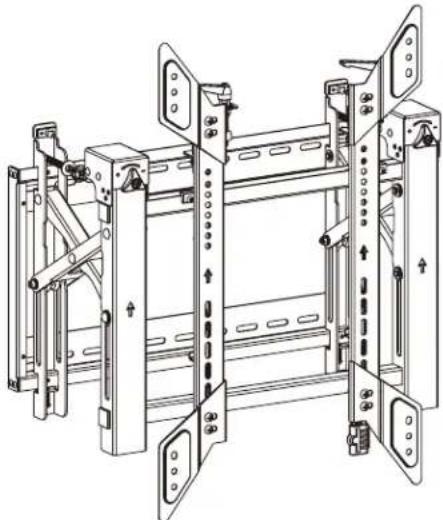

Technical line drawing of a metal frame structure with mounting brackets and mounting holes (no text or symbols)

Pop-Out Module (x1)

E
VESA Adapter (x2)

K
Lock (x1)

Package P

F
M8 Nut (x8)

G
M8x12 (x8)

H
Anti-Skid Block (x2)

I
Plastic Locking Piece (x2)

J
Hex Key (x1)

Package M

M-A
M5x14 (x4)

M-B
M6x14 (x4)

M-C
M8x20 (x4)

M-D
M6x30 (x4)

M-E
M8x30 (x4)

M-F
Washer (x4)

M-G
Small Spacer (x8)

M-H
Large Spacer (x4)

Package W

W-A
ST6.3x55 (x6)

W-B
Concrete Anchor (x6)

W-C
D6 Washer (x6)

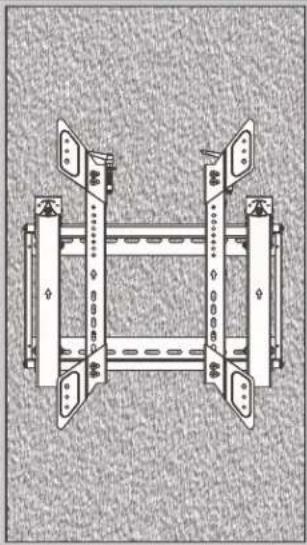

1. Solid Brick and Concrete Wall Mounting

WARNING

Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

Four-panel image showing different types of tools and components: a flat panel, a battery pack, a pencil, and a screwdriver (no text or symbols visible)

2.4" (60 mm) Ø 3/8" (Ø 10 mm)

Technical line drawing of a rectangular electronic device with mounting bracket and control panel (no text or symbols)

Technical diagram showing two-step installation of a mechanical component with labeled parts and a magnified view.

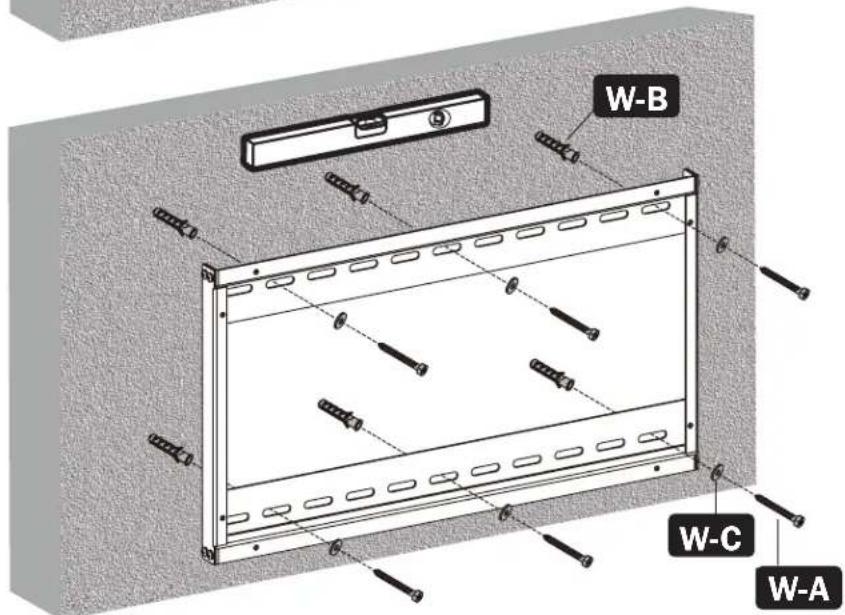

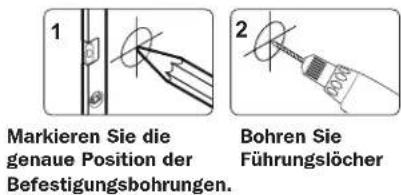

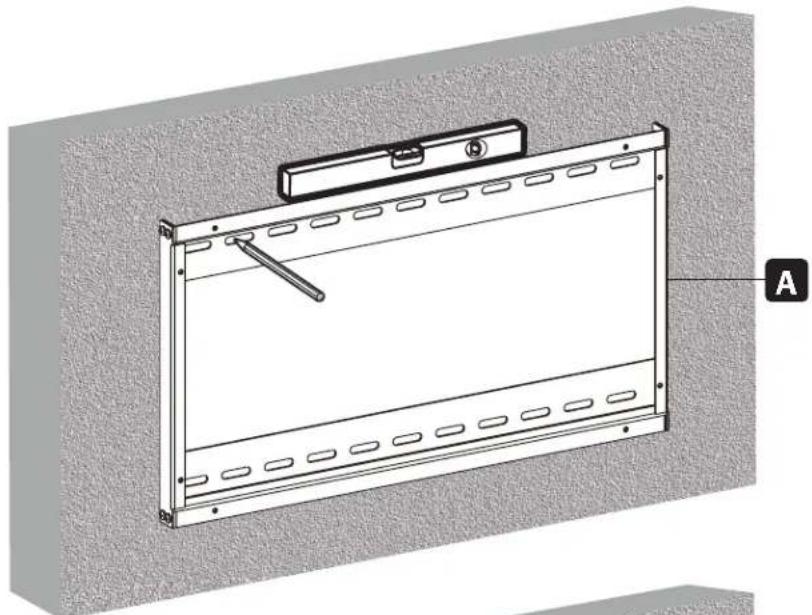

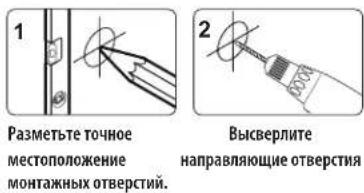

Mark the exact location of the mounting holes.

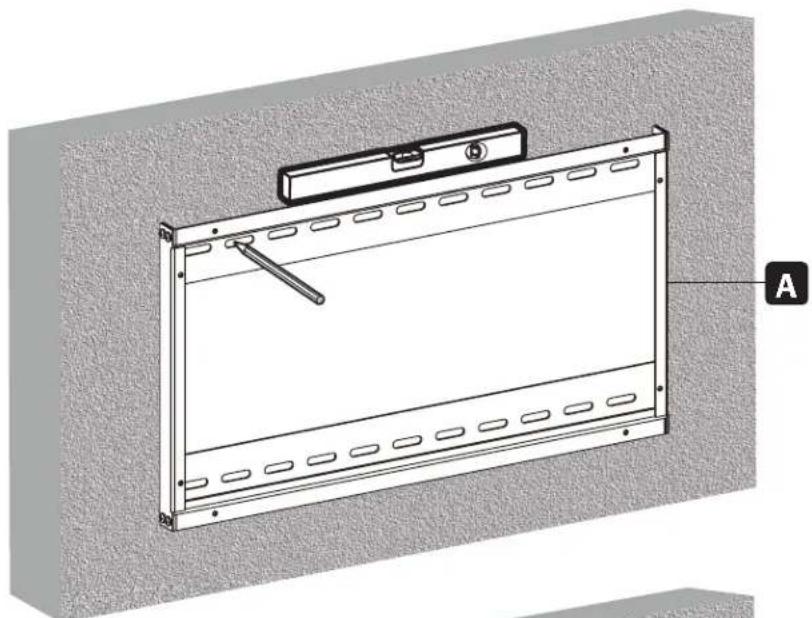

Screw the wall mount onto the wall.

W-B W-C W-A

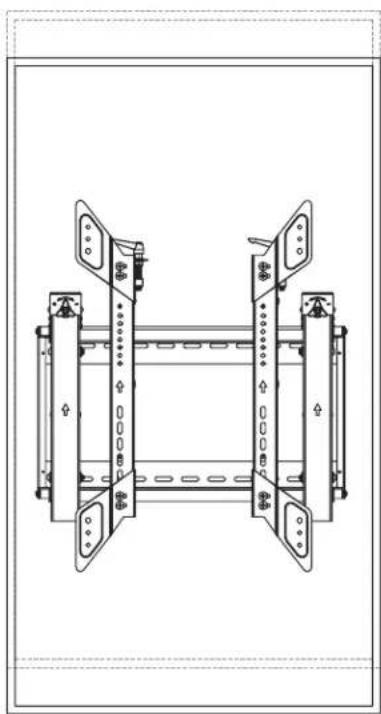

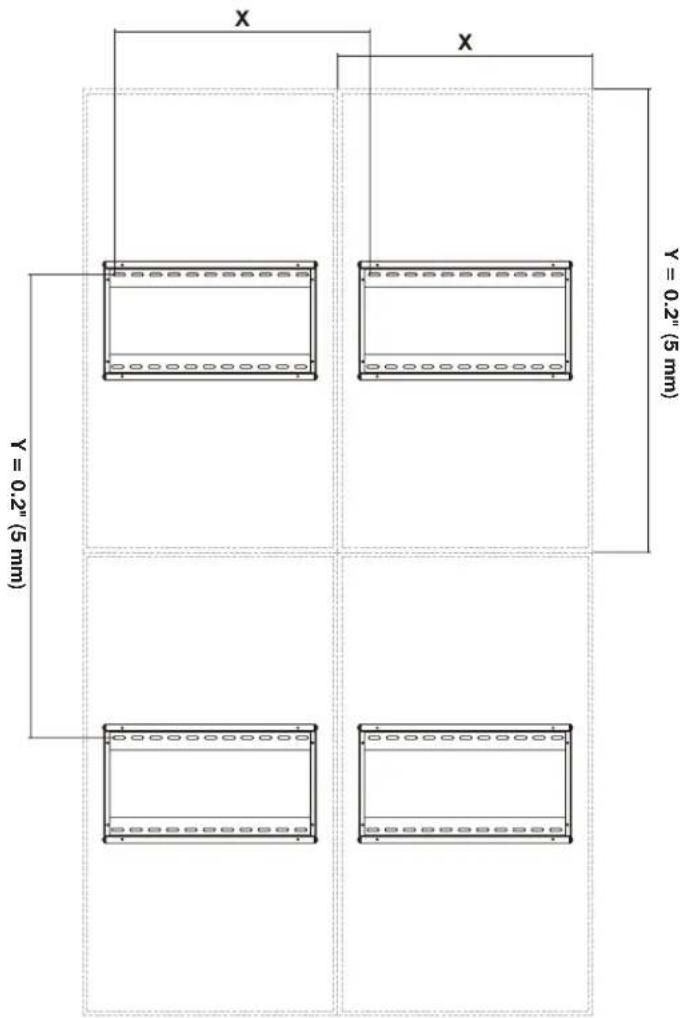

2. Video Wall Installation (mounting space as shown below)

X=Length of display Y=Height of display

X X Y = 0.2" (5 mm) Y = 0.2" (5 mm)

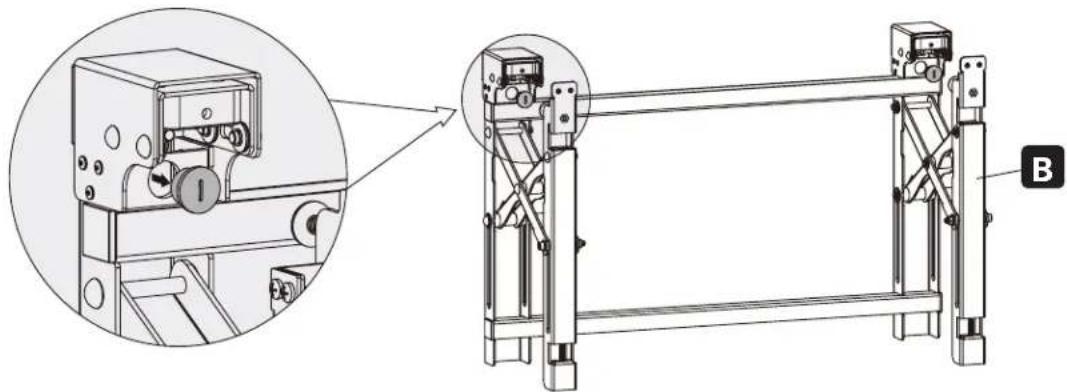

3. Installing the Pop-Out Module

Remove caps before installing the pop-out module.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

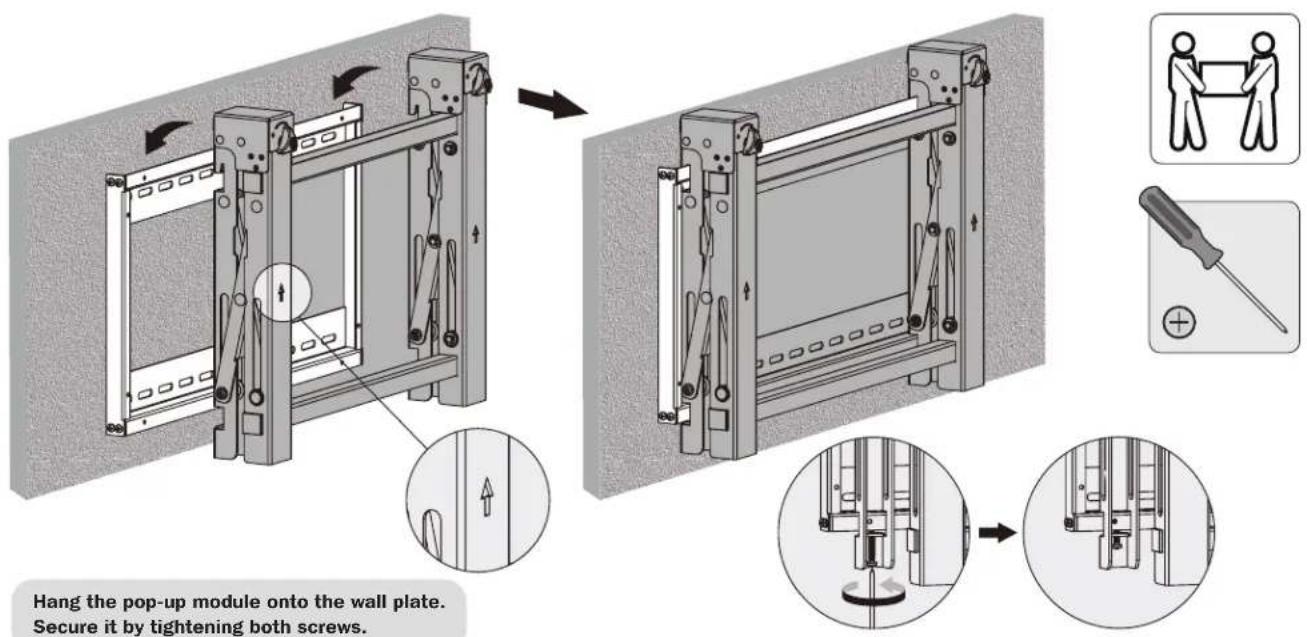

3. Installing the Pop-Out Module

Hang the pop-up module onto the wall plate. Secure it by tightening both screws.

4. Installing the Adapter Brackets

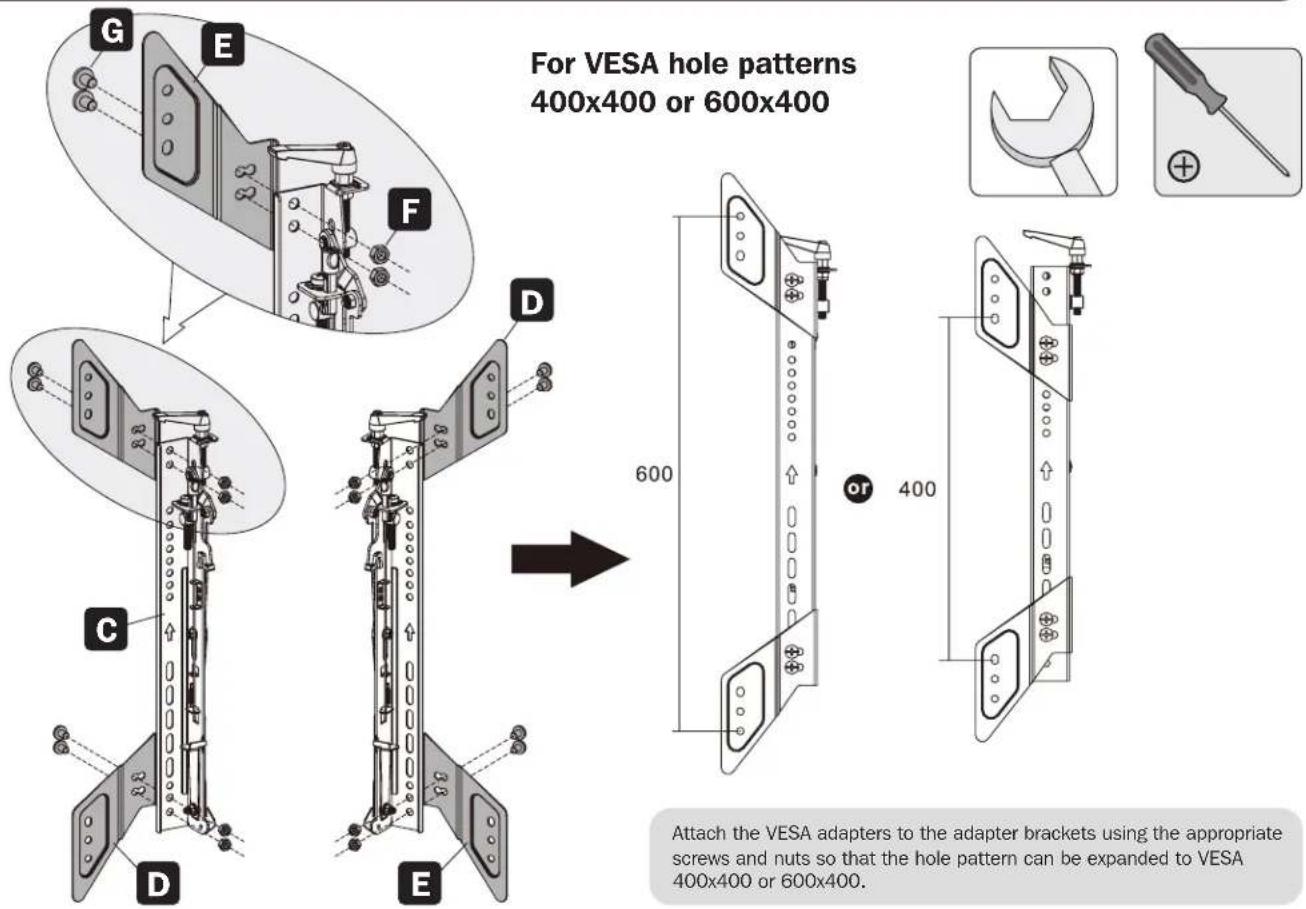

For VESA hole patterns 400x400 or 600x400 Attach the VESA adapters to the adapter brackets using the appropriate screws and nuts so that the hole pattern can be expanded to VESA 400x400 or 600x400.

4. Installing the Adapter Brackets

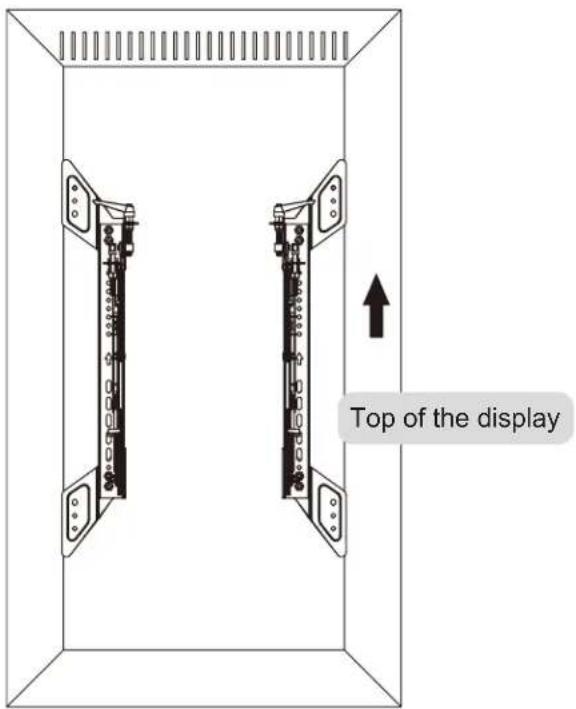

Top of the display

Pure diagram of vertical and horizontal lines with directional arrows, no text or symbols present

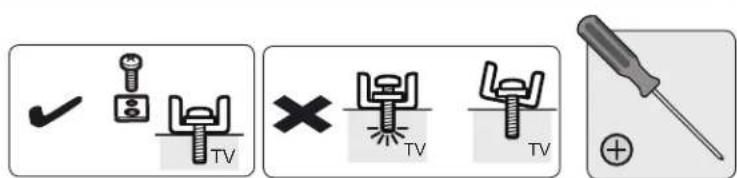

4.1 For Flat-Back Screens

Diagram showing three types of TV lighting symbols: check, cross, and screwdriver with plus sign

M-A M-B M-C M-F

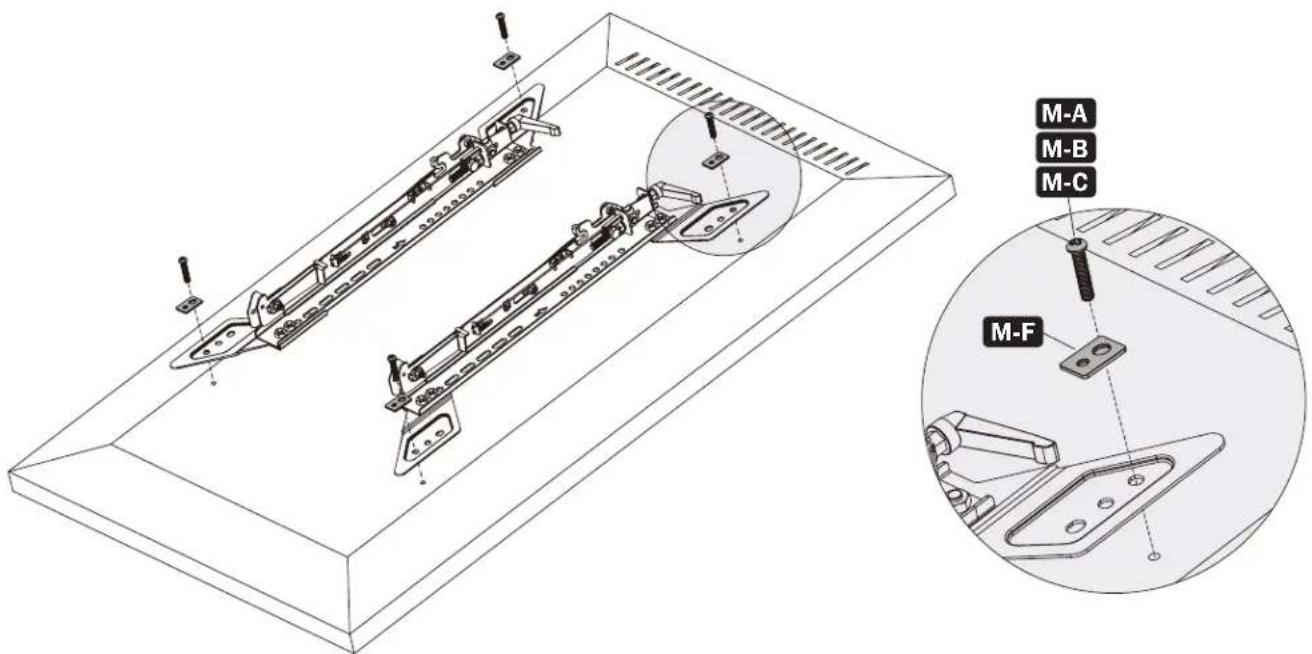

4.2 For Bump-Out or Recessed-Back Screens

M-C M-F M-G or M-DM-C M M-F M-G or M-D M-E M-F M-H or M-D M-E M-F M-H M-G M-H

Notes:

• Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.

Tighten all screws but do not overtighten.

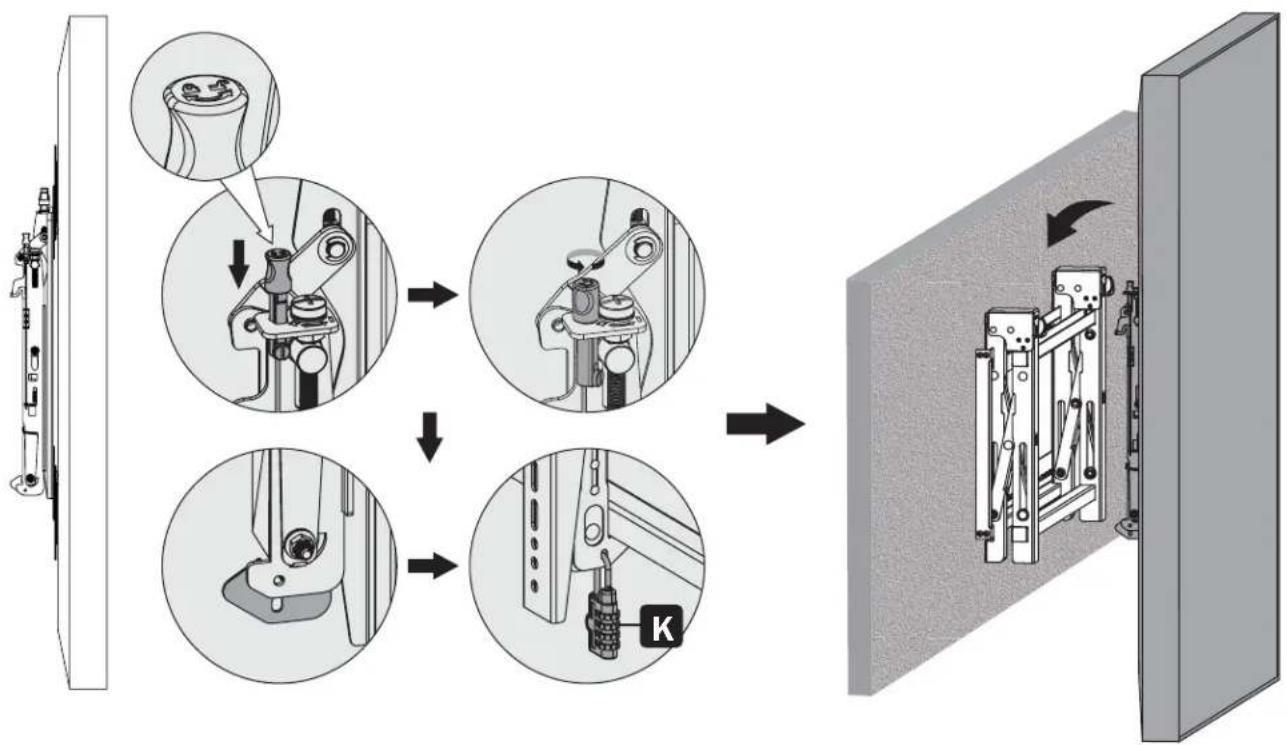

5. Hooking the Display onto the Pop-Out Module

Notes:

• Before Hooking the display, ensure the knobs are rotated to the unlock position.
• Lift the display carefully and hook it onto the pop-out module. Rotate the knobs to the lock position to secure the display.
• Use the lock to prevent the display from being removed from the mount.

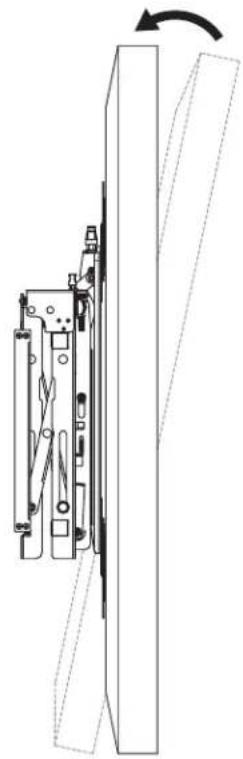

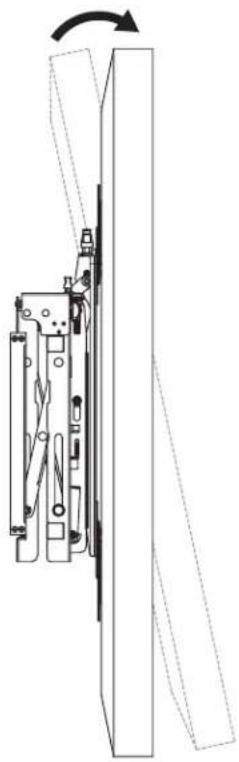

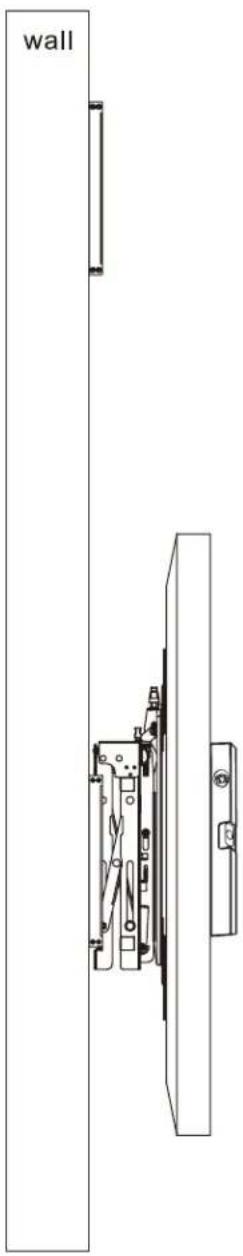

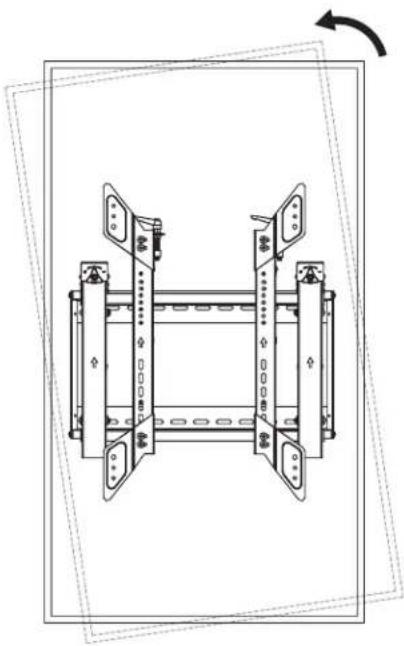

6. Adjustment

Push the display left or right for fast alignment.

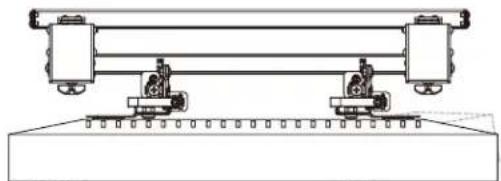

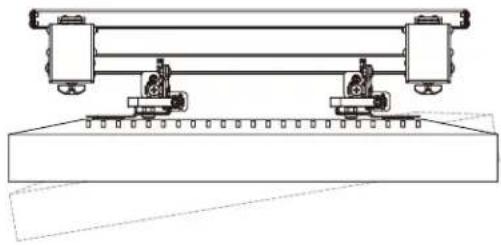

Technical line drawing of a mechanical assembly with two vertical supports and mounting brackets (no text or symbols)

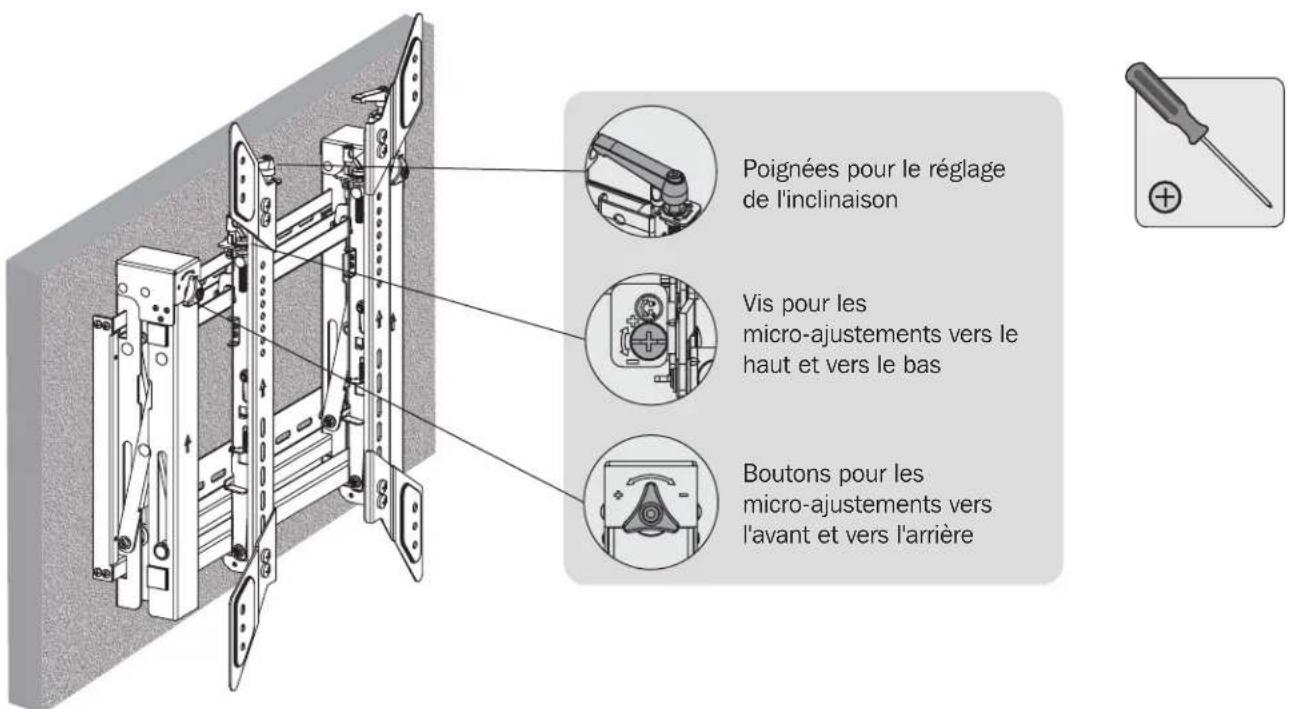

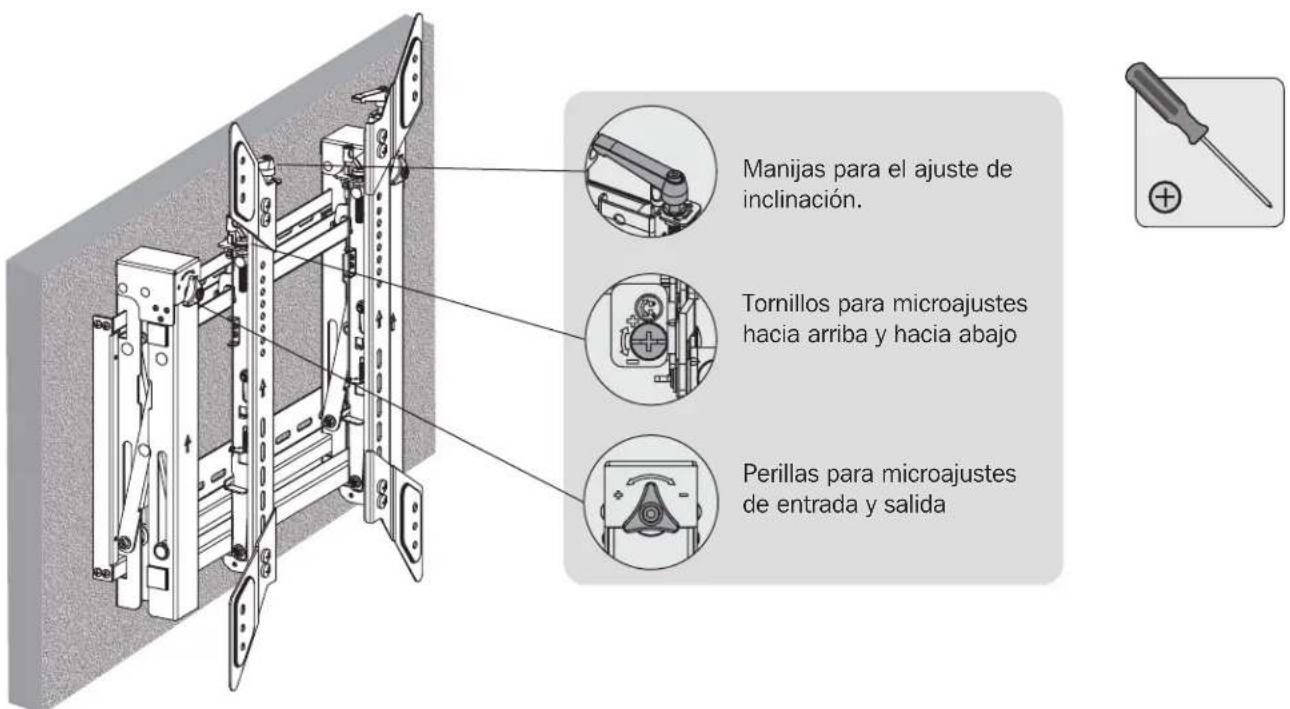

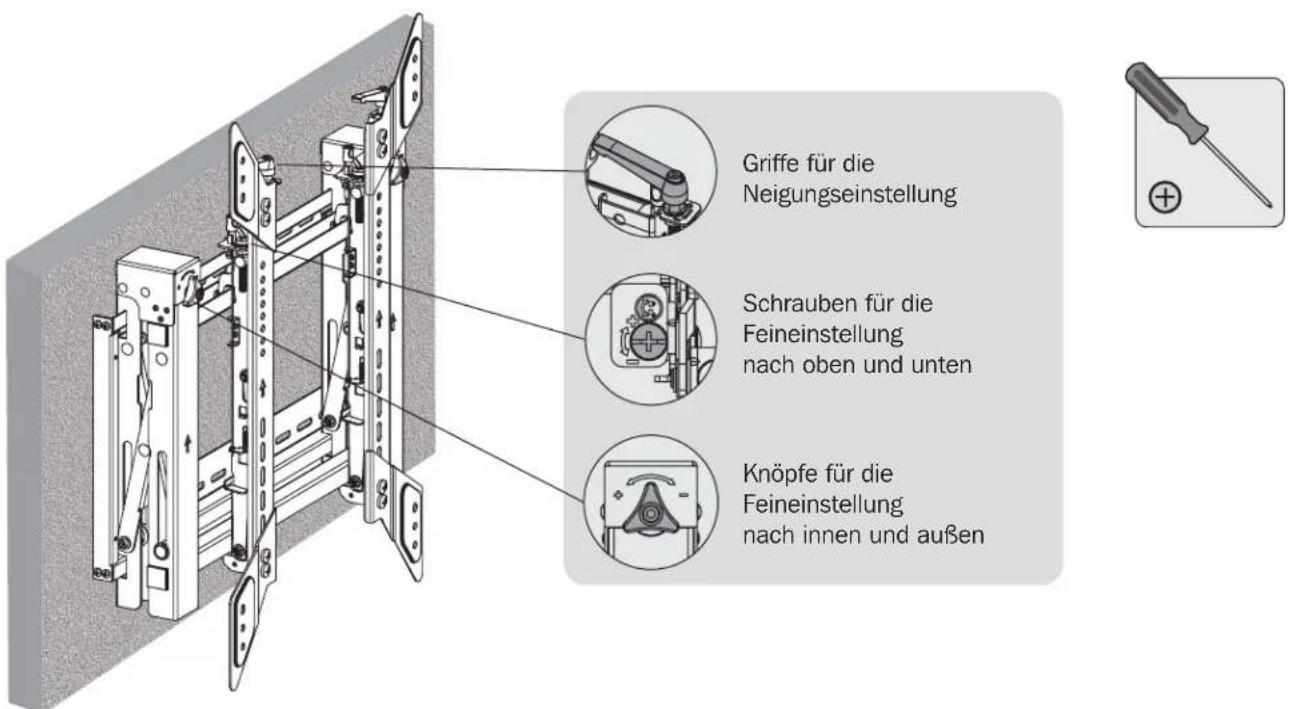

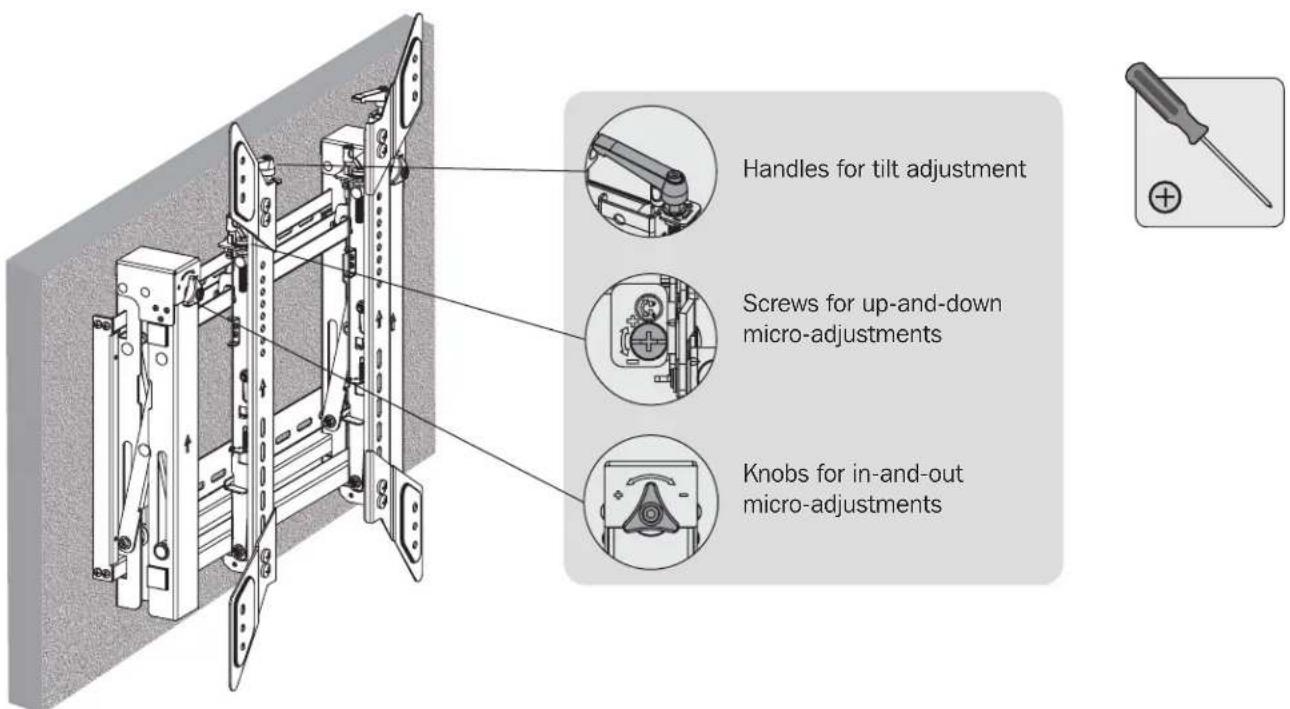

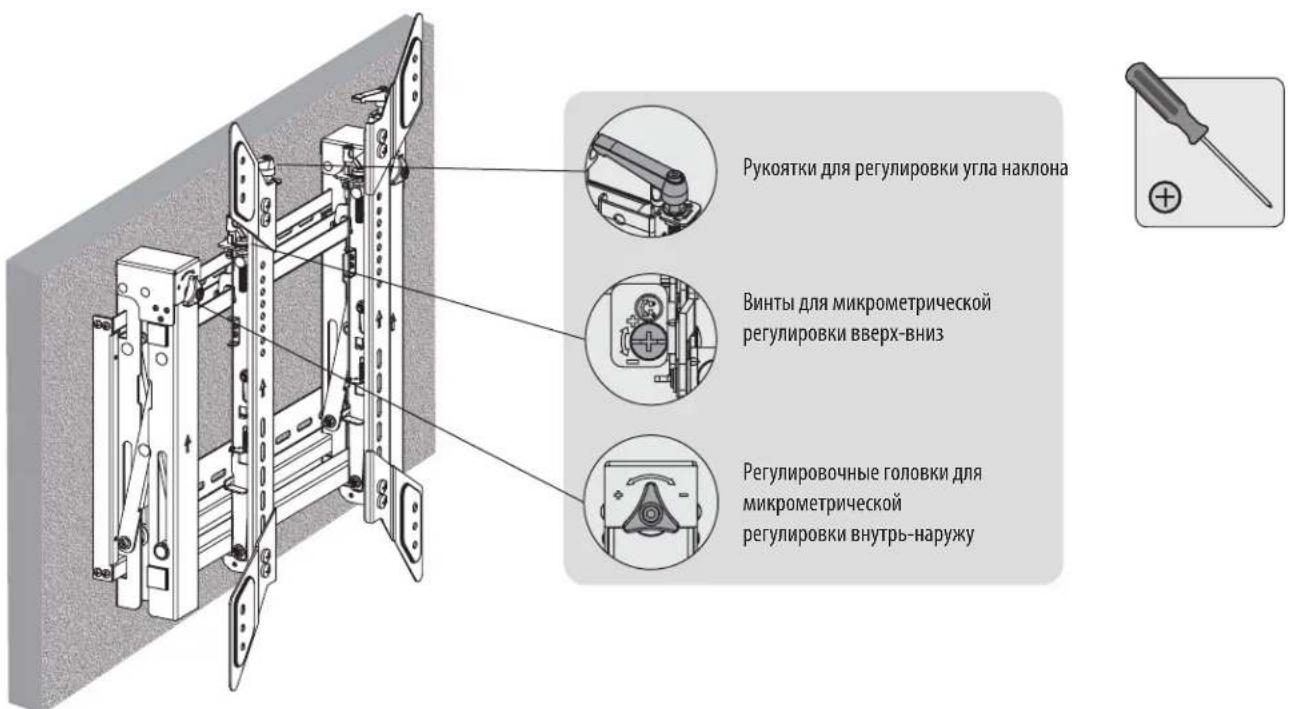

Handles for tilt adjustment Screws for up-and-down micro-adjustments Knobs for in-and-out micro-adjustments

6. Adjustment

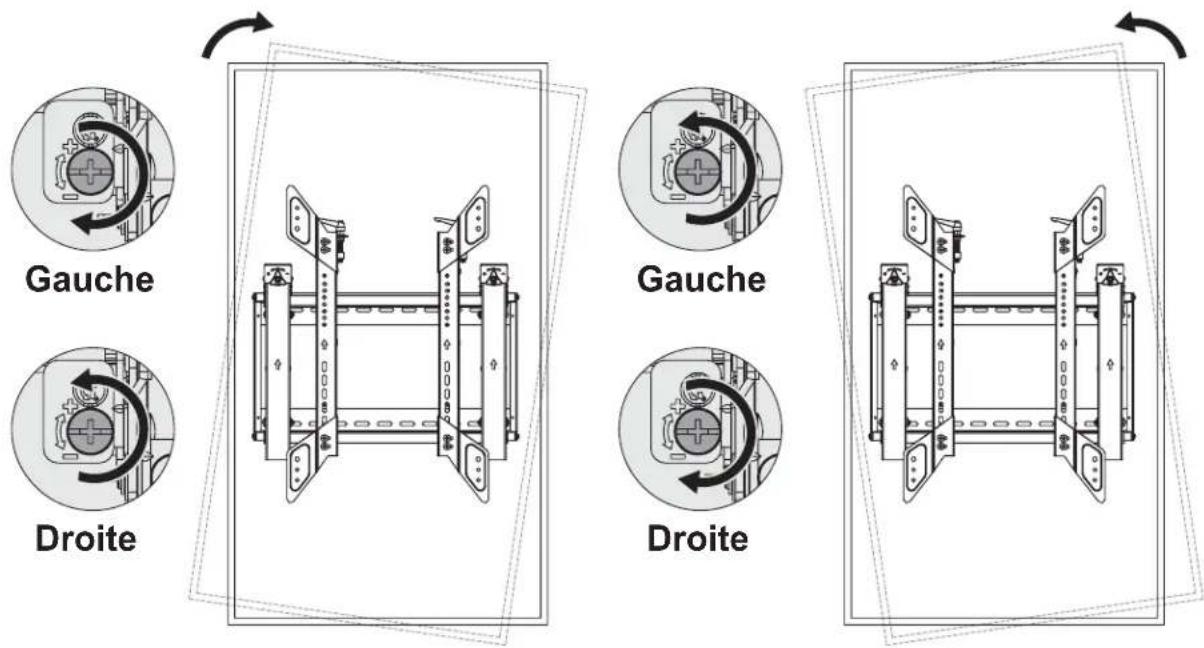

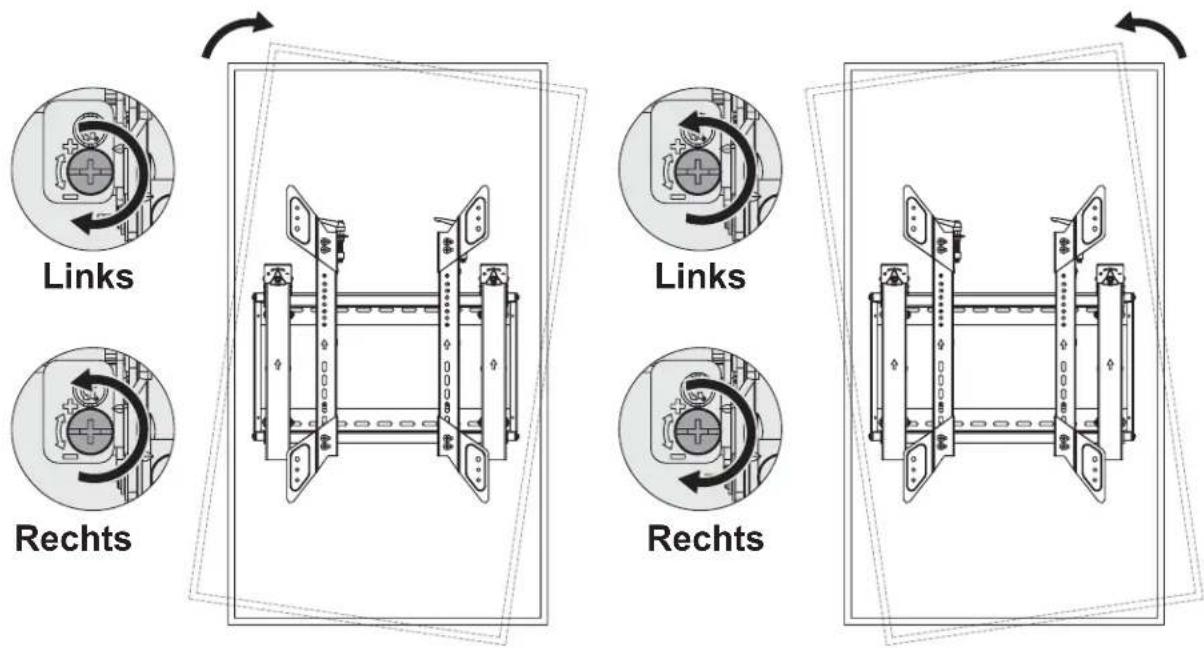

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Left

Technical line drawing of a mechanical device with rotation arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Left

Technical line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism (no text or symbols)

Right

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Right

Left

Technical line drawing of a mechanical assembly with two vertical arms and mounting brackets (no text or symbols)

Left

Right

Technical line drawing of a mechanical assembly with two vertical supports and a central horizontal beam (no text or symbols)

6. Adjustment

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Left

Right

Technical line drawing of a mechanical assembly with no visible text or symbols

Left

Right

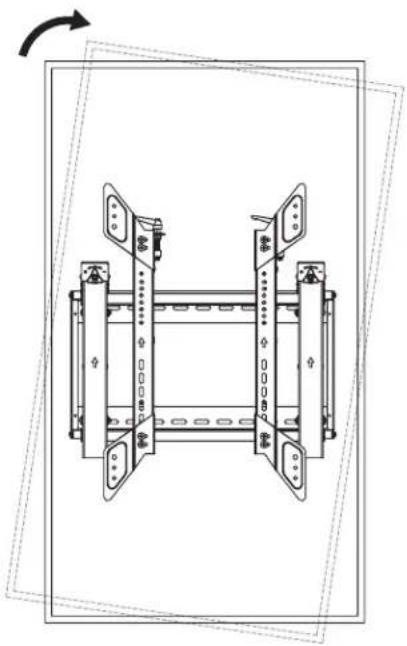

6. Adjustment

Left LeftRight Right

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

wallwall wall

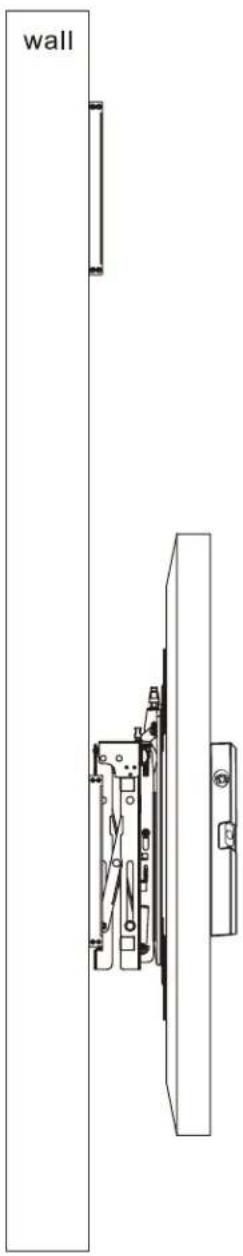

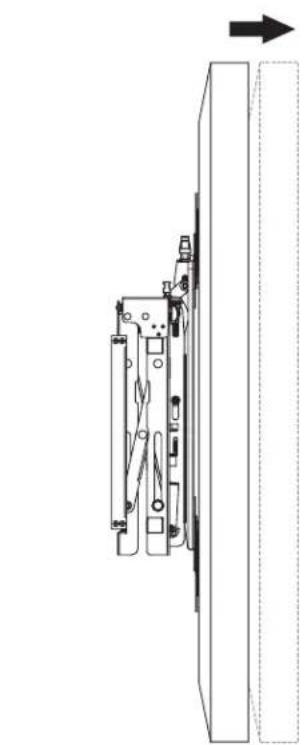

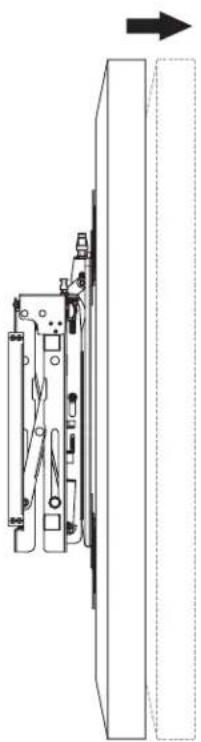

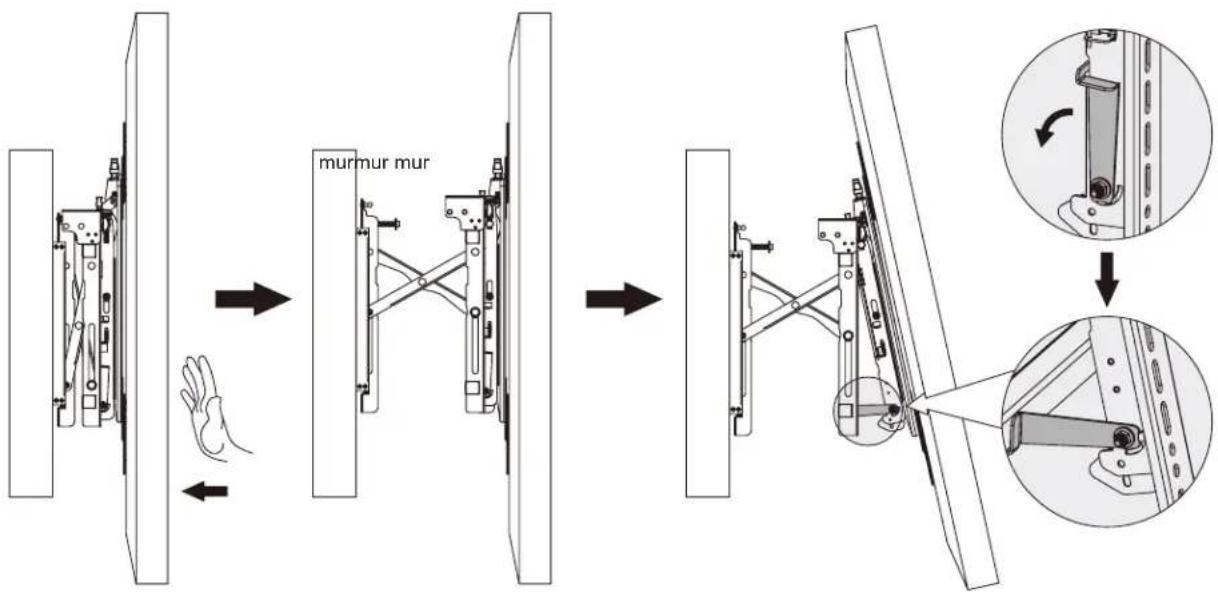

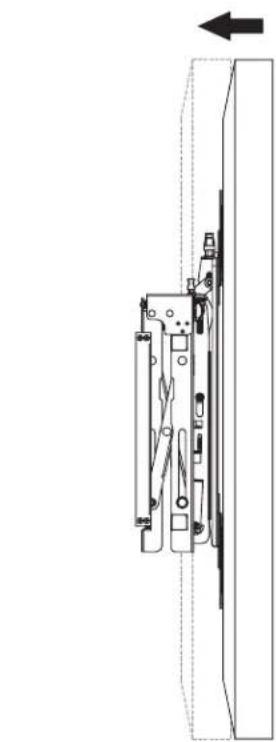

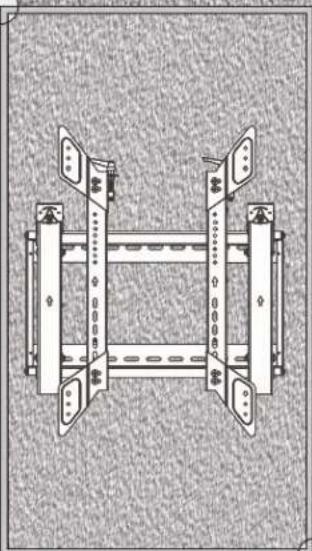

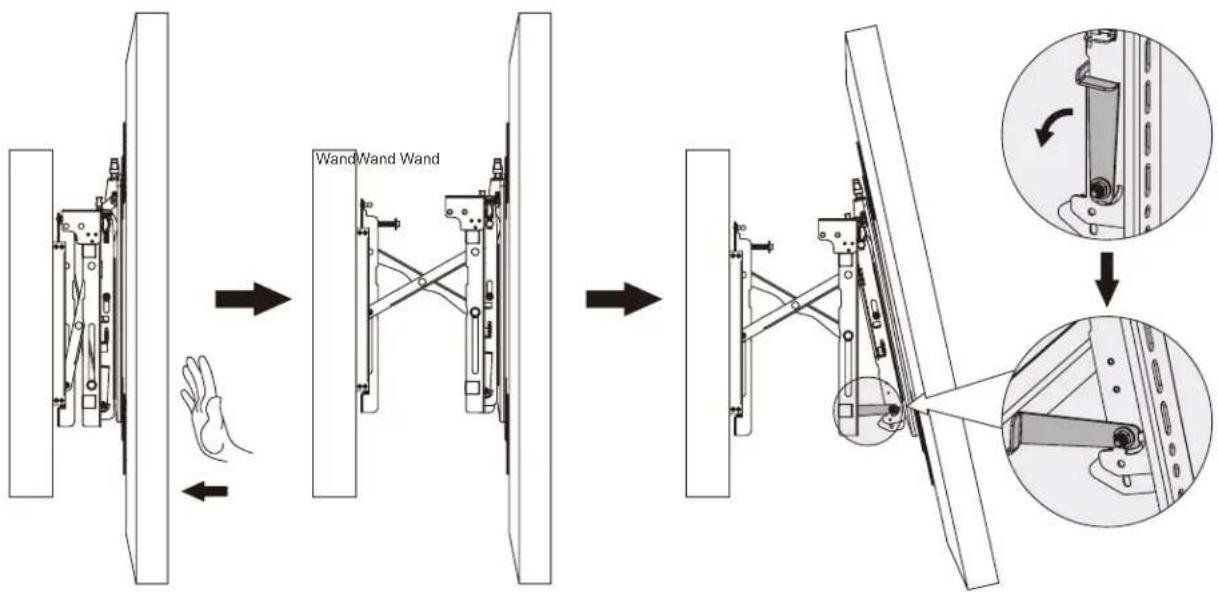

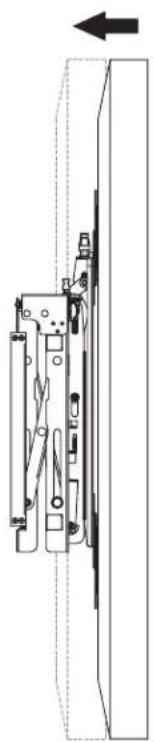

To pop out the display, push it inward and then release it.
Kickstands provide tilt access for easy cable management and maintenance.

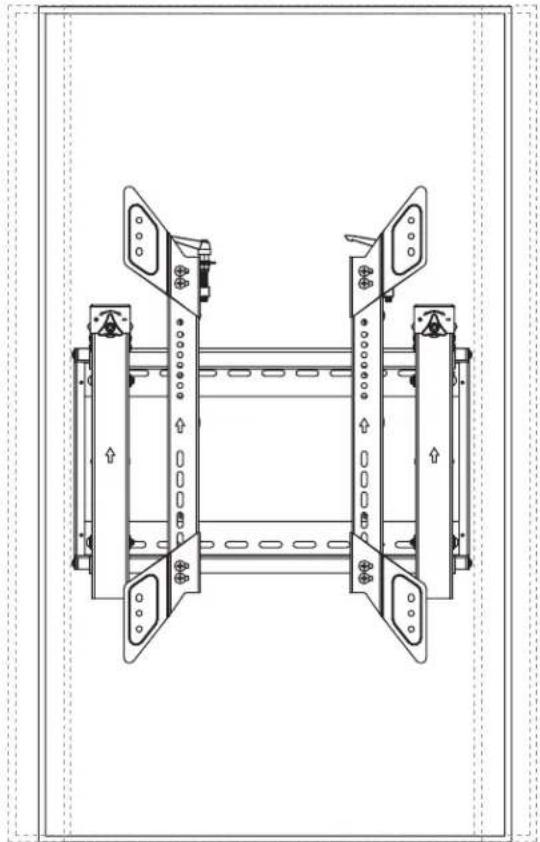

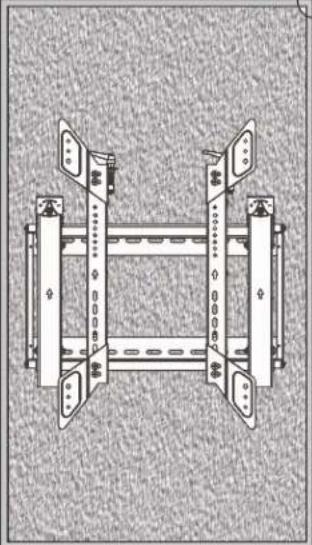

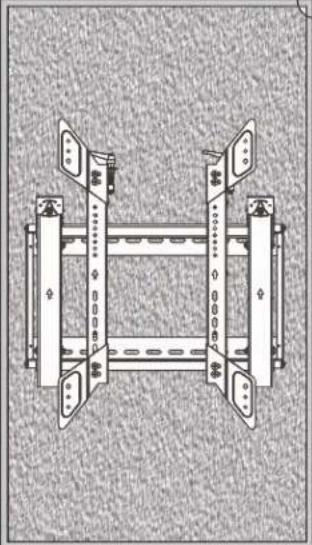

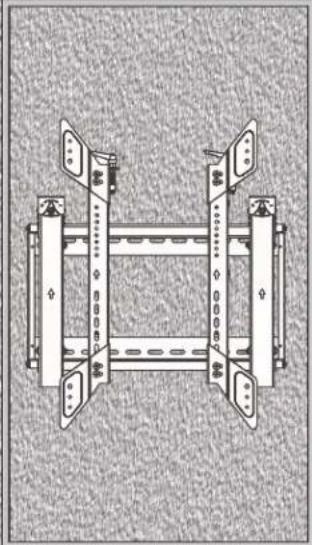

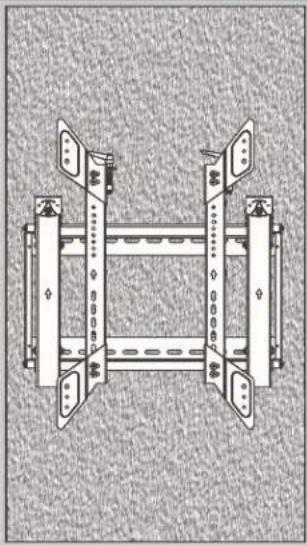

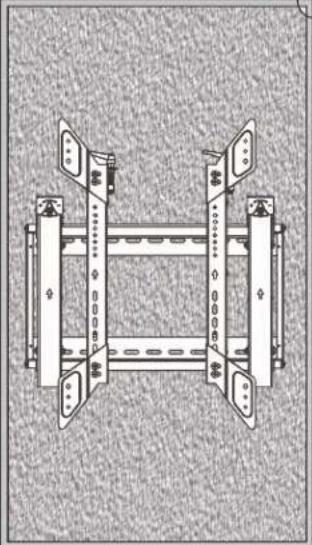

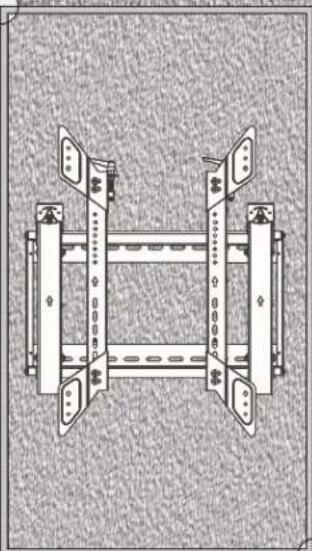

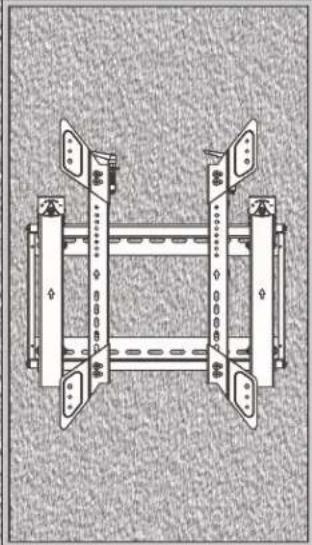

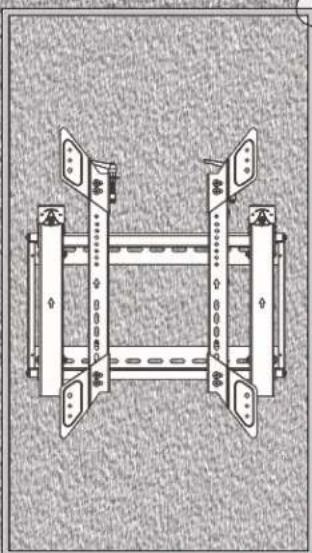

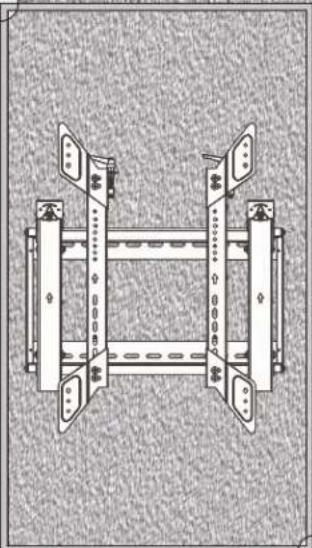

7. Level the Displays

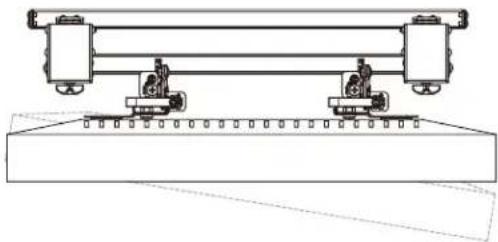

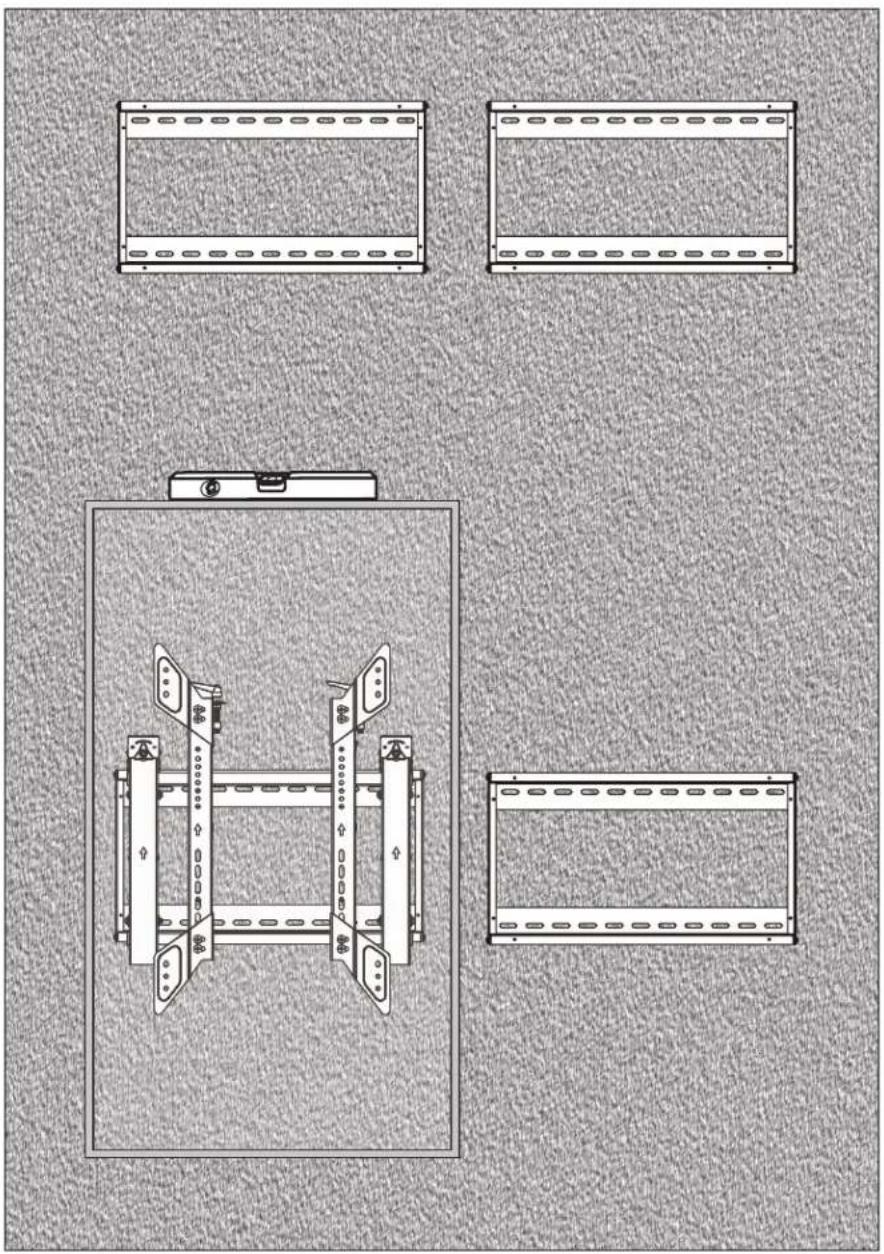

Adjust the display to keep it level in vertical and horizontal directions.

Technical line drawings of four different mechanical or structural components with no visible text or symbols

Technical line drawing of a wall-mounted electrical switch mechanism (no text or symbols)

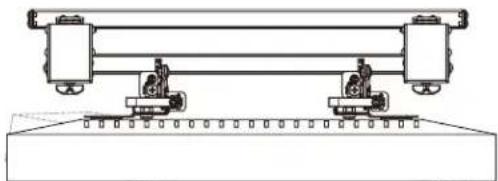

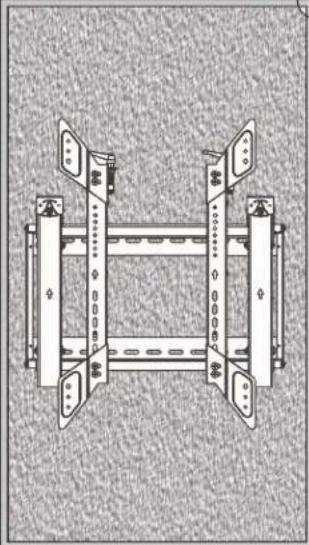

7. Level the Displays

1.2mm 8 E

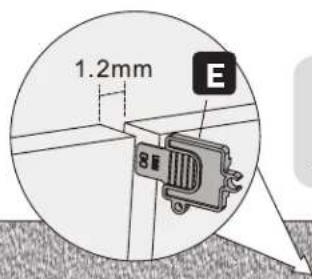

Note: Use the plastic locking piece to measure and keep a 1.2 mm gap between displays.

③ ④ ① ②

Note: Install and adjust displays in the numerical order shown.

Technical diagram of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical frame assembly with two vertical supports and a central horizontal bar (no text or symbols)

1.2mm

Technical diagram of a mechanical frame assembly with two vertical supports and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

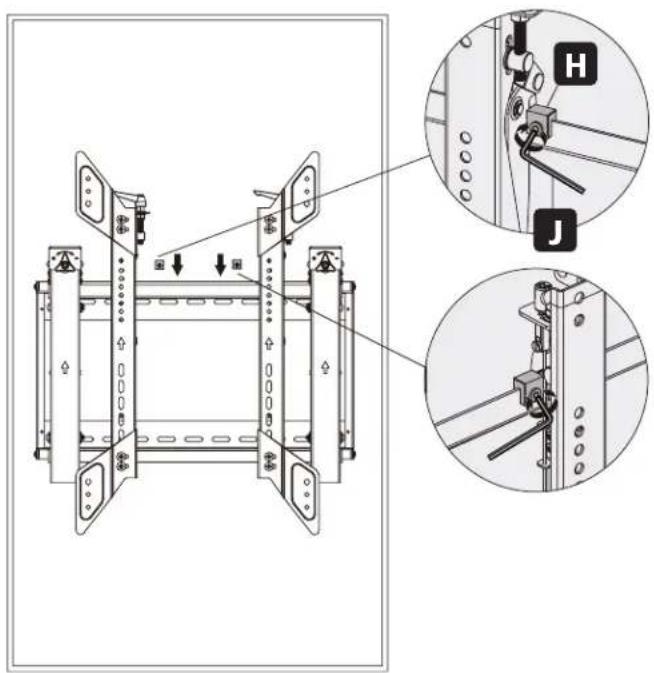

8. Fixing the Bracket Positions with the Anti-Skid Blocks

Technical diagram showing mechanical assembly with labeled parts H and J, including directional arrows and component details.

Install both of the anti-skid blocks as close to the adapter brackets as possible. Tighten screws on the anti-skid blocks using a hex key to prevent the display from moving.

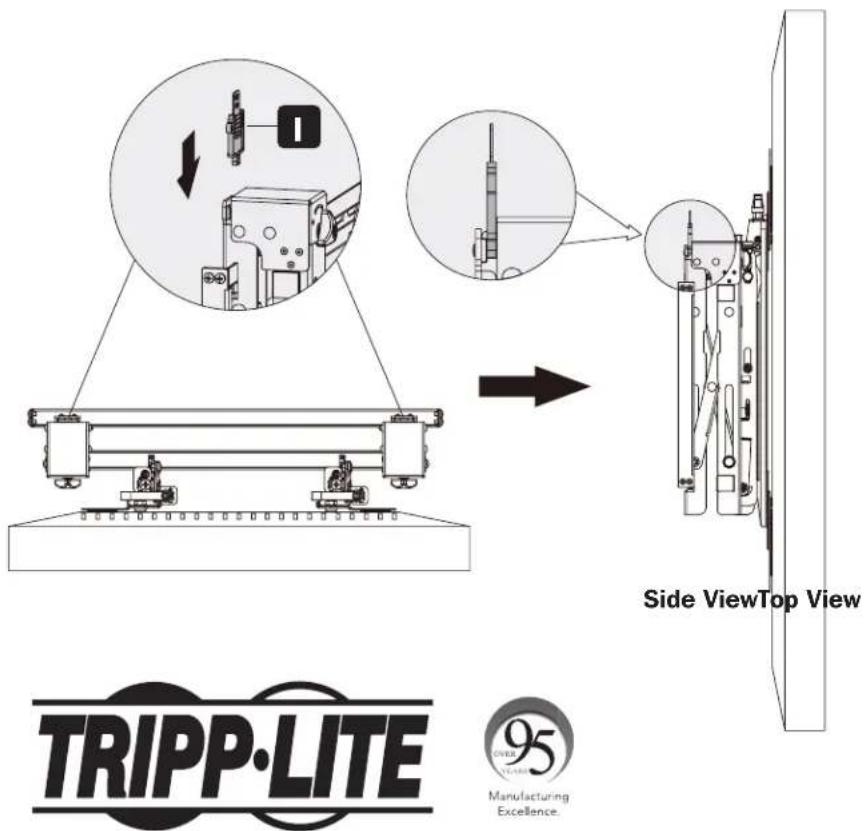

9. Lock the Pop-Out Module with the Plastic Locking Pieces

TRIPP·LITE Manufacturing Excellence. Side ViewTop View 95 Over 100mm

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical lifting or bracket assembly (no text or symbols)

English 1 • Français 33 • Русский 49 • Deutsch 65

Simple line drawing of a rectangular frame with evenly spaced circular indentations on both sides (no text or symbols)

A

Placa de Pared (x1)

C

Technical line drawing of a metal frame structure with mounting brackets and supports (no text or symbols)

Módulo Emergente (x1)

E

Adaptador VESA (x2)

K

Cerradura (x1)

Paquete P

F

Tuerca M8 (x8]

G

M8x12 (x8)

H

Bloque Antideslizante (x2)

1

Llave Hexagonal (x1)

Paquete M

M-A

M5x14 (x4)

M-B

M6x14 (x4)

M-C

M8x20 (x4)

M-D

M6x30 (x4)

M-E

M8x30 (x4)

M-F

Arandela (x4)

M-G

Illustration of four different tools and components: a flat panel, a battery pack, a pencil, and a screwdriver (no text or symbols present)

2.4" (60 mm) Ø 10 mm [Ø 3/8"]

Technical line drawing of a rectangular electronic device with mounting bracket and labeled component A (no text or symbols on the device itself)

Technical diagram showing two-step installation of a mechanical component with tool and spring, labeled 1 and 2.

W-B W-C W-A

X X Y = 5 mm [0.2"] Y = 5 mm [0.2"]

Technical line drawing of a mechanical device with an inset close-up showing a component (no text or symbols present)

Pure diagram of vertical pipes with directional arrows, no text or symbols present

Diagram showing three types of electrical switch symbols: check, cross, and screwdriver with plus sign

M-A M-B M-C M-F

4.2 Para Pantallas Bump Out o con Parte Posterior Cóncava

M-C M-F M-G or M-DM-C M M-F M-G or M-D M-E M-F M-H or M-D M-E M-F M-H M-G M-H

Notas:

Technical line drawing of a mechanical assembly with two vertical arms and mounting brackets (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism (no text or symbols)

Izquierda

Technical line drawing of a mechanical device with rotation arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Izquierda

Technical line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism (no text or symbols)

Derecha

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Derecha

Izquierda

Technical line drawing of a mechanical assembly with two vertical arms and mounting brackets (no text or symbols)

lzquierda

Derecha

Technical line drawing of a mechanical assembly with two vertical supports and a central horizontal beam (no text or symbols)

6. Ajuste

Izquierda

Derecha

Technical line drawing of a mechanical assembly with two vertical supports and a central frame (no text or symbols)

Izquierda

Derecha

Technical line drawing of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

Izquierda

Derecha

Technical line drawing of a mechanical assembly with no visible text or symbols

Izquierda

Derecha

Technical line drawing of a mechanical assembly with no visible text or symbols

6. Ajuste

Izquierda

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

IzquierdaDerecha

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

paredpared pared hand

Technical line drawings of four different mechanical or structural components with no visible text or symbols

Technical line drawing of a wall-mounted door lock assembly (no text or symbols)

1.2mm 8 E

Technical diagram of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical frame assembly with two vertical supports and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical linkage or frame structure with multiple vertical supports and mounting brackets (no text or symbols)

Technical diagram of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

1.2mm

Technical diagram showing mechanical assembly with labeled parts H and J, including directional arrows and component details.

Technical line drawing of a mechanical lifting or mounting bracket assembly (no text or symbols)

English 1 • Español 17 • Русский 49 • Deutsch 65

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS!

200x200/300x300 200x400/400x400 400x600

kg (L54 lb)

CAPACITÉ NOMIN

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Blank film strip frame with no text or symbols

A

Plaque murale (x1)

C

Technical line drawing of a metal frame structure with mounting brackets and mounting holes (no text or symbols)

Illustration of four different tools and components: a flat panel, a battery pack, a pencil, and a screwdriver (no text or symbols present)

60 mm (2,4 po) Ø 10 mm (Ø 3/8 po)

Technical line drawing of a rectangular electronic device with mounting bracket and labeled component A (no text or symbols on the device itself)

Technical diagram showing two-step installation of a mechanical component with tool and spring, labeled 1 and 2.

W-B W-C W-A

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Pure diagram of vertical pipes with directional arrows, no text or symbols present

Diagram showing three types of electrical switch symbols: check, cross, and screwdriver with TV labels

M-A M-B M-C M-F

M-C M-F M-G M-DM-C M ou M-F M-G M-D M-E ou M-F M-H M-D M-E ou M-F M-G M-H

Remarques :

Technical line drawing of a mechanical assembly with two vertical arms and mounting brackets (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Gauche

Technical line drawing of a mechanical device with rotation arrow (no text or symbols)

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Gauche

Technical line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism (no text or symbols)

Droite

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Droite

Gauche

Technical line drawing of a mechanical assembly with two vertical supports and mounting brackets (no text or symbols)

Gauche

Droite

Technical line drawing of a mechanical assembly with two vertical supports and a central horizontal beam (no text or symbols)

6. Réglage

Gauche

Technical line drawing of a mechanical assembly with no visible text or symbols

Gauche

Technical line drawing of a mechanical assembly with no visible text or symbols

Droite

Droite

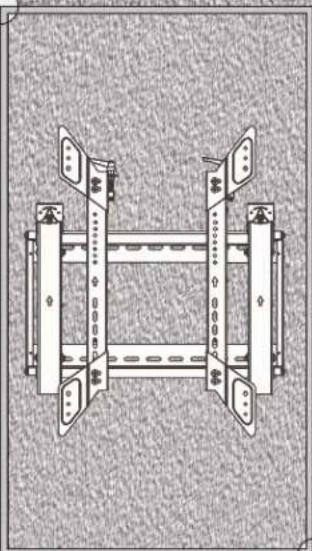

6. Réglage

Gauche

Droite Droite

Gauche

Technical line drawing of a mechanical assembly with two vertical supports and a horizontal base (no text or symbols)

Technical line drawing of a mechanical support system with two vertical supports and a horizontal beam (no text or symbols)

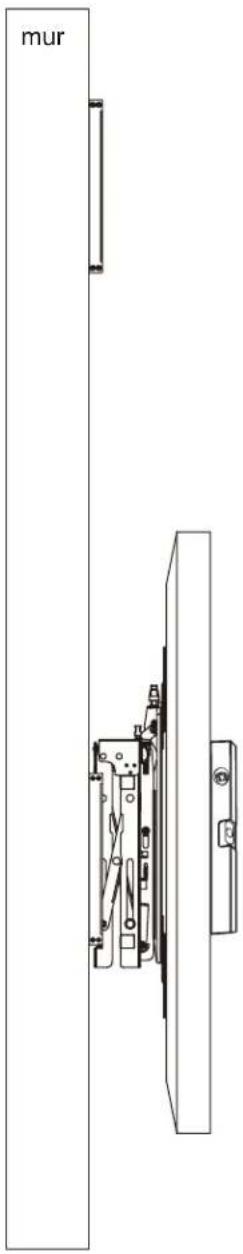

murmur mur murmur mur

Technical line drawings of four different mechanical or structural components with mounting holes and brackets (no text or symbols)

Technical line drawing of a door lock assembly with handlebars and door, no text or symbols present

Technical diagram of a mechanical frame assembly with two vertical supports and mounting holes (no text or symbols)

Technical diagram of a mechanical frame assembly with two vertical supports and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical linkage or frame structure with multiple vertical supports and mounting brackets (no text or symbols)

Technical diagram of a mechanical assembly with symmetrical components and mounting brackets (no text or symbols)

1,2mm

Technical diagram showing mechanical assembly with labeled parts H and J, including directional arrows and component details.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical lifting or mounting bracket assembly (no text or symbols)

English 1 • Español 17 • Français 33 • Deutsch 65

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Blank rectangular frame with evenly spaced small square indentations on both sides (no text or symbols)

A

Technical line drawing of a metal frame structure with mounting brackets and supports (no text or symbols)

Four-panel image showing different types of tools and components: a flat panel, a battery pack, a pencil, and a tool with a screwdriver (no text or symbols visible)

2,4" 60 MM Ø 3/8" Ø 10 MM

Technical line drawing of a rectangular electronic device with mounting bracket and control panel (no text or symbols)

W-B W-C W-A

X X Y = 5 mm Y = 5 mm

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Pure diagram of vertical pipes with directional arrows, no text or symbols present

Technical diagram of a mechanical assembly with labeled parts and tool icons, including TV indicators and M-A, M-B, M-C, M-F annotations.

M-C M-F M-G or M-DM-C M-E M-F M-G or M-D M-E M-F M-H or M-D M-E M-F M-H M-G M-H

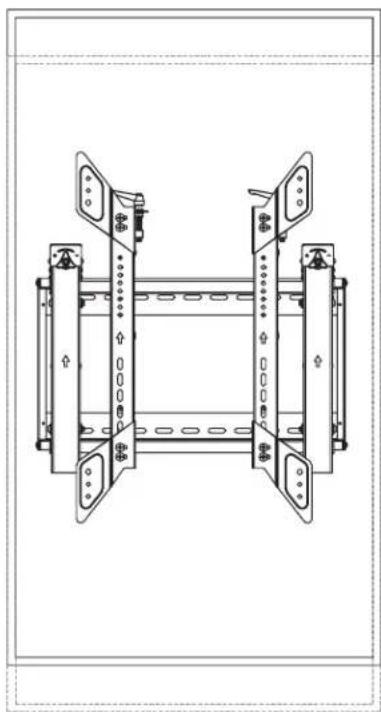

Примечания:

Примечания:

Technical line drawing of a mechanical assembly with two vertical arms and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and mounting brackets (no text or symbols)

Слева

Справа

Technical line drawing of a mechanical assembly with two vertical supports and a central horizontal beam (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Слева

Справа

Technical line drawing of a mechanical assembly with no visible text or symbols

Слева

Справа

Technical line drawings of four different mechanical or structural components with no visible text or symbols

Technical line drawing of a wall-mounted door lock assembly (no text or symbols)

Technical diagram of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical frame assembly with two vertical supports and mounting holes (no text or symbols)

Technical diagram of a mechanical frame assembly with mounting brackets and central railings (no text or symbols)

Technical line drawing of a mechanical assembly with symmetrical components and mounting brackets (no text or symbols)

1,2 MM

Technical diagram showing mechanical assembly with labeled parts H and J, including directional arrows and component details.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-106 033F11 3.5%

Bedienungsanleitung

Technical line drawing of a mechanical lifting or bracket assembly (no text or symbols)

English 1 • Español 17 • Français 33 • Русский 49

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Blank rectangular frame with evenly spaced small circular indentations on both sides (no text or symbols)

A

Wandplatte (1 x)

C

Adapterwinkel (2 x)

D

VESA-Adapter (x2)

Technical line drawing of a metal frame structure with mounting brackets and supports (no text or symbols)

Inbusschlüssel (1 x)

Paket M

M-A

M5x14 (x4)

M-B

M6x14 (x4)

M-C

M8x20 (x4)

M-D

M6x30 (x4)

M-E

M8x30 (x4)

M-F

Beilagscheibe (x4)

M-G

Four-panel image showing different types of tools and components: a flat panel, a battery pack, a pencil, and a tool with a screwdriver (no text or symbols visible)

2.4" (60 mm) Ø 3/8" (Ø 10 mm)

Technical line drawing of a rectangular electronic device with mounting bracket and labeled component A (no text or symbols on the device itself)

W-B W-C W-A

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Pure diagram of vertical pipes with directional arrows, no text or symbols present

Diagram showing three types of TV lighting symbols: check, cross, and screwdriver with plus sign

M-A M-B M-C M-F

M-C M-F M-G or M-DM-C M M-F M-G or M-D M-E M-F M-H or M-D M-E M-F M-H M-G M-H

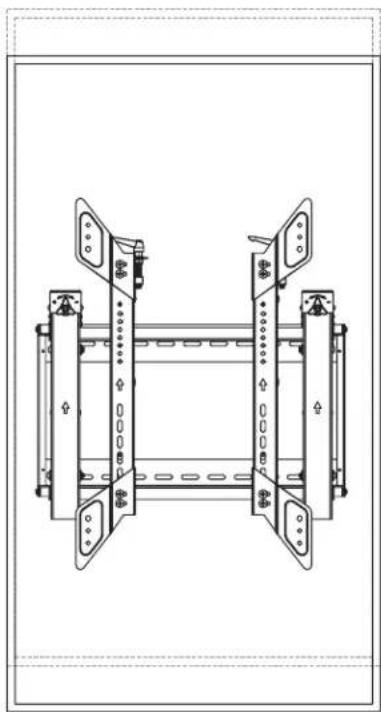

Hinweise:

Technical line drawing of a mechanical assembly with two vertical arms and mounting brackets (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols)

Links

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Links

Technical line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a rotating lever mechanism (no text or symbols)

Rechts

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Rechts

Links

Technical line drawing of a mechanical assembly with two vertical supports and mounting brackets (no text or symbols)

Links

Rechts

Technical line drawing of a mechanical assembly with two vertical supports and a central horizontal beam (no text or symbols)

6. Einstellung

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Links

Rechts

Technical line drawing of a mechanical assembly with no visible text or symbols

Links

Rechts

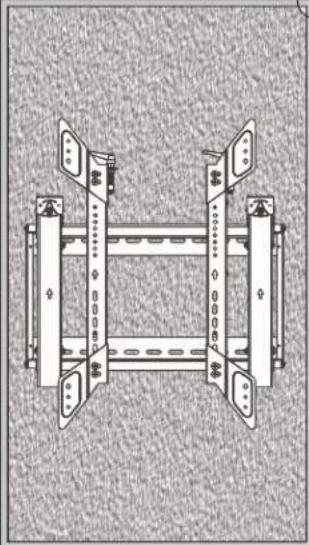

6. Einstellung

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

WandWand Wand

Technical line drawings of mechanical components with no visible text or symbols

Technical line drawing of a wall-mounted door lock assembly with handlebars and mounting bracket (no text or symbols)

Technical diagram of a mechanical frame assembly with two vertical supports and mounting holes (no text or symbols)

Technical diagram of a mechanical frame assembly with two vertical supports and a central horizontal bar (no text or symbols)

Pure mechanical assembly diagram showing two vertical supports with mounting holes and a central horizontal bar (no text or symbols)

Technical diagram of a mechanical assembly with two vertical supports and a central horizontal bar (no text or symbols)

1.2mm

Technical diagram showing mechanical assembly with labeled parts H and J, including directional arrows and component details.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
