USER MANUAL DDR1327SDFC1 Tripp Lite

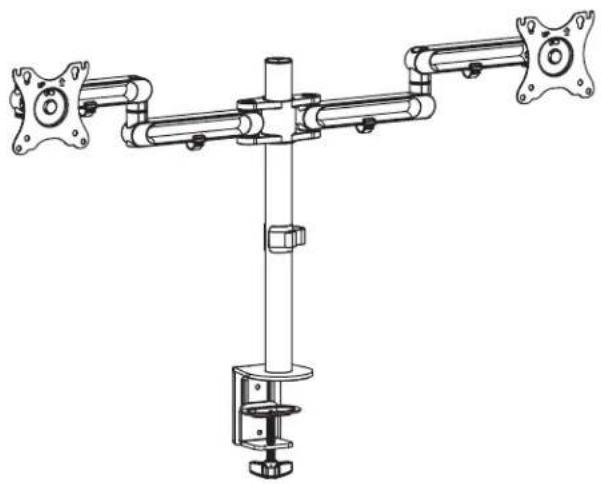

Dual Flat-Screen Flex-Arm Desk Clamp

Model: DDR1327SDFC-1

Technical line drawing of a mechanical assembly with two vertical arms and a central shaft (no text or symbols)

Español 8 • Français 15 • Русский 22 • Deutsch 29

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

75×75/100×100

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

Safety Instructions

Note: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This mounting bracket was designed to be installed and used ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening screws can damage the items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

A
(x1)

B
(x1)

Pure mechanical assembly diagram showing two identical components connected by a central shaft (no text or symbols)

C

(x1)

D
(x1)

Package M

M-A
M4×12
(x8)

M-B
M5x12
(x8)

M-C
D5 Washer
(x8)

Package P

E
Small Flathead
Screw (x2)

F
Medium Flathead
Screw (x3)

G
(x1)

4 mm Hex Key

H
6 mm Hex Key
(x1)

Assembly

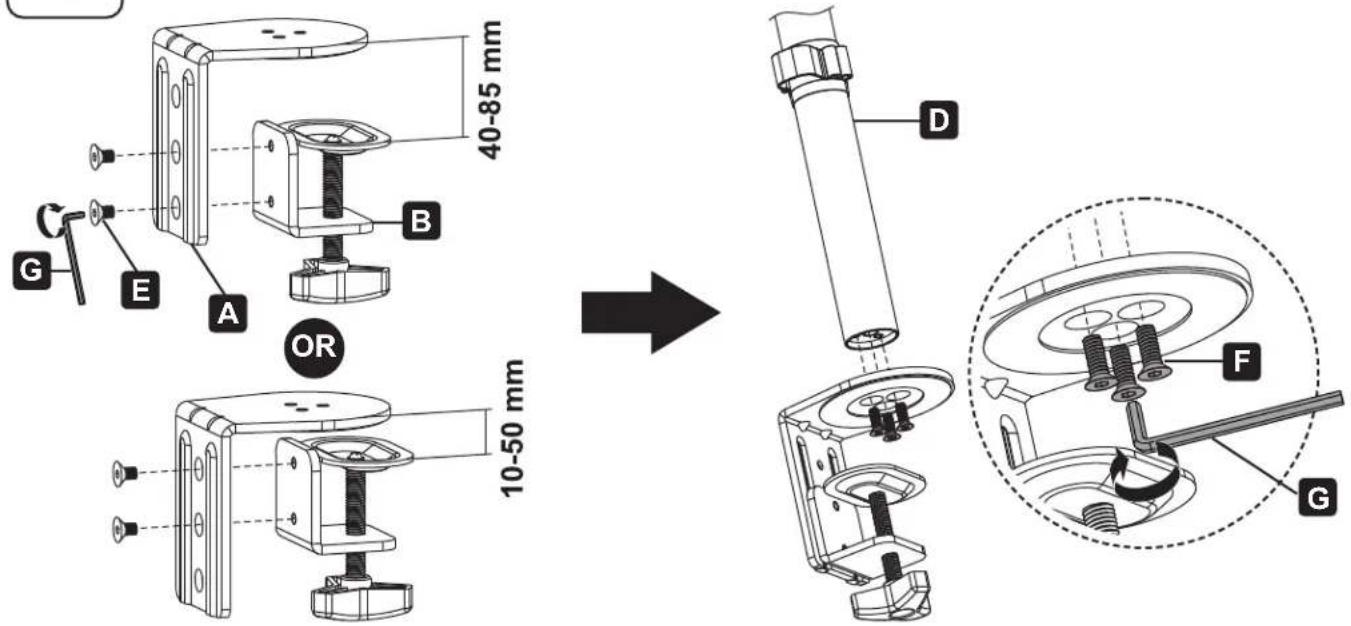

1 Install the Pole and Desk Clamp Assembly

40-85 mm B A G E OR 10-50 mm D F G

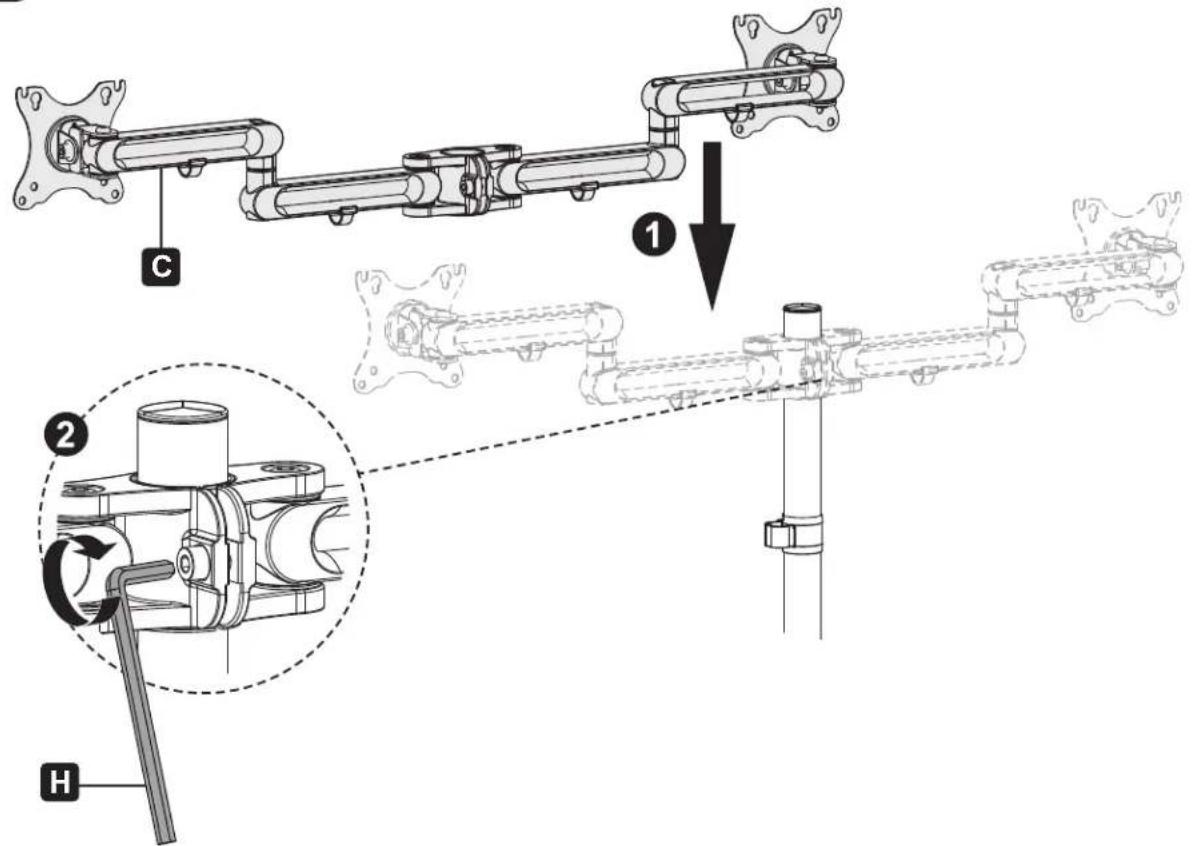

2 Install Adapter Bracket Assembly

Technical diagram illustrating mechanical assembly steps with labeled components and motion indicators

Assembly

3

Desk Installation

Note: min. desktop thickness=10 mm (.4") max. desktop thickness=85 mm (3.3")

• Determine approximate location for mount, keeping in mind display size, height adjustment and pitch/roll requirements.
• Slip the desk mount assembly over the edge of desk so that clamp fully contacts desk edge.
• Turn the knob to adjust the clamp to edge of desk and secure it tightly.

Technical diagram showing two mechanical assembly steps: one with a vertical rod and base, the other with a flat base and multiple bolts (no text or symbols)

4

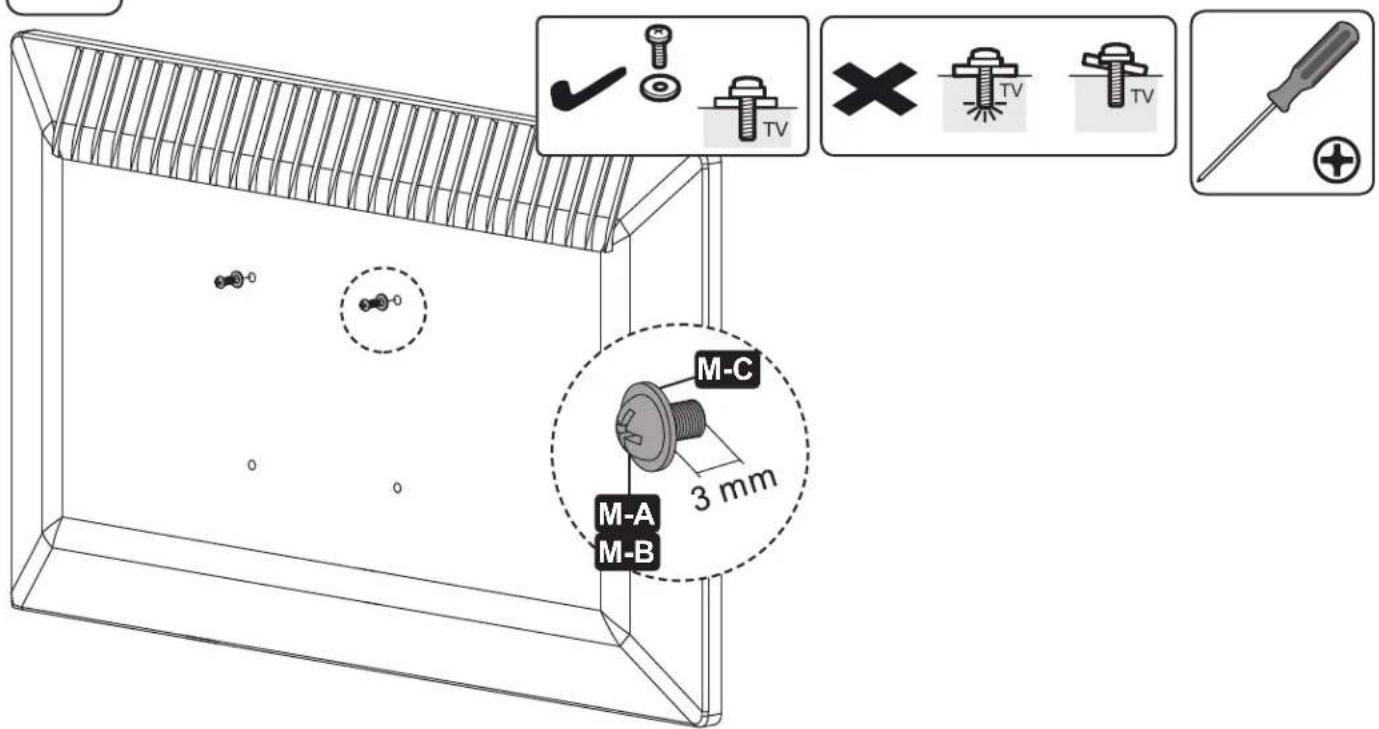

Install Top VESA Plate Screws

Technical diagram showing assembly of a mechanical component with labeled parts (M-A, M-B, M-C) and tool icons for inspection and assembly.

Assembly

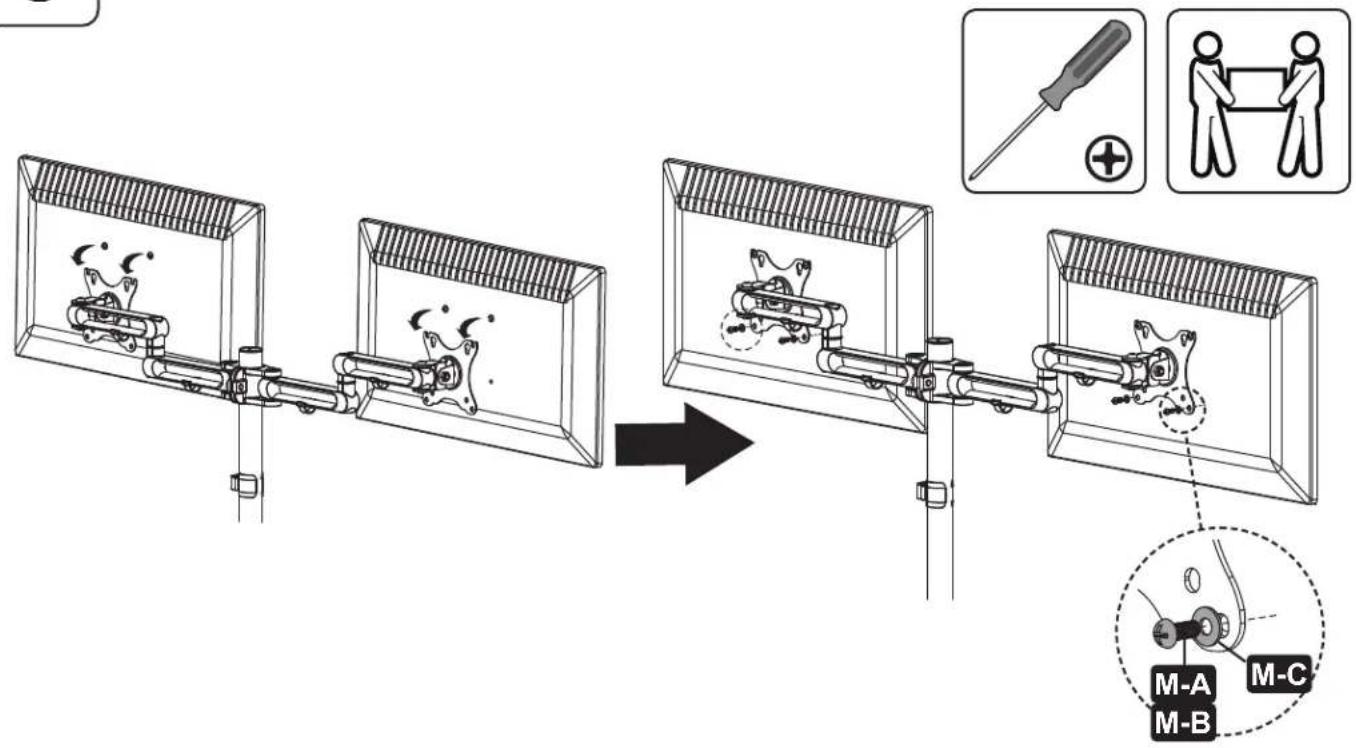

5 Install VESA Plates

Diagram illustrating mechanical assembly steps with labeled components M-A, M-B, and M-C, showing motion and assembly process.

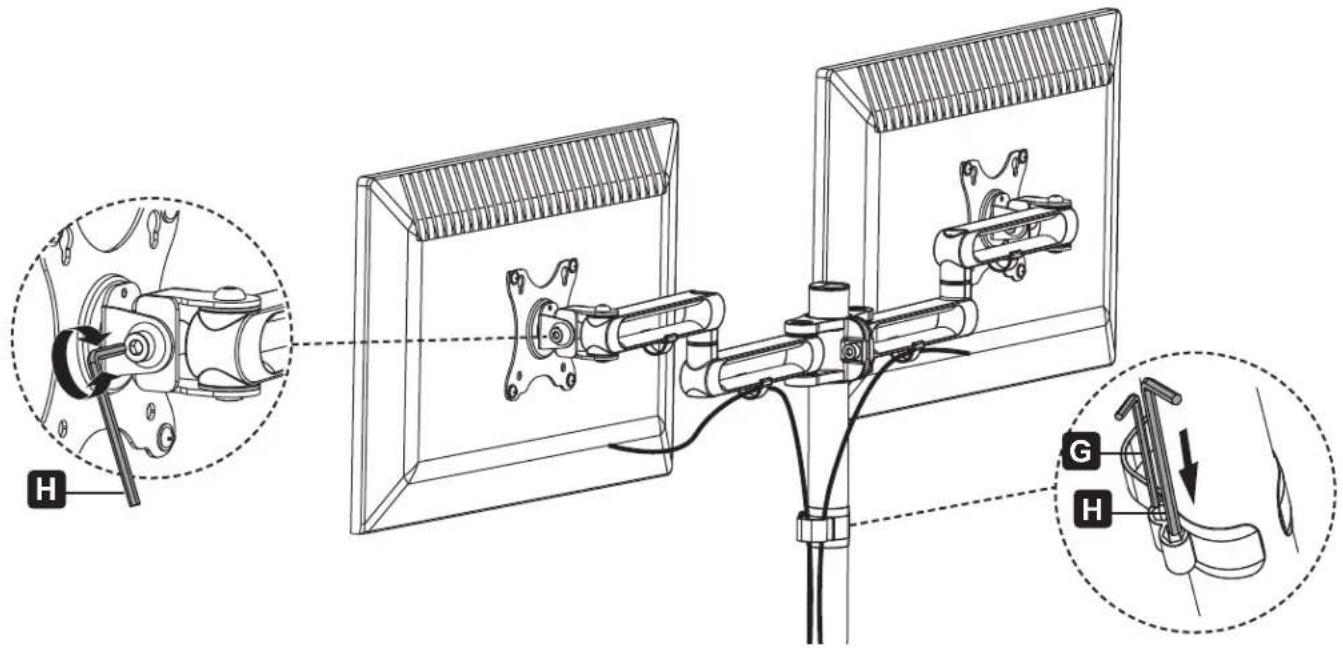

6 Adjust VESA Plates

Technical diagram of a mechanical device with labeled components H and G, showing internal components and assembly steps.

Assembly

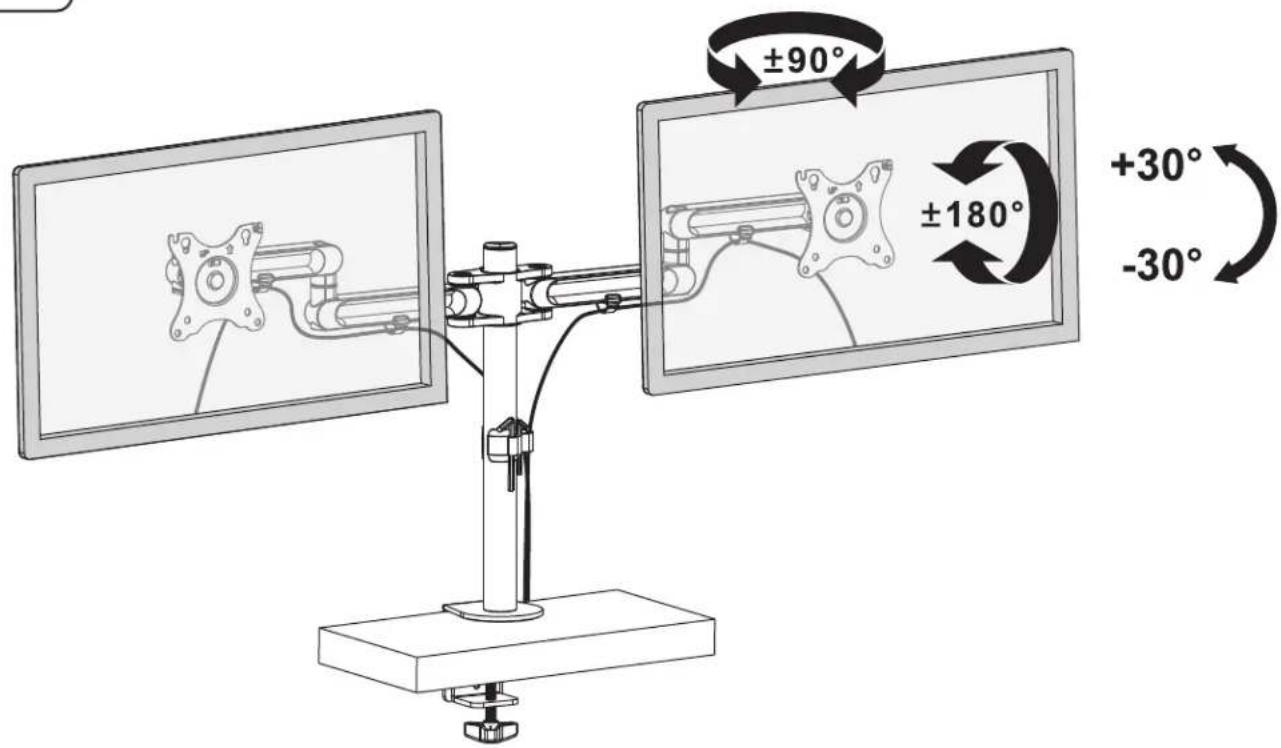

7 Adjustment

±90° ±180° +30° -30°

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit tripplite.com/support if you have any questions.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two vertical arms and a central shaft (no text or symbols)

English 1 • Français 15 • Русский 22 • Deutsch 29

Technical line drawing of a mechanical assembly with two identical components connected by a central shaft (no text or symbols)

C

(x1)

D
(x1)

Paquete M

M-A
M4x12
(x8)

M-B
M5x12
(x8)

M-C
Arandela D5
(x8)

Paquete P

Technical diagram illustrating mechanical assembly steps with labeled components and motion indicators

Ensamble

3

Technical diagram showing two mechanical assembly steps: one with a vertical rod and base, the other with a flat base and bolted joints (no text or symbols)

4

Technical diagram showing assembly of a mechanical component with labeled parts (M-A, M-B, M-C) and tool icons for inspection and assembly.

Ensamble

5 Instale las Placas VESA

Diagram illustrating mechanical assembly steps with labeled components M-A, M-B, and M-C, showing motion and assembly process.

Technical diagram of a mechanical device with labeled components H and G, showing internal components and assembly steps.

Ensamble

7 Ajuste

±90° ±180° +30° -30°

Mantenimiento

1111 W. 35th Street, Chicago, IL 60609, EE UU • tripplite.com/support

Technical line drawing of a mechanical assembly with two vertical arms and a central shaft (no text or symbols)

English 1 • Español 8 • Русский 22 • Deutsch 29

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS!

75 × 75/100 × 100

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two identical components connected by a central shaft (no text or symbols)

C

(x1)

D
(x1)

Emballage M

M-A
M4×12
(x8)

M-B
M5x12
(x8)

M-C
Rondelle D5
(x8)

Emballage P

Technical diagram illustrating mechanical assembly steps with labeled components and motion indicators

Assemblage

3

Technical diagram showing two mechanical assembly steps: one with a vertical rod and base, the other with a cylindrical component mounted on a base (no text or symbols present)

4

Installer les vis de la plaque VESA

Technical diagram showing assembly of a mechanical component with labeled parts (M-A, M-B, M-C) and tool icons for cleaning or assembly.

Assemblage

5 Installer les plaques VESA

Diagram illustrating mechanical assembly steps with labeled components M-A, M-B, and M-C, showing motion changes before and after assembly.

6 Ajuster les plaques VESA

Technical diagram of a mechanical device with labeled components H and G, showing internal components and assembly steps.

Assemblage

Réglage

±90° ±180° +30° -30°

Entretien

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two vertical arms and a central shaft (no text or symbols)

English 1 • Español 8 • Français 15 • Deutsch 29

75x75/100x100 ДО 27" ДО 2 x 8 кг

EAC

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two identical flanged components connected by a central shaft (no text or symbols)

C

1 шт.

D

1 шт.

Technical diagram illustrating mechanical assembly steps with labeled components and motion indicators

Порядок сборки

3

Technical diagram showing two mechanical assembly steps: one with a vertical rod and base, the other with a flat base and support fixtures (no text or symbols)

4

Technical diagram showing a mechanical assembly with labeled parts (M-A, M-B, M-C) and tool icons for inspecting or assembly.

Порядок сборки

5

Diagram illustrating mechanical assembly steps with labeled components M-A, M-B, and M-C, showing motion and assembly process.

6

Technical diagram of a mechanical device with labeled components H, B, and G, showing internal assembly and component alignment.

±90° ±180° +30° -30°

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Bedienungsanleitung

Technical line drawing of a mechanical assembly with two vertical arms and a central shaft (no text or symbols)

English 1 • Español 8 • Français 15 • Русский 22

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical assembly with two identical components connected by a central shaft (no text or symbols)

C

(x1)

D
(x1)

Paket M

M-A
M4x12
(x8)

M-B
M5x12
(x8)

M-C
D5 Beilagscheibe
(x8)

Paket P

Technical diagram illustrating mechanical assembly steps with labeled components and motion indicators

Montage

3

Tischinstallation

Technical diagram showing two mechanical assembly steps: one with a vertical rod and base, the other with a cylindrical component mounted on a base (no text or symbols present)

4

Technical diagram showing assembly of a mechanical component with labeled parts M-A, M-B, M-C and TV indicators for inspection.

Montage

Diagram illustrating mechanical assembly steps with labeled components M-A, M-B, and M-C, showing motion changes before and after assembly.

Technical diagram of a mechanical device with labeled components H and G, showing internal components and assembly steps.

Montage

Einstellung

±90° ±180° +30° -30°

Wartung

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
