Tiny Travel 1200 TD1215 - Hair dryer Carmen - Free user manual and instructions

Product type	Hair dryer
Brand	Carmen
Model	Tiny Travel 1200 TD1215
Power	1200 W
Supply voltage	220-240 V / 110-120 V (adjustable)
Frequency	50/60 Hz
Number of speeds	2
Included accessories	Concentrator nozzle, voltage selector
Overheat protection	Yes
Use	For domestic use
Dimensions (L x W x H)	Approximately 20 x 8 x 5 cm
Weight	Approximately 300 g
Cable length	Approximately 1.8 m
Material	Plastic
Warranty	2 years
Cleaning	Fine brush for grille, damp cloth
Safety	Do not use near water, automatic shut-off in case of overheating
Repairability	Cord replaceable only by authorized technician
Recycling	Compliant with WEEE directive

Frequently Asked Questions - Tiny Travel 1200 TD1215 Carmen

How to set the supply voltage of the hair dryer?

Use the included voltage selector to choose between 220-240 V (Europe) and 110-120 V (some countries). Make sure to check the mains voltage before plugging in the device.

What to do if the device stops during use?

Set the switch to 0 and wait about 5 minutes. This allows the overheat protection to reset. Check that the air grilles are not blocked.

Can I use the hair dryer in the bathroom?

Yes, but with caution. Never use it near a bathtub, shower, or sink containing water. Unplug it after each use and do not touch it with wet hands.

How to clean the air intake grille?

Unplug the device. Use a fine brush to remove dust and hair accumulated on the grille. You can also clean the body with a slightly damp cloth, then dry it.

Can the device be used by children?

Yes, from 8 years old, under adult supervision and after understanding the safety instructions. Children should not play with the device or perform cleaning without supervision.

What to do if the power cord is damaged?

The cord can only be replaced by a specialized technician approved by the manufacturer. Do not use the device if the cord is damaged to avoid any risk of electric shock.

What accessories are included with the hair dryer?

The kit includes a concentrator nozzle to direct the airflow and a voltage selector to adapt the device to different electrical outlets.

How to use the air nozzle?

Attach the nozzle to the front of the device to concentrate air on specific strands. It snaps on easily and can be oriented according to your needs for precise drying.

What is the warranty period?

The warranty is 2 years from the date of purchase under normal use conditions. It does not cover damage due to misuse or unauthorized modification. Keep your proof of purchase.

How to recycle the hair dryer at end of life?

Do not dispose of it with household waste. In accordance with the WEEE directive, take it to an appropriate collection point or return it to a retailer (free 1-for-1 system) for recycling.

USER MANUAL Tiny Travel 1200 TD1215 Carmen

Black CARMEN hair dryer with black handle and white buttons (no visible text or symbols on body)

TD1215 CARMEN TINY TRAVEL 1200

• Foldable travel dryer
• Easy for travelling, with soft pouch
• Dual voltage (110-120V\~ / 220-240V\~) for worldwide use
  • 2 speed/temperature settings
  • Including concentrator
• Hanging loop
  • 2 Year warranty

This device conforms to the

Electromagnetic Compatibility Directive

2014/30/EU and the Low Voltage

Directive 2014/35/EU.

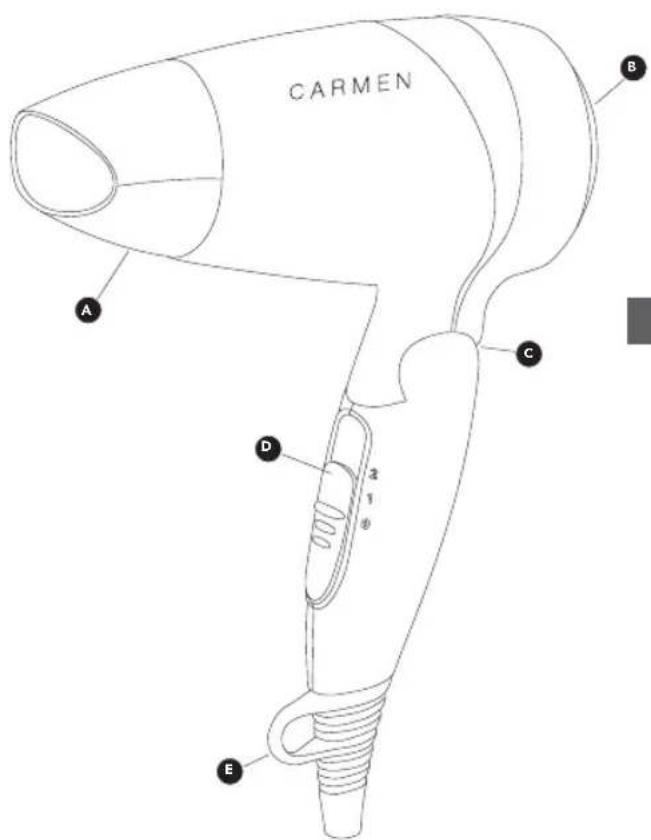

CARMEN A B C D E

> HAIR DRYER

A. Concentrator
B. Inner grill
C. Fold mechanism
D. Speed control switch
E. Hanging loop

DELIVERY SET

Unit body - 1 pc.

Attachments - 1 pc.

Instruction manual - 1 pc.

Soft pouch - 1 pc.

4 • ENGLISH

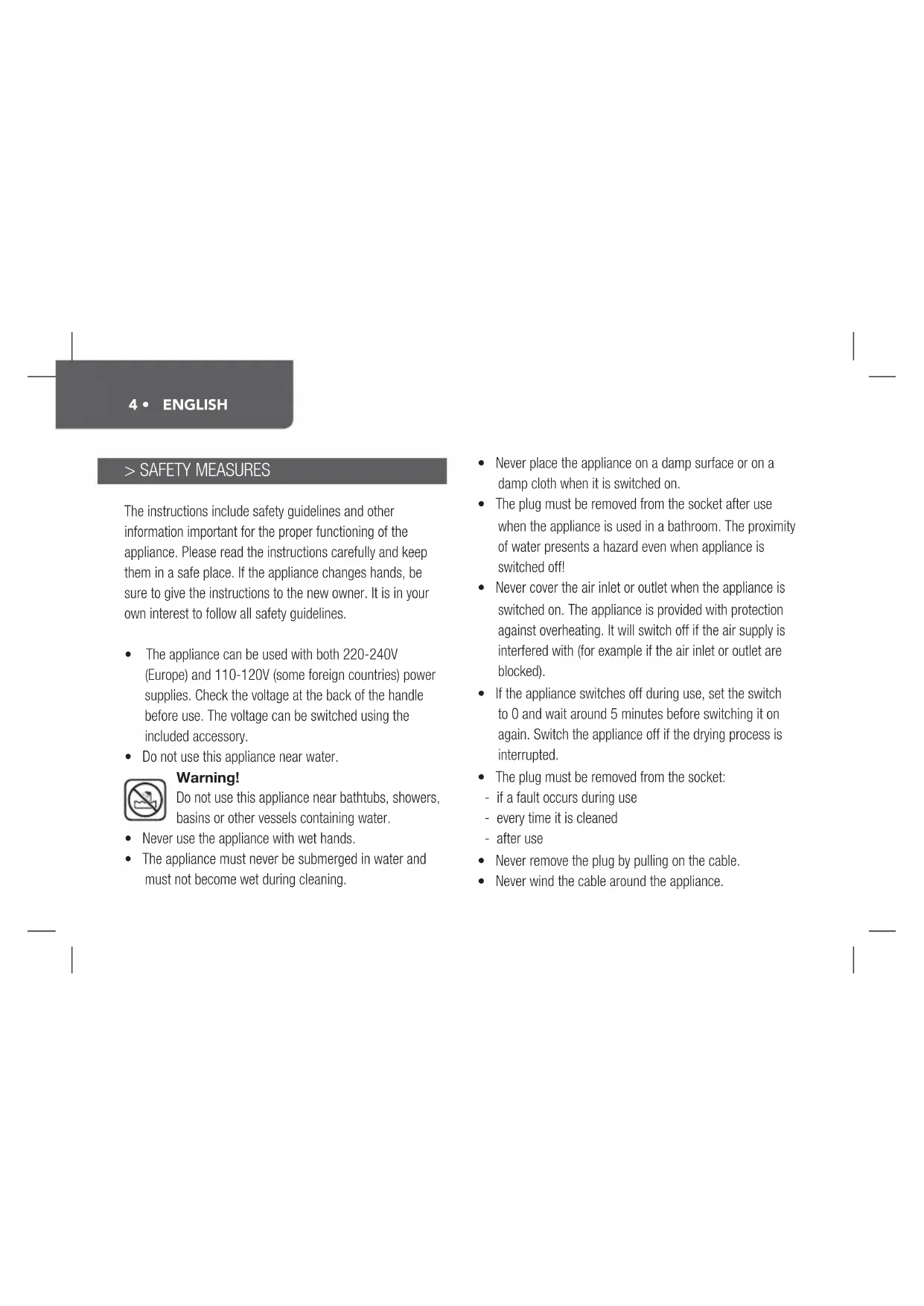

> SAFETY MEASURES

The instructions include safety guidelines and other information important for the proper functioning of the appliance. Please read the instructions carefully and keep them in a safe place. If the appliance changes hands, be sure to give the instructions to the new owner. It is in your own interest to follow all safety guidelines.

• The appliance can be used with both 220-240V (Europe) and 110-120V (some foreign countries) power supplies. Check the voltage at the back of the handle before use. The voltage can be switched using the included accessory.
• Do not use this appliance near water.

Warning!

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Never use the appliance with wet hands.

• The appliance must never be submerged in water and must not become wet during cleaning.

• Never place the appliance on a damp surface or on a damp cloth when it is switched on.

• The plug must be removed from the socket after use when the appliance is used in a bathroom. The proximity of water presents a hazard even when appliance is switched off!
• Never cover the air inlet or outlet when the appliance is switched on. The appliance is provided with protection against overheating. It will switch off if the air supply is interfered with (for example if the air inlet or outlet are blocked).
• If the appliance switches off during use, set the switch to 0 and wait around 5 minutes before switching it on again. Switch the appliance off if the drying process is interrupted.

• The plug must be removed from the socket:

• if a fault occurs during use
• every time it is cleaned

• after use

• Never remove the plug by pulling on the cable.

• Never wind the cable around the appliance.

ENGLISH • 5

• The appliance must not be switched on if:
- the cable is damaged
- there is visible damage to the appliance
- the appliance has been dropped
- This appliance can be used by children from the age of 8 up as well as by persons with reduced physical, sensory or mental abilities or with lacking experience and/ or knowledge, if these persons are supervised or have been instructed how to use the appliance in a safe way and have understood the hazards which could arise from using it. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
- Packaging materials such as plastic bags must be kept out of the reach of children.
- Prevent damage to the hair by not placing the air outlet too close to the hair.
- Fitting an earth leakage circuit breaker provides additional safety: the current in the circuit may exceed 30 mA. Consult your electrician.
• The appliance may present a hazard even when it is

switched off. The plug must therefore be removed from the socket after use.

• If the cable is damaged it may be replaced only by an approved service point, for safety reasons.
  • A damaged appliance must not be used.
• Only specialists are allowed to do reparations. Improperly reparations can cause considerable danger!
• There is always risk of injury when using electrical appliances improperly!
• To prevent unintentional misuse, keep the appliance stored away in a safe place.

> DIRECTION FOR USE

Towel dry the hair after washing. Insert the plug in the socket and set the desired temperature and air flow using the switch.

Switch

0 = Appliance out of use

1 = Normal air flow

2 = High air flow

6 • ENGLISH

Blower nozzle

The blower nozzle allows you to direct the air flow onto specific areas. It is simply attached to the front of the dryer.

> CLEANING AND MAINTRANCE

Ensure that the appliance is disconnected from the mains before cleaning. Do not submerge it in water. Protect the appliance against dust. Clean the ventilation grille occasionally with a fine brush to remove dust and hair. The appliance may be cleaned with a slightly damp cloth and dried with a soft cloth.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EUon Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal, and recycling of WEEE (information can be obtained at the town hall of your domicile) or brought back to a dealer based on the principle of “1 for 1 free of charge” (the dealer’s

takeback does not create a right to a payment or rebate). The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

ENGLISH • 7

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase. This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantling or integration with another device or an assembly making the device fixed or semi-fixed,
  • Normal wear and tear of the parts,
  • Degradation due to improper use,
• Failure to comply with the user manual or with the maintenance and safety instructions,
• Damage resulting from poor maintenance or a lack of maintenance,

• Damage caused by external factors (lightening...),
  • Abnormal use of the device,

• Improper storage,
  •Shocks,

• Deformation of the tank,
  • The device having been submerged,
• Expired warranty.
