USER MANUAL Easy Volume 2200 HD2275 Carmen

-Powerful2200WDChairdryer
Rotary switch to provide step less speed control
- ION technology for shiny and anti-static hair
Coolshotfunction
-2speed/temperaturesettings
- Includingadvanceddiffuser
- Includingconcentrator
- Hangingloop
-1.8mcablecord
2Yearwarranty

Technical specifications:

220-240V,50/60Hz,1850-2200W

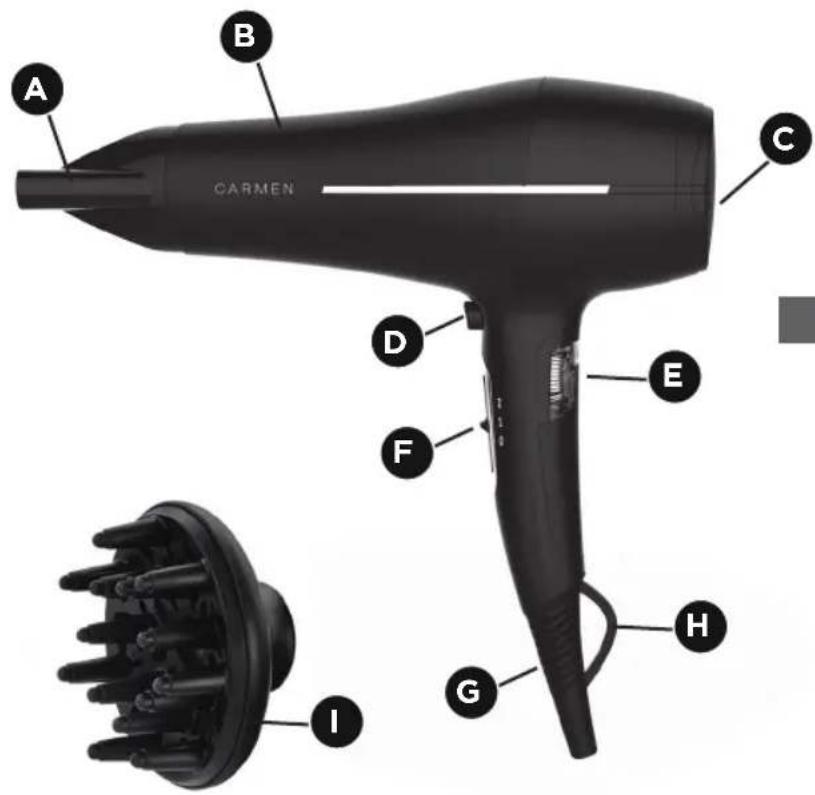

> DESCRIPTION

A. Concentrator
B. Housing
C. Removable grill
D. Cool Shot Button
E. Temperature control switch
F. Speed control rotary switch
G. Cable cord
H. Hanging loop
I. Diffuser

DELIVERY SET

Unit body -1 pc.

Attachments -2 pcs.

Instruction manual -1 pc.

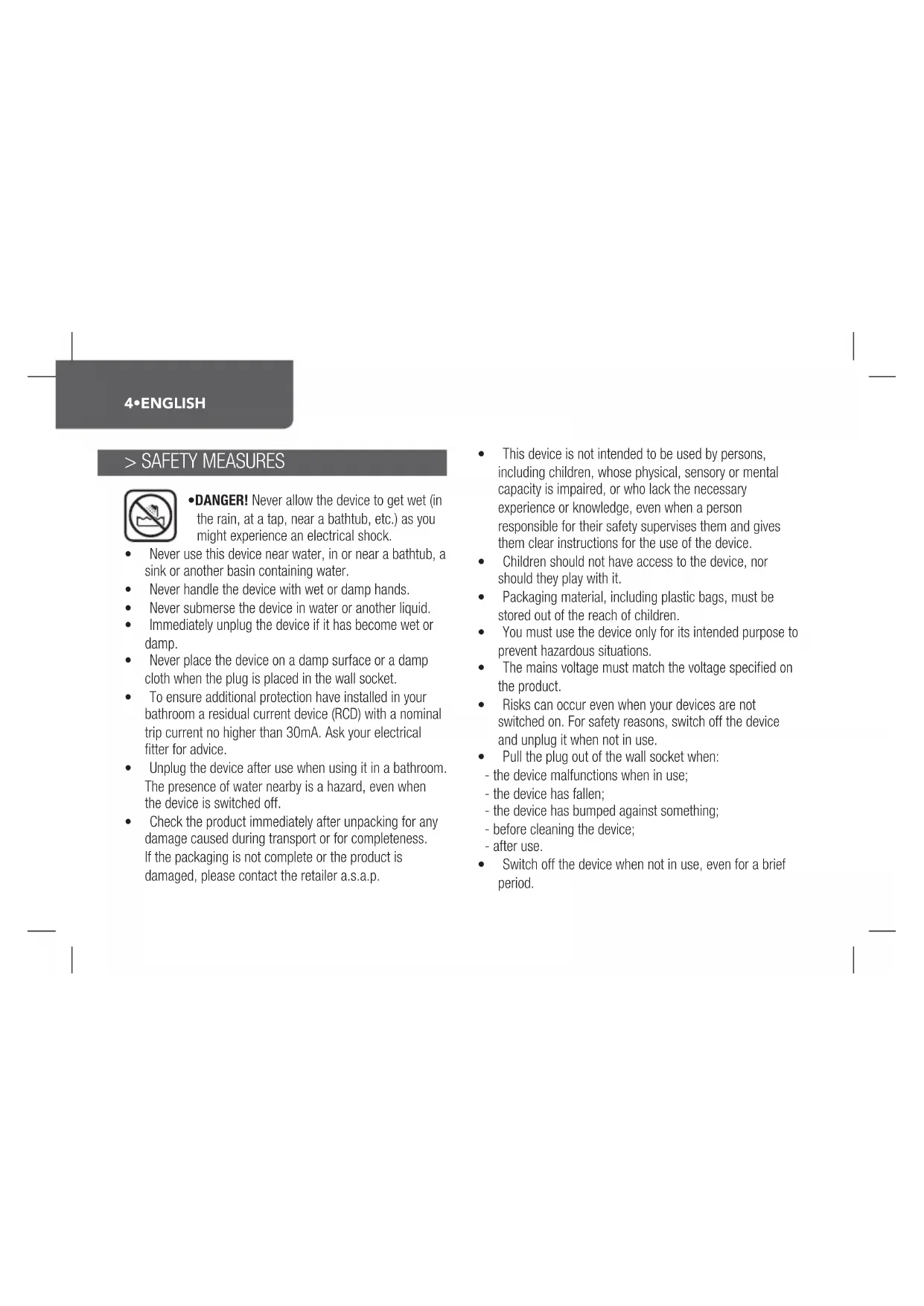

> SAFETY MEASURES

DANGER! Never allow the device to get wet (in the rain, at a tap, near a bathtub, etc.) as you might experience an electrical shock.

• Never use this device near water, in or near a bathtub, a sink or another basin containing water.
• Never handle the device with wet or damp hands.
• Never submerge the device in water or another liquid.
• Immediately unplug the device if it has become wet or damp.
• Never place the device on a damp surface or a damp cloth when the plug is placed in the wall socket.
  To ensure additional protection have installed in your bathroom a residual current device (RCD) with a nominal trip current no higher than 30mA . Ask your electrical fitter for advice.
• Unplug the device after use when using it in a bathroom. The presence of water nearby is a hazard, even when the device is switched off.

• Check the product immediately after unpacking for any damage caused during transport or for completeness. If the packaging is not complete or the product is damaged, please contact the retailer a.s.a.p.

• This device is not intended to be used by persons, including children, whose physical, sensory or mental capacity is impaired, or who lack the necessary experience or knowledge, even when a person responsible for their safety supervises them and gives them clear instructions for the use of the device.
  Children should not have access to the device, nor should they play with it.

• Packaging material, including plastic bags, must be stored out of the reach of children.
• You must use the device only for its intended purpose to prevent hazardous situations.
• The mains voltage must match the voltage specified on the product.

• Risks can occur even when your devices are not switched on. For safety reasons, switch off the device and unplug it when not in use.
  Pull the plug out of the wall socket when:

• the device malfunctions when in use;

• the device has fallen;
• the device has bumped against something;
• before cleaning the device;
• after use.
• Switch off the device when not in use, even for a brief period.

Always unplug the device when leaving it unattended for a longer period.
- Never leave the device unattended.
- Never use the device when it is damaged. Regularly check the device and the cable for damages. The cable cannot be replaced. The device will have to be discarded if the cable is damaged. Repairs must be performed exclusively by experts. Repairs that are inexpertly performed can be very hazardous for the user.
If the device is damaged, contact the supplier to find out if you can still use it.
- When unplugging always pull the plug. Never pull on the cable itself.
- Do not insert the plug in the wall socket when:

• the cable is damaged;
• the device is visibly damaged;
• the device has fallen.
• Do not let the cable touch the hot parts of the device.
  Always make sure that the cable is unencumbered when you move the device around.
• Avoid tripping over the cable.
• Never cover the cable with a rug, mat, blanket etc.
• Never wrap the cable around the device.

• Check the cable of the device regularly for cable breakage to prevent short circuits.

• Let the device cool before storing or cleaning it.

• Store the device in a safe place to prevent accidental cool down use.
  The device must be stored in a dry place at temperatures between 15^ and 25^ .
• Do not expose the device to heat (radiator, oven, etc.), direct sunlight or humidity.
• Do not use any accessories other than those recommended by Carmen.
• Keep the device clean and do not use abrasives or products containing solvents.
• Connect the device only to an electrical system that meets the prevailing regulations and that is equipped with a delay fuse. Make sure that the maximum current of all devices connected to this fuse does not exceed its maximum current (16A).
  We recommend equipping the group to which the bathroom is connected with a residual current operated circuit breaker of maximum 16A to increase safety. Ask your electrician for advice.
• The most recent instruction manual can be found on the Carmen website: www.carmen.nl

> DIRECTION FOR USE

Wash your hair and dry it with a towel. Plug in the device. Set the switch to the desired airspeed and temperature.

Temperature setting

2 = High heating

1 = Low heating

0 = Device off

Cold-Air function

Use the button of the cold-air function to fix your hair with a flow of cold air.

Concentrator

This blower nozzle makes it possible to aim the airflow more accurately at the hair. This concentrator can easily be attached at the front of the device.

> CLEANING AND MAINTRANCE

Unplug the device before cleaning it.
- Do not let children clean the device.
- Never submerge it in water.
- Protect the device from dust.
Occasionally clean the ventilation grille to remove dust and hairs.
- You can use a slightly damp cloth to clean the device. Afterwards, dry the device with a dry cloth.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal, and recycling of WEEE (information can be obtained at the town hall of your domicile) or brought back to a dealer based on the principle of "1 for 1 free of charge" (the dealer's take back does not create a right to a payment or rebate). The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase. This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantling or integration with another device or an assembly making the device fixed or semi-fixed,
  Normal wear and tear of the parts,
• Degradation due to improper use,
• Failure to comply with the user manual or with the maintenance and safety instructions,

8·ENGLISH

• Damage resulting from poor maintenance or a lack of maintenance,
• Damage caused by external factors (lightening...),
  Abnormal use of the device,
• Improper storage,
• Shocks,
• Deformation of the tank,
  The device having been submerged,
• Expired warranty.

For warranty and service we refer you to the reseller and for more information you can consult our website www.carmen.nl.

This is a class II device with double insulation and no grounding

This device conforms to the Electromagnetic Compatibility Directive 2014/30/EU and the Low Voltage Directive 2014/35/EU

PRODUCTINFORMATIE

PProductcode: HD2275

INFORMATIONS SUR LE PRODUIT

Most recent IM can be downloaded from www.carmen.nl
