Oval Quattro DC1090 - Hair dryer Carmen - Free user manual and instructions

Product type	Oval hot air brush (hair dryer)
Brand	Carmen
Model	Oval Quattro DC1090
Product code	DC1090
Gift EAN	5011832069733
Power supply	220-240 V, 50-60 Hz
Power	750-900 W
Cord length	1.8 m (swivel cord)
Weight (approx.)	Approx. 500 g
Dimensions (approx.)	Approx. 30 cm length
Temperature settings	3 settings: Cool, Low, High
Cool Shot function	Yes (Cool setting)
Ionic technology	Quattro Ion Technology (4 anti-static diffusers)
Brush coating	Ultra-soft ceramic
Included accessories	Appliance body, user manual
Warranty	2 years
Protection class	Class II (double insulation)
Maintenance	Clean the ventilation grille regularly; use a damp cloth
Safety	Do not use near water; unplug after use; do not immerse
Rotating cool tip	Yes, for precise styling
Combi tip brush	Yes, for detangling and smoothing

Frequently Asked Questions - Oval Quattro DC1090 Carmen

How to use the Carmen Oval Quattro hot air brush?

Use the brush on towel-dried or dry hair. Plug in the appliance after attaching the accessory. Take a section of hair, place the brush near the scalp on the desired side, slide down to the ends, roll upwards, and turn on the appliance. Let it cool before removing.

What temperature settings are available?

The appliance has three settings: Cool (cool air to set the style), Low (low heat), and High (high heat).

How to clean my Carmen hair dryer?

Always unplug the appliance before cleaning. Clean the ventilation grille regularly with a slightly damp cloth, then wipe dry with a dry cloth. Never immerse the appliance in water.

What safety precautions should I take?

Never use the appliance near water (bathtub, sink). Do not handle it with wet hands. Unplug after use. Do not let children use it. Check that the cord is not damaged.

What if the appliance stops working?

First check the plug and cord. If the cord is damaged, the appliance must be discarded. Contact the retailer or visit www.carmen.nl for after-sales service. Do not attempt to repair it yourself.

Does the warranty cover accessories?

No, the two-year warranty only covers the main appliance. Accessories are not included. Keep your receipt as proof of purchase.

Can I use the hot air brush on wet hair?

It is recommended to use the brush on towel-dried or dry hair. Excess water may damage the appliance and pose an electrical risk.

How to avoid tangles when styling?

The special bristle arrangement prevents tangles. Stretch the section well and slide the brush gently from roots to ends.

What does Quattro Ion technology do?

The four ionic diffusers reduce static electricity for ultra-soft, shiny hair without frizz.

Where to find the complete manual?

The manual is available for free in PDF format on notice-facile.com for the reference Carmen Oval Quattro DC1090. You can also download it from the Carmen website.

USER MANUAL Oval Quattro DC1090 Carmen

Productname: Carmen Oval Quattro Brush

EAN giftbox: 5011832069733

SPECIFICATIONS:

• Oval brush for easy blow dry and volume
• The combination bristles results in tangle free hair
• Oval design for volume and curled hair ends
• Quattro Ion Technology, with 4 outlets for extra soft, shiny and anti-static hair
• Ultra-Smooth Ceramic coating, helps protecting your hair from heat damage and glides softly through your hair
• Rotatable cool tip for easy use
• Rotary switch with 3 temperature settings (cool, low, high)
• Cool shot function
• 1.8 m swivel cord
• 2 years warranty

TECHNICAL SPECIFICATIONS:

- 220-240V\~50-60Hz,750-900W

ENGLISH • 3

A B C D E CARMEN

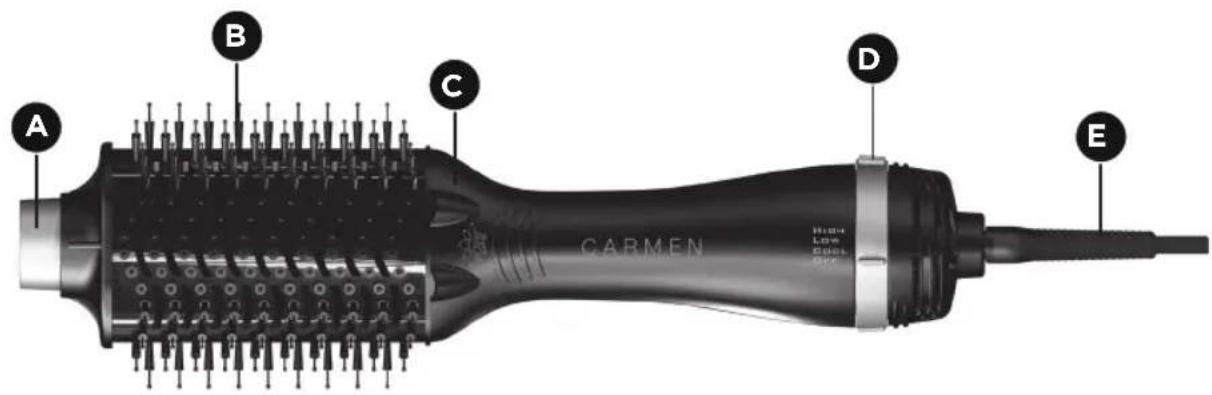

>DESCRIPTION

DELIVERY SET

Unit body - 1 pc.

Instruction manual - 1 pc.

A. Rotating cool tip
B. Combi pin brush
C. Quattro Ion Technology
D. Control button
E. Swivel cord

> SAFETY MEASURES

- DANGER! Never allow the device to get wet (in the rain, at a tap, near a bathtub, etc.) as you might experience an electrical shock.

• Never use this device near water, in or near a bathtub, a sink or another basin containing water.
• Neverhandle the device with wetor damp hands.
• Neversubmersethedeviceinwateror another liquid.
• Immediatelyunplugthedeviceifithas become wet or damp.
• Neverplacethedeviceonadamp surface or a damp cloth when the plug is in the wall socket.
• To ensure additional protection have installed in your bathroom a residual current device (RCD) with a nominal trip

current no higher than 30mA. Ask your electrical fitter for advice.

• Unplugthedeviceafterusewhenusing it in a bathroom. The presence of water nearby is a hazard, even when the device is switched off.
• Check the product immediately after unpacking for any damage caused during transport or for completeness. If the packaging is not complete or the product is damaged, please contact the retailer a.s.a.p.
• This device is not intended to be used by persons, including children, whose physical, sensory or mental capacity is impaired, or who lack the necessary experience or knowledge, even when a person responsible for their safety supervises them and gives them clear instructions for the use of the device.

• Children should not have access to the device, nor should they play with it.

• Packaging material, including plastic bags, must be stored out of the reach of children.

• You must use the device only for its intended purpose to prevent hazardous situations.
• Themainsvoltagemustmatchthe voltage specified on the product.

• Riskscanoccurevenwhenyourdevices are not switched on. For safety reasons, switch off the device and unplug it when not in use.
  • Pull the plug out of the wall socket when:

• the device malfunctions when in use;

• the device has fallen;
• the device has bumped against something;
• before cleaning the device;
• after use.

- Switch off the device when not in use, even for a brief period.

- Alwaysunplugthedevicewhenleavingit

unattended for a longer period.

• Neverusethedevicewhenitis damaged. Regularly check the device and the lead for damage. The lead cannot be replaced. The device will have to be discarded if the lead is damaged. Repairs must be performed exclusively by experts. Repairs that are inexpertly performed can be very hazardous for the user.
• If the device is damaged, contact the supplier to find out if you can still use it.
• Grabtheleadbytheplugwhen unplugging it. Never pull on the lead itself.
• Do not insert the plug in the wall socket when:

- the lead is damaged;

- the device is visibly damaged;

- the device has fallen.

- Do not let the lead touch the hot parts of the device.

6·ENGLISH

• Alwaysmakesurethattheleadis unencumbered when you move the device around.
• Avoid tripping over the lead.
• Never cover the lead with a rug, mat, blanket etc.
• Neverwraptheleadaroundthedevice.
• Check the cord of the device regularly for cable breakage to prevent short circuits.
• Letthedevicecoolbeforestoringor cleaning it.
• Store the device in a safe place to prevent accidental erroneous use.
• The device must be stored in a dry place at temperatures between 15°C and 25°C.
• Donotexposethedevicetoheat (radiator, oven, etc.), direct sunlight or humidity.

• Donotuseanyaccessoriesotherthat those recommended by Carmen.

• Keep the device clean and donot use abrasives or products containing solvents.

• Connect the device only to an electrical system that meets the prevailing regulations and that is equipped with a delay fuse. Make sure that the maximum current of all devices connected to this fuse does not exceed its maximum current (16A).
• Werecommendequippingthegroupto which the bathroom is connected with a residual current operated circuit breaker of maximum 16A to increase safety. Ask your electrician for advice.
• Themostrecentinstructionmanualcan be found on the Carmen website: www.carmen.nl

> DIRECTION FOR USE

IMPORTANT: THIS IS A HIGH TEMPERATURE PRODUCT

Use the oval brush on towel dried hair or dry hair. Plug the device in the socket. Take hold of a strand and pull it straight out from the head. Place the oval brush against the hair strand, close to the head and on the side where you want that strand to fall, and pull the brush through the hair. This method will spread the hair evenly across the brush. Pull the brush to the end of the strand and catch the hair ends in the brush. Now roll up the brush until you reach the head (or stop earlier if you only want to curl the ends). Switch on the device and wait till the curl keeps it shape. Unroll the curl until you can remove the oval brush from the curl. Allow the curl to cool down before brushing it

through. Proceed in the same way, strand by strand. After a little practice with the oval brush you will soon learn how to achieve the results you are looking for.

Switch:

Off = Device is off

Cool = Cool shot

Low = Low temperature

High = High temperature

> CLEANING AND MAINTRANCE

• Unplugthedevicebeforecleaningit.
• Donotletchildrencleanthedevice.
• Neversubmerseitinwater.
• Protectthedevicefromdust.
• Occasionallycleantheventilationgrilleto remove dust and hairs.
• You can use a slightly damp cloth to clean the device. Afterwards, dry the device with a dry cloth.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal, and recycling of WEEE (information can be obtained at the town hall of your domicile) or brought back to a dealer based on the principle of “1 for 1 free of charge” (the dealer’s take back does not create a right to a payment or rebate). The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase. This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantlingorintegration with another device or an assembly making the device fixed or semi-fixed,
  • Normal wear and tear of the parts,
• Degradation due to improper use,
• Failure to comply with the user manual or with the maintenance and safety instructions,

ENGLISH • 9

• Damage resulting from poor maintenance or a lack of maintenance,
• Damage caused by external factors (lightening...),
• Abnormal use of the device,
• Improper storage,
• Shocks,
• Deformation of the tank,
• The device having been submerged,
• Expired warranty.

For warranty and service we refer you to the reseller and for more information you can consult our website www.carmen.nl.

This is a class II device with double insulation and no grounding

This device conforms to the Electromagnetic Compatibility Directive 2014/30/EU

and the Low Voltage Directive 2014/35/EU

10 • NEDERLANDS

PRODUCTINFORMATIE

Productcode: DC1090

Productnaam: Carmen Oval Quattro Brush

EAN geschenkverpakking: 5011832069733

SPECIFICATIES:

BELANGRIJK: DIT APPARAAT WORDT ZEER HEET

High = Hohe Temperatur

INFORMATIONS SUR LE PRODUIT

Most recent IM can be

downloaded from www.carmen.nl
