281208 - Food sterilizer Hendi - Free user manual and instructions

Product type	Professional UV food sterilizer
Brand	Hendi
Model	281208
Voltage/Frequency	220-240 V~, 50/60 Hz
Power	78 W
UV light source	4 UV lamps of 16 W each
UV-C wavelength	253.6 nm
UV lamp lifespan	7 500 hours
Sterilization time	150 seconds (automatic cycle)
Maximum capacity	30 eggs
Main material	Stainless steel
Removable grid	Chrome steel
Water protection class	IPX3
Electrical protection class	Class I (with grounding)
Usage	Professional, indoor only
Applications	Disinfection and sterilization of eggs
Cleaning	Wipe with a soft damp cloth; do not immerse or put in dishwasher
UV lamp maintenance	Replacement by a qualified professional
Safety	Dangerous UV-C radiation; do not open the drawer during the cycle
Number of cycles before lamp replacement	Approximately 180,000 cycles (if 150 s/cycle)
Warranty	12 months from date of purchase

Frequently Asked Questions - 281208 Hendi

How to use the Hendi 281208 sterilizer?

Plug in the appliance, press the green switch (position I). The orange indicators light up. Place the washed and dried eggs on the grid, close the drawer. The sterilization cycle lasts approximately 150 seconds. Once finished, the indicators turn off. Turn off the appliance with the switch (position 0).

What types of food can I sterilize?

This appliance is designed exclusively for the disinfection and sterilization of eggs. Do not use it for other foods or objects.

How to clean the sterilizer?

Unplug the appliance and let it cool down. Wipe the exterior surfaces with a soft damp cloth (warm water and mild detergent). The accessories (grid) can be washed in soapy water, rinsed, and dried. Never immerse the appliance or put it in the dishwasher.

What to do if the UV lamps do not light up?

Check that the switch is in position I and that the orange indicators are lit. If the indicators are lit but not the UV, the lamps may be defective or the fuse has blown. Contact an authorized repair service.

Can I open the drawer during the cycle?

No, dangerous! UV-C radiation is harmful to eyes and skin. Never open the drawer when the lamps are on. Wait for the end of the cycle.

How many eggs can I sterilize at once?

The maximum capacity is 30 eggs. Place them on the grid without overlapping for uniform sterilization.

Is the sterilizer suitable for domestic use?

No, this appliance is designed exclusively for professional use (restaurants, collective kitchens). Do not use at home.

How to maintain the UV lamps?

The lamps have a lifespan of 7,500 hours. In case of failure, have them replaced by a qualified professional. Do not attempt to change them yourself.

What to do in case of breakdown?

Consult the troubleshooting table in the manual. If the problem persists, stop using the appliance and contact your dealer or an authorized repair service.

What are the important safety instructions?

Never immerse the appliance, do not use near water, keep out of reach of children, unplug before cleaning, and never block the ventilation openings. Respect a free space of at least 15 cm around the appliance.

USER MANUAL 281208 Hendi

Exterior view of a stainless steel HENDI oven with eggs being inserted into a rack (no text or symbols visible)

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

Simple line drawing of a house with an arrow pointing left, labeled 'INDOOR' below (no other text or symbols)

For indoor use only.

FOOD CONTACT

Prohibition sign depicting a trash bin crossed out by diagonal lines, indicating no waste or discharge.

RoHS

Thank you for purchasing this Hendi appliance. Before using the appliance for the first time, please read this manual carefully, paying particular attention to the safety regulations outlined below.

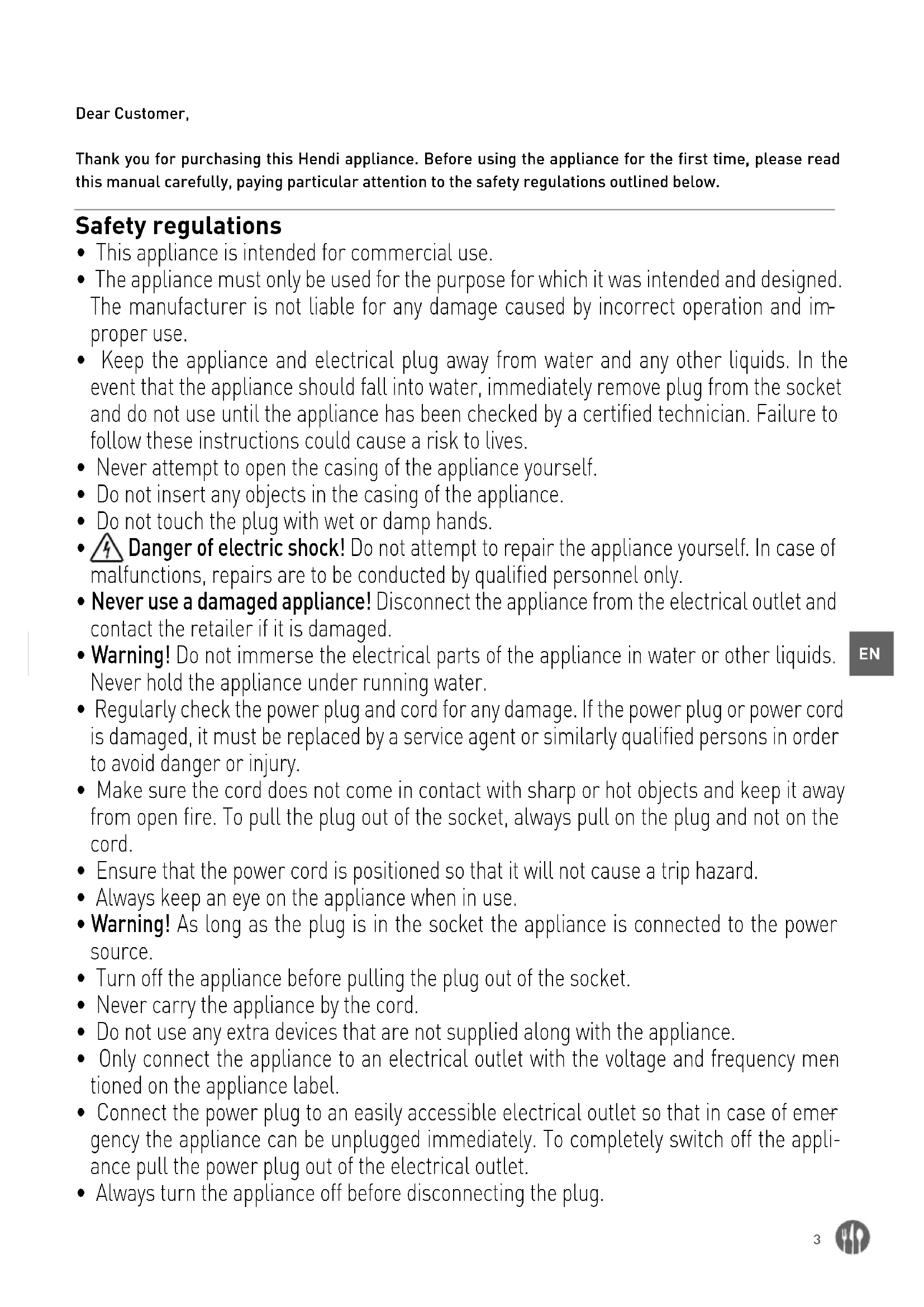

Safety regulations

• This appliance is intended for commercial use.
• The appliance must only be used for the purpose for which it was intended and designed. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug away from water and any other liquids. In the event that the appliance should fall into water, immediately remove plug from the socket and do not use until the appliance has been checked by a certified technician. Failure to follow these instructions could cause a risk to lives.
• Never attempt to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not touch the plug with wet or damp hands.
• Danger of electric shock! Do not attempt to repair the appliance yourself. In case of malfunctions, repairs are to be conducted by qualified personnel only.
• Never use a damaged appliance! Disconnect the appliance from the electrical outlet and contact the retailer if it is damaged.
• Warning! Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• Regularly check the power plug and cord for any damage. If the power plug or power cord is damaged, it must be replaced by a service agent or similarly qualified persons in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. To pull the plug out of the socket, always pull on the plug and not on the cord.
• Ensure that the power cord is positioned so that it will not cause a trip hazard.
  • Always keep an eye on the appliance when in use.
• Warning! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before pulling the plug out of the socket.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied along with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Connect the power plug to an easily accessible electrical outlet so that in case of emergency the appliance can be unplugged immediately. To completely switch off the appliance pull the power plug out of the electrical outlet.
  • Always turn the appliance off before disconnecting the plug.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
• This appliance must not be used by children under any circumstances.
• Keep the appliance and its cord out of reach of children.
• Always disconnect the appliance from the mains if it is left unattended or is not in use, and before assembly, disassembly or cleaning.
• Never leave the appliance unattended during use.

Special Safety Precautions

• DANGER: Risk Group 3 Ultra Violet product! The lamps inside the product emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. The lamp should be used only inside the product which shields users from the radiation.
• Use the appliance as described in the manual.
• WARNING! Keep all ventilation openings in the appliance clear of obstruction.
• Allow at least 15 cm spacing around the appliance for ventilation purpose during use.
• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.). Keep the appliance away from any hot surfaces, open flames or flammable objects.
  • Always operate the appliance on a level, stable, clean, heat-resistant and dry surface.
• Do not use the appliance near explosive of flammable materials, credits cards, magnetic discs or radios.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not cover the appliance during the operation.
• Caution! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.
• Do not wash the appliance with water or a waterjet. Washing can cause leakages and increase the risk of electric shock.
• Do not force the lamps to be on when the drawer is pulled out - the invisible UV-C radiation is harmful to the eyes and skin!
• Any maintenance activities should only be performed after disconnecting the egg sterilizer from the mains.
• Any repairs can only be performed by authorized service personnel using original spare parts.

Intended use

• This appliance is intended for professional use.
• This appliance is designed only for egg disinfection and sterilization only. Any other use may lead to damage of the appliance or personal injury.

- Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as class I protection appliance and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Preparations before using for the first time

• Check to make sure the appliance is undamaged. In case of any damage, contact your supplier immediately and do NOT use the appliance.
• Remove all the packing material and protection film (if applicable).
• Clean the appliance with lukewarm water and a soft cloth.
• Place the appliance on a level and steady surface,

unless mentioned otherwise.

• Make sure there is enough clearance around the appliance for ventilation purposes.
• Position the appliance in such a way that the plug is accessible at all times.
• Plug the appliance to the mains. The appliance is ready to use.

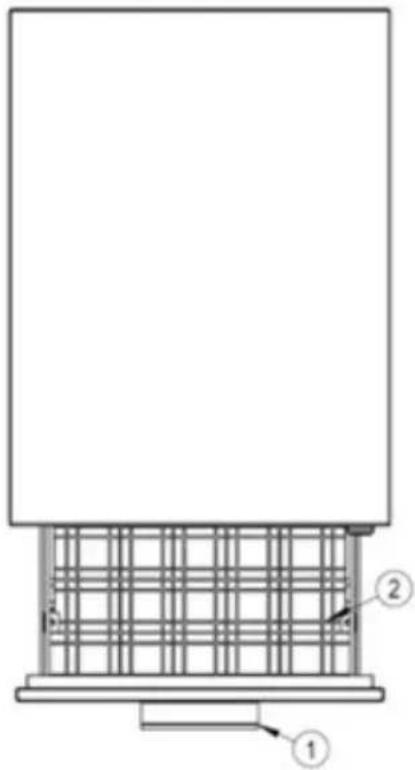

Main parts of the appliance

Technical diagram of a structural component with labeled parts 1, 2, and grid structure

1. Tray handle
2. Rack
3. LED light (Lower UV lamps)

Diagram of a device rear panel with labeled ports and connection points

1. LED light (Upper UV lamps)
2. Power switch

Operation

• Connect the plug to a suitable electrical outlet.
• Switch on the appliance by pressing the main switch to the "I" position. Then, green indicator on the main switch will light on and 2 orange indicators will illuminate.
• Pull out the drawer and put the eggs on the rack after their cleaning and drying.

• After closing the drawer the UV lamps will start illuminating inside. The eggs will be sterilized and 2 orange indicators (One for upper UV lamp and the other for lower UV lamp) will illuminate again.

• The whole process will take about 150 seconds. Once the process is completed, the orange indicators go off.

• Once you have reached the required result, you can switch off the appliance by pressing the main switch to the "0" position. The green indicator goes off.
• If you do not use the appliance for an extended period, remove the plug from the main socket and remove the eggs from the appliance.

Cleaning and Maintenance

Attention: Always unplug the appliance from the electrical power outlet and let it cool down completely before cleaning and storage.

• Clean the appliance regularly and any food residues removed.
• CAUTION! Never use any abrasive or hard objects for cleaning.

• Clean the appliance with luke-warm water and a soft cloth.

• Do not use water jet or steam cleaner for cleaning and do not push under the water.

• No any parts can be cleaned in the dishwasher.

Parts How to clean	Remark
All accessories such as rack, etc.	- Soak in warm, soapy water for about 10 to 20 minutes.- Rinse under running water thoroughly.	Dry all parts well at last.
External surfaces	Wipe clean with a soft cloth and a little mild detergent.Make sure no water or moisture enters inside the of the appliance.

Storage

- Always make sure the appliance has already - Store the appliance in a cool, clean place. been disconnected from the electrical power outlet and cool down completely.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution.

It you are unable to solve the problem, contact the supplier/service provider for repair.

Problems Possible cause Possible solution
Power switch is switched on and green indicator is light up but the UV lamps do not light up.	- UV lamps are damaged.- The fuse is activated- The 2 orange indicators are damaged.	Take the appliance to the supplier/service provider for repair.
Power plug is connected to the electrical socket. And any no indicators and UV lamps are light up.	The power plug is not connected firmly with the electrical outlet.	Check again the connection. And make sure all the connections are they are connected firmly.

Above mentioned problems are just for reference.

If there are still have other problems, stop using and contact with the supplier/service provider for repair.

Technical Specification

• Egg sterilizer is made of stainless steel.
• Disinfection is performed by UV lamps

Model: 281208

Voltage/ Frequency: 220-240V\~ 50/60Hz

Power: 78 W

UV light sources: 4 x 16W

UV-C wavelength: 253.6nm

- The removable grid is made of chrome steel

UV lamp lifetime: 7500h

Waterproof protection class: IPX3

Product Dimension: 358x512x(H)255mm

Sterilization time: 150 seconds

Capacity: up to 30 eggs

Remarks: Technical specification is subjected to change without prior notification.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

Technical diagram of a structural support system with labeled components 1, 2, and 3

Diagram of a device rear panel with labeled ports and connection points

Technical diagram of a structural component with labeled parts 1, 2, and grid structure

Diagram of a device rear panel with labeled ports and connection points

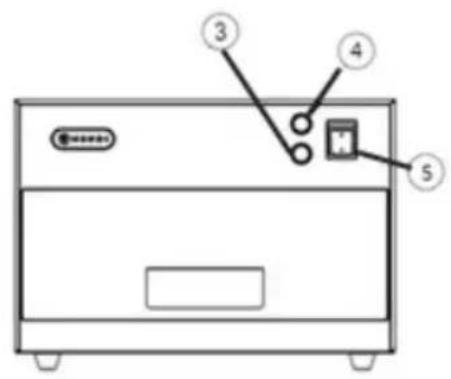

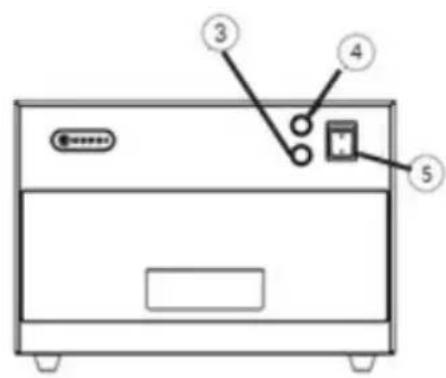

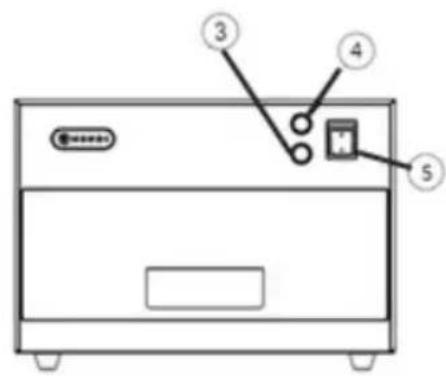

1. Handgreep lade

2. Rek

3. Led-lampje (Onderste UV-lampen)

4. Led-lampje (Bovenste UV-lampen)

5. Power-knop

Bediening

Technical diagram of a mechanical or structural component with labeled parts 1, 2, and 3.

1. Uchwyt szuflady
2. Kosz
3. Lampka LED (Dolne lampy UV)

Diagram of a device front panel with labeled components including ports, buttons, and a control knob

Wymiary: 358x512x(H)255mm

Technical diagram of a structural support system with labeled components 1, 2, and 3

Diagram of a device rear panel with labeled ports and connection points

Dimensions: 358x512x(H)255mm

Technical diagram of a structural support system with labeled components 1, 2, and 3

Diagram of a device rear panel with labeled ports and connection points

Technical diagram of a structural component with labeled parts 1, 2, and grid structure

Diagram of a device front panel with labeled components including ports, switches, and a control panel

Consum energetic: 78 W

Technical diagram of a structural component with labeled parts 1, 2, and 3

Diagram of a device rear panel with labeled components including ports, switches, and a control panel

Technical diagram of a structural component with labeled parts 1, 2, and grid pattern

Diagram of a device rear panel with labeled ports and connection points
