Brand	Tesy
Model	Compact 30
Category	Electric storage water heater
Nominal volume	See rating plate
Nominal voltage	See rating plate
Nominal capacity	See rating plate
Nominal pressure	See rating plate
Max hydraulic network pressure	0,6 MPa
Safety valve pressure	0,8 MPa
Inner tank coating	Vitrified ceramic (GC models)
Tank material	Black steel
Magnesium anode	Yes, for anti-corrosion protection
Hydraulic connection	G ½ thread (blue for cold water, red for hot water)
Minimum ambient temperature	4 °C
Temperature adjustment	By rotary thermostat (min position does not protect against frost)
Thermal protection	Thermal limiter (cut-off in case of overheating)
Mounting types	Above or below the sink (wall-mounted)
Daily electricity consumption	See appendix I
Nominal load profile	See appendix I
Mixed water volume at 40 °C (V40)	See appendix I
Energy efficiency of hot water production	See appendix I
Recommended cleaning	Damp cloth, without abrasive products
Periodic maintenance	Every 2 years by an approved service (descaling and anode check)
Repairability	Parts available via approved after-sales service
Standards	EN 60335-1, EN 60335-2-21

Frequently Asked Questions - Compact 30 Tesy

How to install my Tesy Compact 30 water heater?

Installation must be carried out only by a qualified technician, in accordance with local standards. Mount the appliance on a provided metal plate, fixed to the wall with plugs. Connect the safety valve to the cold water inlet and connect electrically according to figure 3 of the manual.

Why does water flow out of the safety valve?

This is normal in heating mode. The valve releases excess pressure. Ensure the drain is free and directed to a collector. Never obstruct the valve.

How to adjust the water temperature?

Turn the thermostat knob upward to increase temperature. The 'min' position does not protect against frost. For optimal hygiene, set to maximum once a month for 24 hours.

What to do if my water heater makes a kettle noise?

This noise is normal initially but increases with limescale buildup. To remove it, descaling by a professional is necessary. This service is not covered by the warranty.

How to drain the water heater?

For above-sink mounting: cut off power supply, close cold water tap, open hot water tap and drain tap (or disconnect inlet pipe). For below-sink mounting: disconnect power, disassemble piping, tilt the appliance to drain water into a container.

How often to replace the magnesium anode?

It is recommended to check the anode condition every 2 years during periodic maintenance by an approved service. Replace it if it is worn more than 70%.

Can I use the appliance if the ambient temperature drops below 0 °C?

No. The appliance is not designed to operate below 4 °C. In case of frost, drain it completely and disconnect it.

What to do if the red indicator remains off?

Check the power supply: the green light should be on. If the red light does not come on during heating, the thermal limiter may have tripped. Call a qualified technician.

How to clean the exterior of the water heater?

Use a damp, soft cloth. Never use scouring or abrasive products, and do not pour water directly on the appliance.

What warranty applies?

The warranty is valid if the appliance has been installed and used according to the manual. Any unauthorized modification or intervention voids the warranty. Keep the warranty card.

USER MANUAL Compact 30 Tesy

ELECTRIC WATER HEATER 7-11 Instructions for use and maintenance

RU

White TESY water heater device with control panel and mounting feet (no visible text or symbols beyond branding)

White TESY air conditioner unit with control knob (no visible text or symbols beyond branding)

v_004

I. ВАЖНИ ПРАВИЛА

1. This technical description and instructions manual was prepared in order to acquaint you with the product and the conditions of proper installation and use. These instructions were also intended for use by qualified technicians, who shall perform the initial installation, or disassembly and repairs in the event of a breakdown.
2. Following the current instructions will primarily be of interest to the consumer, but along with this, it is also one of the warranty conditions, pointed out in the warranty card, so that the consumer can benefit from the free warranty services. The producer is not responsible for damages in the appliance that have appeared as a result of operation and/or installation not corresponding to the instructions here.
3. The electric water heater complies with the requirements of EN 60335-1, EN 60335-2-21.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. Cleaning and user maintenance shall not be made by children without supervision.

Attention! Improper installation and connection of the appliance may make it hazardous for the health and life of consumers. It may cause grievous and permanent consequences, including but not tied to physical injuries and/or death. Improper installation and connection of the appliance may also to damage to the consumers' property /damage and/ or destruction/, or to that of third persons, as a lot of, but not limited to flooding, explosion and/or fire.

Installation, connection to the main water and power supply, and putting into operation must be carried out by certified electricians and technical personnel certified in installation of this category of appliances, who have obtained their license in the state where the installation and commissioning of the appliance are carried out, and in compliance with its local legislation.

All alterations and modifications to the water heater's construction and electrical circuitry are forbidden. If such alterations or modifications are established during inspection, the appliance's warranty shall be null void. Alterations and modifications shall mean each instance of removal of elements incorporated by the manufacturer, building in of additional components into the water heater, replacement of elements by similar parts unapproved by the manufacturer.

Mounting

1. The water heater must only be mounted in premises with normal fire resistance.
2. In the event the device is mounted in a bathroom, the selected location must exclude the possibility of water spray contact from the showerhead or portable showerhead attachment.
3. The water heater is designed to operate only in closed and heated premises where the temperature is not lower than 4^ C and it is not designed to operate in a continuous protracted regime.

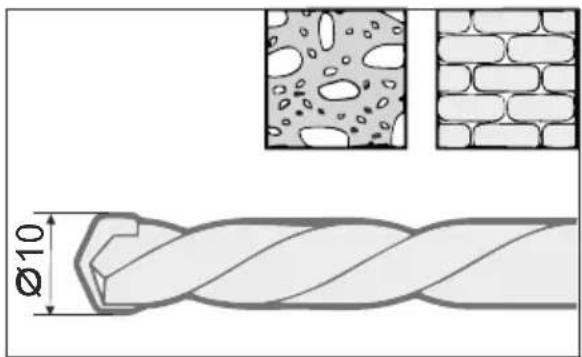

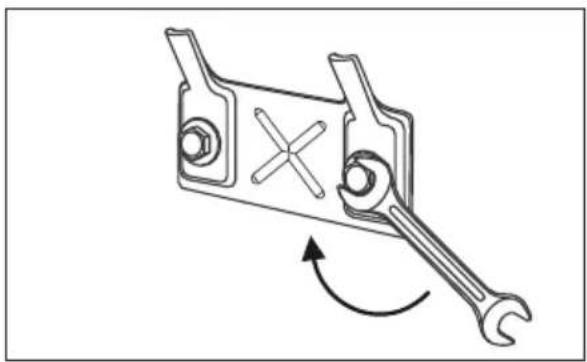

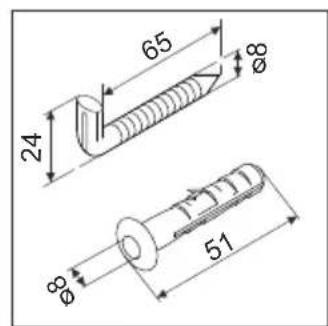

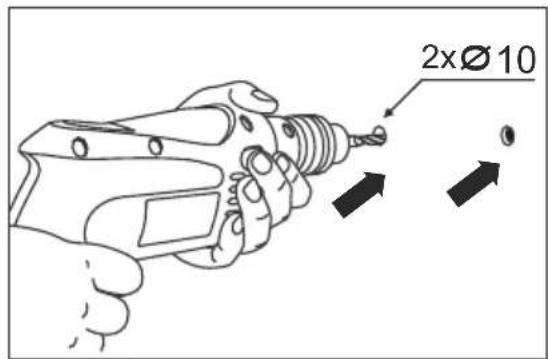

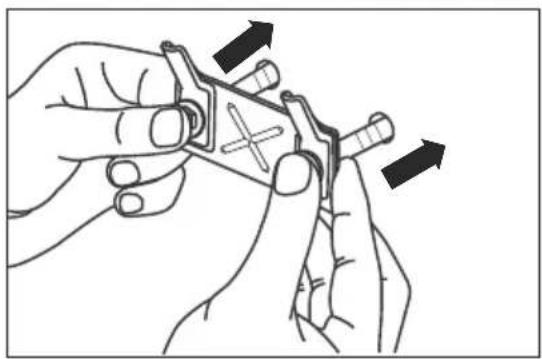

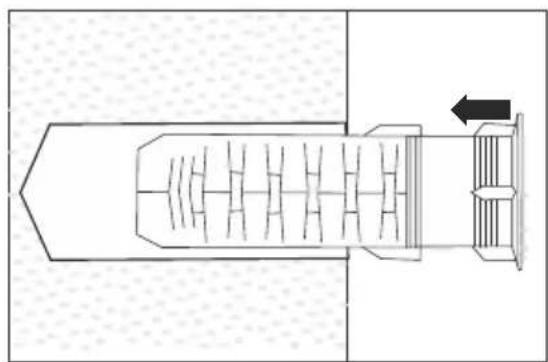

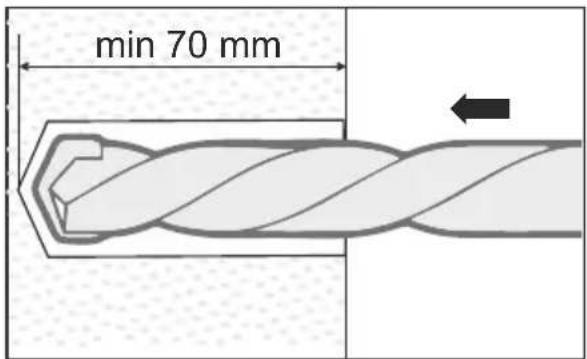

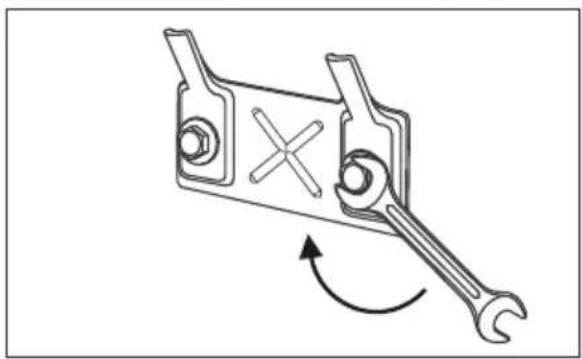

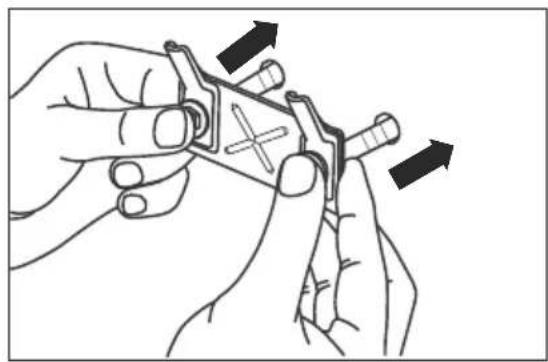

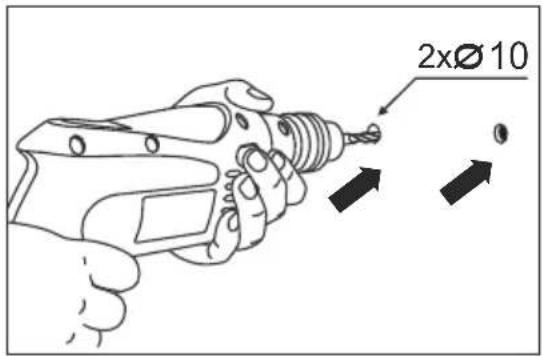

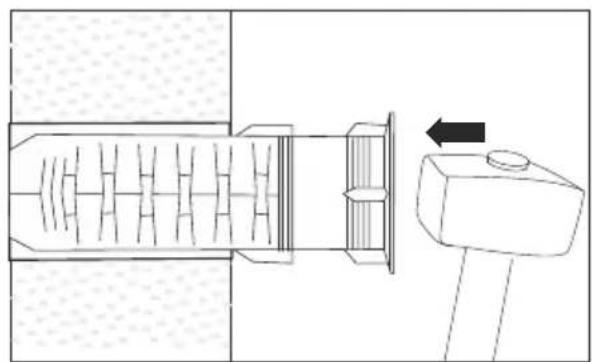

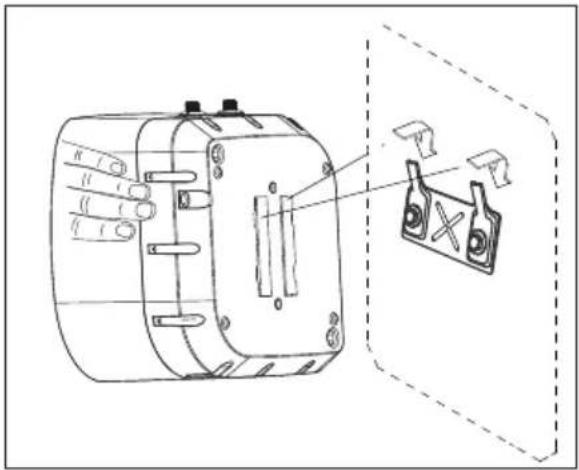

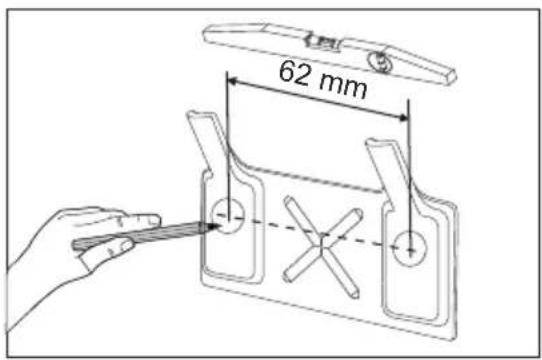

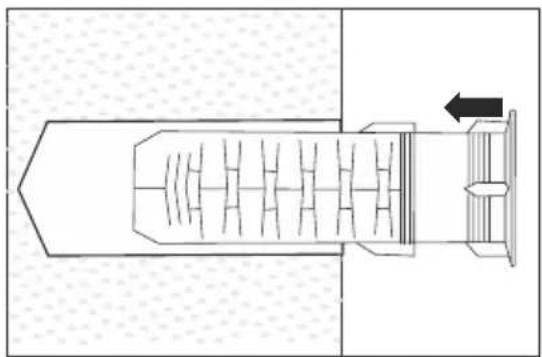

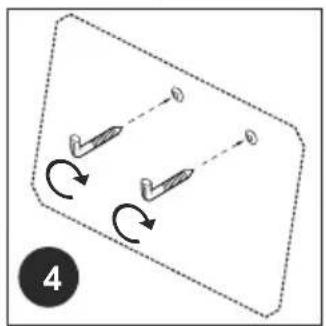

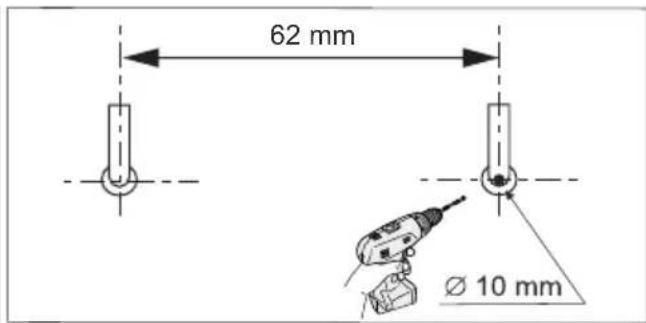

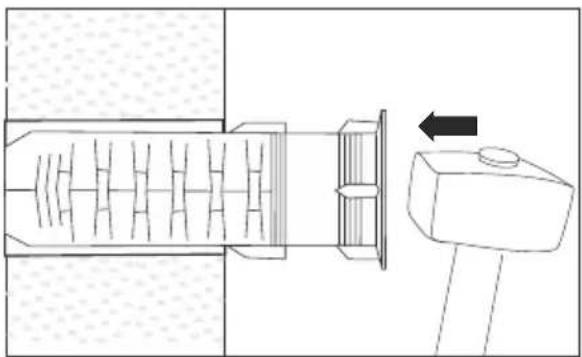

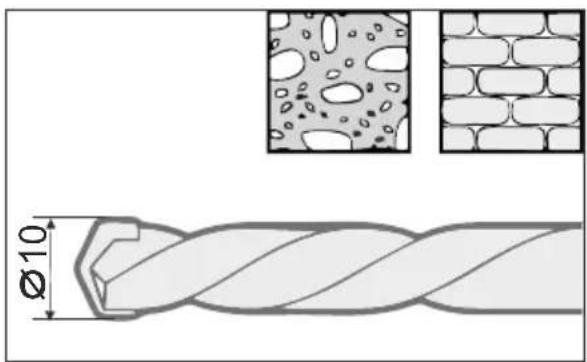

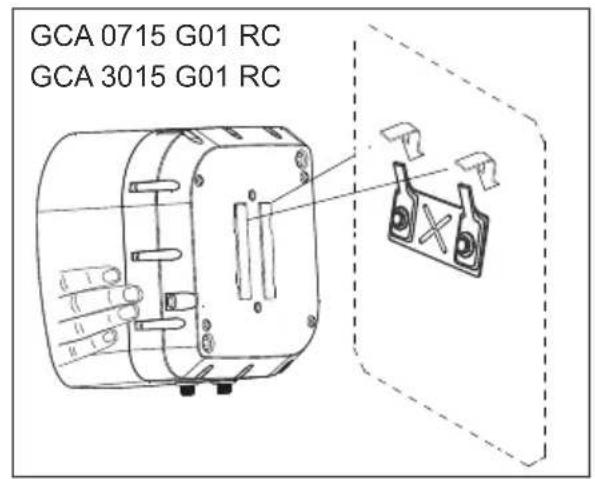

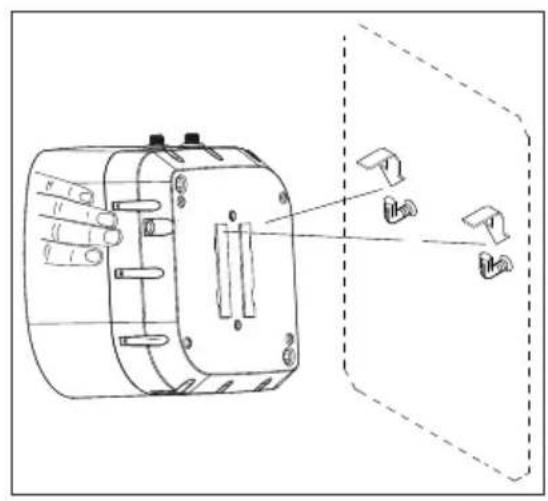

4. The appliance is affixed to a wall by means of mounting metal bracket. The braket should be affixed with the expansion bolts first - see pic. 3).

Water heater connection

1. The appliance is intended to supply hot water to household sites equipped with a piping system working at pressure below 6 bar (0,6 Mpa).

2. .The safety return-valve must be mounted on the cold water supply pipe, in observance of the direction arrow stamped on its body, indicating the incoming water's direction. Additional stopcocks must not be mounted between the safety return-valve and the water heater.

Exception: If the local regulations (norms) require the usage of another protection valve or mechanism (in accordance with EN 1487 or EN 1489), then it must be bought additionally. For mechanisms operating in accordance with EN 1487 the announced operational pressure must be no more than 0.7 MPa. For other protection valves, the pressure at which they are calibrated must be 0.1 MPa lower than the one marked on the appliance's sign. In these cases the safety valve which the appliance is supplied with should not be used.

1. The safety valve and the pipe between the valve and the water heater must be protected from freezing. During hose draining - its free end must be always open to the atmosphere (not to be immersed). Make sure that the hose is also protected from freezing.

EN

1. In order to secure the water heater's safe operation, the safety return-valve must undergo regular cleaning and inspections for normal functioning /the valve must not be obstructed/, and for the regions with highly calcareous water it must be cleaned from the accumulated lime scale. This service is not provided under warranty maintenance.
2. In order to prevent injury to user and third persons in the event of faults in the system for providing hot water, the appliance must be mounted in premises outfitted with floor hydro insulation and plumbing drainage. Don't place objects, which are not waterproof under the appliance under any circumstances. In the event of mounting the appliance in premises not outfitted with floor hydro insulation, a protective tub with a plumbing drainage must be placed under the appliance.
3. During operation – regime of heating the water – water drops through the drainage opening of the protection valve are usual. The protection valve should be left open to the atmosphere. Measures should be taken to lead and collect the leakages in order to prevent damages.
4. If the probability exists for the premise's temperature to fall below 0^ C, the water heater must be drained. In the event you must empty the water heater, first you must cut off its power supply.

Draining procedure for appliances designed to be installed ABOVE SINKS:

1. First shut the cold water supply valve
2. Open the hot water valve on the mixing-faucet
3. The water tap 7 (fig 4a) must be opened to drain the water from water tank. If there is no such tap build in the pipe line, than the water can be drain directly from inlet pipe of water tank after when you disconnect it from water main

Draining procedure for appliances designed to be installed UNDER SINKS:

1. Switch the electric water heater off the power supply network.
2. Dismantle the connecting water fittings from the appliance.
3. Disassemble the appliances from its installation place, turn it so the pipes point to the floor and pour the water in a vessel you have prepared for the purpose. Wait until all the water drains out of the appliance.

Connection to the electrical network

1. Do not switch on the water heater unless you established it was filled with water..
2. If the power supply cord (of models that have one) is damaged, it must be replaced by a service representative or a person with similar qualification, to avoid any risk.
3. During the heating the appliance could produce a hissing noise (the boiling water). This is common and does not indicate any damage. The noise gets higher with the time and the reason for this is the accumulation of limestone. To remove the noise the appliance must be cleaned from limestone. This type of cleaning is not covered by the warranty.

Dear Clients, The TESY team would like to congratulate you on your new purchase. We hope that your new appliance shall bring more comfort to your home.

II. TECHNICAL SPECIFICATIONS

1. Nominal volume V, liters - see the appliance's rating plate
2. Nominal voltage - see the appliance's rating plate
3. Nominal power consumption - see the appliance's rating plate
4. Nominal pressure - see the appliance's rating plate

ATTENTION! This is not the water mains pressure. This is the pressure that is announced for the appliance and to the requirements of the safety standards.

1. Water heater type - closed accumulating water heater, with thermal insulation
2. Inner coating: GC-glass-ceramics
3. Daily energy consumption – see Annex I
4. Rated load profile - see Annex I
5. Quantity of mixed water at 40°C V40 litres - see Annex I
6. Maximum temperature of the thermostat - see Annex I
7. Default temperature settings - see Annex I
8. Energy efficiency during water heating - see Annex I

III. DESCRIPTION AND PRINCIPLE OF OPERATION

The appliance is designed to operate in regions where the water hardness is not more than 10^ dH. In case that it is installed in a region where the water is harder it is possible that limestone precipitation accumulate very fast. This can cause a specific noise during heating, as well as fast damaging of the electrical part. For regions with harder water yearly cleaning of the limestone precipitation in the appliance is recommended, as well as usage of not more than 2 kW of heating power

The appliance consists of a body, flange, plastic control panel, safety return valve.

1. The body consists of a steel reservoir (water tank) and plastic housing (outer shell) with thermal insulation placed in-between, and two pipes with thread G 12 , for cold water supply (marked with a blue ring) and hot water discharge (marked with a red ring). The inner reservoir is made of steel proved against corrosion by a special glass-ceramic coating
2. The flange is fitted with electric heater and magnesium anode protector. The flange is fixed to the water tank with bolts.

The electric heater heats the water in the tank and is controlled by the thermostat, which automatically maintains the preset temperature.

The plastic control panel incorporates: switch (depending on model), adjustable thermostat (depending on model), and thermal cut-out and control lamps.

The thermal cut-out is a device, which switches the heater off the power supply when the water temperature reaches excessive values. If this device is actuated, you should call a service station.

The signal lamps (depending on model) on the control panel indicate the current mode of the unit.

The magnesium protector provides additional anti-corrosion protection to the internal tank for heaters fitted with glass-ceramic coating.

1. The safety-return valve prevents the appliance's complete emptying in the event of cold water supply interruption. The valve protects the appliance from pressure increases higher than the allowed value during heating (! pressure will increase when temperature increases), by releasing the excess pressure through the drain outlet. Water dropping out through the drains during the warming process is a normal event that must be taken into consideration when the appliance is installed.

ATTENTION! The safety-return valve cannot protect the appliance in the event of water mains pressure in excess acceptable pressure stated for the appliance.

IV. INSTALLATION AND SWITCH ON

Attention! Improper installation and connection of the appliance may make it hazardous for the health and life of consumers. It may cause grievous and permanent

consequences, including but not limited to physical injuries and/or death. Improper installation and connection of the appliance may also lead to damage to the consumers' property /damage and/ or destruction/, or to that of third persons, as a result of, but not limited to flooding, explosion and/or fire.

Installation, connection to the main water and power supply, and putting into operation must be carried out by certified electricians and technical personnel certified in installation of this category of appliances, who have obtained their license in the state where the installation and commissioning of the appliance are carried out, and in compliance with its local legislation.

1. Installation

We recommend installation of the device at close proximity to locations where hot water is used, in order to reduce heat losses during water transportation. The selected location must exclude the possibility of water spray originating from the showerhead or other water contacts.

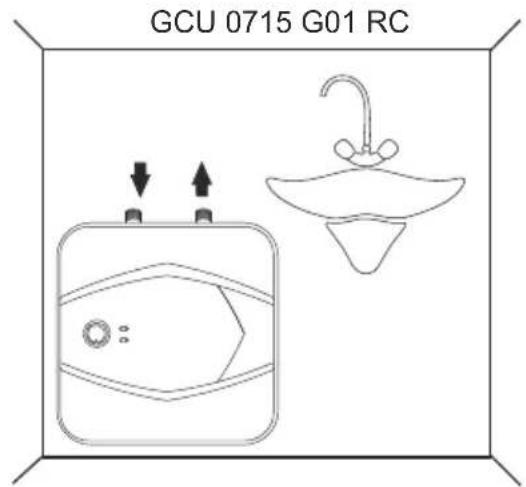

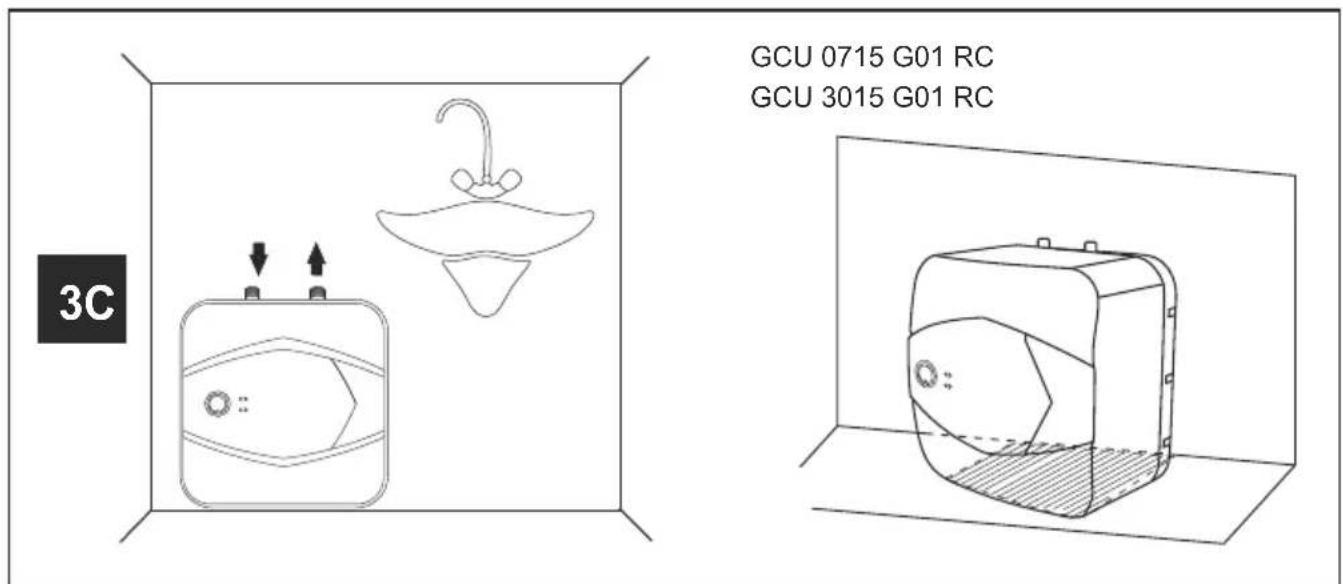

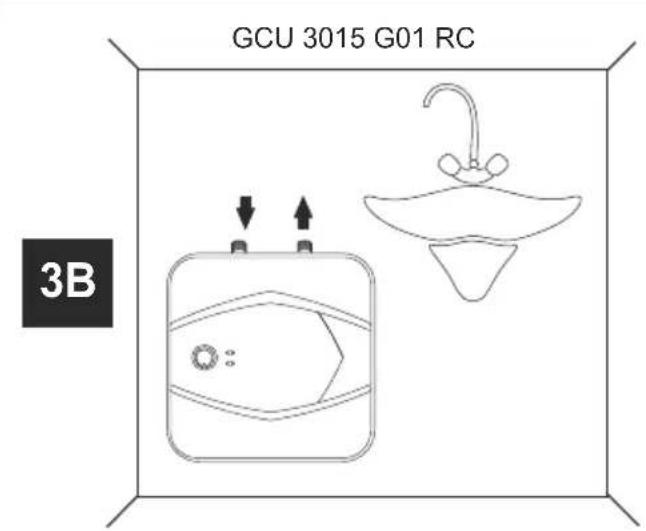

IMPORTANT: The type of appliance designed to be installed UNDER / ABOVE a sink is marked on the chance.

• Appliances designed for installation above sinks are assembled in such a manner that the outlet/inlet pipes are pointed downwards (to the floor of the premise). The appliance is affixed to a wall by means of mounting metal bracket. The braket should be affixed with the expansion bolts first - see pic. 3A).
• Appliances designed for installation under sinks are assembled in such a manner that the outlet/inlet pipes are pointed upwards (to the ceiling of the premise).

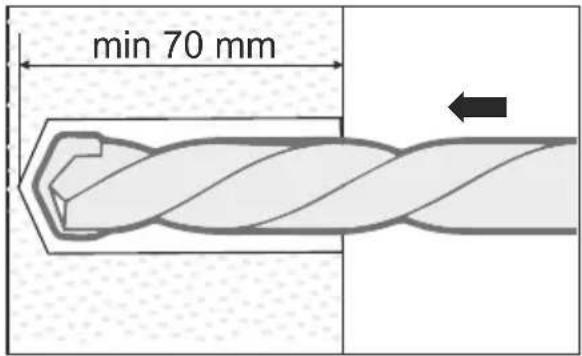

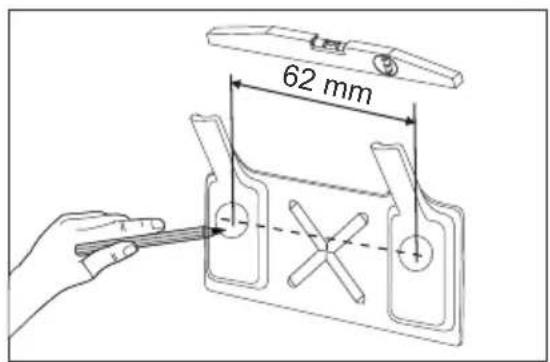

For clear understanding of wall installation schemes, please refer to fig.3 (A above sink, B under sink and C for floor installation).

ATTENTION! In order to prevent injury to user and third persons in the event of faults in the hot water system, the appliance must be mounted in premises with floor hydro insulation and sewer drainage.

Don't place objects, which are not waterproof under the appliance under any circumstances. In the event of mounting the appliance in premises without floor hydro insulation, a protective tank with a sewer discharge drainage must be placed under the appliance.

Notice: the set does not include a protective tub and the user must select the same.

EN

2. Water heater connection to the water supply system

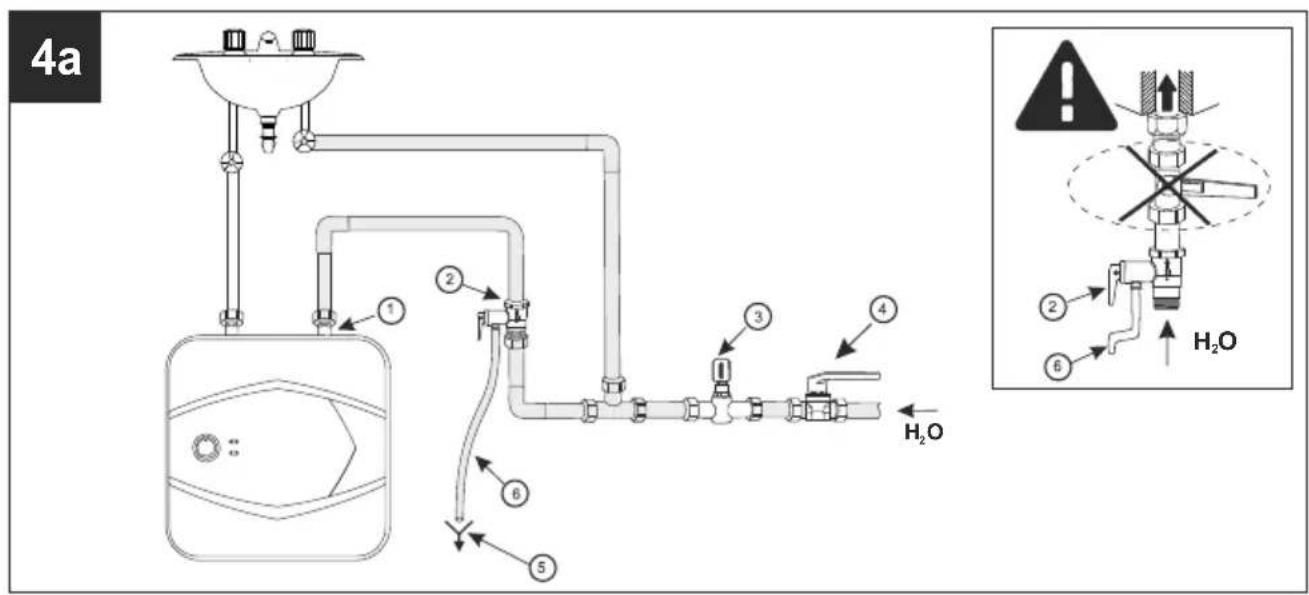

Fig.4a - installation scheme above sink

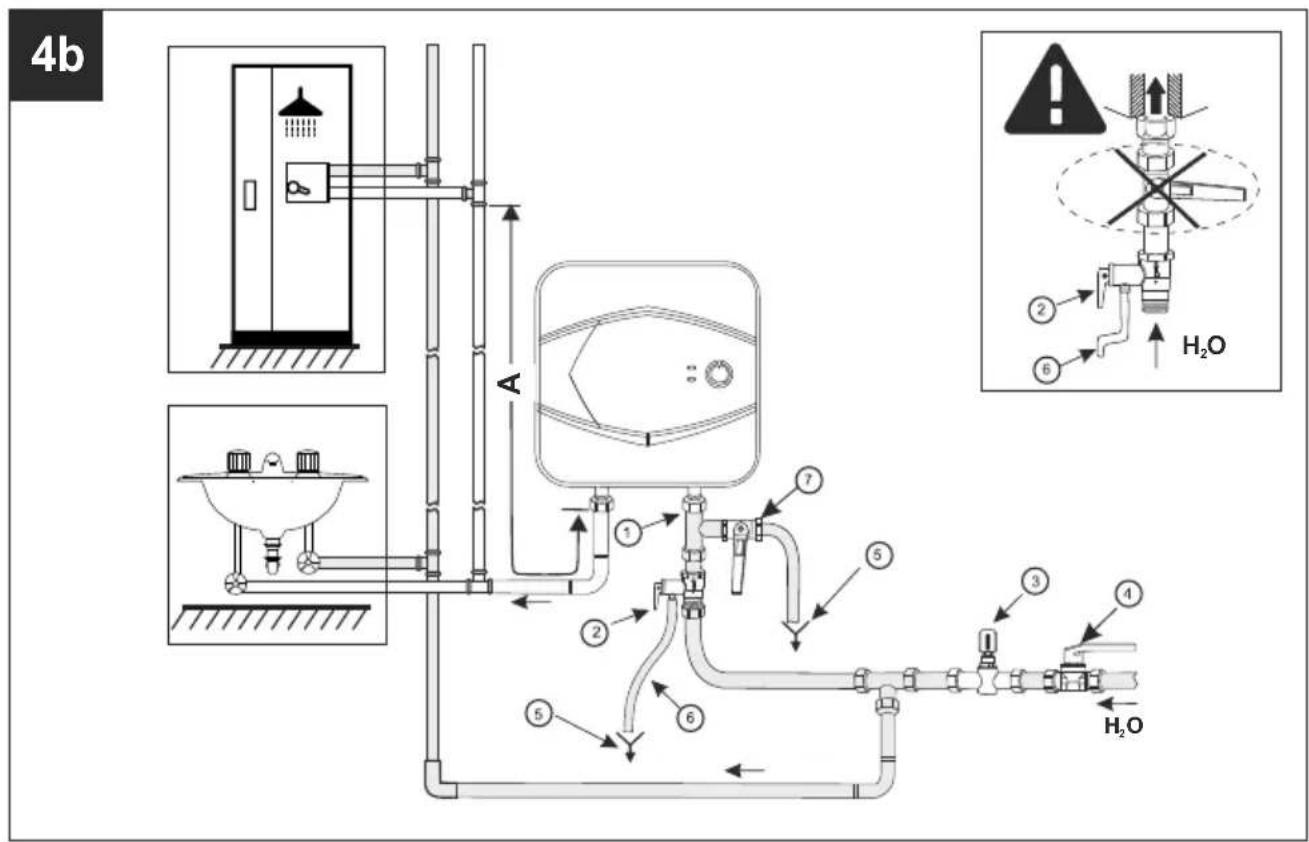

Fig.4b - installation scheme under sink

Where: 1 – input pipe, 2 – safety valve (0.8 MPa), 3 – reduction valve (if the water supply pressure exceeds 0.6 MPa), 4 – stop valve, 5 – bell-mouth discharge to the sewer, 6 – hose; 7 - Drain water tap.

Upon connecting the water heater to the water supply system, take care of the indicative color markings /rings/ of the pipes:

BLUE - for cold /in-flowing/ water,

RED - for hot /out-flowig/ water.

The mounting of the safety return-valve supplied with the water heater is obligatory. The safety return-valve must be installed on the cold water supply pipe, according to the arrow stamped on its body that indicates the supplied water direction.

Exception: If the local regulations (norms) require the usage of another protection valve or mechanism (in accordance with EN 1487 or EN 1489), then it must be bought additionally. For mechanisms operating in accordance with EN 1487 the announced operational pressure must be no more than 0.7 MPa. For other protection valves, the pressure at which they are calibrated must be 0.1 MPa lower than the one marked on the appliance's sign. In these cases the safety valve which the appliance is supplied with should not be used.

ATTENTION! Other type of stopping armature is not allowed between the protection return valve (the tive device) and the appliance.

ATTENTION! Any other /old/ safety return-valves may lead to a failure of your appliance, therefore they are removed.

ATTENTION! Fixing the safety return-valve to threads longer than 10 mm is not allowed, as it could need the valve and could make the use of your force dangerous.

ATTENTION! The safety valve and the pipe between the valve and the water heater must be protected from g. During hose draining - its free end must be always to the atmosphere (not to be immersed). Make sure that use is also protected from freezing.

The electric water heater is filled with water by opening the tap on the cold water supply system and the tap on the hot water mixing faucet. After the filling process is complete, a constant stream of water should flow from the water-mixing faucet. Now you can shut the hot water tap on the mixing faucet.

When you must empty the water heater, you should first cut it off the power supply.

Draining procedure for appliances designed to be installed ABOVE SINKS:

1. First shut the cold water supply valve
2. Open the hot water valve on the mixing-faucet
3. The water tap 7 (fig 4a) must be opened to drain the water from water tank. If there is no such tap build in the pipe line, than the water can be drain directly from inlet pipe of water tank after when you disconnect it from water main

IMPORTANT: When draining the appliance, take measures to prevent damages caused by the flowing water.

Draining procedure for appliances designed to be installed UNDER SINKS:

1. Switch the appliance off the power supply network.
2. Dismantle the connecting water fittings from the appliance.
3. Disassemble the appliance from its installation place, turn it so the pipes point to the floor and pour the water in a vessel you have prepared for the purpose. Wait until all the water drains out of the appliance.

In case that the pressure in the water mains is over the value pointed out in the above paragraph I, then it is necessary to assemble a pressure reduce valve, otherwise the water heater would not function properly. The Manufacturer does not assume any liability for problems arising out of the appliance's improper use.

3. Water heater's electrical connection (fig.3)

ATTENTION! Before you switch the power supply, make sure the appliance is full of water.

3.1. Models fit with power supply cord combined with a plug

• Switch on the plug to the correctly connected and earthed socket
• The socket must be connected to the electrical network through a separate circuit, protected with fuse 16 A.
• The electrical technician must check if the previous requirements are fulfilled

The appliance should be positioned so that the switched on plug to be easy accessible.

The water heater can be disconnected from the power supply by unplugging.

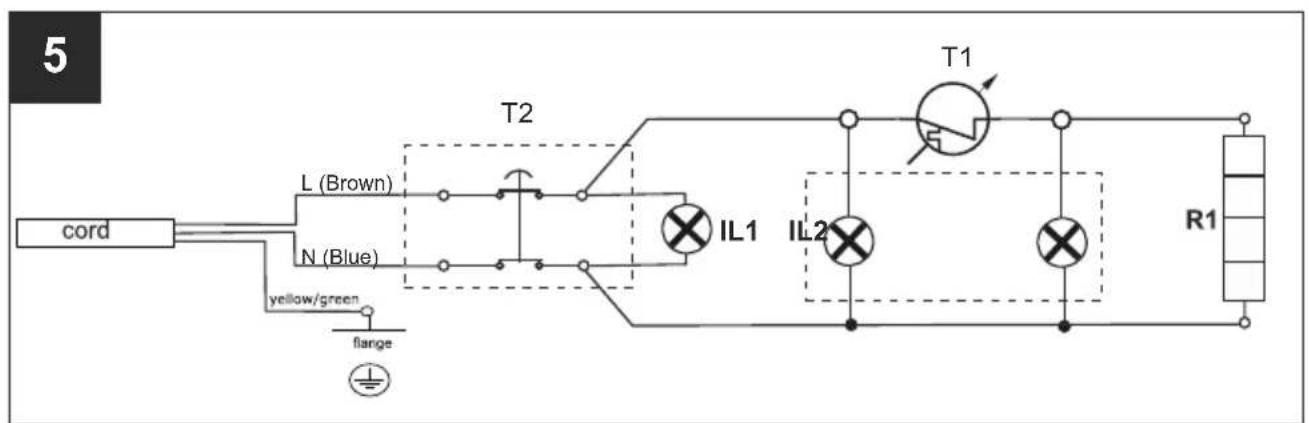

Explanations to Fig.5:

T1 – thermal regulator, T2 – thermal circuit breaker, IL1, IL2 – light indicator, R – heater.

Before initial start of the device, please make sure that the water heater has been correctly connected to the electrical network and that it is filled up with water.

Clarification to Fig.2:

1 - Light indicators;
2 - Regulator knob – for temperature setting.

2. Light indicators

The appliance has two indicating lamps (fig.2).

• The indicator IL1 light in green color - when the appliance is connected to the power supply and indicates that voltage is supplied to it.
• The indicator IL2 light in red color when the appliance is switched on in water heating mode.
• The indicator IL2 light in yellow color - when the water reaches the preset temperature and indicates that the appliance is not in operation.

3. Temperature setup

This setup allows the gradual setting of the desired temperature, achieved by using a handle on the control panel. Turn the knob to the upward indication, in order to increase the temperature of the hot water.

The "min" position on the knob does not protect the appliance from freezing.

If the temperature in the room is likely to fall below

0^ , the appliance must be disconnected from the electrical installation and drained.

WARNING! Once a month set the knob to the position 'maximum temperature' for a period of 24

hours (unless the device is constantly operated in this mode).

Thus you will ensure better hygiene of the heated water.

4. Protection according to the temperature (valid for all models).

The appliance is equipped with a special facility (thermal circuit-breaker) for protection against over-heating of the water, which is switching off the heater from the electricity network, when the temperature reaches too high values.

When this device operates, it does not self-reset and the appliance will not work. Please call an authorized

service for solving the problem.

VI. RUST PROTECTION MAGNESIUM ANODE

The magnesium anode protects the water tank's inner surface from corrosion. The anode element is an element undergoing wear and tear and is subject to periodic replacement. This is cost for the user.

In view of the long-term and accident free use of your water heater, the manufacturer recommends periodic inspections of the magnesium anode's condition by a qualified technician and replacement whenever required, and this could be performed during the appliance's technical preventive maintenance.

For replacements, please contact the authorized service stations!

VII. PERIODIC MAINTENANCE

Under normal use of the heater, under the influence of high temperature, lime scale /the so-called lime scale layer/ is deposited upon the heating element's surface. This worsens the heat exchange between the heating element and water. The heating element's surface temperature increases along /of boiling water/. The thermoregulator begins to switch on and off more frequently. A "deceptive" activation of the thermal protection is possible. Due to these facts, the manufacturer recommends preventive maintenance of your water heater every two years by an authorized service center or service base. This protective maintenance must include cleaning and inspection of the anode protector (for water heaters with glass-ceramic coating), which shall be replace with a new one if need arises.

In order to clean the appliances use a damp cloth. Do not clean with abrasive or solvent content detergents. Do not pour water over the appliance.

The manufacturer does not bare the responsibility for all consequences caused by not obeying the instructions, given hereby.

Environmental protection instructions.

Old electric appliances contain precious materials and must not be disposed with the domestic waste! Please make your active contribution to the protection of the environment and dispose of the appliance in

the stations organized for the purpose (if available).

RU

I. ВАЖНЫЕ ПРАВИЛА

الاستثناء: إذا تطلب القواعد المحلية استخدام صمام أمان آخر أو جهاز آخر (مطابق لل 1487 EN 1489) engineering (EN 1489) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) ذلك. لكل جهاز مطابق ل 1487 EN 1487 engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering (EN 1487) Engineering, Economics, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Finance, Marketing, and Fin

Line drawing of a bathroom sink and a wall-mounted appliance with directional arrows indicating flow (no text or symbols)

Top-down schematic of a boat with structural supports and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component, with arrows indicating direction (no text or symbols present)

Mechanical component diagram showing a wrench and nut assembly with rotation arrow (no text or symbols)

3B

Technical illustration of a twist drill bit with cross-section details (no text or symbols)

Top-down schematic of a boat with side-mounted platform and directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands holding a small mechanical component with arrows indicating direction (no text or symbols)

Mechanical component diagram showing a wrench and screw mechanism with rotation arrow (no text or symbols)

Technical line drawing of a mechanical device with labeled components and dashed outline (no text or symbols)

Illustration of a hand holding a pen, with a magnified view of a pen tip and ruler inside a dashed rectangular frame (no text or symbols)

Simple line drawing of a cartoon character holding a tool, enclosed in a dashed rectangular frame with stars and a numbered circle (no text or symbols)
    note right of A: Circle 4

4

5

Abstract geometric shape resembling a stylized arrow or chevron, rendered in gray tones with no text or symbols.

TESY

TESY Ltd

Shumen, 9700, 48 Blvd. Madara,

PHONE: [phone],

[e-mail]

ТЕСИ ООД

9701 гр. Шумен, бул. Мадара 48,

PHONE: [phone],

[e-mail]
