RC 08 - Paper cutter Genie - Free user manual and instructions

Product type	Paper cutter (roll cutter)
Brand	Genie
Model	RC 08
Dimensions	45 × 19 × 7 cm
Weight	942 g
Maximum cutting length	320 mm
Cutting capacity (straight)	10 sheets (80 g/m²)
Cutting capacity (perforation/scalloped)	5 sheets (80 g/m²)
Cutting capacity (fold)	1 sheet (80 g/m²)
Cutting modes	Straight, Perforation, Scalloped, Fold
Blade material	Steel
Usage	Indoor, non-professional
Maintenance	Dry lint-free cloth
Safety	Sharp blades, keep out of reach of children
Package contents	1 cutter, 1 user manual
Non-slip feet	Yes
Warranty	Standard manufacturer's warranty
Manufacturer	GO Europe GmbH, Germany

Frequently Asked Questions - RC 08 Genie

How do I change the blade of the Genie RC 08?

Remove the side cover, slide the guide rail, remove the cutting head, then replace the blade. Caution: sharp blades. Refer to the manual for detailed steps.

What types of paper can I cut with this paper cutter?

The RC 08 cuts paper, photos, craft cardboard, and similar materials. Do not cut metal or hard plastic materials.

How do I clean the paper cutter?

Use a dry, lint-free cloth. Do not use cleaning products or solvents that could damage the device.

What safety precautions should be taken?

Do not put your hand under the cutting head. Keep children away. Remove staples and paper clips before cutting. Do not carry the device by the cutting head.

What is the maximum cutting length?

The maximum cutting length is 320 mm.

Can I cut thick cardboard with this model?

Yes, for light craft cardboard. Respect the maximum capacity: 10 sheets of paper (80 g/m²) for straight cuts, less for other modes.

How do I choose the cutting type?

Lift the cover of the cutting head, turn the roller switch to select the mode (straight, perforation, scalloped, fold), then close the cover.

What if the cutting head does not slide easily?

Check that you do not exceed the maximum number of sheets. Clean the guide rail with a dry cloth. If the problem persists, contact customer service.

Is this paper cutter suitable for professional use?

No, the product is intended for domestic and non-professional use. Intensive use may reduce its lifespan.

Where can I find replacement blades?

Replacement blades are available from the manufacturer or authorized dealers. Contact GO Europe GmbH customer service.

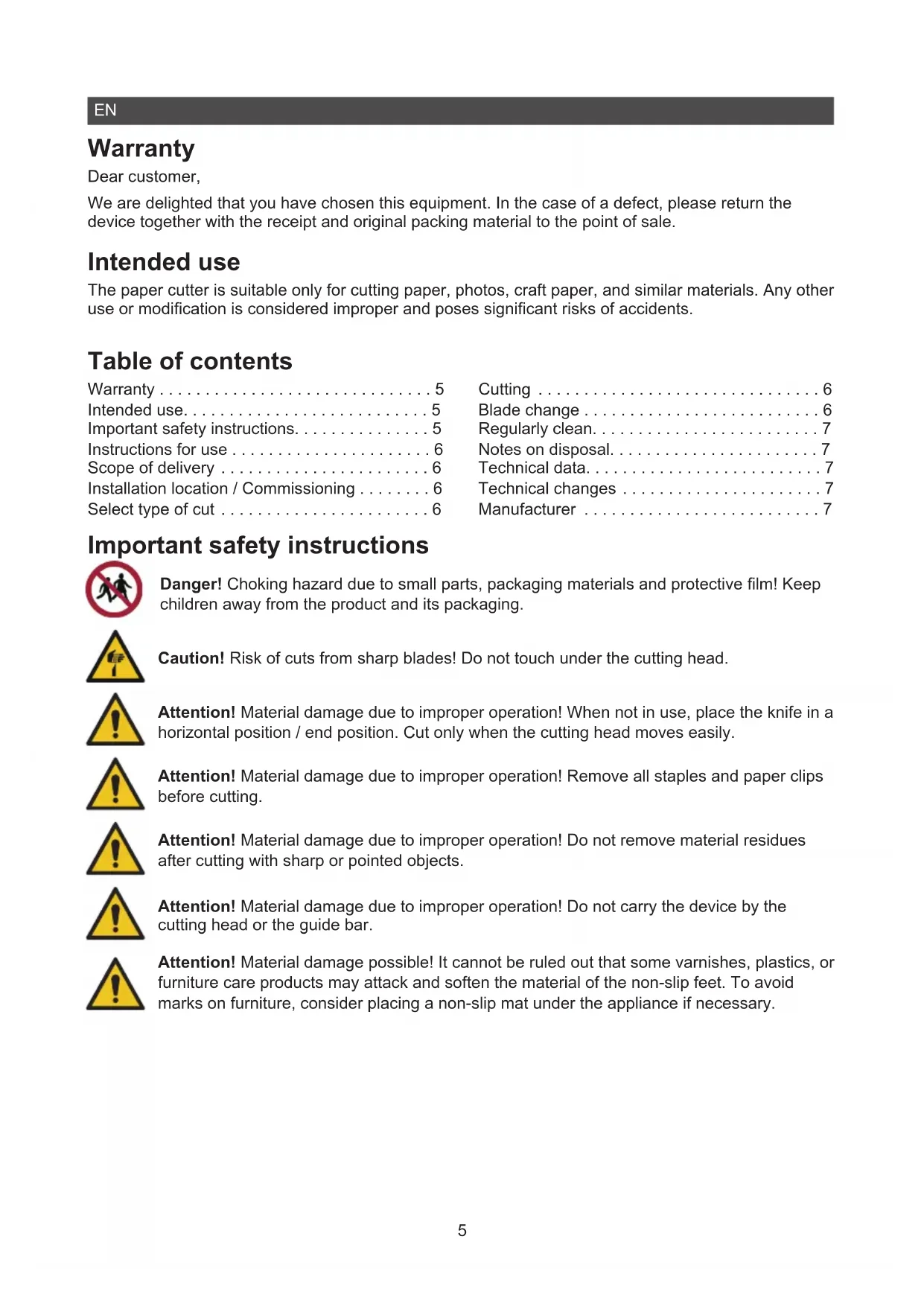

USER MANUAL RC 08 Genie

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The paper cutter is suitable only for cutting paper, photos, craft paper, and similar materials. Any other use or modification is considered improper and poses significant risks of accidents.

Table of contents

Warranty 5

Intended use. 5

Important safety instructions. 5

Instructions for use 6

Scope of delivery 6

Installation location / Commissioning 6

Select type of cut 6

Cutting 6

Blade change 6

Regularly clean. 7

Notes on disposal. 7

Technical data. 7

Technical changes 7

Manufacturer 7

Important safety instructions

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Caution! Risk of cuts from sharp blades! Do not touch under the cutting head.

Attention! Material damage due to improper operation! When not in use, place the knife in a horizontal position / end position. Cut only when the cutting head moves easily.

Attention! Material damage due to improper operation! Remove all staples and paper clips before cutting.

Attention! Material damage due to improper operation! Do not remove material residues after cutting with sharp or pointed objects.

Attention! Material damage due to improper operation! Do not carry the device by the cutting head or the guide bar.

Attention! Material damage possible! It cannot be ruled out that some varnishes, plastics, or furniture care products may attack and soften the material of the non-slip feet. To avoid marks on furniture, consider placing a non-slip mat under the appliance if necessary.

Instructions for use

Please read these operating instructions before using the device. Keep these operating instructions for future reference. Hand over all documents when passing the product on to third parties.

• Protect the product from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• The product is not intended for commercial use.
• The product may only be used indoors.
• Empty the collection container at regular intervals, otherwise it may result in a paper jam.

Scope of delivery

Check the contents of the packaging. If something is missing or damaged, please contact our service.

1 Rotary Trimmer RC08 Plus 1 Operating instructions

Installation location / Commissioning

Place the product on a stable, flat surface.

Select type of cut

1 Lift up the cover at the cutting head.
2 Select the desired cutting mode by turning the roller switch on the cutting head.
3 There are the cutting types Straight, Perforation, Wave, and Fold available.
4 Fold the cover back down.

Cutting

1 Move the cutting head to the outer end of the guide rail.
2 Slide the paper to be cut under the transparent plastic rail.
3 Position the paper to be cut using the markings as a guide.
4 Press the transparent plastic rail down so that the paper to be cut does not slip.
5 Move the cutting head along the guide rail with gentle pressure.

Blade change

1 Remove the cover at the end of the guide rail on the left side.
2 Push the guide rail through the opening out of the device.

Caution! Risk of cuts from sharp blades! Do not touch under the cutting head.

3 Pull the cutting head off the guide rail.
4 Remove the blade from the cutting head and insert a new blade.
5 Push the cutting head back onto the guide rail.
6 Push the guide rail back into the device.
7 Reinstall the cover.

Regularly clean

Use a dry, lint-free cloth to clean the surface.

Do not use cleaning agents or solvents.

Notes on disposal

Find out about the options for taking back old appliances free of charge from your dealer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1-7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

Technical data

Maximum cutting capacity Straight cut 10 sheets of paper (80g / m^2)

Perforation/well-cutting 5 sheets of paper (80g / m^2)

Fold 1 sheet of paper (80g / m^2)

Maximum cutting length 320~mm

Dimensions 45× 19× 7 cm

Weight 942 g

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen, Germany

www.go-europe.de

[e-mail]
