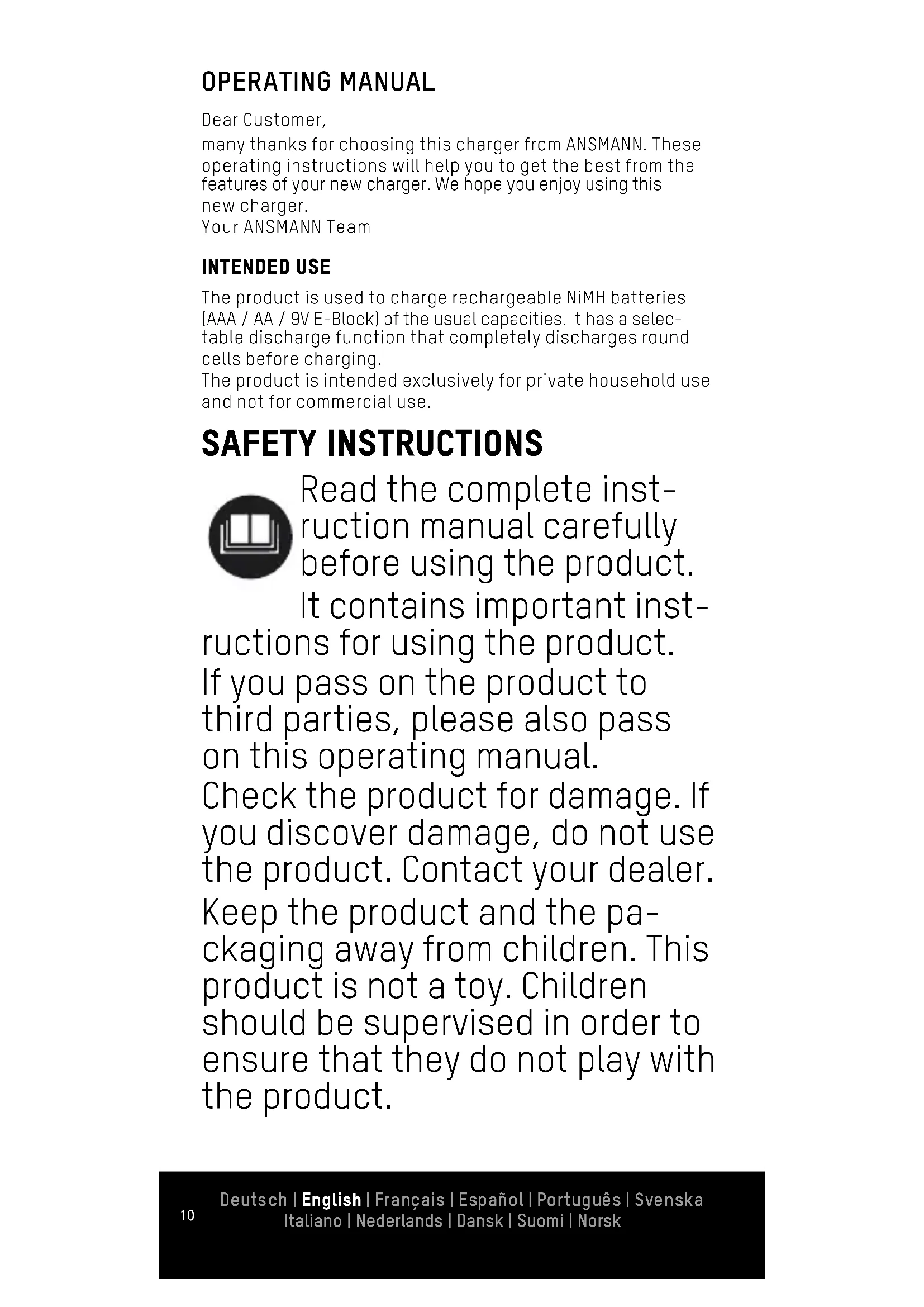

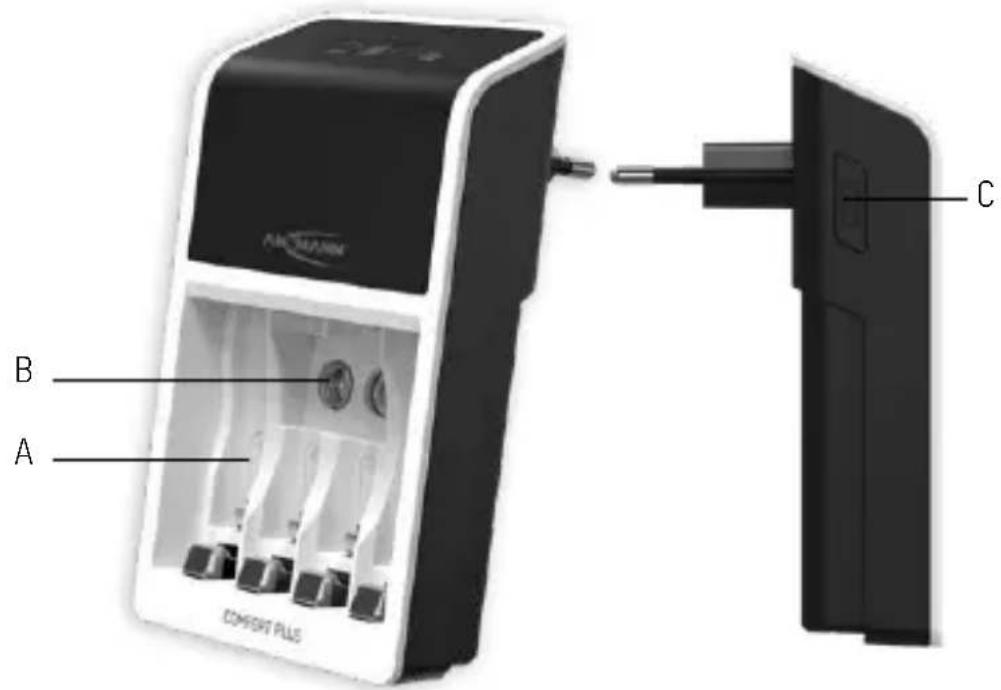

Quick charger for 1-4 NiMH batteries of the sizes Micro AAA / Mignon AA or 1-2x AAA/AA and one 9V E-Block NiMH Microprocessor controlled charging with single cell monitoring Automatic start of charging and charging current adjustment after insertion of the batteries with correct polarity Status display by a 4-segment LCD symbol per charging bay Defective battery detection Worldwide usable (100-240V AC) For round cells: Discharge function selectable Intelligent "PERFECT 7 CHARGING" function (SEE PAGE 2):

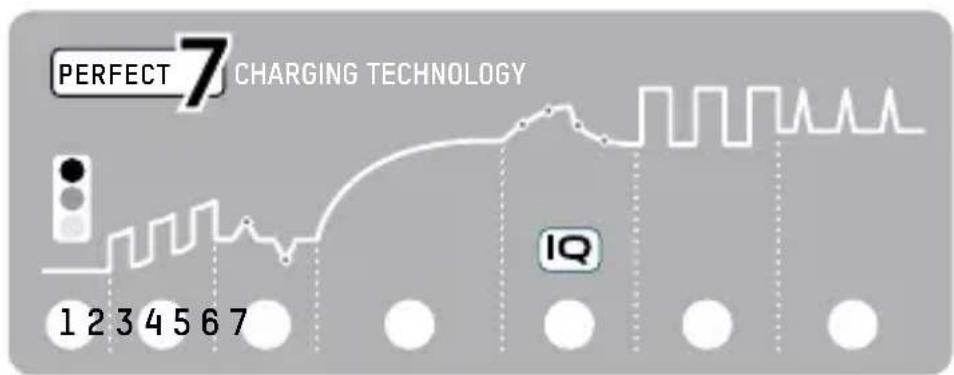

1. Capacity quick test: Residual capacity is determined

before charging begins and displayed for 5 seconds

2. Gentle pre-charging: Weak or deeply discharged battery

is pre-charged with lower current if necessary

3. Battery analysis: Battery behavior is analyzed and

evaluated to determine whether it is still reliably usable or defective

4. Quick charge: Battery is charged at maximum current

5. IQ switch-off: Intelligent monitoring of the battery for

reliable charging and multiple protection against overcharging Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk13 Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk

6. Top-off charge: Ensures that the battery is gently

charged to 100% capacity

7. Trickle charge: Battery is kept in a fully charged state by

means of charging pulses For 9V E-Block: Capacity quick test, Charging, Time-controlled cut-off, trickle charging OPERATION

NORMAL CHARGING PROCESS CHARGING PROCESS WITH

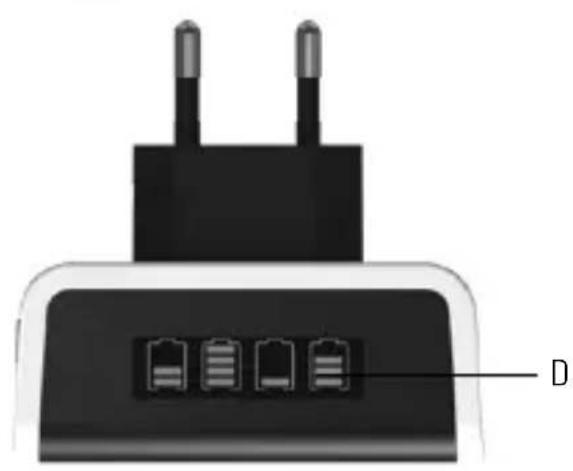

PRE-DISCHARGE *1 Connect the charger to an electrical outlet. Insert the battery into the charging slot with the correct polarity (see engraving in the charging slot). The product displays the charge status of the battery for 5 seconds and then automatically starts the charging process. Press the Discharge button. Pre-discharge starts for all inserted round cells After all round cells have been discharged, the charging process starts automatically. As soon as a battery is fully charged, the charger switches to trickle charge. You can now remove the fully charged battery. After all batteries have been removed, disconnect the product from the power supply. *1 Discharge function only for round cells NOTE: It is not necessary to discharge batteries before each charge. We recommend pre-discharging after approx. 10 charging processes to prevent the lazy-battery effect, which reduces the discharge voltage of batteries. This effect occurs if NiMH batteries are often only partially discharged and then recharged.14 Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk LCD INDICATION Insertion capacity mea- surement < 25% 25% to 50% 51% to 75% > 75% Charging < 25% 25% to 50% 51% to 75% > 75% Fully charged Discharging Error TROUBLESHOOTING Problem Possible cause Resolution No LED indication Mains socket not functional / out of order Use a functional mains socket Battery is not recognized Battery inserted with reverse polarity Insert the battery with the correct polarity15 Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk

CARE AND MAINTENANCE

Cleaning Disconnect the power supply to the product and remove all batte- ries before cleaning. Only use a soft, dry or slightly damp cloth for cleaning (if necessary, add a little mild washing-up liquid). Never use abrasives or solvents for cleaning. TECHNICAL DATA Power source 100-240V AC Charging slots 4x round cells, 1x 9V E-Block Charge current AA: 650mA / AAA: 350mA / 9V E-Block: 15mA Trickle charge current AA: 10mA / AAA: 5mA / 9V E-Block: 1.3mA Suitable battery types (different types or capacities can be combined) Number of cells Battery size (NiMH) Max. chargeable capacity 1-4 Mignon AA 3000mAh Micro AAA 1100mAh 1 9V E-Block 300mAh When charging a 9V E-block, no batteries can be charged in the middle two round cell charging compartments. Charging times Type Capacity Charge time approx. Charge current Micro AAA 1000 mAh 800 mAh 4 h 3,25 h 350mA Mignon AA 2650 mAh 2500 mAh 2100 mAh 1300 mAh 5,75 h 5,5 h 4,75 h 3 h 650mA 9V E-Block up to 300mAh 24h 15 mA16 DISPOSAL Dispose of the product in accordance with legal provisi- ons. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the retailer from whom you purchased the product. Batteries and rechargeable batteries are special waste and shall not be disposed of in the normal household waste. Al- ways hand used batteries and rechargeable batteries in to the collection point intended for this. In this way you will fulfil your legal obligations and contribute to environmental protection. LIABILITY DISCLAIMER The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product. WARRANTY NOTICE The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory war- ranty rights are not affected by this. You can find our warranty conditions online at: www.ansmann.de Subject to technical changes. We assume no liability for printing errors. The product complies with the requirements from the relevant EU directives. Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk17 Deutsch | English | Français | Español | Português | Svenska Italiano | Nederlands | Dansk | Suomi | Norsk
