USER MANUAL Gyslash 18.12 PL GYS

ANOMALIES, CAUSES, REMÈDES

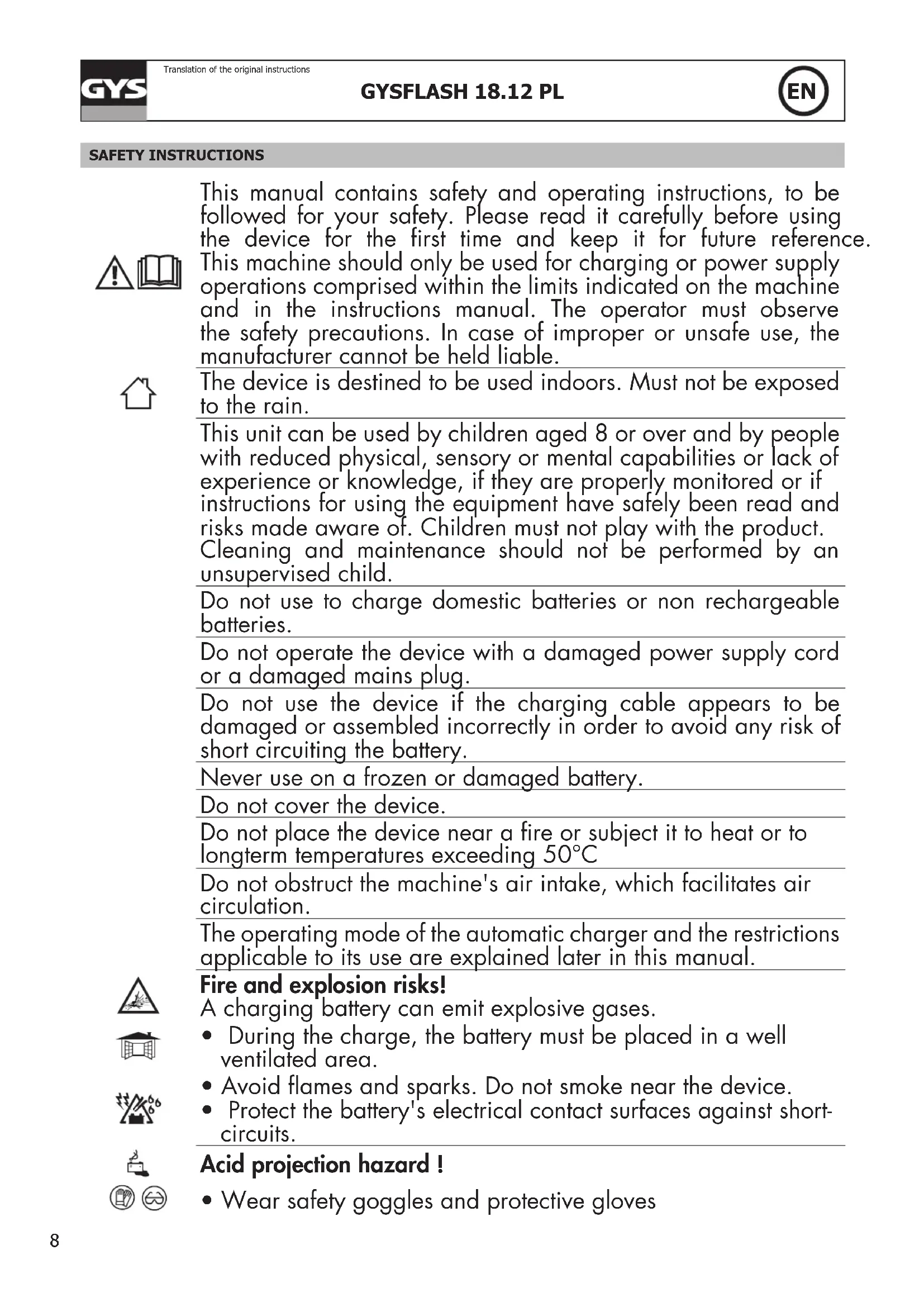

SAFETY INSTRUCTIONS This manual contains safety and operating instructions, to be followed for your safety. Please read it carefully before using the device for the rst time and keep it for future reference. This machine should only be used for charging or power supply operations comprised within the limits indicated on the machine and in the instructions manual. The operator must observe the safety precautions. In case of improper or unsafe use, the manufacturer cannot be held liable. The device is destined to be used indoors. Must not be exposed to the rain. This unit can be used by children aged 8 or over and by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they are properly monitored or if instructions for using the equipment have safely been read and risks made aware of. Children must not play with the product. Cleaning and maintenance should not be performed by an unsupervised child. Do not use to charge domestic batteries or non rechargeable batteries. Do not operate the device with a damaged power supply cord or a damaged mains plug. Do not use the device if the charging cable appears to be damaged or assembled incorrectly in order to avoid any risk of short circuiting the battery. Never use on a frozen or damaged battery. Do not cover the device. Do not place the device near a re or subject it to heat or to longterm temperatures exceeding 50°C Do not obstruct the machine's air intake, which facilitates air circulation. The operating mode of the automatic charger and the restrictions applicable to its use are explained later in this manual. Fire and explosion risks! A charging battery can emit explosive gases.

• During the charge, the battery must be placed in a well ventilated area.

• Avoid ames and sparks. Do not smoke near the device.

• Protect the battery's electrical contact surfaces against short- circuits. Acid projection hazard !

• Wear safety goggles and protective gloves9 GYSFLASH 18.12 PL Translation of the original instructions

• If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of water and seek immediate medical assistance Connection / disconnection :

• Ensure that the charger's power supply is disconnected before connecting or disconnecting to the battery terminals.

• Always ensure the Red clamp is connected to the ""+"" battery terminal rst. If it is necessary to connect the black clamp to the vehicle chassis, make sure it is a safe distance from the battery and the fuel/exhaust pipe. The charger must be connected to the mains.

• After charging, disconnect the charger from the mains, then disconnect the negative clamp from the car body and then disconnect the positive clamp from the battery, in this order. Connection :

• This device must be connected to an earthed power supply

• The connection to the power supply must be carried out in compliance with national standards. Maintenance :

• If the power cable is damaged, it must be replaced by the manufacturer, its after sales or by an equally qualied person to prevent any accidents.

• Service should be performed by a qualied person

• Warning! Always remove the power plug from the wall socket before carrying out any work on the device.

• Under no circumstances should solvents or other aggressive cleaning agents be used.

• Clean the device’s surfaces with a soft, dry cloth. Regulations :

• The Machine is compliant with European directives.

• The declaration of conformity is available on our website.

• EAEC Conformity marking (Eurasian Economic Community).

• Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).

• Equipment in conformity with Moroccan standards.

• The declaration Cم (CMIM) of conformity is available on our website (see cover page). Waste management:

• This product should be disposed of at an appropriate recycling facility. Do not throw away in a household bin.10 GYSFLASH 18.12 PL Translation of the original instructions

GENERAL DESCRIPTION The GYSFLASH 18.12 PL is designed to charge lead-acid batteries (Gel, AGM, Liquid, …) and lithium of the Lithium Iron Phosphate (LFP / LiFePO4). This charger is suited for the charge of: - Lead-acid batteries 12 V (6 elements in series) from 15 Ah to 270 Ah. - LFP batteries 12V (4 elements in series) from 7 Ah to 270 Ah The Gysash 18.12 PL is equipped with a function that : - when charging a lead-acid battery, adjusts the output voltage automatically according to the ambi-ent air temperature. This adjustment allows for a very accurate lead-acid battery charge adapted to the temperature. - When charging a lithium battery, the charge is prevented if the ambient temperature is below 3°C. In both cases, the adjustment can take between 1 and 10 minutes before the charge starts or stops. CALIBRATION CABLE Procedure for the calibration of the charging leads in order for the charger to compensate any voltage drop due to the length or condition of the cables. It is strongly recommended to perform this procedure each time the cables are modied or changed.

1. Before undertaking the procedure, make sure that the charger is disconnected from the mains socket.

2. Short-circuit the ends of the charging leads.

3. Press buttons and simultaneously.

4. Plug in the mains plug while holding down the two buttons until the indicator light or lights up. Résults :

- Indicator is on: the calibration was successful. - Indicator is on: the calibration failed, disconnect the mains plug and restart the procedure.

1. Connect the charger to the battery.

2. Plug the charger to the mains (single phase 220-240Vac 50-60Hz).

3. Select the mode by pressing button , and the charging current by pressing button . After roughly ve

seconds, the charge starts automatically. By default, the charger starts on the last mode used, except when in Supply mode. 4. During the charge, the device indicates the charge progress. When indicator blinks, the battery is ready to start the vehicle. Once indicator stays on, the battery is fully charged.

5. The charge can be interrupted at any time by unplugging the mains plug or pressing the button.

6. After the charge, disconnect the charger from the mains, then disconnect the charger’s connections from the battery.

• Description of charging modes and currents : Lead-acid CHARGE mode (14.6 V/18 A max) : Mode designed for the recharge of 12V lead-acid batteries from 15 Ah to 270 Ah. Automatic seven step charge cycle. Lithium CHARGE mode (14.4 V/18 A max) : Mode designed for the recharge of 12 V lithium batteries from 7 Ah to 270 Ah. Automatic eight step charge cycle. Some Lithium batteries incorporate a UVP protection (Under Voltage Protection) which disconnect the battery in case of deep discharge. This protection prevents the charger from detecting the battery. In order for the Gysash 18.12 PL to be able to charge the battery, it is necessary to deactivate the UVP protection. To do this, select the Lithium charging mode and press the button for 10 seconds. The charger will then deactivate the UVP protection and automatically start charging. Charging current 7 / 12 / 18A : Selection designed to choose the most suited charging current based on the type and size of the battery (lead-acid or lithium). Charging current 7 A 12 A 18 A Battery capacity Pb 15 50 Ah 50 80 Ah 80 270 Ah LFP 7 12 Ah 12 20 Ah 20 270 Ah (21 36Ah EqPb*) (36 60 Ah EqPb*) (60 810 Ah EqPb*)11 GYSFLASH 18.12 PL Translation of the original instructions

*Lead battery corresponding : A lithium battery has a better starting performance (CCA) than a lead battery. That’s why some lithium battery manufacturers indicate the battery lead equivalent (EqPb) which corresponds to the capacity of a lead-acid battery with the same starting performance. For instance, a LFP battery of 10 Ah will have the same starting performance as a lead-acid battery of about 30 Ah. Mode SHOWROOM (13.7 V / 18A) : Mode designed to compensate up to 18A the current consumed on the battery of a vehicle in demonstration by delivering a stabilised voltage of 13.7 V. This mode is suited for lead-acid and lithium batteries. Option Supply (13.7 V / 18A) : Feature designed to turn the charger into a stabilised power source with a regulated voltage of 13.7 V and a supply of current up to 18A. This mode can be used without a battery. To select this option, place the charger in Showroom mode and press the button until the indicator ashes. When the indicator is on, the voltage is correctly regulated. If indicator ashed, this means that the current absorbed by the battery is higher than the charger maximum current (18A) and that the battery might end up being discharged. The current supplied by the charger is indicated using the LED indicators :

• Lead-acid charging curve : The GYSash 18.12 PL features a 7 step charging curve designed to ensure optimal charging of lead-acid batteries. Step

: Analysis Analyses the battery state (charge level, polarity inversion, wrong battery…) Step

: Charge ( - 7 A / - 12 A / - 18 A) Maximum current fast charge to reach 80% charge level. Step

: Recovery ( - 3 A / - 4 A / - 6 A) Recovering damaged elements due to a prolonged deep discharge. Step

: Absorption (14.6 V) Constant voltage charge to reach 100% charge level. Step

: Test Sulfated battery test Step

: Floating charge (13.6 V) Maintains battery charge level at its maximum. Step

• Lithium charging curve : The GYSash 18.12 PL uses a 8 steps charging curve which guarantees optimal performance for your LFP battery. Step

: Analysis Analyses the battery state (charge level, polarity inversion, wrong battery…) Step

: Recovery ( - 1 A / - 1.6 A / - 1.8 A) Recovering damaged elements due to a prolonged deep discharge. Step

: Supplement Reduce current charge to reach 100% charge level. Step

: Charge ( - 7A / - 12A / - 18A) Maximum current fast charge to reach 90% charge level. Step

: Equalizing / balancing (14.4 V) Balancing of battery cells. Step

: Absorption (13.8 V) Constant voltage charge to reach 98% charge level. Step

: Floating charge (13.8 V) Maintains battery charge level at its maximum and goes through charge maintenance cycle every 10 days.

• Estimated charge time : Charging currentLead-acid LithiumBattery capacity 15 Ah 50 Ah 50 Ah 80 Ah 80 Ah 130 Ah 270 Ah 7 Ah 12 Ah 12 Ah 20 Ah 20 Ah 130 Ah 270 AhCharge timing 0% >>> 90% 2 h 7 h 4 h 6 h 4 h 7 h 14 h 1h 2h 1h 2h 1h 7h 14h

• Protections : The GYSFLASH 18.12 PL has comprehensive safety features to protect it against short-circuits and polarity reversals. It has an anti-spark feature which prevents sparks whilst connecting the device to the battery. This charger has double insulation and is safe to use with the battery in situ as it will protect the vehicle’s on-board electronics. The GYSFLASH 18.12 PL is tted with an integrated temperature sensor that ensures that the charging current is adapted to the ambient temperature to prevent internal the electronics from overheating.13 GYSFLASH 18.12 PL Translation of the original instructions

TROUBLESHOOTING Troubleshooting Causes Solutions The indicator ashed.• Polarity reversal • Battery voltage is too high • Clamps in short-circuit• Check that the clamps are connected correctly• Check that battery is 12 V The indicator is on.• Charge failure, battery cannot be recovered • Ambient temperature is too low to charge a LFP battery• Change the battery and press to restart a charge.• Charge the battery at milder temperature or press the button. Indicator stays on even after pressing button.Thermal protectionAmbient temperature is too high (>50°C), cool the room and let the charger cool down. Indicator ashes.Charger in sleep modePress button or connect a battery to the charger to exit sleep mode. Indicator stays on.Charge interrupted by pressing Press again to restart the charge. WARRANTY The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour). The warranty does not cover:

• Damages due to misuse (power supply error, dropping of equipment, disassembling).
