233610 - Fridge Arktic - Free user manual and instructions

Brand	Arktic
Model	233610
Product Type	Professional glass door refrigerator
Temperature Range	2 °C to 6 °C
Refrigerant	R600a / R290 (flammable)
Power Supply	220-240 V ~ 50 Hz
Interior Lighting	Fluorescent tube 11 W (220-240 V)
Adjustable Shelves	Yes, max load 8 kg per shelf
Temperature Control	Digital with LED display
LED Indicators	Cooling and defrosting
Door	Glass with anti-condensation conduit
Required Ventilation	Min. 20 cm clearance at rear and sides
Protection Class	I (earthing mandatory)
Usage	Professional (restaurants, canteens, bars)
Cleaning	Damp cloth and mild detergent; no water jet
Weight	Check the label on the appliance
Dimensions	Check the label on the appliance

Frequently Asked Questions - 233610 Arktic

How to set the temperature of my Arktic 233610 refrigerator?

Press the setting button to enter adjustment mode. Use the + and - buttons to adjust between 2 °C and 6 °C. Press again to confirm. If no button is pressed for 10 seconds, the temperature is saved automatically.

What to do if the appliance does not cool after connection?

Check the electrical connection. If it is correct, the compressor or thermal circuit breaker may be defective. Contact your supplier or an authorized service.

How to clean the refrigerator properly?

Unplug the appliance and let it cool down. Use a soft cloth with a little mild detergent. Soak the shelves in soapy water and rinse. Never use a water jet, steam cleaner, or dishwasher.

How to replace the interior lighting?

Unplug the appliance. Remove the two screws from the lamp cover, replace the old tube with a new one of the same type (11 W, 220-240 V). Reassemble the cover. If in doubt, call a professional.

Why is my refrigerator making too much noise?

Make sure the appliance is level and at least 10 cm from walls. A sound of refrigerant circulation is normal. If the noise is excessive, parts may be loose; contact the supplier.

What is the temperature range of this model?

For model 233610 v.02, the range is 2 °C to 6 °C. For other variants (233696, 233290), it is 2 °C to 8 °C.

Can I store flammable products in the appliance?

No, it is strictly forbidden to store dangerous products such as fuel, alcohol, paint, or explosives. Use it only for pre-cooled food and drinks.

Do I need to wait before plugging in the appliance after installation?

Yes, wait at least 2 hours after installation or moving for the compressor oil to settle before plugging in.

How does defrosting work?

Defrosting is automatic. During the operation, the defrost LED indicator lights up. Do not use mechanical tools to speed up the process. Wipe off condensation water with a cloth.

What to do if the door does not close properly?

Check that nothing obstructs the closure and that the seal is clean and in good condition. If the seal is damaged, contact the supplier. Make sure the appliance is level.

USER MANUAL 233610 Arktic

ATDZEESETS DISPLEJA SKAPIS

SALDYTUVE JRENGTA DEMONSTRACINE SPINTA

EXPOSITOR FRIGORIFICIO

VITRINAS EXPOSITORAS REFRIGERADAS

CHLADIACI BOX

KOLESKAB

JAAHDYTETTY NAYTTOKAAPPI

KJOLESKAP

HLADILNA OMARICA

KYLSKAP

XJADINJEH BNTPUHA

OXJAXDAEMbI UKAΦ JJIa NUCNJEEB

GB: Read user manual and keep this with the applian ce.
DE: Lesen Sie das Benutzerhandbuch und bewahren Sie es zusammen mit dem Gerät auf.
NL: Lees de gebruikershandleiding en bewaar deze bij het apparatus.
PL: Nalezy przyczytać instrukcje obstugi i zachowac są wraz urzadzeniem.
FR: Lisez le manuel d'utilisation et conserveze-le avec l'appareil.
IT: Leggere il manuale dell'utente e conservarlo con l'apparecchiatura.
R0: Citi ti manualul deutilizare si pastra-i l impreunacu aparatul.
GR: AbaTe To Exyepidio xpnoTn kal qulaTe to pazi tn ouakeun.
HR: Procitajte upute za uporabu i saucuvaje ovo uz uredaj.
CZ: Prěctete si uzivatelskou príručku auschovejte ji u spotřebie.
HU: Olvassa el a hasznalati utmutatot, es tartsa azt a keszulek kozeluben.
UA: PpOuHTaTe Noci6HnK KopcTbBaTa Ta TpMaJTe NOro pa3om i3 npUlaDm.

GB: For indoor use only.
DE: Nur zur Verwendung im Innenbereich.
NL:Alleen voor gebruik binnenshuis.
PL: Do uzytku wewnatrz pomieszko
FR: Pour l'usage à l'intérieur seulement.
IT: Destinato solo all'uso domestico.
RO: Doar pentru uz la interior.
GR: Για xρήσο μόνο σε εωτερικό χώρο.
HR: Samo za unutarnju upotrebu.
CZ: Pouze pro vnitrní použití.
HU:Csak belteri hasznalatra.
UA:BukopncTObyBAtn tiIbKn BCEpeuHi npmiueHb.
EE: Ainult sisetingimustes kasutamiseks.

EE: Lugege kasutusjuhendit ja hoidke seda koos seadmega.
LV: Izlasiet lietosanas pamacibu un saglabajiet to kopa ar ierici.
LT: Perskaitykite naudiojimo instrukcija ir palikite ja su prietaisu.
PT: Leia o manual do'utilizar e guarde-o jintamente com o aparecido.
ES: Lea el manual del usuario y conservelo con el aparato.
SK: Precitajte si navod na pouzitie auschovajte hospolu so spotrebicom.
DK: Læs brugervejledningen, og opbevar denSAM men med apparatet.
Fl: Lue kyyttoohje ja sailyta se laitteen mukana.
NO: Les bruksanvisingen og ta vare på den.
SI: Preberite navodila za uporabo in jih shranite skupaj z napravo.
SE: Läs brauksanvisningen och forvara den tillsammans medprodukten.
BG: PpOeTeTe pBkoBOcTB0To 3a NOTpe6nten I ro 3ana3e Te 3aeHNO cypea.
RU: PpOuTHe pyKOBoDCTBO nONb3ObaTeIa I coXpaHITe erO BmecTe C npn6Opom.

Thank you for purchasing this Hendi appliance. Read this user manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time.

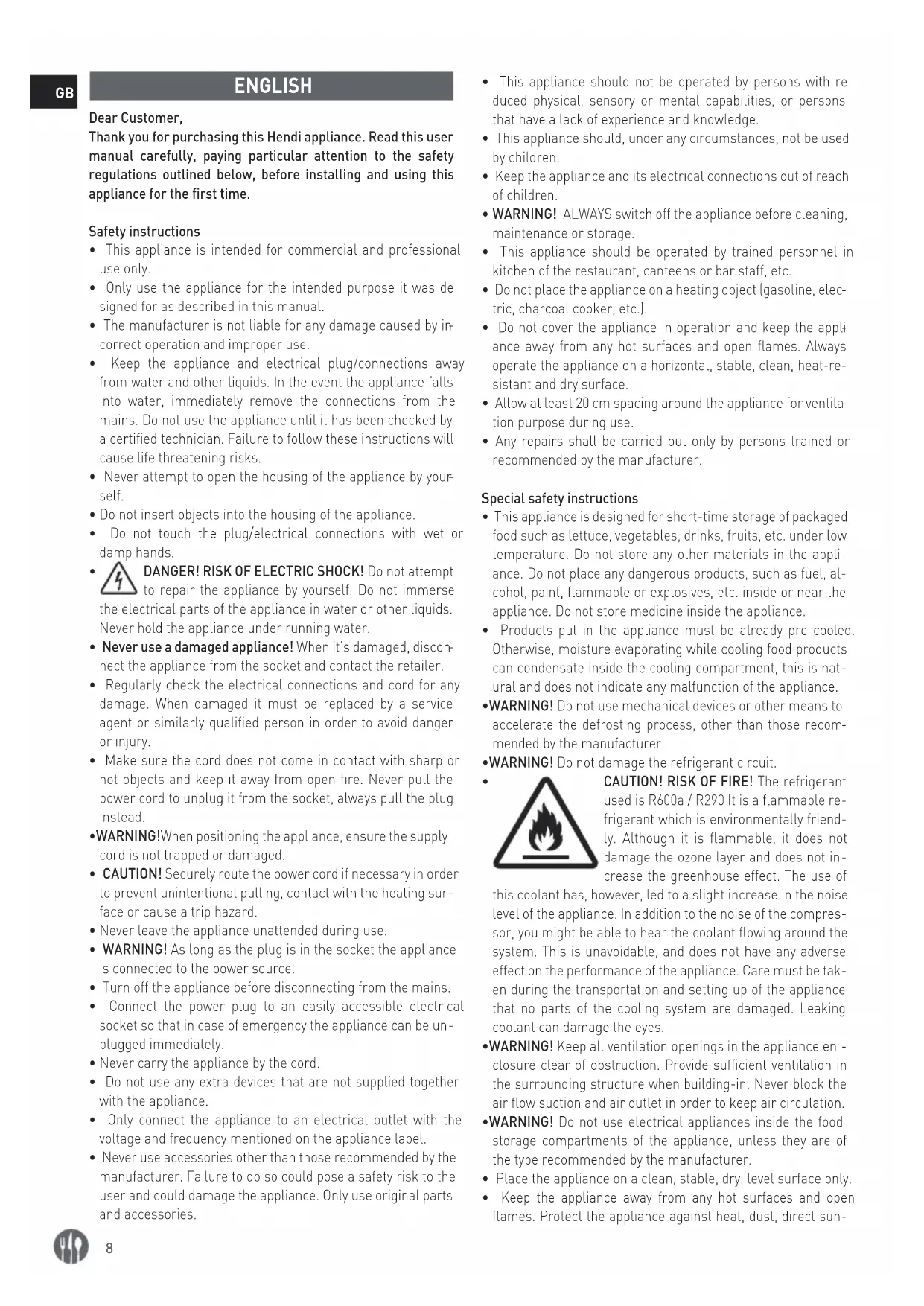

Safety instructions

• This appliance is intended for commercial and professional use only.
• Only use the appliance for the intended purpose it was designed for as described in this manual.
• The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Keep the appliance and electrical plug/connections away from water and other liquids. In the event the appliance falls into water, immediately remove the connections from the mains. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.
• Never attempt to open the housing of the appliance by yourself.
• Do not insert objects into the housing of the appliance.
• Do not touch the plug/electrical connections with wet or damp hands.
  DANGER! RISK OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself. Do not immerse the electrical parts of the appliance in water or other liquids. Never hold the appliance under running water.
• Never use a damaged appliance! When it's damaged, disconnect the appliance from the socket and contact the retailer.
• Regularly check the electrical connections and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.
• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.
  -WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
• CAUTION! Securely route the power cord if necessary in order to prevent unintentional pulling, contact with the heating surface or cause a trip hazard.
• Never leave the appliance unattended during use.
• WARNING! As long as the plug is in the socket the appliance is connected to the power source.
• Turn off the appliance before disconnecting from the mains.
• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.
• Never carry the appliance by the cord.
• Do not use any extra devices that are not supplied together with the appliance.
• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.
• Keep the appliance and its electrical connections out of reach of children.
• WARNING! ALWAYS switch off the appliance before cleaning, maintenance or storage.
• This appliance should be operated by trained personnel in kitchen of the restaurant, canteens or bar staff, etc.
• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.).
• Do not cover the appliance in operation and keep the appliance away from any hot surfaces and open flames. Always operate the appliance on a horizontal, stable, clean, heat-resistant and dry surface.
• Allow at least 20cm spacing around the appliance for ventilation purpose during use.
• Any repairs shall be carried out only by persons trained or recommended by the manufacturer.

Special safety instructions

• This appliance is designed for short-time storage of packaged food such as lettuce, vegetables, drinks, fruits, etc. under low temperature. Do not store any other materials in the appliance. Do not place any dangerous products, such as fuel, alcohol, paint, flammable or explosives, etc. inside or near the appliance. Do not store medicine inside the appliance.
• Products put in the appliance must be already pre-cooled. Otherwise, moisture evaporating while cooling food products can condensate inside the cooling compartment, this is natural and does not indicate any malfunction of the appliance.
  -WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  -WARNING! Do not damage the refrigerant circuit.

CAUTION! RISK OF FIRE! The refrigerant used is R600a / R290 It is a flammable refrigerant which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of

this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

• WARNING! Keep all ventilation openings in the appliance enclosure clear of obstruction. Provide sufficient ventilation in the surrounding structure when building-in. Never block the air flow suction and air outlet in order to keep air circulation.
  -WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Place the appliance on a clean, stable, dry, level surface only.
• Keep the appliance away from any hot surfaces and open flames. Protect the appliance against heat, dust, direct sun

light, moisture, dripping and splashing water.

• Do not use hard utensils on the glass surface. Do not use water jets or steam cleaners during cleaning, do not immerse the whole appliance in water as the parts will get wet and electric shock might be resulted.
• Do not place articles on top of the appliance. Do not place objects with open sources of fire (e.g. candles) on top or beside the appliance. Do not place objects filled with water (e.g. vases) on or near the appliance.
• Never cover the appliance during use. This may cause a fire hazard.
• Do not wash the appliance with water. Washing can cause leakages and increase the risk of electric shock.
• Do not make any additional openings on the appliance. Do not install any gadgets in the appliance.
• Do not overload the racks inside to avoid damage. Max. loading of each rack is about 8kg.
• Do not attempt to climb up to the top of the appliance.

Installing the appliance

• The appliance should not be tipped over an angle of 45^ . After installing the appliance, wait for 2 hours before connecting it to the electrical power supply. The same applies if the appliance is moved at a later date.
• The appliance must always be installed in a dry environment.
• When installing, leave at least 20~cm clearance to the rear and to the left and right for adequate ventilation. Leaving less room for ventilation may affect the efficiency.
• We strongly recommend to install the appliance in a place with good natural ventilation to increase ventilation properties.

Electrical components and other dangers

• No other appliances should be plugged into the same socket as with this appliance.
• Do not place any dangerous products, such as fuel, alcohol, paint, flammable or explosives, etc. inside or near the appliance as it may result a fire hazard.
• Do not store any medications in the appliance.
• Wait about 5 minutes before switch on the appliance again after the appliance has been switched off or unplugged from the electrical power supply.
• Do not wash the appliance with water. Washing can cause leakage and increase the risk of electric shock. No any parts/ accessories can be under dishwasher.

Intended use

• This appliance is designed only to keep food or beverages, under cool state and to display them. Any other use may lead to damage of the appliance or personal injury.
• Operating the appliance for any other purpose shall be deemed a misuse of the device. The user shall be solely liable for improper use of the device.

Grounding installation

This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is fitted with a power cord with grounding plug or electrical connections with grounding wire. The connections

must be properly installed and grounded.

Main parts of the product

[Fig.1 on page 3]

1. Glass door

2. Air suction

3. Never block the suction. Air is sucked in and cold air in circulated inside the refrigerator.

4. Main ON/OFF switch

5. Rack

6. The height of rack is adjustable for various goods. For adjustment:

1) Take out the rack
2) Move the rack support on suitable height.
3) Put the rack on the support.

1. Air outlet

2. Never block the air outlet. Let inside circulating cold air flow out.

3. Digital temperature controller

4. Air duct outside the glass to remove the condensation water

Control panel

{Fig.2 on page 3}

1. Increase button
2. Light
3. Setting button
4. Decrease button
5. Refrigerant LED
6. Defrost LED

Circuit diagram

[Item 233238 v.02, 233269 v.02, 233610 v.02, 233627 v.02, 233634 v.02, 233641 v.02, 233658 v.02, 233665 v.02]

Fig.3 on page 4

A. Defrost probe
B. Thermostat probe
C. Digital Temperature Controller
D. Display panel
E. Power switch
F. Fan Motor
G. Over Load Protector
H. Compressor
I. Lamp
J.PTC

Circuit diagram

[Item 233290, 233696]

Fig.4 on page 4

K. Defrost probe
L. Thermostat probe
M. Digital Temperature Controller
N. Display panel
O. Fan Motor
P. Over Load Protector
Q. Compressor
R. Lamp
S.PTC

Preparation before use

• Remove all protective packaging and wrapping.
• Check to make sure the appliance is undamaged and with

all accessories. In case of incomplete delivery and damages. Please contact supplier immediately. Do not use the appliance.

• Clean the appliance before use (See = = > Cleaning & Maintenance).
• Place all the racks inside the appliance.
• Keep the packaging if you intend to store your appliance in the future.

Note: Due to manufacturing residues, the appliance may emit a slight odor in the first few cycles. This is normal and does not indicate any defect or hazard. Make sure the appliance is well ventilated.

Operating instructions

• Connect the power plug with a suitable electrical outlet. Switch on the appliance (if it is included). Leaving the appliance for running some hours to reach the cooling temperature before placing the beverage or food inside the appliance.

- Digital temperature controller operation

1). Setting the temperature

• Press [10] to enter into the setting mode. The set temperature is displayed.
• Press [8] or [11] to increase or decrease the set temperature.
• Press [10] again to confirm the setting and exit. Then, inside cabinet temperature is displayed.

Note:

• If no button is pressed within 10 seconds. The newly set temperature will be stored.
• The temperature setting range from 2^ to 6^ [233610 v.02, 233627 v.02, 233634 v.02, 233641 v.02, 233658 v.02, 233665 v.02, 233269 v.02, 233238 v.02]; The temperature setting range from 2^ to 8^ [233696, 233290].
• Keep the door open time as short as possible in order to keep a cool temperature inside.

2]. Illumination inside the cabinet

• Press [9] to switch ON the light. Press [9] again to switch OFF the light.

3]. Refrigerant LED indicator

• During the cooling operation (compressor enabled), this refrigerant LED (12) indicator will lights up constantly.
  After the inside cabinet reach the set temperature, the refrigerant LED [12] indicator will flashes continuously.
• When defrost start, the refrigerant LED (12) indicator light off.

4]. Defrost LED indicator

• During the defrost operation, this defrost LED [13] indicator will lights up constantly.
  After the defrost operation, defrost LED (13) indicator will lights off.

Cleaning & maintenance

ATTENTION! Always disconnect the appliance from the electrical mains and cool down before storage, cleaning & maintenance.

Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water as the parts will get wet and electric shock might be resulted.

Cleaning

• The exterior and interior surfaces can be cleaned with a damp

cloth and a little detergent.

• Racks can be removed and washed in water.
• Do not use water jet or steam cleaner for cleaning and do not push the appliance under the water.
• No any parts can be cleaned in the dishwasher.
• Clean the appliance regularly.

Parts How to clean Remark
All accessories such as racks, rack holders, etc.	Soak in warm, soapy water for about 10 to 20 minutes. Rinse under running water thoroughly. Dry all parts well at last.
External glass surfaces	Wipe clean with a soft cloth and a little neutral detergent. Make sure no water or moisture enters inside the of the appliance.
Interior glass surfaces	Remove any food deposits. Wipe clean with a soft cloth and a little mild detergent. Make sure no water or moisture enters inside the of the appliance.
Glass door

Maintenance

• Check the operation of the appliance regularly to prevent problems that can cause serious accidents.
• As soon as you feel the appliance isn't working correctly or there is a problem, stop using the appliance, shut it off and contact the supplier.

Replacing the defective light

• ATTENTION! Always unplug the appliance from the electrical power outlet before replacement.
• Remove both screws on the side of the light cover
• Remove the old light and replace with a new one of the same type (not included). [Fluorescent tube 220-240V~/50Hz 11W]
• Reassembly the light cover.
• If you do not sure how to replace, contact the supplier/ service provider (See Warranty).

Putting the appliance out of reach for a long period of time

• ATTENTION! Always unplug the appliance from the electrical power outlet.
• Remove all the food and beverage inside the appliance.
• Clean the appliance as described in Cleaning. (See = = > Cleaning).
• Store the appliance in a cool, clean place and keep out of reach of the children.

Troubleshooting

If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider.

Problems Possible cause	Use Possible solution
The appliance does not start cooling after connect to electrical power supply and switch on (if included).	Thermal cut-out activated	Contact with the supplier/service provider for repair.
	The compressor is defective.
	The power plug is connected incorrectly with the power supply outlet.	Check the connection and make sure all the connections are correctly connected.
	The main ON/OFF switch is defective.	Contact your supplier.
Cooling is not enough.	The appliance is under strong sunlight radiation or close to a heat source.	Move the appliance a new location to avoid direct sunlight.
	The doors are not properly closed or the sealing gasket is defective.	Close the doors properly.
	Too much food is placed inside the appliance.	Place less food in-side the appliance.
	Surrounding ventilation is insufficient.	Check that if sufficient ventilation is provided by allowing at least 10cm away from other objects or wall.
Too much noise. The appliance is not placed horizontally.		Check to make sure the appliance is placed horizontally.
		Check to make sure that at least 10cm away from other objects or wall.
		Contact with the supplier/service provider for repair.

Warranty

Any defect affecting the functionality of the appliance which becomes apparent within one year after purchase will be repaired by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was purchased and include proof of purchase (e.g. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

When decommissioning the appliance, the product must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a designated collection point. Failure to follow this

rule may be penalized in accordance with applicable regulations on waste disposal. The separate collection and recycling of your waste equipment at the time of disposal will help con

serve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.

DEUTSCH

Sehr gehrter Kunde,

Aarding installation

(Pct. 233290, 233696)

(Fig. 4 de la頁ina 4)

K. Sondä de decongelare
L. Sonda termostat
M. Controller digital de temperatura
N. Panou de afisare
O. Motor ventilator
P. Protector supraicarcare
Q. Compresor
R. Lampa
S. PTC

Pregātirea Ṥinaite deutilizare

[Ttoxieio 233238 v.02, 233269 v.02, 233610 v.02, 233627 v.02, 233634 v.02, 233641 v.02, 233658 v.02, 233665 v.02]

(EiK.30tn 0eλiδa4)

A. Akpoquaio anojuuEnc
B. Aioθntnpac θερμοταπn
C. Ψηριακός ελεγκτής θερμοκρασίας
D. 080vN
E. Diakonntn etroupyiac
F. Kvntrpac avmuatnpa
G. PooTaTeUtko UePBoAkuO φoptiou
H.Σμιηεοής
I. Aauna
J.PTC

Δiaypaμa kukλωμatos

[Toixei 233290, 233696]

(EiK. 40tn oελiδa 4)

PiIroTOBka nepeD BnKOpuctaHHaM

• 3HIMITb 3axnchy ynaKOBky Ta ynaKOBky.
• IpekeohaTeC, 10 npnlaH He nooKoJxehn i Mae BCE npna. Y pa3i HenoBHOIO DocTbN Ta nooKoJxehn. HeraHo 3BepHtbcra do nocTayalbHnka. He BnKOpncToByte npnaIad.
• Npeep BnKopncTaHHm Ounchitb npna[ (nB. => YnueHHa Ta dorgla].
• Tomictitb yci niiczbKn BCEpeuH npnilaNy.

36epiraTe ynaKOBky, kUO Bu nIaHye Te 36epiratn Bau npu na y MaNbyThbomy.

Pnmitka:Hepe3aJHsKPeHOBn, 0yYTBOpIOITbC y npocci BnpobHnTba,y nepwi KINbKa cIKNIB npuad Moxe BnDInrtnHe3NaHHn 3anax. Lc HopMaIbHo i He BkAye Ha Byd-b-kyn DeΦeKT a6o He6e3neky. IpekoHaTeec, 0o npuaD do6pe npoBITpOCTbcR.

Ihctpykui3 ekcnnyatauui

-Пд' endе ВИКу Do BiIDnoBIDHoi eNEKtpuHoi po3eKn. YBIMKHITb npnnaq [aKUO BIN BXoDnTb Do KOMNKeTy]. 3aNNn npnad Ha KInbKa rOdn, U6 DoocrTn Temnepatypn oxoJodKeHH, nepu HIX NOMICTn Hani a60 iKy BCEpeDiHi npnlaNy.

- Pobota unφpOBo r o perynTop a TempeaTpyr

1).HanaaHTyBaHHaTeMnepaTpy

• Hatncihb [10], uo6 ybiTu B peKm HalaTuBaHH. BiO6paXaEbcra BCTAHOBHeHa TemnepaTypa.
• HaTnCHiTB (8) a60 (11), 3o6 36ilbunTu a6o 3MeHunTu BCTaHOBNeHy Tempepatypy.
  HaTncHb (10) 3 pa3, 6o6 nIqTBepnTH HaJauTyBaHH Ta BnTu 3 CnCTemN. Notim BiO6paXaetbcra Tempepatypa BCEpeuHi wa.

Ppumitka:

KIO npTOM 10 ckyHHe HATnCHyTo KoDHOI KhoNKn. Bye 36epexekaHa TaHa TEmnpaTypa.
-Диаэонналштуванг Tempepatурnt StaHOBNTbBID 2^ do 6^ [233610v.02,233627v.02,233634v.02,233641 v.02,233658v.02,233665v.02,233269v.02,233238v.02]; Dianaonn HalaWtBuHn Temepatypn-BiD 2^ do 8^ [233696,233290].
- Ⅲo6 niTpmyBAtn Tempepaty BCEpenHi, TpMaIte DBepaTBAIDHHeHmKOMOa KopoTWe.

2].OcbitIeHHBcepeDnHiwa

• HatncihtB [9], 06 yBIMKHyTn niCbitKy. Hatnchitb (9) pa3, 06 BIMKHyTn niCbitKy.

3).CbItnoioDHH iHnkaTOp xoJIoOareHTy

Piac onepaui oxoJxHn [cnpaOBAKomnpecop) uei cBtIOIOHN iHnKaTOp xoIooareHTy (12) noctiHo CBITNTCB.
- Picna toro k TemnepaType BcepeHHi waHn DocarHe BCTaHOBHeOH, iHnKATop xOJIOaReHTy [12] noHne 6IIMatn 6e3nepepbHo.
- Koln nouHaetbca po3mOpoxyBaHHc, cBtIoOHN iHdkaTOp xoJIOaareHTy (12) Bmukac.

4). CbIIOJIOHN iHdNkATop po3MOPoKyBaHHa

-ⅡIuaoconepauiipo3MopoxyBaHHaenCBITnoiOHN iHdkatoppo3MopoxyBaHHa[13]noCTiHoCBITnTbcra.
- Picna onepauii po3mopoxyBaHH iHnKaTOp po3mopoxyBaHH 13] 3rache.

OuichiennHraTateXhHne o6cIyroBvBaHHa

YBAG! 3abknn BiKIOuaTe npuad BiEeKtpomepeKi Ta oxoJIOxynTEcne nped 36epirAHm, OunueHHm Ta o6cnyroByBaHHm.

He BnKOpNCbOyIe CTPymHb BoND a6o napoouIyBaU dny OuyIeHHaTa He wTOBxaIte npnaI nd BOy, ockIbKn DeTALIOxMyTb CTaN BOLOrHM, i ce MOKe npu3BeCTN Do ypaXeHHeNEkTpNHm CTPymOM.

OuHnEHHN

30BHIiHi Ta BHyTpIiHi NOBepXHi MOxHa OHCTNBOJIO rHvipkoio 3 HeBeJIeKOIO KInbKICTIO MIOIOHO 3acO6y.
- ⅢTATINBMOKHA BnMaTn Ta MNTu y BOJI.
He BnKOpNCToBMyTe CtpymHb BOAn a6o npaoOnuBaH dny OunueHHa Ta He npOToBxUte npnaI nd BoDIO.
- Y nocydomiHm MaunHHe MoXHa MHTu KdoHJ DeTJI.
- PerynaynooynuynTe npnla.

Texhihe 06cIyroByBaHHa

• Pernyapno nepebipnTe po60ty npnlaNy, u6 yHnKHytn npe 5nem, kI moxyTb npn3BecTN do cepno3Hx HeaacnX BnnaKIB.
• RA K TINbKN Bn BiDyye, 00 npua He npaioe HaneXHm YHOM a6o kuo BNHNKna npobema, npunHitb KopucTyBaTncn npuaqom, BmKHITb NTo Ta 3BepHtbcr Do nocTaayhka.

3amHa HecnpabHoro cBITla

• YB4A! Npei3aMIO 3aBXKn BiKIOaYte npnaB BiEneKTPnHoi po3eTKI.
  3HIMITb 6nDBA TBNHTN 360KOBoi YactHHKpIiKN
  3HIMITbCTape CBITNo Ta 3aMIHITb NOro Ha HOBn TaKOrO X TnNy [He BXoINrB y KOMnIeKT].[ΦNyopecueHTnH 30Hd 220-240V~ /50ΓU,11W]
  3HOby 36epiTb KpnKny.
• 阿卡BOHeBnEBHeH，HKaMInTNNoCTaunbHnKaNoCnyr/ NoctaunbHnKaNoCnyr（INB. 1apantis).

Iobn yac BnMaHn npnaDy B HeoCaxHe Ia HbOro Mic

• YB4A! 3aBxDn BiKlOuaTe npuJa BID eJIeKtpuHooi po3ETKn.
  BnMItbBCOixyTaHanoiBcepeNHi npnilaNy.
• OuNCTiB npnla,як onicaHOBpo3diI«OunueHHA.（DINB. OunueHHA).

36epiraTe npuiay npoxoHOMy, uctomy MiCi Ta B HeocTyHOMy dIe MiCi.

UcyeHHH HeCnpaBHOCTe

KIO npiaH He npaioe HaneXHM YHOM, 3BepHITbC ao HBeDeHOi HxKue Tabnui IOn OtpmaHH pIeHH. KIO Bu BCE ue He moKeTe BpiuHTn IpO6JeMy, 3BepHITbC IO noCTaHaBnKa Nocnyr/NoctaHaBnKa NoCnyr.

Ohutusalased erijuhised

Installation of apparatus

1). Stille inn temperature

MoHTaX Ha 3a3eMraBaHTo

To3u ypeE kLnacnphiunpaH KaTo 3aunTeH KlaC I n Tpr6Ba da ce CbpxKe KbM 3aunTHO 3a3EmraHe. 3a3emraHeTO HamaIraBa pUcKa OT TOKOB yap, KaTO OCNpyra BA N3XoJeH PPOBOnHK 3a eJIeKTPueckn ToK.

To3n ype n e cna6denn CbC 3axpaHbaa Ka6e n cbc 3a3emraa
Ie enen eneKtpueckn Bpb3kn Cbc 3a3emraa Ka6e.
Bpb3knte Tp6Ba Da ca npabuHno mOntupan H 3a3emeHn.

OchOBHH qactn Ha npodykTa

[ФИr.1HaCtpr.3]

1.CtBXKeHaBpTa
2.3acmykBaHeHaBb3dyx

HnKora He 6IoknpaTe BCmykBaHeTo. Bb3dyxbT ce BcmykBaB XnaIINHnka n CtyeHnrt Bb3dyx Cpkynpa B Hero.

3.Главенпевкнунвateн BKЛ./ИЗКЛ.
4. CTeJax

• Bucunhata ha paka moke da ce perynipa 3a pa3nch nctokn. 3a peynipahe:
  1]U3BaTepeWetKaTa
  2]PpeMeecTe onopata Ha peWeTkata Ha noXoJaBnCe 4HHa.
  3) NocTabepewetkata Bbpxny noopnopa..

• N3xOa 3a Bb3dyx

• HnKora He 6IokupaTe n3xOda 3a Bb3dyx. OcTabe BbTpce npKylnpaunr cTyDen BB3dyuWeH NotOK da n3ne3e.
• ΣινφοῦτεΜπηρατημεκόνηθρούηρε
• Bb3nyweH kaHAn OT BbHwHaTcTaHa Ha CTbKlOTo 3a O TcPaHraBaHe Ha KOHdeH3aUHOHHaTbOda

KoHTpOlen naneIe

[Фиг.2Ha cTp.3]

8.Бутонзувеничаве
9. OcbetJIeHne

1. ByToH 3a HacTpoiKa
2. ByToH 3a HamaJraBaHe
3. CBeToIIOI 3a xlaIIINHnAreHT
4. CBeToIIOuO 3a pa3Mpa3YBaHe

CxemaHaBepurata

[Touka 233238 v.02, 233269 v.02, 233610 v.02, 233627 v.02, 233634 v.02, 233641 v.02, 233658 v.02, 233665 v.02]

(ФИг.3Ha cTp.4)

A. CoHa 3a pa3Mpa3BaHe
B. Tepmoctatha coHda
C. LünφρOB Temnepatypen KOHTpoJIep
D. NaHEn 3a noka3BaHe
E.празьклочвateн Ha 3axpaHbaHeTo
F.Диогател Ha BeHTnataTopa
G. IpoTeKTop 3a npTeTOBapBaHe
H. Komnpecop
I. Jama
J. NTB

CxemaHaBepurata

(no3.233290, 233696)

(ФИг.4Ha cTp.4)

K. CoHa 3a pa3ma3raBaHe
L. Tepmoctatha coHda
M.Дигтален TempepaTypeн KOHTpolep
N.Панелзаноказа
0.ДВИRATeHаBEHTnIaTopa
P. ПpoTeKTop 3a npTeTOBapBaHe
Q. Komipecop
R. Jlamna
S. ΠTB

3aMeHa HEnCpA BHO CBeToBOrIO INHnKaTopa

BHIMAHNE!peep3aMeHOBBcERdaOTKJIIOuaynte np6bOpOT 3NeKtpnueckoP03eTKN.
- OTKpyTte 6a BnHTa Ha 6okOBoCtopoHe KpbIuKIn ocBeueHHJ
- CHINMITE CTAPBI CBEITINbHnK N 3aMeHNT eRO HOBbIM [He BXoDHT B KOMnIeKT].[ФуopecueHTHa Tpy6ka 220-240V~ /50 T11W]
- CHOBA yCTaHOBnTe KpbIuKy OcBeUeHInr.
- Ecnn BbI He yBepHbI, KaK 3aMeHHTb, o6paTntEc b K nocTaBnKy/NoctBaunky ycnyr (cm. => TapaHTna).

IpoJIOJIIXIeJIbHoe npe6bIbAHne npi6opa B HeIOCTyINHom Me-CTe

BHIMAHNE! Bcerda oTKIouaTe np6op ot 3JekTpuecko p03eTkn.
- YdaHnTe Bce npOdyKtBu HAnHTKn 3 np6opa.
- Ounchte npibop, kaK onncaho B pa3dene «Ounchka». [CM. => Ounchka].
XpaHHTe np6op B npoxlaHOM, uCTOM HHeOCTyHOM dIaTeu MeCTe.

Ponck nyctpanenHeHcnpaBHOCTe

Ecn np6op He pa6otaetdoJXhbIM o6pa3om, npoBepbte paTbOp B Ta6nue Hxke. Ecn Bb BCE eue He moKepeWntb npo6nemy, o6patnteck noctabuNky/noctabuNky ycnyr.

Hendi Food Service Equipment GmbH

Ehring 15

Hendi Food Service Equipment Romania S.R.L.

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi Italia S.R.L.

Via Leonardo da Vinci 4

39100 Bolzano (BZ), Italy

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

FindHendi on internet:

www.hendi.com

www.facebook.com/HendiToolsforChefs

https://www.linkedin.com/company/hendi-tools-for-chefs/

www.youtube.com/HendiEquipment

GB: Changes, printing and typesetting errors reserved.
