USER MANUAL HRA590D+SL ROADSTAR

OPEN AUX IN DC SV IN 11 8 9 10

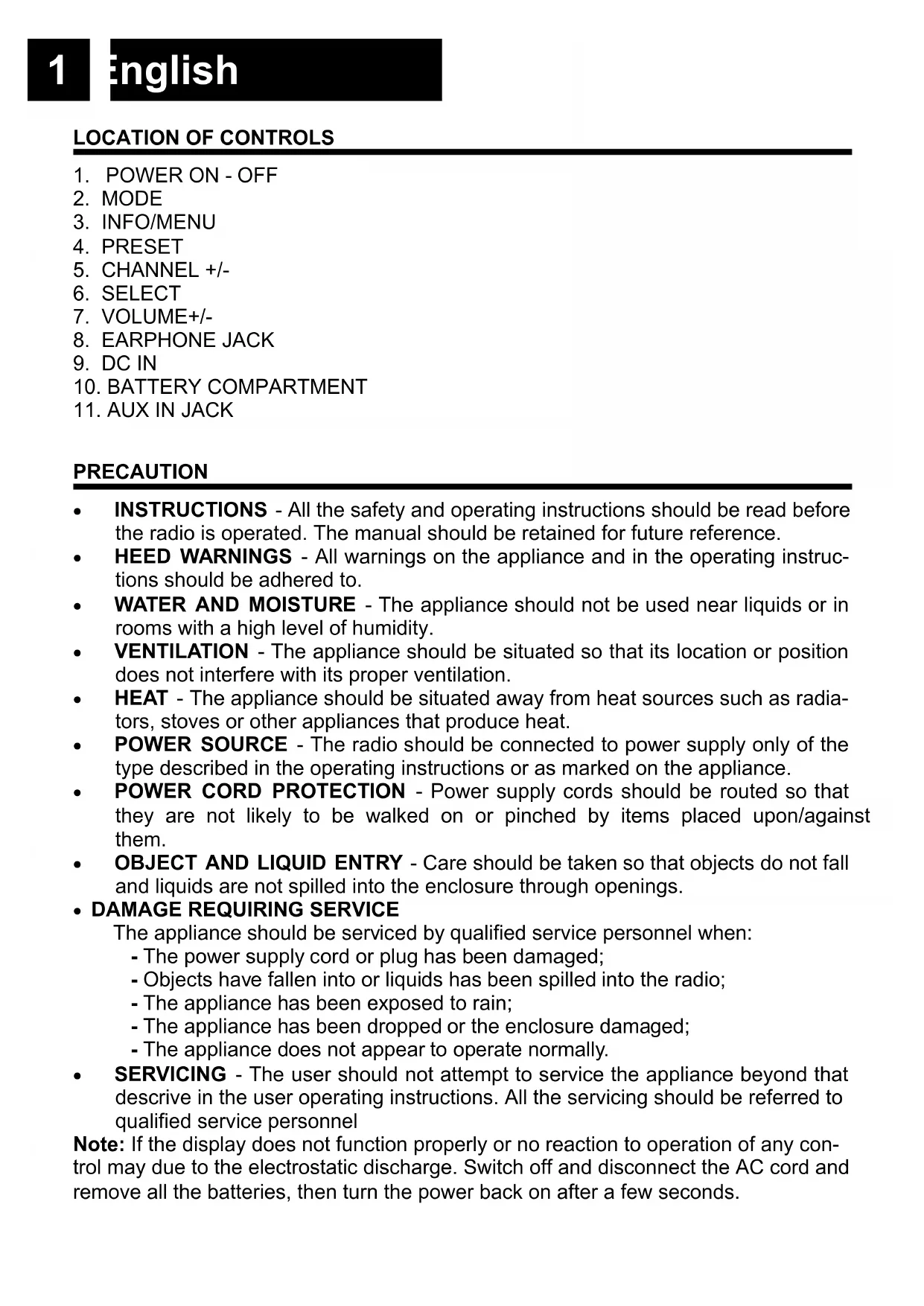

LOCATION OF CONTROLS

1. POWER ON - OFF
2. MODE
3. INFO/MENU
4. PRESET
5. CHANNEL +/-
6. SELECT
7. VOLUME+/-
8. EARPHONE JACK
9. DC IN
10. BATTERY COMPARTMENT
11. AUX IN JACK

PRECAUTION

• INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
• HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
• WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
• VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
• HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
• POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
• POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
• OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

• DAMAGE REQUIRING SERVICE

The appliance should be serviced by qualified service personnel when:

• The power supply cord or plug has been damaged;
• Objects have fallen into or liquids has been spilled into the radio;
• The appliance has been exposed to rain;
• The appliance has been dropped or the enclosure damaged;
• The appliance does not appear to operate normally.

- SERVICING - The user should not attempt to service the appliance beyond that descrive in the user operating instructions. All the servicing should be referred to qualified service personnel

Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds.

POWER SOURCES

AC POWER: You can power your portable stereo system by plugging the AC/DC adaptor into the DC plug at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage.

BATTERY POWER: To use the radio with batteries, disconnect the AC/DC adaptor and insert 4 × “AA” batteries into the compartment (10).

Be sure that the batteries are inserted correctly to avoid damage to the appliance. Remove the batteries when the radio will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your radio.

TO USE THE RADIO

1. Press the [Power] button (1) to power on;
2. Press [MODE] (2) to select DAB, FM or Aux input;
3. Adjust the volume with the [VOLUME+/-] buttons (7) to the desired level;
4. To power off the radio, press the [POWER] button (1).

Note: For a better reception reorient the antenna.

TUNE DAB STATION

1. DAB: Adjust radio frequency to your desired station by pressing [CHANNEL -/+] buttons (5) and then press [SELECT] (6);

Note: In case there is No DAB Service, press & hold the [MENU] button (3) and select "Full Scan" to start scanning with [CHANNEL -/+] buttons (5), confirm con [SELECT] (6) button.

FM STATION SCAN

1. FM: Adjust radio frequency to your desired station by pressing [CHANNEL -/+] buttons (5). For Auto Scan, press and hold for 2 seconds [CHANNEL -/+] buttons (5);

PRESET DAB OR FM

1. Set the desired radio station frequency as explained previously;
2. Press and hold for 2 seconds the [PRESET] button (4), select with [CHANNEL -/+] buttons (5) desired PRESET position and press the [PRESET] button (4) to save;

RECALL A PRESET STATION

1. Press the [Preset] button (4);
2. Select the desired preset by pressing [CHANNEL -/+] button (5);
3. Confirm with the [SELECT] button (6).

INFO

When the radio station is playing, press the [INFO] button (3) repeatedly to cycle through the information broadcasted by the radio as follow:

UNDER DAB

• DLS (Dynamic Label Segmenting): Radio text broadcasted from the DAB station

3

English

such as the news, songs being played...etc.

• PTY (Programme Type): shows which type of programme you are listening to, "Music", "Talk", "News" etc. If there is no information, it will display "Programme Type".
• Channel/Frequency: The frequency of DAB is displayed such as "11C 220.352MHz".
  • Audio info: The display shows the digital audio bit rate of the current reception.
• Signal error: The signal strength is displayed graphically.
• Time/Date: The time and date are set automatically.

UNDER FM

• RT (Radio text): Text broadcasted from the FM station
• Program type: shows which type of programme you are listening to.
- Time/Date: The time and date are set automatically.
• Frequency: the FM frequency for the radio station in playing.
• Mono / Stereo: Automatic switching between mono and stereo reception.

Note: Time and date accuracy depends on the info broadcasted from the radio station.

SYSTEM SETTINGS

In FM / DAB mode there is an option menu.

1. Press and hold [MENU] (3) to access to the options.
2. Press the [CHANNEL -/+] buttons (5) to navigate into the options. Press [SELECT] (6) to select the options.

DRC (Dynamic Range Compression): This function reduces the differences between the loudes and quietest audio being broadcast. It makes quiet sounds comparatively louder, and loud sounds comparative quieter (only if offered by the provider).

PRUNE: Removes all invalid stations indicated in the station list with a “?” in front of the station name.

SYSTEM SETTINGS menu you can choose:

EGG TIMER: select with [CHANNEL -/+] button (5) EGG TIMER, press [SELECT] (6) to enter, select with [CHANNEL -/+] button (5) from 1 to 99 minutes. Press POWER to stop the buzzer.

SLEEP: select with [CHANNEL -/+] button (5) SLEEP, press [SELECT] (6) to enter, select with [CHANNEL -/+] button (5) step of 15/30/45/60/90 minutes.

BACKLIGHT: select with [CHANNEL -/+] button (5) BACKLIGHT, press [SELECT] (6) to enter, select with [CHANNEL -/+] button (5) following info:

• TIMEOUT: you can choose : ON/10/20 etc.
• ON LEVEL: level of intensity, select as desired with [CHANNEL -/+] button (5).
- DIM LEVEL: you can choose dimmer level. select with [CHANNEL -/+] button (5) desired level.

LANGUAGE: in SYSTEM SETTINGS, select with [CHANNEL -/+] button (5) desired language

FACTORY RESET: in SYSTEM SETTINGS, select with [CHANNEL -/+] button (5) YES to Factory settings.

CLOCK AND DATE SETTING

When the radio is ON:

1. Press and hold [Menu] (3) to access to the menu;
2. Press the [CHANNEL -/+] buttons (5) to select "System SETTINGS";
3. Confirm with the [SELECT] button (6);
4. Press the [CHANNEL -/+] buttons (5) to select "Set Time/Date";
5. To SET Time/Date
6. Press the [CHANNEL -/+] buttons (5) to adjust the hour;
7. Confirm with the [SELECT] button (6);
8. Press the [CHANNEL -/+] buttons (5) to adjust the minutes;
9. Confirm with the [SELECT] button (6);
10. Press the [CHANNEL -/+] buttons (5) to set Date;
11. Confirm with the [SELECT] button (6);

Set 12/24 Hour: Press the [CHANNEL -/+] buttons (5) to set 12 or 24hour;

Confirm with the [SELECT] button (6);

Set Date format: Press the [CHANNEL -/+] buttons (5) to set DD-MM-YYYY or MM-DD-YYYY. Confirm with the [SELECT] button (6);

Auto Update: you can choose radio can update Date/time.

1. Press the [CHANNEL -/+] buttons (5) to select From Any/DAB/FM or no update;
2. Confirm with the [SELECT] button (6);

ALARM SETTING

When the radio is ON:

1. Press and hold [MENU] (3) to access to the menu;
2. Press the [CHANNEL -/+] buttons (5) to select "System SETTINGS", Alarm;

3. Confirm with the [SELECT] button (6);

4. Select Alarm 1 or 2 pressing [CHANNEL -/+] buttons (5), Confirm with the [SELECT] button (6);

5. You navigate in this menu with [CHANNEL -/+] buttons (5), Confirm with the [SELECT] button (6);

Select Alarm ON, , Frequency of alarm (daily, once etc), Wake up time, Source (Buzzer/DAB/FM), Volume setting, Duration (15/30/45 etc).

AUX IN OPERATION

1. Select "AUX" mode by pressing the [MODE] (2)button;
2. Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the AUX-IN socket (11).
   Note: Music control (play, pause, etc) must be done from your external device.

TECNICAL SPECIFICATIONS

Power

Power Voltage: Power adapter 5V 1A

Power Input: DC 4X1.5V AA size (not included)

Radio Frequency Coverage

DAB+ / DAB: BAND III 174MHz - 239.2MHz.

FM: 87.5 - 108 MHz.

Speaker

Output Power: 1 x 1 Wrms

General

Display 2.8 inches colour TFT display

Earphone Out: 3.5mm jack plug.

Aux in: 3.5mm jack aux in

Specifications and design are subject to possible modifications without notice due to improvement.

-WARNINGS

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of “dangerous voltage” inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Simple line drawing of a trash bin with crossed diagonals and a black rectangle below (no text or symbols)

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

ORT DER BEDIENELEMENTE

1. POWER ON - OFF
2. MODE
3. INFO/MENU
4. PRESET
5. CHANNEL +/-
6. SELECT
7. VOLUME+/-
8. EARPHONE JACK
9. DC IN
10. BATTERY COMPARTMENT
11. AUX IN JACK

SICHERHEITSHINWEISE

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

KORREKTE ENTSORGUNG DIESES PRODUKTS (Elektromüll)

Puissance: 1 x 1 Wrms.

Généralités

Simple line drawing of a trash bin with two crossed lines and a black bar below (no text or symbols)

CONTROLLI

1. POWER ON - OFF
2. MODE
3. INFO/MENU
4. PRESET
5. CHANNEL +/-
6. SELECT
7. VOLUME+/-
8. PRESA CUFFIE
9. DC IN
10. COMPARTO BATTERIE
11. AUX IN JACK

PRECAUZIONI

PREIMPOSTARE DAB O FM

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

Simple line drawing of a trash bin with two crossed lines and a black rectangular base (no text or symbols)

Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.

CORRECTE AFVALVERWERKING VAN HET PRODUCT (elektrisch en elektronisch afval)

Hereby, Roadstar Management SA declares that the radio equipment type HRA-590D+ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://roadstar.com/images/ce/HRA-590D+.pdf or by scanning the following QR Code.

QR code image containing encoded data, no visible human-readable text

TEST REPORT - Energy Efficiency RegulationsEnergy Efficiency of External Power Suppliers
Nameplate Information	Value and precision	Unit	Verdict (PASS/FAIL)
Manufacturer's name or trade mark, commercial registration number and address	DongGuan Obelieve Electronic Co., Ltd/Address: Huazhaoxin industrial Park B-4/F, Golden Phoenix industrial Zone, Fenggan Town, Dongguan, guangdong Province, People'sRepublic of China.	-- --
Model identifier	OBL-0501000E	--	--
Input voltage	100-240V	V	--
Input AC frequency	50/60Hz Hz --
Output voltage	5 V --
Output current	1 A --
Output power	5 W --
Average active efficiency	76,52 % --
Efficiency at load 10%	-- % --
No-load power consumption	0.081 W --
