Product Type	Audio/Video Extender - Splitter Extender Cat.6 HDMI 4K60 4 ports 70m
Brand	Lindy
Model	38262
Interface	HDMI 2.0
Bandwidth	18 Gbit/s
Maximum Resolution	3840x2160@60Hz 4:4:4 8bit
Maximum Distance	70 m (229.66 ft)
HDCP Support	2.2
EDID	Pass-through
Audio Formats	2CH, up to 5.1
IR Control	20-60 KHz, transmitter and receiver included
Chipset	GSV2006 & GSV5100
Housing Material	Metal
Color	Black
Power Supply	12 VDC, 2 A, multi-country (UK, EU, US, AUS)
Power Consumption (Transmitter)	5.2 W
Power Consumption (Receiver)	1.6 W
Transmitter Connections	1 x HDMI In, 4 x RJ-45 Out, 1 x HDMI Out (loop), 1 x IR Out (3.5 mm)
Receiver Connections	1 x RJ-45 In, 1 x HDMI Out, 1 x IR In (3.5 mm)
Power over Cat.6 (PoC)	Yes, power via network cable for receivers
Operating Temperature	0 °C - 50 °C
Storage Temperature	-10 °C - 80 °C
Relative Humidity	5 - 90 % RH (non-condensing)
Package Contents	1 transmitter, 4 receivers, IR cables, mounting brackets, power supply, manual
Warranty	2 years Lindy, free lifetime technical support

Frequently Asked Questions - 38262 Lindy

What is the maximum resolution supported by the Lindy 38262?

The maximum resolution is 3840x2160@60Hz in 4:4:4 8bit, with HDR support.

What is the maximum distance I can achieve with Cat.6 cables?

The maximum distance is 70 meters with a Cat.6 cable or higher.

Can I use a Cat.5e cable?

Yes, but this will reduce the maximum distance. Cat.6 or higher is recommended for optimal performance.

How are the receivers powered?

The receivers are powered via the network cable thanks to the Power over Cat.6 (PoC) feature. A single power supply on the transmitter is sufficient.

Can I connect more than 4 screens?

Yes, you can cascade up to 3 transmitters using the HDMI Loop Out to expand to 12 screens.

How to resolve a no picture issue?

Reset the transmitter or receiver with the Reset button. Try reducing the length of HDMI cables to 1 m, check the Cat.6 connections, and turn on the devices in order: transmitter, screens, source.

Does IR control work from the receivers?

Yes, connect the IR receiver cables to the receivers and the IR emitter cable to the transmitter. The remote control must be in direct line of sight of the IR receiver.

What power adapters are included?

The multi-country power supply includes four adapters: Euro, UK, US/Japan and Australia/New Zealand.

Is the product compatible with HDCP 2.2?

Yes, it supports HDCP 2.2 for protected content.

How to clean the device?

Use a dry, soft cloth. Do not use abrasive products or solvents. Unplug the power before cleaning.

USER MANUAL 38262 Lindy

70m Cat.6 4 Port HDMI 4K60 Splitter Extender

User Manual English

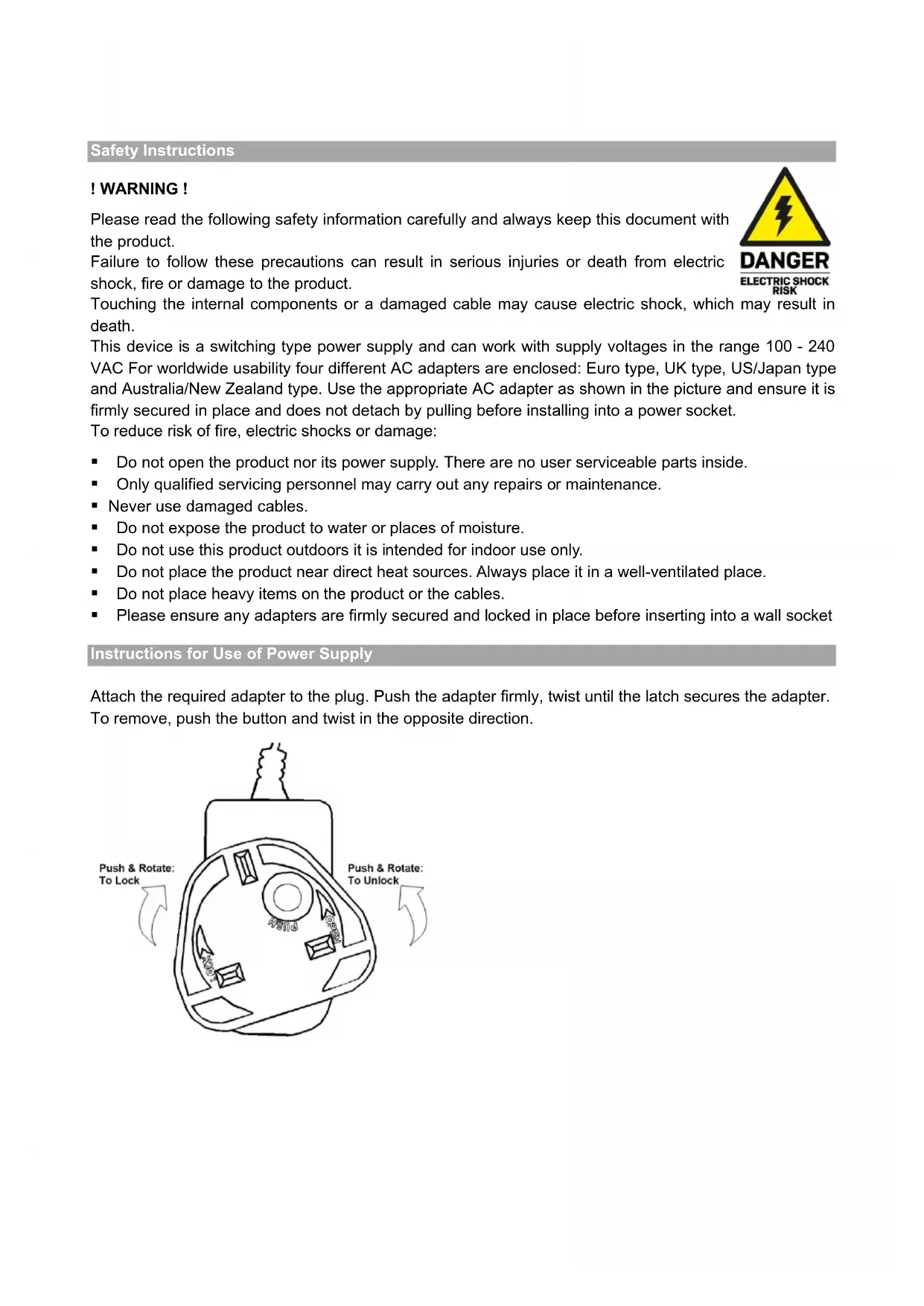

Please read the following safety information carefully and always keep this document with the product.

Failure to follow these precautions can result in serious injuries or death from electric shock, fire or damage to the product.

Touching the internal components or a damaged cable may cause electric shock, which may result in death.

This device is a switching type power supply and can work with supply voltages in the range 100 - 240 VAC For worldwide usability four different AC adapters are enclosed: Euro type, UK type, US/Japan type and Australia/New Zealand type. Use the appropriate AC adapter as shown in the picture and ensure it is firmly secured in place and does not detach by pulling before installing into a power socket.

To reduce risk of fire, electric shocks or damage:

• Do not open the product nor its power supply. There are no user serviceable parts inside.
• Only qualified servicing personnel may carry out any repairs or maintenance.
  ■ Never use damaged cables.
• Do not expose the product to water or places of moisture.
• Do not use this product outdoors it is intended for indoor use only.
• Do not place the product near direct heat sources. Always place it in a well-ventilated place.
• Do not place heavy items on the product or the cables.
• Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

Instructions for Use of Power Supply

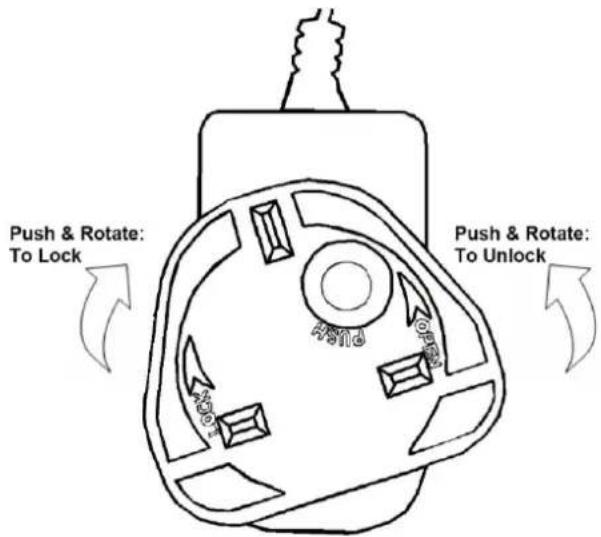

Attach the required adapter to the plug. Push the adapter firmly, twist until the latch secures the adapter. To remove, push the button and twist in the opposite direction.

Introduction

Thank you for purchasing the 70m Cat.6 4 Port HDMI 4K60 Splitter Extender. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

Package Contents

■ 70m Cat.6 4 Port HDMI 4K60 Splitter Extender
■ 4 x Cat.6 HDMI Receivers
■ IR Emitter Cable, 1.2m
■ 4 x IR Receiver Cable, 1.2m
■ 2 x Transmitter Mounting Brackets & Screws
■ 8 x Receiver Mounting Brackets & Screws
■ 12VDC 2A Multi-country Power Supply (UK, EU, US & AUS), Barrel Size: 5.5/2.1mm
- Lindy Manual

Features

■ Distribute HDMI signals to up to 4 displays in multiple locations.
■ Supports resolutions up to 4K@60Hz, with additional support for HDR.
■ Features a loop-through HDMI output on the transmitter for local monitoring or cascading up to 3 levels for larger installs.
■ Control using an IR remote from the receiver locations.
■ Supports Power over Cat.6 (PoC) to the receivers, only a single power supply is required for operation.

Specification

■ Interface Standard: HDMI 2.0
■ Supported Bandwidth: 18Gbps
■ Maximum Distance: 70m (229.66ft)
■ Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
■ HDCP Support: 2.2
■ EDID Pass-through
■ Supported Audio Formats: 2CH, up to 5.1 copying EDID from loop out port
■ IR Support: 20-60KHz
Chipset: GSV2006 & GSV5100
■ Housing Material: Metal
■ Operating Temperature: 0°C - 50°C (32°F - 122°F)
■ Storage Temperature: -10^ - 80^ ( 14^ - 176^ )
■ Humidity: 5 - 90% RH (non-condensing)
■ Power Consumption: Splitter Extender: 5.2W, Receiver: 1.6W
Colour: Black

Connectors

■ Transmitter Input: HDMI Type A (Female)
■ Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female)
■ Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
■ Receiver Output: HDMI Type A (Female)

Product Overview

Extender Splitter, Transmitter

■ 12VDC: Connect and secure the included power supply.
- IR Out: Transmit IR control to the connected display using the included IR emitter cable.
■ HDMI In: Connect to an HDMI source device using HDMI cable.
- HDMI Out: Connect to a local HDMI display, or alternatively connect up to 2 further 38262 units for larger scale distribution.
- Cat Out 1-4: Connect to the receiver units using Cat.6 or above cable.
- Reset Push Button: Press once to reset the system and all connections.
■ Power LED: Indicates power of the transmitter.
■ Power Switch: Push to manually switch the system on or off.

Receiver

1. 12VDC: Connect a suitable power supply (optional).
2. HDMI Out: Connect to an HDMI display
3. IR In: Receive IR control from an IR remote using the included IR receiver cables.
4. Reset Push Button: Press once to reset the system and all connections.
5. Cat In: Connect to the transmitter unit using Cat.6 or above cable.
6. Power LED: Indicates power of the receiver.

Installation

Please follow the below instructions for installation.

Lindy advises using high-quality HDMI cables up to 2m in length on the input, and 2m in length on the output. Cat.5e cabling can also be used however this will impact the maximum distance possible, therefore Cat.6 cable or above is recommended for use. Please ensure all devices are switched off prior to installation.

1. Connect an HDMI display to the required receiver unit using HDMI cable.
2. Connect a Cat.6 or above network cable to the Cat In port of the receiver unit.
3. Connect the opposing end of the Cat.6 cable to one of the 4 Cat Out ports of the splitter.
4. For local HDMI distribution, connect an HDMI display to the local HDMI Out port of the splitter unit. If cascading, please connect an additional splitter extender to the HDMI Out port of the splitter unit and follow the above steps regarding connecting receivers. Repeat the process again for connecting a third splitter extender.
5. Connect an HDMI source device to the HDMI In of the splitter unit.
6. Connect the multi-country power supply to the DC jack of the splitter unit and plug into a mains socket.
7. Switch on all devices. The Power LED of the splitter and receiver units will illuminate once power has been supplied. Power is provided to the receivers over the network cable using PoC.
8. For additional infrared remote signal functionality, connect the included IR Extension Cables to the splitter and receiver units, using the IR emitter cable with the IR Out port on the splitter and the IR receiver with the IR in port of the receivers. Please ensure the emitter cable is in front of the IR port that will be controlled, while the IR receivers are in line of sight of the IR remote.

Troubleshooting

There is no display on the screen.

It has been found that there are significant differences in the cable lengths/types and even input ports which can be used on different brands of display using HDMI resolutions. If problems are

experienced, please apply the following steps:

• Reset the splitter extender or receiver unit using the reset push button.
  ■ Try a different input port on the display.
  ■ Reduce the cable length on the Input and Output to 1m.
  ■ Try a different type of 1m HDMI Cable.
• Check that the DC plug and jack used by the external power supply is firmly connected.
• Check that the Cat.6 or above cable is connected correctly.
• Power off all the devices, then power on in this order: first, the splitter unit, then the display and finally the source.
• For some HDMI devices it may be helpful to unplug and re-connect their HDMI connection to re-initiate the HDMI handshake and recognition.
• Reduce the length of Cat.6 or HDMI cable used or use a higher quality cable.

Lindy regularly checks and tests our product range to ensure maximum compatibility and performance.

For the most up to date version of this manual, please refer to your local Lindy website, search for the relevant part number and find the manual under Downloads.

For further assistance please contact your local Lindy Technical Support team. Details can be found at your local Lindy website.

Sicherheitshinweise

! GEFAHR !

Einführung

Extender Splitter, Transmitter

Introduction

Introduzione

Introducción

WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products

Europe, United Kingdom

In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process. Each individual EU member state, as well as the UK, has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.

LINDY declares that this equipment complies with relevant European CE requirements.

LINDY declares that this equipment complies with relevant UKCA requirements.

FCC Certification

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

The enclosed power supply has passed Safety test requirements, conforming to the US American versions of the international Standard IEC 60950-1 or 60065 or 62368-1.
