Product Type	C6 HDBaseT HDMI 18G & IR 70m Extender Kit
Brand	Lindy
Model	38214
Dimensions (transmitter/receiver)	Approx. 150 x 80 x 25 mm (estimated)
Weight (kit with power supply)	Approx. 800 g (estimated)
Power Supply	AC 100-240V 50/60Hz, 24V DC 1A adapter included
Power Consumption	24 W max
Supported Resolutions	Up to 3840x2160@60Hz 4:4:4 8-bit, HDR 10/12-bit, Dolby Vision
Transmission Distance (1080p)	Up to 70 m with Cat.6 cable
Transmission Distance (4K)	Up to 40 m with Cat.6 cable
Transmitter Connectivity	HDMI In, HDBaseT Out, IR In/Out, RS-232, Service
Receiver Connectivity	HDMI Out, HDBaseT In, IR In/Out, RS-232, Service
Video Standards	HDMI 2.0b, 18 Gbit/s, HDCP 2.2/1.4
Special Features	PoC (Power over Cable), bidirectional IR control, RS-232 and CEC pass-through
Housing Material	Metal, black
Operating Temperature	0°C to 40°C
Operating Humidity	20% to 90% RH (non-condensing)
ESD Protection	±8 kV (air), ±4 kV (contact)
Warranty	2 years
Kit Contents	Transmitter, receiver, 2 IR cables (emitter/receiver), 24V DC power supply, manual

Frequently Asked Questions - 38214 Lindy

What type of network cable should be used to connect the transmitter and receiver?

Use a Cat.6 or higher cable, preferably solid core U/UTP or F/UTP. Do not connect the cable to an Ethernet network or switch.

Can I use the extender with a Cat.5e cable?

It is recommended to use Cat.6 or higher to ensure the advertised performance, especially for 4K resolutions. Cat.5e may work over shorter distances, but without guarantee.

How do I power the extender?

The provided 24V DC power supply can be connected either to the transmitter or the receiver thanks to the PoC (Power over Cable) feature. Only one power supply is needed.

What is the maximum distance for 4K transmission?

With a Cat.6 cable, the maximum distance for 4K resolution (3840x2160@60Hz 4:4:4 8-bit) is 40 meters. For 1080p, it can reach up to 70 meters.

How do I install the IR cables?

Connect the IR receiver to the IR In jack and the IR emitter to the IR Out jack. Place the IR receiver in view of the remote control and the IR emitter facing the device to be controlled.

What to do if no image is displayed?

Check that the power supply is connected and that the Power and Link LEDs are lit. Make sure the network cable is properly connected and that HDMI cables are in good condition. Reduce the distance or try a shorter HDMI cable.

Can I connect the extender to a network switch?

No, the extender requires a direct point-to-point connection between the transmitter and receiver via the network cable. Do not connect it to an Ethernet network or switch.

What audio formats are supported?

All HDMI audio formats are transmitted, including Dolby Atmos and DTS:X.

Is the extender compatible with other HDBaseT equipment?

Yes, it can be used with other compatible HDBaseT kits or splitters from Lindy.

How to use the RS-232 function?

Connect a PC or serial controller to the 3-pin RS-232 terminal on the transmitter or receiver. Commands pass transparently through the extender.

USER MANUAL 38214 Lindy

Two black LADY memory drives with ventilation grilles, shown from different angles (no visible text or symbols on the drives themselves)

No. 38213-4

lindy.com

CE

Tested to comply with

FCC Standards

For Home and Office Use!

!!! IMPORTANT !!!

Only use a direct Cat.5e/6/7 cable connection between the HDBaseT ports. Do not connect these ports to Network or Ethernet equipment or any active components

!!!! WICHTIG !!!

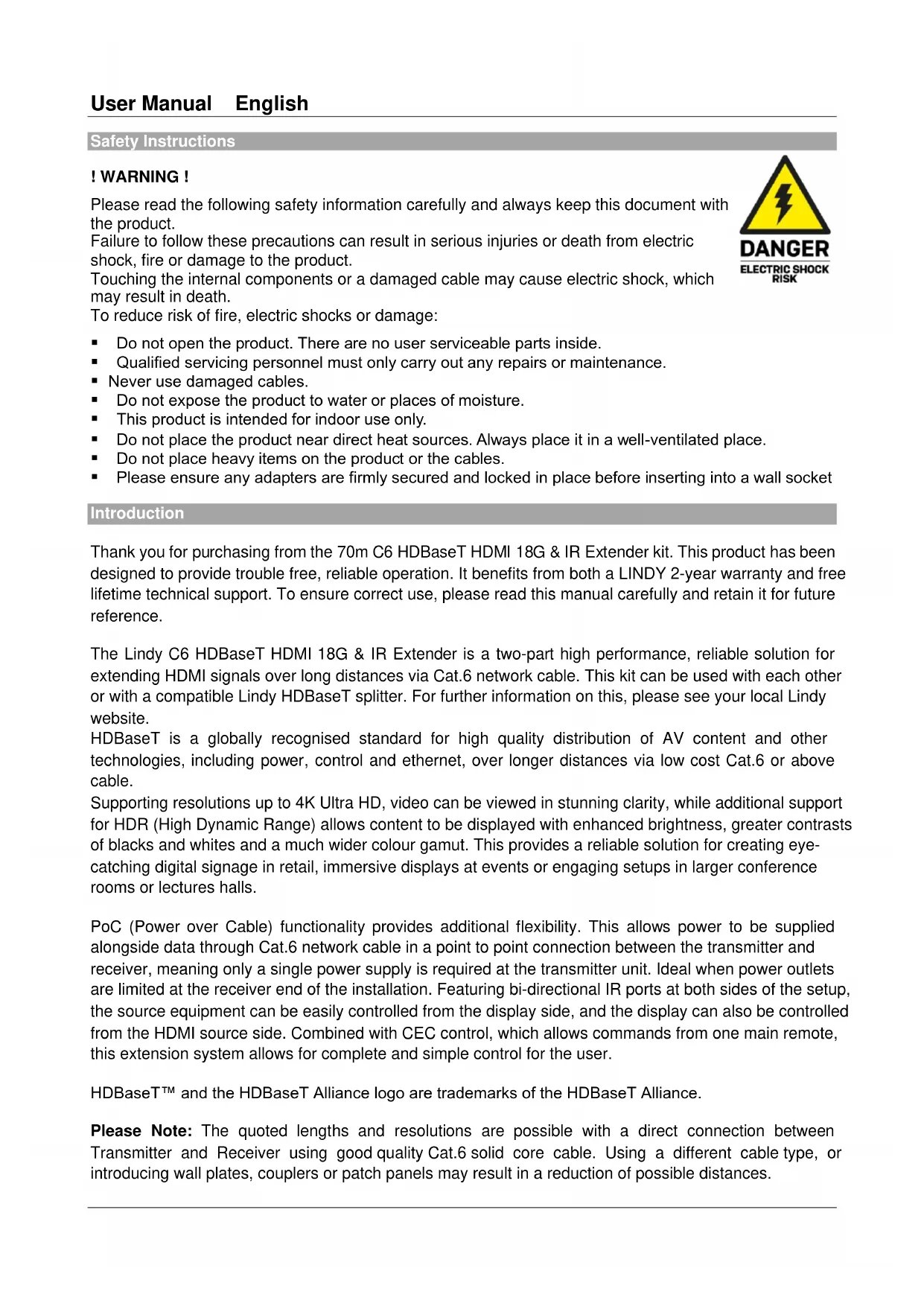

Please read the following safety information carefully and always keep this document with the product.

Failure to follow these precautions can result in serious injuries or death from electric shock, fire or damage to the product.

Touching the internal components or a damaged cable may cause electric shock, which may result in death.

To reduce risk of fire, electric shocks or damage:

• Do not open the product. There are no user serviceable parts inside.
  ■ Qualified servicing personnel must only carry out any repairs or maintenance.
  ■ Never use damaged cables.
• Do not expose the product to water or places of moisture.
  ■ This product is intended for indoor use only.
• Do not place the product near direct heat sources. Always place it in a well-ventilated place.
• Do not place heavy items on the product or the cables.
• Please ensure any adapters are firmly secured and locked in place before inserting into a wall socket

Introduction

Thank you for purchasing from the 70m C6 HDBaseT HDMI 18G & IR Extender kit. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2-year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

The Lindy C6 HDBaseT HDMI 18G & IR Extender is a two-part high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. This kit can be used with each other or with a compatible Lindy HDBaseT splitter. For further information on this, please see your local Lindy website.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power, control and ethernet, over longer distances via low cost Cat.6 or above cable.

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user.

HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels may result in a reduction of possible distances.

Package Contents

38213

■ HDMI Transmitter
■ IR Receiver
- IR Emitter
■ 24VDC 1A Multi-country Power Supply (UK, EU, US & AUS), Screw Type DC Jack: 5.5/2.1mm
■ Lindy Manual
■ HDMI Receiver
- IR Emitter
■ IR Receiver
■ Lindy Manual

38214

Features

■ Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit, with additional support for HDR up to 4:2:2 10/12bit and Dolby Vision
■ Audio Pass-through of all HDMI audio formats including Dolby Atmos & DTS:X
- PoC (Power over Cable) support, requiring a power supply connection from only one side of the installation
■ Bi-directional IR Control (30-60kHz) of equipment via the extender
■ RS-232 & CEC Pass-through
■ Screw Type DC Jack for a secure power connection

Specification

■ HDMI 2.0b, 18Gbps Compliant
■ HDCP 2.2/1.4 Pass-through
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:

70m:

■ 1920x1080@60Hz 4:4:4 8bit
■ 3D@1920x1080

40m:

■ 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
■ 3840x2160@30Hz 4:4:4 8bit
■ 1920x1080@60Hz 4:4:4 8bit
■ 3D@1920x1080
■ ESD Protection: ± 8kV (air-gap discharge)
■ Human Body Model: ± 4kV (contact discharge)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
■ Storage Temperature: -20°C - 60°C (-4°F - 140°F)
■ Relative Humidity: 20 - 90% RH (Non-condensing)
■ Metal Housing
Colour: Black
■ Power Requirements: AC100-240V 50/60Hz
■ Power Consumption: 24W

Installation and Operation

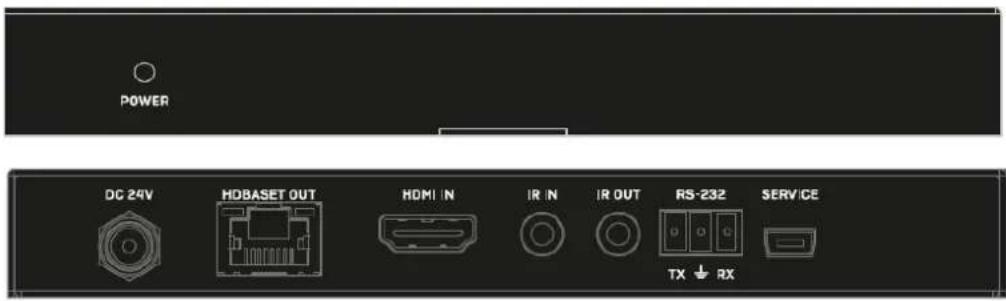

Transmitter Front and Rear

1. Power LED: Indicates Power.
2. DC 24V: Connect the 24VDC 1A PSU to an AC wall outlet and securely connector to the transmitter or receiver. This is only required at one side of the installation.
3. HDBaseT Out: HDBaseT Output port. Connect a compatible HDBaseT receiver using a single Cat.6 or above cable for all data signals. Please do not connect to a network port.
4. HDMI In: Connect to an HDMI source device.
5. IR In: Connect the supplied IR Receiver cable for IR signal reception. Ensure the remote being used is within the direct line-of-sight of the IR Extender.
6. IR Out: Connect the supplied IR Transmitter Cable for IR signal transmission. Place the IR Transmitter in direct line-of-sight of the equipment to be controlled.
7. RS-232: Connect to a PC, Serial Controller or Serial device via a phoenix block 3-way connection for the pass-through transmission of RS-232 commands.
8. Service: Reserved for future use.
9. Link Indicator LED: Illuminated Green: Link is Okay Not Illuminated: No Link
10. Data Signal Indicator LED: Illuminated Orange: Signal is Okay Not Illuminated: No HDMI Signal

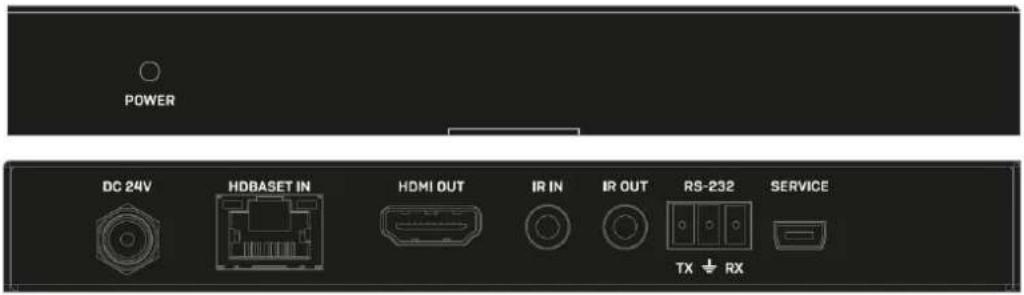

Receiver Front and Rear

1. Power LED: Indicates Power.
2. DC 24V: Connect the 24VDC 1A PSU to an AC wall outlet and securely connector to the transmitter or receiver. This is only required at one side of the installation.
3. HDBaseT In: HDBaseT Input Port. Connect a compatible HDBaseT transmitter using a single Cat.6 or above cable for all data signals. Please do not connect to a network port.
4. HDMI Out: Connect to an HDMI display.
5. IR In: Connect the supplied IR Receiver cable for IR signal reception. Ensure the remote being used is within the direct line-of-sight of the IR Extender.
6. IR Out: Connect the supplied IR Transmitter Cable for IR signal transmission. Place the IR Transmitter in direct line-of-sight of the equipment to be controlled.
7. RS-232: Connect to a PC, Serial Controller or Serial device via phoenix block 3 way connection for the pass-through transmission of RS-232 commands.
8. Service: Reserved for future use.
9. Link Indicator LED: Illuminated Green: Link is Okay Not Illuminated: No Link
10. Data Signal Indicator LED: Illuminated Orange: Signal is Okay Not Illuminated: No HDMI Signal

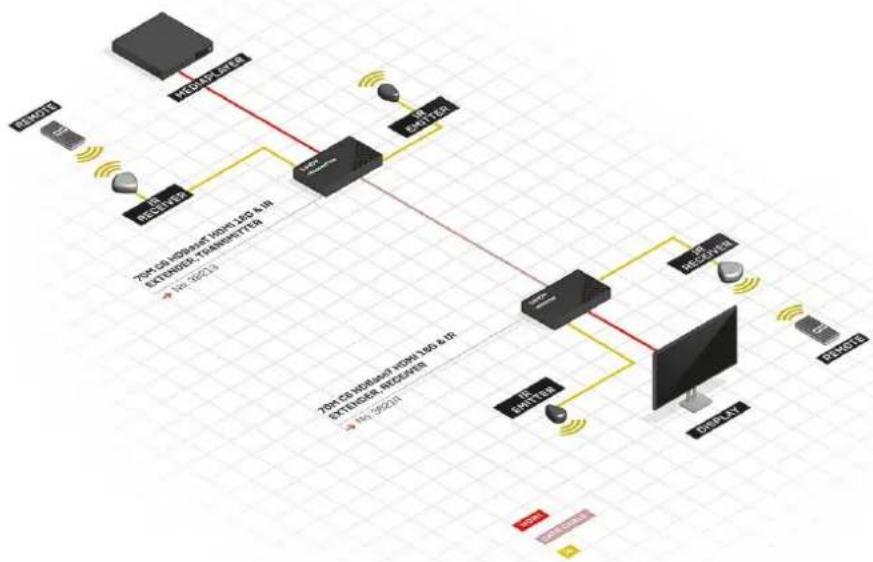

Important! Before starting the installation, please ensure that all devices are powered off.

1. Connect an HDMI source device to the Transmitter unit using HDMI cable.
2. Connect one end of the Cat.6/7 cable to the HDBaseT Out port on the Transmitter and the other end to the HDBaseT In port of the Receiver. U/UTP or F/UTP solid core installation cables are recommended. For cable lengths please see the Specifications of this manual.
3. Use another HDMI cable to connect an HDMI display device to the HDMI output port on the Receiver unit.
4. Plug the DC power supply into the Transmitter or Receiver and switch on.
5. Power on the source device and display to complete the installation.

In addition to the installation steps outlined above this HDMI 18G Extender can also provide the following additional/optional functionality:

RS-232 Serial

The Transmitter and Receiver both feature a phoenix block serial connection for the extension of control signals.

Infrared Control

The Transmitter and Receiver units both feature an IR In and Out port, with two pairs of IR extension cables provided. The extension cables allow an IR remote control to be used from the Transmitter to the Receiver or vice versa.

IR Receiver

IR Emitter

Troubleshooting

There is no display on the screen.

It has been found that there are significant differences in the cable lengths/types and even input ports which can be used on different brands of display using HDMI 18G 4K@60Hz resolutions. If problems are experienced, please apply the following steps:

■ Try a different input port on the display.
■ Reduce the cable length on the Input and Output to 1m.
■ Try a different type of 1m HDMI Cable.
- Check that the DC plug and jack used by the external power supply is firmly connected and that the power LED is illuminated on both the Transmitter and Receiver.
- Check that the Cat.6/7 cable is plugged in correctly and that the Connection LED on the left side of both the HDBaseT In and Out ports are illuminated.
- Check that the HDMI Indicator LED on the right side of the HDBaseT In and Out ports are illuminated, if not please power cycle the source and display.
- For several HDMI devices it may be helpful to unplug and re-connect their HDMI connection to reinitiate the HDMI handshake and recognition.
- Power off all the devices, then power on in this order: first, the extender, then the display and finally the source.
- Reduce the length of Cat.6/7 or HDMI cable used or use a higher quality cable.

Lindy regularly checks and tests our product range to ensure maximum compatibility and performance. For the most up to date version of this manual, please refer to your local Lindy website, search for the relevant part number and find the manual under Downloads.

Sicherheitshinweise

! GEFAHR !

Lieferumfang

38213

■ HDMI Transmitter
- IR Receiver
■ IR Emitter
24VDC 1A Netzteil 'Multi-Country' (UK, EU, US & AUS), DC-Buchse mit Schraubanschluss: 5.5/2.1mm
■ Lindy Handbuch
■ HDMI Receiver
- IR Emitter
■ IR Receiver
■ Lindy Handbuch

38214

Eigenschaften

IR Emitter

Fehlersuche

Émetteur IR

Dépannage

Trasmettitore IR

This equipment complies with the requirements relating to Electromagnetic Compatibility Standards. It has been manufactured under the scope of RoHS compliance.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products

Europe, United Kingdom

In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process.

Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.

^st Edition, November 2019
