USER MANUAL Omega 87610 UNOLD

Filter no. 1 HEPA filter system

Filter no. 2 carbon filter and cold catalyst filter

Filter no. 3 pre-filter (Not illustrated) 8 Cover FR Page 27

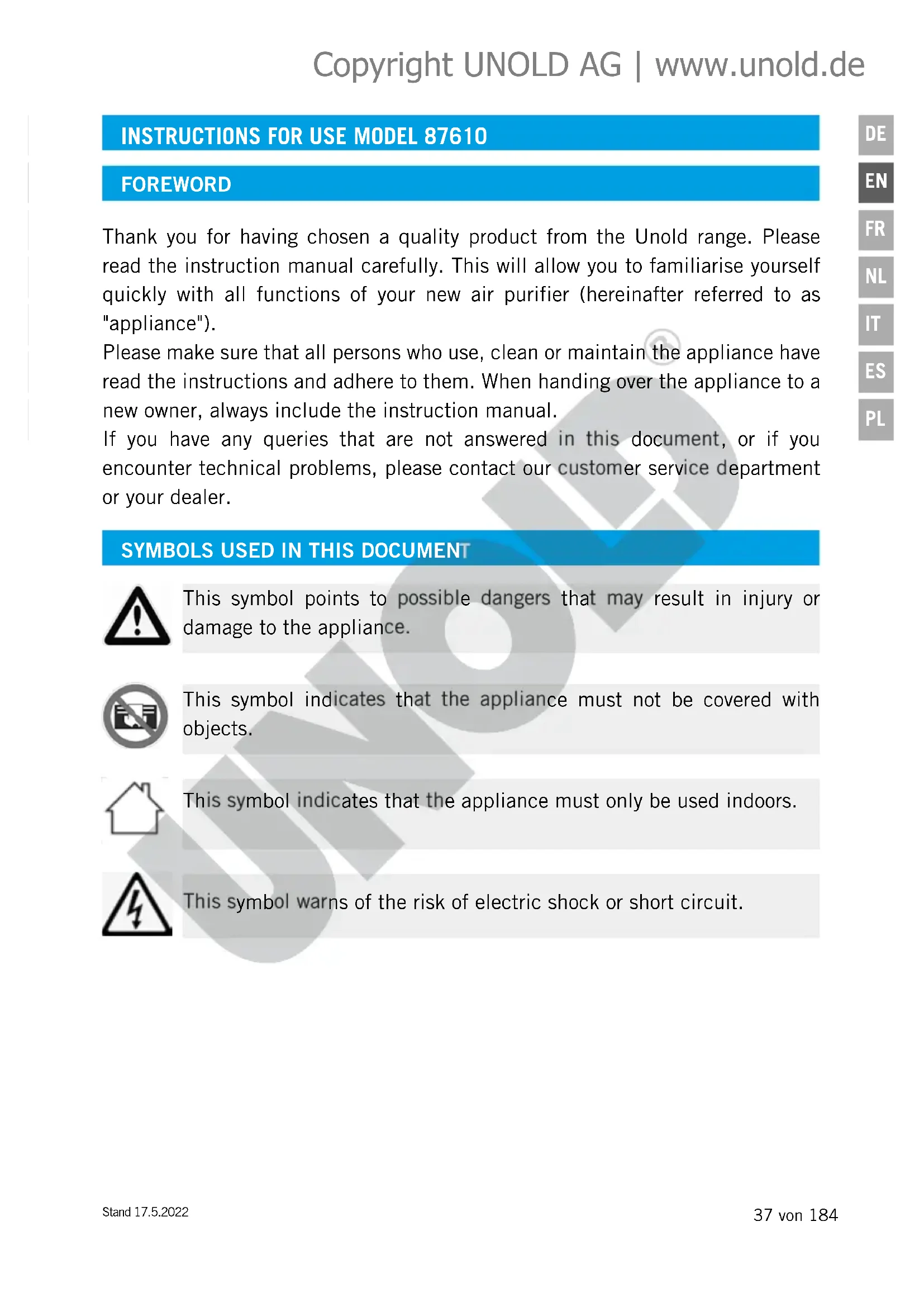

FOREWORD Thank you for having chosen a quality product from the Unold range. Please read the instruction manual carefully. This will allow you to familiarise yourself quickly with all functions of your new air purifier (hereinafter referred to as "appliance"). Please make sure that all persons who use, clean or maintain the appliance have read the instructions and adhere to them. When handing over the appliance to a new owner, always include the instruction manual. If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our customer service department or your dealer.

SYMBOLS USED IN THIS DOCUMENT

This symbol points to possible dangers that may result in injury or damage to the appliance. This symbol warns of the risk of electric shock or short circuit. This symbol indicates that the appliance must not be covered with objects. This symbol indicates that the appliance must only be used indoors. Copyright UNOLD AG | www.unold.de38 von 184 Stand 17.5.2022

/ h CCM: P 4 Maximum room size: approx. 104 m

Features: 4-stage filter system, composed of a pre-filter and a combination of cold catalyst filter, a cellular carbon filter and a HEPA filter system. UV feature can be activated for sterilisation, option to activate an ioniser, up to 8 hours timer feature, low-volume night mode with approx. 35 dB(a), humidifier with

1.8 litre water tank

Degree of protection: II Equipment features, technology, colours and design are subject to change without notice.

Please read this instruction manual carefully and keep it for future reference! Persons in household

1. The appliance has been designed for household use and is not

2. This appliance can be used by children aged 8 years or more and

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised Copyright UNOLD AG | www.unold.deStand 17.5.2022 39 von 184

or have been instructed in the safe use of the appliance and understand the hazards involved.

3. Children must not play with the appliance.

4. Children from the age of 8 may be permitted to clean or maintain

the appliance, provided they are supervised.

5. Keep the appliance and its power cord out of the reach of

children under the age of 8.

6. Do not connect the appliance to an external timer or remotely

controlled power system.

7. Never use the appliance while under the influence of medication

or alcohol or if your sensory capacity is reduced.

8. Use the appliance only under supervision if children or vulnerable

people are in the same room.

9. If you suffer from a severe respiratory illness or disease of the

lungs, consult your doctor before using the appliance.

10. The appliance has been designed for household use or use in

similar environments, such as tea kitchens in offices, shops, or other workplaces, farms, kitchenettes for guests in hotels, motels, hostels, holiday homes, etc. Safe handling of electricity

11. Connect the appliance to an alternating current source as

specified on the type plate.

12. Connect the appliance to a grounded power socket only. Ask an

electrician if you have any questions.

13. Never immerse the appliance, the power cord or the plug in

water or another liquid.

14. Do not use power supply units, extension cords or other attached

devices that exceed the recommended power rating (220–2240 V~, 5A AC). Otherwise, there is a risk of overheating and fire. We recommend that you operate the appliance only while connected to a single power socket instead of a power strip. Please ask a professional if you have any questions.

15. Never touch the appliance, the power cord or the plug with wet

16. Never operate the appliance with an electronic speed controller

to avoid the risk of a fire.

17. Regularly check the appliance, the power cord and the plug

for wear and damage. If the power cord or other parts of the appliance are damaged, return the appliance for inspection and repair to our customer service department. Improper repair can result in serious hazards to the user and shall void all warranty.

18. If the power cord of the appliance is defective, return the

appliance to our customer service department or have it replaced by a qualified electrician.

19. Never pull on the power cord to avoid damage to the inside of

20. To unplug the power cord from the power socket, always pull at

the plug and never at the cable.

21. Always disconnect the plug from the power socket before cleaning

the appliance and installing or disassembling the appliance and when the appliance is not in use or during a thunderstorm.

22. Do not wrap the power cord around the appliance.

23. Not suitable for use in moist and/or hot environments such as

bathrooms, indoor swimming pools or kitchens.

24. Immediately switch off the appliance and disconnect the power

plug from the socket if you notice unusual noises or odours at the appliance or the appliance runs unusually hot.

25. Unplug the appliance from the power socket after use, before

cleaning and whenever performing maintenance.

26. Also disconnect the plug from the power socket before taking

the appliance out of service for an extended period.. Information on how to set up and use the appliance safely

27. The appliance must only be used indoors.

28. Make sure to route the power cord such that it does not pose a

29. Never route the power cord under carpets, rugs or other textiles.

30. Never shift or move the appliance during operation.

31. Make sure to keep the power cord away from heaters, stoves,

32. Never stick objects such as fingers, needles, pens, etc. through

the openings and into the interior of the appliance – risk of injury!

33. To avoid damage to the appliance, never sit on the appliance and

never place any objects on top of the appliance. Never place any containers filled with water near the appliance.

34. Do not set down the appliance upside down. There is liquid

inside the appliance that may cause damage. Never place any containers filled with water near the appliance.

35. If the filter catches fire, there is a risk of irreversible damage

to human beings and/or fatal injury. Do not use the filter for cleaning fuel or for other purposes.

36. Never tap against the appliance, especially not against the air

37. This appliance is not suited as a substitute for regular room

ventilation, exhaust hoods or other air extraction systems.

38. Never use the appliance close to gas-powered devices, heaters,

stoves or open flames.

39. Also, never use the appliance in a room that contains remnants

of insecticide aerosols, smoke from incense sticks or other oily or chemical vapours. Ventilate such rooms sufficiently before you switch on the appliance.

40. Never place the appliance under an air conditioner to prevent

the appliance from being penetrated by condensation that may drip from the air conditioner.

41. The vents must never be covered by furniture, walls or other

objects. Unobstructed air circulation must be ensured at all times. The front and the top require at least 30 cm of clearance to other objects, while the clearance on the rear must be 20 cm.

42. Make sure to keep the remote control out of the reach of children.

43. Caution: Move the appliance only by using the handles found on

the right and left of the appliance.

44. Do not switch on the appliance unless all filters have been

45. Never fill any fragrances, essential oils or similar agents into the

46. To avoid damage to the appliance, do not use the appliance with

accessories made by other manufacturers. Use only filters made by our company.

47. Caution: The appliance is not capable of filtering carbon

monoxide or radon gas. It must not be used to purify the air in the aftermath of accidents involving ashes or chemicals.

48. Never use the appliance in rooms with an exceedingly high

concentration of oxygen (e.g. laboratory rooms). The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. This appliance is suitable for air purification in private indoor rooms. The appliance is not suitable for industrial or commercial use. The packaging must be removed from the filter prior to initial use. To avoid damage to the appliance, do not use the appliance until the packaging has been removed. Never open the motor housing of the appliance – risk of electric shock! Never cover the appliance during operation! Copyright UNOLD AG | www.unold.deStand 17.5.2022 43 von 184

The air purifiers made by UNOLD

provide for clean room air without much effort and without the need for any chemicals. The use of an air filter is recommended especially for people suffering from allergies or asthma and for areas with substantial particulate matter pollution. The appliance is capable of filtering out such pollutants as pollen, particulate matter, household dust, bacteria, viruses, mould spores, skin and animal dander as well as odours. The timer feature also makes it possible to let the appliances run safely over night, allowing the user to breathe clean air while sleeping. Important: The appliance is no substitute for and can only be viewed as a complement to such safety rules as those applicable during the COVID-19 pandemic (social distancing, hand washing, mask wearing, and ventilating). Observe the following instructions on safety, the location and safe use as air purification may otherwise be ineffective and as the appliance may otherwise sustain damage or even pose a danger to the user. GLOSSARY Activated charcoal filter (carbon filter): Working like a sponge, the carbon filter filters and catalyses particles and gases. This type of filter must be replaced on a regular basis to prevent any deterioration in filtering performance. This appliance houses a carbon filter that has been combined with the cold catalyst filter. CADR: Clean Air Delivery Rate. This figure indicates the volume of air purified from particles of a certain size per minute CCM: Cumulate Clean Mass - This value indicates an estimation as to how long the filters will be usable based on a measurement of the possible particle absorption. Depending on the quality of the filters used, this value ranges between classes P1 and P4, with P4 representing the highest level of quality. Copyright UNOLD AG | www.unold.de44 von 184 Stand 17.5.2022

HEPA filter system: High Efficiency Particulate Air Filter - made up of fibres that are interwoven in a structureless pattern, this filter is capable of filtering even the smallest particles, bacteria and viruses out of the air. Ioniser: The ioniser ionises the air flowing past it, giving the air a negative charge. The ions will adhere to particles, adding to their weight and causing them to sink to the bottom. PM 2,5: This refers to particulate matter with a diameter of less than 2.5 micrometers. This particulate matter may be harmful to health due to its size. In indoor rooms, particulate matter may be released by, for example, laser printer toner, tobacco smoke or older vacuum cleaners. UV feature: This sterilisation feature can be activated as necessary and can kill bacteria and viruses and remove stale odours with the help of 365 nanometre UV light. Pre-filter: Coated with aluminium, the pre-filter filters, for instance, dust, skin dander, pollen and other suspended matter larger than 5 micrometres out of the air. It can be cleaned and reused. Copyright UNOLD AG | www.unold.deStand 17.5.2022 45 von 184

1 ON/OFF button (On/Off) Switching oven on/off. When connected to the power supply, the appliance is in standby mode. Press the “ON” button once to switch the appliance on. 2 Timer button (time selector) Use this button to select the desired operating time of the appliance. After this time has elapsed, the appliance will switch off. The operating time increases with every press of this button. Press and hold this button until the desired time lights up. A maximum of 8 hours is possible. If the button is pressed once again after the display of 8 hours, the timer feature will be deactivated. 3 “Auto” button Auto mode is activated by default. In auto mode, the appliance checks air quality automatically and adjusts the output of the appliance accordingly. Note: When you press the “Speed” button in auto mode, the appliance will exit auto mode. 4 Sleep button (night mode) To afford the user restful sleep, a press of this button will cause the appliance to run at the lowest power level and with the lighting turned off. This makes it possible to reduce both the noise level and power consumption. To exit sleep more, press this button again.

5 UV button (sterilisation) For switching the UV feature on and off. The lit button symbol will tell you if this feature has been activated. 6 Anion button (ioniser) For switching the ioniser on and off. The lit button symbol will tell you if this feature has been activated. 7 Child Lock button (button lock) Keeps the appliance from being operated inadvertently, e.g. by children. Set up the device as desired and press this button. The symbol indicating the button lock lights up. Now, no further button presses will be possible, and the appliance will run in the selected mode. To deactivate the button lock, press this button again and hold it down for 3 seconds. Water level indicator When this indicator comes on, the water tank for the humidifier must be refilled, as described in the section “Air humidification”. Humidification mode Indicates that air humidification is active Filter change indicator Indicates that the filter needs to be replaced. The appliance cannot be operated further after this indicator has come on. To reset this interval counter, press and hold the “Timer” button for 3 seconds.. Rotary control Speed You can use the + and – buttons to select the desired speed of the appliance. The appliance will then only operate at the desired level and without any input from the sensor. Copyright UNOLD AG | www.unold.deStand 17.5.2022 47 von 184

1. Remove all packaging and transport safety devices. Keep the packaging

material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.

2. Inspect the appliance for damage. If there is visible damage, do not operate

the appliance; instead, contact our customer service department.

3. Check whether all accessories listed in this manual have been shipped with

4. Before putting the appliance into operation, you must remove the packaging

from the filter. To do so proceed as described in the section “Installing and removing the filter”.

5. When the appliance is used for the first time, and after prolonged storage,

there might be some minor odour. AIR HUMIDIFICATION Equipped with an evaporation feature, the appliance provides for optimum room humidification. This feature is activated automatically as soon as the water tank has been filled with water. The amount of the evaporated water varies with the speed selected for the appliance, with a higher speed generating a greater amount of evaporation. If the water level has dropped, the indicator for the water level will light up. Caution: Also observe the cleaning measures specified in the section “Cleaning and care”.

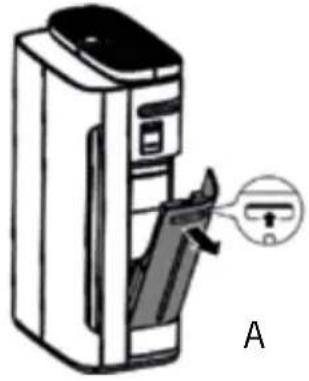

1. Release the water tank on the side of the appliance by pressing the button

on the handle, and pull the tank out of the appliance (A).

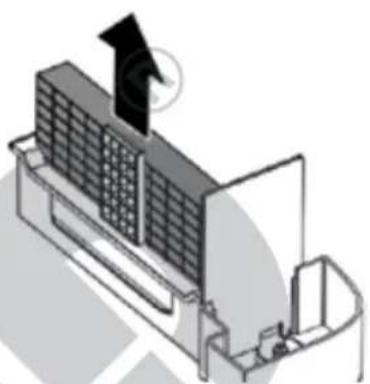

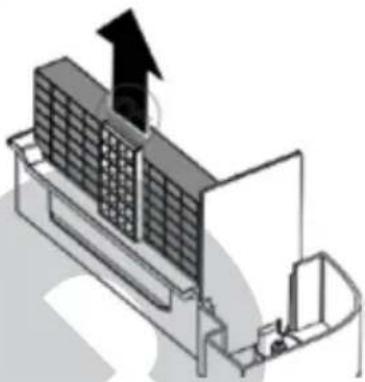

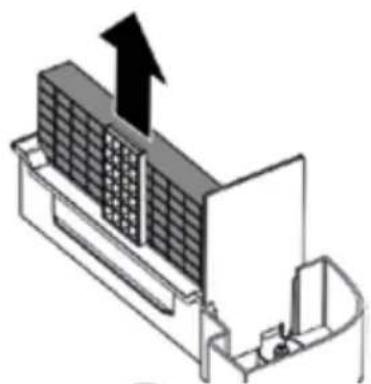

2. Pull the humidifier holder out of the appliance (B).

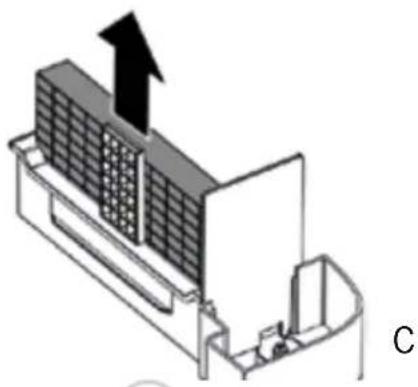

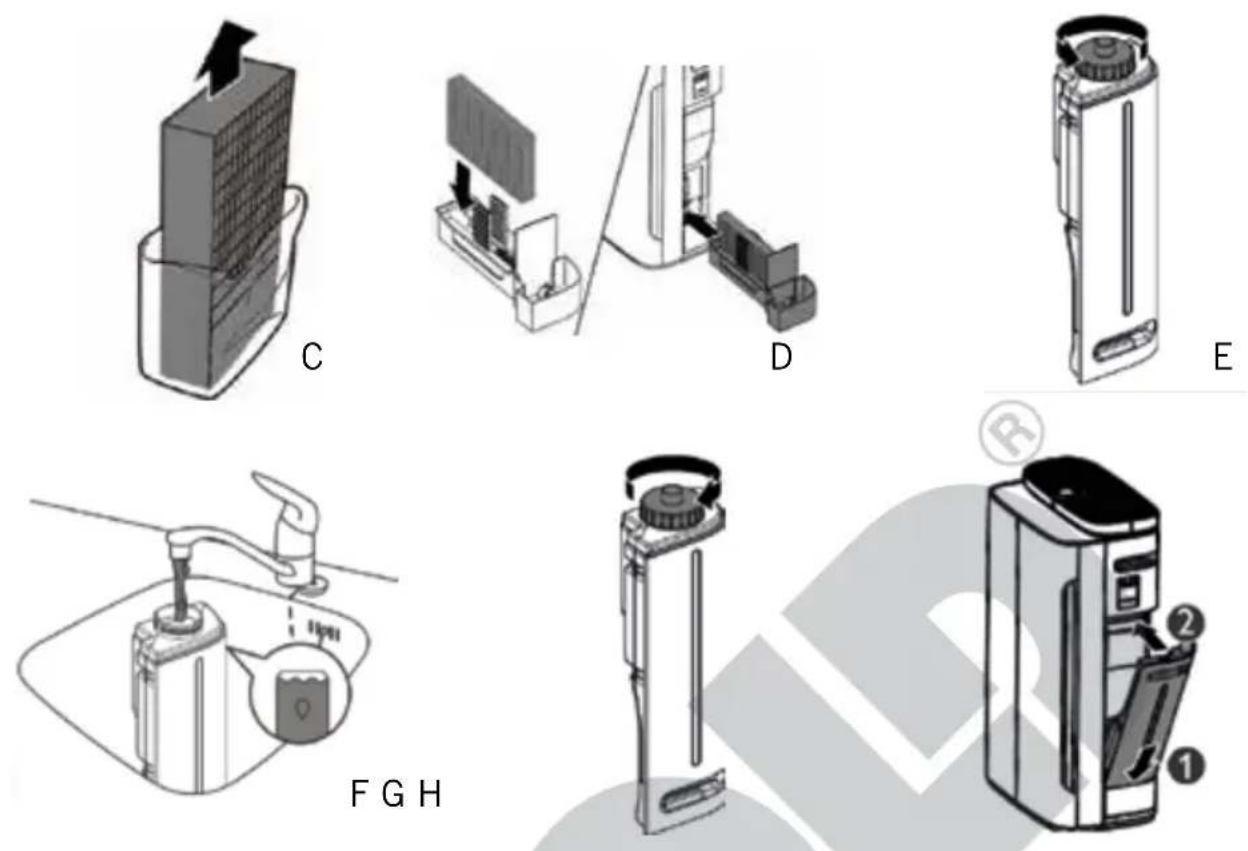

3. Remove all packaging and any transport safety devices from the humidifier

(C). Keep the packaging material away from children. Choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.

4. Insert the humidifier into the humidifier holder as shown and slide the

holder back into the appliance (D).

5. Next, turn the plastic lid and take it off the water tank (E)

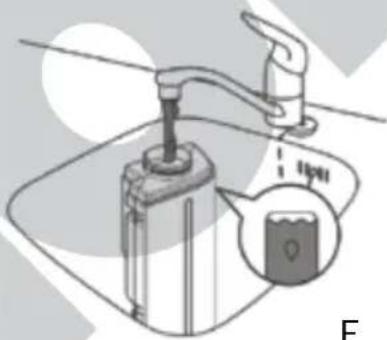

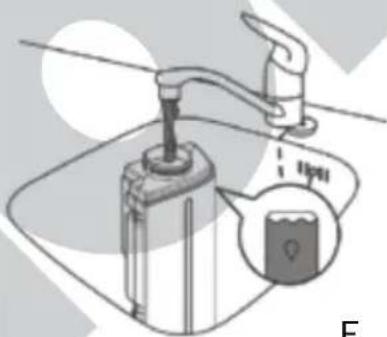

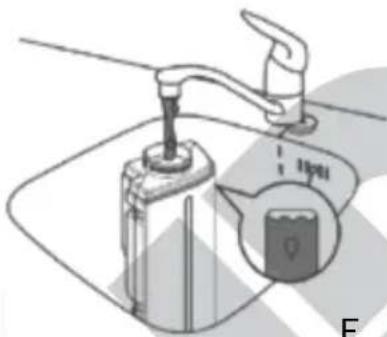

6. Fill no more than 1.4 litres of clear tap water through the opening until the

water tank is filled to approx. 80 % (F). Do not use hot, ice cold or distilled water.

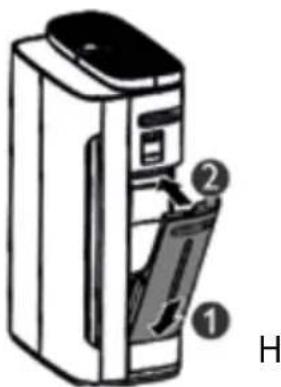

8. Slide the water tank back into the appliance (H).

9. Start by inserting the water tank at the bottom of the appliance before

flipping the tank up towards the appliance until it snaps into place (H). When the appliance is used for the first time, and after prolonged storage, there might be some minor odour.

Caution: Always switch off the appliance and disconnect the power plug before changing the filters or performing other maintenance operations. To preserve their quality, the filters have been packaged carefully. You always need to remove all packaging material before installing the filters and before you can start using the appliance. Strictly adhere to the filter order listed below as the appliance will otherwise not function properly. Observe all personal safety measures specified in the section “Cleaning and care”. Make sure you always insert the combo filters first before inserting the pre-filter. The side with the loop must always face towards you.

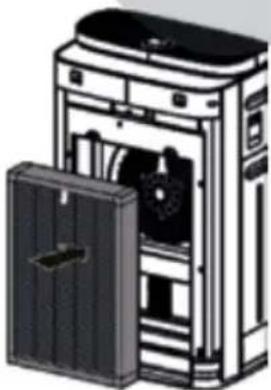

INSTALLING AND REMOVING THE FILTER

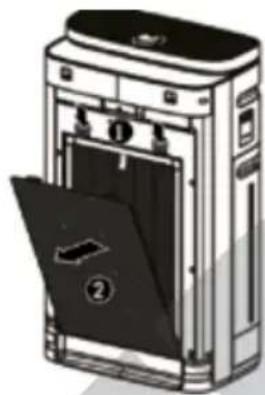

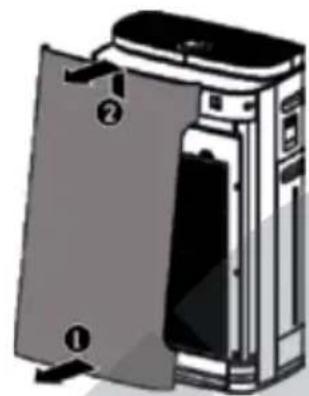

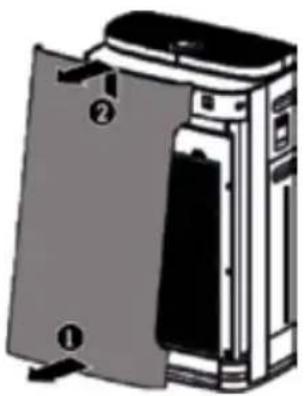

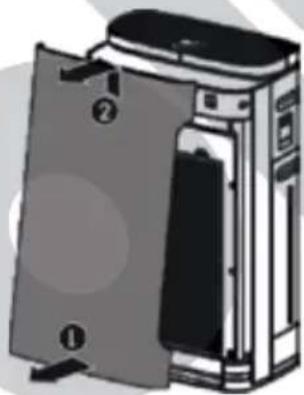

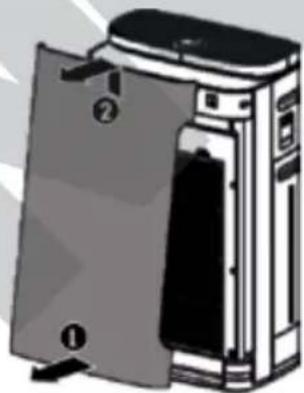

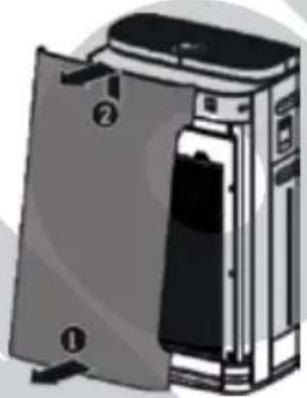

1. Remove the front cover (A) by pulling at the cover on the bottom and then

pulling lightly at the top to unhook it.

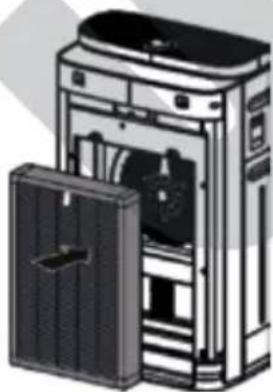

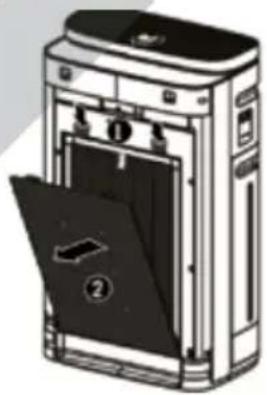

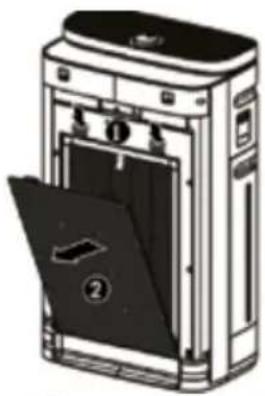

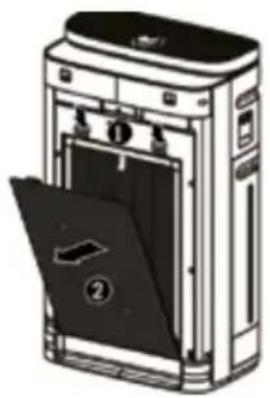

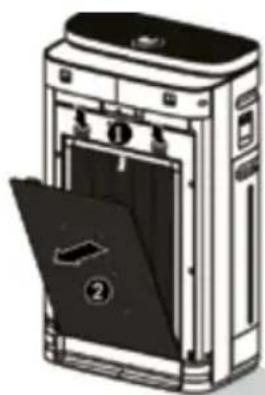

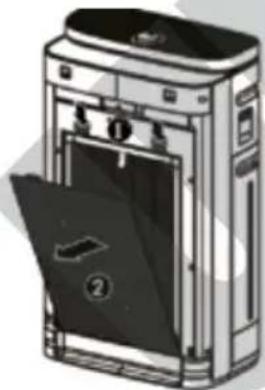

2. Press both locks down and remove the pre-filter by pulling it - along with the

two other filters (B) - towards you.

3. Dispose of the used filters in resealable bags and in accordance with

applicable local regulations.

4. Remove all packaging and transport safety devices from the new filters (C).

Keep the packaging material away from children – choke hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.

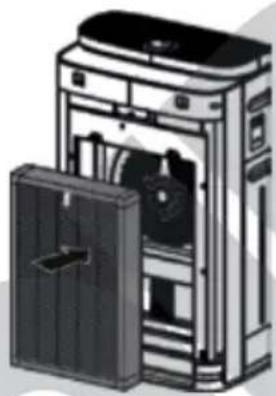

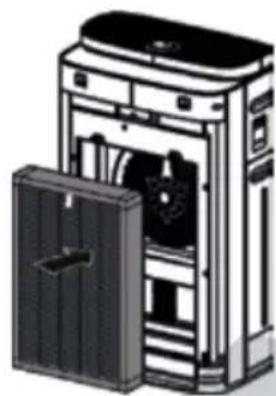

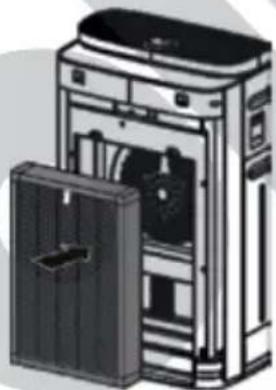

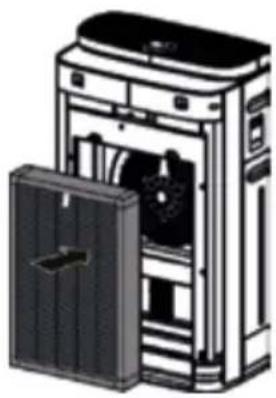

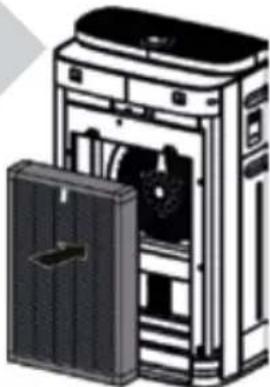

5. Now, start by inserting the HEPA filter system (filter no. 1). When inserting

the filter, make sure the side with the loop faces forward (i.e. outward, away from the appliance) (C).

6. Next, insert the combination filter made up of carbon filter and catalyst

filter (filter no. 2). Again, insert the filter with the side that has the loop facing forward (i.e. outward, away from the appliance).

7. Finish by installing the pre-filter (filter no. 3). Note: Make sure that the side

with the locks is facing towards you and that all hooks of the pre-filter have been inserted into the appliance properly. Copyright UNOLD AG | www.unold.de50 von 184 Stand 17.5.2022

8. Close the appliance again using the front cover by hooking the cover in at

the top first and then pressing against it until the front cover audibly locks into place.

9. If the front cover is not closed properly, the appliance cannot be switched

1. After cleaning or changing the filters, you need to reset the counter for the

2. Press and hold the “Timer” button for 3 seconds. The indicator for the filter

change goes out, and the appliance operates again automatically. Copyright UNOLD AG | www.unold.deStand 17.5.2022 51 von 184

1. Prior to initial use, you must pull the small plastic film out of the battery

2. Carefully release the clip of the cover on the battery compartment and pull

the cover off the remove control.

3. Place the battery into the designated holder.

4. If you wish to insert another battery, make sure to use a CR2032 coin

5. Slide the cover carefully back into the remote control.

6. If the appliance is not used for an extended period, please remove the

7. When setting up the appliance with the remote control, make sure to point

the remote at the air purifier while adjusting the settings. The remote control has a range of approx. 6 metres.

8. The described operating principles apply equally whether the settings are

defined on the control panel or using the remote control. The names of the buttons are the same in each case.

Observe all information provided below as your appliance will otherwise not run safely.

1. Never set up the appliance in a hot location or where it is exposed to direct

sunlight or the air flow of air conditioners. The appliance may otherwise become damaged or display error messages.

2. Never set up the appliance close to television sets or radios. The image

or sound quality of these devices may otherwise be affected. Set up the appliance with a minimum distance of 1 metres from such devices. Caution: If you run the air purifier from the same power strip as TV or radio sets, you may experience noise or image distortion as well. If this happens, plug the air purifier into a different power socket.

3. Never place the appliance under an air conditioner to prevent the appliance

from being penetrated by condensation that may drip from the air conditioner.

4. The appliance will not be able to deliver its maximum filtration performance

unless it is set up level on the floor as particles and pollen easily fall close to the ground. Copyright UNOLD AG | www.unold.de52 von 184 Stand 17.5.2022

5. Keep an adequate distance from other objects and walls. The front and the

top require at least 30 cm of clearance to other objects, while the clearance on the rear must be 20 cm.

6. Never place any objects on the appliance to prevent the appliance from

7. Never cover up any air inlets or air outlets.

8. We recommend that you set up the appliance opposite a window or a door

to provide for optimum air circulation.

9. Make sure not to point the air flow directly at people.

1. Follow all instructions provided in the safety regulations.

2. Make sure to have chosen a safe location.

3. Note: Ventilate the corresponding room sufficiently before you switch on the

4. Place the plug in a power socket (220–240 V~, 50–60 Hz)). An acoustic

signal sounds, and all indicators light up briefly.

5. Press the ON/ OFF button.

6. By default, the appliance operates in auto mode.

„Auto“-Mode The appliance checks air quality automatically and adjusts the output of the appliance accordingly. This mode is ideal for most requirements. The coloured status indicator shows the current air quality. Initially, all colours will light up when the appliance is switched on. Once determined, the current air quality is indicated by the corresponding colours: Colour Status indicator Air quality Sky blue very good Sea blue good Red-purple critical Red very poor The display reads - - - while the appliance is measuring the PM 2.5 level. After a short while, the appliance will show the current temperature, the humidity, the formaldehyde reading and the current PM2.5 level. Copyright UNOLD AG | www.unold.deStand 17.5.2022 53 von 184

7. After switching the appliance on, use the rotary control to select the desired

speed. You can choose between levels 1 through 4. This speed is ideal for situations that require a specific type of air purification. Keep in mind that the lower the level you select, the greater the effectiveness of the air purification will be. If the air quality indicator lights up blue, you can select a low level. Conversely, if the indicator lights up red-purple or red, you need to select a higher level.

8. If desired, finish by switching on the ioniser and the UV feature.

9. We recommend that you use the appliance in auto mode as the sensor will

then automatically set the ideal values. Night mode

10. Turn night mode on as needed by pressing the Night Mode button.

11. If necessary, you can also activate the timer function. Keep pressing the

button until the desired operating time is displayed. You can choose between 1 and 8 hours. After this time has elapsed, the appliance will switch off. Activating the ioniser

13. If needed, press the “UV” button to turn the UV feature on or off.

Child lock / button lock

14. To keep the buttons on the appliance from being pressed inadvertently,

press and hold the “Button Lock” button now for 3 seconds if necessary. The indicator for the button lock comes on, and no further button presses will be possible. To release the lock, press and hold this button for approx. 3 seconds again. Checking the water level

15. You can check the current water level by means of a small inspection window

found on the water tank. If there is not enough water left in the water tank, the indicator for the water tank comes on, and you will have to refill the tank with water. Until you refill water, the appliance will no longer operate with the air humidifier. After use

16. When it is not in use, switch off the appliance with a press of the ON/OFF

Switch off the appliance with a press of the ON/OFF button and disconnect the power plug. Next, wait for approx. 30 minutes before you start cleaning to allow dust etc. to settle. Never immerse the appliance in water. Never clean the filters by placing them in the washing machine or the dish washer! Have the following objects ready: 1 face mask, preferably an FFP2 mask. Disposable gloves of appropriate size Cotton swabs Paper towels Soft cloth When replacing the filters, an appropriate number of tight-sealing garbage bags for the old filters. Vacuum cleaner with, for instance, upholstery nozzle (caution: for sanitary reasons, do not use the vacuum cleaner with which you clean, for instance, your living spaces). Use a vacuum cleaner that is not used for cleaning indoor rooms.) CLEANING INTERVALS What? How often? Clean the water tank daily Clean and descale the humidifier Clean the humidifier holder weekly Clean the pre-filter every two weeks Change the filter as soon as the filter change indicator lights up Clean the sensor monthly Clean the exterior of the appliance as needed

1. If possible, clean the appliance in a dry and wind-protected area outside of

the house. Caution: Do not clean outdoors in moist conditions or when it rains or is very windy. Choose a well-ventilated area indoors instead.

2. Put on the face mask and the gloves.

3. Never use scouring agents, steel wool, metal objects, hot cleaners or

4. Wipe off the housing of the appliance thoroughly using a clean and dry

cloth. For persistent stains, you can use a slightly damp cloth. Make sure no water can enter into the housing.

5. To clean the filters, start by removing the pre-filter first as described in the

section “Installing the filter”. When finished cleaning, you must reinsert both filters and reset the interval counter. PRE-FILTER (FILTER NO. 3)

6. The pre-filter must be cleaned twice every month.

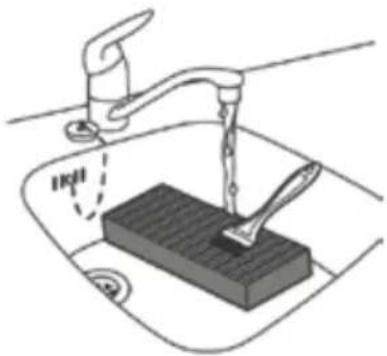

7. Wash out the pre-filter in some lukewarm water and allow the filter to dry off

completely. Proceed with caution as the filter is easily damaged.

8. As another option, you can carefully vacuum off the pre-filter at the lowest

setting using a suitable nozzle attachment (e.g. an upholstery nozzle). CARBON FILTER AND CATALYST FILTER (FILTER NO. 2)

9. Filter no. 2 needs to be cleaned every two weeks.

10. Do not use water for cleaning, as the filter will otherwise be damaged.

11. Carefully vacuum off the filter at the lowest setting using a suitable nozzle

12. Proceed with caution as the filter is easily damaged.

13. To remove any remaining dust, particles and pollen, allow the filter to air out

in a well-ventilated location. Make sure to avoid exposure to direct sunlight. HEPA FILTER SYSTEM (FILTER NO. 1)

14. Filter no. 1 needs to be cleaned every two weeks.

15. Do not use water for cleaning, as the filter will otherwise be damaged.

16. To remove any remaining dust, particles and pollen, allow the filter to air out

in a well-ventilated location. Make sure to avoid exposure to direct sunlight. This filter must not be cleaned with water or using a vacuum cleaner! Copyright UNOLD AG | www.unold.de56 von 184 Stand 17.5.2022

1. For sanitary reasons, the water tank must be cleaned on a daily basis.

2. Make sure to switch off the appliance and unplug the plug from the power

3. Open the lid of the water tank (A)

4. Fill water into the water tank until the tank is 1/3 full (B).

5. Add a mild detergent (e.g. dishwasher detergent) to the water tank.

6. Close the lid of the water tank (C).

7. Shake the water tank to clean the inside with the liquid, open the lid again,

and pour the water out (D).

8. Rinse out the water tank thoroughly several times using clear water to

1. Both parts must be cleaned once a week.

2. Make sure to switch off the appliance and unplug the plug from the power

3. Remove the water tank and pull out the humidifier holder (A)

4. Take the humidifier out of the humidifier holder (B).

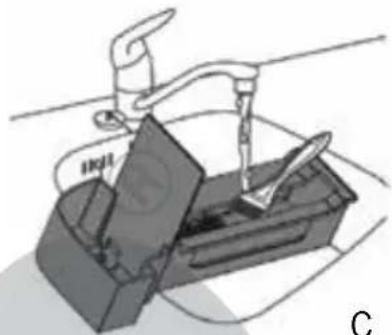

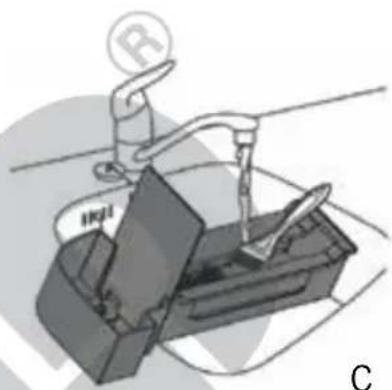

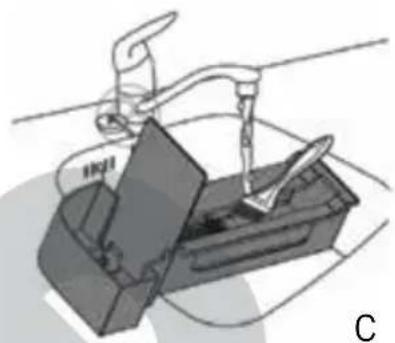

5. Rinse out the holder under running water. If necessary, you can also add a

small amount of detergent (C)

6. Rinse out the humidifier under running water (D).

7. Dry the exterior of the holder.

8. Allow the humidifier to dry in the air before reinserting it.

9. Reassemble all parts (E). Slide both parts back into the appliance.

1. Lime scale left behind by the water can considerably impair operation of

the humidifier by the appliance. Regular descaling is therefore of vital importance.

2. Make sure to switch off the appliance and unplug the plug from the power

3. Remove the water tank (A).

6. Prepare a descaling solution by mixing vinegar and tap water in a bowl of

sufficient size. Mix 1 part of vinegar with 1 part of water.

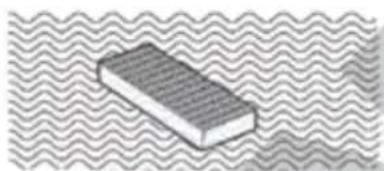

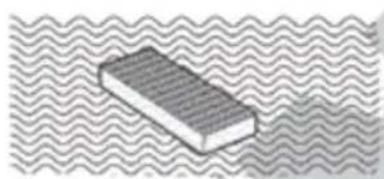

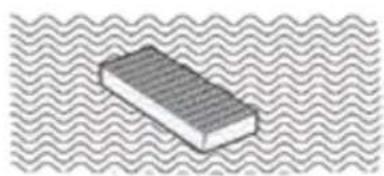

7. Place the humidifier in this bowl for one hour (D).

8. Note: If white lime scale is visible on the filter, place the side showing this

residue into the bowl in such a way that the side is fully covered by the descaling solution.

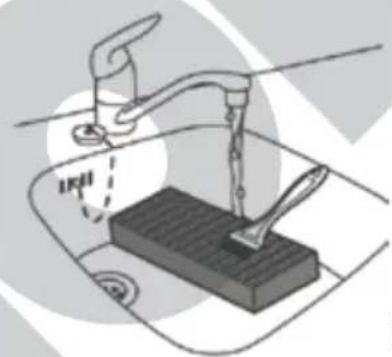

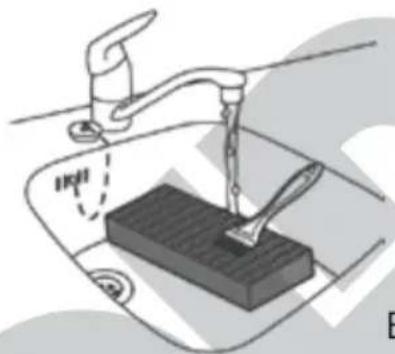

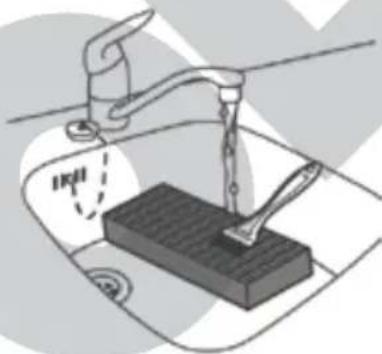

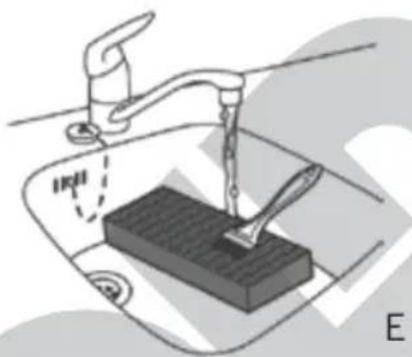

9. Rinse out the humidifier under running water (E). Turn the filter several

times while doing so.

10. Allow the filter to dry in the air before reinserting it.

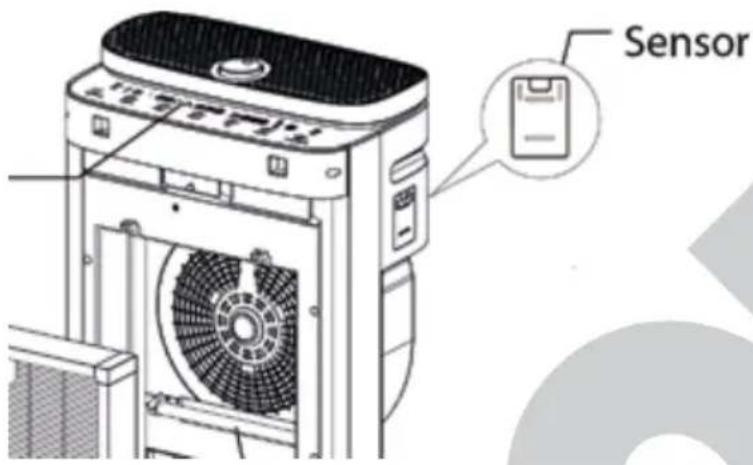

1. The sensor is housed on the appliance side (see figure). From time to time,

the dust that has settled on the sensor lens must be removed.

2. Remove the cover and wipe the dust off the lens carefully.

3. Make sure to keep the cotton swab from penetrating into other areas of the

4. Tip: Use a torch if you are unable to see the inside of the sensor properly.

5. Re-attach the cover.

1. When finished with all cleaning steps, reinstall all filters in the correct order.

2. If you used a vacuum cleaner for cleaning, change the filter bag and clean

the attachment you used carefully.

3. Place any used filters and consumables such as mask, gloves and cotton

swabs into a garbage bag and seal the bag carefully.

4. Dispose of the garbage bag in accordance with the applicable statutory

waste disposal regulations.

5. We recommend that you put any clothes you wore during cleaning into the

laundry and put on fresh clothing. You can, of course, also wear a disposable coverall during cleaning.

6. Wash and disinfect your hands thoroughly using an antiviral hand

7. When it is not in use, keep the appliance in a dry and dust-free place.

8. Make sure to store the appliance out of the reach of children.

9. Pour the water out of the water tank if the appliance will not be used for an

TROUBLESHOOTING Problem Remedy Appliance without function even though the plug is inserted The indicator for the filter change lights up, but the filters are not replaced. The appliance will no longer operate properly. Change the filters and reset the interval counter. The air flow emanating from the air outlet is weaker than usual. The pre-filter is clogged. Clean the pre-filter. Air quality does not improve even after extended time of operation Check if both filters have been inserted properly. The sensor is wet, which can happen if the humidity in the room is high. Carefully dry off the sensor. The indicator for the air quality no longer changes colour The sensor is soiled. Clean the sensor. Unusual odour emanating from the appliance Normal when the appliance is used for the first time. An unpleasant odour can also be caused by clogged filters. Clean or change the filters. If smelling smoke, disconnect the appliance from the power supply, stop using the appliance, and contact customer service. Indicator for filter change is lit even though filters have been replaced The interval counter must be reset. Press and hold the “Timer” button for 3 seconds. The appliance is no longer operational, and the display reads “E-1” Damage to the motor; contact customer service. Copyright UNOLD AG | www.unold.deStand 17.5.2022 61 von 184

Our appliances are produced on a high quality level for a long lifetime. Regular main- tenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collec- tion point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. Immediately dispose of all consumables and personal protective equipment such as masks, gloves, etc. in accordance with local regulations. Never leave them lying around openly in order to avoid any danger to people. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty. The instruction booklet is also available for download: www.unold.de Copyright UNOLD AG | www.unold.de62 von 184 Stand 17.5.2022

5. Druk op de knop AAN/UIT (On/off).
