USER MANUAL M44DFHD120 LC-Power

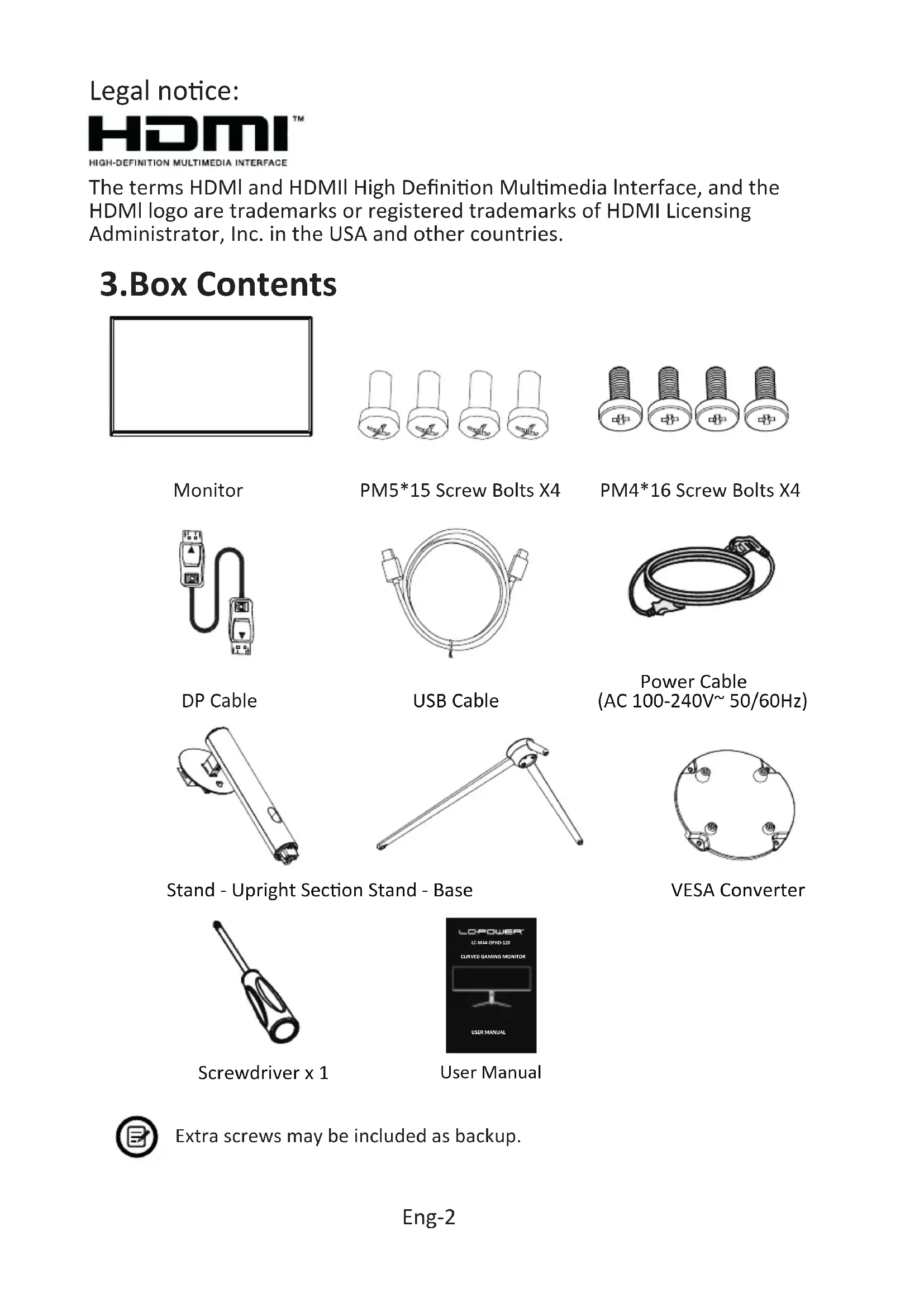

Legal noce: The terms HDMl and HDMIl High Definion Mulmedia lnterface, and the HDMl logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the USA and other countries. Eng-2

Extra screws may be included as backup.4. Product Overview

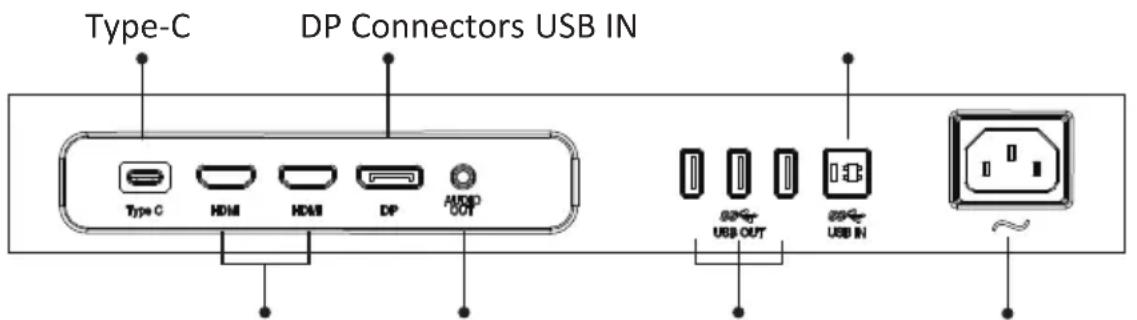

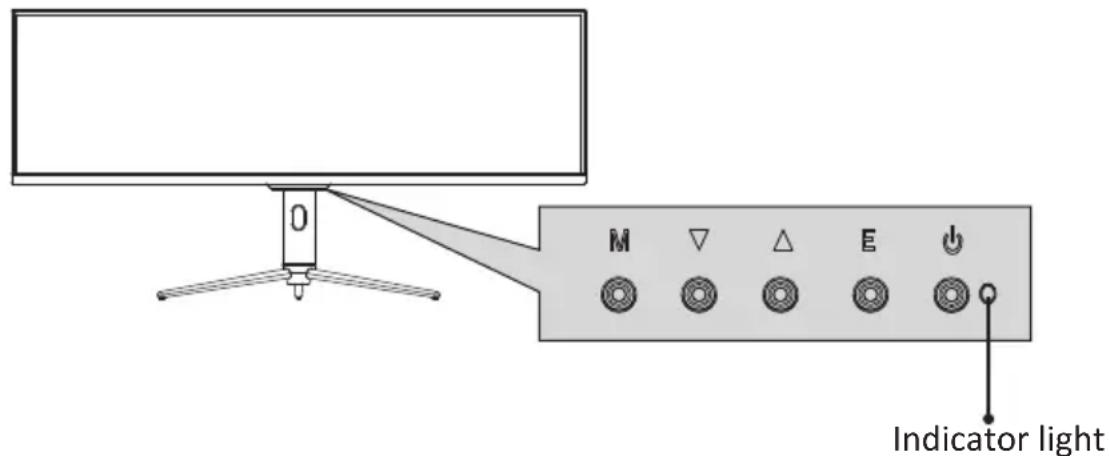

4.2—Monitor Ports M Menu Buon: Press to display the OSD menu or enter sub-menus. Down Buon: Press to move down in the menus. Up Buon: Press to move up in the menus. E Exit Buon: Press to exit. Power Buon: Press to turn the monitor on/off. LED lndicator: Changes colors to indicate status. Type-c: Insert one end of the Type-c cable into the computer's Type-c output and connect the other end to the monitor's Type-c port. HDMI Connectors: Insert one end of the HDMl cable into the computer's HDMl output and connect the other end to the monitor's HDMI port. DP Connectors: lnsert one end of the DP cable into the computer's DP output and connect the other end to the monitor's DP port. Audio Output: Insert the audio cable for output of audio signals. USB OUT: USB out Port. USB IN: USB in Port. Power Connector: Insert the power cable to supply power to the monitor. Eng-3

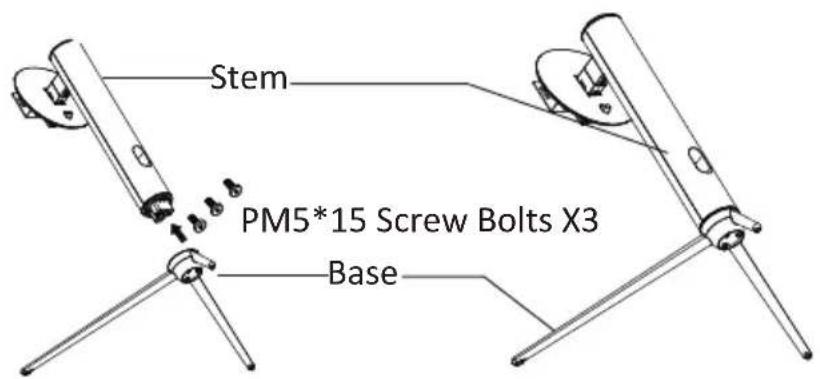

1. Take out the two main parts of the stand. Then use the screwdriver and

the NO.1 screws to fasten base to the stem.

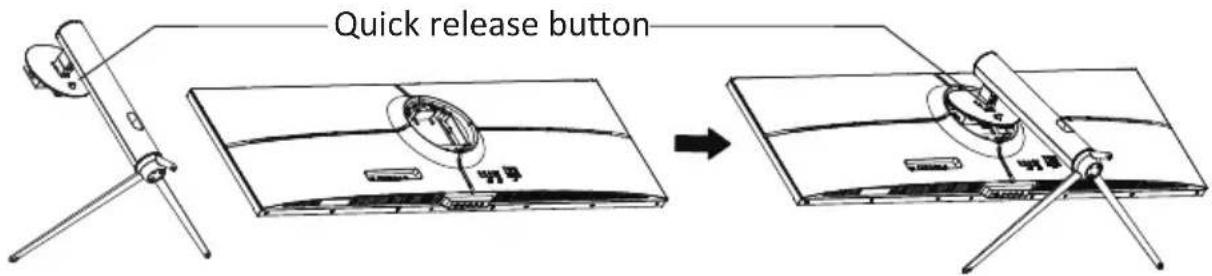

2. Take out the monitor and put it on the flat foam, insert the stand on

the back of monitor.

3. Use both hands to place the assembled monitor on a flat desk.

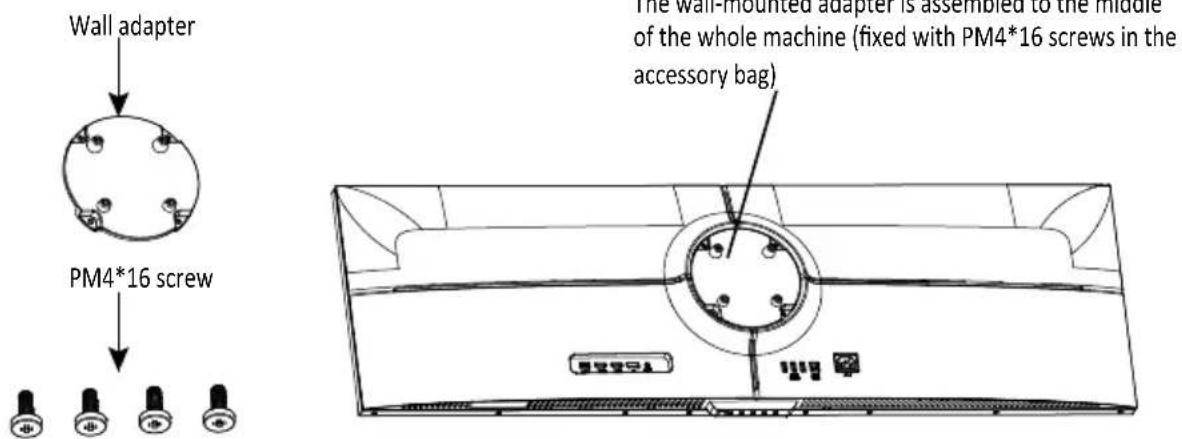

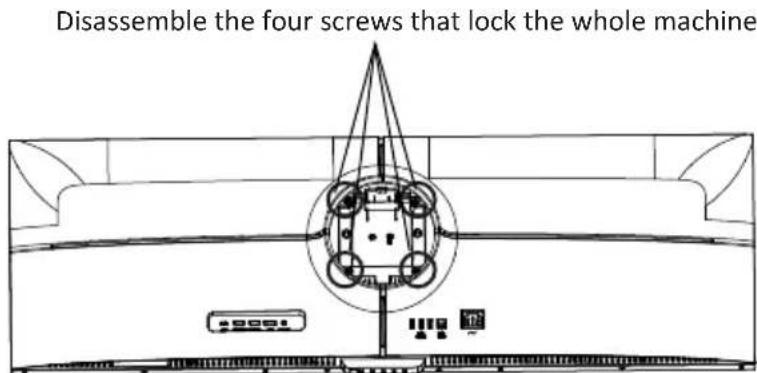

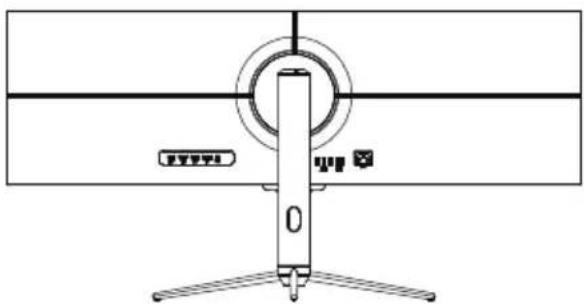

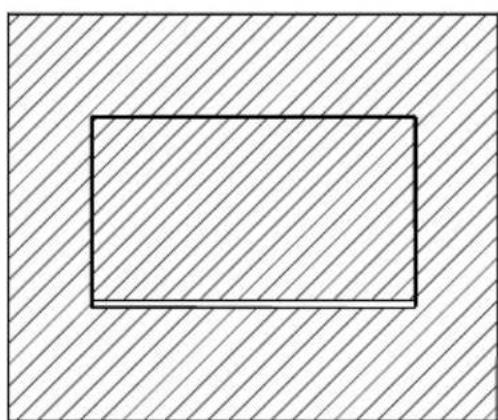

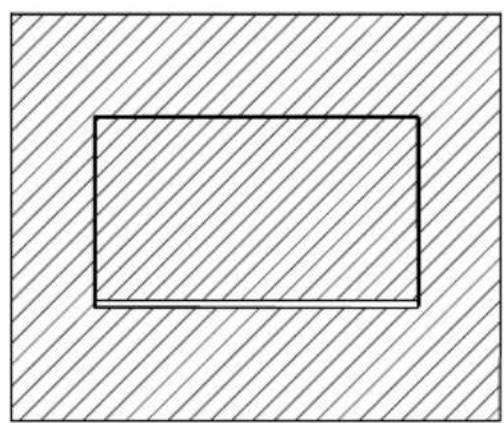

Stem Base Eng-4 PM5*15 Screw Bolts X3 Quick release buon Make sure the monitor is laid on a flat surface before removing the stand.6. Wall Mounng

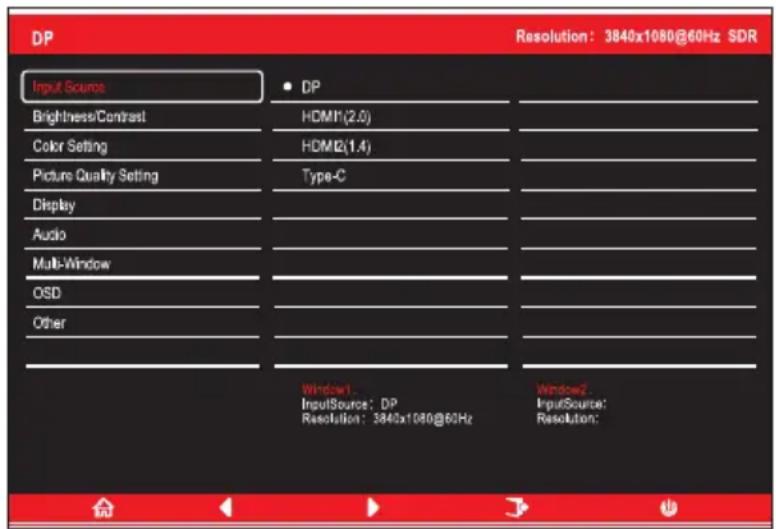

M, , , E,9.1- OSD Menu Funcons Eng-8 Main Menu Sub-Menu Options Description Input Source HDMI 1 (2.0); HDMI 2 (1.4); NONE Switch to HDMI signal input DP NONE Switch to DP signal input Brightness/ Contrast Brightness 0~100 Adjust display brightness Blacklevel 0~100 Adjust display black level Contrast 0~100 Adjust display contrast DCR On Turn on DCR function Off Turn off DCR function Color Setting Gamma Set Gamma add-inGamma 1.8 Gamma 2.0 Gamma 2.6 Picture Mode Standard, Photo, Movie, Game, FPS, RTS, sRGB Set visual mode according to activity Color Temperature Warm, Cool, User Select color temperature Low Blue Light 0~100 Hue 0~100 Adjust hue levels Saturation 0~100 Adjust saturation levels Picture Quality Setting Sharpness 0~100 Set display sharpness Response Time Off, High, Middle, Low Adjust response time Noise Reduction Off, High, Middle, Low Reduce the interference of image noise caused by signal source interference Dynamic Luminous Control On, Off Compensate for gray scale display screen and strengthen the expression of gray scale Display Aspect Ratio Wide Screen, 4:3, 1:1, Auto Select on-screen aspect ratio Audio Mute On, Off Turn mute mode on/off Volume 0-100 Adjust audio volume Audio Source AutoSource, DP, HDMI 1(2.0), HDMI 2(1.4), Type-C Select audio signal input via HDMI or DP or Type-C Type-C NONE Switch to Type-C signal input Super- Resolution Off, High, Middle, Low When the resolution of the display screen is low, this function can be turned on to enhance the image resolution MPRT On, Off Moving Picture Response Time Gamma 2.4 Gamma 2.2Eng-9 Main Menu Sub-Menu Options Description Multi-Window Multi-Window Off, PIP Mode, PBP 2Win Select PIP/PBP modes according to the number of input signals etc. Sub Win2 Input DP, HDMI1(2.0), HDMI2(1.4), Type-C Select according to input signal for PIP/ PBP mode PIP Size Small, Medium, Large Adjust the PIP/PBP display window size PIP Position Top Right, Top Left, Bottom Right, Bottom Left Adjust the PIP/PBP window position Swap NONE Swap the two channel signal source of only the PIP/PBP 2 screens function OSD Language English,简体中文, 한국어, Русский, Español,

13. PBP (Picture-by-Picture)

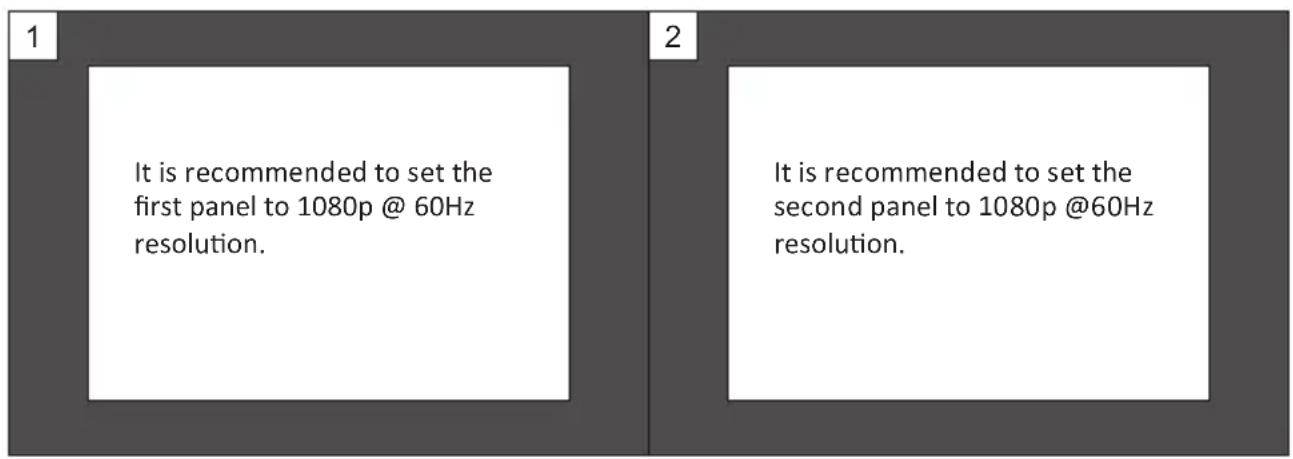

Eng-11 Mode Home Screen Input Source Picture in Picture Addional Input Source Interchange Window Picture Mode DP HDMI Mode 1 DP X O O O Mode 2 HDMI O X O O Note: ”O” means this feature is supported while “X” means it is not supported. While using this feature and in order to obtain an opmal viewing experience, it isrecommended to set both panels to the same resoluon. At this resoluon, tearing and visual deformaon should be minimized. It is recommended to set the first panel to 1080p @ 60Hz resoluon.

It is recommended to set the second panel to 1080p @60Hz resoluon.
