USER MANUAL Companion XL HF90E700 MOULINEX

Logo with white Bluetooth symbol and registered trademark symbol (®)

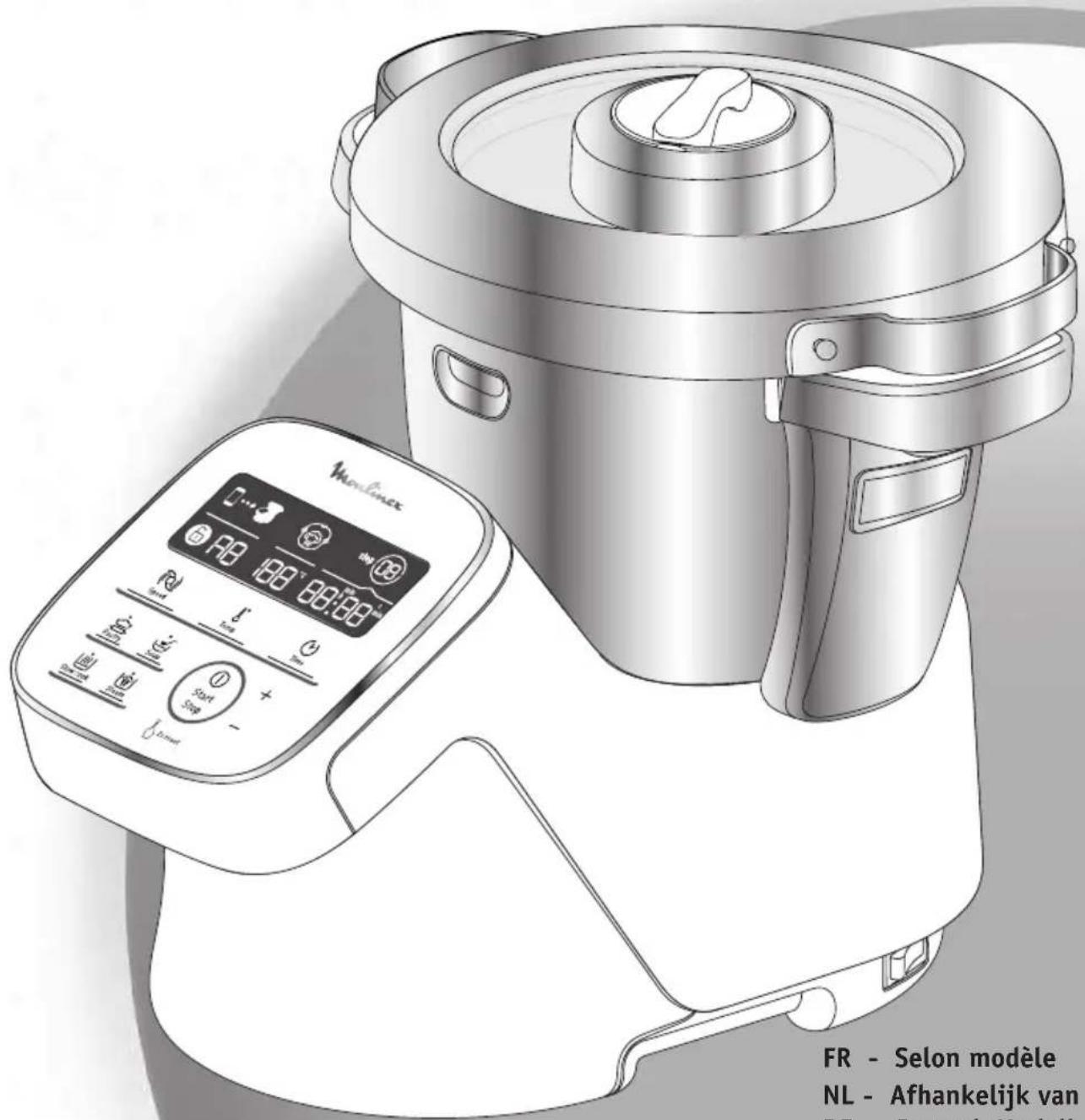

Wenlinex FR - Selon modèle NL - Afhankelijk van DE - Zverde Modell

FR - Selon modèle

EN - Depending on model

E*

E1 E2 E3 E4

D*

D3 D4 D2 D1 D5

Mechanical component diagram showing a valve assembly with arrows indicating direction (no text or symbols)

3D rendering of a mechanical component with no visible text or symbols

a MAX b MIN 1 2 7

"clic" 8

Diagram illustrating a hand using a digital timer and a tool, with labeled control buttons and an asterisk indicating action.

Diagram illustrating a device with warning symbols and a 10.1 badge, likely related to industrial automation or safety.

FR - Salan modèle, NL - Afhankelijk van het model, DE - Je nach Modell, IT - secunda del modelle, ES - Dependende del modelo, PT - Consante o modelo, EN - Depending un model.

Illustration of a cooking pot being stirred with a spatula (no text or symbols)

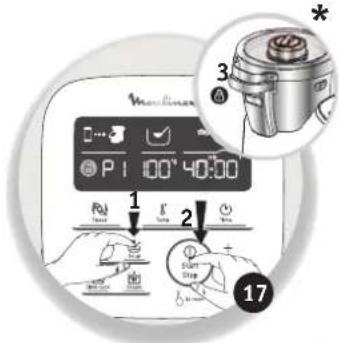

Maserbox 1 2 3 17

≥ 5 ≥ 50°C 5 50° 00°30' 18a

10s 18b

Illustration of a hand pressing down on a speaker grille with a circular head and arrow indicating rotation (no text or symbols)

FR - Salan modelle, NL - Afthanielijk van het model, DE - Je nach Modelt, IT - seconda del modello, ES - Dependienda del modelo, PT - Consante o modele, EN - Depending un model,

CONSIGNES DE SÉCURITÉ :

- 10 vitesses continues progressives

(vitesses 3 à 12).

Crystiebasi z valve companion i-Companion x1

FR

Black-and-white photo of a dining table with plates and dishes, no visible text or symbols

FAQ : QUESTIONS FREQUENTES

BESCHRIJVING VAN HET APPARAAT:

A Motorblok

snelheid 1 (5 s On / 20 s Off).

snelheid 2 (10 s On / 10 s Off).

Black-and-white photo of a kitchen counter with food items and a water heater (no visible text or symbols)

Koppeling

The image is too blurry to recognize any text content.

De verbinding is mislukt

The image is too blurry to recognize any text content.

UW APPARAAT WERKT NIET. WAT NU?

Geschwindigkeit 1 (5 s On / 20 s Off).

Geschwindigkeit 2 (10 s On / 10 s Off).

Black-and-white photo of a kitchen setup with food and appliances on a shelf (no visible text or symbols)

Accoppiamento

i-Companion x1 i-Companion x2 i-Companion x3 i-Companion x4 i-Companion x5

The image is too blurry to recognize any text content.

Creating shows can't be still bilanziary! In addition to the following image can't be still bilanziary!

FAQ: DOMANDE FREQUENTI

Dove collocare l'i-Companion xl:

SOLO MERCADOS EUROPEOS

velocidad 1 (5 s On / 20 s Off).

velocidad 2 (10 s On / 10 s Off).

- 10 velocidades continuas progresivas (velocidades 3 a 12).

Interior kitchen scene with food items and a white electric oven on a wooden table (no visible text or symbols)

Emparejamiento

The image is too blurry to recognize any text content.

Interior kitchen scene with food items on a wooden table, including a large white water dispenser and various dishes (no visible text or symbols)

Emparelhamento

Black-and-white photo of a bowl of food with visible ingredients, no text or symbols present.

PERGUNTAS FREQUENTES

Onde colocar a i-Companion xl:

SAFETY INSTRUCTIONS:

Personal safety

• Read the instructions for use carefully before using your appliance for the first time and keep them in a safe place. The manufacturer shall not accept any liability in the event of any use that does not comply with the instructions.
• Always disconnect the appliance from the power supply if you are to leave it unattended and before assembly, dismantling or cleaning. Do not allow children to use the appliance without supervision.
• This appliance should not be used by children. Keep the appliance and its power cable out of reach of children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Keep your appliance out of reach of children.

removable spindle, clear parts of the lid, metal parts under the bowl). They can cause burns. Handle the appliance by the cool plastic parts (handles, motor unit). The red heating indicator light shows that there is a risk of burning.

• The temperature of the accessible surfaces may be high when the appliance is in operation.
• The appliance is not intended to be operated using an external timer or by a separate remote control system.
• Do not use your appliance if it is not working properly, if it is damaged or if the power cable or plug is damaged. To avoid any danger have the power cable replaced by an approved service centre (see list in the guarantee booklet).
• The appliance should not be immersed in water. Never put the motor unit (A) under running water.
• This appliance is designed for indoor household use only and at an altitude below 2000 m. The

manufacturer shall not accept any liability and reserves the right to cancel the guarantee in the event of commercial or inappropriate use or failure to follow the instructions.

- This appliance is intended for indoor domestic household use only. It is not intended to be used in the following applications and the guarantee will not apply for:

• Staff kitchen areas in shops, offices and other working environments.
• In kitchen areas reserved for staff in shops, offices and other professional environments.
• On farms.
• Use by clients of hotels, motels and other residential environments.

- in guest room environments.

• Your appliance gives off steam which can cause burns. Handle the lid and the cap with caution (use oven gloves, a potholder, et if necessary). Handle the cap by its central section.
• Do not operate the appliance if the seal is not positioned on the seal carrier, or if the seal carrier is not assembled in the lid. It is essential to operate the appliance with the cap positioned in the hole in the lid (unless specifically

otherwise stated in the recipe).

WARNING: Be aware of the risk of injury in the event of incorrect use of the appliance.

Take care with the knives of the Ultrablade knife (F1) and the kneading/grinding & crushing blade (F4) when you are cleaning them and when you empty the bowl, they are extremely sharp. Be careful if a hot liquid is poured into the food processor because it could be ejected from the appliance due to it suddenly boiling.

Place the Ultrablade chopper blade (F1) in the bowl after use.

WARNING: Be careful to avoid any spillage on the connector during cleaning, filling or pouring.

WARNING: Some foods that have an outer skin (whole sausages, tongue, poultry, etc.) or large pieces of meat may produce spatters as they trap boiling liquids. We therefore recommend piercing them with a knife or a folk prior to cooking.

WARNING: The heating element surface is subjected to residual heat after use.

- Be sure to touch only the handles of your appliance (locks D2, handle of the lid E2 and handle of the cap E1) during heating and until complete cooling down.

EN

• Refer to the instructions for setting the operating times and speed settings of each accessory and each program.
  • Refer to the instructions for assembly and mounting accessories to the appliance.
• Refer to the instructions for cleaning and maintenance of your appliance.
  • Always follow the cleaning instructions on how to clean your appliance :
• Unplug the appliance.
• Do not clean the appliance while hot.
• Clean with a damp cloth or sponge.
• Never immerse the appliance in water or put it under running water.

EUROPEAN MARKETS ONLY:

• Keep the appliance and its lead out of reach of children under 8 years of age. Children should not use the appliance as a toy.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities or whose experience or knowledge is insufficient, as long as they have the benefit of supervision or they

have received instructions regarding safe use of the appliance and they understand its potential dangers.

- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and maintenance by the user should not be carried out by children without supervision unless they are at least 8 years of age and are supervised by an adult.

▶ Connection to the power supply

• The appliance should be plugged in to an earthed electrical socket.
• The appliance is designed to work with alternating current only. Check that the supply voltage indicated on the rating plate of the appliance corresponds to that of your electrical installation.
• Any connection error will negate the guarantee.
• Never pull on the power lead to unplug the appliance.
• Do not immerse the appliance, power cord or plug in any liquid.
• The power cord must never be left near or in contact with the hot parts of your appliance, near a source of heat or on a sharp edge.

Incorrect use

• Do not touch the lid before the appliance comes to a complete stop (stop button); wait until the food being mixed is no longer rotating.
• Always pour the solid ingredients into the bowl first before adding the liquid ingredients (See Fig. 10), without exceeding the MAX limit marked inside the bowl (See Fig. 10). If the bowl is too full, boiling liquid may be ejected.
• Please note, in the steam cooking program, do not exceed 0.7 litres water (See Fig. 3.2).
• Never put your fingers or any other object in the bowl while the appliance is in operation.
• Do not use the bowl as container (storage, freezing, sterilisation).
• Place the appliance on a stable flat, heat-resistant, clean and dry surface.
• Do not place the appliance near a wall or a cupboard: the steam produced may damage them.

• Do not place your appliance near a heat source in operation (hob, household appliance, etc.).

• Do not cover the lid with a dishcloth or other item, do not attempt to block the hole in the lid, use the steam regulator cap.

• Never allow long hair, scarves, etc. to hang over the accessories while in operation.
• Never put the accessories, bowl and lid in a microwave.
• Do not use the appliance outdoors.
• Never exceed the maximum quantity indicated in the instructions.
• Store the appliance when it has cooled down.
• Do not place the bowl in the freezer to cool it; use the refrigerator.

▶ After-sales Service

• For your own safety, do not use accessories or spare parts other than those provided by the approved after-sales centres.
• Any intervention other than cleaning and usual maintenance by the customer must be carried out by an approved service centre.
• Consult the table "What to do if your appliance does not work" at the end of the instruction manual.

EN

On reading this instruction manual, you will find recommendations for use, which will help you to see the potential of your appliance: preparation of soups, stews, steamed dishes and desserts.

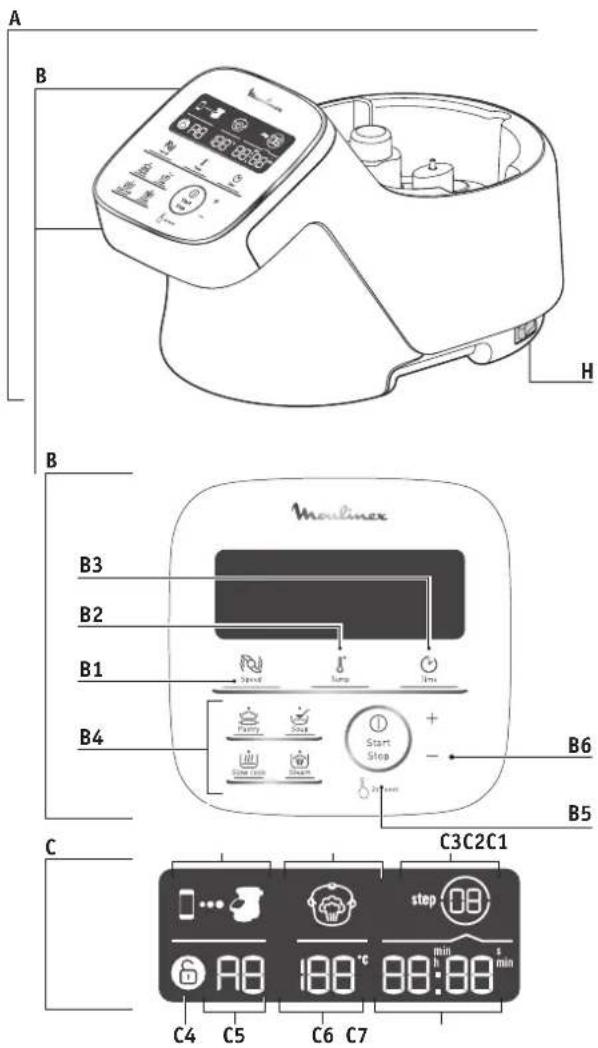

APPLIANCE DESCRIPTION:

A Motor unit

B Control panel

B1: Speed selector

B2: Cooking temperature selector and/or heat indicator light

B3: Operating duration/pairing selector

B4: Automatic program selection buttons

B5: START/STOP/RESET button

B6: + / - selector

C LCD Screen

C1: Connection indicator display

C2: Steam program display

C3: Current step display in the step-by-step recipes

C4: Safety indicator display

C5: Speed display

C6: Temperature display

C7: Time display

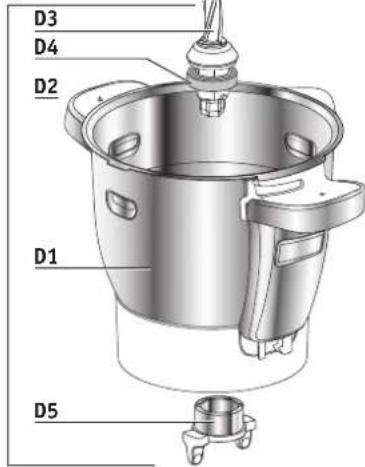

D Bowl assembly

D1: Stainless steel bowl

D2: Locks (located under handles)

D3: Detachable spindle

D4: Bowl seal

D5: Spindle locking ring

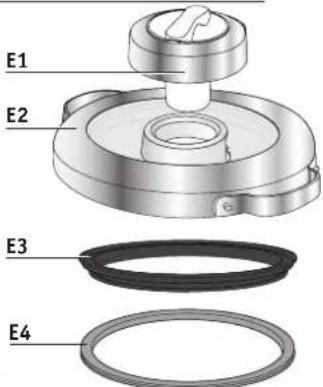

E Lid assembly

E1: Steam regulator cap/stopper

E2: Lid

E3: Lid seal

E4: Lid seal

F Accessories:

FO: Accessory storage box

F1: Ultrablade chopping knife

F2: Mixer

F3: Whisk

F4: Knife for kneading/grinding blade

F5: Steam basket

G Spatula

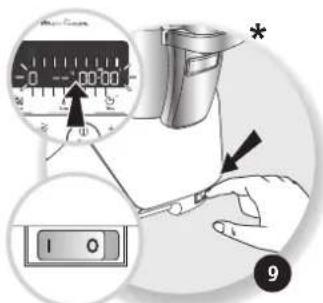

H On/Off switch 0/1 switches off the power supply to your appliance

I Cleaning brush

APPLIANCE TECHNICAL DATA:

Power: 1550W (1000W: heating element / 550W: motor)

Temperature range: 30°C to 150°C

adjustable in steps of 5°C.

Operating duration range: 5 sec to 2 hours

adjustable in steps of 5 sec min to 1 min max.

Number of speeds: 13 - 2 intermittent speeds:

speed 1 (5 sec On / 20 sec Off).

speed 2 (10 sec On / 10 sec Off).

- 10 progressive continuous speeds

(speeds 3 to 12).

- 1 max intermittent speed (speed 13).

Standby mode: - Power consumption when the product is in

standby mode: 0.2 Wh

- The Bluetooth® brand and logos are registered brands of Bluetooth SIO, Inc. and their use by the SEB Group has been officially authorised.

- Google Play and Android are Google Inc. brands. - Apple and the Apple logo are Apple Inc. brands, registered in the USA and other countries. App Store is an Apple Inc. service mark.

YOUR APPLIANCE

Your appliance comes with the following accessories:

Ultrabade knife		Mixing soupsMixing fruit pureesChopping vegetablesChopping meatChopping fish	12	3min40s15s30s15s	3L1Kg1Kg1Kg1Kg1Kg	-->100°C
Mixer	It mixes Cooked dishes without damaging the ingredientsVery useful for browning phases before preparations (risottos, soups).
	F2	Browned dishes	3	5min	500g	130°C
		Stews	-	45min	3L	95°C
		Risottos	2	22min	1.5Kg	95°C
		Ratatouille, Chutney, Pulses (settings: check the recipe booklet)
Whisk	F3!! 9 max	Whisking egg whites,Mayonnaise,Whipped cream,meringuesSauces,creamsMashed potatoPolenta	7	5/10min	7max	60>90°C
			7	2/5min	0.5L
			4 to 7	1/20min	1L
			6 to 7	1min	1L
			4 to 5	1/16min	1L	90°C
Kneading/grinding knife	F4	Kneading white bread doughKneading short crust pastry,biscuit dough, special breadKneading rich dough(brioche,kugelhopf.etc.)Mixing light batters (cake mixture,etc.)Grinding nutsGrinding hard texture foodsCrushing icePancake batter, waffle batter	5	2min 30s	1.2Kg	0.8Kg
			5	2min 30s	1Kg
			+5	1min 30s	0.8Kg
			+3	2 min	1Kg
			+3	40 s	1Kg
			2	3min	0.6Kg
			2	1min	0.6Kg
			2	1min	6 to 10
			2	1min	1.5L
Steam basket	F5	Steam cooking vegetables,fish or meatSoup with chunks	12	20/40min	1Kg	100°C
			12	3min	3L	100°C
Cap/Stopper	E1	Cap/Stopper for regulating steam extraction-High setting (a) = steam cooking.-Low setting (b) = risotto, creamy puddings, sauces, etc.
Detachable spindle	D3	Detachable spindleLidless browning and cooking

Do not use this accessory to chop hard products, use the F4 kneading blade/crusher.

Nitex	It mixes Cooked dishes without damaging the ingredientsVery useful for browning phases before preparations (risottos, soups).
	Browned dishes	3	5min	500g	130°C
	Stews	1	45min	3L	95°C
	Risottos	2	22min	1.5Kg	95°C
	Ratatouille, Chutney, Pulses (settings: check the recipe booklet)
Whisk		Whisking egg whites,	7	5/10min	7max
		Mayonnaise, Whipped cream, meringues	7	2/5min	0.5L
		Sauces, creams	4 to 7	1/20min	1L
		Mashed potato	6 to 7	1min	1L
		Polenta	4 to 5	1/16min	1L
Kneading/grinding knife	[A8ZY][7YSX]	Kneading white bread dough	5	2min 30s	1.2Kg
		Kneading short crust pastry, biscuit dough, special bread	5	2min 30s	1Kg
		Kneading rich dough (brioche, kugelhopf, etc.)	+5	1min 30s	0.8Kg
		Mixing light batters (cake mixture, etc.)	+9	2 min	1Kg
		Grinding nuts	12	40 s	1Kg
		Grinding hard texture foods	12	3min	0.6Kg
		Crushing ice	12	1min	0.6Kg
		Pancake batter, waffle batter	12	1min	6 to 10
Steam basket		Steam cooking vegetables, fish or meat		20/40min	1.5L
		Soup with chunks	12	3min	1Kg
		Cap/Stopper for regulating steam extraction			100°C

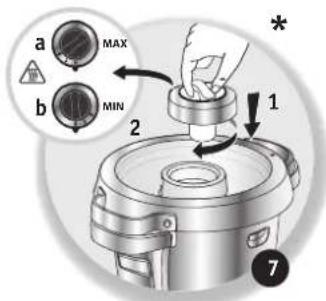

Cap/Stopper	[7YSX]	- High setting (a) = steam cooking.- Low setting (b) = risotto, creamy puddings, sauces, et
Detachable spindle	[IMAGE]	Detachable spindleLidless browning and cooking

These accessories are also fitted with gripping areas to facilitate easier handling.

Your i-Companion xl appliance can operate in 'connected' mode, and also in 'unconnected' mode. It also has two operating modes: automatic program mode and manual mode.

• Automatic program mode:

the speed, cooking temperature and cooking time are pre-programmed to make soups, stews, steamed dishes and pastries automatically.

- Manual mode:

you can personalise the settings for speed, cooking temperature and cooking time as you wish.

Use with or without the lid

Temperature from 30°C to 130°C

When you have selected a temperature between 135°C and 150°C, you must use your appliance without the lid. If the lid is positioned on the bowl, a lock will be displayed on the LCD screen prompting you to unlock it.

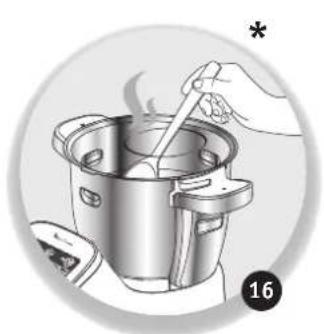

Once you have added the food items, stir them using the spatula and regularly repeat the operation to prevent the formation of stains on bottom of the bowl. (See "Cleaning" paragraph). If you choose to use the appliance with its lid in place, the maximum cooking temperature shall then be 130°C.

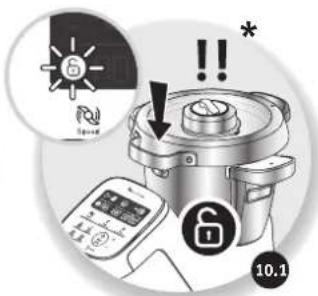

YOUR APPLIANCE IS EQUIPPED WITH SAFETY-LOCKING LID

The lid is secure each time the appliance starts. This security feature prevents the lid from opening when preparing a recipe(See Fig.17). Do not attempt to force the lid when it is locked. This security lock is released each time that the appliance stops. If you have selected a temperature greater than or equal to 50°C and a speed greater than or equal to

5, a countdown of 10 seconds then appears on the control-panel's LCD display. (See Fig.18). It will on be possible to open it at the end of the countdown

FITTING THE BOWL, ACCESSORIES AND LID ASSEMBLY

- Before using your appliance for the first time, cl all the parts (D, E, F, G) in warm soapy water, except for the motor unit (A). Your bowl (D) has a removable drive (D3) to make cleaning easier.

- Make sure that all the packaging has been removed before use, especially the protection between the m bowl (D) and the motor unit (A).

- Place the seal (E4) on the seal carrier (E3) (see Fig. 1) and clip the assembly on the lid (E2) (see Fig 2).

- Position the gasket (D4) on the shared drive (D3). Lock the assembly to the bottom of the bowl with the locking ring (D5) (see Fig. 3). If you use the cooking mode without the lid, position the seal (D4) on the detachable spindle (D3). Lock the entire appliance to the bottom of the bowl with the locking ring (D5) (see Fig. 3).

- Position the chosen accessory in the bowl: - the accessories (F1, F2, F3, or F4) on the shared drive at the bottom of the bowl (see Fig. 4.1), - for steam cooking, the steam basket (F5) inside the bowl (see Fig. 4.3), taking care to first fill the 0.7l basin with a liquid (water, sauce, etc.) (see Fig. 4.2).

- Add the ingredients to the inside of the bowl or steam basket.

- Position the lid on the bowl (D) by aligning the two triangles (see Fig. 5), lock the lid without pressing by turning it in the direction of the arrow (see Fig. 6).

Position the steam regulator cap (E1) on the lid. There are 2 possible positions (see Fig. 7):

The low setting allows a maximum amount of condensation to be released and therefore it is recommended to prepare dishes and sauces

with a better consistency

(risotto, creamy puddings, sauces, etc.).

The high setting allows a maximum amount of heat and steam to build up in the bowl for all types of steam cooking (soups, etc.).

This setting also prevents splashing during mixing.

Position the bowl (D) on the motor unit (A) until you hear a "click" (See Fig. 8).

The appliance only starts up if the bowl and the lid are correctly positioned and locked on the motor unit.

In the event of incorrect positioning of the bowl or incorrect locking of the lid (See Fig. 10.1 and 10.2), the logo ⑥ starts to flash when a function is activated.

Selecting custom settings:

Speed

Selecting the motor speed. 2 intermittent speeds (Speed 1 & 2) and 10 continuous progressive speeds (Speed 3 to 12)

Max intermittent speed (513).

Temp

Selecting cooking speed. From 30° to 150°C. Heating indicator light: lights up when cooking starts and switches off when the temperature inside the bowl falls to below 50°C.

Time

Increase speed, cooking temperature and duration. Decrease speed, cooking temperature and duration.

This button has 3 functions:

'Validation' of your automatic program selection or the settings you have chosen in manual mode (speed, cooking temperature, time).

'Pause' when operating, once the appliance has been started.

'Reset' of the appliance settings, selected by pressing and holding for 2 seconds.

Validation of step' in step-by step recipes.

Tips for use:

Your appliance is fitted with a microprocessor that controls and analyses its stability. In the event of instability, the motor rotation speed will be automatically reduced, if this instability continues, the motor will be stopped and "STOP" will be displayed on the screen.

• Check that the quantity of ingredients is not too large and that the speed used is the correct one.
• Check that you are using the recommended accessory.
• Then restart your appliance normally.

USE IN CONNECTED MODE

Powering up your appliance

Frequency: 2.40 GHz. Maximum transmitted output: 7.7 dBm

Your appliance has an on/off switch marked 0/1. Switch it to 1. (See Fig. 9).

The LCD screen will display all the settings as '0'.

In connected mode, the i-Companion xl LCD screen is blue.

PREPARING TO INSTALL

Go to www.moulinex.com to find the list of Smartphone and Tablet models that are compatible with i-Companion

iPhone 4S or newer

iPad 3 / iPad mini or later

From iOS 9 and following ones.

From Android 4.4 and following ones.

INSTALL I-COMPANION XL

What you need to install i-Companion xl:

• The Companion app, which can be downloaded for free from App Store (iPhone/iPad) and Google Play (Android)
• A Bluetooth connection supplied by your Bluetooth® Smart 4.0 smartphone or tablet: i-Companion xl connects to your smartphone/tablet via a stand-alone wireless connection
• The smartphone/tablet must be close to the i-Companion xl (the connection range varies, depending on the layout of the home).
• A power point for plugging in the i-Companion xl : i-Companion xl is only connected to your smartphone/tablet when it is plugged in to the power supply.

About Bluetooth® Smart

Bluetooth® Smart 4.0 technology (or Bluetooth Low Energy) makes it possible to communicate wirelessly between an app and a device with very low energy consumption.

FIRST CONNECTION OF I-COMPANION XL IN CONNECTED MODE

Downloading the app

To start, download the app onto your smartphone/tablet by connecting to App Store for iOS or Google Play for Android.

Once you have downloaded the app, you will be able to make your first recipes with i-Companion xl within just a few minutes, without creating an account. (50 recipes are available to you without creating an account).

If you create an account on the app you will be able to access all the content, and vary your menus.

Powering up the i-Companion xl

Your appliance has an on/off switch marked 0/1 (H). Switch this to 1 (see Fig. 9).

Bluetooth activation

Move close to the i-Companion xl and check that Bluetooth is activated on your smartphone/tablet.

Launching the app

Launch the Companion app by clicking on the 'Companion' icon.

Black-and-white photo of a kitchen setup with food plates, a kitchen mixer, and a large kitchen appliance (no visible text or symbols)

Pairing

What is pairing?

On first connection, the app you have downloaded onto your smartphone/tablet and i-Companion xl will automatically and quickly detect each other, provided you follow the steps below.

If you wish, you can pair up to 10 devices with i-Companion xl.

To do this, pair each device separately. (See pairing).

However, only one device may be connected at a time.

- Accept the cookies, which will improve the app by collecting your usage preferences.

Menu Companion By continuing to use the app, you accept the use of cookies enabling you to share on social networks and allowing us to collect browsing data. © Search Except

- Select your device

Select your Companion I-Companion x!

- When requested by the app, press and hold the Timer button (B3) on the i-Companion xl (for 4 seconds).

Connect your Companion The first time you connect, move closer to your 1-Companion kitchen machine and press and hold the Timer Inclusion. Circuit

The connection indicator (C1) will blink for a maximum of 30 seconds, while the i-Companion xl connects to your smartphone/tablet.

- Accept the pairing request displayed on your smartphone/tablet or access the notification centre to accept the pairing.

Bluetooth pairing request Cancel Pair

When the connection indicator (C1) is constantly lit it indicates that the connection has been established.

NB: When the pairing has been carried out, i-Companion xl will automatically recognise your smartphone/tablet when you next connect. You will not have to carry out this pairing step again.

The connection has been successful

Your i-Companion xl is now connected to your smartphone/tablet. The icon above shows you that the connection has been established.

The connection has failed

The icon above shows you that the connection has not been established.

Please repeat the following operations:

- Move close to i-Companion xl.

- Check that i-Companion xl is properly plugged into the socket and that the plug is working properly.

- Check that your smartphone/tablet is compatible (see compatibility list at www.moulinex.com).

- Check that Bluetooth is activated on your smartphone/tablet.

- Start the pairing steps again, and consult the FAQs (frequently asked questions).

If there is still a problem, make sure that your smartphone/tablet is compatible

If you are using an Android device, make sure that it is one of the compatible models (see compatibility list at www.moulinex.com).

- Access the app menu to see our range of recipes.

In connected mode, during a step-by-step recipe, the first reset ends the step, and the second reset ends the recipe.

Black-and-white photo collage showing a table with food and dishes, no visible text or symbols

FAQs: FREQUENTLY ASKED QUESTIONS

Where should I put i-Companion xl?

- Put i-Companion xl on a flat, stable, heat resistant work surface.

- For the best connection between i-Companion xl and your smartphone/tablet, we recommend you make any changes required to ensure the connection is at a reasonable distance.

- If the connection indicator (C1) is constantly lit, this shows that your devices are connected.

- If the connection is lost (the connection symbol is shown crossed out), move closer to i-Companion xl to re-establish the connection.

What happens if the connection is lost during a recipe?

If the connection between i-Companion xl and your smartphone/tablet is lost during a recipe, the two devices will be automatically synchronised as soon as the connection is re-established. You will be able to carry on with your recipe from the step you were on when the connection was lost.

Can I use i-Companion xl without the app?

Your appliance may be used without the app. (See first use in unconnected mode).

For this, please refer to the 'use of the appliance' paragraph.

However, only the app will enable you to benefit from the many advantages of the connected product.

Can i-Companion xl be used with more than one smartphone or tablet?

If you wish, you can pair several devices with i-Companion xl. To do this, pair each device separately. (See pairing).

However, only one device may be connected at a time.

Must the Bluetooth on my phone by constantly activated?

Bluetooth must be activated in order to synchronise the app with i-Companion xl.

Must the Bluetooth on my phone by constantly activated?

Bluetooth must be activated in order to synchronise the app with i-Companion xl.

USE IN UNCONNECTED MODE

USING THE CONTROL PANEL (B)

Selecting an automatic program:

Pastries (list of sub-programs) Soups (list of sub-programs)

Stews (list of sub-programs) Steamed losses (list of sub-

Slow cook

(list of sub-

programs)

Powering up your appliance

Your appliance has an on/off switch marked 0/1. Switch it to 1. The LCD screen will display all the settings as '0'. (See Fig. 9).

In unconnected mode, the i-Companion xl LCD screen is white.

AUTOMATIC PROGRAM MODE

1- Press the program you wish to use (B4). A bright dot will appear above the program you have selected. Each time you press again, the various subprograms will be shown, one after the other.

4- When you have finished modifying all your settings, press the "start" button (B5) to start the program. When your appliance is using cooking mode, the red indicator light (B3) lights up to inform you that cooking has started.

2- The pre-programmed settings can be modified for the time of a recipe (depending on the chosen recipe, ingredients and quantities prepared). Press the cooking temperature selector (B2) or the time selector (B3): the chosen setting will flash on the screen (C6-C7).

5- When the program has ended, the appliance sounds 3 beeps.

3- Adjust the setting(s) using the +/- selector (B6).

At the end of the soups, P2 and P3 slow cook and steam cooking programs, the appliance will automatically switch to keep-warm mode for 45 minutes to keep your meal hot until it is ready to serve. On slow cook programs P2 and P3 and in manual mode, the appliance's motor operates at a specific speed, to keep the food in good condition and prevent it from sticking to the bottom of the bowl. To stop the keep-warm mode, just press the 'stop' button (B5). The keep-warm mode will stop automatically if you open the lid, press the triggers (D2) or remove the bowl.

At the end of kneading in the pastry programs P1 and P2, the appliance changes to "dough rising" mode at 30°C for 40 minutes for your dough to prove. If you open the lid, press the locks (D2) or remove the bowl, the appliance changes to pause mode and you have the possibility of restarting it by pressing "start" again.

If you wish to stop this mode, press and hold the "stop" button for 2 seconds.

In connected mode, after the automatic program has started, you can stop the appliance at any time by pressing the 'stop' button. The automatic program is then in pause mode, you have the possibility of restarting by pressing the "start" button again. If you have chosen the wrong program and if you want to cancel it, press and hold the "stop" button for 2 seconds.

7- Press the locks (D2) and then remove the bowl assembly (D) (See Fig. 12).

DISCOVER THE AUTOMATIC PROGRAMS AVAILABLE:

	Soup P1	Soup P2	Stew P1	Stew P2	Stew P3
Automatic programs	Soup	Soup	Slow cook	Slow cook	Slow cook
«Default» speed (adjustable)	10 pulses and S12 for 2 min	S7 to S10 for 30 s	Speed 3	Speed 1	Speed 2
«Default» temperature (adjustable)	100°C (90°C to 100°C)	100°C (90°C to 100°C)	130°C (non-adjustable)	95°C (80°C to 100°C)	95°C (80°C to 100°C)
Time speed (adjustable)	40 min (20min to 60 min)	45 min (20 min to 60 min)	5 min (2 min to 15 min)	45 min (10 min to 2hr)	20 min (10 min to 2hr)
Keep warm 'default function' at the end of the program	45 min	45 min		45 min	45 min
Motor speed at keep-warm level				5s ON at Speed 3 / 20s OFF	10s ON at Speed 3 / 10s OFF

Some recipes may cause unexpected overflow due to the formation of bubbles, particularly when using frozen vegetables. In this case, you should reduce the volumes accordingly.

	Steamed dishes P1	Steamed dishes P2	Pastry P1 Pastry P2 Pastry P3
Automatic programs
«Default» speed (adjustable)			S5 for 2 min 30 s	S5 for 1 min 30 s then S6 for 2 min	S3 for 40 s then S9 for 3 min
«Default» temperature (adjustable)	100°C (non-adjustable)	100°C (non-adjustable)
Time speed (adjustable)	30 min (1 min to 60 min)	35 min (1 min to 60 min)	2 min 30 sec (30 sec to 2 min 30sec)	3 min 30 sec (30 sec to 3 min 30 sec)	3 min 40 sec (1 min 40 sec to 3 min 40 sec)
Keep warm 'default function' at the end of the program	45 min 45 min
Motor speed at keep-warm level
"Default" dough rising mode at 30°C at the end of the program			40 min 40 min

USING THE INTERNAL STEAM BASKET

Cooking times are for information purposes only; in most cases the food will be properly cooked.
However, certain conditions may affect the cooking time:
- size of the vegetables (cut or uncut)
- quantity of ingredients in the basket - type of vegetables, their ripeness

Steam cooking time (for fresh ingredients)
Ingredients Quantities (max) Estimated cooking times			Recommended steam program
Courgettes (sliced) 800 g	20 min P1
Parsnips (sliced or cubed)	800 g 25 min P1
White part of the leek 800 g 25 min P1
Broccoli (florets) 500 g 20 min P1
Fish (thick fillets or steaks)	600 g (with baking parchment)	15 min P1
Potatoes (small whole new)	1 kg 30 min P2
Carrots (sliced) 1 kg 30 min P2
Green beans 800 g 30 min P2
White meat (chicken breast fillets)	600 g (with baking parchment)	20 min P2

Some recipes may cause the water to overflow due to the formation of bubbles, particularly when using frozen vegetables. In this case, you need to reduce the volumes accordingly.

MANUAL MODE

1- Press directly on the button for the setting you want to adjust, i.e. the speed selector (B1) or the cooking temperature selector (B2) or the time selector (B3), the chosen parameter flashes on the screen (C5-C6-C7).

The program is then in pause mode and you have the possibility of restarting by pressing "start" again. If you have chosen the wrong program and if you want to cancel it, press and hold the "stop" button for 2 seconds.

2- Then adjust the setting(s) using the +/- selector (B6). For safety reasons, it is not possible to set a temperature without setting a cooking time.

4- When the program has ended, the appliance sounds 3 beeps.
5- Press the locks (D2) and then remove the bowl assembly (D) (See Fig. 12).

COOKING WITHOUT THE LID

You can brown foods in your bowl without the lid while stirring and monitoring the cooking. (See Fig. 16).

For this method of cooking you must select a temperature ranging from 135°C to 150°C. Set the operating time (up to 20 min).

The COOKING WITHOUT A LID mode is not suitable for making jams and milk-based preparations (risk of overflowing).

3- When you have finished entering all your settings, press the "start" button (B5). When your appliance is using cooking mode, the red indicator light, lights up to inform you that cooking has started. When the program has started, you have the possibility of stopping the appliance at any time by expressing the "stop" button (B5).

CLEANING YOUR APPLIANCE

• The appliance should not be immersed. Never put the motor unit (A) under running water. Once you have finished using it, disconnect the appliance.
• Clean the bowl immediately after use to avoid staining.
• Press the locks (D2) then lift the bowl assembly (D).
• Place the bowl on a flat surface.

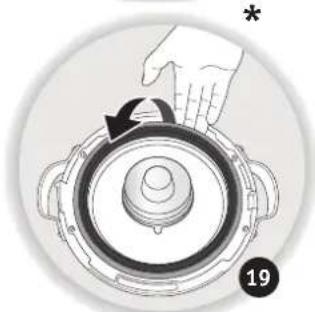

• Unlock the lid by rotating one quarter of a turn clockwise. Carefully remove the lid.
  • Take care with the knives of the ultrablade knife (F1) and the kneading / grinding knife (F4) when you are cleaning them and when you empty the bowl, they are extremely sharp
• When the parts have cooled down:
• dismantle the common spindle (D3), the seal

(D4) and the locking ring (D5) (See Fig. 13). - clean the bowl (D), the common spindle (D3), the seal (D4), the locking ring (D5), the accessories (F1), (F2), (F3), (F4), (F5), the steam regulator cap (E1), the lid (E2), the seal (E3), and lid seal (E4) using a sponge and some soapy water.

• Rinse these different parts under running water.
• For baked-on food, let the bowl soak for several
  hours in water and dishwashing detergent and scrape, if necessary, with a spatula (G) or with the abrasive side of a sponge.
• If there is a build up of limescale in the bowl, use a damp sponge and, if necessary, white vinegar.
  • To clean the motor unit (A), use a damp cloth. Dry carefully.

• To help you with cleaning, the bowl, lid assembly and accessories are dishwasher safe, with the exception of the common spindle (D3 and D4) and its locking ring (D5) (See Fig. 14).
- The accessories, the detachable common spindle and the parts of the lid may become slightly discoloured with certain ingredients such as curry, carrot juice, etc; this does not represent any danger for your health or for the operation of your appliance. To avoid this, clean these parts immediately after use.

• Before using your bowl set (D), make sure that the electrical contacts under the bowl are clean and dry.
• To preserve the appearance and service life of the lid of your appliance, hand wash it. Do not use the abrasive side of the sponge to avoid scratches.
• To not adversely affect the materials of the bowl (D), ensure that you follow your dishwasher's instructions for use, do not increase doses of salt or dishwasher products.

IMPORTANT - 'MAKING YOUR APPLIANCE SECURE' INSTRUCTIONS ('SECU')

Your appliance is equipped, as standard, with electronic motor protection to guarantee its longevity. This electronic security safeguards against incorrect use; in this way, the motor

is properly protected.

In cases of extreme use which disregard the recommendations in the instructions (see paragraph 'FIRST USE': potentially excessively large quantities and/or abnormally long use and/or preparing different recipes at short intervals), the electronic protection will be triggered to preserve the motor; in this case, the appliance will stop functioning and the message 'SECU' will be displayed on the LCD screen of the control panel to indicate that the appliance is temporarily out of service.
If 'SECU' is displayed on the control panel and your appliance stops working, proceed accordingly:
- Leave your appliance plugged in, do not press the '0/1' switch (H).

- Please refer to the recommendations in the instructions and readapt your use of the appliance (see paragraph 'FIRST USE': amount of ingredients/recipe preparation time/temperature/type of accessories).

- Allow the motor to cool down for half an hour.

- Restart the appliance by clicking on the 'Start / Stop/Reset' button for two seconds (B5).

Your appliance is now ready to be used again. For further information, customer service department is at your disposal (see details in the guarantee booklet).

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

PROBLEMS CAUSES SOLUTIONS
Problems when steam cooking.	The steam regulator cap is not properly attached.	Set the steam cap to 'high steam' (turn towards you); this setting allows a maximum amount of steam to build up in the bowl for all types of steam cooking (soups, etc.), so there will be more steam in the bowl and the cooking process will be more efficient.The 'low steam' position allows a maximum amount of heat and steam to be dispersed into the bowl for all steam cooking (soups, etc.). This position also helps to avoid splashing during cooking.The 'high steam' position allows a maximum amount of condensation to escape and results in dishes or sauces with a better consistency (risotto, cream desserts, sauces, etc.).
	Insufficient cooking time	Cooking times are for information purposes only;in most cases it ensures that the food is properly cooked.However, certain conditions may affect the cooking time:- size of the vegetables (cut or uncut)- quantity of ingredients in the basket- type of vegetables, their ripeness- quantity of water in the bowl, which corresponds to the measurement (0.7).If the food is not properly cooked, you can set an additional cooking time.You can also use the manual mode by selecting a temperature of 130°C and the cooking time according to the quantity and type of ingredients.
The appliance does not work.	It is not plugged in..	Plug the appliance into an electrical socket.
	The switch (H) is in position 0. Move the switch to position 1.
	The bowl or the lid are not correctly positioned or locked.	Check that the bowl or the lid are correctly positioned and locked according to the diagrams in the instruction manual.
Excessive vibration.	The appliance is not positioned on a flat surface, the appliance is not stable.	Place the appliance on a flat surface.
	Volume of ingredients too high.	Reduce the quantity of ingredients processed.
	Accessory error.	Check that you are using the recommended accessory.
Leak through lid.	Volume of ingredients too high.	Reduce the quantity of ingredients processed.
	The lid is incorrectly positioned or locked.	Lock the lid correctly on the bowl.
	The lid seal is not present. Position the seal on the lid.
	The seal is cut or damaged.	Change the seal, contact an approved service centre.
	Accessory error.	Check that you are using the recommended accessory.
Leak through the bowl spindle.	The bowl seal is not correctly positioned. Position the seal correctly.
	The bowl seal is damaged. Contact an approved service centre.
	The locking ring (D5) is not locked correctly.	Lock the ring correctly (D5).
The blades do not rotate easily.	Pieces of food that are too big or too hard are blocking it from rotating.	Reduce the size or quantity of the ingredients processed. Add some liquid.
Smell from motor.	On using the appliance for the first time, in the event of overload of the motor caused by too large a quantity of ingredients or by pieces that are too hard or too big.	Allow the motor to cool down (about 30 minutes) and reduce the number of ingredients in the bowl.
"STOP" is displayed.	The appliance has detected too many vibrations and has changed to the safety mode.	Check that you are using the right speed and that you are using the recommended accessory.
"SECU" is displayed.	Motor overload caused by too many ingredients or pieces which are too hard or too large or overuse without sufficient cooling down time.	Allow the motor to cool down (about 30 minutes) and reduce the number of ingredients in the bowl.
"SECU" is displayed + red indicator light is flashing.	Overheating of temperature sensors. Contact an approved service centre.
"Err1" is displayed.+ red indicator light is flashing.	The heating element is not working.	Check that the power pins under the bowl are not clogged with food. If this is the case, clean them and try again.If that still does not work, contact an approved service centre.
"Err2" is displayed. Electronic fault. Contact an approved service centre.
"Err3" is displayed. Speed fault. Contact an approved service centre.
"Err4" is displayed.	Communication fault with chopper electronic card.	Contact an approved service centre.
Displays «Err8»	Default security sensor lock.	Contact an approved service centre.
"ntc1" is displayed.+ red indicator light is flashing.	Temperature sensor 1 is no longer working.	Contact an approved service centre.
"ntc2" is displayed.+ red indicator light is flashing.	Temperature sensor 2 is no longer working.	Contact an approved service centre.

PROBLEMS CAUSES SOLUTIONS
Safety indicator display (C4)	Improper locking of the bowl or lid	Prior to operating the appliance, check that the bowl is properly locked on the motor unit and that the lid is properly locked on the bowl. If the problem persists, contact an authorised centre.
	The lid is locked on the bowl in the "cooking without a lid" mode	Unlock the lid prior to launching the cooking program. If the problem persists, contact an authorised centre.
The safety lock on the lid remained active (rod extended) and prevents the lid from locking.	The appliance was turned off as a recipe was in progress by toggling the I/O switch to the "0" position or was simply unplugged as a recipe was in progress.	Simply toggle the I/O switch to the "T" position to reset the food processor, along with the safety lock on the lid; the rod will automatically return to its original position. You may now lock the lid.
Connection problem		See the app guide

Is your appliance still not working?

Contact an approved service centre (see list in service booklet).

RECYCLING

- Elimination of packaging and appliance materials.

The packaging exclusively contains materials that are not dangerous to the environment, which can be disposed of in accordance with the recycling regulations in force.

To dispose of your appliance, ask the appropriate department of your local authority.

• End-of-life electronic or electrical appliances:

Environmental protection first!

① Your appliance contains numerous materials that can be recovered or recycled.

Take it to a collection point for processing.

• "The Bluetooth® brand and logos are registered brands of Bluetooth SIG, Inc. and their use by the SEB Group has been officially authorised.
• Google Play and Android are Google Inc. brands.
  Apple and the Apple logo are Apple Inc. brands, registered in the USA and other countries. App Store is an Apple Inc. service mark.

GLOSSARY

Pairing: grouping or associating two devices.
This is carried out when your smartphone or tablet first connects with i-Companion xl.
Synchronising: updating of information. The app and i-Companion xl synchronise with each other to exchange information when they are connected.
Connecting: establishing a link between the app (smartphone/tablet) and the appliance (i-Companion xl). Connecting is vital for synchronisation.
Cookies: usage information sent to Moulinex to improve the app.

FR p. 1 - 20
NL p. 21 - 40
DE p. 41 - 60
IT p. 61 - 80
ES p. 81 - 100
PT p. 101 - 120
EN p. 121 - 140
