Product type	Ceiling fan
Brand	Bestron
Model	Summer Breeze DCF52LSR
Power supply	220-240 V ~ 50/60 Hz
Number of blades	5
Speeds	3 (fast, medium, low)
Remote control	Yes, included
Lighting	E14 bulb (max. 40 W)
Summer/Winter mode	Yes, switchable via switch
Minimum floor-to-blade distance	2.30 m
Recommended installation	By a qualified electrician
Warranty	60 months
After-sales service	www.bestron.com/service
Safety	Cut off power before installation; do not immerse
Cleaning	Soft dry cloth; no abrasive products
Repairability	Do not repair yourself; contact a professional
Included accessories	Remote control, receiver, mounting screws (2x), blade screws (15x), balancing weights, balancing clip, glass lampshade
Compatible bulb type	LED recommended, E14, max. 40 W
Supported weight by the plate	Minimum 10 kg
Use	Household use only

Frequently Asked Questions - Summer Breeze DCF52LSR BESTRON

How to install the Bestron Summer Breeze ceiling fan?

First, cut off the power at the electrical panel. Securely attach the mounting plate to the ceiling using the provided screws. Assemble the blades onto the motor by inserting each blade into the slots and tightening the 3 screws per blade. Hang the motor on the mounting plate, connect the cables (blue to N, brown/black to L, green/yellow to ground) and insert the receiver. Attach the decorative cover, install the E14 bulb (max. 40 W) and the glass lampshade. Restore power.

How to use the remote control?

The remote control allows you to control the fan and the light. Use the 0 button to turn the fan on/off. The max speed, medium speed and min speed buttons set the speed. For the light, press ON to turn on and OFF to turn off.

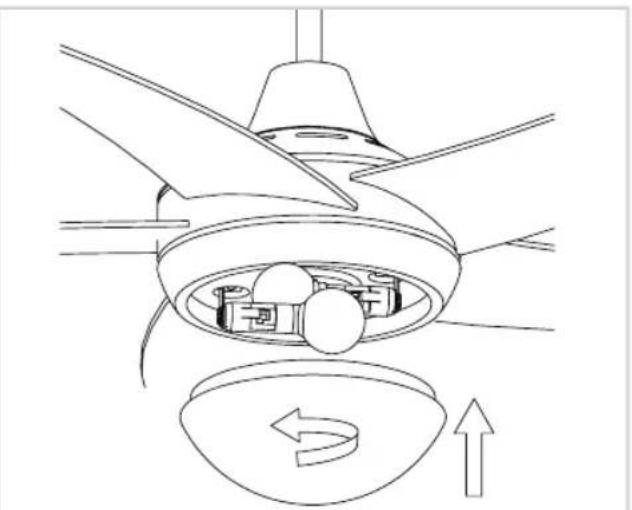

How to change the fan bulb?

Make sure the power is off. Gently unscrew the glass lampshade by turning counterclockwise. Remove the old bulb by also turning it. Replace it with an E14 bulb with a maximum power of 40 W (preferably LED). Screw the lampshade back on by turning clockwise.

What to do if the fan does not start?

First check that the wall switch for the light is on. Then check that the power is restored at the electrical panel. If nothing works, cut off the power and inspect the wire connections in the junction box. If the problem persists, contact after-sales service.

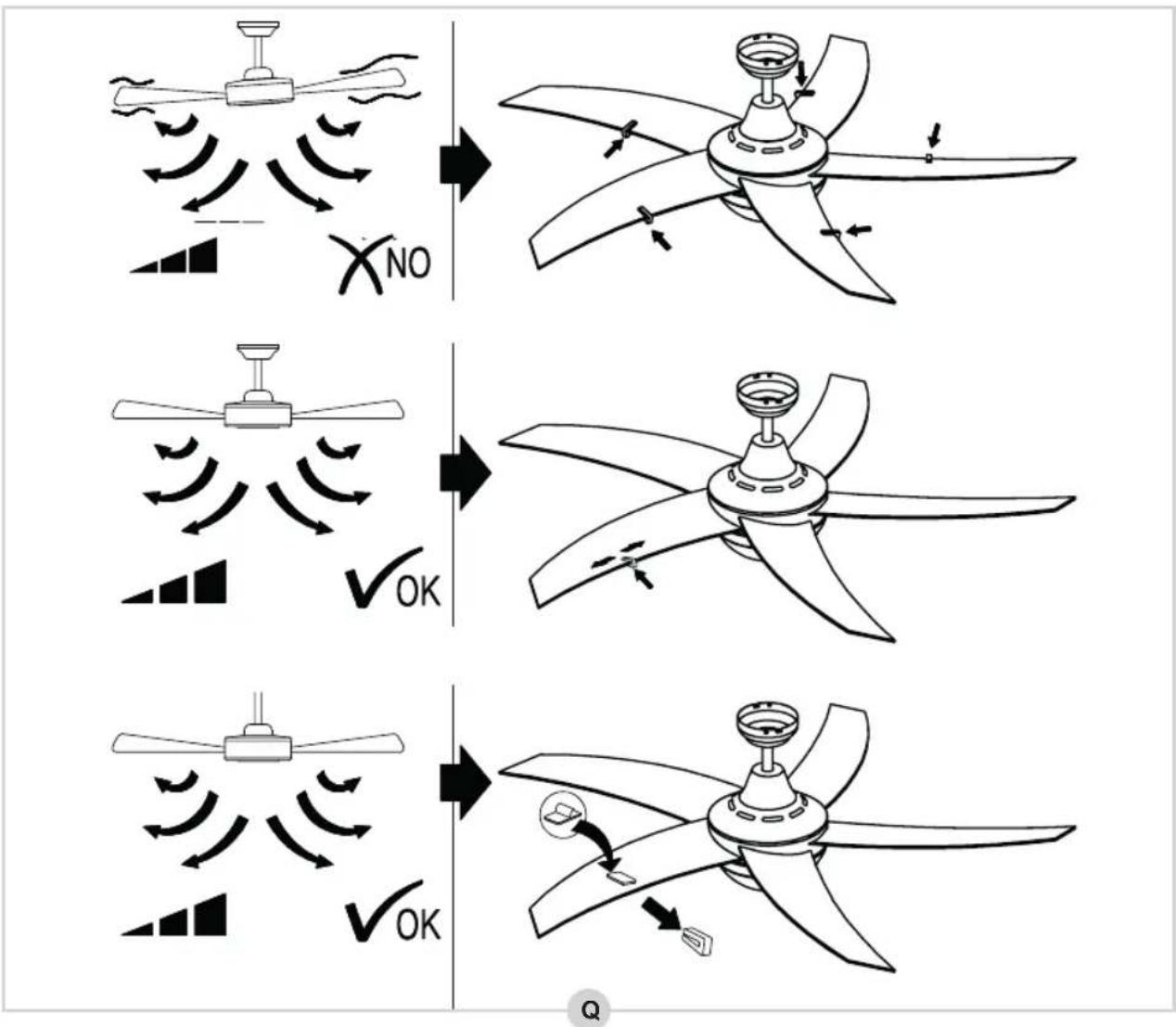

How to balance the fan blades?

If the fan wobbles, first try to check that all blade screws are tight. If that is not enough, swap two blades with each other. Then use the provided balancing kit: place the balancing clip on a blade and test, then move it until vibrations reduce. Add balancing weights if necessary.

How to clean the fan?

Use a soft dry cloth to dust the blades and the motor. Never use water, abrasive products or solvents. Do not bend the blade holders during cleaning. Always unplug the device before cleaning.

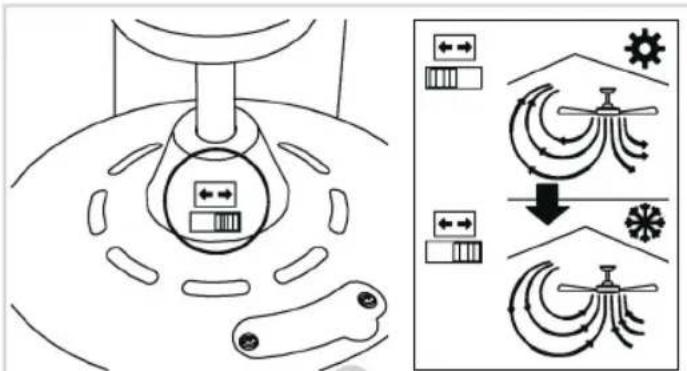

What is the difference between summer mode and winter mode?

The fan has a switch to reverse the rotation direction. In summer mode (switch up), the blades rotate counterclockwise to create a cooling breeze. In winter mode (switch down), the blades rotate clockwise to circulate warm air from the ceiling to the floor.

What to do if the fan makes noise?

Noise may come from a poorly fixed mounting plate. Check that the plate is firmly screwed to the ceiling. Also ensure that all blade screws are tight. If the noise persists, check the blade balancing as described in the manual.

What is the warranty of the Bestron Summer Breeze fan?

The fan has a 60-month warranty (5 years) from the date of purchase, covering manufacturing and operational defects. Repairs are free in labor and parts. The warranty does not cover damage due to misuse, negligent transport, or repairs by unqualified persons.

Can I install the fan myself?

Installation is possible if you have electrical skills. However, it is recommended to call a qualified electrician to ensure a solid ceiling attachment and correct electrical connection. Respect the minimum distance of 2.30 m between the blades and the floor.

USER MANUAL Summer Breeze DCF52LSR BESTRON

Modern double-decker air fan with metallic blades and a spherical head (no text or symbols visible)

DCF52LSR

INSTRUCTION MANUAL

DE

Bedienungsanleitung

EN

Instruction manual

SE

Instruktionsmanual

FR

Mode d'emploi

IT

R. Neyman Quality control

Exploded view diagram of a smart air conditioner with numbered parts for identification

Line drawing of a hand using a tool to adjust or install a circular mechanical component (no text or symbols present)

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

Technical diagram of a mechanical assembly with two views (1 and 2), showing internal components and mounting features (no text or symbols)

H

Technical line drawing of a robotic arm assembly on a base, showing two views (J and K) with no text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Technical line drawing of a ceiling fan assembly with internal components and directional arrows (no text or symbols)

N

Technical line drawing of a mechanical component with no visible text or symbols

0

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including symbols like '←' and '→'.

P

PROBLEME LÖSEN

DÉCLARATION DE CONFORMITÉ CE

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Contrôle qualité

DESCRIPTION SYMBOLE VALEUR UNITÉ
DÉBIT D’AIR MAXIMAL F 120,30 M3/MIN
PUISSANCE ABSORBÉE P 42,4 W
VALEUR DE SERVICE	SV	2,84	(M3/MIN)/W
CONSOMMATION D’ÉLECTRICITÉ EN MODE «VEILLE»	PSB	0	W
NIVEAU DE PUISSANCE ACOUSTIQUE	LWA	44.70	dB(A)
VITESSE MAXIMALE DE L’AIR	C	1.78	METERS/SEC
NORME DE MESURE DE LA VALEUR DE SERVICE	(EU) NO 206/2012 + (EU) 2016/2282
COORDONNÉES DE CONTACT POUR TOUT COMPLÉMENT D’INFORMATION : WWW.BESTRON.COM

Exploded view diagram of a smart air conditioner with numbered parts for identification

① ② ② ① A

2 x 2 B

Diagram showing a cable connector with labeled components and directional arrows, including a stop button and component labels.

Illustration of a hand holding a tool with arrows indicating movement or force, next to a mechanical component (no text or symbols)

220V~240V~ Γ Z Γ Z E

Line drawing of a hand using a tool to adjust or install a mechanical component, no text or symbols present

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

Technical diagram of a mechanical assembly with two views (1 and 2), showing internal components and mounting features (no text or symbols)

H

Technical line drawing of a robotic arm assembly on a base, showing two views (J and K) with no text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

N
0

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including symbols like '←' and '→'.

P

SOLUTIONS AUX PROBLÈMES

SOLUTIONS AUX PROBLÈMES - Remplacement de la lampe

PRENEZ NOTE S'IL VOUS PLAÎT:

• COUPEZ TOUJOURS L'ALIMENTATION DE VOTRE COMPTEUR AVANT DE REMPLACER UNE LAMPE.

WAT U MOET WETEN OVER DIT APPARAAT

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Quality control

OMSCHRIJVING SYMBOOL WAARDE EENHEID
MAXIMAAL VENTILATORDEBIET F 120,30 M3/MIN
BEDRIJFSWAARDE P 42,4 W
ELEKTRICITEITSVERBRUIK IN DE STAND-BY-STAND	SV	2,84	(M3/MIN)/W
GELUIDSVERMOGEN VAN DE VENTILATOR	PSB	0	W
MAXIMALE LUCHTSNELHEID	LWA	44.70	dB(A)
MAXIMALE LUFTGESCHWINDIGKEIT	C	1.78	METERS/SEC
MEETNORM VOOR BEDRIJFSWAARDE	(EU) NO 206/2012 + (EU) 2016/2282
CONTACTGEGEVENS VOOR NADERE INFORMATIE: WWW.BESTRON.COM

WERKING - Algemeen

Exploded view diagram of a smart air conditioner with numbered parts for identification

1. Montageplaat
2. Motor
3. Ventilatorblad (5x)
4. Afstandsbediening
5. Afstandsbediening-ontvanger
6. Schroefset montageplaat (2x)
7. Schroefset ventilatorbladen (15x)
8. Balansgewicht
9. Balansclip
10. Lampenkap

Diagram illustrating three-step electrical circuit connection: component A, component B with variable resistor, and terminal block C with fuse.

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

Technical diagram of a mechanical assembly with two views (1 and 2), showing internal components and mounting features (no text or symbols)

H

Technical line drawing of a robotic arm mounted on a base, showing two views (J and K) with no visible text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

N

Technical line drawing of a mechanical component with no visible text or symbols

0

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including symbols like '←' and '→'.

P

PROBLEMEN OPLOSSEN

PROBLEMEN OPLOSSEN - lamp vervangen

LET OP:

- SCHAKEL ALTIJD IN UW METERKAST DE STROOM UIT, VOOR U BEGINT MET HET VERVANGEN VAN EEN LAMP.

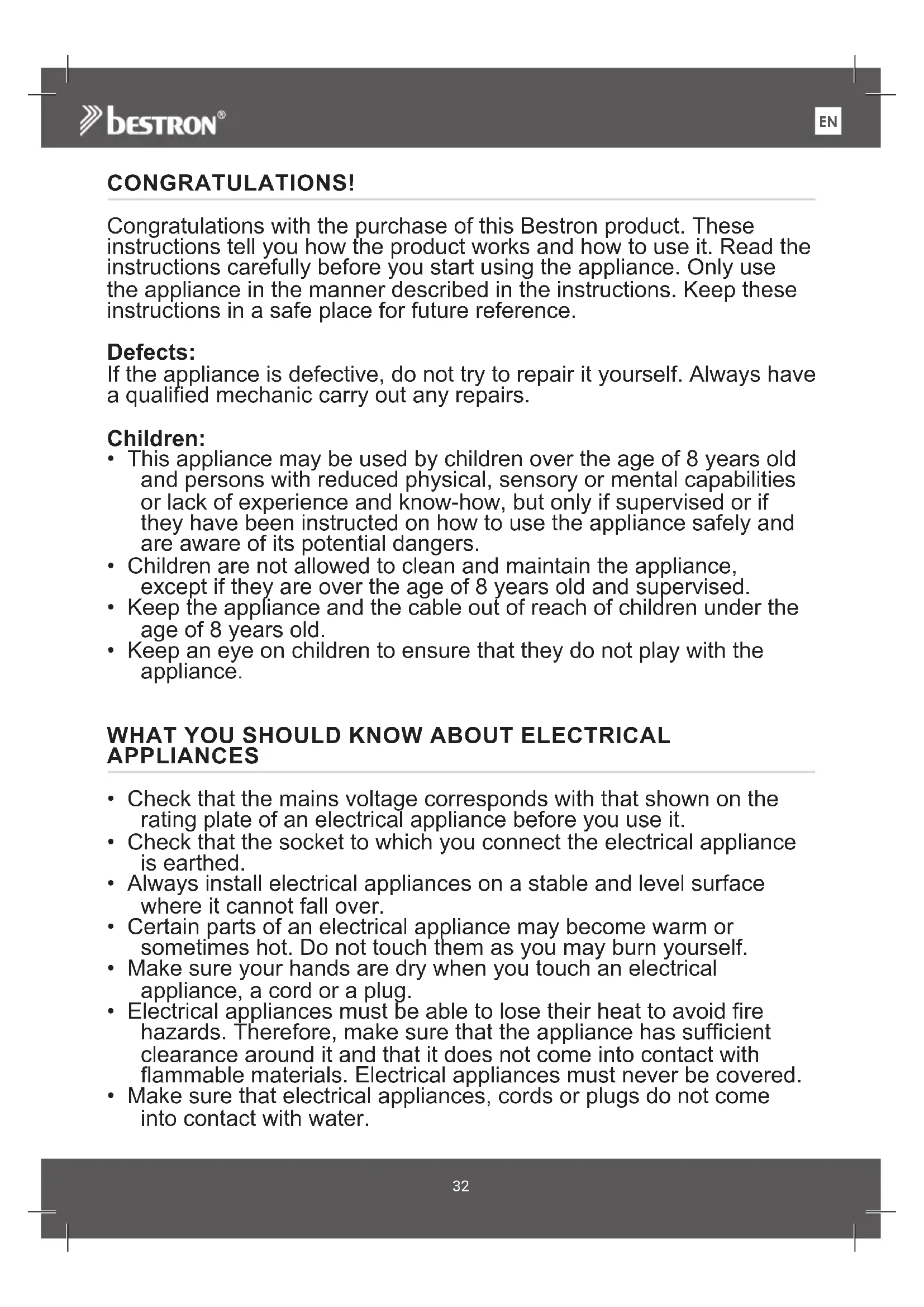

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  • Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
  • Always install electrical appliances on a stable and level surface where it cannot fall over.
  • Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself.
  • Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.
• Make sure that electrical appliances, cords or plugs do not come into contact with water.

Never immerse electrical appliances, cords or plugs in water or any other liquid.

• Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
  • Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.
• Never let cords hang over the edge of the sink, a worktop or a table.
  • Always remove plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling the plug itself and not the cord.
• Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
• The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
  • We recommend the installation be performed by a qualified electrician who can check the strength of the supportive ceiling members and make proper electrical connection.
• To reduce the risk of personal injury, use only the two steel screws (and lock washer) provided for mounting.
  • To reduce the risk of personal injury, do not bend the blade holders when installing the holders, balancing the blades or cleaning the fan.

ENVIRONMENT

- Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

- The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Quality control

DESCRIPTION SYMBOL VALUE UNIT
MAXIMUM FAN FLOW RATE F 120,30 M3/MIN
FAN POWER INPUT P 42,4 W
SERVICE VALUE	SV	2,84	(M3/MIN)/W
STANDBY POWER CONSUMPTION	PSB	0	W
FAN SOUND POWER LEVEL	LWA	44.70	dB(A)
MAXIMUM AIR VELOCITY	C	1.78	METERS/SEC
MEASUREMENT STANDARD FOR SERVICE VALUE	(EU) NO 206/2012 + (EU) 2016/2282
CONTACT DETAILS FOR OBTAINING MORE INFORMATION: WWW.BESTRON.COM

OPERATION - General

The appliance is only intended for household purposes, not for professional use.

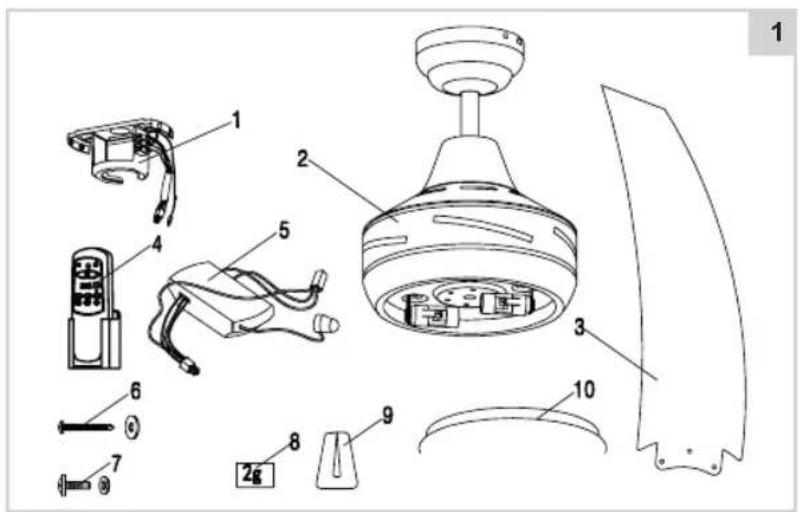

Exploded view diagram of a smart air conditioner with numbered parts for identification

1. Mounting bracket
2. Motor
3. Fan blade (5x)
4. Remote control
5. Remote control receiver
6. Screw set mounting plate (2x)
7. Fan blade screw set (15x)
8. Balance weight
9. Balance clip
10. Glass lamp cover

MOUNTING - Installing the mounting bracket

PLEASE NOTE:

• ALWAYS SWITCH OFF THE POWER IN YOUR METER BOX BEFORE STARTING MOUNTING THE CEILING FAN.
  • Make sure to hang the fan where the distance between fan blades and the floor will be at least 2.30 m.

Technical diagram of a device with numbered components, likely an optical or mechanical assembly.

ABC

2 x 2

Diagram showing a cable connector with labeled components and directional arrow, including a stop button and numbered marker 1.

1. In the package the mounting bracket has 4 screws mounted on (see figure A)
2. Loosen the two screws ① half a turn (B).

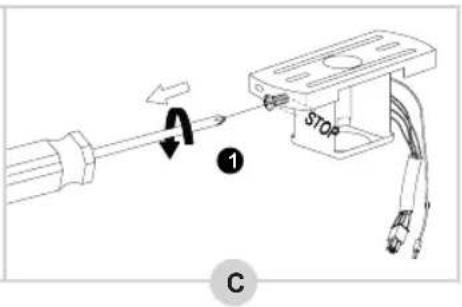

3. Then completely loosen and remove the two screws ② (C).

4. Remove the mounting bracket from the decorative cover and attach the mounting bracket securely to the ceiling (D). Make sure the mounting bracket is mounted firmly enough to support a weight of at least 10 kg.

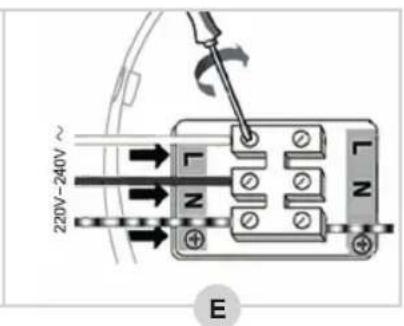

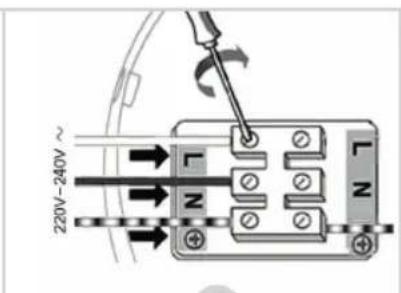

5. Now screw the wiring correctly into the terminal block (E):

6. Blue wire N
   • Brown or black wire → L
   • Ground wire (green/yellow) → ⏻

Hand holding a screwdriver inserted into a mechanical component (no text or symbols visible)

D

220V~240V~ Γ Z Γ Z

E

MOUNTING - Mounting the fan blades to the motor housing

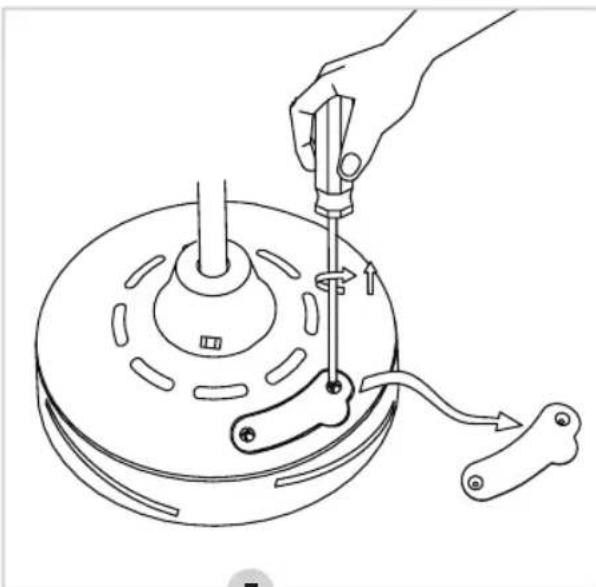

1. Remove the two screws from the covering plate on the top of the motor housing (see figure F).

se a magnetic screwdriver for the following steps!

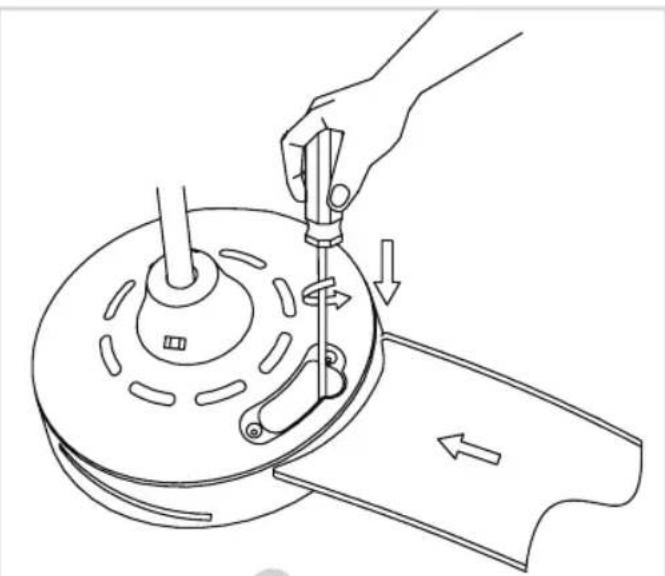

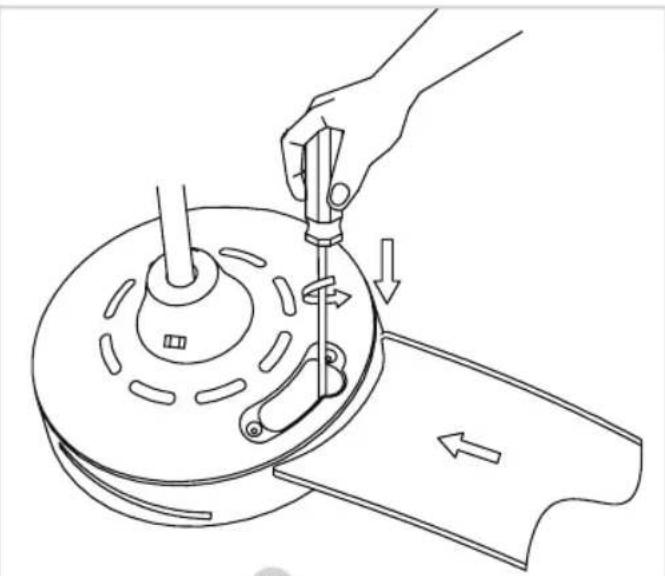

1. Insert the blade through the slots around the motor. Align the blade with the three holes, and secure the three fan blade screws (see figure 1-7) through the opening exposed when covering plate was removed. If the holes do not align, the blade is upside down. The blade is designed to fit snugly, the screws should be vertical with the blade (G).
2. Replace the covering plate on top of the motor housing by reversing step 1.
3. Repeat for the other four fan blades, tighten al blade screws evenly and securely to ensure quiet, wobble free opperation of the fan.

Line drawing of a hand using a tool to adjust or install a circular mechanical component (no text or symbols present)

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

The fan blades are now properly mounted.

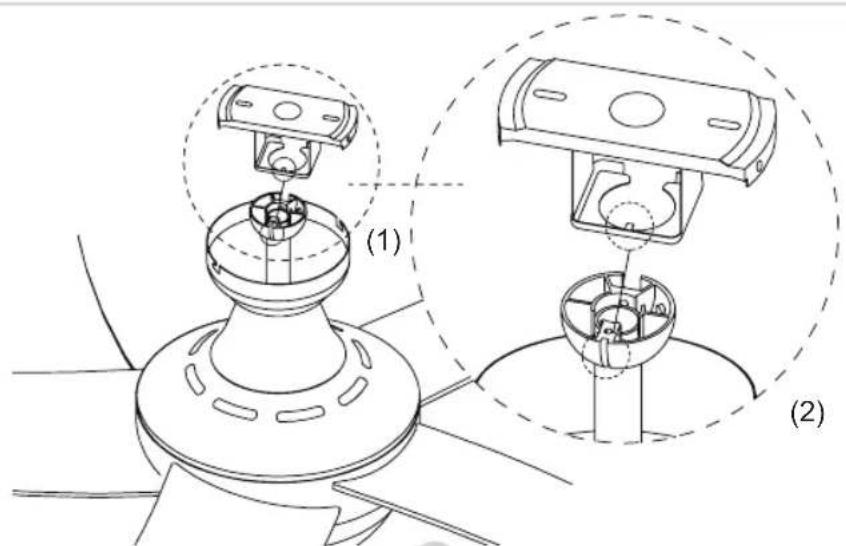

MOUNTING - Mounting the fan motor on the mounting bracket

(1) (2)

H

1. Carefully insert the fan motor through the mounting bracket (H). Turn the fan motor until the protruding pin (1) falls into the notch (2).

220V-240V

1

Technical line drawing of a robotic arm assembly on a base, showing two views (J and K) with no text or symbols.

1. Now slide the receiver into the mounting bracket (J).
2. Connect the connectors of the fan and the receiver, (see figure K).

MOUNTING - Mounting the fan to the mounting bracket

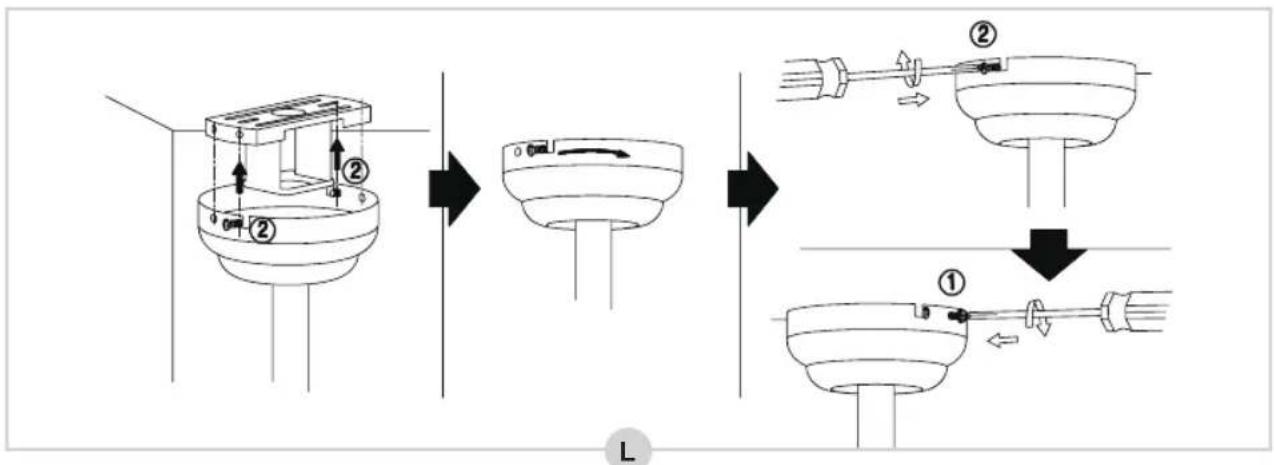

1. Now place the decorative cover over the mounting bracket and screw it on (L).

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#ffc,stroke:#333

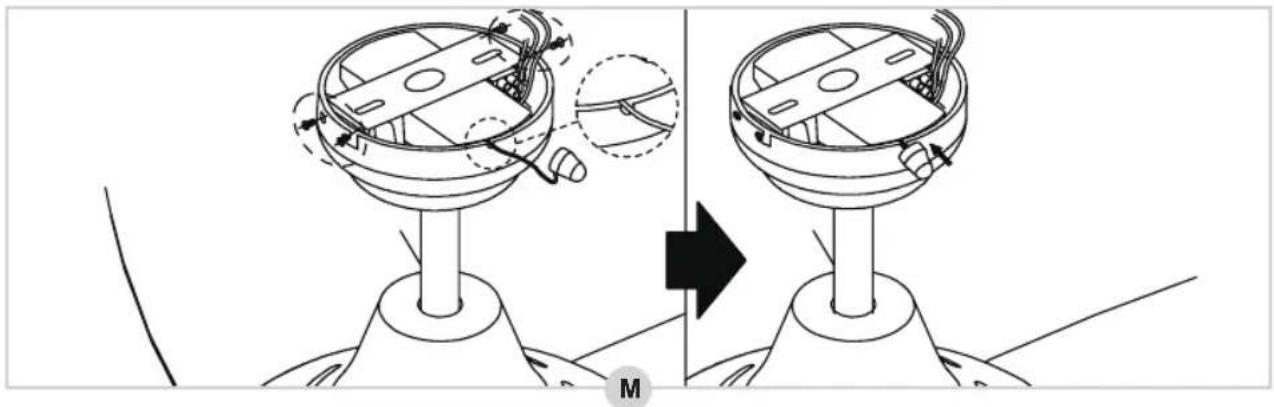

NOTE: place the cable with sensor in the recess of the decorative cover and then stick it on the ceiling with the sticker on the bottom (M).

1. Replace the two screws in the decoration cover and tighten them too.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

1. Now, place two lamps type E14 (40 Watts max.) in the lamp socket (see figure N).
2. Carefully fix the glass lamp cover on the light plate (O)

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

N

Technical line drawing of a mechanical component with no visible text or symbols

0

The fan is now properly mounted. You can now switch on the power again in your meter box.

USE - Operation

The fan can be operated with the remote control included. The device has 3 speeds, each of which can be operated via a separate button: fast, medium and slow.

The remote control also has two buttons to control the light on the fan: on and off

		BUTTON FUNCTION
		ON LIGHT ON
		OFF LIGHT OFF
		0 FAN	ON/OFF
			MAX. FAN SPEED
			MED. FAN SPEED
			MIN. FAN SPEED

USE - Summer and winter mode

The fan is equipped with a summer and winter mode: in summer mode, the fan blows air directly downwards for a cool breeze, while in winter mode, air is circulated through the room, for example to spread the heat from your heating throughout the room.

1. Switch left to activate summer mode.
2. Switch right to activate winter mode.

Diagram illustrating airflow patterns around a vehicle, with labeled components and directional arrows indicating movement.

P

PROBLEM SOLVING

Problem Probable Cause Suggested Remedy
Fan won't start.	1. The fan is connected to a wall light switch and it is not turned on.2. Power in the meter cupboard has not been switched back on or has failed.3. Wires to the fan are loose.	1. Make sure the light switch is turned on.2. Check whether the main power supply in the meter box is switched on.3. Check for loose wires in the wiring to the fan.PAY ATTENTION:Make sure the main power supply is turned off before checking the wiring!
Fan is noisy. 1.	The mounting plate is not properly mounted.	1. Check whether the mounting plate is (still) properly attached to the ceiling. See 'Mounting - Installing the mounting plate'.

BALANCING FAN BLADES

We do our utmost to deliver the product to in perfect condition. However, there's always a possibility that the blades occasionally need to be balanced. First, follow the 2 possible solutions above. If this does not work, try swapping 2 fan blades. Is the fan still unbalanced? Then try to balance it using the supplied balance set (see figure Q).

PROBLEM SOLVING - Replacing the lamp

PLEASE NOTE:

• ALWAYS SWITCH OFF THE POWER IN YOUR METER BOX BEFORE REPLACING A LAMP.

Preferably use a LED lamp with E14. LED lamps last much longer and consume very little energy. If the lamp is defect, gently pull and turn the glass bulb downwards so that it comes loose from the brackets. Then turn the lamp loose (anti-clockwise) and replace it with a suitable new lamp. Then carefully replace the glass lampshade by turning it clockwise on the motor housing.

The lamp is now properly replaced. You can now switch on the power again in your meter box.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

- Accidents

• Improper use
• Wear and tear

- Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
  • Unauthorised changes
  • Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport

• If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

• Cords

• Lamps

- Glass parts

1. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.
2. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department:

www.bestron.com/service

COMPLIMENTI!

Handwritten signature or scribble on a line, possibly a signature or autograph

Exploded view diagram of a smart air conditioner with numbered parts for identification

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

Technical diagram of a mechanical assembly with two views (1 and 2), showing internal components and mounting features (no text or symbols)

H

Technical line drawing of a robotic arm mounted on a base, showing two views (J and K) with no visible text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

N

Technical line drawing of a mechanical component with no visible text or symbols

0

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including symbols like '←' and '→'.

P

XNO OK OK

Q

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Controllo qualità

Exploded view diagram of a smart air conditioner with numbered parts for identification

Diagram of a device with numbered components, likely an optical or sensor assembly

AB

Diagram showing a tool with labeled components and directional arrow, including a magnified view labeled 'x2'

C

Diagram showing a tool with a stop button and cable connector, labeled with arrows and numbered marker 1

The image is too blurry to recognize any text content.

Hand holding a screwdriver inserted into a mechanical component (no text or symbols visible)

D

220V-240V ~

E

Line drawing of a hand using a tool to adjust or install a mechanical component, no text or symbols present

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

Technical diagram of a mechanical assembly with two views (1 and 2), showing internal components and mounting features (no text or symbols)

H

Technical line drawing of a robotic arm assembly on a base, showing two views (J and K) with no text or symbols.

Diagram showing a mechanical assembly on a base with a magnified view of internal components, no text or symbols present.

Technical line drawing of a mechanical component with directional arrows indicating rotation or movement (no text or symbols)

N

Technical line drawing of a mechanical component with no visible text or symbols

0

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including symbols like '←' and '→'.

P

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Kvalitetskontroll

BESKRIVNING SYMBOL VÄRDE ENHET
FLÄKTENS HÖGSTA FLÖDESHASTIGHET F 120,30 M3/MIN
FLÄKTENS INEFFEKT P 42,4 W
DRIFTSVÄRDE	SV	2,84	(M3/MIN)/W
EFFEKTFÖRBRUKNING I STANDBYLÄGE	PSB	0	W
FLÄKTENS LJUDEFFEKTNIVÅ	LWA	44.70	dB(A)
MAXIMAL LUFTHASTIGHET	C	1.78	METERS/SEC
STANDARD SOM ANVÄNTS FÖR MÄTNINGAV DRIFTSVÄRDE	IEC 60879:196(CORR.1992)
KONTAKTUPPGIFTER FÖR ATT FÅ MER INFORMATION: WWW.BESTRON.COM

Exploded view diagram of a smart air conditioner with numbered parts for identification

Diagram showing a tool interacting with a device, labeled with component number 2 and 'x 2'

STOP ①

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

F

Line drawing of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

G

Technical diagram of a mechanical assembly with two views (1 and 2), showing internal components and mounting features (no text or symbols)

H

Technical line drawing of a robotic arm assembly on a base, showing two views (J and K) with no text or symbols.

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

N

Technical line drawing of a mechanical component with no visible text or symbols

0

Diagram illustrating a mechanical or fluid system with directional arrows and component symbols, including a top-down schematic of airflow or flow patterns.

P

PROBLEMLÖSNING

PROBLEMLÖSNING - Byta ut lampan

VÄNLIGEN NOTERA:

• STÄNG ALLTID AV STRÖMMEN I DIN METERRUTA INNAN DU BYTTER EN LAMPA.

QR code image containing encoded data, no visible human-readable text

NEED HELP? CHAT WITH US! WHATSAPP CUSTOMER SERVICE

BESTRON.COM/WHATSAPP
