Product type	Pedestal fan
Brand	Bestron
Model	DFT35R
Power supply	220-240 V ~ 50 Hz
Speeds	3 (I, II, III)
Oscillation function	Yes, 90° angle
Vertical tilt	Yes, 10° angle
Guard dimensions	35 cm diameter
Total height	Approximately 130 cm
Weight	Approximately 4.5 kg
Blade material	ABS plastic
Guard material	Metal with plastic coating
Use	Indoor, domestic
Noise level	Approximately 55 dB (max speed)
Maintenance and cleaning	Dusting with brush or vacuum cleaner; disassembly possible for deep cleaning
Safety	Automatic shut-off in case of tipping (estimation); do not use near water
Spare parts	Front and rear guards, blades, shaft, screws, clips available
Warranty	60 months
General information	Compliant with European directives; do not use with an external timer

Frequently Asked Questions - DFT35R BESTRON

How to assemble the Bestron DFT35R fan?

Follow the assembly steps: attach the rear guard to the motor block by aligning the notches, screw on the fixing ring, mount the blades by aligning the notches, then attach the front guard with the provided clips. See the manual for more details.

How to adjust the fan oscillation?

To activate oscillation (sweeping left to right over 90°), pull the angle lock until it clicks. For fixed ventilation, push the angle lock onto the motor block.

How to adjust the fan tilt?

Loosen the safety screws, tilt the guard and motor block in the vertical plane (maximum 10° angle), then retighten the screws.

What are the available speeds?

Three speeds: position I (slow), II (normal), III (fast). Turn the setting knob to 0 to stop.

How to clean the fan?

Unplug the device. Use a brush or vacuum cleaner to remove dust from the guards and blades. If necessary, disassemble the guards and blades for deeper cleaning. Do not use harsh detergents or sharp objects.

What safety precautions should I observe?

Never use near water or in a damp room. Do not cover the device while operating. Keep children and the cable out of reach of those under 8 years old. Unplug after use.

What is the power supply voltage of the fan?

The fan operates on a voltage of 220-240 V ~ 50 Hz. Check that your mains supply matches before use.

Is the fan under warranty?

Yes, Bestron offers a 60-month warranty from the date of purchase, covering manufacturing defects. The warranty does not apply in case of misuse or unauthorized repair.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Do not use it in damp rooms or near an open window.

How to recycle the fan at end of life?

Do not dispose of the device with household waste. Deposit it at a collection point for electrical and electronic equipment. Contact your local town hall for recycling centers.

USER MANUAL DFT35R BESTRON

Exterior view of a modern office desk fan with visible blades and a 'BESTRON' branding on the top (no other text or symbols)

DFT35R

INSTRUCTION MANUAL

DE

Bedienungsanleitung

FR

Mode d'emploi

NL

Handleiding

EN

Instruction manual

IT

R. Neyman Quality control

FUNKTION - Allgemein

Technical diagram of a fan with numbered parts, including a propeller and electrical plug, alongside an inset showing mechanical components.

DÉCLARATION DE CONFORMITÉ CE

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Contrôle qualité

Technical diagram of a fan with numbered parts, including a mounted device and its internal structure with labeled parts.

WAT U MOET WETEN OVER DIT APPARAAT

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Quality control

WERKING - Algemeen

Technical diagram of a fan with numbered parts, including a mounted device and its internal structure with labeled parts.

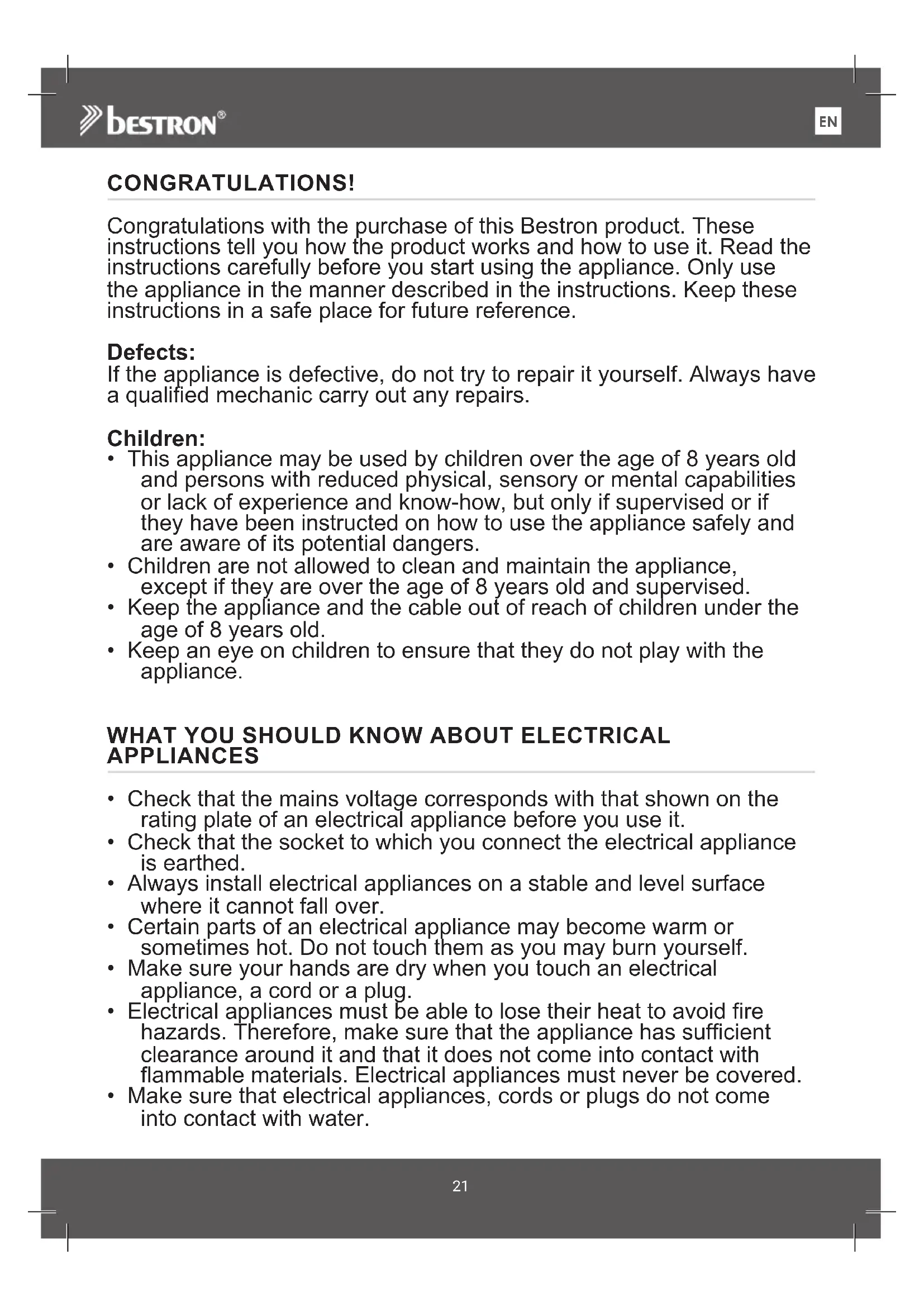

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  • Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
  • Always install electrical appliances on a stable and level surface where it cannot fall over.
• Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself.
  • Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.
• Make sure that electrical appliances, cords or plugs do not come into contact with water.

Never immerse electrical appliances, cords or plugs in water or any other liquid.

• Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
  • Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.
• Never let cords hang over the edge of the sink, a worktop or a table.
  • Always remove plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling the plug itself and not the cord.
• Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
• The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
• Never use the appliance near an open window; rain coming through the window could come into contact with the appliance and cause a short circuit.
• Put the fan on a horizontal and clean floor. Make sure that the appliance is unobstructed.
  • Make sure that objects cannot contact the fan blades.
• Do not cover the appliance whilst it is in use.

ENVIRONMENT

- Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

- The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman Quality control

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

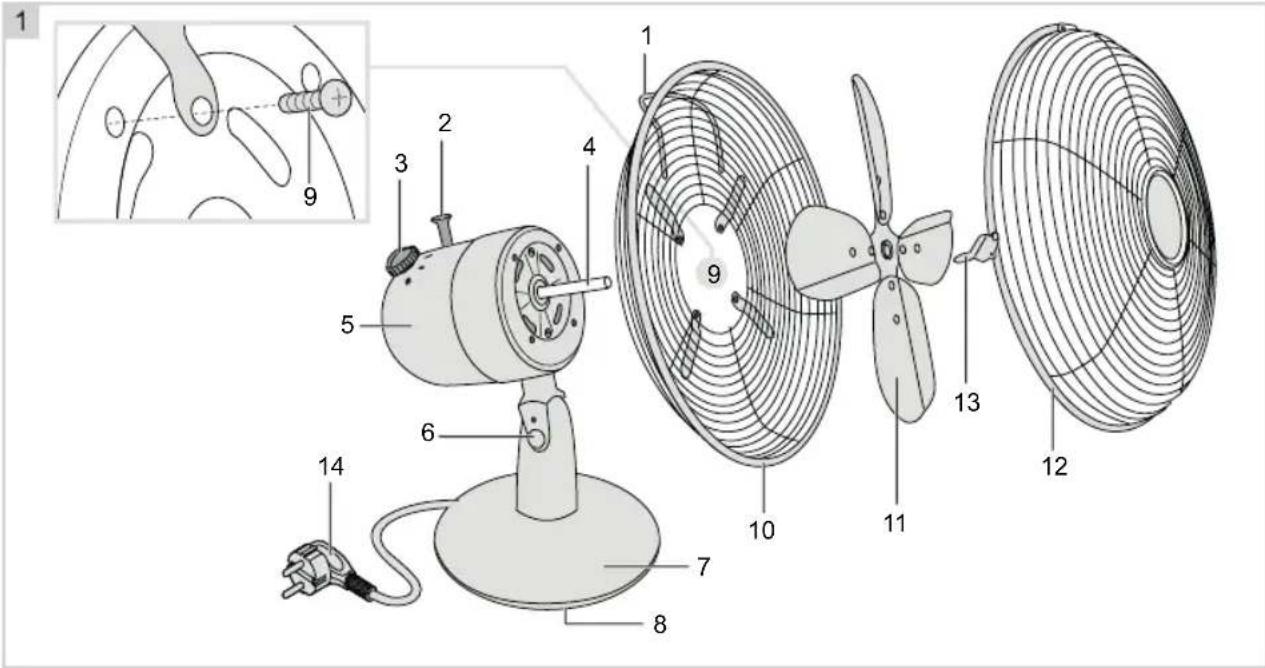

Technical diagram of a fan with numbered parts, including a mounted device and its internal structure with labeled parts.

1. Handle
2. Oscillation button
3. Speed control: 0 - I - II - III
4. Rod
5. Motor housing
6. Locking screw

7. Base

8. Non-slip foot

9. Screws
10. Fan housing (front part)
11. Fan blades
12. Fan housing (rear part)
13. Grips
14. Power cord and plug

OPERATION - Before first use

Remove the fan from the packaging and remove all packaging materials.

OPERATION - Assembling

1. Unscrew the 4 screws (9) from the housing.
2. Fit the rear of the fan housing (with the grip) (10) onto the motor-housing shaft, making sure that the grip is at the top.
3. Fasten the rear fan housing by four screws (9).
4. Slide the fan blades (11) onto the shaft, making sure that the notches are aligned precisely with the two keys on the shaft, and screw it.
5. Press the front half of the fan housing into the rear part (12) of the fan housing and tighten with the grips (13).

1. Set the fan on a level surface, such as a table.

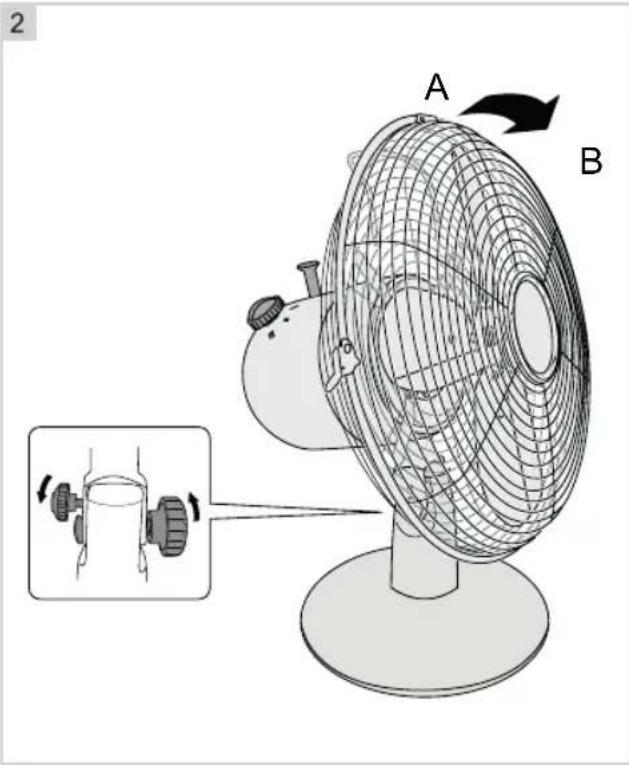

2. Tilt the fan to the required angle (see Figure 2). You can set the fan:

a. to blow horizontally (position A) or angled slightly downwards (position B). Turn the locking screws a little bit loose first (see figure 2) Tilt the ventilator housing and motor housing to the required angle. (with a sweep of 10^ ). Tighten the locking screws again.

b. to oscillate from left to right (with a sweep of 90°). This will ventilate much of the room. Pull out the oscillation button until you hear it click.

c. remain in the same position whilst the fan is turning. This will ventilate one area. Press the oscillation button on the motor housing fully in.

1. Put the plug into the wall socket.

2. Switch on the fan by turning the speed dial.

a. Position 'I': the fan operates at low speed.

b. Position 'II': the fan operates at normal speed.

c. Position 'III': the fan operates at high speed.

1. Stop the fan by turning the speed dial to position '0'.

2. Switch off the appliance after each use and remove the plug from the wall socket.

2 A B

CLEANING AND MAINTENANCE

Over the course of time dust can accumulate between the spokes in the fan housing, and on the fan blades. Always begin by trying to remove the dust with a brush and/or vacuum cleaner. If this does not remove all the dust you can always dismantle the fan and clean it.

WARNING:

• Verify that the appliance is not connected to the power supply before you clean it.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

Reassemble the fan using the procedure given under by 'Assembling'.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

- Accidents

• Improper use
• Wear and tear

- Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
  • Unauthorised changes
  • Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport

• If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

• Cords

• Lamps

- Glass parts

1. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.
2. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department: www.bestron.com/service
