AD 40 - Dehumidifier Aerial - Free user manual and instructions

Product type	Dehumidifier
Brand	Aerial
Model	AD 40
Variant	Carrying handle, feet (without wheels)
Recommended use	Closed indoor rooms (basements, garages, businesses)
Minimum room area	Greater than 4 m²
Water tank	Integrated bucket (manual drain or optional hose)
Fan levels	2 (high and low)
Night mode	Yes, duration 10 hours, quiet operation
Automatic defrost	Yes
Control panel	Digital display, adjustment keys, automatic lock
Safety	Automatic key lock, full bucket stop, child protection
Operating temperature	Between 5 °C and 30 °C
Maintenance	Regular cleaning of air filter and drip tray
Spare parts	Original filters, pump kit, drain hose
Stacking	Up to 2 units (with fixing straps)
Optional accessories	Pump kit, drain hose
Certification	CE (Machinery Directive, EMC)
Number of manual pages	144 pages
Delivery contents	Dehumidifier, bucket, instruction manual

Frequently Asked Questions - AD 40 Aerial

How to set the desired humidity on the Aerial AD 40?

Use the arrow keys up and down to adjust the target humidity by 1% steps (or 5% if held). The dehumidifier starts when actual humidity exceeds the setpoint.

What to do when the "Bucket full" indicator flashes?

The bucket is full. Turn off the device if needed, then unlock and empty the bucket. Replace it correctly and lock it. The indicator will turn off.

How to activate night mode?

Press the night mode button (moon icon). The device runs for 10 hours at low fan level for quieter operation.

What does error E1 on the display mean?

Error E1 indicates an outside temperature below 1°C or above 34°C. The device restarts automatically when temperature returns between 5°C and 30°C.

Can I use a continuous drain hose?

Yes, remove the bucket, attach a hose (12x2 mm) to the drain tube with a clamp, ensure a slope of at least 5% and that the end is not submerged. Replace the cover plate.

How to clean the air filter?

Turn off and unplug the device. Remove the filter, clean with a vacuum or lukewarm water (mild soap), dry thoroughly. For the AD 40, disassemble the filter holder (4 screws) and wipe the drip tray.

How to stack two dehumidifiers?

Do not stack more than two units. Place the feet of the upper unit into the notches of the lower one. Secure them with straps at the fixing points to prevent tipping.

How to unlock the control panel keys?

Press and hold the info button for 5 seconds until the lock is disabled.

What is the minimum area required to use the device?

The device must be used in a room with a floor area of at least 4 m² for sufficient air circulation.

Where is the rating plate located?

The rating plate is located in the bucket compartment. Open the bucket to access it.

USER MANUAL AD 40 Aerial

EN Operating Instructions 14

FI Käyttoohje 25

1 Models 14
2 Product overview 15
3 Overview of control panel 16
4 About these operating instructions 17
5 Product description 17
6 Safety 17
7 Unpacking 18
8 Stacking appliances 18
9 Transport and connection 18
10 Operation 20
11 Maintenance and care 21
12 Troubleshooting 22
13 Decommissioning, storage and disposal 23
14 EC Declaration of Conformity 24

1 Models

These operating instructions relate to various models. The functions and operation are virtually identical. You can find out which model you have from the identification plate. Further information can be found in the Technical Data (see last page).

Model Main characteristics

AD 740 Hinged handle, 2 wheels

AD 40

Carry handles, feet

2 Product overview

Fig. 1: Front view

1	Control panel	6	Socket
2	Hinged handle (AD 740 only)	7	Wheels (AD 740)
3	Mains plug 8 Attachment points for safety harnesses
4	Socket fuse 9 Feet (AD 40)
5	Air outlet

Fig. 2: Back view

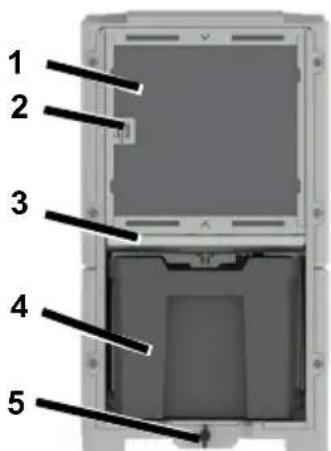

1	Air intake area with filter	4	Basin
2	Ambient temperature sensor	5	Basin lock
3	Drip tray

3 Overview of control panel

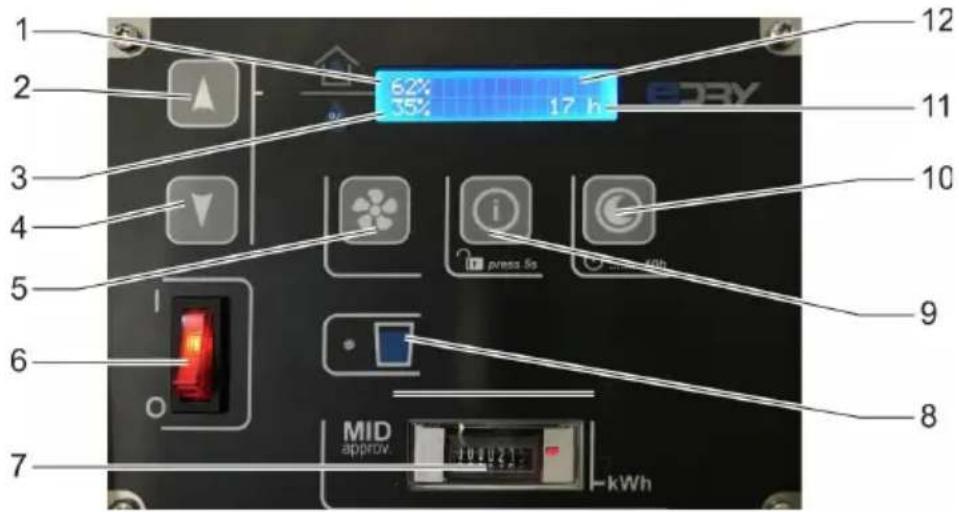

Fig. 3: Overview of control panel

1	Actual room humidity	7	Load counter (MID)
2	Increase room humidity	8	“Basin full” indicator
3	Target room humidity	9	Info key
4	Lower room humidity	10	Night mode
5	Fan setting	11	Operating hours
6	On/off button 12 Display

But- ton	Press briefly	Press for 5s	Display
	Lower/raise room humidity in 1% increments From the Language menu: Select language	Lower/in-crease room humidity in 5% increments
On/off but- ton	Switch dehumidifier on/off		Start 45% 12345h
	Change fan levels Level 2: Higher fan power Level 1: Lower fan power		fan speed high
			fan speed low
	Press twice briefly: Setting the language	Unlock key lock	Language English

4 About these operating instructions

These operating instructions must not be reproduced, duplicated or distributed without the written consent of the manufacturer.

Important: Read carefully before use. Keep for later reference.

5 Product description

The dehumidifier controls the air humidity in the room. The condensate water produced is collected in a basin or pumped away via an optional discharge hose. The dehumidifier has an automatic defrost function.

Package contents

• Dehumidifier
• Operating instructions
• Basin (in appliance)

Optional accessories

• Pump kit
• Discharge hose

Identification plate

The identification plate is on the basin.

6 Safety

Intended use and conditions of use

The dehumidifier is used to remove humidity from air where there is atmospheric pressure in closed indoor rooms, such as basements, garages or warehouses.

The dehumidifier must only be set up, used and stored in rooms with larger than 4m^2

The dehumidifier must only be used in compliance with the Technical Data (see last page).

Persons with physical, sensory or mental restrictions and children are not permitted to use the dehumidifier.

Every user must have read and understood the operating instructions.

Foreseeable misuse

The dehumidifier must not be used:

In rooms with potentially explosive atmospheres.
- In rooms with an aggressive atmosphere (e.g. caused by chemicals).
- In rooms with water with a pH value below 7.0 or above 7.4.
- In rooms with salt or liquids with a salt content >1% , e.g. brine baths.
- In wet areas of indoor swimming pools.
In rooms with ozone-treated air, high solvent concentrations or high dust pollution.

General safety information

WARNING! Risk of explosion, burns and poisoning from refrigerants!

The appliance contains an odourless, flammable refrigerant which, if handled incorrectly, could result in explosions and fire as well as injuries and burns. The refrigerant circuit is pressurised.

Do not use any objects to accelerate the thawing process.
Do not store the dehumidifier in rooms with permanent sources of ignition, such as open flames, operational gas appliances or electric heaters.
Do not drill open or ignite dehumidifiers.
- Only operate the appliance in an adequately ventilated room larger than 4m^2
Any work to the refrigerant circuit must be performed by the manufacturer or the manufacturer's authorised technical personnel. Before working on the refrigerant circuit, it must be depressurised using the designated mechanisms.
Observe the national regulations for gas installations.
Do not dump refrigerants or dispose of them as household waste.
Avoid coming into contact with the refrigerant.

WARNING! Electrocution!

Working on live components or water on live components can cause life-threatening electrocution.

Avoid contact between water and live components.
Always switch off and unplug the dehumidifier and drain away any water before moving it to another location.
Always empty the basin before moving it to another location.
- Only allow the manufacturer or authorised personnel to carry out work on electric components.

7 Unpacking

Procedure

1. Check that the package contents are complete. Contact your stockist in the event of damage or missing contents.
2. Remove the packaging and dispose of it in accordance with local regulations.

8 Stacking appliances

Two appliances from this series can be stacked on top of each other for transport and storage.

Warning! Crushing as a result of tipping or instability!

Do not stack more than two dehumidifiers on top of each other. Make sure that the feet of the top appliance are in the notches of the bottom appliance.
Secure the dehumidifiers to prevent them from tipping over or falling, e.g. using tension belts.

Procedure

1. Place the feet of the top appliance in the appropriate notches of the bottom appliance.

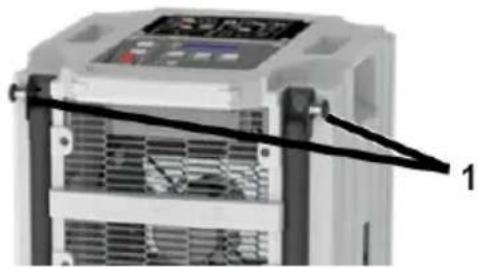

2. Attach a suitable safeguard, e.g. tension belts, to the attachment points for straps to secure the top appliance to the bottom appliance and stop it from falling off. Stack a maximum of two appliances.

9 Transport and connection

Transport

WARNING! Crushing as a result of instability!

Transport the dehumidifier in an upright position and secure it so that it cannot tip over or slip.
Position the dehumidifier on a stable, even surface.

WARNING! Crushing or cutting from reaching into the grille of the air filter!

Use the handles to transport the dehumidifier.
Do not reach into the air filter.

CAUTION! Crushing or ergonomic damage when transporting the dehumidifier!

Use the handles to transport the dehumidifier.
The dehumidifier must be transported by two people.

Procedure

1. Make sure that the basin is empty and secured with the basin lock.
2. Make sure that the discharge hose (optional) and the mains cable have been disconnected from the appliance.
3. AD 740: Raise the hinged handle for transporting on the wheels. To do this, release the lock on the right and left of the hinged handle (item 1) and lift the hinged handle until the lock engages again.

1. Transport the dehumidifier to where it is going to be used.
2. AD 740: Fold the hinged handle back down again.

NOTE: The air must circulate freely. Do not cover the air openings. There must be a clearance of at least 1m in front of the air outlet and the air filter.

Preparing the basin

Does not apply if an optional discharge hose is connected.

Procedure

Slide the basin into the dehumidi-fier.
Secure the basin with the basin lock.

Connecting an optional discharge hose

If necessary, the condensate water can be drained off via a discharge hose instead of into the basin. To do this, proceed as follows:

ATTENTION! Inadequate appliance output!

Do not place the end of the hose in the water (backwater possible).
Do not bend the discharge hose.
Do not place any objects on the hose.

Procedure

1. Remove the basin.
2. Attach a suitable hose (12 x 2 mm) to the discharge nozzle (Pos. 2) using a pipe clip.

1. Make sure that the end of the hose is lower than the start of the hose at the discharge nozzle. Minimum slope of 5% (5 cm/metre).
2. Slide the top cover sheet (item 3) in front of the notch (item 4). To do this, loosen the screw on the cover sheet and slide the cover sheet to the top.

1. Run the end of the hose into a drain or a suitable container.

Electrical connection

Procedure

1. Make sure that the supply voltage is the same as the connection voltage in the technical data.
2. Provide an adequate fuse for the socket and the power supply.
3. Install an earth leakage circuit breaker in damp rooms and building sites.
4. Make sure that the mains plug is suitable for the socket of the building.
5. Make sure that the socket used is earthed.
6. Plug the mains plug into the socket.
7. If necessary, connect one more appliance at most to the socket on the dehumidifier. If more than one appliance is connected, the integrated socket fuse will stop the appliances from working.

10 Operation

Unlock key lock

The key lock activates automatically if the control panel is inactive for 2 minutes.

Procedure

1. Hold the key down for 5 seconds.

The key lock is released.

Setting the language

Procedure

1. Press the key twice in quick succession.
2. The display will show the current language.
3. Set the desired language using the arrow keys
4. Wait 3 seconds until the selected language stops flashing.

Dehumidifying the room

NOTE: Allow the dehumidifier to rest in its final position for approx. 15 minutes before starting up, after transport and after prolonged storage.

Procedure

1. Make sure that the condensate water can drain off through a discharge hose or into the basin.
2. Set on/off button to "I".

"Start" will flash in the display. The dehumidifier will start operating. Operation is not possible when "Stop" or "Start" is flashing.

1. Set the desired humidity using the

arrow keys. The dehumidifier will only start if the actual room humidity is higher than the target room humidity.

1. Select the fan level. To do this, press the key.

The dehumidifier runs until the target room humidity has been reached or the basin is full, then it will stop running.

Emptying the basin

The "Basin full" indicator flashes, the basin is full.

Procedure

1. Release the basin lock.
2. Empty the basin.
3. Secure the basin again with the basin lock.

Night mode

If necessary, night mode can be enabled for quieter operation for 10 hours.

1. Press the key.

The dehumidifier runs for 10 hours at level 1.

Switching off

Procedure

1. Empty basin if necessary.
2. Set on/off button to "0".

11 Maintenance and care

WARNING! Electrocution!

Always disconnect the mains plug to disconnect the dehumidifier from the power supply before cleaning the defrosting tray of the AD40.

WARNING! Damage to health from dust!

Only clean the dehumidifier with compressed air in open spaces.
Wear a protective mask and goggles.

ATTENTION! Damage to property!

Cleaning agents can damage surfaces. Only use mild detergents.
- Only use approved original spare parts.

Cleaning and inspection

Procedure

1. Switch off the dehumidifier.
2. Unplug the mains plug.
3. Remove and clean the air filter (e.g. with vacuum cleaner) or replace it.
4. Check the discharge nozzle and discharge hose, if connected.

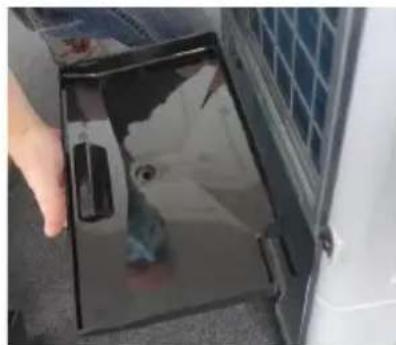

5. AD 740 only: Pull out the drip tray slightly and wipe with a cloth.

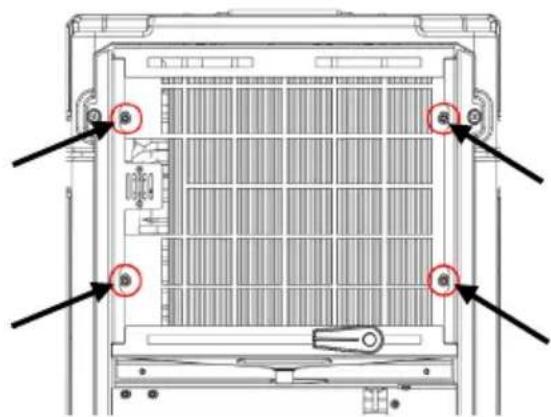

1. AD 40 only: Remove the filter holder. To do this, undo the four marked screws with a suitable screwdriver and remove the filter holder.

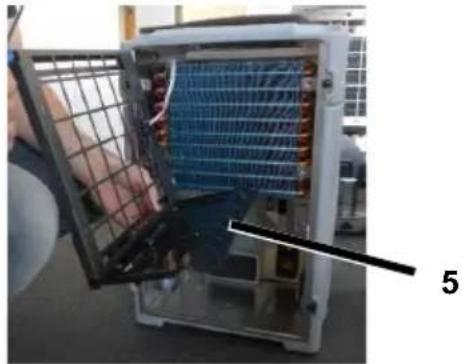

1. Nur AD 40: The drip tray is on the filter cover (item 5). Wipe the drip tray with a cloth.

1. Insert/push in the drip tray again and fit the filter cover again if necessary.

Insert a new or clean filter. Only use an original filter. Make sure that the notch (item 6) is facing up.

1. Plug in the mains cable.

2. Switch on the dehumidifier if necessary.

Spare parts and customer service

If you have any questions about the dehumidifier or require spare parts, contact your authorised dealer or AERIAL Service.

12 Troubleshooting

Please check the following points in the event of a fault. If necessary contact AERIAL Service.

WARNING! Poisoning from refrigerant, burns, crushing or electrocution during maintenance work!

• Only allow the manufacturer or authorised personnel to carry out repairs and maintenance work.
  In the event of malfunctions, switch off the dehumidifier and secure it so that it cannot be switched back on again.
  Allow any hot components to cool sufficiently before working on them.

Error messages

Display message	Possible cause	Remedial action
Error E1 <Room temp>	Outside temperature < 1 °C or > 34°C	Appliance will automatically re-start as soon as the temperature is > 5 °C or< 30 °C.
Error E2 <cooling system>	Cooling system fault Check filter and clean/replace if necessary. Check air intake area and air outlet. Both must be freely accessible.
	Faulty refrigeration circuit	Contact AERIAL Service.

Faults

Problem	Possible cause	Remedial action
The dehumidifier is not performing well/removing moisture.	Air filter is dirty. The dehumidifier is not getting enough air. Dirty filters can damage the appliance in the long term.	Clean the filter or replace if necessary.
The dehumidifier is out of operation / fan and compressor are not working.	Dehumidifier is switched off.	Switch on the dehumidifier.
	There is no power supply to the dehumidifier.	Check the power supply.
“Basin full” illuminates even though the basin is empty.	Basin not inserted correctly.	Insert basin correctly.
Pump fault. Pump is blocked, e.g. water cannot drain out of the discharge hose/basin.	Check the discharge hose/basin, if connected.
Pump faulty. Contact AERIAL Service.

13 Decommissioning, storage and disposal

Decommissioning

Procedure

1. Switch off the dehumidifier.
2. Empty the basin.
3. Unplug the mains plug.
4. Cover the dehumidifier with a cloth to protect it from dust.

Secure the dehumidifiers to prevent them from tipping over or falling, e.g. using tension belts.

Procedure

1. Store the dehumidifier between 0^ and +40^ .

Storage

WARNING! Injury!

Do not stack more than two dehumidifiers on top of each other. Make sure that the feet of the top appliance are in the notches of the bottom appliance.

Disposal

ATTENTION! Risk from materials and substances

Sort materials according to type and recycle in accordance with local regulations.
When disposing of auxiliary and operating materials, observe the local regulations and information on the safety data sheets.

Do not dispose of the dehumidifier as household waste but rather in accordance with the legal regulations.

14 EC Declaration of Conformity

EC Declaration of Conformity in accordance with Machinery Directive 2006/42/EC Appendix II 1.A

Functional description: The dehumidifier is used to remove humidity from air where there is atmospheric pressure in closed rooms.

We hereby confirm that the product complies with the relevant provisions of the following directives:

2006/42/EC Machinery directive
2014/ 30/EU Directive on electromagnetic compatibility (EMC)

The following harmonised standards have been applied:

EN 60335-2-40:2003
EN 60335-1:2012
EN 60204-1:2018
EN 378-2:2016
EN ISO 12100:2010
EN ISO 13857:2008
EN ISO 14120:2015

Person authorised to compile the technical documentation: Manfred Föhlisch - Oststraße 148 - 22844 Norderstedt

Norderstedt, 30/11/2020

III. FI-Kayttöohje

9 Transport et raccordement

Transport

Rengoring oginspection

Fremgangsmäde

WAARSCHUWING! Letse!!
