USER MANUAL ZVC400 Yealink
English| 简体中文 |DEUTSCH|FRANÇAIS|ESPAÑOL (V1.1)
CONTENT
English....1
简体中文....11
Deutsh 21
Français....31
Español 41
Declaration of Conformity....53
1 Package Contents
AVHub
7.5 m Ethernet Cable Bracke2.5 m USB Cable
Velcro(x2)
Power Adapter
Cable Ties(x5)
Screw (x8) Mounting ears (x2) Quick Start Guide
We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in poor performance.

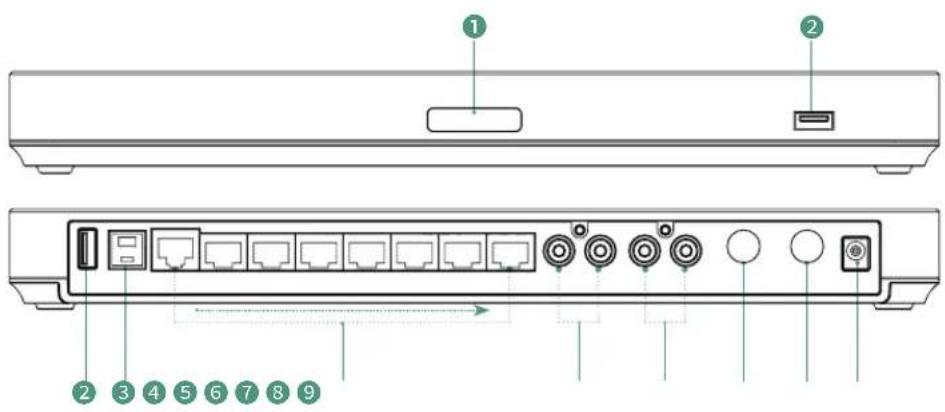

2 Hardware Interface Instructions
① LED Indicator: different status of the AVHub.
② USB-A Port
③ USB-B Port
④ VC Hub/Camera Port
⑤ RCA In: connect to an audio input device via a RCA cable.
⑥ RCA Out: connect to an audio output device via a RCA cable.
⑦ 6.3m Line in
8 6.3m Line out
9 DC48V: connect to the power adapter.
3 LED Indicator Instructions
- Connect to the MVC Endpoint
| LED Status | Description |
| LED indicator off | The AVHub is in a power-off. |
| Solid red | The AVHub is in sleep status.The PC is not connected after the AVHub is powered on. |
| Fast flashing red | The AVHub is restored to factory settings. |
| Solid orange | The AVHub is powering on. |
| Fast flashing orange | The firmware of AVHub is under update. |
| Solid green | The AVHub is working. |
- Connect to the VCS Endpoint
| LED Status | Description |
| LED indicator off | The AVHub is in a power-off or shutdown status. |
| Solid red | The AVHub is in a screensaver or sleep status.After the AVHub is powered on, the VCS endpoint or PC is not connected. |
| Fast flashing red | The AVHub is restored to factory settings.The firmware of AVHub is under update. |
| Solid green | The AVHub is working. |
| Fast flashing green | Adjusting the volume or muting the AVHub device |
| Solid orange | The AVHub is powering on. |
4 Applicable Devices
Applicable endpoint: VCS series endpoint/MVC series endpoint
Applicable accessories: VCM34/VCM36/VCM38/UVC84/UVC86/MSpeaker II/VCC22
If you want to know more about the VCM34, please refer to the VCM34 Quick Start Guide.
If you want to know more about the UVC86, please refer to the UVC86 Quick Start Guide.
If you want to know more about the VCM38, please refer to the VCM38 Quick Start Guide.
If you want to know more about the UVC84, please refer to the UVC84 Quick Start Guide.
If you want to know more about the MSpeaker II, please refer to the MSpeaker II Quick Start Guide.
5 AVHub Installation

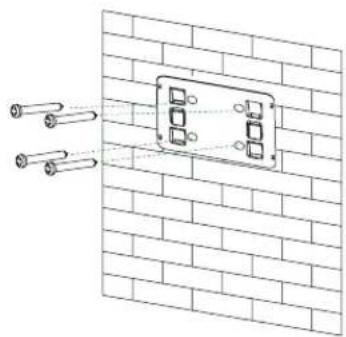

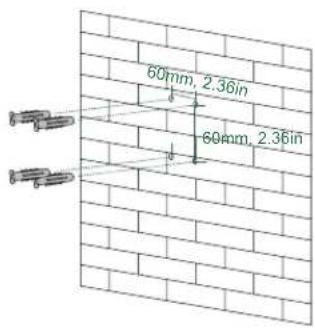

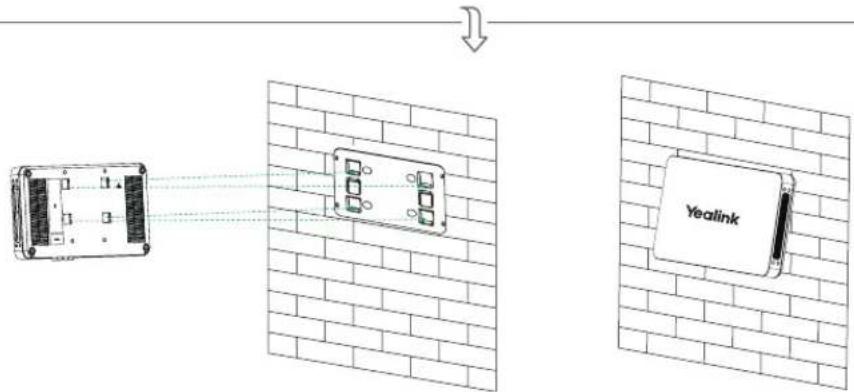

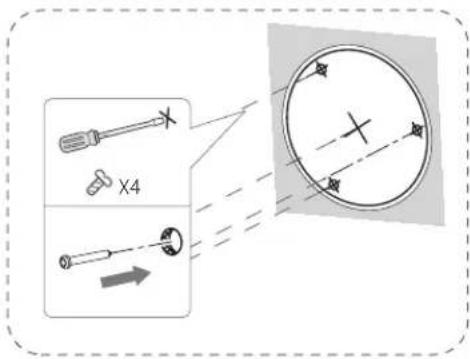

- Mount on the Wall


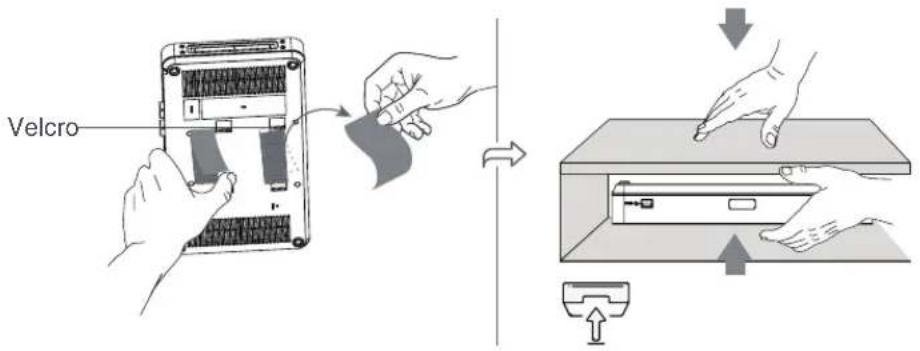

- Stick under the Table

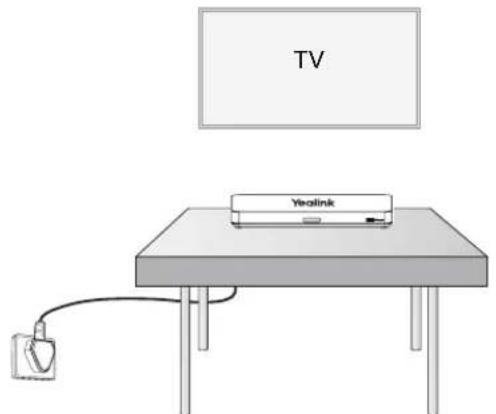

- Put on the Desk

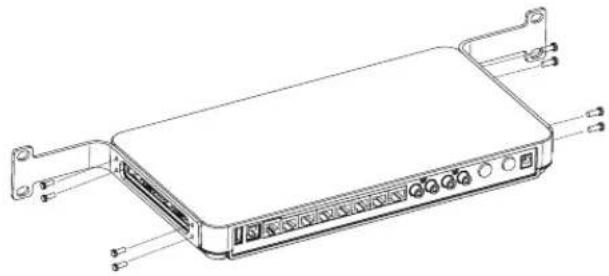

- Mount on the Rack
① Install the mounting ears on both sides of the AVHub.


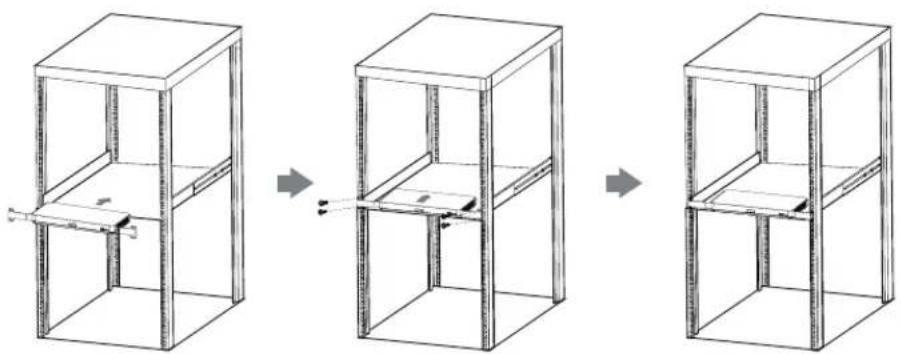

② Push the AVHub into the rack, and then fix it to the rack with screws.
The rack in which the AVHub will be placed must be a 19-inch Rack compliant with IEC 60297. The Package Contents do not include screws.
6 Endpoint Connection
AVHub has two types of connection, you can choose to connect in VCS endpoint or USB endpoint according to your needs.

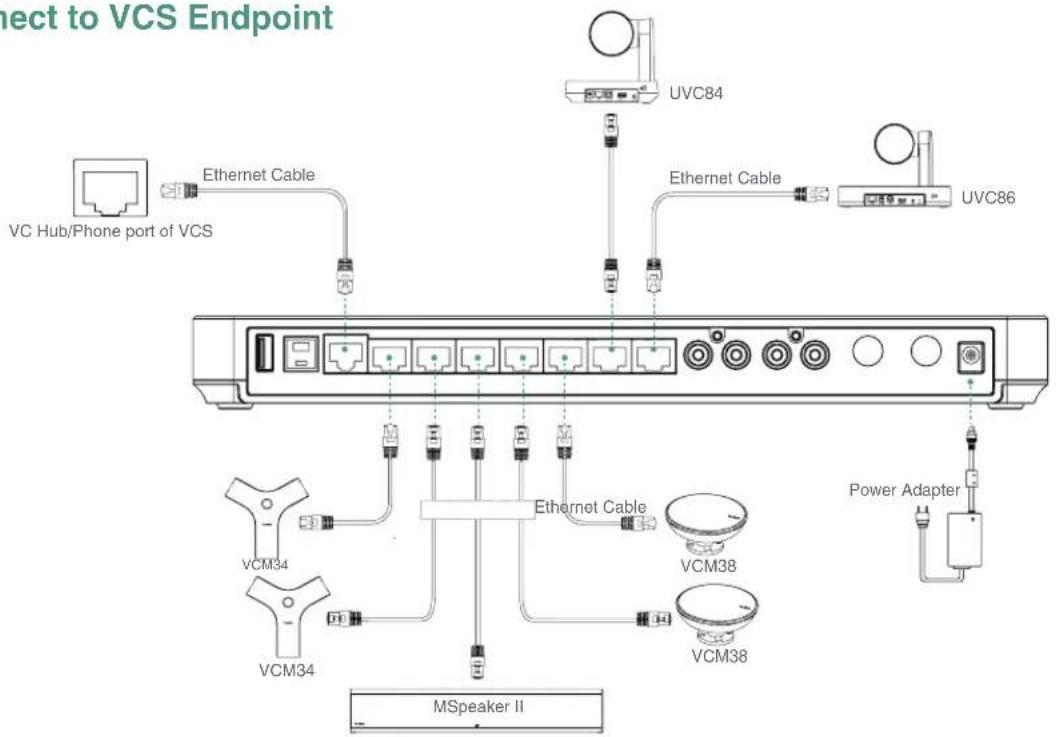

- Connect to VCS Endpoint
- Connect to MVC Endpoint
When you connect the UVC84/UVC86/MSpeaker II directly to the AVhub, the total number of connections must be no more than 4 devices. If the total number of connections exceeds 4 devices, you need to connect a PoE switch, and other interfaces can be connected to wired microphones.

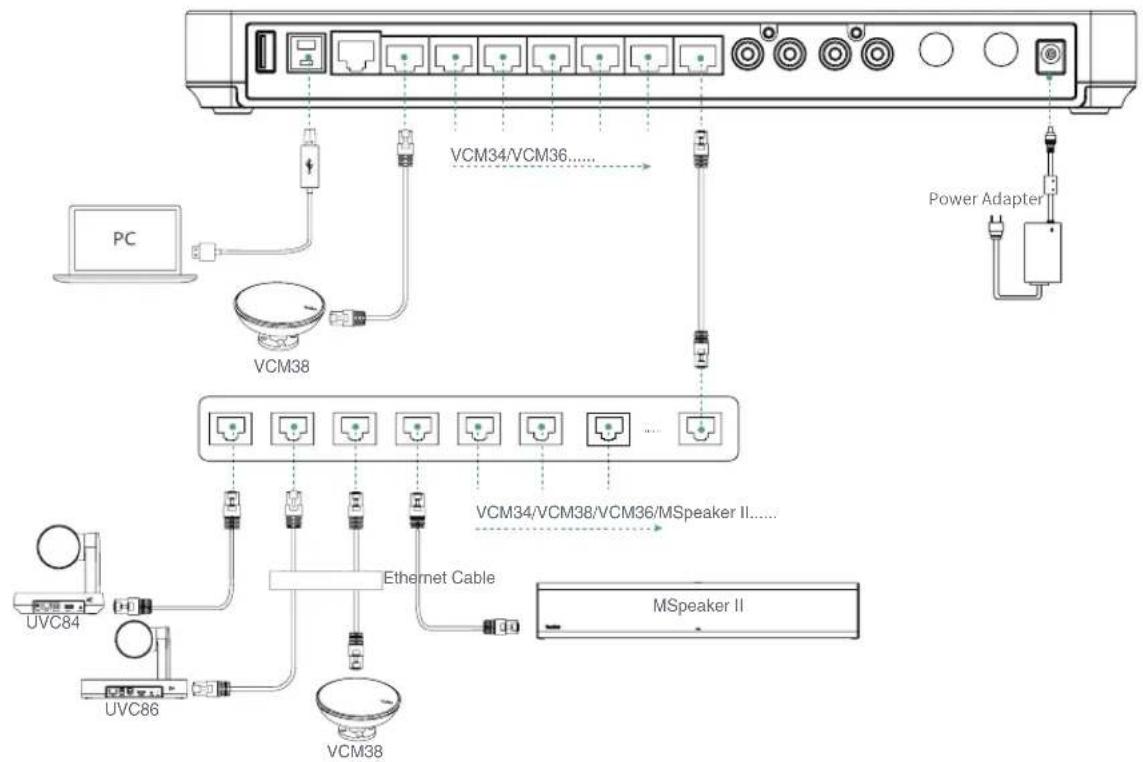

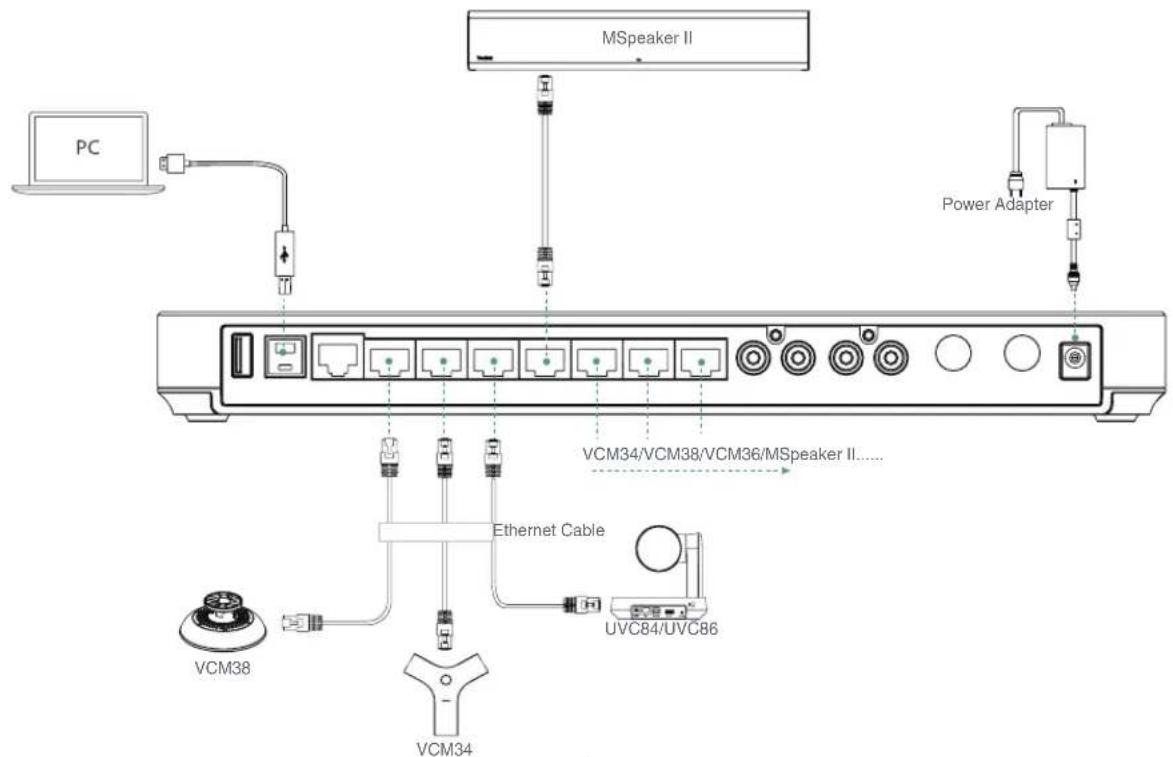

- Connect to MVC Endpoint
If you need more VCH ports of AVHub, you can connect the AVHub via a PoE switch.
1 包装清单
AVHub
7.5 m 以太网线
2.5 m USB 线
挂架
魔术贴 (x2)
电源适配器
包装清单中不附送螺丝。
We,
YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD
Address: 309, 3rd Floor, No.16, Yun Ding North Road,
Huli District, Xiamen City, Fujian, P.R. China
Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD
Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China
DATE: 10th /November/2021
declare that the product
Type: Conferencing Audio & Video Hub
Model: Conferencing Audio & Video Hub
meets the essential requirements and other relevant provisions according to the following EC directive
Directive: 2014/30/EU, 2014/35/EU, RED 2014/53/EU
Conformity
The product complies with the following standards:
Safety : EN 62368-1:2014+A11:2017
EMC : EN 55032:2015
EN 55035:2017
EN61000-3-2: 2014
EN61000-3-3: 2013
Radio : ETSI EN 301 489-1 V2.2.3,
ETSI EN 301 489-3 V2.1.1,
ETSI EN 301 489-17 V3.2.2,
ETSI EN 300 328 V2.2.3
ETSI EN 301 893 V2.1.1
EN 300 440 V2.2.1
Health : EN 62311:2008 EN62479:2010
Directive 2011/65/EU et (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS2.0)
Directive 2012/19/EU of the European Parliament and of the Council of 4.July.2012 on Waste electrical and electronic equipment(WEEE)
Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18.December.2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)
NAME: Huahu Wang
DATE: 10th /November/2021
TITLE: Manager
WangHuahu
Regulatory Notices
Operating Ambient Temperatures
- Operating temperature: +14 to 122°F (-10 to 50°C)
• Relative humidity: 5% to 90%, noncondensing
- Storage temperature: -22 lg +160°F (-30 lg +70°C)
Warranty
Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.
DC symbol
is the DC voltage symbol.
Restriction of Hazardous Substances Directive (RoHS)
This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting support@vpalink.com.
Safety Instructions
Save these instructions. Read these safety instructions before use!
The following basic safety precautions should always be followed to reduce risk of fire, electrical shock, and other personal injury.
General Requirements
- Before you install and use the device, read the safety instructions carefully and observe the situation during operation.
- During the process of storage, transportation, and operation, please always keep the device dry and clean.
- During the process of storage, transportation, and operation, please avoid collision and crash of the device
- Please attempt not to dismantle the device by yourself. In case of any discrepancy, please contact the appointed
maintenance center for repair.
- Without prior written consent, no organization or individual is permitted to make any change to the structure or the safety
design of the device. Yealink is under no circumstance liable to consequences or legal issues caused by such changes.
- Please refer to the relevant laws and statutes while using the device. Legal rights of others should be respected as well.
Environmental Requirements
- Place the device at a well-ventilated plane. Do not expose the device under direct sunlight
- Piece the device at a non-ventilated p
- Kose the device dry and free of dusts
- Place the device on a staple and level platform.
- Please place no heavy objects on the device in case of damages and deformation caused by the heavy load.
- Keep at least 10 cm between the device and the closest object for heat dissipation
- Do not place the device on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
- Keep the device away from any heat source or bare fire, such as a candle or an electric heater.
- Keep the device away from any household appliance with strong magnetic field or electromagnetic field, such as a
microwave oven or a refrigerator.
Operating Requirements
- Do not let a child operate the device without guidance.
- Do not let a child play with the device or any accessory in case of accidental swallowing.
- Please use the accessories provided or authorized by the manufacturer only.
• The power supply of the device shall meet the requirements of the input voltage of the device. Please usethe provided
surge protection power socket only.
- Before plugging or unplugging any cable, make sure that your hands are completely dry.
- Do not spill liquid of any kind on the product or use the equipment near water, for example, near a bathtub washbow.
kitchen sink, wet basement or near a swimming pool.
- Do not tread on, pull, or over-bend any cable in case of malfunction of the device.
- During a thunderstorm, stop using the device and disconnect it from the power supply. Unplug the power plug and the
Asymmetric Digital Subscriber Line (ADSL) twisted pair (the radio frequency cable) to avoid lightning strike
- If the device is left unused for a rather long time, disconnect it from the power supply and unplug the power plug.
- When there is smoke emitted from the device, or some abnormal noise or smell, disconnect the device from the power supply.
and unplug the power plug immediately. Contact the specified maintenance center for repair.
- Do not insert any object into equipment slots that is not part of the product or auxiliary product.
• Before connecting a cable, connect the grounding cable of the device first. Do not disconnect the grounding cable until you
disconnect all other cables.
Cleaning Requirements
- Before cleaning the device, stop using it and disconnect it from the power supply.
- Use a piece of soft, dry and anti-static cloth to clean the device.
- Keep the power plug clean and dry. Using a dirty or wet power plug may lead to electric shock or other penis.
ENVIRONMENTAL RECYCLING
Never dispose of the device with domestic waste
Ask your Town Council about how to dispose of it in an environmentally friendly way. The cardboard box, plastic packaging and player components may be recycled in accordance with prevailing recycling regulations in your country.
Always adhere to prevailing regulations
Those who fail to do so may be fined or prosecuted in accordance with the law. The crossed out garbage can that appears on the device means that when it has reached the end of its useful life, it should be taken to a special waste disposal centre and treated separately to general urban waste.
Troubleshooting
The unit cannot supply power to Ysalink device.
There is a bad connection with the plug.
-
Clean the plug with a dry cloth.
-
Connect it to another wall outlet
The usage environment is out of operating temperature range.
- Use in the operating temperature range
The cable between the unit and the Yealink device is connected incorrectly.
- Connect the cable correctly.
You cannot connect the cable properly.
-
You may have connected a wrong yearlink device
-
Use the correct power supply
some dust, etc., may be in the pan.
1. Clean the port
- Clean the port.
Contact your dealer or authorized service facility for any further questions.
Contact your: Dealer of authorized service liability for any further questions. Contact Information
XELINK NETWORK
TEALINK NETWORK TECHNOLOGY CO., LTD.
Sub, 3rd Floor, No.16, Yunn Ding North Road, Hull District, Xiamen City, Fujian, P.H.C.
Stravisciplano 3127, Asium Building, 8th floor, 10777X Amsterdam, The Netherlands
YEA LINK (USA) NETWORK TECHNOLOGY CO., LTD
TEALINK (USA) NETWORK TECHNOLOGY CO., LTD.
999 Beaching Street Suite 2300, Fulton, Atlanta, GA 20209, USA
Made in China
Sicherheitshinweise
The following table provides the information in English:
-
Utiliez l'annueil duur en plano de température de l'actionnement
-
A small, large, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, small, smaller than 0.5 million dollars;
Le cable entre l'appare en 61 de dispositif Téadink est, tel branche.
- Branchez la cable correctement.
309, 5th Floor, No. 16, Run Ding North Road, Hull District, Xiamen City, Fujian, Chine
YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.
Strawinskysan 3127. Atrium Building, 6th floor, 1077ZX Amsterdam, Pave-Bas
YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.
999 Peschtree Street Suite 2300 Fulton Atlanta, GA 37309 Etats-Unis
Echagut on China
Tablique et online
309, 3rd Floor, No.16, Yun Ding North Road, Hui District, Xiamen City, Fujian, Repubblica Pocolare cinese
YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.
Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Passi Bassi
YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.
999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA
Made in China
430104001928
YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD.
Web: www.yealink.com
Copyright©2021 YEALINK(XIAMEN) NETWORK
TECHNOLOGY CO., LTD. All rights reserved.
ESPAÑOL
