Product type	Cordless stick vacuum cleaner
Brand	Taurus
Model	Ultimate Go
Approximate weight	2.5 kg
Dimensions (approx.)	115 x 25 x 20 cm (with tube)
Battery type	Rechargeable lithium-ion
Charging time	Approximately 4 to 5 hours (first charge: 6 hours)
Runtime	Not specified, approximately 20-30 min (estimate)
Power supply	Mains charger 100-240 V, 50/60 Hz
Dust tank capacity	0.5 L (estimate)
Filter type	Washable motor filter
Filter cleaning	Every 50 hours of use
Included accessories	Crevice tool and brush for furniture, extra-long crevice tool, small turbo brush (depending on model), telescopic tube, motorized brush, wall mount
Main functions	Dry vacuuming, electronic speed adjustment, handheld or tube use
Safety	Do not vacuum liquids, do not use without filter, avoid short circuit, max temperature 40°C
Maintenance	Empty the tank regularly, clean filter and brushes
Spare parts available	Filters, brushes, batteries (replacement at end of life)
Repairability	Batteries removable by user (after full discharge), other parts by authorized service
Warranty	In accordance with current legislation, contact authorized technical service

Frequently Asked Questions - Ultimate Go TAURUS

How to charge the battery for the first time?

Before first use, fully charge the battery for approximately 6 hours. Plug the charger into the mains, then connect it to the device socket. The indicator shows charging in progress.

How long does it take to fully recharge the battery?

Normal charging time is approximately 4 to 5 hours. Do not exceed this time to avoid overcharging.

How to empty the dust tank?

Open the dust tank cover, empty its contents into a trash bin, then close the cover. Do this when the tank is full or if suction power decreases.

How often should I clean the filter?

It is recommended to clean or replace the motor filter every 50 hours of use. Check its condition regularly.

How to remove and clean the motorized brush?

For brush (C), turn the rotary button under the head to the left to unlock it, remove it, clean it, then reassemble in reverse order. For brush (D) Fuzzy, do the same on the side.

Can I use the vacuum while it is plugged in?

No, do not use the appliance while it is connected to the charger. Use it only on battery.

What to do if the vacuum loses suction power?

Check that the dust tank is not full and the filter is not clogged. Clean or replace the filter if necessary. Make sure the brushes are not obstructed.

How to remove the batteries at end of life from the appliance?

Fully discharge the batteries, unplug the appliance. Open the top housing with a screwdriver, remove the fixing screws, then safely take out the battery.

What accessories are available for this vacuum?

Accessories include a crevice tool brush for furniture, an extra-long crevice tool, a small Turbo brush (for pets), a telescopic tube, a standard motorized brush, and a Fuzzy brush (depending on model).

Where can I find after-sales service or spare parts?

Contact your retailer or an authorized service center. Visit http://taurus-home.com/ to find the nearest center and download the manual.

USER MANUAL Ultimate Go TAURUS

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Aspirador vertical

Aspirador escombra

Steelstofzuiger

Szczotka odkurzacz

Ηλεκτρική σκούπα

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Fig.1

Line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Fig.2

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Fig.5 Fig.6B Fig.7

Technical line drawing of a mechanical device with internal components and a close-up view showing a directional arrow (no text or symbols)

Line drawing of a mechanical device with a screwdriver and cylindrical body (no text or symbols)

Español

Aspirador vertical

Ultimate go

Ultimate digital

Ultimate go animal

Ultimate digital fuzzy

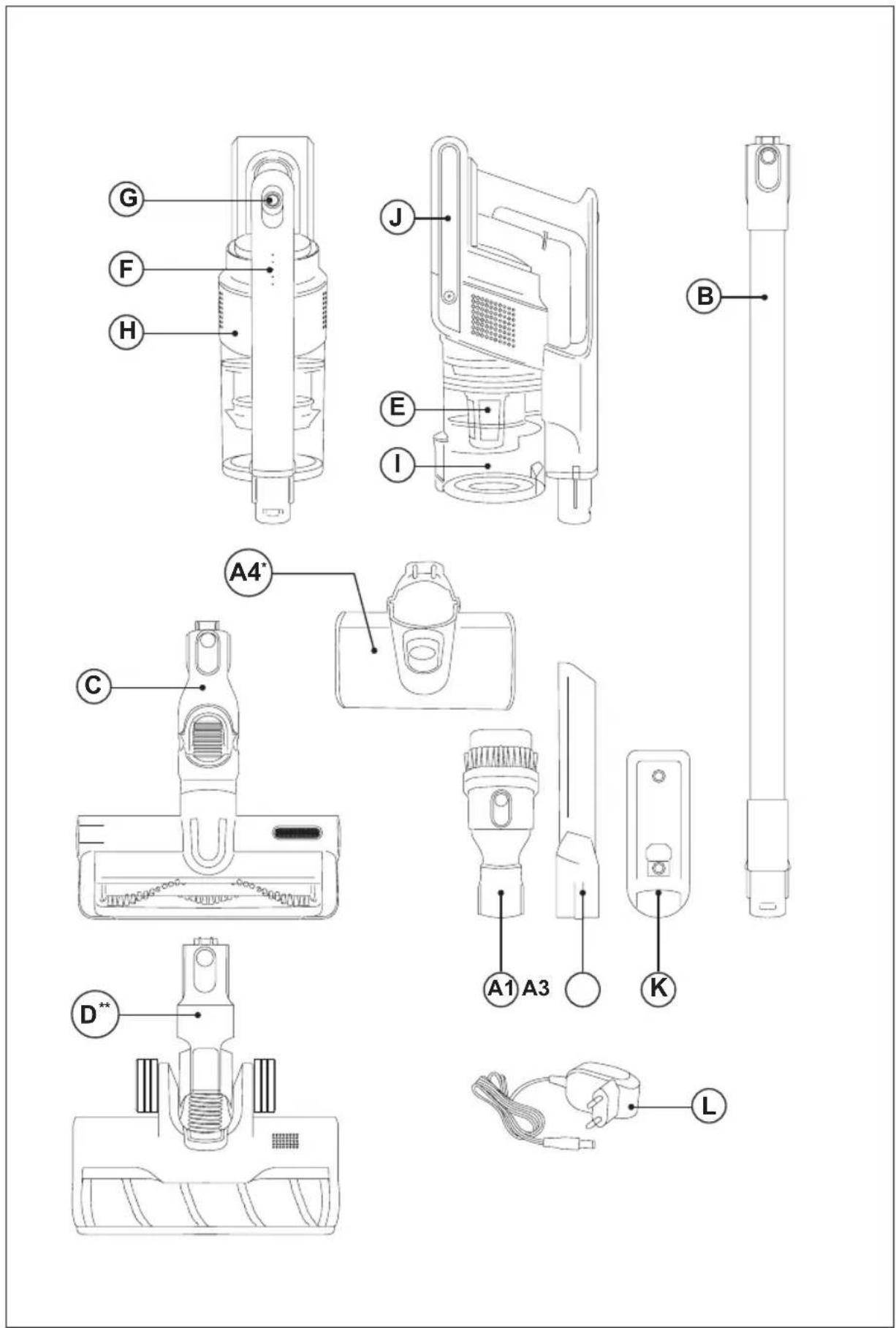

DESCRIPCIÓN

A Accesorios:

A1 Lance and multiuse brush

A3 Extralong lance

A4 Small Turbo brush (*)

B Extension tube

C Motorized turbobrush

D Motorized turbobrush Fuzzy (**)

E Filter

F Battery indicator

G ON/OFF button

H Body

I Dust tank

J Lithium batteries

K Wall bracket

L Power supply

(*) Only available in the model Ultimate Go Animal

(**) Only available in the model Ultimate Digital Fuzzy

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

- Do not use the appliance without its filter(s) correctly in place.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance to gather up water or any other liquid.

- Do not use the appliance if the on/off switch does not work.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Do not work on areas where there are metal objects, such as nails and/or screws.

- Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).

- Do not open the battery/ies under any circumstances whatsoever.

- The battery/ies should be stored at a temperature of below 40^ C.

- Only use the appliance for carrying out dry tasks.

- Do not use the appliance on any part of the body of a person or animal.

- Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one type of battery may cause explosion or fire hazard when used with other battery/ies.

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

ASSEMBLING THE WALL BRACKET:

- The appliance has a wall bracket (K) which must be fixed to the wall.

- Fix the wall bracket as you think appropriate, using plugs, screws, and adhesive...

- Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.

- Fit the appliance into the wall support.

CHARGING THE BATTERY

- Caution: A new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

- Charge the battery at an atmospheric temperature of between 4 and 40°C.

- Plug the charger (L) into the mains.

- A pilot light will come on to indicate that the charger is ready to begin charging the battery.

- Approximately 4 to 5 hours are needed for a

complete charge of the battery. Never attempt to over-charge the battery (although it is recommended that the first charge of the battery be of 6 hours in duration).

• Insert the battery into the charger.
• Connect the charger (L) to the jack using the socket on the appliance. The socket is located at the lower/back part of the appliance.
• The pilot light will come on to indicate that the charger is charging the battery.
• At the end of the time period specified above, remove the battery from the charger.
• When the battery is charged disconnect the charger from the mains supply.
• NB: Do not use the appliance while it is connected to the charger.

HOW TO CHECK THE BATTERY'S CHARGE LEVEL:

• Press the ON/OFF button in order to see the battery indicator lights.
• If no pilot light lights up, this means that the battery is completely flat.
• NB: For a long battery life, it is advisable to charge the battery, only, when it has run out completely.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that product's packaging has been removed.
• Before using this product for the first time, it is important to make a full charge of batteries.
• Prepare the appliance according to the function you wish to use:

VACUUMING FUNCTION:

USE:

• Turn the appliance on, by using the on/off button.
• Select the desired speed.

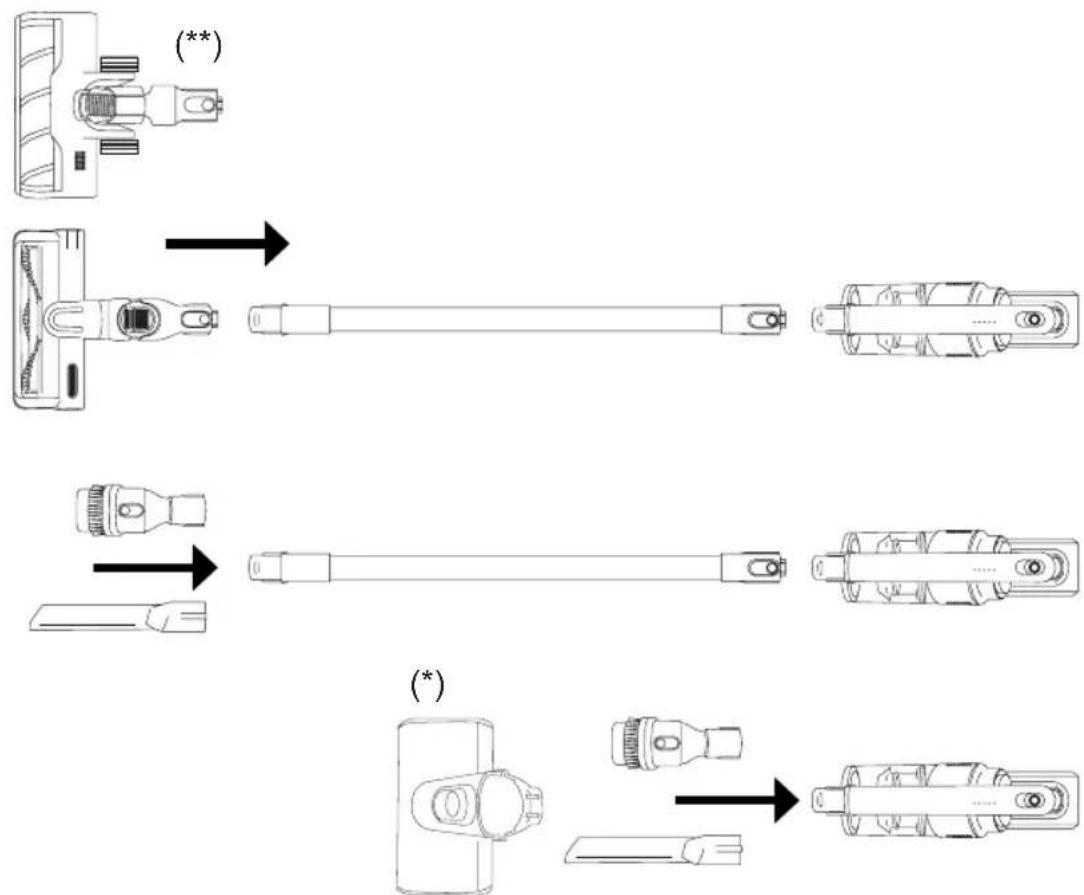

FITTING AN ACCESSORY TO THE HAND VACUUM:

• The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.1).
• Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.

Crevice nozzle: Specially designed for getting into cracks and difficult corners.

- Small Turbo brush: Special motorized brush to remove the hair of pets in upholstery.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button.
• Clean the appliance.

CLEANING

• Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

• Empty the dust box when it is full (observation facilitated by transparent windows), or when vacuuming power is notably reduced.

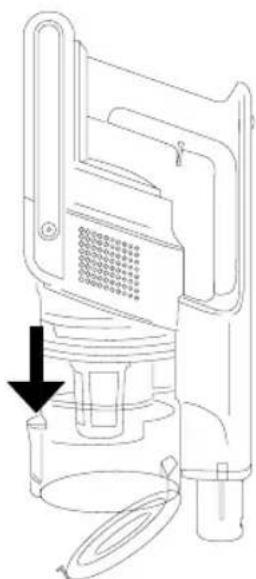

• Disconnect the accessories from the vacuum cleaners air intake. (Fig.2).
• Open the lid of the dust box and empty the contents into the appropriate waste disposal receptacle.
• Close the lid of the dust box.

CHANGING THE FILTERS:

- Motor filter, it is advisable to be changed at least once a year or every 100 hours of the appliance's use.

TO REMOVE THE FILTERS:

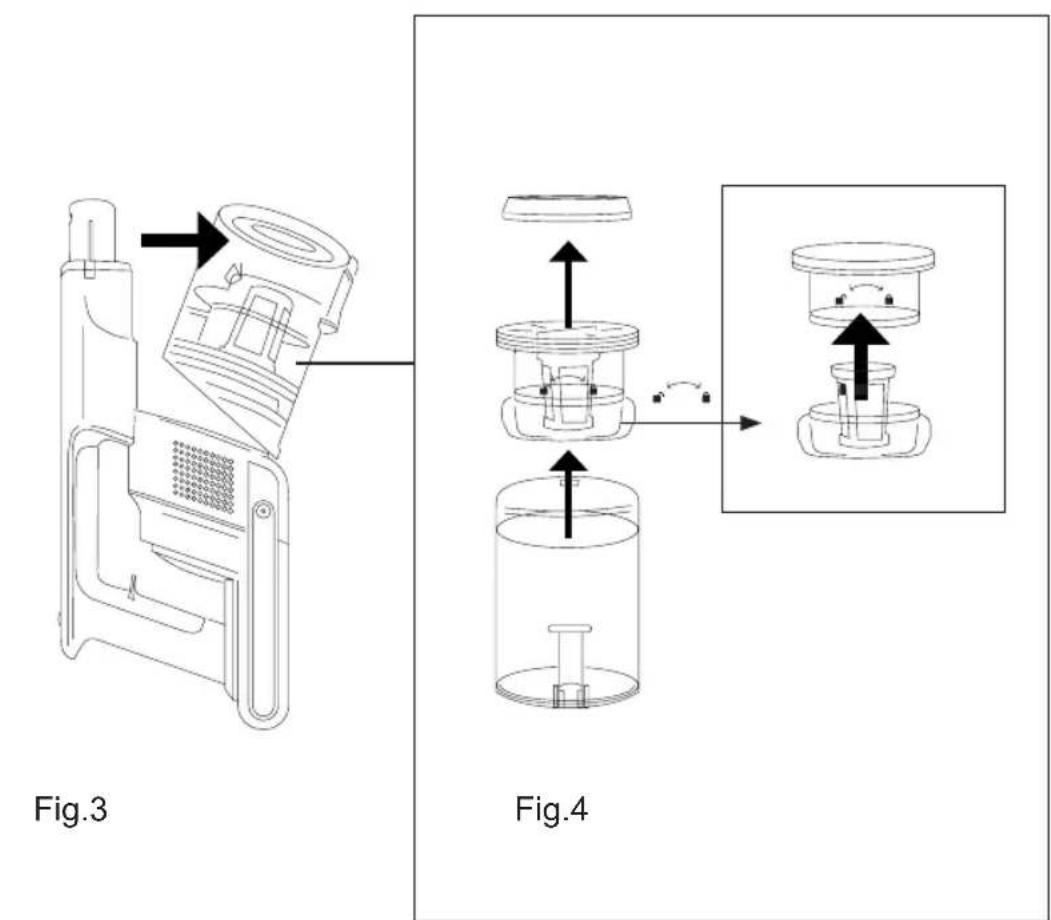

• Remove the dust tank pulling out without pressing any button. (Fig.3)
• Remove the filter from its housing (Fig.4).
• To reassemble the filter, proceed with the above instructions, in reverse order.

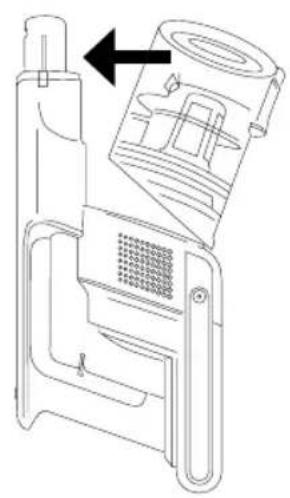

• Engage the dust tank in the vacuum cleaner. (Fig.5)

CLEANING THE ROTARY BRUSH:(C)

• To remove the brush:
• Turn the rotating button on the bottom of the

fitting to the left in order to release the brush. (Fig.6A).

• Remove the brush and clean.
• To reassemble, follow the above instructions but in reverse.

CLEANING THE ROTARY BRUSH:(D\*\*)

• To remove the brush:

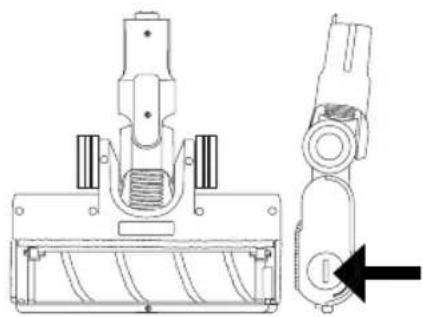

• Turn the rotating button on the side of the fitting to the left in order to release the brush. (Fig.6B).
• Remove the brush and clean.
• To reassemble, follow the above instructions but in reverse.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc...) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.
• These supplies are available in specialist shops.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

• CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.
• CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

• Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws (Fig.7).
• Safely remove the battery from its housing.

Français

Aspirateur vertical

Ultimate go

Ultimate digital

Ultimate go animal

Ultimate digital fuzzy

DESCRIPTION

A Accessoires

(**) Only available in the model Ultimate Digital Fuzzy

ELEKTRISCHE SNELHEIDSCONTROLE:

J Akumulatory litowe

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110
