Product Type	Aroma Diffuser
Brand	Oregon Scientific
Model	Glaze HWI0006
Dimensions	85 (W) x 167 (D) x 85 (H) mm
Weight	Approx. 490 g (without USB cable)
Water tank capacity	Approx. 80 ml
Mist type	Ultrasonic
Power source	USB (5V, 1.0A)
Power consumption	5W
Operating modes	Continuous 1 hour, Continuous 3 hours, Intermittent 6 hours (30s on/30s off), Off
Light mode	Bright light → dim light → off
Main body materials	ABS, PP; ceramic cap
Recommended essential oils	100% pure, extracted from natural plants; 2-3 drops per 80 ml of water
USB cable length	150 cm
Operating ambient temperature	5°C ~ 40°C
Recommended ambient humidity	20% ~ 80%
Included accessories	USB cable, user manual
Tank maintenance	Clean daily with a mild detergent
Cleaning the ultrasonic plate	With a cotton swab dipped in mild detergent
Safety: avoid burns	Do not touch the ultrasonic plate during operation
Usage precautions	Keep out of reach of children; do not use synthetic oil

Frequently Asked Questions - Glaze HWI0006 OREGON SCIENTIFIC

How to use the Glaze HWI0006 diffuser?

Connect the USB cable to a 5V/1A source, remove the cover, pour 80 ml of tap water, add 2 to 3 drops of 100% natural essential oil, replace the cover and press the mist button to select the mode.

What type of essential oil to use?

Use only 100% pure essential oils extracted from natural plants. Do not use synthetic oils as they may damage the appliance.

What water to use in the tank?

Use room temperature tap water. Do not use mineral, alkaline, well, or filtered water as they promote mold growth.

Why is no mist coming out?

Check that the tank has water, the ultrasonic plate cover is properly installed, the plate is clean, and the USB power supply provides enough current (5V/1A). Remove air bubbles on the plate with a cotton swab.

How to clean the diffuser?

Turn off and unplug the appliance, empty the water, clean the tank with a mild detergent (like dish soap) and a soft cloth, and clean the ultrasonic plate with a cotton swab dipped in detergent.

What is the maximum tank capacity?

The maximum capacity is 80 ml. Do not exceed the water level indicator, otherwise mist may not form properly.

What operating modes are available?

Press the mist button to cycle through: continuous 1 hour, continuous 3 hours, intermittent 6 hours (30s on/30s off), and off.

How to adjust the light?

Press the light button to switch from bright light to dim light to off.

What to do if a strange odor is emitted?

Turn off the appliance immediately. This may be due to detergent residue in the tank or use of unsuitable water. Clean the tank thoroughly with clean water and use only tap water.

The appliance turns off by itself, is this normal?

Yes, it automatically turns off when the tank is empty. It also turns off at the end of the programmed cycle (1h, 3h, or 6h). If the water level is low, it turns off even if the timer has not elapsed.

USER MANUAL Glaze HWI0006 OREGON SCIENTIFIC

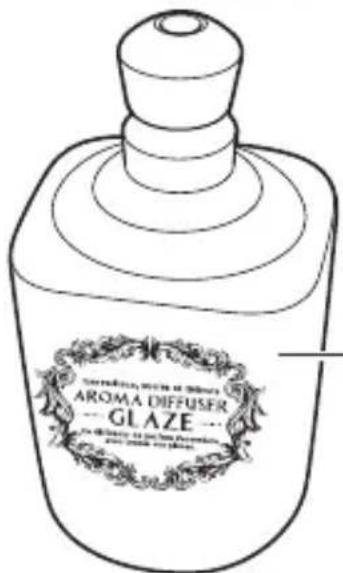

Thank you for purchasing Aroma Diffuser GLAZE. Be sure to read this manual thoroughly in order to use the product properly.

Please keep this manual for reference in the event any problems or questions arise.

Safety Precautions (Read the following precautions carefully)

● Please follow the instruction below (to ensure proper use)

To prevent injury of user and other people or damage of property, the following indications must be followed. Read the precautions carefully to ensure proper use.

Warning

This indicates precautions for which improper usage "may result in death or serious injury".

Caution

This indicates precautions for which improper usage "may result in slight injury or damage of property".

● The following symbols distinguish contents which should be avoided or followed.

Indicated "Prohibition -what must NOT do".

! Indicated "Compulsion -what must do".

WARNING

Do not touch the ultrasonic vibration plate while the product is operating. It may cause burn injury.
Keep out of reach of children or throw away the plastic packaging bags to prevent children suffocation.
Do not modify, repair or rebuild the product. It may cause fire or electric shock. Do not use the product in a way that is not described in this manual. It may cause injury or failure.
Do not step on, drop down or strongly slap on the product. Damage of product may cause fire or electric shock. Stop the power supply while any damage is found. It may cause fire and electric shock if keep using.
Do not handle the body part of the product, DC plug and USB plug with wet hands. It may cause failure, fire or electric shock.
Do not allow the body part or accessories to get wet. Do not use or keep the product in a high humid area, such as bathroom, changing room and greenhouse.

It may cause failure, fire or electric shock. When water spills out, turn off the power, stop using the product. It may cause fire or electric shock if keep using.

Place the product in somewhere out of reach and use of toddler. Unintentional injuries may be caused easily due to the collapse of the body part or imporer use.
Do not intentionally breath in the mist direct coming out from the mist outlet. It may be harmful to health. This product is not a medical respirator. Do not use this product out of purpose of aroma mist or diffusion.
Do not use detergent except kitchen detergent to clean the main body. Detergent leaving in the water tank may cause toxic gases or failure.
Unplug the USB plug (from the USB port of computer) before cleaning to avoid electric shock or injury.

Caution

Do not stab or insert any sharp, metal such as needle, pin into the product of mist outlet, air inlet and air outlet. It may cause electric shock or injury.
Do not block the mist outlet, air inlet and air outlet. Disturbance of normal operation may cause malfunction, overheating or failure.
Do not touch the body part right after the operation. Be aware of the high temperature of mist or water in the water tank.
Do not remove the ceramic cover or the lid of the water tank while the product is operating. Water and essential oil may spill out, damage the surrounding stuff and cause failure.
Exchange tap water in the water tank every day and make sure the water tank is clean. There may be water stains or mineral attachment if the water tank is not cleaned properly and may cause poor performance. Moreover, mould or bacteria may cause stingy smell and harmful to health. Be aware of allergies caused by mould and bacteria

Use tap water in room temperature. Mould or bacteria may grow easily if mineral water, alkaline-ion water, well water, or filtered water is used.
Use essential oil that is 100% extracted from plant naturally. Do not use synthetic fragrance. Add 2-3 drops of essential oil into 80mL water, do not add too much since it may cause failure.
Do not place the product near any electrical compliance such as computer, TV, piano, painted furniture and special processed wall surface. Touching or spilling of mist or water may cause failure or damage of properties.
Do not place anything on the product or place the product somewhere unstable. It may fall down and cause injury.
Drain and keep the water tank dry if water may be frozen. Ultrasonic vibration plate may be damaged if the internal structures get frozen.

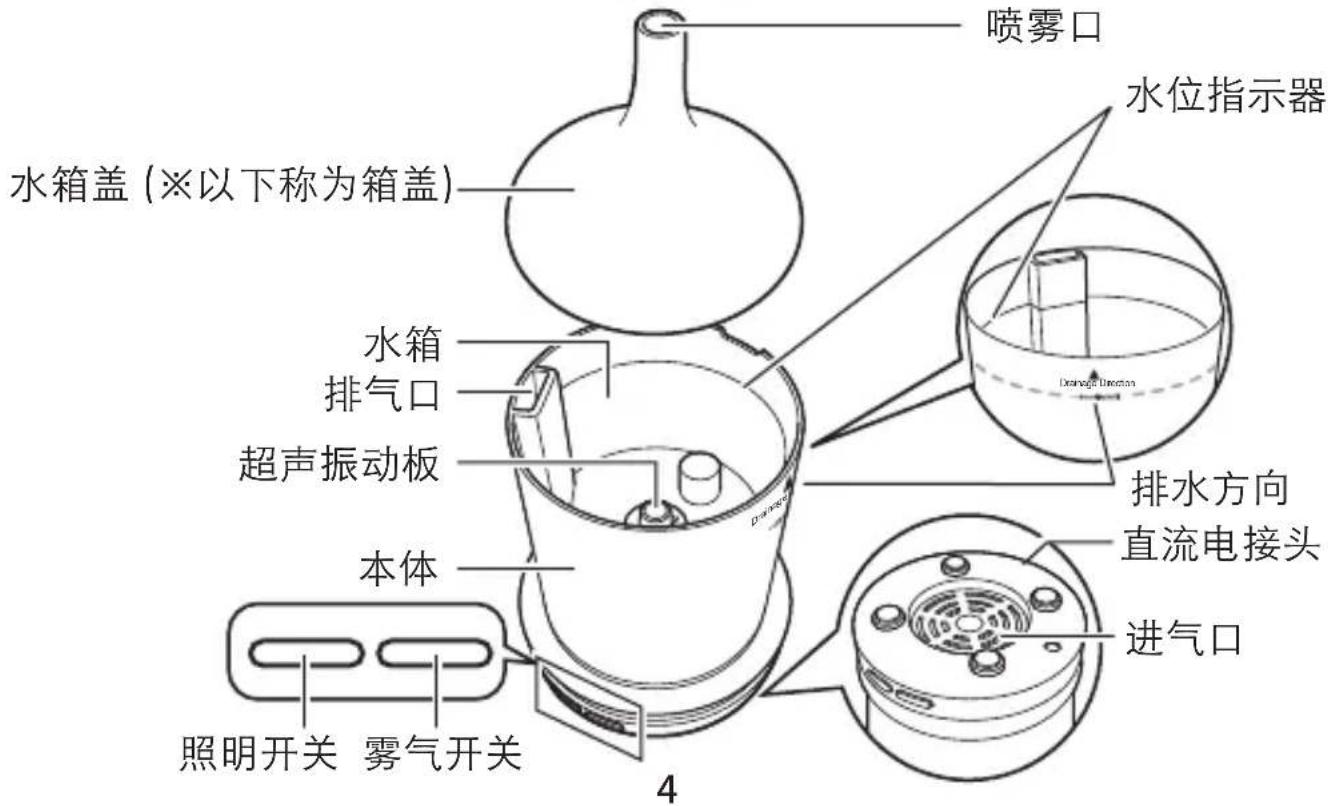

Name of parts

Accessories • USB cable USB plug DC plug Ceramic Cover (※hereinafter called cover) Mist outlet Water tank lid (※hereinafter called lid) Water level indicator Water tank Air outlet Ultrasonic Vibration Plate Drainage Direction DC jack Body part Light switch Mist switch 4

How to use

Preparation

1. Remove cover and lid When using in first time Remove the buffer material between the cover and body part.
2. Make sure ultrasonic vibration plate cover is installed

※ Mist would not generate if the ultrasonic vibration plate cover has not been installed. ※ Place the product on a stable surface

1. 《Using in USB port of computer》

Insert the supplied USB cable to USB port of computer or mobile battery and connect to DC jack on a stable surface.

※ Mist may not generate normally or power may be off depending on different computer.

• Do not connect with USB hub USB hub cannot ensure stable power supply, the product may not operate normally.
  Place the product on a stable surface which is not near the connected computer. Computer failure may be caused if it exposes to mist.
• Connect USB cable before adding water. Use USB port with 1.0A output.

cover lid

ultrasonic vibration plate cover

DC jack DC plug

1. Pour 80ml tap water into the water tank.

The volume of the water tank is 80ml, do not add water over the water level indicator.

- Mist cannot generate if water is over the water line.

Caution • Do not allow DC plug and USB cable to get wet.

※ Do not tilt the product while adding water. It may cause failure if water entered internal part via air outlet.
※ The product must be switched off when adding water. Spilling of water may cause failure.
※ Do not add water when the product is operating. High temperature vapor and water may blow out.
※ Remove the cover and lid before adding water with a container. Do not add water directly into the mist outlet without taking out the lid or place the water tank directly under the tap. Spilling of water may cause failure.
※ Do not add cold water since the mist generation would be affected.

1. Add 2-3 drops of essential oil into the water tank

Caution

• Essential oil must be added when the water tank is full (80ml).

Do not add essential oil directly onto the ultrasonic vibration plate.

- Do not add too much essential oil. It may cause failure.

※ Essential oil is sold separately. Prepare 100% extracted Natural Essential oil.

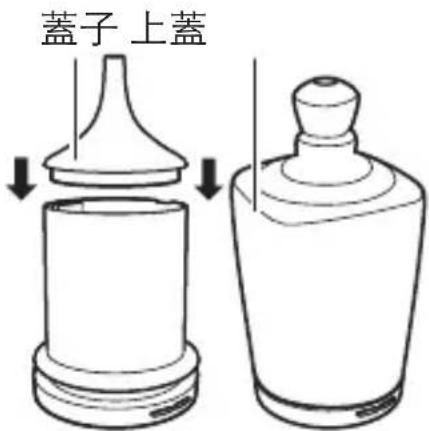

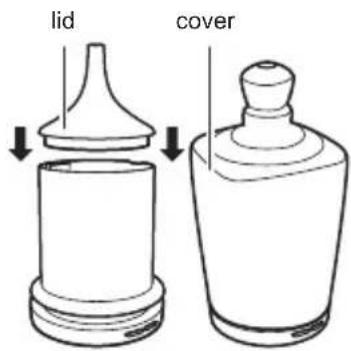

1. Return the lid and the cover to their places.

Make sure there are no gap between the body part and the lid, also between the body part and the cover.

There may be leakage between the gaps.

Water line Do not add water directly under the tap

2-3 ess

2-3 drops of essential oil

lid cover

Operation

1. Press mist switch to choose the operation mode. Press mist switch to turn on the power, the first mode is continuous 1 hour. Different operation modes would be shifted as the following rotation by pressing the mist switch.

※ Intermittent 6hrs mode: 30 seconds on/ 30 seconds off repetition. Automatically power off when no water in the water tank.

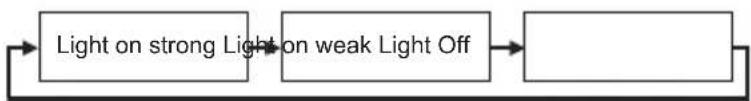

1. Press light switch to choose light mode. Press light switch to turn on the light. Different light modes would be shifted as the following rotation.

- When operating with mist function, the light would be off if mist stops automatically. - The product is able to turn on the light only without mist generation.

1. Turn off the product by pressing the mist switch and the light switch a few times.

Line drawing of a hand pump with a handle and base (no text or symbols)

Light switch Mist switch

How to drain the water tank

When finished using the product or preferring to change essential oil, pour out all the water in the water tank and clean it.

1. Turn off the power

Press light switch/mist switch to turn the power off.

1. Unplug the USB plug.

2. Remove DC plug.

Be aware of spilling out water from the tank. Do not allow water to enter the air outlet while removing the DC plug.

1. Remove the lid and cover.

2. Pour out water according to the following the Drainage direction.

Pour out water on the opposite side of the air outlet, see the picture on the right.

Caution Do not allow water to get into the air outlet.

1. Keep Cleaning

Read the instruction P.12 "Care"

1. Keep the product completely dry after using it.

Air outlet

Drainage Direction

Before Use

● The below instructions must be followed

• Do not move the product when it is operating. Before moving it, switch off and drain all the water from the water tank. Follow the Drainage Direction to pour out the water. Do not allow the air outlet to get wet when draining. When moving the product, beware to hold the body part and the cover to prevent dropping.
• Do not allow essential oil to get contact to parts other than the water tank. If essential oil is attached, wipe it off with a wet cloth immediately.
  • After the product stops automatically, do not use it for 30 mins. Overheating of the ultrasonic vibration plate may cause failure.
• Do not switch on the product if the water tank is empty. It may cause product damage, failure or water leaking.
• Do not pour water over 80ml (max. Capacity of the water tank). Mist may not be generated normally.
• If water level in the water tank is low, the product would stop automatically even timer is not finished.
  • Volume of mist may be low depending on operation environment, such as water temperature or water quality. Volume of mist would become stable after few minutes.
• It is possible that mist cannot be easily seen due to temperature, humidity or airflow, but it is not failure.
• There may be water drops inside the lid. Open it in a place that can get wet and use a towel to wipe the water drops.
• As this product is an Aroma Diffuser applying ultrasonic humidifier principle, it does not have functions as an ordinary humidifier.
• Floor, wall or furniture may get wet due to mist from the product if the room humidity is high. In this case, switch off and stop using the product.

About handling the Ultrasonic Vibration Plate Cover

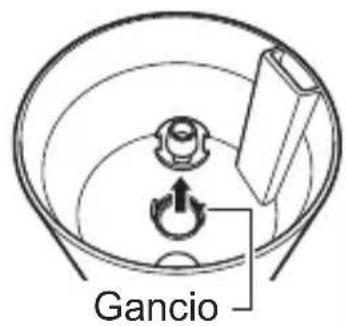

Way of taking out

Pull the Ultrasonic Vibration

Plate Cover up from the body part to take it out.

Cover of

Cover of
Ultrasonic
Vibration
Plate

Hook

Waist

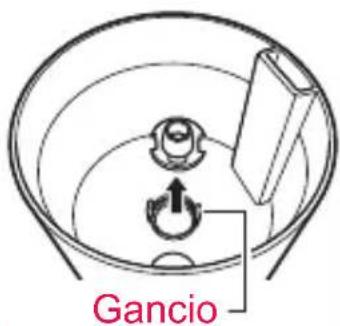

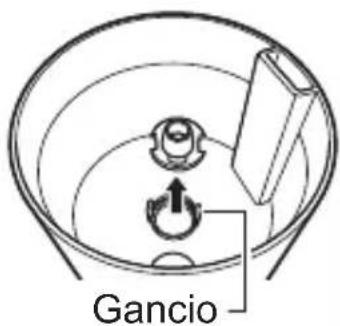

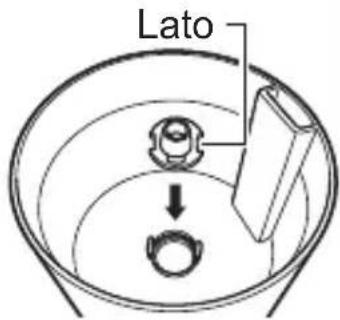

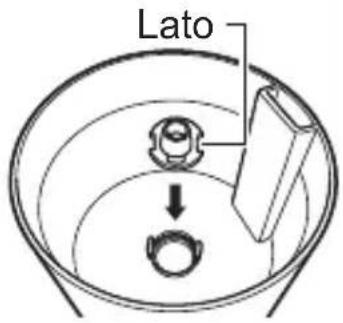

Way of installation

Match the Waist of the Ultrasonic

Vibration Plate Cover with the

Hook on the Ultrasonic Vibration

Plate to install.

Be aware of bubbles attached on the Ultrasonic Vibration Plate

Mist may not be generated if there are bubbles attached on the Ultrasonic Vibration Plate. If there are bubbles, switched off the product and take out the Ultrasonic Vibration Plate Cover. Use a cotton swab to clean up the bubbles.

Line drawing of a hand pouring liquid into a bowl (no text or symbols)

10

About the use of Essential Oil

• Use essential oil which is 100% extracted from plant naturally in this product. Do not use synthetic essential oil which contains impurity, solid. It may cause the damage to product.
• Use 2\~3 drops of essential Oil in 80ml of water. Using too much essential oil may cause failure due to oil attachment on the Ultrasonic Vibration Plate. Also, do not add essential oil into the water tank when there is no water. Essential oil may attach to the Ultrasonic Vibration Plate and case malfunction.
• Only the water tank and the lid are made of oil-tolerance material. Other parts may melt if there is essential oil contact.
  • Essential Oil may leave inside the water tank, clean the water tank every day.

Other points to be aware

• If there is smoke or burnt smell from the product, turn the power off immediately. Bring it to the store purchased for repair.
  • Unplug the DC plug after using the product. Injury may be caused by stumbling over.
• Do not put the product on any soft cushion or carpet with long fur. The air inlet may be blocked and cause failure.
  • Do not put the product near curtain. The mist outlet may be blocked.
• Do not add anything other than tap water and essential oil into the water tank. It may cause failure.
• Do not put the product in a high temperature area or near flame. It may cause failure or deformation.
  • There may be individual weight, thickness or color difference of the cover.
  • Do not drag the cover on tables. It may damage the tables.

Care

The water tank must be cleaned every day in order to extend the product life. Clean the product once a day after using it. Likely, if the product has not been used for a long period of time, clean it before using.

1. Switch off the product, remove the DC plug from the main body and drain the water tank.

Refer to P.8 "How to drain the water tank"

Caution

- Water tank must be drained according to the Drainage Direction. - Do not allow the air outlet to get wet.

1. Wipe the water tank gently with a cloth which contains mild detergent.

Mild detergent in kitchen must be used for cleaning the water tank. It is very dangerous if hydrochloric acidic, acidic or enzymatic detergent is used and left inside the water tank as toxic gas may be generated.

1. Clean the Ultrasonic Vibration Plate with a cotton swab which contains mild detergent.

If oil is attached on the Ultrasonic Vibration Plate, the product may not operate normally. Take out the Ultrasonic Vibration Plate Cover (P.10) and clean the plate carefully.

Pure mechanical diagram showing a gear and lever mechanism without any text or symbols

Ultrasonic Vibration Plate Cover

Ultrasonic Vibration Plate

1. After washing the water tank, clean up the water inside with a soft cloth and dry water tank completely.

Caution

Do not allow the air outlet to get wet when washing the water tank.

Troubleshooting

Confirm the followings before (asking for) repair.

Symptom Possible Cause Solution
No Power	Is USB cable plugging in properly?	Confirm connection of main body and concentric plug. Unplug the DC plug from the main body and re-plug it.
	Are you using a USB hub?	There may be no power supply if using a USB hub. Connect the product to a USB port of a computer (5V 1.0A).
	Is there any water in the water tank?	Add water into the water tank.
	Is there any oil attached on the Ultrasonic Vibration Plate?	Clean the Ultrasonic Vibration Plate (refer to P.12).
No mist / Mist volume is low	Does the water tank become empty?	Add water into the water tank.If water level in the water tank is low, the product would stop automatically even timer is not finished and mist also stops at the same time.
	Is the Ultrasonic Vibration Plate Cover installed?	If the Ultrasonic Vibration Plate Cover is not installed properly, mist cannot be generated.
	Is there too much water in the water tank?	If water is added over the water level indicator, mist may not generate normally. Add water according to the water level indicator.
	Is the air inlet dirty?	If there is dirt in the air inlet, mist may not be generated. Clean the air inlet regularly.
	Are you using the product on a cushion or a long fur carpet?	The air inlet may be blocked, mist would not generate and cause failure. Change the place to put the product.
	Are you using the product in a windy area?	Mist may not be seen if placing the product in an area with airflow.
	Mist may not been seen due to the environment like temperature and humidity.	If mist generates inside the water tank and the air outlet runs normally (Motor sounds can be heard), it is not failure.
	Are there any bubbles attached on the Ultrasonic Vibration Plate?	Clean up the bubbles on the Ultrasonic Vibration Plate (refer to P.10).
	Is there a layer of water in the Mist Outlet?	If the Mist Outlet gets wet, a layer of water would block it, mist may not be generated. Clean up the layer.
There is scent other than aroma oil	Are you using water other than tap water?	Do not use water other than tap water as it rots easily and may affect the scent of aroma oil. Drain the water tank and clean it up before using tap water.
	When cleaning the water tank, do you wash it thoroughly?	There may be detergent left inside the water tank. Drain the water tank and clean it up before using tap water.
Water leakage	Are the cover and the lid installed properly?	Reinstall the cover and the lid.

Product Specification

Product Name	Aroma Diffuser GLAZE
Item number	HWI0006
Aroma Generation Type	Mist Type
Dimension	85(W) x 167(H) x 85(D) mm
Weight	Approx. 490g (excluding USB cable)
Capacity of Water Tank	Approx. 80ml
Light Mode	Strong→Weak
Operation Mode	Continuous 1hr → Continuous 3hrs → Intermittent 6hrs (30sec ON/ 30sec OFF)
Power Source	USB
Fixed Power Consumption	5W
Recommended Operation Temperature	5 °C~40 °C
Recommended Operation Humidity	20%~80%
Cord Length	150cm
Material	Main Body: ABS . PP Ceramic Cover: Ceramics
Corresponding Aroma Oil	100% Pure Essential Oil (sold separately)
Accessories	USB Cable, User Manual

※ There is individual difference of dimension and weight.
※ The product specification and design may change without prior notice.

EU Declaration of Conformity

Hereby the manufacturer, Oregon Scientific, declares that the equipment type:

Aroma diffuser GLAZE (HWI0006) is in compliance with 2014/30/EU Directive. The full text of the EU Declaration of Conformity is available at the following internet address:

www.oregonscientific.com

Disposal Information for Users

Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE), and pursuant to and in accordance with Article 20 of the Directive 2013/56/EU of the European Parliament on batteries and accumulators and waste batteries.

The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.

Please note that the batteries/rechargeable batteries must be removed from the equipment before it is given as waste. To remove the batteries/accumulators refer to the specifications in the user manual. Therefore, any products that have reached the end of their useful life must be given to waste disposal centers specializing in separate collection of waste electrical and electronic equipment, or given back to the dealer when purchasing a new WEEE, pursuant to and in accordance with Article 14 as implemented in the country.

The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposal of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimizes the recycling and reuse of components making up the apparatus.

Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

Oregon SCIENTIFIC

Aroma Diffuser …… GLAZE ……

AROMA DIFFUSER - GLAZE -

Bedienungsanleitung

Line drawing of a coiled cable with connectors (no text or symbols)

USB-Stecker

Stecker

Aroma Diffiser GLAZE

Technical diagram of a laboratory apparatus with labeled components and cross-sectional views

Drainage Direction Auburne S

Ablaufrichtung

Buchse

Lufteinlass

Verwendung

Vorbereitung

Line drawing of two containers with upward arrows indicating changes (no text or symbols)

Top-down line drawing of a circular mechanical component with a central hub and a cylindrical shaft (no text or symbols)

Line drawing of a hand pouring liquid into a bowl with a spoon (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Abdeckung der

Ultraschall-Vibrationsplatte

Ultraschall-Vibrationsplatte

Line drawing of two types of kitchen appliances with arrows indicating upward motion (no text or symbols)

Top-down line drawing of a circular mechanical component with concentric layers and a central hub (no text or symbols)

Diagram of a mechanical component inside a bowl, showing a central rotating shaft and an upward arrow (no text or symbols)

Coperchio del discodisco vibrante a ultrasuoni

Gancio

Modo de instalación

Line drawing of a hand pouring liquid into a bowl with a spoon (no text or symbols)

Pure mechanical diagram showing a gear and shaft assembly without any text, numbers, or symbols

Simple line drawing of a coiled cable with connectors (no text or symbols)

Presa USB

Diagram of a laboratory apparatus with labeled components, including a flask, funnel, and container with internal components.

Drainage Direction Dinapis

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of two types of containers with upward arrows indicating changes (no text or symbols)

Simple line drawing of a bowl with a central knob and a side outlet (no text or symbols)

Line drawing of a mechanical component with a cylindrical top and two rectangular base slots (no text or symbols)

Diagram of a mechanical component with a central hub and an arrow indicating direction (no text or symbols)

Coperchio piastrina vibrante a ultrasuoni

Gancio

Lato

Come installarlo

Line drawing of a hand pouring liquid into a bowl with a spoon (no text or symbols)

Pure mechanical diagram showing a gear and shaft assembly without any text or symbols

Line drawing of two containers with upward arrows indicating motion (no text or symbols)

Simple line drawing of a circular container with a central shaft and a small cylindrical object inside (no text or symbols)

超聲波振動板蓋

USB 插頭

Line drawing of a cylindrical mechanical component with a flanged base and central slot (no text or symbols)

直流插孔
直流插頭

1. 將 80ml 自來水倒入水槽。

2 Dried Water

2 - 3滴精油

蓋子上蓋

操作

1. 按噴霧開關選擇操作模式。

Line drawing of a mechanical component with a cylindrical body and two rectangular connectors (no text or symbols)

噴霧開關燈開關

倒水方法

Diagram of a mechanical component inside a bowl, showing a rotating shaft and housing (no text or symbols)

Coperchio piastrina vibrante a ultrasuoni

Gancio

Lato

安装方法

將超聲波振動板蓋的

中部與超聲波振動板

上的掛鉤互相匹配。

注意超聲波振動板附著的氣泡

Line drawing of a hand pouring liquid into a bowl with a spoon (no text or symbols)

關於精油的使用

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a coiled cable with connectors (no text or symbols)

Fiche USB

Fiche DC

AROMA DIFFUSER GLAZE

Couvercle

céramique

(※ci-dessous

appelée

couvercle)

Sortie de brume

Couvercle du

réservoir d'eau

(※ci-dessous appelé

bouchon)

Réservoir d'eau

Sortie d'air

Plaque de vibration

ultrasonique

Corps central

Directio Directio

Direction de

vidange

Fiche secteur

Entrée d'air

4

Mode d'utilisation

Préparation

Line drawing of a mechanical component with a cylindrical top and two rectangular slots below (no text or symbols)

Line drawing of a hand pouring liquid into a bowl with a spoon (no text or symbols)

Pure mechanical diagram showing a gear and lever mechanism without any text or symbols

Line drawing of a coiled cable with connectors (no text or symbols)

USB插头

直流插头

AROMA DIFFUSER - GLAZE -

陶瓷罩

(※以下称为封罩)

Line drawing of two containers with upward arrows indicating changes (no text or symbols)

Top-down line drawing of a circular mechanical component with concentric layers and a central shaft (no text or symbols)

超声振动板罩

USB插头

Line drawing of a cylindrical mechanical component with a flanged base and central slot (no text or symbols)

直流接头
直流插头

1. 将80 ml自来水倒入水箱中。

Line drawing of a bottle with a connector to a terminal block (no text or symbols)

雾气开关照明开关

如何排空水箱

Diagram of a mechanical component inside a bowl, showing a rotating shaft and housing (no text or symbols)

Coperchio piastrina vibrante a ultrasuoni

Gancio

Lato

安装方法

Line drawing of a hand pouring liquid into a bowl with a spoon (no text or symbols)

使用精油的注意事项

Technical line drawing of a mechanical component with no visible text or symbols
