| Product type | DJ mixing table with CD and USB player |
| Brand | Vonyx |
| Model | CDJ450 |
| Power supply | 220-240 V~, 50 Hz |
| Recommended fuse | 10-16 A |
| Player type | CD, CD-R, CD-RW |
| Supported media | Audio CD, audio files via USB port |
| Built-in Bluetooth | Yes |
| Analog inputs | 2x RCA (Line/Phono), 1x 6.35 mm microphone jack, 1x XLR microphone |
| Analog outputs | 2x XLR balanced Master, 2x RCA Master, 2x RCA REC, 1x 6.35 mm headphones jack |
| DSP effects | Brake, Reverse |
| Pitch control | Continuous adjustment with Pitch Bend |
| Crossfader | Yes, with Fader Start function |
| Display | LCD (track number, duration, mode, etc.) |
| Maintenance | Clean with a dry cloth, no chemicals |
| Safety | Do not open the casing (Class 1 laser radiation), avoid moisture |
| Repairability | Only qualified technician intervention, original parts |
| Warranty | Warranty void if modification or non-compliant use |
Frequently Asked Questions - CDJ450 Vonyx
User questions about CDJ450 Vonyx
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mixer in PDF format for free! Find your manual CDJ450 - Vonyx and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CDJ450 by Vonyx.
USER MANUAL CDJ450 Vonyx
CDJ450 Double CD/MP3/USB BT Station
Ref. nr.: 172.805


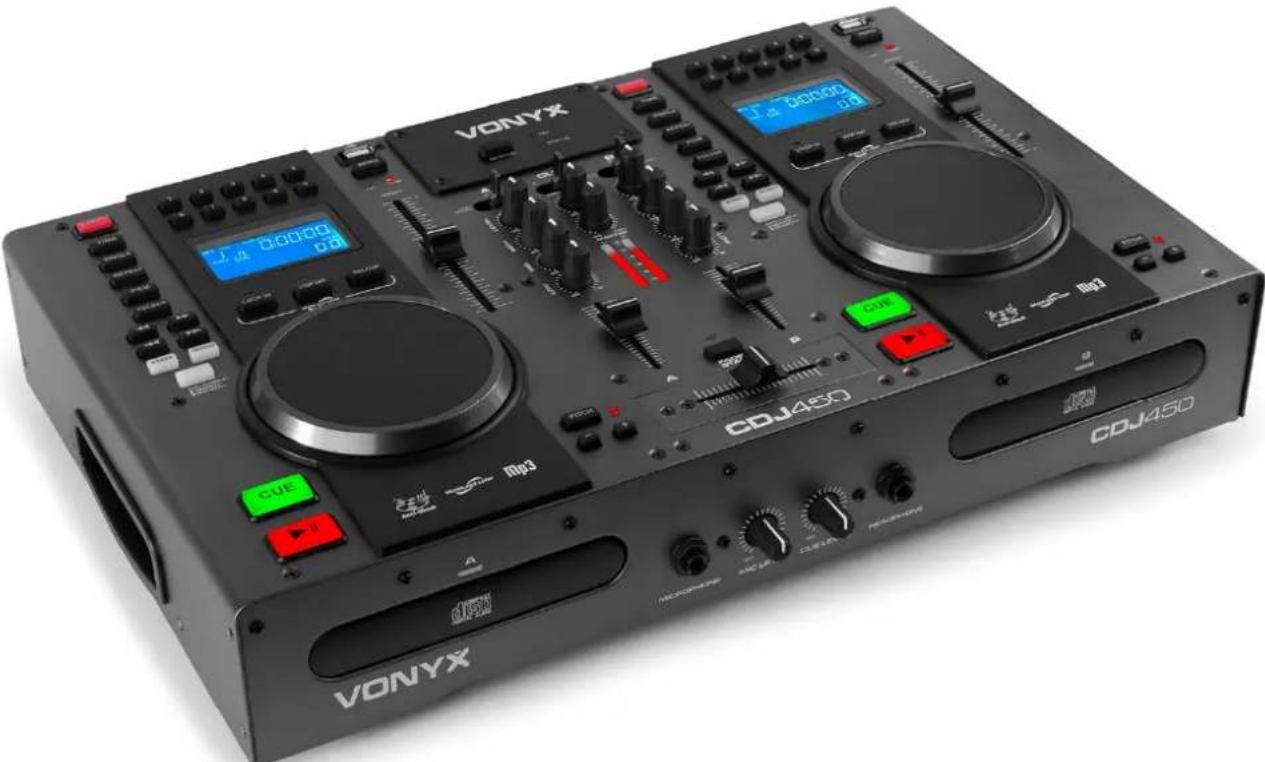

Black VONYX CDJ450 audio workstation with multiple dials, control knobs, and a digital display (no readable text or symbols beyond branding)INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI
ENGLISH
Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.
- Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
- The product contains voltage carrying parts. Therefore do NOT open the housing.
- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
- Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
- The product is not suitable for continuous use.
- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
- When unplugging the product from a mains outlet, always pull the plug, never the lead.
- Do not plug or unplug the product with wet hands.
- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
- If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
- To avoid fire and shock hazard, do not expose the product to rain and moisture.
- All repairs should be carried out by a qualified technician only.
- Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.
-
To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
-
Do not repeatedly switch the product on and off. This shortens the life time.
- Keep the product out of the reach of children. Do not leave the product unattended.
- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
- Do not force the controls.
- If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
- If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
- If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
- Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
- Keep away from electronic equipment that may cause interference.
- Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
- Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
- Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
- The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
- Keep the original packing material so that you can transport the product in safe conditions.
This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.
This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.
The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!
NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
UNPACKING INSTRUCTION
CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.
CAUTION LASER RADIATION!
This device is equipped with two Class 1 laser diodes. To ensure a safe operation do not remove any covers or try to access the inside of the equipment. The inside of the device does not contain any parts which are subject to maintenance. Maintenance must only be carried out by qualified staff.
CONTROLS AND CONNECTIONS
For a detailed and numbered illustration of the device please see end of this manual.
CD PLAYER AND MIXING CONSOLE:
1. EJECT BUTTON
Press to load or eject disk. Each press will open or close the disk tray.
NOTE: Disc holder will not open unless stop or pause button has been pushed first.
2. TIME BUTTON
Use this button to choose the time mode: elapsed time, remaining time or total remaining time.
3. SINGLE BUTTON
Press this button to switch between the SINGLE and CONTINUOUS play mode. The selected mode is indicated on the LCD. In SINGLE mode, after each track, the unit stops the reading. In CONTINUOUS mode, the unit reads all tracks and stops.
4. REPEAT BUTTON
Use this button to repeat one track or all the tracks on the CD.
5. PROG BUTTON
In STOP mode, you can program several tracks (20 tracks maximum):
- Press the STOP button to enter the stop mode.
- Press the PROG button to enter the program mode.
- Use the skip track buttons to choose the track you want to listen to, then press the PROG button to enter your choice.
- Repeat the operation to select all the tracks you want to listen to.
Press the PLAY/PAUSE button to start the playback.
6. FOLDER BUTTON
Allows you to navigate through folders in either USB or CD mode.
7. SEARCH ◀◀ AND ▶▶ BUTTON
Press to rewind or fast-forward through a track.
8. TRACK SEARCH ◀◀ AND ▶▶I BUTTON
Select the previous or next track.
9. DSP / BRAKE
In play mode, push the BRAKE button first and then the PLAY/PAUSE button to slow the track to a halt.
Push the PLAY/PAUSE button again to cancel this feature.
10. DSP / REVERSE
Push the REVERSE button to play your track in reverse. Push the reverse button again to cancel this feature.
11. TRACK SELECT BUTTONS
Press this button to be able to switch between PITCH BEND, SCRATCH and SEARCH functions.
When the indicator LED is off, the jog can be used for PITCH BEND function. When the indicator LED is on, the jog wheel can be used for scratching. When the indicator LED flashes, quick search forward and backwards is enabled.
12. JOG & SHUTTLE WHEELS
Shuttle: Use the dial to select the scanning direction and speed. The disc is scanned in the forward direction when the shuttle dial is turned clockwise from the neutral position, in the reverse direction when the shuttle dial is turned counterclockwise. The scanning speeds up when the shuttle dial is turned faster.
Jog: In pause mode, when turning the jog, the point at which the sound is being produced moves by a number of frames corresponding to the number of clicks. Clockwise moves the point forwards; counterclockwise backwards. In play mode, the jog increases or decreases the speed of the track.
13. CUE BUTTON
Pressing the CUE button during play causes a return to the position at which play was started.
14. PLAY / PAUSE BUTTON
By pressing this button, the operation changes from play to pause or from pause to play.
15. DIRECT ACCESS BUTTONS
Press one of the 0-9 buttons to select that one track from the CD.
16. DISPLAY
LCD Display to indicate Track / Numbers / Time / Remain / Pitch / Continue / Single.
17. CD LIGHT
When entering CD work mode, this will light up.
18. SOURCE BUTTON
Press this button to toggle between CD or USB mode.
19. USB PORT
Supports playing tracks by USB. Computer connection by USB eligible only when entered USB work mode.
20. USB LIGHT
When entering USB work mode, this will light up.
21. INPUT TOGGLE SWITCH
Selects which source will be live based on what you have connected to the rear panel input section. In Midi and CD A position the internal CD units are active.
22. BLUETOOTH®
Connect your BT-device to this device and select by SOURCE and INPUT TOGGLE switches. NOTE: DJ-functions are disabled during BT usage.
23. CUE FOR CHANNEL A-B
Selects which source will be live for CH A and CH B in the mix.
24. INPUT TOGGLE SWITCH
Selects which source will be live based on what you have connected to the rear panel input section. In Midi and CD B position the internal CD units are active.
25. CHANNEL A & B GAIN CONTROL
Adjusts CH A and CH B level.
26. CUE / MIX / PGM CONTROL
Counter clockwise you will be able to monitor the assigned CUE signal. Slowly turning the control clockwise to the assigned CUE signal. Slowly turning the control clockwise to middle position allows you to monitor CUE MIX with PGM. Moving the control clockwise to the right allows you to monitor the PGM output.
27. HIGH FADER A-B
Adjust CH A and CH B equalization of high frequencies.
28. MASTER LEVEL
Adjusts master level output signal.
29. LED METER
Indicates the master output level.
30. MID FADER A-B
Adjust CH A and CH B equalization of mid frequencies.
31. LOW FADER A-B
Adjust CH A and CH B equalization of low frequencies.
32. INPUT FADER
Controls individual source levels for CH A and CH B in the mix.
33. FADER START
Activation allows you to start the CD players from your cross fader.
34. CROSS FADER
Allows for clean segues between the two input channels. Fully left selects channel A, fully right selects channel B. With the cross fader centered, both assigned channels are live. Use the cross fader for fast and seamless segues from one selected channel to the other.
35. PITCH CONTROL
Use this fader to increase or decrease the speed of the track.
36. RELOOP
Use this button to start the last saved loop. To finish the loop, press the button once more.
- LOOP IN
Pressing this button sets the starting-point of the seamless loop and indicates on the display.
- LOOP OUT
Pressing this button sets the end-point of the seamless loop and starts the loop. To finish the loop, press the button once more.
- PITCH
Pushing this button makes the adjustment of the potentiometer available.
- PITCH BEND +
The pitch will rise when this button is pressed and held and return to the original value when released.
- PITCH BEND -
The pitch will drop when this button is pressed and held and return to the original value when released.
FRONT PANEL
- DISC TRAYS
Place your CD in here. Press EJECT button to open the tray.
- MIC INPUT
Plug 1/4" microphone plug in here.
- MIC VOLUME ADJUSTER
Use this knob to adjust the microphone volume.
- CUE LEVEL CONTROL
Use this knob to adjust the cue volume.
- HEADPHONE INPUT
Plug in headphones here.
REAR PANEL
- AC CORD INPUT
Insert supplied power cord here.
- POWER ON/OFF SWITCH
Flip the switch to either turn the device on or off.
- XLR BALANCED MASTER OUTPUT
XLR stereo balanced output of the master signal for connecting with units with line level inputs.
- MASTER AND REC OUTPUTS
Recording output REC: Stereo output (RCA) of the master signal for connecting and amplifier or other units with line level inputs.
Master output: Unbalanced stereo output (RCA) of the master signal for connecting an amplifier or other units with line level inputs.
- INPUT SELECTOR SWITCH LINE / PHONO CHANNEL B
Switch the analog inputs between phono and line input.
- ANALOG INPUT LINE / PHONO
Stereo inputs (RCA) for CH A and CH B for connecting analog units with line level outputs or turntables with magnetic system.
- INPUT SELECTOR SWITCH LINE / PHONO CHANNEL A
Switch the analog inputs between phono and line input.
- USB PORT
USB port type B for connecting with computers.
- GND
Grounding lug for turntable connection. Always use this connection (your turntable cable should have a grounding wire).
- DJ MIC
Plug XLR type microphone in here.
NEDERLANDS
CONTROLS AND CONNECTIONS
50. WYJŚCIA MASTER I REC
Frequency response: 20Hz – 20kHz
Signal to noise ratio: >90dB
Pitch bend: +/- 16%
Pitch slider: +/- 16%
Output: Line: 1V
Dimensions: 482 x 98 x 296 mm
Weight:
6.5
kg
The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Specifications and design are subject to change without prior notice.
www.tronios.com
Copyright © 2018 by TRONIOS the Netherlands
Sound & Light
CE Declaration of Conformity
Manufacturer: Tronios B.V.
Product Description: CDJ450
Trade Name: VONYX
I hereby declare that the product meets the requirements stated in Directives:
LVD 2014/35/EU
■ EMC 2014/30/EU
■ RoHS 2011/65/EU
Almelo,
4-10-2018
Name : M. Velders
Signature :
