USER MANUAL IAN 374178 CRIVIT

2. Adjusting the single-hand twisting fastener 06

6. Cleaning and care 07

2. Removal and attachment of the tail light 08

5. Cleaning and care 09

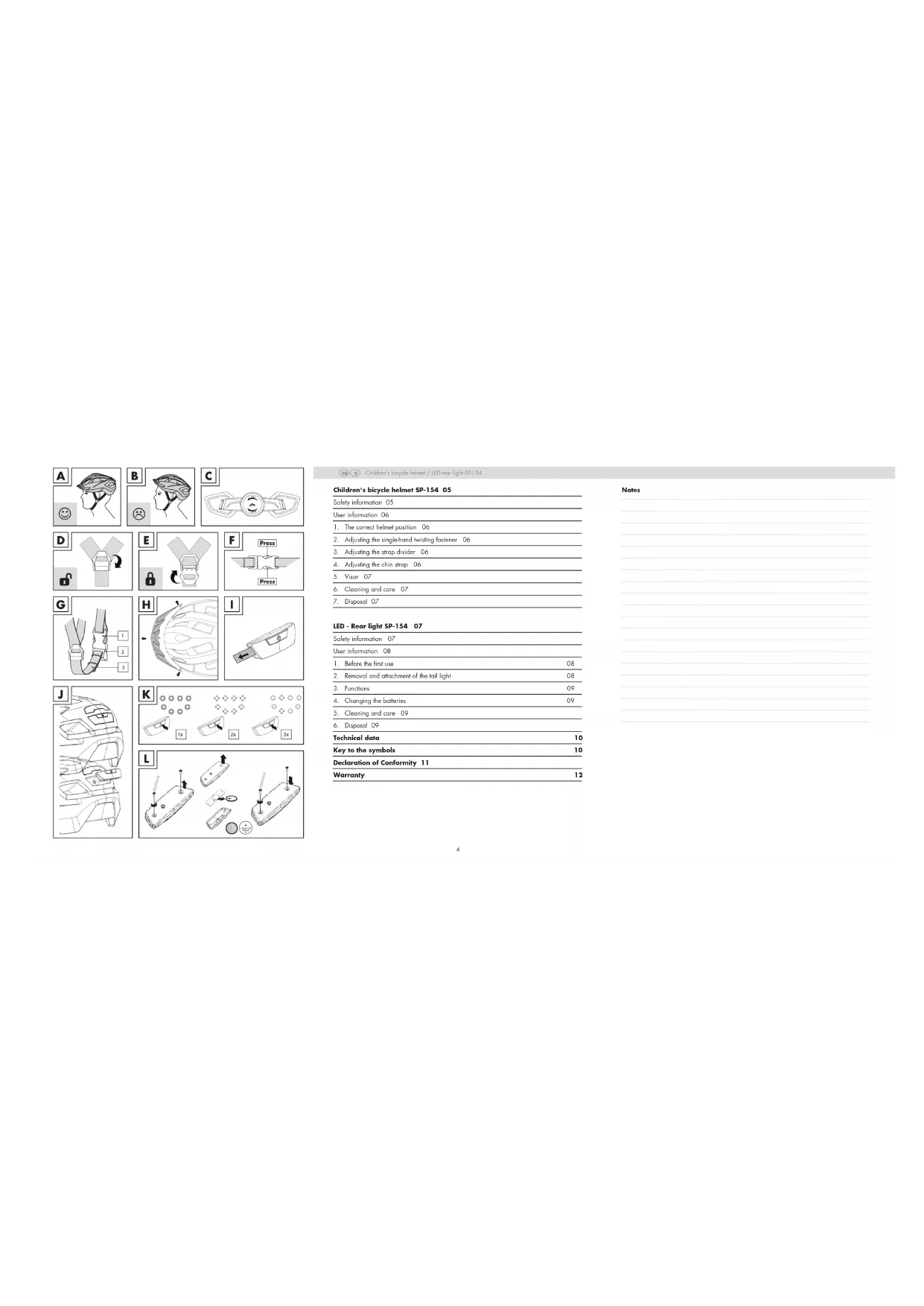

Technical data 10 Key to the symbols 10 Declaration of Conformity 11 Warranty 12

Dear Customer! We are pleased that you have decided to purchase one of our high-quality products, which are manufactured and certied in strict adherence to the currently valid safety standards. Familiarize yourself with this product before rst use. Carefully read the operating instructions and the safety information. Use the product only as described and for the indicated purposes. Keep these instructions. If you give the product to a third party, be sure to include all the documents with it. Safety information

• Warning! This helmet should not be used by children while climbing or doing other activities when there is a risk of strangulation/hanging if the child gets trapped with the helmet.

• Your helmet was specially designed for protection during cycling , skateboarding , roller-skating and riding a scooter . It must not be used for other types of sport or for motorcycling . This helmet is not suitable for downhill riding.

• Please note that the helmet can only provide protection if it ts correctly. Please ensure you try out a range of different sizes before buying.

• Please be aware that despite correct adjustment your helmet cannot always protect you from all injuries.

• The helmet should be checked for visible deciencies at regular intervals.

• The helmet needs to be replaced after any hard impact, blow or deep scratch, as it thereby loses its protective function.

• The helmet must also be replaced when it no longer ts properly or no later than 5 years after the date of manufacture, even if no damage can be detected.

• Any adjustment to or removal of the original parts of the helmet can extremely impair its protective function. The helmet may not be altered in order to make additions in a way not recommended by the manufacturer.

• High temperatures, from as low as 60° C, can seriously damage the helmet. Uneven helmet surfaces and the formation of small blisters are signs of such damage. Do not store behind panes of glass, e.g. in the car or close to sources of heat or warmth.

• The helmet has reective details for higher visibility in road trafc.6 7 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154 User information

1. The correct helmet position

• The helmet must always be levelly horizontal on your head (Fig. A).

• If the helmet is too far forward, it can impair your vision.

• If the helmet is too far back, your forehead is not sufciently protected (Fig. B).

2. Adjusting the single-hand twisting fastener

The integrated size-adjusting system can be adjusted using a turning knob at the back of one’s head (Fig. C):

• smaller = twist clockwise • bigger = twist anti-clockwise

• The strap divider must be positioned in such a way, that the straps are taut but comfortable. The strap divider must be below the ear, and the straps must not cover the ears.

• Close the strap divider (Fig. E). An open strap divider can lead to slipping of the helmet in the event of an accident and thus to a loss of protection!!!

4. Adjusting the chin strap

• The chin strap (Fig. G.3) has been adjusted correctly if you feel slight pressure when you open your mouth. The buckle shall not be positioned on the jawbone.

• If the chin strap (Fig. G.3) is too loose it must be pulled tight using the winding (Fig.G.2) on the fastener (Fig. G.1).

• If the chin strap (Fig. G.3) is too tight it must be loosened also using the winding (Fig.G.2) on the fastener (Fig. G.1). Please note that you must always make sure that the fastener is closed before you ride !!! (Fig. F) Please be aware that the helmet can only protect if it ts properly. Please try out different sizes and choose the one in which the helmet ts comfortably and sits rmly upon your head.6 7 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154

• Carefully pull out the pins on the visor from the pin holes on the helmet shell to remove the visor (Fig. H).

• The xing holes of the visor can be closed with the pins supplied. Attention: The pin holes on the helmet can expand through excessive use. In this case, the visor may no longer be used.

6. Cleaning and care

• All chemicals, paints and stickers can seriously impair the protective effect of the helmet.

• Only clean your helmet with lukewarm water, mild soap and a soft cloth.

• After every use, leave your helmet exposed to the air in order for it to dry.

• The inner pads are removable. Clean the inner padding with lukewarm water and mild soap and then let it air dry.

• Please contact your local waste disposal company for the disposal of the helmet.

• The LED rear light is not a substitute for the light equipment stipulated by the German standard StVZO (§ 67).

• When used correctly, the LED rear light gives better visibility. The LED backlight should not be used during rainy weather. It cannot be guaranteed to work if it gets wet.

• Please only use the LED rear light together with this cycle helmet and always put it onto the rotating wheel of the size-adjustment system.

• The LED rear light is only intended for personal use.

• Please make sure that, during use, the LED cannot be covered or obscured by collars, rucksacks or movements of the head.

• The LED light can under certain circumstances come loose without this being noticed, if it becomes caught on jackets, rucksacks or other objects.

• Please be aware that the battery of the LED light can fall out or become at. Therefore, check the light regularly for proper functioning.

• The batteries must not be exposed to excessive heat such as sunshine, re or the like. In the event that the batteries are incorrectly changed there exists the risk of explosion. Only replace the batteries with the same or an equivalent battery type.8 9 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154

• Parents should ensure that their child also checks to make sure that the LED backlight is working on a regular basis.

• Warning! LED rear light not suitable for children under 14 years. There is a risk of high temperature and disassembly.

• The LED rear light is not a toy and its use by children is only permitted if they are under the supervision of adults.

• The light source of this light cannot be replaced. Once the light source has reached the end of its life, the whole light must be replaced.

• The changing of batteries must only be carried out by adults.

• If the battery leaks, avoid any contact with the skin as this can lead to skin irritation.

• Leaking batteries must be disposed of immediately.

• Do not short circuit batteries or take them apart. Do not make any modications to the battery. Do not squeeze or deform the battery and do not drill into the battery.

• Do not continue to use the battery if it is damaged.

• Keep the batteries in the original packaging.

• Never try to recharge non-rechargeable batteries! There is a danger of explosion!

• Replace the battery only with the same or an equivalent type of battery.

• Keep new and used batteries away from children.

• Children can put small parts such as the button cell supplied in their mouths when playing and choke on them. Do not let children play with small parts.

• Seek medical advice immediately if you know or suspect that a battery has been swallowed or entered the body in any other way.

• Switch off the LED rear light after use. Remove the battery from the helmet if it will not be used for a longer period of time. Store the battery in a cool and dry place.

• Do not bring lithium batteries with damaged casings into contact with water.

• Ingestion of button cells or batteries can cause burns, perforation of soft tissues and in severe cases death.

• Do not stare into the light source. User information

1. Before the rst use

Take the tail light off the helmet (Fig. J). Before the rst use, remove the safety strips from the reverse of the LED tail light (Fig. I).

2. Removal and attachment of the tail light

• There is a hole behind the rear light on the inside of the helmet. Use the back of a pin or similar and insert it into the hole. To release the rear light from the holder, you must now exert a little force and press the pin against the rear light, which is on the other side.

• To remove the rear light, pull the rear light out of the holder (Fig. J). ATTENTION!

CHILDREN Ingestion can lead to chemical burns and death. Severe injury possible as early as two hours after ingestion. Seek medical assistance immediately.8 9 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154

• To attach it, the LED rear light must be re-plugged on the holder provided for this purpose.

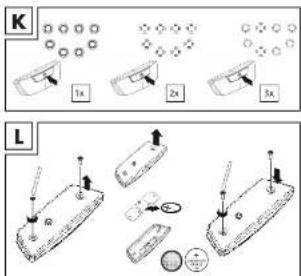

The LED rear light has three different functions, each of which can be used as desired (Fig.K).

• Press x1: continuous light,

• press x4: light off.

4. Changing the batteries

The LED tail light comes equipped with a CR 1620 (3V) battery.

• To replace the battery, unlock the screws at the back of the light using a small Phillips type head screwdriver.

• Subsequently, lift off the lid and the circuit board, exchange the battery and remount the circuit board and the lid. In doing so, please make sure that the polarity is correct when in- stalling the new battery (Fig. L). The + pole points upwards when the batteries are inserted.

5. Cleaning and care

The housing of the LED rear light can be cleaned with a damp cloth.

Please do not dispose of at batteries via the household waste, but instead use the collecting container intended for this purpose. Old devices must not be disposed of with household waste! If the product can no longer be used, every user is required by law to dispose of the device separately from household waste, e.g. at a collection point in their com- munity/borough. This ensures that old devices are recycled properly and also avoids pollution of the environment. For this reason, electrical equipment is marked with the symbol shown here. Batteries and rechargeable batteries must not be disposed of as household waste! As a consumer, you are required by law to return all batteries and rechargeable bat- teries, regardless of whether they contain harmful substances* or not, at a collection point in your local authority / district or in retail to ensure that they can be disposed of in an environmentally friendly way. 10/2024 Address of the battery manufacturer: Qishuo Energy Technology (Dongguan) Co., Ltd, Room 101, No.7 , 3rd Street,Shujiu Old Park, Changping Town, Dongguan City,Guangdong Province Introducer: Speq GmbH Tannbachstr. 10, 73635 Steinbach, [e-mail] / www.speq.de10 11 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154 Batteries and rechargeable batteries that are not permanently installed in the device must be removed and disposed of separately before disposal. Please return batteries and rechargeable batteries only when discharged! *marked with: Cd = cadmium, Hg = mercury, Pb = lead Technical data LED rear light Model: SP-154 Battery: 1x CR1620, 3V Protection class: III Risk group: Exempt group (the light does not pose a photobiological hazard) Key to the symbols Declaration of conformity (see chapter „Declaration of conformity“): Products marked with this symbol comply with all applicable European Community regulations Economic area. Protection class lll. The LED light is supplied with low voltage via a battery. Expiry date (batterie and helmet) helmet weight Date of manufacture (batterie and helmet) The Seal of Approved Safety (GS mark) certies that a product meets the requirements of the German Product Safety Act (ProdSG). The GS mark indicates that the safety and health of the user are not at risk if the product is used as intended and if foreseeable misuse of the marked product occurs. Read the user manual/ Caution; Attention battery regulation DC voltage IPX4 Protection against splash water10 11 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154 Declaration of Conformity The EU Declaration of Conformity can be obtained from the following address: SPEQ GmbH Tannbachstraße 10 73635 Steinenberg GERMANY testing institute TÜV SÜD Product Service GmbH Ridlerstr. 65 80339 München GERMANY identication number: 0123 PSA 2016/425 The complete Declaration of Conformity can be found at www.speq.de/konformitaetserklaerung12 13 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154 SPEQ GmbH warranty Dear Customer, The product was produced with great care and under continuous quality control. Speq GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. Warranty conditions The warranty period starts from the date of purchase. Please keep the original receipt in a safe place. This is required as proof of purchase. If a material or manufacturing defect occurs within three years from the date of purchase of this product, we will - at our option - repair or replace the product for you free of charge or refund the purchase price. This warranty service requires that within the three-year period, the defective device and the proof of purchase (receipt) are submitted and briey described in writing what the defect is and when it occurred. If the defect is covered by our warranty, you will receive the repaired or a new product back. Repair or replacement of the product does not start a new warranty period. Warranty period and statutory claims for defects The warranty period is not extended by the warranty. This also applies to replaced and repaired parts. Any damage and defects already present at the time of purchase must be reported immediately after unpacking. Repairs required after the expiration of the warranty period are subject to a charge. Warranty scope The device was carefully produced according to strict quality guidelines and conscientiously tested before delivery. Warranty coverage applies to defects in materials or workmanship. This warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wear parts or for damage to fragile parts, e.g. switches, batteries or that are made of glass. This warranty is void if the product is damaged, improperly used or maintained. For proper use of the product, all the instructions given in the operating manual must be strictly observed. Uses and actions advised against or warned against in the operating instructions must be avoided at all costs. The product is intended for private use only and not for commercial use. Abusive and improper handling, use of force and interventions not carried out by our authorized service branch will void the warranty.12 13 Children's bicycle helmet / LED-rear light SP-154 GB IE GB IE Children's bicycle helmet / LED-rear light SP-154 Handling in case of warranty In order to ensure a quick processing of your request, please follow the following instructions: ∙ For all inquiries, please have the receipt and item number(IAN 467076_2407) ready as proof of purchase. ∙ Please refer to the type plate on the product, an engraving on the product, the title page of your manual (bottom left) or the sticker on the back or bottom of the product for the article number. ∙ If functional errors or other defects occur, rst contact the service department named below by telephone or e-mail.. ∙ If the product is found to be defective, you can send it free of charge to the service address provided by you, enclosing the receipt and stating what the defect is and when it occurred. On www.lidl-service.com you can download these and many more manuals, product videos and installation software. This QR code will take you directly to the Lidl service page (www.lidl-service.com) and by entering the item number (IAN) 467076_2407 you can open your user manual. Service address: SPEQ GmbH Tannbachstr. 10 73635 Steinenberg GERMANY Email: [e-mail] Service-Hotline: [phone] (toll free) Please call us before sending the product 8:00 h – 17:00 h
