IAN 321500 - Bike helmet CRIVIT - Free user manual and instructions

Product type	Ski and snowboard helmet (class B)
Brand	Crivit
Model	IAN 321500
Available size	S/M: 55-59 cm, L/XL: 59-62 cm
Shell material	ABS
Safety standard	EN 1077:2007 Class B
Certification	CE (TÜV SÜD, notified body no. 0123)
Visor	Filter category S2, optical class 1
Ventilation system	Continuously adjustable by sliders
Headband adjustment	Adjustment dial
Earpads	Removable, left/right markings (L/R)
Chin strap	Adjustable with multi-level safety buckle
Manufacturing date	07/2019
Maximum service life	5 years from manufacturing date
Warranty	3 years from purchase date
Maintenance	Cleaning with pH-neutral detergent; hand wash padding at 30°C
Spare parts	Available through customer service
Intended use	Alpine skiing and snowboarding (not suitable for cycling or motorcycling)

Frequently Asked Questions - IAN 321500 CRIVIT

How to choose the helmet size?

Measure the circumference of your head and select the corresponding size (S/M: 55-59 cm, L/XL: 59-62 cm). Try several helmets: when the helmet is on, the skin on your temples should ideally move with it. The helmet should not have much freedom of movement on the head, even without the chin strap tightened.

How to adjust the helmet for an optimal fit?

Use the dial (fig. D) to adjust the headband: turn left to loosen, right to tighten. The chin strap should be closed so that you can barely slide your fingers between the strap and chin. The strap divider allows positioning the chin strap under the ear.

Can I use the helmet after a fall?

No. After an impact, even a light one, protection is no longer guaranteed. The helmet must be discarded, even if there is no visible damage.

How to clean the helmet?

Use a pH-neutral detergent diluted in clean water and rub with a soft cloth. Wipe with a lint-free cloth. The padding can be hand washed up to 30°C with a little soap and a soft brush. Never use solvents or abrasives.

How to remove and reinstall the earpads?

Pull firmly on the earpads until the tab detaches. Open the chin strap and remove the earpads. To reinstall, thread the ends of the open chin strap through the earpad straps, then insert the tab into the slot. Respect left (L) and right (R) markings.

Is the visor suitable for driving?

No. The visor is not approved for road traffic. It is designed for skiing and snowboarding. Do not use it for direct sun viewing (filter category S2 suitable for normal and cloudy conditions).

What is the service life of the helmet?

The helmet must be replaced no later than 5 years after the manufacturing date (indicated month/year, e.g., 07/2019). Longevity depends on use, but this maximum limit is mandatory.

What to do in case of damage?

If the helmet has a visible defect or after an impact, do not use it anymore. Contact customer service for possible repair or replacement. Use only original spare parts.

How to store the helmet?

Store it in a dry, well-ventilated place, ideally at 10-25°C with 30-70% humidity. Avoid heat sources. Use the provided bag and a cardboard box to protect it from crushing.

Can I modify the helmet (paint, stickers)?

No. The helmet must not be painted, stuck with stickers or labels. Any modification may compromise safety and voids the warranty.

USER MANUAL IAN 321500 CRIVIT

PDF ONLINE www.lidl-service.com

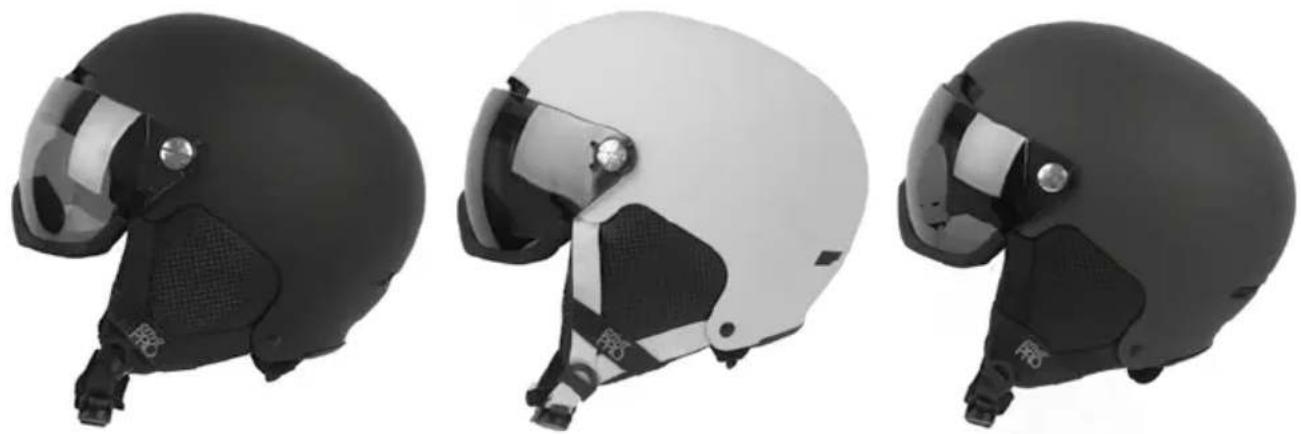

Three identical black and white helmet designs with visor, shown from different angles (no text or symbols visible)

SKI- UND SNOWBOARDHELM

DE AT CH

SKI- UND SNOWBOARDHELM

Gebrauchsanweisung

IT CH

CASCO DA SCI E DA SNOWBOARD

Istruzioni d'uso

FR CH

CASQUE DE SKI ET DE SNOWBOARD

Instructions for use

CE

IAN 321500_1901

A 1 2 3 4 5 6 7 8 9 10 11 12 PWR PRO

B × ✓

Mechanical diagram showing a belt drive mechanism with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a curved surface with a circular object and dots, no text or symbols present

For your own safety we recommend reading and following these instructions for use in their entirety. Keep them for reference!

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Important information

Before using your new helmet for the first time, please read the following instructions and information carefully.

This helmet was designed for skiing and snowboarding and was manufactured using state-of-the-art technology. However, despite the highest safety standards injuries may occur in the event of severe accidents. In some cases the impact may be so strong that the helmet cannot effectively protect the user from head injuries. A Class A helmet is a high-performance safety helmet for skiers and snowboarders. A Class B helmet is a helmet for skiers and snowboarders that is subject to somewhat less stringent requirements. For this reason a Class B helmet can offer more ventilation and comfort at no great cost to safety. Class A and Class B helmets are intended for alpine skiers, snowboarders and similar groups. Class A helmets offer relatively more protection. Class B helmets can offer more ventilation and better hearing, but protect a smaller portion of the head and offer a lesser degree of penetration resistance. The integrated visor meets the requirements of harmonised standard EN 174:2001 and serves to protect users' vision and eyes while skiing and snowboarding.

Optical class 1 / Filter category S2

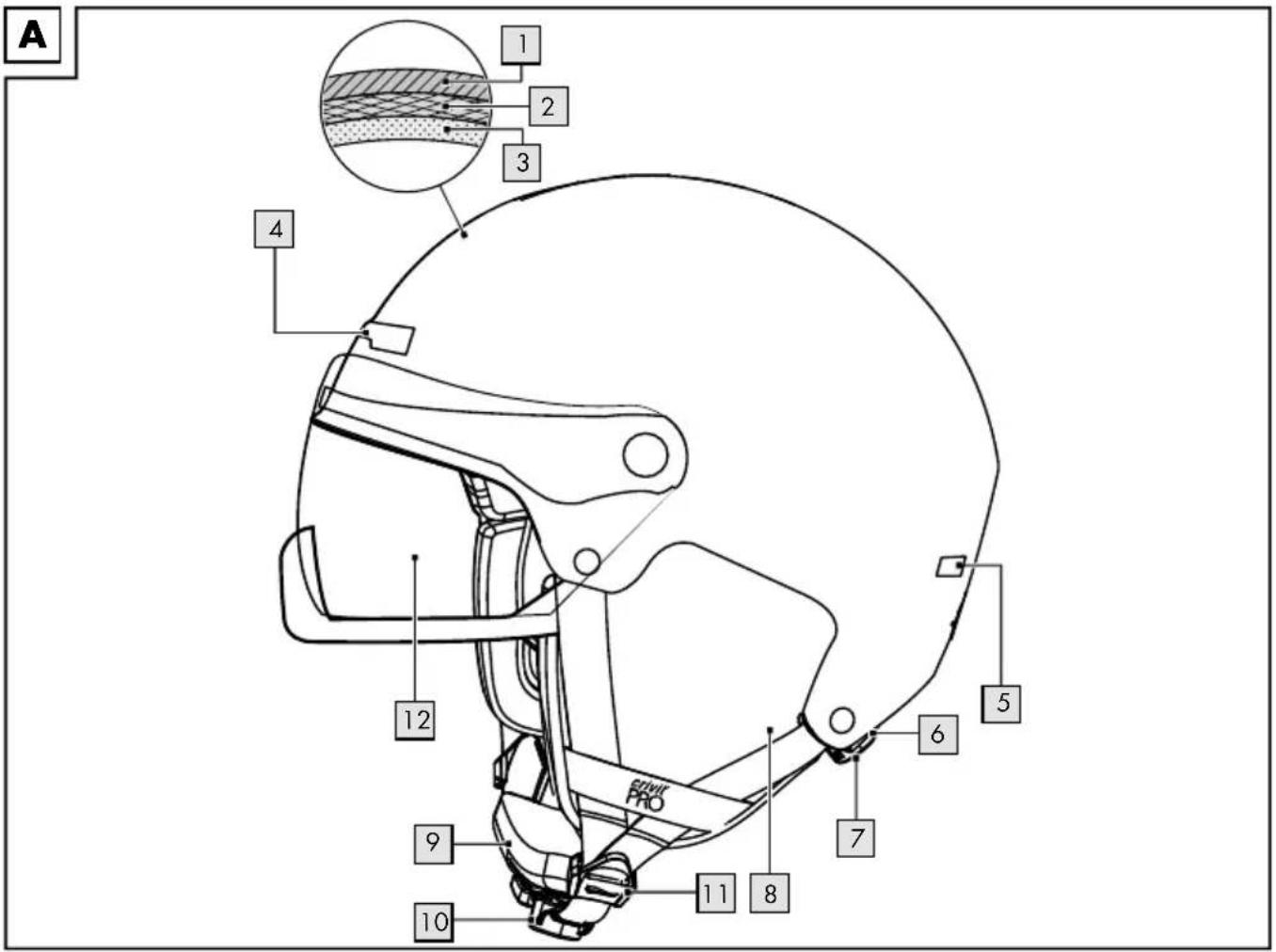

Parts list (Fig. A)

1. ABS helmet shell
2. Damping layer
3. Comfort padding
4. Ventilation slider
5. Ventilation system
6. Neck padding

7. Size adjustment system

8. Ear padding

9. Chin strap
10. Multi-step snap-in safety clip
11. Strap divider
12. Visor

Symbols used

Date of manufacture (month/year): 07/2019

CE Conformity with the requirements pursuant to Regulation (EU) 2016/425 for personal protective equipment (PPE) as well as with the requirements of the harmonising technical standard EN 1077:2007 Class B has been certified by the issuing body TüV Süd Product Service GmbH, Ridlerstraße 65, 80339 Munich, notified body no. 0123. The full declaration of conformity is available under http://www.conformity.delta-sport.com/

Intended use

This product was made for alpine skiers and snowboarders. It is not suitable for other types of sports or riding motorcycles.

Safety information

• The helmet must fit tightly and the chin strap must be tightly locked.

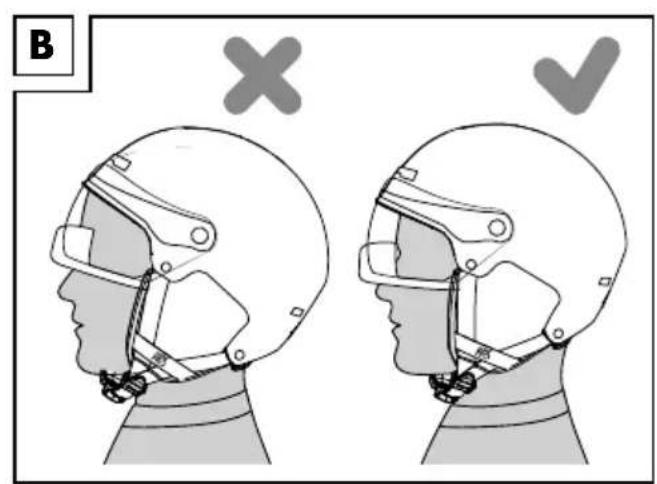

• Do not push the helmet to the back of your neck, otherwise your forehead will not be protected. The strap must run along the jaw bones (Fig. B).
• Do not wear any head covering under the helmet.
• Make sure that air circulation is not restricted.
• No changes may be made to the helmet, its structure or its individual components.
• The helmet may not be painted on, nor may stickers or labels be applied to it.

• The helmet is supposed to protect the head in the event of an impact. After just one (even light) impact this protection is no longer guaranteed. After a fall or impact the helmet should no longer be used and must be made unusable and disposed of, even if it does not exhibit any visible damage.

• Solvents or abrasives containing petroleum may never be used to clean the exterior or interior of the helmet. Always use pH-neutral cleaning agents diluted in clear water; carefully rub with a soft cloth. Afterward wipe dry with a lint-free cloth. The padding can be cleaned with a little soap and a soft brush.

• Only use original replacement parts for your helmet.
• The helmets may not be used by children when climbing or playing other games in which there is a risk of strangulation!
• Do not use the visor when driving! Visors are not approved for this use.
• Only clean the visor by dabbing it with a damp cloth. Do not use any chemical agents, as these may damage the visor.
• Warning: not intended for looking directly into the sun.
• The lifespan of the product depends on how it is used. However, the product must be replaced five years after the date of manufacture (07/2019) at the latest.
• Note that the visor does not prevent the penetration of water and snow from below.
• Check that the helmet fits snugly before each ride. Please check that the underside of the padded edge of the visor does not hinder your vision downwards, and that the helmet stays firmly in place, and does not slip during strong vibration, as may happen during skiing and snow-boarding. Otherwise you risk suddenly and severely impairing free vision through the visor.

Selecting helmet size

	S/M 55-59cm
	L/XL 59-62cm

- Measure the circumference of your head and select the helmet size on that basis. Try out multiple helmets before you decide. The skin on your temples should ideally move with the helmet when putting it on.

• Make sure that the helmet does not move around freely on the head, even without the chin strap pulled tight.
• The chin strap must be locked tightly to ensure a secure fit. It is sitting correctly if it is difficult for you to push your fingers beneath the chin strap. But you must be able to comfortably breathe, swallow and turn your head.
• The helmet is sitting correctly if it is tight but still comfortable on the head.
• If the helmet is too big (wobbles, cannot be adjusted tightly enough) or too small (presses, leaves the forehead exposed), select a helmet in the next bigger or smaller size.
• If the helmet cannot be adjusted correctly, it may not be used.
• Checking the visor: the visor should be checked for visible defects prior to use and not used if defects are found.

• Warning, the helmet may not be used:

• if it is not possible to fasten the helmet comfortably yet snug against your head;

• if the range of vision is restricted by the shell padding, particularly downwards, when the chin strap is fastened and the visor is closed;
• if the closed visor presses on the bridge of your nose when the chin strap is fastened.

Ventilation system

You can smoothly regulate the ventilation openings with the slider (4) (Fig. A).

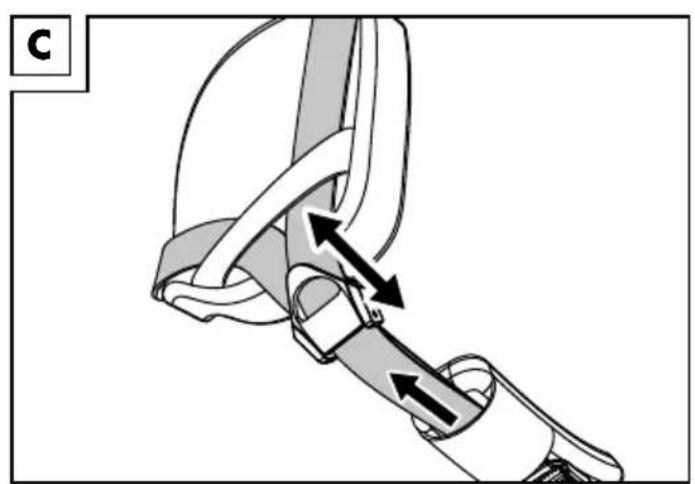

Setting the chin strap

You can use the loop to set the general length of the chin strap. You can adjust the position of the chin strap with the strap divider clip. But make sure that the clip divider does not bother you. We recommend positioning it at the end of the ear padding (Fig. C).

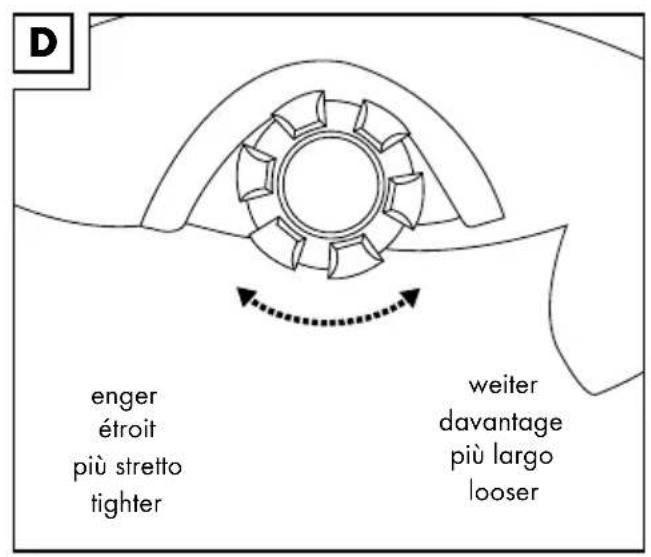

Setting headband length

You can use the setting dial to smoothly adjust the helmet to your head circumference in order to ensure an optimal fit of the helmet. Turn the dial left to loosen the headband of the helmet, and right to tighten the headband (Fig. D).

Removable ear padding

Pull hard on the ear padding until the tab of the ear padding has loosened from the helmet. Open up the chin strap and remove the ear padding.

To apply the ear padding pull the ends of the opened chin strap through the loops of the ear padding, and insert the tab into the helmet slot (Fig. E). Pay attention to the left and right marking (L/R) on the respective ear pad. When removing the ear padding make sure that no traction is applied to the loops so that they do not get damaged.

Opening and closing the chin strap

To open the chin strap, press on the multi-step snap-in safety clip (10) and pull out the crosspiece. To close the chin strap, insert the crosspiece into the multi-step snap-in safety clip and let it lock at a length that is comfortable for you (Fig. F).

Visor

The reflecting lens is intended for normal light and cloudy weather (filter category S2). The transmission curve can be requested from the product hotline. If the visor has loosened, refassten the screw with a suitable tool (Fig. G).

Filter categories

Filter category	Description Use Symbol
0	Slightly tinted sunglasses	Very limited moderation of sunlight	IEC 60417-5955
1		Limited protection from sunlight	ISO 7000-2948

2	Sunglasses for general use	Good protection from sunlight	ISO 7000-2949
3		High protection from sunlight	ISO 7000-2950
4	Very dark sunglasses for special uses, very high moderation of sunlight	Very high protection from extreme sunlight, such as on the beach, in snow fields, in the mountains or in deserts	ISO 7000-2951

Maintenance and care

Regular maintenance and cleaning contributes to the safety and preservation of the helmet.

• Always use pH-neutral cleaning agents diluted in clear water; carefully rub with a soft cloth. Afterward wipe dry with a lint-free cloth.
• The padding can be cleaned with a little soap and a soft brush.

Inner padding

- Hand wash up to 30 °C.

30 °C/86 °F

- Let dry at room temperature.

Transportation

Transport the helmet in the helmet bag provided in a box to protect it from being crushed (e.g. in a suitcase or boot of a car).

Storage

When not in use store the helmet in a dry, well ventilated area.

We recommend 30-70% humidity and 10-25 °C room temperature. Avoid heat sources.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling.

The code consists of the recycling symbol

- which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 321500_1901

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

07/2019
