Brand	Osann
Model	Junior Gurtfix (FB-601-GFIX)
Product Type	Booster car seat with backrest
Category	High chair (for vehicle)
Recommended child height	126 to 150 cm
Installation direction	Forward-facing only
Main attachment	ISOFIX + 3-point seat belt
Alternative attachment	3-point seat belt only
Restraint system	Vehicle seat belt (lap + diagonal)
Belt guide	Green guides for lap and diagonal belt
Gurtfix device	Additional diagonal belt retainer (optional)
Approval	UN Regulation No. 129 (i-Size and universal)
Approximate weight	5.5 kg
Dimensions (L × W × H)	40 × 38 × 65 cm
Cover material	Washable synthetic fabric
Care and cleaning	Wash at 30°C, delicate cycle; no bleach, no dry clean, no ironing; tumble dry low temperature
Safety	Green/red ISOFIX indicators, belt adjusted without twisting, replacement after accident
Spare parts and repairability	Replacement cover recommended by the manufacturer; do not modify the product
General information	Osann customer service: [phone]

Frequently Asked Questions - Junior Gurtfix Osann

What child height does the Junior Gurtfix seat fit?

The seat is designed for children between 126 and 150 cm.

What is the mandatory installation direction?

Installation is only forward-facing (direction of travel).

How to install the seat with ISOFIX?

Push the insertion aids into the ISOFIX supports, extend the connectors, click them into the vehicle's ISOFIX anchors until they click, then push the seat against the backrest. Check that both indicators turn green.

Can the seat be used without ISOFIX?

Yes, the seat can be installed using only the 3-point seat belt. ISOFIX is recommended but not mandatory.

How to secure the child?

Seat the child, close the 3-point belt until it clicks. The lap belt must pass under the armrests (green guides), the diagonal belt above the armrest. Tighten the diagonal belt.

What is the Gurtfix device for?

The Gurtfix is an additional retainer that holds the diagonal belt just above the child's shoulder. Its use is optional and only available on the FB-601-GFIX model.

How to maintain the car seat?

Wash the cover at 30°C delicate cycle, no bleach, no dry clean, no ironing. Tumble dry low temperature possible. Do not use solvents or abrasive products.

What are the important safety indicators?

The ISOFIX connectors have color indicators: green for correct locking, red for a fault. Also check that the belt is not twisted and is properly tightened.

What to do in case of an accident?

The car seat must be replaced if it has been subjected to strong forces during an accident, even if no visible damage.

Where to contact Osann customer service?

For any questions or problems, contact Osann customer service at [phone].

USER MANUAL Junior Gurtfix Osann

Junior Isofi x/ Junior Isofi x Gurtfi x

ECE R129/03, 126–150 cm

Icon of an open book with an information symbol inside a yellow circle (no text or symbols)

DE

ENFRIT

NL

ESCZPL

SK

Sicherheitshinweis

Illustration of a person sitting in a chair using a device, with a red prohibition symbol (no text or labels)

Illustration of a person sitting in a chair using a device, with a red prohibition symbol (no text or labels)

REINIGUNG

Solid red rectangular shape with no text, symbols, or patterns

Thank you for choosing our Junior Isofi x (FB-601-FIX) / Junior Isofi x Belt Fix (FB-601-GFIX) child car seat. If you need help with this product, please contact our customer service.

HOW TO USE

• This product is suitable for children with a height of 126 to 150 cm.
- The installation is exclusively forward facing and with the help of the Isofi x connectors. The child is strapped in with the car's 3-point seat belt. Alternatively, the child car seat can also be fitted with the 3-point belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

PLEASE NOTE

This is an improved child restraint system of the "universal" category with cushions for height compensation. It has been approved in accordance with UN Regulation No 129 for use with vehicle seats which are suitable for improved restraint systems in the "i-Size" and "universal" categories as specified by the vehicle manufacturer in the vehicle manual.

If in doubt, the manufacturer of the improved child restraint system or the retailer should be consulted.

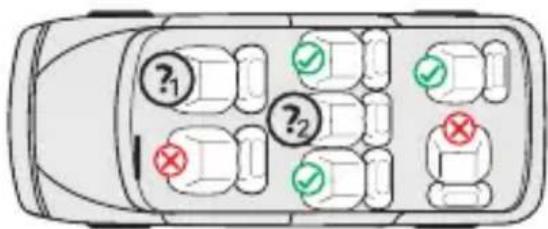

1. & 2.: Only if there is at least a 3-point car seat belt. Optionally with additional Isofi x connectors.

The following table provides information about the fastening devices and methods:

Size class	Installation direction	Installation Type		Child safety device
126-150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	Universal booster cushion	3-point car seat belt
126-150 cm	Forward-facing	3-point car seat belt	Universal booster cushion	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the manual. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot get caught by a movable seat or a vehicle door.
• It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

SEAT PARTS

Front view

Isofi x connectors

• Push the insertion aids through the slot in the cushion between the backrest and seat into the Isofi x anchor points.
• When doing this, the flat side of the insertion aids must be facing downwards. This step is not necessary if the vehicle already has fixed insertion aids.
• Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.
• Push the Isofix connectors into the insertion aids until you hear them click into place.
• Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofi x indicators are switched to green.

Safety notice

• When installing the child car seat, please ensure that it rests completely on the seat surface of your car seat and that it has good stability. It should not rest, for example, with the back against the backrest of the front car seat.
• Please do not place any additional wedges or cushions under the child car seat, e.g. to change the seating position.

Illustration of a hand using a seatbelt with a red prohibition symbol (no text or labels)

CLEANING

To guarantee the long-term usage of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30 °C, gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for possible damage. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children.

In case of any issues, please contact

Osann customer service on [phone].

INSTALLATION OF THE CHILD CAR SEAT

Size class 126-150 cm, forward facing

Solid red rectangular shape with no text, symbols, or patterns

1. Press the two lateral Isofix connector buttons in order to extend the length of the Isofi x connectors.
2. Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place.
3. Push the child car seat in until it rests securely against the backrest. Ensure that both Isofi x indicators are switched to green.
4. Put your child in the child car seat.
5. Buckle your child in by closing the buckle of the 3-point harness until you hear a click.
6. Make sure that the lap belt runs underneath the two armrests along the green belt guides. The diagonal strap must run above the armrest.
7. Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.

Installation without Isofi x:

Alternatively, the child car seat can also be fitted with the 3-point belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.

Removal of the child car seat:

Loosen the Isofi x connector buttons on both sides of the child car seat until the two indicators show red and remove the child car seat from your car.

PLEASE NOTE

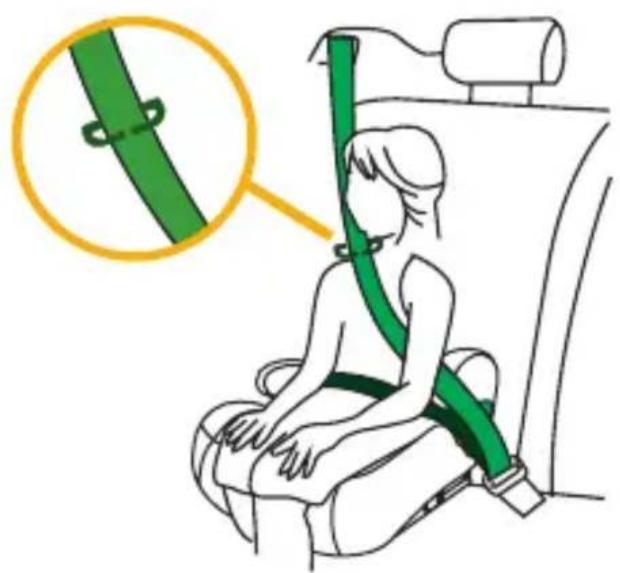

Only for variant Junior Isofi x with Belt Fix (FB-601-GFIX):

For the version with Belt Fix, additionally thread the green belt fix on the diagonal belt of the 3-point belt of the car. Adjust the length of the strap so that it runs along the diagonal strap just above your child's shoulder. The use of the belt fix is optional.

Retrofitting the Belt Fix to the factory version without Belt Fix (FB-601-FIX - Junior Isofi x) is not permitted.
