Jet Pressing Pro 5b - Iron Di4 - Free user manual and instructions

Product type	Steam generator
Brand	Di4
Model	Jet Pressing Pro 5b
Power supply	Mains (220-240 V ~ 50/60 Hz)
Water tank capacity	Approximately 1.5 L (estimate)
Steam pressure	High pressure (unspecified)
Soleplate	Ceramic soleplate
Functions	Steam ironing, dry ironing, vertical steam, continuous flow, steam trigger
Controls	Temperature dial, steam push button, steam lock, power switch
Indicator lights	Heating indicator, power indicator, low water level indicator, steam status indicator
Anti-scale protection	Removable anti-scale cartridge + boiler rinse
Maintenance	Monthly boiler rinse, replace anti-scale cartridge every 3-6 months
Safety	Automatic shut-off not mentioned, hot surfaces, do not direct steam at people
Recommended water type	Tap water (mix with distilled water if hard, never 100% distilled)
Available spare parts	Anti-scale cartridge, water tank, rinse cap
Warranty	2 years
Usage	Household only

Frequently Asked Questions - Jet Pressing Pro 5b Di4

How to fill the water tank?

Locate the release latch on the lower front of the water tank and push it upward to release the tank. Place the tank under a faucet and fill it without exceeding the MAX level. Then slide it back into its compartment until it clicks.

Why is water coming out of the soleplate?

This can happen during first use or after a period of inactivity: condensation has formed in the pipes. Do not direct steam onto the garment until the iron emits steam properly. Also make sure the soleplate is hot enough.

How to descale the boiler?

Turn off the steam generator, unplug it, remove the tank. Place the unit at the edge of a sink, remove the rinse cap using a coin, fill the boiler with tap water, shake, empty, and repeat twice. Screw the cap back on. Perform this rinse once a month or every 10 uses.

What to do if little or no steam comes out?

Check that the water tank is not empty. Refill if necessary. Also ensure the generator is on and the temperature is high enough (the heating indicator turns off). If the problem persists, scale may be blocking the openings; perform a boiler rinse.

Can I use distilled or demineralized water?

The appliance is designed for tap water. Never use 100% distilled or demineralized water, nor rainwater, scented water, or water from other appliances. If your water is hard, mix tap water and distilled water in a ratio of 2:1 (hard) or 1:1 (medium-hard).

How to use the vertical steam function?

Hold the iron in a vertical position. Set the steam flow to MAX for maximum steam. Press the push button to direct steam onto hanging garments. Caution: never direct steam at a person or a worn garment.

What to do if the soleplate is dirty or has brown stains?

The ironing temperature is probably too high. Reduce the temperature by turning the dial. Clean the ceramic soleplate with a damp, non-metallic pad. Do not use abrasive cleaners.

How to replace the anti-scale cartridge?

Remove the water tank, then take out the cartridge. Unscrew the top part: inside there are two filters and a resin bag. Replace these if dirty. Screw back, reinsert the cartridge and the tank. Change the cartridge every 3 to 6 months depending on water hardness.

Why are white debris coming out of the iron's openings?

This is due to scale buildup in the boiler. Rinse the boiler as indicated in the manual and check the anti-scale filter. Perform regular rinses to avoid this issue.

How to adjust the temperature for different fabrics?

Use the temperature control dial. Refer to the ironing guide table in the manual: for acrylic, nylon, polyester, dry iron on the reverse side; for wool, steam iron on the reverse side; for cotton and linen, steam iron; for denim, MAX position.

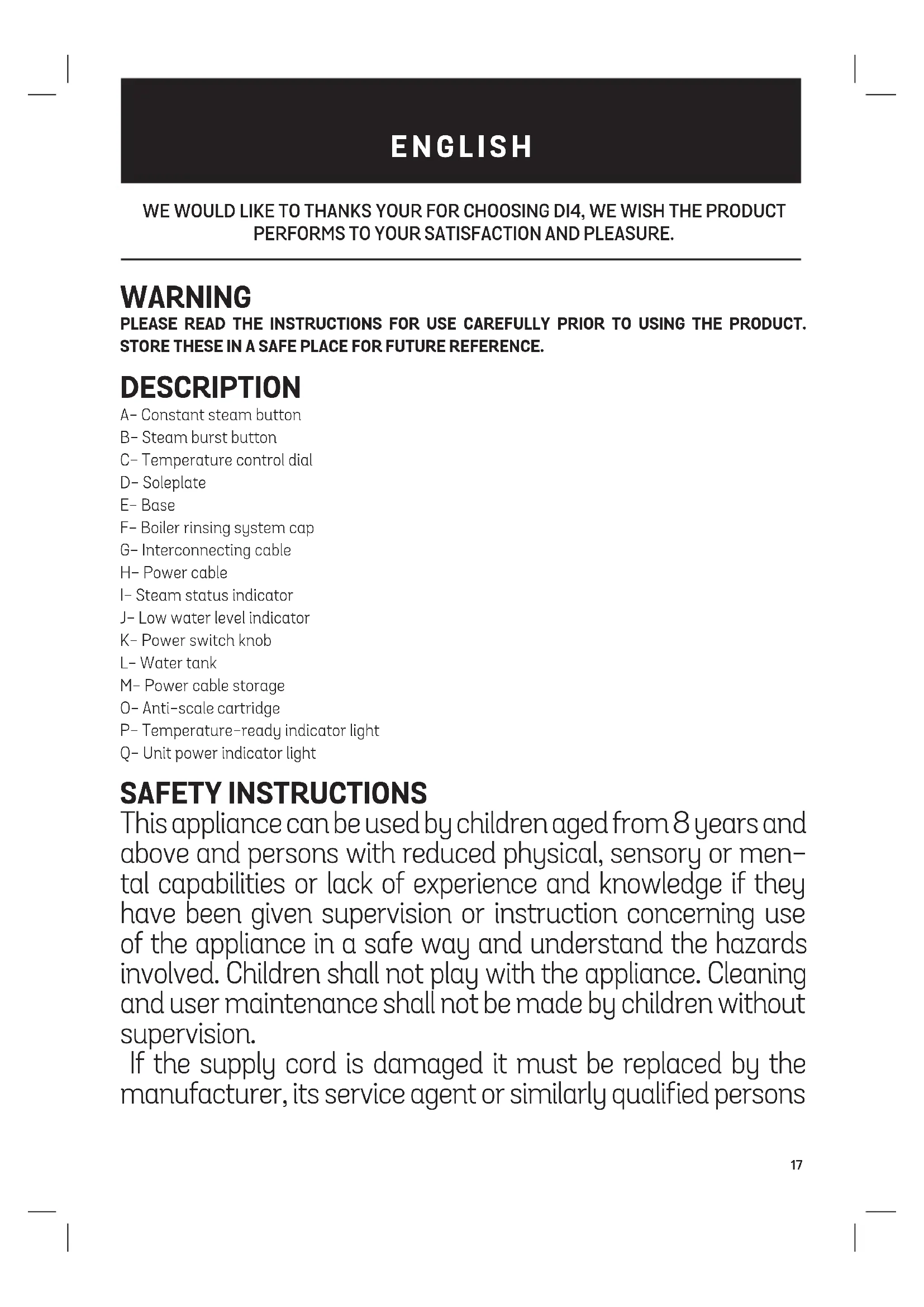

USER MANUAL Jet Pressing Pro 5b Di4

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING DI4, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

A- Constant steam button
B- Steam burst button
C- Temperature control dial
D-Soleplate
E-Base
F- Boiler rinsing system cap
G- Interconnecting cable
H- Power cable
I- Steam status indicator
J-Low water level indicator
K- Power switch knob
L-Water tank
M- Power cable storage
O-Anti-scale cartridge
P- Temperature-ready indicator light
Q-Unit power indicator light

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons

in order to avoid a hazard.

The iron must not be left unattended while it is connected to the supply mains.

The plug must be removed from the socket-outlet before the water reservoir is filled with water.

The irons must be used and rested on a flat, stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

The self-clean cover must not be opened during use. Instruction for the safe refilling of the water reservoir are given of filling the water tank selection

CAUTION Hot surfaces. Surfaces are liable to get hot during use.

IMPORTANTWARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

If you use one adaptor make sure it can reach 16 A and is provided with earth socket

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Do not direct steam at people and animals.

Do not place the appliance under the tap to fill the water tank, or immerse it in water or other liquids.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an Official Technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device. Only an Official Technical support service centre may carry out repairs on this product.

Proceed according to the conservation and cleaning section of this manual for cleaning

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

BEFORE THE FIRST USE

Before using the Steam Station, please ensure you read the user manual and understand all parts and features of the Steam Station. Be sure to remove any packaging material and labels before using for the first time.

In the first use they can break off odors or fumes that sent quickly. Do not spray for the first time on clothes and there may be traces of dirt on the soleplate

WATER TO BE USED

The device is designed for use with tap water. If the water in your area is hard or semi-hard use mix tap water with distilled or demineralized water purchased in stores, in the ratio 2:1 and 1:1 respectively. Check with your water supplier to determine the type of water in your area.

Never use 100% distilled or demineralized, rain water, softened water, scented water, water from other appliances such as refrigerators, air conditioners, dryers or other types of home water preparation water.

FILLING THE WATER TANK

Locate the water tank release latch under the front of the water tank and push up. This will release the water tank, enabling you to pull it out.

Place the water tank inlet under a tap and fill. Do NOT fill over the MAX level indicator.

Slide the water tank back in position and push in, you will hear it click when it is locked in place.

OPERATING INSTRUCTIONS

1. Place the Ironing Centre on a completely flat table, bench or ironing board, firmly positioned on the surface.
2. Connect the unit to the power outlet and turn the switch to the 'on' position.
3. Make sure the steam button is unlocked.
4. Turn the power switch knob to the right to connect the unit. The pilot light will turn on.
5. The Ironing Centre will begin to heat the water.

NOTE: ou will hear water being pumped from the water tank to the water boiler. This is a normal function, and always occurs when there is no water left in the Ironing Centre. DO NOT push the steam button while the Ironing Centre is heating up.

1. Once the unit is ready for use, the steam status indicator light will turn red.
2. You may now start ironing. Move the iron's temperature control dial to adjust the heat to the type of material to be ironed.

Check the Ironing Guide Table in this manual if you need more information regarding recommended ironing temperatures.

NOTA: Upon ironing, the thermostat light will intermittently turn on and off as the temperature changes.

1. To produce steam, press the steam burst button for a flow of steam. Upon releasing the button, the flow of steam will stop
2. To achieve a continuous flow of steam, press the constant steam button ahead. To stop the flow of steam backward, push the steam button and it will unlock.

IRONING TIPS

• Start with the fabrics to be ironed at a low temperature and finish with those which need higher temperatures.
• For mixed fibre fabric, set the ironing temperature to a lower setting.
• For woollen garments, press the steam trigger repeatedly over the garment without physically touching it with the iron.
• For thicker fabrics, raise the steam output by turning the steam control dial to the right.
• For low temperature setting on the dial, reduce the steam level by turning the steam control dial to the left.

VERTICAL STEAM IRONING

This feature allows you to smooth out creases in garments or drapery in a similar manner to a garment steamer. The high steam pressure of the Steam Station can provide bursts of steam while holding the iron vertically. For best results, utilise on delicate or light fabrics. To produce the maximum amount of steam, set the steam setting to MAX. Only direct steam at hanging garments in a safe area and ensure you always refer to garment manufacturer recommendations.

WARNING: Do NOT direct the steam onto a garment that is being worn or at any person.

REFILLING THE WATER TANK

When running low on water, the Steam Station will stop emitting steam even if you press the steam trigger, and the low water indicator light will flash red. You do not have to switch off the Steam Station to refill the water tank. Simply remove the water tank to refill, or use a cup or bottle to pour water into the easy-fill water tank inlet.

MANITENCE AND CLEANING

Cleaning

Turn off the Steam Station and unplug at the power outlet.

Remove the water tank, empty and rinse.

Regularly clean the ceramic soleplate with a damp, non-metallic washing pad.

Wipe the exterior of the Steam Station with a soft cloth.

Do NOT use abrasive cleaners, detergent or other chemicals to clean the Steam Station.

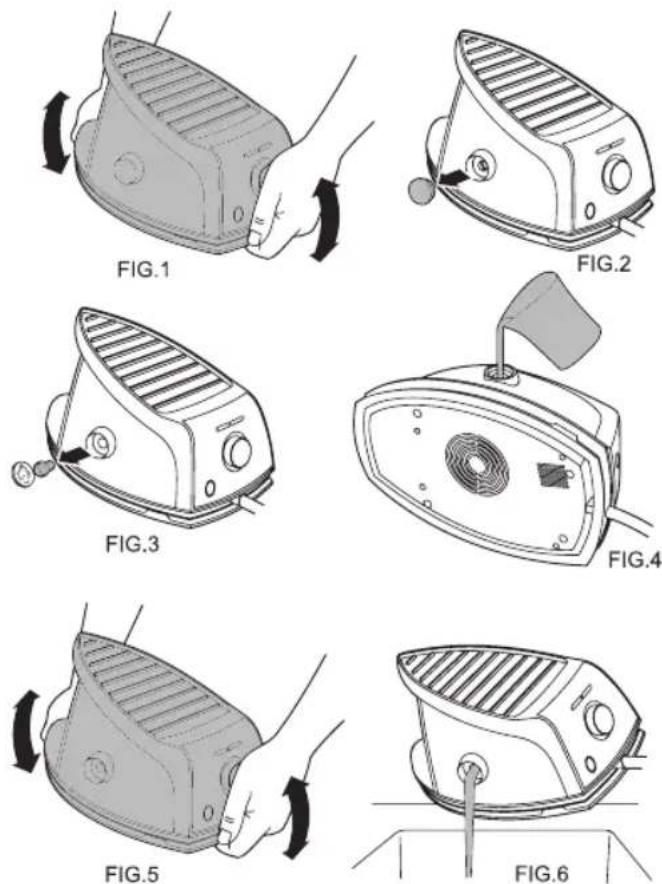

Rinsing the Boiler

NOTE: Ensure the Steam Station has cooled completely before cleaning and/or rinsing the boiler. To extend the effective operating life of the Steam Station and avoid scale particle buildup, it is recommended to rinse the boiler out once a month or after every 10 uses.

1. Turn off the Steam Station and unplug at the power outlet.
2. Position the unit on a sink edge or similar water proof surface.

3. Remove the water tank.(Fig1)

4. Using both hands holding the base, give the Steam Station a minor shake (be careful not to drop the iron from its base).

5. Position the Steam Station on its side, then remove the boiler rinse cap cover, and use a coin to unscrew the plug. (Fiq2 and 3)
6. Fill the boiler with water again (ensure you use tap water), and give it another shake.(Fig4,5 and 6)
7. Repeat this step twice for best results.
8. Screw the plug back in and then place the cap on. (Fig 3 and 2)

CHANGE ANTI-SCALE CARTRIDGE

Water filter cartridge replacement. For moderate use (twice weekly), and depending on the hardness of the water in your area, the water softening filter and anti-scale cartridge should be replaced every 3 to 6 months.

NOTE: - Do not use the unit without the water softening filter!

1- Remove the water tank by pulling it outwards
2- Pull the cartridge outwards, and unscrew the top part. Inside you will find two filters and a bag with resin; these should be replaced if they are dirty.
3- Replace the top part and screw it on, place the cartridge once again within the ironing centre.
4- Place the water tank where it was.

Ironing Guide Chart

Below is a guide on the temperature setting required for different types of fabric, along with the recommended iron method.

Fabric Temperature	Setting Ironing Recommendation
Acrylic • Dry iron the garment inside out.
Acetate •		Dry iron inside out while still damp or use a spray bottle with water to dampen the material.
Nylon •		Iron inside out while still damp or use a spray bottle with water to dampen the material.
Polyester •		Iron inside out while still damp or use a spray bottle with water to dampen the material.
Silk •		Iron inside out. Place a handkerchief over the material while ironing to prevent shine marks.
Wool • Steam iron inside out or use a handkerchief to iron.
Wool Blends • Steam iron inside out or use a handkerchief to iron.
Cotton Blends • •		Check the tag and follow the manufacturer's directions. Use the setting for the textile that requires the least adjustment.
Cotton • Steam iron.
Linen • •		Iron inside out or use a handkerchief to iron to prevent shine marks. Steam iron
Denim	MAX	Steam iron

TROUBLESHOOTING GUIDE

Please consult troubleshooting table below for any issues you may face prior to contacting our support centre.

PROBLEM POSSIBLE CAUSE SOLUTION
THE UNIT SEEMS TO NOT HEAT UP OR EMIT ANY STEAM. POWER INDICATOR LIGHT DOES NOT TURN ON.	The unit is not connected to electricity.	Connect it to the electrical outlet.
	The unit's circuit breaker is not switched on	Turn the knob on the circuit breaker to the on position.
WATER IS LEAKING OUT OF THE HOLES ON THE SOLEPLATE.	Water has condensed in the tubing because it is the first time the unit has been used or because it has not been used for some time.	Direct the steam away from the garment to be ironed until the unit emits steam correctly.
	The soleplate is not hot enough.	Wait for the iron to reach the selected temperature, when the iron heating indicator light turns off / The selected temperature is not compatible with steam operations, increase the selected temperature
WHITE STREKS ARE LEAKING FROM THE HOLES ON THE SOLEPLATE.	Scale has accumulated in the boiler because it has not been rinsed regularly.	Rinse out the boiler and check the filter.
BROWN STREKS ARE LEAKING FROM THE HOLES ON THE SOLEPLATE AND ARE STAINING WHITE GARMENTS.	You are using chemical or additive descaling agents in the ironing water.	Never add this type of product to the water tank or the boiler.
THE SOLEPLATE IS DIRTY OR STAINED BROWN AND MAY STAIN THE GARMENT. CLOTHING IS BECOMING STUCK TO THE SOLEPLATE.	The iron temperature is too hot.	Adjust the temperature control dial to a lower setting.
NO STEAM OR HARDLY ANY STEAM COMES OUT.	The water tank is empty. Fill the water tank.

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

MERCI D'AVoir PLACÉ LEUR CONFIANCE EN DI4 ET NOUS ESPÉRONS QUE CE PRODUIT VOUS DONNERA ENTière SATISFACTION ET PLAISIR.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÜR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product for the purpose for which it is intended for a period of two years for the entire Spanish territory. In the case of breakdown during the term of this warranty, you are entitled to repair or to the replacement of the product at no charge if the former is unavailable, unless one of these options prove impossible or disproportionate. In this case, you can then choose a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is unaccredited by B&B TRENDS, SL. This warranty does not affect your rights as a consumer in accordance with the provisions of Law 23/2003 dated 10 July 2003 on warranties on the sale of consumer goods in the Spanish territory.

USE OF WARRANTY

Consumers should contact a technical service centre authorised by B&B TRENS, SL. for repair of the product as any tampering thereof by persons not authorised by B&B TRENS, SL., as well as misuse or inappropriate use, will lead to the cancellation of this warranty. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

Claims must take place within three years from delivery of the product according to the provisions of the warranty, and the consumer must inform the sales vendor of the lack of conformity, provided that such claim is made within the statutory period of warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item or by contacting B&B TRENS, SL.
