Product type	Illuminated cosmetics mirror
Brand	Beurer
Model	BS 45
Dimensions (L x W x H)	20 x 4.1 x 39 cm
Weight	Approx. 1146 g
Mains power supply	100-240 V ~ 50/60 Hz, 0.5 A max
Battery power supply	3 x AA 1.5 V batteries (alkaline LR6)
Power consumption	6.75 W
Average operating efficiency	≥ 79.29 %
Off-load consumption	≤ 0.065 W
Magnification	5x (one side)
Lighting	36 LED
Light intensity adjustment	3 levels
Automatic shut-off	After 10 minutes
Use	Indoor only
Cleaning	Slightly damp soft cloth, mild cleaning agent
Safety	Double insulation (protection class 2)
Warranty	3 years
Included accessories	3 AA batteries, mains adapter, instruction manual

Frequently Asked Questions - BS 45 BEURER

How to turn on the BS 45 mirror?

Press the On/Off button located on the back of the mirror. The light turns on immediately.

How to adjust the light intensity?

Press the On/Off button multiple times to cycle through the 3 available light intensity levels.

Can I use rechargeable batteries?

No, only use non-rechargeable AA 1.5 V (alkaline LR6) batteries. Rechargeable batteries are not suitable and could damage the device.

The mirror turns off by itself, is that normal?

Yes, the mirror is designed to automatically turn off after 10 minutes of use to save energy.

What to do if the lighting stops working?

First check the power: if using batteries, make sure they are correctly inserted and not depleted. If using the mains adapter, check the connection and wall outlet. If the problem persists, contact customer service.

How to clean the mirror?

Unplug the device and let it cool down. Use a slightly damp soft cloth with a mild cleaning agent. Then wipe with a dry, lint-free cloth. Never use harsh cleaners or immerse in water.

Can I use the mirror in the bathroom?

Yes, but with caution. The mirror should be used indoors, away from humidity. Do not use near a bathtub, shower, or water-filled sink, and do not expose it to splashes.

What is the warranty for the BS 45 mirror?

The warranty is 3 years from the purchase date, for normal domestic use. It covers manufacturing defects. Keep your receipt.

Can the mirror be used without batteries, plugged into mains?

Yes, you can use the supplied mains adapter. Plug it into the socket on the back of the mirror. The mirror then operates without batteries.

What to do in case of battery leakage?

Wear protective gloves, remove the batteries, and clean the compartment with a dry cloth. Avoid any contact with skin or eyes. If liquid contacts, rinse with water and consult a doctor.

USER MANUAL BS 45 BEURER

Modern mirror stand with a square frame and a circular base, no visible text or symbols on the device itself.

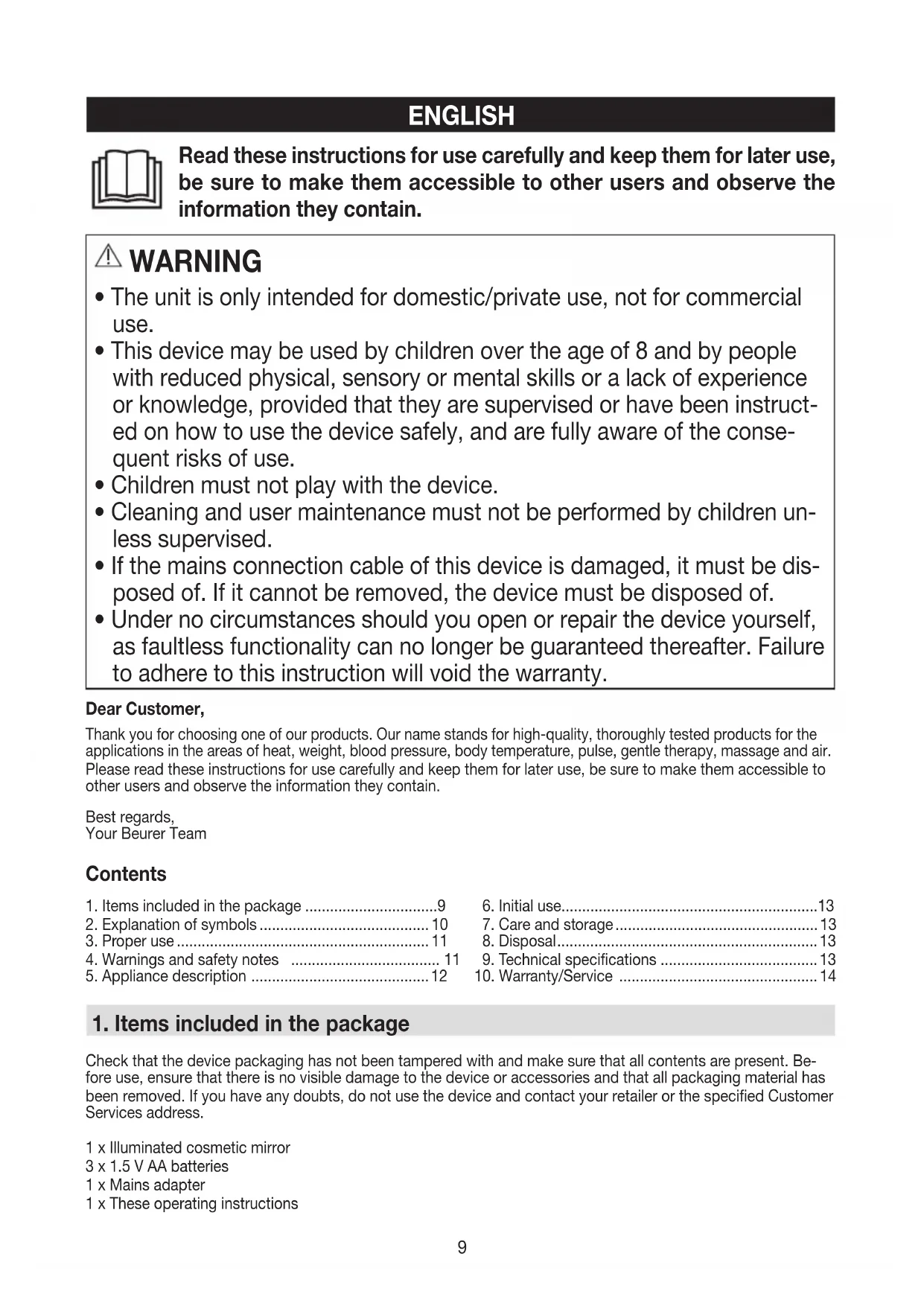

EN Illuminated cosmetic mirror Instruction for Use 9

Diagram of a desktop monitor with numbered parts labeled for identification

Read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

WARNING

• The unit is only intended for domestic/private use, not for commercial use.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.
• Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to adhere to this instruction will void the warranty.

Dear Customer,

Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for the applications in the areas of heat, weight, blood pressure, body temperature, pulse, gentle therapy, massage and air. Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

Best regards,

Your Beurer Team

Contents

1. Items included in the package ....9
2. Explanation of symbols 10
3. Proper use 11
4. Warnings and safety notes 11

5. Appliance description ...... 12

6. Initial use....13

7. Care and storage....13
8. Disposal....13
9. Technical specifications .... 13
10. Warranty/Service 14

1. Items included in the package

Check that the device packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 x Illuminated cosmetic mirror
3 x 1.5 V AA batteries
1 x Mains adapter
1 x These operating instructions

2. Explanation of symbols

The following symbols are used in these instructions for use, on the packaging and on the type plate for the device and the accessories:

WARNING	Warning of risks of injury or health hazards
CAUTION	Safety information about possible damage to appliance/accessories
Note	Important information
	The device has double protective insulation and therefore complies with protection class 2
	Only use indoors.
	Read the instructions for use
	Please dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment).
	Manufacturer
PAP	Dispose of packaging in an environmentally friendly manner
	This product satisfies the requirements of the applicable European and national directives.
	Certification symbol for products that are exported to the Russian Federation and members of the CIS
	Energy efficiency class 6
	Short-circuit-proof safety isolating transformer
	Switching mains part
	Polarity of d.c. power connector
	Direct currentThe device is suitable for use with direct current only
IP 20	Protected against solid foreign objects 12.5 mm in diameter and larger

3. Proper use

The cosmetic mirror is solely for the purpose of supporting your daily skin care routine, such as assessing cosmetics, and has a mirror surface with 5x magnification. The purpose of the built-in lighting is simply to improve visualisation of the applied cosmetics, and is not suitable for lighting a room.

The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.

This device is intended for domestic use only, not for commercial purposes.

This device may be used by children over the age of eight and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.

Children should be supervised around the device to ensure they do not play with it.

4. Warnings and safety notes

Please read these operating instructions carefully. Failure to observe the information provided below can lead to personal injury or material damage. Keep these instructions in a safe place where they can also be read by other persons using the device. Always pass on these instructions together with the appliance if you sell it or pass it on.

WARNING

- Contact with direct sunlight poses an increased risk of fire. Therefore, you should avoid exposing the mirror area to direct sunlight.

• Keep children away from the packaging materials. Risk of suffocation.
• Children must be supervised when using this device.

CAUTION

• Before use, make sure that the device and accessories do not show any visible signs of damage. If you are in any doubt, do not use it and contact your dealer or a specified customer service address.
• Use only the power supply unit supplied for this purpose.
• Do not stretch, twist or kink the power cord.
• Do not position the power cord on or pull it over sharp or pointed objects.
• Plug the power cable into a correctly installed mains outlet.
• Do not open the case under any circumstances.
• Keep the device away from pointed or sharp objects.
• If the device has been dropped or otherwise damaged, it must not be used again.
• Switch the device off and unplug it from the power supply after every use and before every cleaning.

WARNING: Electric shock

Just like any other electrical appliance, the illuminated cosmetic mirror must be handled with due care and attention in order to prevent the risk of electric shock.

For this reason, the device must only be operated as follows:

• with the mains voltage specified on the device only,
• never use the device if any damage to the appliance itself or to any of its accessories is evident,
• never during a thunderstorm.

Switch the device off immediately if it is defective or nor working properly and disconnect it from the power supply. Do not pull the power cord or the device to disconnect the power supply unit from the socket. Never hold or carry the device by the power cord. Keep the cables away from hot surfaces.

Keep the device, the plug and cables away from water or other liquids.

For this reason, the device must be operated as follows:

• only in dry inside rooms,
• only with dry hands,
• never in the bath, in the shower or near a filled basin,
• never in swimming pools, whirlpools or in the sauna,
• never out in the open.

Never try to retrieve the device if it falls into water. Disconnect the plug immediately from the mains outlet.

WARNING : Repairs

• Repairs to electrical appliances must only be carried out by qualified persons. Incorrect repairs can lead to considerable danger for the user. In the event of repairs, please contact our customer service or an authorised dealer.
• If the power supply unit or its cord is damaged, it must be replaced by an authorised dealer.

WARNING: Fire hazard

There is a risk of fire if the device is used incorrectly or if it is not used according to these operating instructions.

For this reason, the device must only be operated as follows:

• never leave the device unsupervised, particularly if children are around,
• never use the device under covers, such as blankets or pillows,
• never use the device in the vicinity of petrol or other easily flammable materials.

Notes on handling batteries

• If your skin or eyes come into contact with battery fluid, flush out the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on batteries. Store the batteries out of the reach of small children.
• Observe the plus (+) and minus (-) polarity signs.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Protect the batteries from excessive heat.
• Risk of explosion! Never throw batteries into a fire.
• Do not charge or short-circuit batteries.
• If the device is not to be used for a long period, take the batteries out of the battery compartment.
• Use identical or equivalent battery types only.
• Always replace all batteries at the same time.
• Do not use rechargeable batteries.
• Do not disassemble, split or crush the batteries.

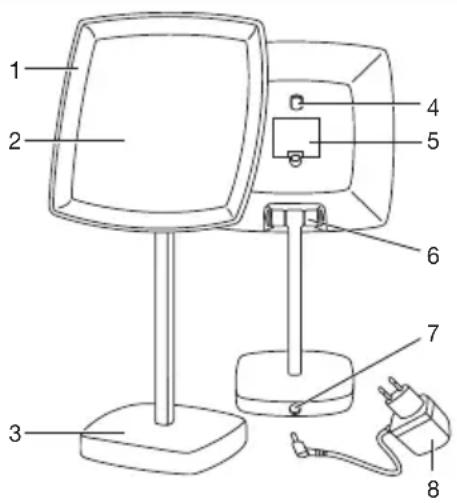

5. Appliance description

1. LED illumination 5. Battery compartment
2. Mirror (five times magnification) 6. Rotating joint
3. Base 7. Socket for power supply unit
4. On/Off button (for adjusting the light intensity) 8. Power supply unit

6. Initial use

The BS 99 mirror can either be operated by battery or by mains operation using the mains plug included in delivery.

Power supply unit

• Remove the packaging.
• Check the device, power supply and cables for damage.
• Connect the device to the mains power. The device must be switched off at this time.
• Route the cable safely so that there is no risk of anyone tripping over it.

Inserting the batteries

In order to use the cosmetics mirror, you first need to insert the supplied batteries. To insert the batteries, follow the steps below:

1. Remove the battery compartment lid on the rear of the device.
2. Insert the three supplied 1.5V AA (alkaline type LR6) batteries. Make sure that the batteries are inserted with the correct polarity, according to the label. Do not use rechargeable batteries.
3. Close the battery compartment lid carefully.

2 1 → + - - - + - + - -

Operation

• The light can be switched on or off using the on/off switch located on the rear of the mirror.
• The light intensity can be adjusted by pressing the on/off switch again. There are three light intensity levels to choose from.

The light switches off automatically after 10 minutes.

7. Care and storage

WARNING

• Disconnect the device before cleaning it.
• Do not use the device again until it is completely dry.
• Do not clean the device in the dishwasher.
• Do not use aggressive cleaning agents or hard brushes.

- Only clean the appliance in the manner specified. Fluid must never be allowed to enter into the device or accessories.

First unplug the device and allow it to cool off. Then you can clean it with a soft, slightly moistened cloth. Then wipe it dry with a soft, lint-free cloth.

8. Disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

The empty, completely flat batteries must be disposed of through specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the batteries. The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead,

Cd = Battery contains cadmium,

Hg = Battery contains mercury.

9. Technical specifications

Model: BS 99
Supply voltage: Supply:Weight: approx. 1146 g	Input: 100-240 VAC, 50/60 Hz, 0.5 A MAXOutput: 4.5 V DC, 1.5 A, 6.75 W4.5 V DC (3 x AA batteries)
Average active efficiency: ≥ 79.29%
No-load power consumption: ≤ 0.065 W
Dimensions (L x B x H): 20 x 4.1 x 39 cm
Magnification factor: 1 side 5x
Lighting: 36 LEDs

Subject to technical changes

10. Warranty/Service

Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as "Beurer") provides a warranty for this product, subject to the requirements below and to the extent described as follows.

The warranty conditions below shall not affect the seller's statutory warranty obligations which ensue from the sales agreement with the buyer.

The warranty shall apply without prejudice to any mandatory statutory provisions on liability.

Beurer guarantees the perfect functionality and completeness of this product.

The worldwide warranty period is 3 years, commencing from the purchase of the new, unused product from the seller.

The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use.

German law shall apply.

During the warranty period, should this product prove to be incomplete or defective in functionality in accordance with the following provisions, Beurer shall carry out a repair or a replacement delivery free of charge, in accordance with these warranty conditions.

If the buyer wishes to make a warranty claim, they should approach their local retailer in the first instance: see the attached “International Service” list of service addresses.

The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required.

A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with

- a copy of the invoice/purchase receipt, and

– the original product.

The following are explicitly excluded from this warranty:

– deterioration due to normal use or consumption of the product;

- accessories supplied with this product which are worn out or used up through proper use (e.g. batteries, rechargeable batteries, cuffs, seals, electrodes, light sources, attachments and nebuliser accessories);

– products that are used, cleaned, stored or maintained improperly and/or contrary to the provisions of the instructions for use, as well as products that have been opened, repaired or modified by the buyer or by a service centre not authorised by Beurer;

– damage that arises during transport between manufacturer and customer, or between service centre and customer;

– products purchased as seconds or as used goods;

– consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).

Repairs or an exchange in full do not extend the warranty period under any circumstances.
