USER MANUAL EasyHeat Flex 19050 Reer

General safety instructions....10
Technical specification 11 Clearing maintenance 44
Cleaning, maintenance....11 Lens delivered per description....12
Assembly 13
Pulling into operation 14
Troubleshooting .... 15
Warranty 15

Technical diagram showing three-step procedure for measuring a cylindrical object with a spring, including tool installation and measurement tools.

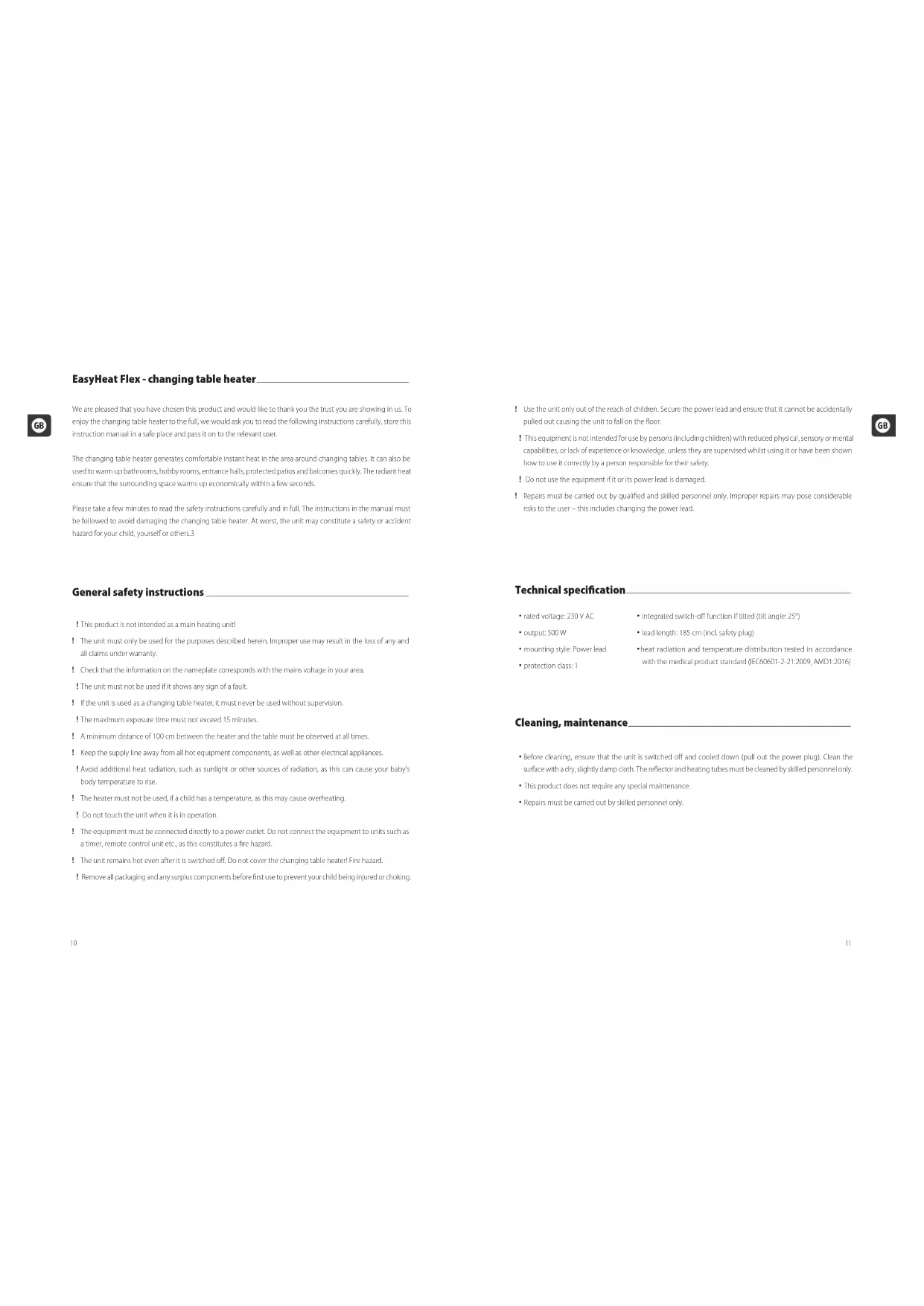

We are pleased that you have chosen this product and would like to thank you the trust you are showing in us. To enjoy the changing table heater to the full, we would ask you to read the following instructions carefully, store this instruction manual in a safe place and pass it on to the relevant user.

The changing table heater generates comfortable instant heat in the area around changing tables. It can also be used to warm up bathrooms, hobby rooms, entrance halls, protected patios and balconies quickly. The radiant heat ensure that the surrounding space warms up economically within a few seconds.

Please take a few minutes to read the safety instructions carefully and in full. The instructions in the manual must be followed to avoid damaging the changing table heater. At worst, the unit may constitute a safety or accident hazard for your child, yourself or others.3

General safety instructions

! This product is not intended as a main heating unit!
! The unit must only be used for the purposes described herein. Improper use may result in the loss of any and all claims under warranty.
! Check that the information on the nameplate corresponds with the mains voltage in your area.
! The unit must not be used if it shows any sign of a fault.
! If the unit is used as a changing table heater, it must never be used without supervision.
! The maximum exposure time must not exceed 15 minutes.
! A minimum distance of 100 cm between the heater and the table must be observed at all times.
! Keep the supply line away from all hot equipment components, as well as other electrical appliances.
! Avoid additional heat radiation, such as sunlight or other sources of radiation, as this can cause your baby's body temperature to rise.
! The heater must not be used, if a child has a temperature, as this may cause overheating.
! Do not touch the unit when it is in operation.
! The equipment must be connected directly to a power outlet. Do not connect the equipment to units such as a timer, remote control unit etc., as this constitutes a fire hazard.
! The unit remains hot even after it is switched off. Do not cover the changing table heater! Fire hazard.
! Remove all packaging and any surplus components before first use to prevent your child being injured or choking.

! Use the unit only out of the reach of children. Secure the power load and ensure that it cannot be accidentally pulled out causing the unit to fall on the floor.
! This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they are supervised whilst using it or have been shown how to use it correctly by a person responsible for their safety.
! Do not use the equipment if it or its power lead is damaged.
! Repairs must be carried out by qualified and skilled personnel only. Improper repairs may pose considerable risks to the user – this includes changing the power load.

Technical specification

- rated voltage: 230 V AC

- Integrated switch-off function if tilted (tilt angle: 25^ )

• output: 500 W

- lead length: 185 cm (incl. safety plug)

* mounting style: Power lead

• heat radiation and temperature distribution tested in accordance with the medical product standard (EC60601-2-21:2009, AMD1:2016)

• protection class 1

Cleaning, maintenance

• Before cleaning, ensure that the unit is switched off and cooled down (pull out the power plug). Clean the surface with a dry, slightly damp cloth. The reflector and heating tubes must be cleaned by skilled personnel only.
  • This product does not require any special maintenance.
  • Repairs must be carried out by skilled personnel only.

Items delivered.

A 1x

B 5x

C 1x1x

D

E 1x

F 1x

G 3x

H 1x1x

①

① 1x

Diagram of a coiled spring or tube structure with no text or symbols

1. Radiant heater with 1 tube
2. Light as indicator for "on"
3. pull cord for switching the unit on/off

K 1x

Assembly of changing table heater with pedestal

1. Insert the 5 feet (B) into the foot connector system (A) as shown in.

2. Place the tool cover (C) on top.

3. Insert the lower attachment tube (D) into the opening.

4. Fix the lower attachment tube in position by inscoring the plastic screw (L) from below.

5. Slide a cable holder (G) over the lower attachment tube.

5. Connect the middle attachment tube (H) with the groove to the lower attachment tube as shown in and turn the middle attachment tube until the holes in both tubes align.

7. Fix the middle attachment tube into place using the supplied screw (II) and a Philips screwdriver.
8. Slide the remaining cable holder (G) over the middle tube and connect the upper attachment tube (I) to the middle attachment tube. Fix the upper attachment tube in position using the supplied screw and a Philips screwdriver.
9. Remove the assembly plate from the unit as shown in.
10. Place the changing table heater (f) on the pedestal and fix it in position with the plastic screw (f).

!

Position the changing table heater in the desired location, out of reach of children and observing the specified minimum distances. Ensure that the pedestal is positioned securely on a level surface.

1. Open the grey locking screw of the upper attachment tube and set the charging table heater to the desired height using the telescopic rod. Ensure that a minimum distance of 100 cm to the charging table is observed. Adjust the unit to the desired height by closing the locking screw.
2. Secure the cable by pushing it into the cable holders.

Note: For an installation with fewer than 5 feet (for example due to limited space), the user must ensure stability of the changing table heater pedestal by other means. Never place a changing table heater with fewer than 5 feet freely in a room.

Putting into operation

1. Insert the mains plug into the power socket. (Fig. 1)
2. Pull the pull cord (Fig. 2) to switch the heater on. The heater has heat settings: 500 W.
3. Automatic shut-off is directly activated. After 10 minutes, the device is automatically switched off or it may be switched off at an earlier point by pulling the cord again.

Switch-off if tilted

The unit has an automatic switch-off function if tilted. If the angle exceeds 25^ (for example if the unit is mounted on the ceiling), the power supply to the unit is cut. The unit switches back on automatically, when it is upright again.

Troubleshooting

issue possible causes remedial action
No heat radiation despite heat setting	The power plug is not connected properly.The automatic switch off function (timer) is activated.The automatic tilt switch off function is activated, because the angle of the heater exceeds 75°.	Check the power plug.Turn the "Timer" to "Off" or switch the unit off and then on again by repeatedly pulling the pull cord.Ensure that the heater is level and fixed to the wall or the pedestal is upright.
Heat radiation despite the indicator being switched off.	Defective LED Please contact the customer service

Warranty

Please retain your receipt, the user manual and part number.

Claims under warranty or under warranty commitments are to be processed by the dealer alone.

The technical specification, information and characteristics of the product described herein have been compiled to the best of our knowledge and belief and are correct at the time of printing. Any information provided by reef should be correct and authoritative. Nevertheless, reef does not accept liability for potential errors in this document and reserves the right to make changes to the product design and/or specifications without prior notice. Reproduction and disclosure of information contained in this copyright protected document, in any form or by any means, graphical, electronic or mechanical by photocopying, recording on tape or storage in a data retrieval system - even in part, require prior written consent from reef.

Environmental protection

At the end of its life, this product must not be disposed of as normal domestic waste, but should be recycled at a collection point for electrical appliances. Please see the relevant symbol on the product. In the user manual and packaging. Materials can be recycled as specified. An important contribution to the protection of the environment can be made by reusing the unit, recycling its components or otherwise reusing old appliances. Please contact your local council to find out more

about an aporcolate disposal centre.
