Product Type	Heating radiator for changing table
Brand	Reer
Model	Viera TX49FSW504
Power Supply	230 V, 50 Hz
Power	600 W
Protection Class	I
Mounting Type	Horizontal wall mounting (do not mount on ceiling)
Emission Angle	90°
Child Safety Distance	100 cm minimum
Safety Distance from Flammable Materials	65 cm minimum
Automatic Timer	10 minutes (automatic shut-off)
Reset	Pull the cord
Recommended Use	Changing table, bathroom, hobby room, entrance, sheltered terrace
Do Not Use	Above a bathtub, unattended
Angle Adjustment	Stepless, continuously adjustable
Surface Cleaning	Dry or slightly damp cloth
Cleaning Reflector and Tube	By a specialist only
Power Cable	Mains or fixed connection
Spacing Between Mounts	250 mm
Warranty	2 years from the date of sale
Overheat Protection	Yes

Frequently Asked Questions - Viera TX49FSW504 Reer

How to install the heater on the wall?

The heater must be mounted horizontally on the wall using wall plugs and screws. Maintain a drilling spacing of 250 mm. Do not mount it on the ceiling or above a power outlet.

What distance should I keep between the heater and my child?

The minimum distance between the child and the heater must be 100 cm. For flammable materials, keep a distance of 65 cm.

How long does the heater run before turning off?

The heater has an automatic shut-off after 10 minutes of operation. It must be restarted by pulling the cord.

How to restart the heater after automatic shut-off?

After automatic shut-off, pull the cord to reactivate the device. Check that the switch is in the 'TRIP/0' position after use.

Can I use this heater in the bathroom?

Yes, but it must not be mounted above the bathtub and must comply with local electrical regulations. The switch must not be accessible from the bathtub or shower.

What is the voltage and power of the device?

The heater operates at a voltage of 230 V and has a power of 600 W. The protection class is I.

How to clean the heater?

Before cleaning, unplug the device and let it cool down. Clean the surface with a dry or slightly damp cloth. The reflector and heating tube must be cleaned by a specialist.

What to do if the heater does not turn on?

First check that the power outlet is working and the cord is properly plugged in. If the device still does not turn on, consult a specialist for repair.

Is the heater suitable for use with a changing table?

Yes, this heater is specifically designed to heat the area around a changing table. Irradiation for more than 15 minutes is not recommended to avoid overheating the baby.

What is the warranty period?

The warranty is 2 years from the date of sale, for any material or manufacturing defects. Fill out the yellow warranty form and keep the receipt.

USER MANUAL Viera TX49FSW504 Reer

Please read user manual carefully and keep it for further reference

Tips and instructions under: www.wickeltisch-heizstrahler.de

C E

230-50Hz 600W

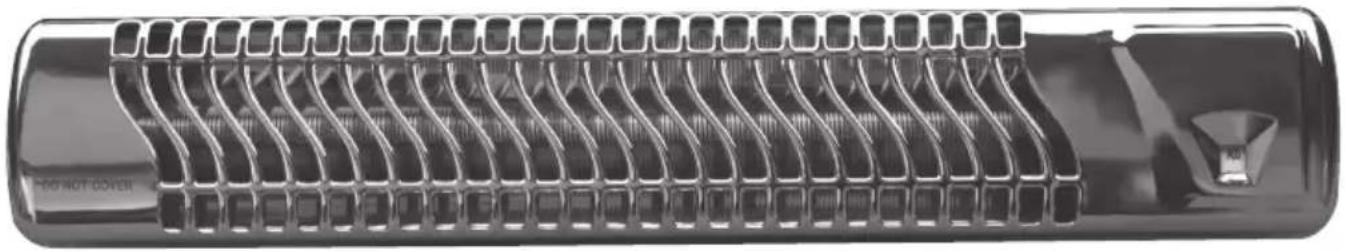

Our changing unit radiant heater provides comforting direct heat in the area of changing units. It is also suitable for quick heating of bathrooms, hobby rooms, hallways, sheltered patios and balconies though.

Important remarks

• Please read the user manual carefully before putting it in use.
• If the radiant heater is used above a changing unit the device is never to be used without supervision.
• The maximum irradiating duration must not exceed 15 minutes.
• Avoid additional warmth such as sunrays or other irradiating sources as the body temperature of your baby can consequently go up very high.
• Young infants with increased temperatures are not allowed to be irradiated. Danger of body overheating exists.
• Do not cover the radiant heater! Danger of fire exists.
• Do not touch the protecting grid during operation.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

Warning: it can still be hot after switching off.

The irradiation distance of 100cm between child and changing unit radiant heater must be kept.

Assembly:

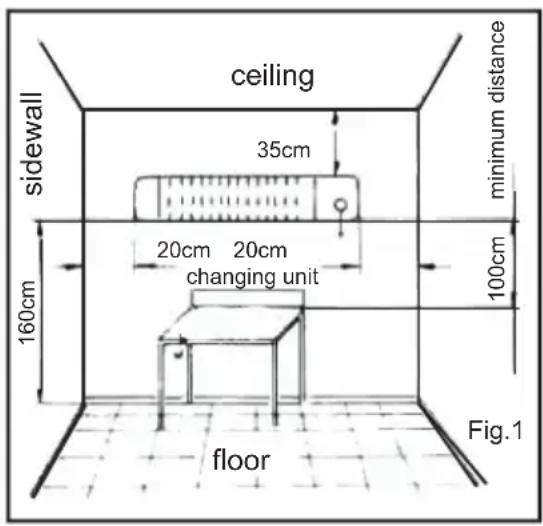

• The radiant heater is only allowed to be assembled at a permanent place on the wall and in horizontal position. It is not allowed to be attached to the ceiling, as shown in Fig. 1 must be obeyed.
• The minimum distances to walls, ceilings and floors as shown in Fig. 1 must be obeyed.
• Keep a minimum distance of 65~cm to infl ammable materials such as textiles, wood etc. Danger of fire exists!
• The radiant heater is not allowed to be fixed underneath a socket.

Typ:1902.06

The heater has a build-in automatic cut off function, i.e. the heater cuts off automatically after 10 minutes. To restart the heater again you have to pull the cord

In the event of a power failure or with defective fuses, automatic shutdown will automatically be started for additional 10 minutes if the switch is in ON position. After use or expiration of the turn-off time, please make sure the switch is in OFF/0 position.

a) Mark the position for the rawl plug drill holes taking the minimum spacing (distance between the drillings = 250mm ) into consideraton, and insert the rawl plugs (Fig. 2)

Assembly the screws. Hook in the radiant heater by pushing it to the right side into the arrester. After that you have to move the device towards the bottom and to fasten the screws.

b) Setting the radiant heater's angle: The radiant heater's angle is infinitely variable. Simply tilt it to the desired position (Fig. 3)

Caution: DO NOT TOUCH the radiant heater during and shortly after use! (HEAT RADIATION

Plug the heater into the socketthe heater is now ready for use

Caution: Do not place the power cord over the radiant heater!

• The local electrical regulations (EVU) must be complied with when installing the heater in bathrooms and shower rooms. The heater must be positioned so that the pull switch cannot be directly touched from the bathtub or shower.

Device must not be installed above bathtub!

Cleaning:

Before cleaning is begun, please ensure that the device is switched off and cooled down (draw the plug).

Clean the surface with a dry or damp cloth.

The reflector and heating bar can only be cleaned by an expert

Repair:

The device may only be repaired by an expert.

Technical details:

Mains voltage: 230 V

Power: 600 W

Type of assembly: power plug in socket or fixed connection

Protection class: 1

Irradiating angle: 90^

Guarantee

This device has been produced with intact material and the utmost care. Therefore Reer grants a guarantee period of 2 years after date of purchase against defective materials and workmanship. In the unlikely event that you are confronted with such a defect, you should complete the yellow warranty card and contact your dealer.

Warranty cannot be granted if:

• the device is used improperly and not for its intended purpose
• the device is connected to wrong mains voltage
• unauthorised repairs are made
• the warranty card is improperly completed.

(Do not forget to attach your sales slip.)

REER GmbH, Riedwiesenstrasse 7, 71229 Leonberg, Germany

Type: 1901.06 / Type: 1902.06

Date of purchase:

Stamp and signature of dealer:
