AirCO2ntrol Coach 31.5009.02 - Multimeter TFA - Free user manual and instructions

Product type	CO₂ Monitor
Brand	TFA
Model	AirCO2ntrol Coach 31.5009.02
Category	Multimeter (CO₂ monitor)
Dimensions	105 x 32 x 55 mm
Weight	86 g (device only)
Power supply	DC 5V, ≥300 mA via micro-USB port (USB cable included)
CO₂ measurement range	0 ... 9999 ppm
CO₂ accuracy	± 7% or ± 100 ppm (0–3000 ppm), ±10% (>3000 ppm)
CO₂ measurement method	NDIR (non-dispersive infrared technology)
Temperature range	0 °C to 50 °C
Humidity range	1% to 95% RH
Main functions	CO₂ monitoring, 24h history display, multicolor backlight (auto, alarm, fixed, off), clock, temperature, humidity
Screen backlight	Multicolor (green, yellow, red) with 4 adjustable modes
CO₂ history	Graphical display of 24h averages (0h, -3h, -6h, -12h, -18h, -24h)
Settings	Alarm threshold, screen color, eco mode, time
Preheating time	Approximately 10 seconds
CO₂ update interval	10 seconds
Maintenance and cleaning	Soft damp cloth, no solvents, protect from moisture
Safety	Use in dry indoor environment, do not expose to water, do not open, unplug if not in use
Spare parts and repairability	No user-serviceable parts; do not disassemble
Storage temperature	-20 °C to 60 °C
Package contents	CO₂ monitor, USB cable, instruction manual
General information	Compliant with EU standards (WEEE); reproduction prohibited without TFA agreement

Frequently Asked Questions - AirCO2ntrol Coach 31.5009.02 TFA

How to set the time on the device?

Press and hold the MODE button to enter setting mode. The hour blinks, use the + button to set the hour, then press MODE to switch to minutes. Set the minutes with the + button and confirm with MODE. The device automatically exits the mode after 20 seconds of inactivity.

What do the screen colors mean?

In Auto mode, the color changes according to CO₂ concentration: green (<800 ppm, optimal quality), yellow (800-1400 ppm, moderate quality), red (>1400 ppm, poor quality). You can also select a fixed or alarm mode.

How to change the screen backlight mode?

Briefly press the MODE button to cycle through modes: Auto, AL (red alarm), ON (fixed color), OFF (off). Confirm by waiting a few seconds. In ON mode, you can choose from 7 preset colors in setting mode.

What is the accuracy of the CO₂ sensor?

The accuracy is ±7% or ±100 ppm (whichever is greater) for the range 0-3000 ppm, and ±10% above 3000 ppm. The measurement method is NDIR (non-dispersive infrared).

How to interpret the displayed CO₂ history?

The graph shows 6 bars: the '0 h' bar corresponds to the current value (updated every 10s), '-3h' to the average of the last 3 hours, '-6h' to the average of 3-6h, '-12h' to 6-12h, '-18h' to 12-18h, '-24h' to 18-24h. Averages are recalculated every 10 minutes.

What to do if the screen displays '9999'?

This indicates a system error. Unplug the device and plug it back in after a few seconds. If the problem persists, contact TFA customer service.

Does the device work without a USB cable?

No, the device requires continuous power via the micro-USB port (5V, ≥300 mA). It does not have an internal battery. Plug it into a computer or a USB power adapter.

How to properly clean the device?

Use a soft damp cloth. Never use solvents or abrasive products. Protect the device from excessive moisture.

What to do in case of malfunction (no display)?

Check that the USB cable is properly connected to a suitable power source. If the screen remains black, try another cable or USB port. If the problem persists, perform a reset by unplugging and replugging the device.

How to dispose of the device at end of life?

Do not throw the device in household waste. Deposit it at an approved treatment center for electrical and electronic waste, in accordance with the WEEE directive.

USER MANUAL AirCO2ntrol Coach 31.5009.02 TFA

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
  This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
• Please take particular note of the safely advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

CO2Monitor
USB cable
- Instruction manual

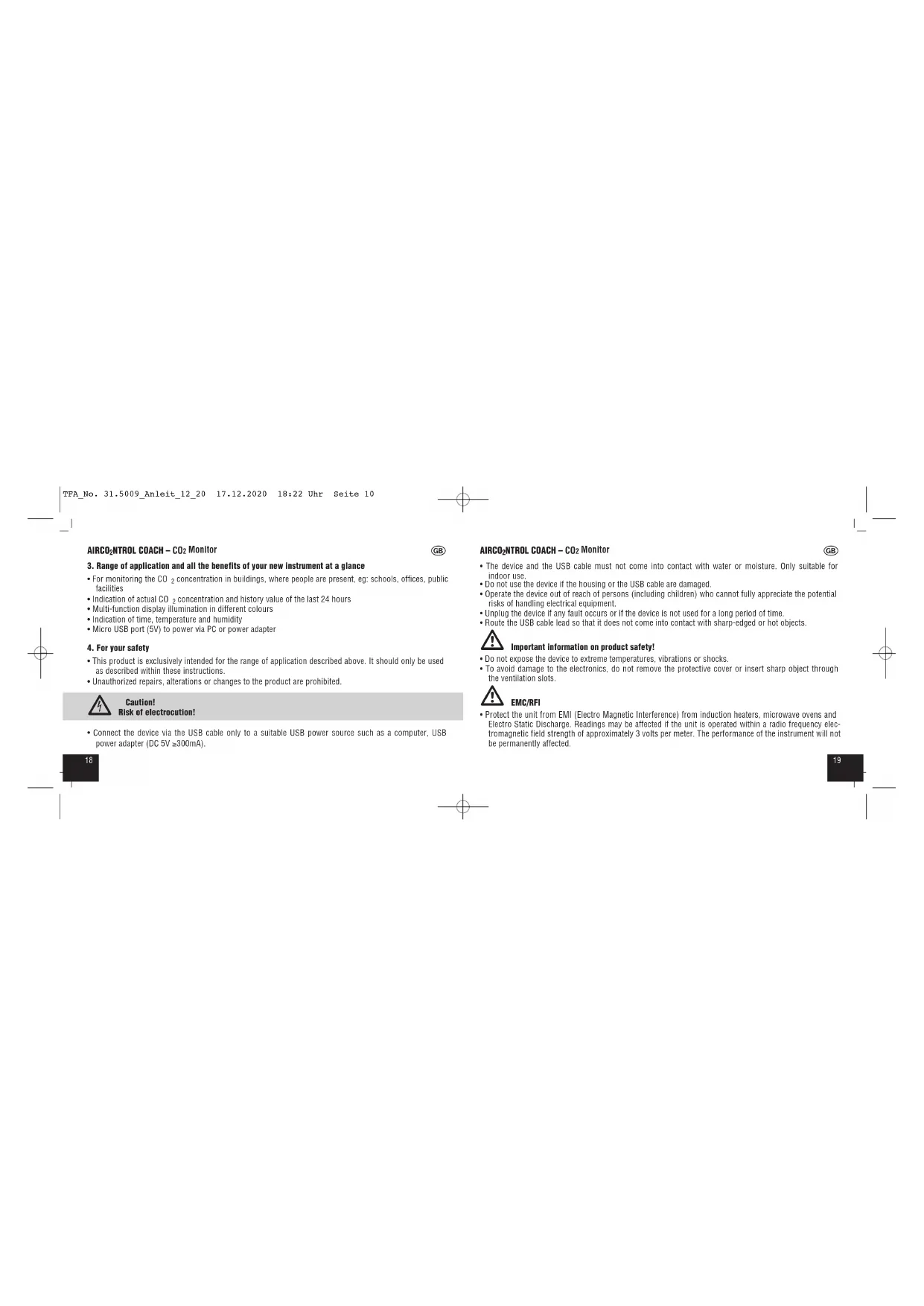

3. Range of application and all the benefits of your new instrument at a glance

For monitoring the CO_2 concentration in buildings, where people are present, eg: schools, offices, public facilities
- Indication of actual CO 2 concentration and history value of the last 24 hours
- Multi-function display illumination in different colours
- Indication of time, temperature and humidity
- Micro USB port (SV) to power via PC or power adapter

4. For your safety

This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
- Unauthorized repairs, alterations or changes to the product are prohibited.

Caution!

Risk of electrucution!

• Connect the device via the USB cable only to a suitable USB power source such as a computer, USB power adapter (DC 5V ± 300mA).

AIRCO2NTROL COACH-CO2 Monitor

• The device and the USB cable must not come into contact with water or moisture. Only suitable for Indoor use.
• Do not use the device if the housing or the USB cable are damaged.
• Operate the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
• Unplug the device if any fault occurs or if the device is not used for a long period of time.
• Route the USB cable lead so that it does not come into contact with sharp-edged or hot objects.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• To avoid damage to the electronics, do not remove the protective cover or insert sharp object through the ventilation slots.

EMC/BFI

• Protect the unit from EMI (Electro Magnetic Interference) from induction heaters, microwave ovens and Electro Static Discharge. Readings may be affected if the unit is operated within a radio frequency electromagnetic field strength of approximately 3 volts per meter. The performance of the instrument will not be permanently affected.

1. Elements
   5.1 Display (Fig. 1)
   A1:CO2indication
   A 2: CO history of the last 24 hours
   A 3: Time
   A 4: Temperature
   A 5: Humidity
   5.2 Buttons (Fig. 1)
   B1:MODE button
   B2: + button
   5.3 Housing (Fig. 2+3)
   C1: Micro USB port
   C2:Mounting holes
2. Getting started
3. Insert the supplied USB cable with the micro USB plug into the provided opening on the device. Connect the device via the USB cable only to a suitable USB power source.

GB

AIRCO2NTROL COACH-CO2 Monitor

GB

• "Auto" is displayed shortly after a successful connection, then "---" The backlight turns on.
• The black bars disappear one by one.
• The device is ready for use.
  The actual measurements will appear on the display: CO_2 concentration, temperature, humidity.

The clock must be set to the current time in setting mode.

7. Settings

7.1 Selection of the multi-function display illumination
- The device has a multi-function display illumination in different colours. Depending on the setting, the illumination colour is used to evaluate and interpret the current CO_2 measured values.
- You can select your respective setting by pressing the MODE button.
- Wait some seconds until the display returns to normal mode to confirm the setting.
The following four settings are available:

7.1.1.Auto" (default)

In this mode, the display colour changes automatically in smooth transitions between the 3 colour shades, depending on the current reading of the CO_2 levels.

Green: Optimal air quality: The CO concentration is below 800 ppm.

Yellow: Medium air quality: The CO

Red: Poor air quality: The CO

2 concentration is between 800 ppm and 1400 ppm.
2 concentration is over 1400 ppm.

AIRCO2NTROL COACH - CO2 Monitor

7.1.2 AL

In this mode, the red display illumination is activated as an optical signal in the event of an alarm when the limit value (defaults 1400ppm ) has been exceeded.

You can set the alarm limit value in setting mode.

7.1.3 on"

In this mode, you can set the display illumination to a single colour.

Choose between 7 colours in setting mode.

7.1.4.0FF

The backlight is off in this mode.

7.2 Setting mode

• Press and hold the MODE button for 3 seconds. SEL COL appears and you can use the + button to select the display illumination colour for the 'on' mode.

1=WHIT

2=LIGHTBLUE
3= DARK BLUE
4 = PURPLE
5=RED
6 = YELLOW

GB

AIRCO2NTROL COACH-CO2 Monitor

GB

7=GREEN

• Confirm with the MODE button.
  "AL" appears and the default setting is 1400 ppm.
  Use the + button to set the desired alarm limit (400 to 3000 ppm) in increments of 100 for the "AL" mode
• Confirm with the MODE button.
  The time appears on the display. The hour digits flash.
• Press the + button to adjust the hours.
• Press the MODE button again and set minutes in the same way.
• Confirm with the MODE button.
• "ECO L" appears and the default setting is OFF. If the ECO LIGHT function is activated, the light is dimmed between 22:00 and 6:00. Please set the actual time to use this function.
• Press the + button to activate (ON) or deactivate (OFF) the function.
• Confirm the setting with the MODE button to return to normal mode.
  The device will automatically quit the setting mode if no button is pressed for 20 seconds.

8. Display section HISTORY

The graph shows the measured CO values of the last 24 hours clearly.
The bar on the position 0^^* always corresponds to the current measured value of the CO_2 level (the bar is updated every 10 seconds, together with the measured value).

AIRCO2NTROL COACH-CO2 Monitor

The bar -3 corresponds to the average of the CO 2 levels of the last 3 hours
The bar " - 6 " corresponds to the average value of the CO 2 levels for the period between 3 to 6 hours.
The bar -12^ corresponds to the average value of the CO 2 levels for the period between 6 to
12 hours.
The bar "18" corresponds to the average value of the CO₂ levels for the period between 12 to 18 hours.
- The bar "24" corresponds to the average value of the CO_2 levels for the period between 18 to 24 hours.
The average values of bars -3 to -24 are recalculated and updated every 10 minutes.

9. Care and maintenance

Clean the device with a soft dry cloth. Do not use solvents or scouring agents. Protect it from moisture.
- Keep the device in a dry place.

10. Troubleshooting

Problem Solution

No display Connect the device with the micro USB cable to a suitable power source

AIRCO2NTROL COACH - CO2 Monitor

Incorrect indication Restart the device

Display 9999 System error

Restart the device

11. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

12. Specifications

Power consumption DC 5V, ≥300mA (USB)

USB cable included

CO2 Measuring range 0...9999 ppm

Resolution 1 ppm

Accuracy ±7% or ±100 ppm at 0...3000 ppm (whichever is greater)

± 10% at >3000~ppm

Update interval 10 seconds

Warm-up time approx. 10 seconds

Method Non-Dispersive-Infrared Technology (NDIR)

Temperature

Measuring range 0^ 50^

Resolution 0.1°C

Accuracy ± 1.0^

Humidity

Measuring range 1% to 95% rH

Resolution 1% RH

Accuracy ±3 % rH (at 35...75 % rH)

AIRCO2NTROL COACH-CO2 Monitor

GB

Operating temperature 0^ 50^

Storage range -20°C ... 60°C

Dimensions 105× 32× 55mm

Weight 86 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

www.tfa-dostmann.de

E-Mail:[e-mail]

TFA Dostmann GmbH & Co.KG, Zum Ottarsberg 12, D-97877 Wartheim, Germany 12/20
