USER MANUAL Triple Time XL 38.2023 TFA

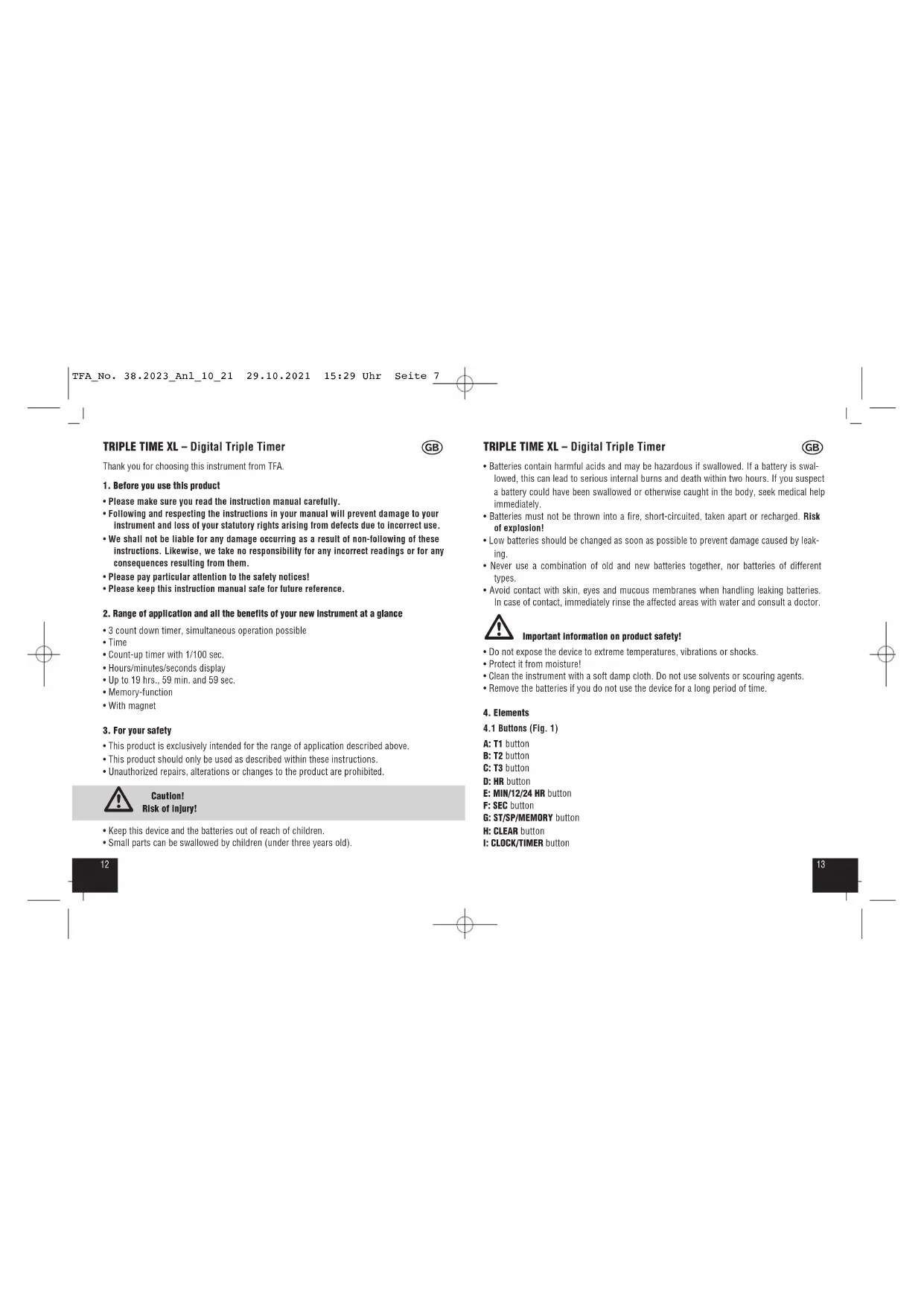

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.

• Please pay particular attention to the safety notices!

• Please keep this instruction manual safe for future reference.

2. Range of application and all the benefits of your new instrument at a glance

• Count-up timer with 1/100 sec.

• This product is exclusively intended for the range of application described above.

• This product should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited. Caution! Risk of injury!

• Keep this device and the batteries out of reach of children.

• Small parts can be swallowed by children (under three years old). TRIPLE TIME XL – Digital Triple Timer

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swal- lowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leak- ing.

• Never use a combination of old and new batteries together, nor batteries of different types.

• Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor. Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.

• Protect it from moisture!

• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.

• Remove the batteries if you do not use the device for a long period of time.

P: Stand (fold out) Q: Wall mount hole R: RESET button S: Magnet T: Battery compartment

• Open the battery compartment and remove the insulation strip.

• A short beep will sound and all LCD segments will light up for about 2 seconds.

• The unit is now ready to use.

• Press and hold HR button or MIN/12/24 HR button or SEC button, you will enter fast mode.

• All successful settings will be confirmed by an acoustical signal.

• Press and hold CLOCK/TIMER button in CLOCK-mode for 3 seconds.

• Press HR button to set the hours, press MIN/12/24 HR button to set the minutes and press SEC button to set the seconds.

• Confirm with CLOCK/TIMER button.

• Press MIN/12/24 HR button to choose 12 HR (AM or PM appears on the display) or 24 HR system.

• In the middle display the 1/100 seconds will be counted.

• Hours, minutes and seconds appear in the lower display.

• Use ST/SP/MEMORY button to stop and restart the counting.

• Press CLEAR button to reset the display.

• In TIMER mode TIMER 1 appears in the upper, TIMER 2 in the middle and TIMER 3 in the lower display.

• Press and hold T1 or T2 or T3 to select a TIMER.

• A short beep will sound and the selected TIMER is flashing.

• Press HR button to set the hours, press MIN/12/24 HR button to set the minutes and press SEC button to set the seconds.

• Press the respective T1 or T2 or T3 button to confirm the desired setting.

• Press T1 or T2 or T3 button to start the count-down of the respective TIMER.

• Press T1 or T2 or T3 button again to stop/restart the counting of the respective TIMER.

• For simultaneous operation of all three TIMERS set the desired time for TIMER 1, TIMER 2, TIMER 3.

• Press ST/SP/MEMORY button to start, stop and restart the countdown of TIMER 1, TIMER 2, TIMER 3 at the same time.

• When the TIMER counts down to 00:00:00, a beeping alarm (1 min.) will sound, the dis- play flashes and TIME'S UP appears.

• Now the TIMER will start to count up the elapsed time until it is stopped by pressing ST/SP/MEMORY button or the respective TIMER button (T1, T2, T3).

• During the countdown function press CLOCK/TIMER button to return to CLOCK-mode. The running TIMER is flashing in the display and after the time is over the beeping alarm will sound and TIME'S UP appears in the respective display.

• The instrument stores the latest time setting of the TIMER.

• Press ST/SP/MEMORY button.

• MEMORY and the latest time setting appear in the display.

• Press the respective TIMER button (T1, T2, T3).

• MEMORY disappears in the display and the counting starts.

• With the foldable leg the instrument can be placed onto flat surfaces.

• Use the magnet at the back of the instrument for placement on metal surfaces.

• Use the suspension device to fix the instrument with a nail at a wall.

12. Battery replacement

• Replace the batteries when the display becomes weak.

• Open the battery compartment and insert two new batteries (2 x 1.5 V AAA), polarity as illustrated.

13. Trouble shooting

Problem Solution No display ➜ Remove the battery insulation strip ➜ Ensure that the batteries’ polarity is correct ➜ Change the batteries Incorrect indication ➜ Press the RESET button ➜ Change the batteries If your device fails to work despite these measures, contact the retailer where you purchased the product. TRIPLE TIME XL – Digital Triple Timer

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the envi- ronment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up. Disposal of the electrical device Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Elec- tronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a con- sumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Observe the current regulations in place! Disposal of the batteries Never dispose of empty batteries and rechargeable batteries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depend- ing on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Housing dimension 103 x 20 (61) x 121 (103) mm Weight 142 g (device only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technicaldata are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by sim-ply entering the product number in the search box.www.tfa-dostmann.deE-Mail: [e-mail] Dostmann GmbH & Co.KG, Zum Ottersberg 12, 97877 Wertheim, Germany 10/21 TRIPLE TIME XL – Minuterie digitale triple
