Product type	Touch tablet with 4G connectivity
Operating system	Android 7.0 Nougat
Screen size	10.1 inches (diagonal)
Screen resolution	1280 x 800 pixels (estimation)
Processor	Quad-core (estimation)
RAM memory	1 GB (estimation)
Internal storage	16 GB (estimation)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth, 4G LTE
Ports	Micro-USB, headphone jack 3.5 mm (estimation)
Sensors	Accelerometer, ambient light sensor
Camera	Front and rear camera (estimation VGA and 2 MP)
Battery	Lithium-ion, typical capacity 5000 mAh
Power supply	Power adapter 5V/2A via Micro-USB
Dimensions	240 x 170 x 10 mm (estimation)
Weight	Approximately 500 g
Maintenance and cleaning	Clean with a soft dry cloth. Do not use chemical products.
Security	Lock by code, pattern, password or fingerprint (not available on this model)
Spare parts and repairability	Not user repairable. Contact ARCHOS support.
General information	2-year legal warranty. Compatible with standard accessories.

Frequently Asked Questions - Core 101 4G ARCHOS

How to turn on and off the ARCHOS Core 101 4G tablet?

To turn on the tablet, hold down the ON/OFF button until the screen lights up. To turn it off, hold the same button, then select 'Turn off' on the screen.

What to do if my tablet is stuck or unresponsive?

If the tablet is stuck, press the ON/OFF button for about 10 seconds to force a restart. Also use the Reset button if available.

How to charge the battery?

Plug the charging cable into the Micro-USB port of the tablet, then connect the power adapter to a power outlet. Let the battery fully charge before first use.

Why is the Wi-Fi weak or unstable?

Make sure you are not too far from the Wi-Fi access point. Reset the Wi-Fi connection settings by forgetting the network and reconnecting. Also check that your internet provider is working properly.

How to reset the tablet to factory settings?

Go to Settings > Backup & Reset > Reset device. Confirm the action. This will erase all your data. If you cannot access settings, consult the ARCHOS FAQ for the alternative procedure.

How to move or delete an app from the home screen?

To move an icon, press and hold it until you see positioning lines, then drag it to the desired location. To delete, drag the icon to the top of the screen onto the 'Remove' icon. To uninstall an app, from 'All apps', do the same.

How to add a widget to the home screen?

Press and hold on an empty space on the home screen, then select Widgets. Choose the desired widget and place it on the screen.

The tablet does not turn on, what to do?

Make sure the battery is charged (plug in the charger for at least 30 minutes). Press the ON/OFF button for 10 seconds. If nothing happens, contact ARCHOS support.

How to lock the screen with a code?

Go to Settings > Security > Screen lock and choose between pattern, PIN code or password. Follow the on-screen instructions.

Where to find the complete user manual?

The full manual is available in PDF format on notice-facile.com or on the official ARCHOS website in the Support > Downloads section.

USER MANUAL Core 101 4G ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

ARCHOS Core 1014G

Quick start guide

Warranty, legal and safety notice

Charger adapter

Charging cable

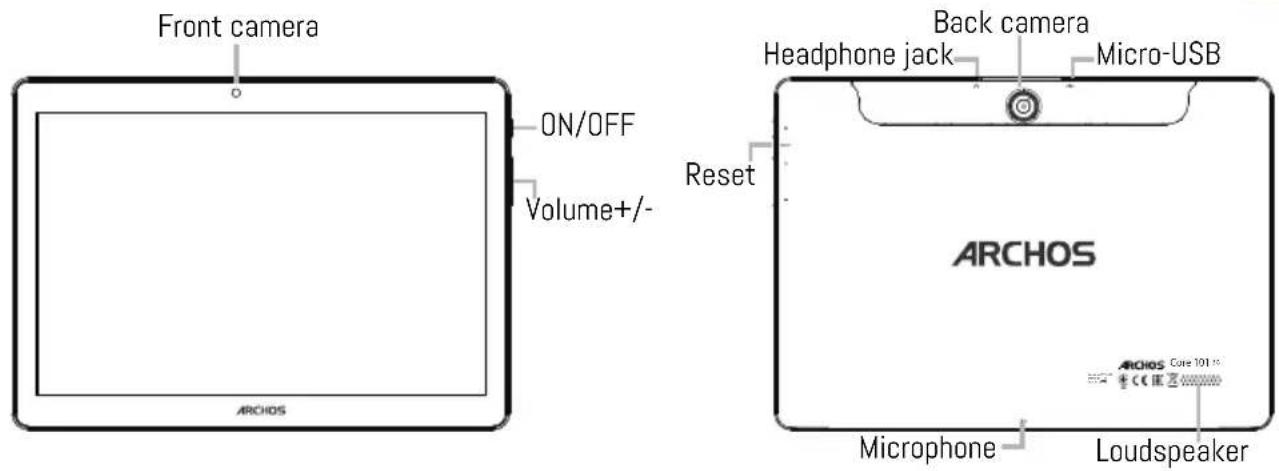

Describing your device

Your device is running Android 7.0 operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.

NOTE: You can skip some steps and define them later from the Settings app.

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Hints & tips

• Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widget

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https:// www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

-If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button.

-If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

-If your device functioning is too slow:

Close all apps which are not currently used.

-If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

-If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

EN

Contactez-nous

www.archos.com, click Support > After-sales support

Ponck nyctpaHene HeNCnpaBHOCTeI

-EcIn yctpoiCTBO 3aBnCNo:

HaxmTe KhoNky BKJ./BblKJI. Ha 10 ceKynd IIn nCnoB3yIe KhoNky c6poca.

-EcIn yctpoiCTBO He BkIIOuyeTc:

1.3apraIte yctpoiCTBO.

1. Haxmte KhoNky BKJ./BbIKJ. Ha 10 ceKyHd.

-Écπu yctpoiCTBO pa6oTae t cniuKOM MeJleHHO:

3aKoIe npInOxEHHa, KOtOpbIe He IcNoJIb3yIOTcB DaHhbIMOMeHT.

-Ecnn KaueCTBO CBa3n Wi-Fi CInuKOM Hn3Koe:

Y6eHNTecb, yTO BbI He HaxoHNTecb CnNkOM daNEKO OT TOUKN DoCTyna Wi-Fi.

C6pocbTe n 3aJaTe 3aHOBO npaMeTpbl NOKJIoueHn.

CbXnTebc npoBaIepom nokNIOueHn Wi-Fi.

-Ecnn yctpoonCTBO yHKnOHNpyeT HenpaBnIbHo:

BbIIOJIHNTe NOBTOPHyIO INHcuaIIa3auIO yCTpoINCTBa. IpeeiIITe B Settings > Backup & reset > Factory data reset (HAcTpoIKn > C6poc n BOCCTaHOBJIeHne > C6poc K 3aBOIDcKIM HAcTpoIKam).

Ecn no KaKIM-Jn6o npuHnAm DoCTyna K HAcTpoiKaM HeT, CM. OINCAHne npOecca NOBTOHO INHuaJI3aUIn B pa3dene Yacto 3aJaBaEmbIX BONpOCOB N OTBeTOB.

3aKpniTe BcI DoaTKn, RKi Bu Ha daHn MOMeHT He BnKOpNCTOByeTe.

-Якwo nepedau daHnx uepe3WiFi duyke nobiBha:

IpekeohaiTec, 0Bn 3naOHTecb He dyke daNEKO BiD ToKn DoCTyny WiFi.

3KInbTe Ta nepeBn3HaUte napaMeTp n 3'EnHaHHN.

3B'jxitbc3 noctaybHnKOM nocnyr WiFi 3'eHaHHa.

-Якwo npicpiMaeЯKicb dincfyHKii:

BidopMaTyIe npucpii. IpeenDb B po3dHanaTuBaHHa> Pe3epBHe konioBaHHa i CkndaHHa> CkndaHHaHaTaYBaHb. KaO Bu He MoKeTe OTPMaTn DOCTyN Do HanaTuBaHb 3a 6ydb-koipuHH, 3BepHiTcra do FAQ y po3dIn CkndaHHaHaTaYBaHb.

IIOB OTPIMATN BIIbIE BIDIOBIDEI CTOCOBHO TEXHUYNX IINTAHb BIDBIAITE FAQ. ARCHOS.COM

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 2014/53/

EU) without any limitation except for the countries mentioned below:

Country Restriction ReasonRemark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to 10

mW e.i.r.p. within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing

in recent years to allow current relaxed regulation. Full implementation

planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for

spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of

20 km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this tablet ARCHOS Core

101 4G is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU:

https://www.archos.com/products/conformity.html

https://www.archos.com/products/conformity.html

SAR

After the laboratory measurements, the SAR values for this mobile are:

HEAD SAR: 0.814 W/kg (10g Tissue)

BODY SAR: 1.701 W/kg (10g Tissue)

WMAN
Frequency Band	Maximum Output Power (dBm)
GSM B2 /B3 /B5 /B8	33.24
UMTS B1 /B8	22.21
FDD LTE B3/B7/B20	22.97
WLAN
Standard	Frequency	Avg. Power (dBm)
802.11b/g	2412 ~ 2472 MHz	12 ~ 13
802.11n - HT20	2412 ~ 2472 MHz	12 ~ 13
802.11n - HT40	2422 ~ 2462 MHz	11 ~ 12
Bluetooth
Bluetooth Version	Frequency Range	Avg. Power (dBm)
EDR	2402 ~ 2480 MHz	3 ~ 4.5
BLE	2402 ~ 2480 MHz	-5 ~ -4
