14.1513.01 - Thermometer TFA - Free user manual and instructions

Product type	Smart wireless barbecue thermometer
Brand	TFA
Model	14.1513.01
Housing dimensions	105 x 123 x 109 mm
Weight (device only)	241 g
Power supply	2 x 1.5 V AAA batteries (alkaline recommended, not included)
Probe measurement range	0...300°C (32...572°F)
Cooking space sensor measurement range	30...400°C (86...752°F)
Accuracy	±2% (30-300°C), ±4% (301-400°C)
Probe cable length	Approx. 120 cm, heat resistant up to 380°C
Wireless range	Up to 30 m indoors, 50 m in open field
Protection class	IP64 (splash-proof)
App compatibility	iOS (iPhone 4S, iPod touch 5G, iPad 3G, iPad mini, Apple Watch) and Android 4.3+
Main functions	Simultaneous monitoring of cooking space temperature and core temperature of two grills, HyperBBQ app, configurable alarms, backlight, preset meat and doneness levels
Package contents	Thermometer, two stainless steel probes with cable and cable rewinder, heat shield plate, wing nut and washer, instruction manual
Safety	Do not use in a microwave oven, wear protective gloves, keep out of reach of children, do not immerse in water, do not wash in dishwasher
Maintenance and cleaning	Clean with a soft, damp cloth, do not use solvents, dry connectors before use, remove batteries if not used for an extended period
Spare parts and repairability	Replacement probes available (ref. 30.3525.60); do not repair yourself, contact the seller
General information	Manufacturer: TFA Dostmann, Germany; complies with directive 2014/53/EU; frequency 2.4 GHz; radio power <10 dBm

Frequently Asked Questions - 14.1513.01 TFA

How to turn the thermometer on or off?

Press the command button (Fig.1-A) for 3 seconds to turn the device on or off. It is recommended to turn it off after each use to save batteries.

What to do if the thermometer screen shows nothing?

Check that the device is turned on, that the batteries are inserted with correct polarity, and replace the batteries if necessary.

How to connect the thermometer to my smartphone?

Download the free HyperBBQ app from the App Store or Google Play. Turn on the thermometer, then briefly press the command button for pairing. Follow the instructions in the app.

What is the range of the wireless thermometer?

The range is up to 30 meters indoors and up to 50 meters in open field, depending on obstacles.

How to install the thermometer on the barbecue lid?

Place the heat shield plate on the pre-drilled hole (diameter 9-14 mm, depth 6-27 mm). Insert the stem and secure with the washer and wing nut. Ensure the barbecue has a double-walled lid.

What are important safety precautions?

Wear protective gloves when handling hot probes, never place probes directly on the fire, do not use the device in a microwave oven, and keep batteries out of reach of children.

How to clean the thermometer and probes?

Use a soft, damp cloth. Do not use solvents or abrasives. Never immerse the device in water. Dry the connectors before plugging in the probes.

What to do if the displayed temperature is incorrect?

Check the probe placement (must be inserted 2-3 cm into the thickest part of the meat, without contact with bones). Replace the batteries if necessary and check the plug contacts.

Does the alarm sound continuously?

The alarm can be configured in the app for a sound signal and/or vibration. Press the thermometer's command button to stop it. It reactivates after the chosen interval if the alarm condition persists.

What type of batteries to use and how to replace?

Use two 1.5 V AAA alkaline batteries. Open the battery compartment on the back of the thermometer, observe polarity. Replace as soon as the low battery indicator appears (single segment).

USER MANUAL 14.1513.01 TFA

Thank you for choosing this instrument from TFA.

Before you use this product: Please make sure you read the Instruction manual carefully.

The operating instructions are enclosed with the device or can be downloaded at

www.tfa-dostmann.de/en/service/downloads/instruction-manuals

This product should only be used as described within these instructions.

Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

Please take particular note of the safety advice! Please keep this instruction manual safe for future reference.

www.tfa-dostmann.de/en/service/downloads/Instruction-manuals

www.tfa-dostmann.de/en/service/downloads/Instruction-manuals

Fig.2-D - Garaumsensor

Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC. Apple, Apple Watch, iPad, iPod, iPod touch, and iPhone, are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

HyperBBQ App (Fig.6)

Wireless BBQ Thermometer
- Two stainless steel probes with approx. 120 cm cable and cable wrap
- Heat isolation plate
- Wing nut and washer
- Instruction manual

Range of application and all the benefits of your new instrument at a glance:

• Thermometer for barbecue / grill / smoker/ smoker oven / grill cart
• With two stainless steel probes with approx. 120cm cable
• For simultaneous monitoring of the cooking chamber temperature and the core temperature of a maximum of two BBQ cooking items
• Comfortable operation via smartphone with free app for iOS & Android™, range up to 50 metres (in free fi eld)
• Pre-programmed settings for different types of meat and doneness:

Beef, veal, lamb, pork, chicken, turkey, fish, hamburger and smoke
Well done, medium done, medium, medium rare and rare

• Individual target temperature or upper and lower limit can be set
• Backlit thermometer display, alternating between current and target temperatures
• Various alarm settings can be configured (on thermometer and / or mobile device, signal and / or vibration, alarm interval)
  To be installed to the lid, as a spare part, for retrofitting or for self-built
• Simply insert the stem through a pre-drilled hole and secure it with the nut from the inside

For your safety:

This product is exclusively intended for the range of application described above. This product should only be used as described within these instructions.
- Unauthorized repairs, alterations or changes to the product are prohibited.

Caution! Risk of Injury:

• Wear heat-resistant protective gloves when touching the probes during or after cooking.
• Be careful when handling the pointed probes. Store the device with its protective cap.
• Do not use the instrument in the microwave.

• Keep the devices and the batteries out of reach of children.

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries!

! Important information on product safety!

• Caution! Attach the thermometer to the outside of the barbecue's lid. Make sure your barbecue has a double-walled lid, otherwise heat can damage the thermometer. Use the heat insulation plate!
• Do not expose the thermometer to extreme temperatures, vibrations or shocks. Only the cooking chamber sensor (up to 400^ ) and the probes with handle and cable (up to 380^ ) are heat-resistant. Never hold the probes directly over a fire.
• The thermometer and the probes are splashproof, but not watertight. Do not immerse in water. Not suitable for dishwasher.
• Do not leave the barbecue with the screwed-on thermometer unprotected in the open, but cover it with a water-repellent protective cover.

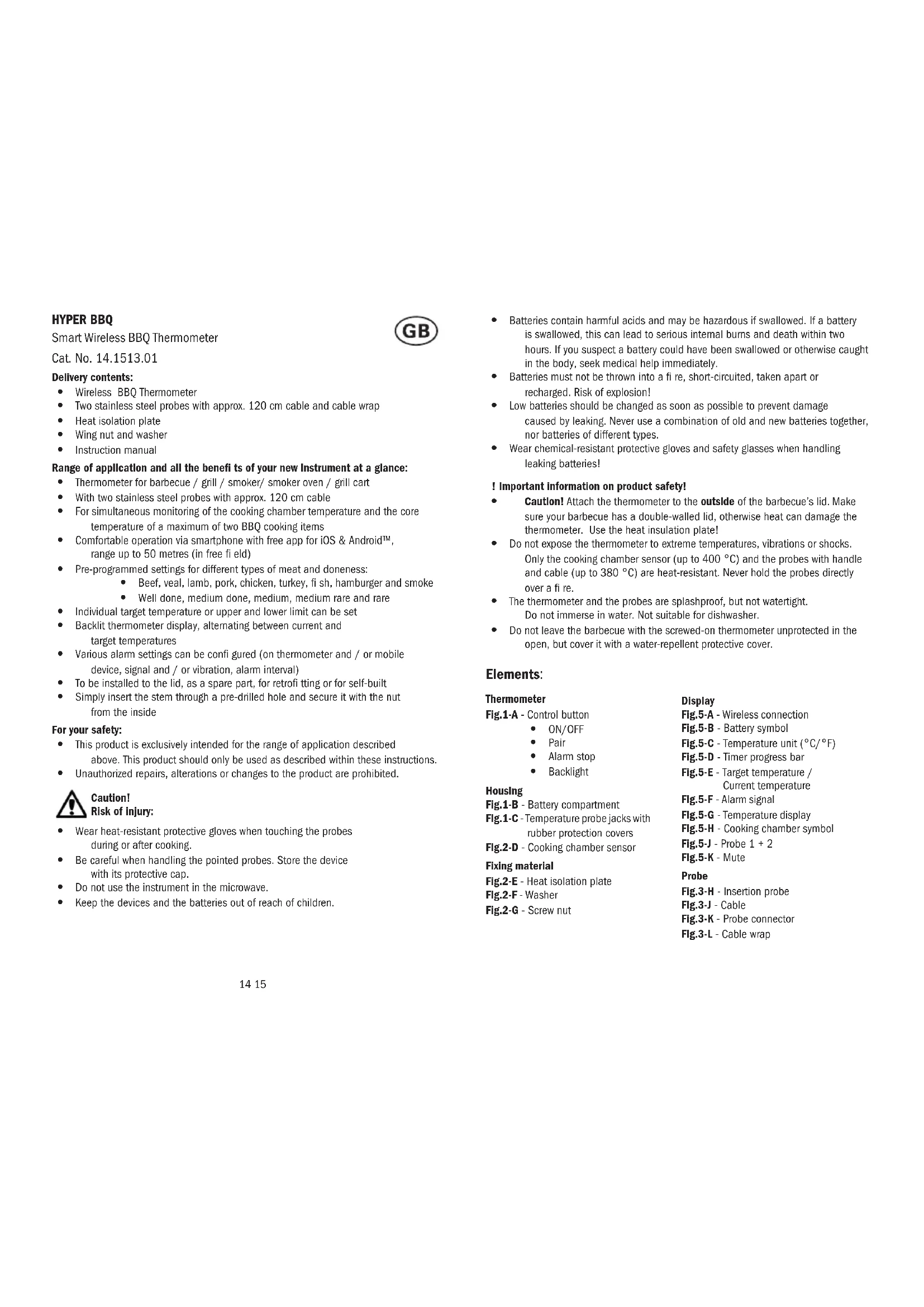

Elements:

Thermometer

Fig.1-A - Control button

ON/OFF
- Pair
Alarm stop
- Backlight

Housing

Fig.1-B - Battery compartment

Fig.1-C - Temperature probe jacks with rubber protection covers

Fig.2-D - Cooking chamber sensor

Fixing material

Fig.2-E - Heat isolation plate
Fig.2-F-Washer
Fig.2-G - Screw nut

Display

Fig.5-A - Wireless connection
Fig.5-B - Battery symbol
Fig.5-C - Temperature unit (^ / ^)
Fig.5-D - Timer progress bar
Fig.5-E - Target ter

nt temperature

Fig.5-F - Alarm signal

Fig.5-G - Temperature display
Fig.5-H - Cooking chamber symbol
Fig.5-J-Probe 1+2
Fig.5-K -Mute

Probe

Fig.3-H Insertion probe
Fig.3-J-Cable
Fig.3-K - Probe connector
Fig.3-L Cable wrap

Getting started

Inserting the batteries In the thermometer

• Remove the protective film from the display.
• Open the battery compartment (Fig.1-B) on the back of the thermometer and insert two new batteries 1.5 V AAA. Make sure the polarities are correct. Close the battery compartment. The device will alert you with a beep, all LCD segments will be displayed and the backlight will turn on for a short moment. The device is ready for use.
  The current temperature, the cooking chamber symbol (Fig.5-H) and the battery symbol (Fig.5-B) appear on the display.

Connect the probes

Pull off the rubber protection cover (Fig.1-C) carefully from the opening of the first probe on the left side of the thermometer. Plug the probe cable connector (Fig.3-K) into the jack (Fig.3-J).
Repeat the process for the second probe.
The display now alternately shows the current temperatures measured by the cooking chamber sensor, the insertion probe 1 and 2 (Fig.5-G).
You can also operate the device with only one or without probe.

Mounting the thermometer on the barbecue lid (Fig.4)

Make sure your barbecue has a double-walled lid, otherwise heat can damage the thermometer.
- The pre-drilled hole must have a diameter of 9 to 14mm and a depth of 6 to 27mm .
- Put the heat insulation plate (Fig.2-E) on the hole. The flat, longer side facing up. Now put the shaft through the hole and fix the thermometer on the back of the lid with the washer (Fig.2-F) and the screw nut (Fig.2-G).

Switch the devices off and on

• Press and hold the control button (Fig.1-A) for three seconds.
  The device is switched off.
• Press and hold the control button to turn the device back on.

IMPORTANT: To increase the life of the batteries, switch off the device after each use!

Download the app

Download the free HyperBBQ app from the "Apple App Store" or "Google Play Store".
Make sure your mobile phone meets the following requirements:

Compatible with iPhone 4S (or later), iPod touch 5th generation (or later).

iPad 3rd generation (or later), iPad mini

Android™ Smartphone 4.3 (or later).

Connect to the mobile device

• Start the app and follow the instructions on the screen to establish connection.
  Hold down the control button (Fig.1-A) for 3 seconds and switch on the thermometer.
• Briefly press the control button to pair.
• You do not have to repeat the pairing process for other applications unless you switch to another mobile device.

Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC. Apple, Apple Watch, iPad, iPod, iPod touch, and iPhone, are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

HyperBBQ App (Fig.6)

The app 's appearance can differ between iOS and Android™ and may change after an update. Please always follow the current instructions in the app.

Fig.6-A-Options
Fig.6-B - Connection status
Fig.6-C - Duration
Fig.6-D - Timer
Fig.6-E - Photo function
Fig.6-F - Current temperature probe 1
Fig.6-G - Probe 1 and 2 with selected colour marking

Fig.6-H Selected dish with target temperature
Fig.6-J - Current temperature cooking chamber
Fig.6-K Cooking chamber sensor with selected colour marking
Fig.6-L - Selected dish with lower/upper temperature limit
Fig.6-M Battery symbol for the thermometer
Fig.6-N Device settings

Temperature monitoring when cooking BBQ

The device can be used to monitor the cooking chamber temperature in the barbecue and the core temperature of a maximum of two BBQ cooking items.
- Connect the two probes. For measuring the core temperature of meat, plunge the corresponding probe at least 2 - 3cm into the middle of the thickest part of the meat; for poultry, between the torso and the thigh - it should not touch bones or cartilage and it should not protrude from the meat. The probe should remain in the meat throughout the cooking process.
We recommend the clip for BBQ meat thermometers (Cat. No. 30.3525.60) to attach the temperature probe to the grill.
Now simply run the cable to the outside. Close the lid again. Be careful with sharp-edged frames and hinges. Do not use the cable wrap in the grill!
- In the app, select the cooking chamber sensor and the two probes one after the other and choose your desired settings. Select a preset target temperature via the type of meat and the desired cooking level or enter an individual target temperature or an upper and lower limit. Different levels of doneness available depending on type of meat.
The current temperatures and the target temperatures are shown in the app and alternately on the thermometer display.

Temperature alarm

The alarm settings can be configured in the app.
The alarm is activated on the thermometer and the app

as soon as the core temperature is reached
- if the set upper temperature limit is exceeded
- if the set lower temperature limit has fallen below
when the timer has expired.

Press the control button (Fig.1-A) on the thermometer to stop the alarm.
The alarm is reactivated after a selectable interval as long as the alarm event exists.

Illumination

• Press the control button on the thermometer (Fig.1-A).
  The backlight is activated briefly.

Care and maintenance

Clean the thermometer and the probes with a soft damp cloth. Do not use solvents or scouring agents. Do not immerse the devices in water.
- Should water or steam enter the device's jack, it could affect the contact with the probe. Dry the probe connector with a cloth before connecting it to your thermometer.
- Turn off the device after use. Use the rubber protection covers for the jacks.
- Remove the batteries if the device will not be used for an extended period of time.

Battery replacement

The charging status of the thermometer's batteries is shown on a symbol with three bars (Fig.5-B, Fig.6-M).
If only one segment is displayed, please change the batteries.

Troubleshooting

Problem Solution
No display on the thermometer Switch	on the deviceEnsure the batteries' polarities are correctChange the batteries
Incorrect indication Change the batteries	Check the contact between probe connector and jack, dry it if necessary
No contact between the thermometer and the app	Reduce the distance between the mobile device and the thermometer (max. 50 m in open field), Re-pair devices
Core temperature is too high/too low	Check the position of the probe in the meat

If your device fails to work despite these measures, contact the retailer where you purchased the product.

Specifications

Dimensions for installation: Hole diameter: 9...14 mm
Hole depth: 6...27 mm

Measuring range probe: 0...300°C (32...572°F)

Accuracy: ± 1% (0...99°C | 32...210°F) ± 2% (100...199°C | 212...390°F) ± 3% (200...300°C | 392...572°F)

Measuring range cooking chamber sensor: 30 400^ (86...752°F)

Accuracy: ±2% (30...300°C | 86...572°F) ±4% (301...400°C | 574...752°F)

Resolution: 1^

Cable: appr. 120m , heat resistant up to 380^

Range: up to 30 m indoor up to 50 m in open field

Protection class: Splashproof IP 64

Power consumption: Batteries 2 x 1,5 V AAA (not included) Use alkaline batteries Housing dimension: 105 × 123 × 109 ~mm

Weight: 241 g (device only)

Transmission frequency: 2,4 GHz

Maximum radio-frequency power: < 10dbm

Compatibility: Compatible with iPhone 4S (or later),

iPod touch 5th generation (or later),

iPad 3rd generation (or later), iPad mini,

Apple

Watch

Android™ Smartphone 4.3 (or later)

Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU Declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 14.1513 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce

D-97877 Wertheim, Germany

03/21

HYPER BBQ

Fig.1-B - Compartiment a piles

Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC.

Apple, Apple Watch, iPod, iPod, iPod touch, and iPhone, are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

Application HyperBBQ (Fig.6)

Precislon: ±1% (0..99°C | 32..210°F)

±2% (100...199°C | 212...390°F)

±3% (200...300°C | 392...572°F)

Résolution: 1^

Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC.

Apple, Apple Watch, iPad, iPod, iPod touch, and iPhone, are trademarks of Apple Inc., registered in the U.S. and other coun

Ties. App Store is a service mark of Apple Inc., registered in the U.S. and other trademark of Cisco in the U.S. and other countries and is used under license.

HyperBBQ App (Fig.6)

±2% (100...199°C | 212...390°F)

± 3% (200...300°C | 392...572°F)

Well done, medium done, medium, medium rare en rare

Download in de App Store

Google Play and the Google Play Ingo are trademarks of Google LLC. Android is a trademark of Google LLC. Apple, Apple Watch, iPad, iPod, iPod touch, and iPhone, are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

HyperBBQ App (Fig.6)

Precise: ± 1% (0...99°C | 32...210°F)

±2% (100...199°C | 212...390°F)
±3% (200...300°C | 392...572°F)

Meetbereik interne temperatuursensor: 30...400°C (86...752°F)

Precise: ±2% (30...300°C | 86...572°F)

±4% (301...400°C | 574...752°F)

Resolute: 1^

Kabel: ca. 120 m, hittebestendig tot 380^

Google Play and the Google Play logo are trademarks of Google LLC. Android is a trademark of Google LLC. Apple, Apple Watch, iPad, iPod, iPod touch, and iPhone, are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

HyperBBQ App (Fig.6)

±2% (100...199°C | 212...390°F)

±3% (200...300°C | 392...572°F)
