USER MANUAL Avenue Plus 30.2030.54 TFA

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swal- lowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

• Wear chemical-resistant protective gloves and safety glasses when handling leaking batter- ies. Important information on product safety!

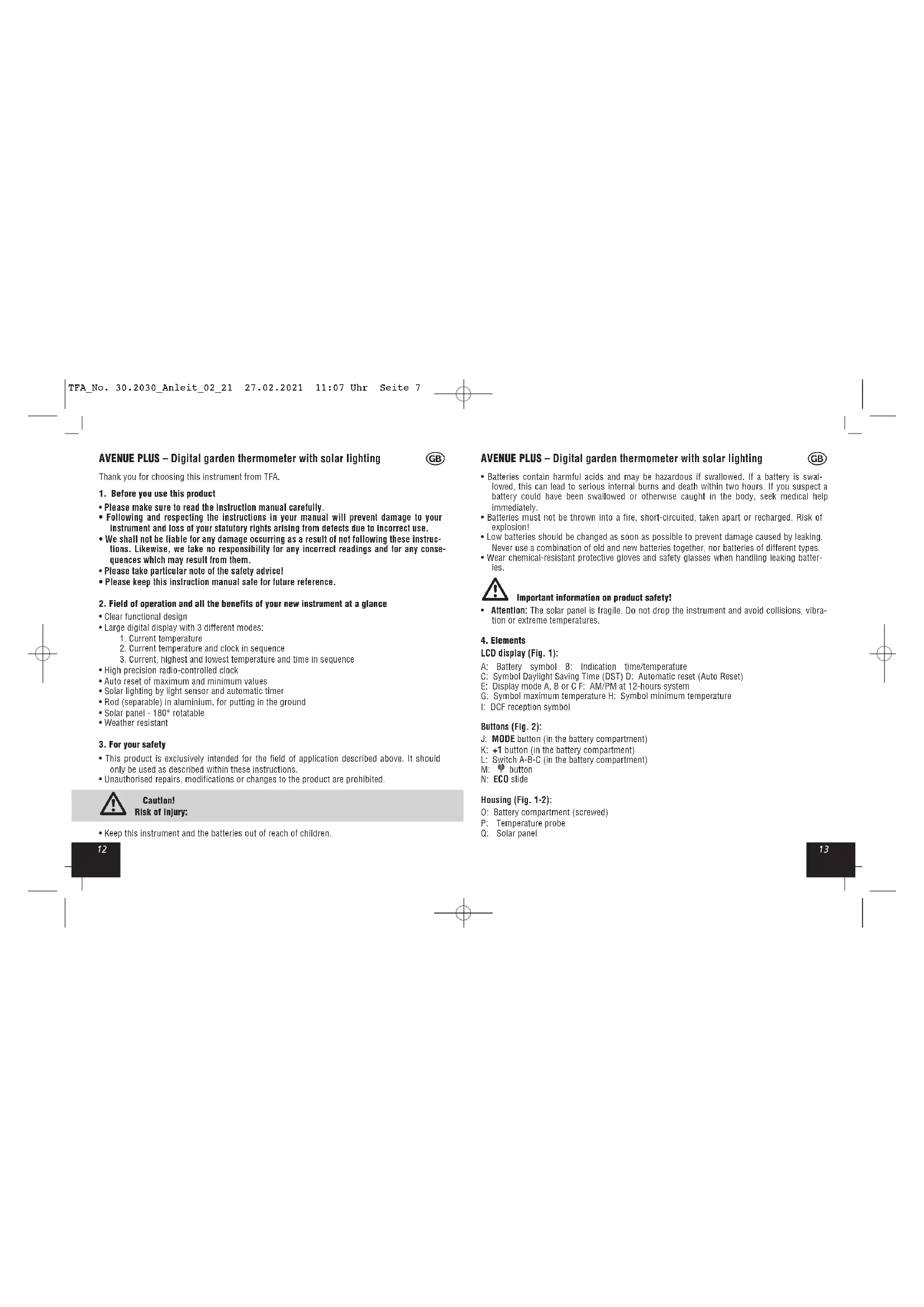

LCD display (Fig. 1): A: Battery symbol B: Indication time/temperature C: Symbol Daylight Saving Time (DST) D: Automatic reset (Auto Reset) E: Display mode A, B or C F: AM/PM at 12-hours system G: Symbol maximum temperature H: Symbol minimum temperature I: DCF reception symbol Buttons (Fig. 2): J: MODE button (in the battery compartment) K: +1 button (in the battery compartment) L: Switch A-B-C (in the battery compartment) M: button N: ECO slide Housing (Fig. 1-2): O: Battery compartment (screwed) P: Temperature probe Q: Solar panel AVENUE PLUS – Digital garden thermometer with solar lighting

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure to read the instruction manual carefully.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of not following these instruc- tions. Likewise, we take no responsibility for any incorrect readings and for any conse- quences which may result from them.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future reference.

2. Field of operation and all the benefits of your new instrument at a glance

• Clear functional design

• Large digital display with 3 different modes:

1. Current temperature

2. Current temperature and clock in sequence

3. Current, highest and lowest temperature and time in sequence

• Solar lighting by light sensor and automatic timer

• Rod (separable) in aluminium, for putting in the ground

• This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.

• Unauthorised repairs, modifications or changes to the product are prohibited. Caution! Risk of injury:

DCF radio-controlled time The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmit- ting range of approximately 1,500 km. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time the DST symbol is shown on the LCD. The reception quality depends mainly on geographic location. Normally there should be no reception prob- lems within a 1,500 km radius around Frankfurt. Please note the following when starting the unit:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as basements, the received signal is natu- rally weakened. Outdoors, the radio signal is usually better received.

• During night-time, the atmospheric interference is usually less severe and reception is pos- sible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

5.2 Manual clock setting

• Manual time setting is only possible if the clock cannot detect the DCF-signal.

• Immediately after batteries were inserted - when holding MODE button for 3 seconds as long as the DCF reception symbol is flashing - the unit automatically enters the setting mode and the DST symbol begins to flash. DST symbol setting

• When in summertime, press +1 button when the DST symbol is flashing to confirm the set- ting. The symbol remains on the display.

• During standard time press +1 button once again and the DST symbol disappears. Clock setting and DCF reception activation/deactivation a. Press the MODE button. b. The hour digit flashes. c. Press +1 button to set the hours. Hold and press the button to fast forward the numbers. d. Press the MODE button again and set minutes in the same way. AVENUE PLUS – Digital garden thermometer with solar lighting

• Open the battery compartment by a screw driver.

• Insert the batteries (above: rechargeable battery 1 x 1,2 V AA for the illumination; down: bat- tery 1 x 1,5 V AA for all functions) into the battery compartment, observing the correct polarity.

• ATTENTION: The 1.2 V rechargeable battery for the backlight is not fully charged when shipped. For maximum efficiency it is advisable to have the rechargeable battery fully charged by the solar panel on a sunny day before the first use. Alternatively, the rechargeable battery can be recharged with an ordinary battery charger.

• Pull the protective foil off the display.

• The unit is now ready to use.

• All LCD segments will light up for about a few seconds

• 0:00 and “DCF enable” appear on the display and the DCF symbol flashes.

• By default, the DCF reception is activated and after successful reception of the DCF signal no manual adjustment is necessary.

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock (see: manual clock setting).

5.1 Radio-controlled time reception

• The clock will now scan the DCF frequency signal. When the time code is successfully received after 2-10 minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display.

• o The DCF reception always takes place daily at 1:00, 2:00 and 3:00 o'clock in the morning. If the reception is not successfully received at 3:00 o'clock, the next DCF reception attempts will happen at 4:00 and 5:00 o'clock. Note: During a DCF signal reception, the backlight is temporarily disabled.

• You can also start the initialization manually.

• Press and hold the button for 6 seconds. In case the DCF reception symbol was already displayed, it disappears and starts flashing after 20 seconds. The DCF reception is activated.

• There are four different reception states: flashing – reception is active solid – reception is very good no symbol, “DCF enable” displayed - set the clock manually, reception is still activated no symbol - set the clock manually, reception is deactivated TFA_No. 30.2030_Anleit_02_21 27.02.2021 11:07 Uhr Seite 8AVENUE PLUS – Digital garden thermometer with solar lighting

• Please consider when choosing a location that the solar panel needs at least 8-10 hours of light per day to guarantee a long-term sufficient power supply. Attention: Direct sunshine falsifies the measurement. The thermometer is provided with a light sensor to turn on the light automatically at dark between 5 and 9 o’clock and 18 and 23 o’clock. Avoid the close- ness of artificial light (like: street lighting).

• With the ECO slide it is possible to turn the time-controlled illumination on (left) or off (right).

• If the ECO mode is not active the illumination will turn on automatically as soon as the light sensor indicates darkness.

• When the battery symbol appears on the display, the voltage of the rechargeable battery is low and the backlight function can be temporarily disabled, until the power supply by the solar panel is sufficient again.

• Press the plate firmly into the ground.

• Mount the rod and put it into the ground passing through the hole in the middle of the plate. Fix the thermometer on the rod and turn the solar panel (rotatable 180°) to the direction where it receives the highest light supply.

6. Care and maintenance

• For best function keep the solar panel always clean. Clean it with a soft cloth and maybe a lit- tle glass- or display cleaner. Do not use solvents or scouring agents.

• Remove the battery if you do not use the product for a long period of time.

6.1 Battery replacement

• Please change the 1.5 V AA battery when the display becomes weak.

• Use alkaline batteries only. Observe correct polarity.

Problem Solutions No indication ➜ Ensure correct polarity, when inserting the battery Incorrect indication ➜ Change the battery No illumination ➜ Make sure that no objects cover the solar panel (see point 5.7) No DCF reception ➜ Press the button for 6 seconds and start the initializa- tion manually ➜ Activate DCF reception (see point 5.2e) AVENUE PLUS – Digital garden thermometer with solar lighting

e. Press the MODE button again. If you wish to deactivate the DCF reception, press the +1 button. "DCF enable" disappears. f. Press MODE button again to return to normal mode.

• If no DCF reception symbol is displayed, manual clock setting is possible at any time. Follow the steps a. to f. when the display shows the time (switch to B or C position).

• The device will automatically quit the setting mode if no button is pressed for 15 seconds.

• Once the DCF time signal is successfully received and the DCF reception is activated (DCF enable is displayed), the manually set time is overwritten.

5.3 °C/°F display change

• When the display shows the current temperature, press +1 button to change between °C or °F as temperature unit. The time will change from 24 to 12-hour system at the same time.

• In the 12-HR system AM (before noon) or PM (after noon) appears on the display.

• Switch position B: Current temperature and time alternately (display: >>)

• Switch position C: Current temperature, highest/lowest temperature and time alternately (display: >>>)

5.5 Maximum and minimum temperatures

• The maximum and minimum values are automatically reset: The maximum temperature at 8:00 and minimum temperature at 20:00 o'clock. To use this function, the actual time must be received via DCF or set manually.

• The silver pin is the temperature probe. Please take care of it and do not break it. The tem- perature probe has no adjusting function. It only measures the temperature.

5.7 Backlight and fixing

Power consumption: 1x 1.2 V AA rechargeable battery and 1x 1.5 V AA battery Housing dimension: 175 x 38 x 1145 mm Weight: 592 g (instrument only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 30.2030 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, D-97877 Wertheim, Germany 02/21 AVENUE PLUS – Digital garden thermometer with solar lighting

➜ Wait for attempted reception during the night ➜ Choose another place for your product ➜ Manual setting of the clock ➜ Check if there is any source of interference ➜ Restart the device according to the manual If your device fails to work despite these measures contact the supplier from whom you pur- chased it.

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to appropriate collection sites depending on national or local regulations in order to protect the environment. The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead This instrument is labeled in accordance with the EU Waste Electrical and Elec- tronic Equipment Directive (WEEE). Please do not dispose of this instrument in household waste. The user is obligat- ed to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compati- ble disposal.
