USER MANUAL IR3300 Soundmaster

https://www.spotify.com/connect/third-party-licenses

MUSIKABSPIELER

:2x AAA (UM-4, LR03)

Festsenderspeicher

:10 Internet-Radio, 10 DAB+, 10 UKW

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

3	WARNING Risk of electric shock Do not open!	1
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type
• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

TABLE OF CONTENT

LOCATIONS OF CONTROLS 2
REMOTE CONTROL 3
CONTENT OF DELIVERY 4
OPERATION YOUR REMOTE CONTROL 4
GETTING STARTED / SET UP 4
GET THE NETWORK ENVIRONMENT READY. 4
MAIN MENU 4
SETUP WIZARD 4
EQUALISER 7
NETWORK 7
TIME/DATE 8
BRIGHTNESS 8
LANGUAGE 8
SOFTWARE UPDATE 8
INFO 8
INTERNET RADIO 8
AMAZON MUSIC 9
SPOTIFY 12

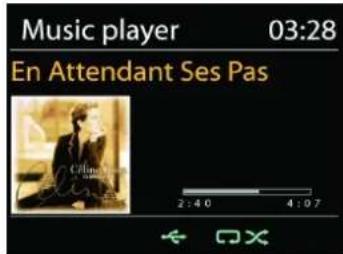

MEDIA PLAYER 12
DAB+ (DIGITALRADIO) 15
FM 17
BLUETOOTH 18
HANDS FREE CALLING 18
AUX IN 18
SLEEP 19
ALARM. 19
UNDOK 19
FACTORY RESET 20
TROUBLESHOOTING 20
TECHNICAL SPECIFICATIONS 22

LOCATIONS OF CONTROLS

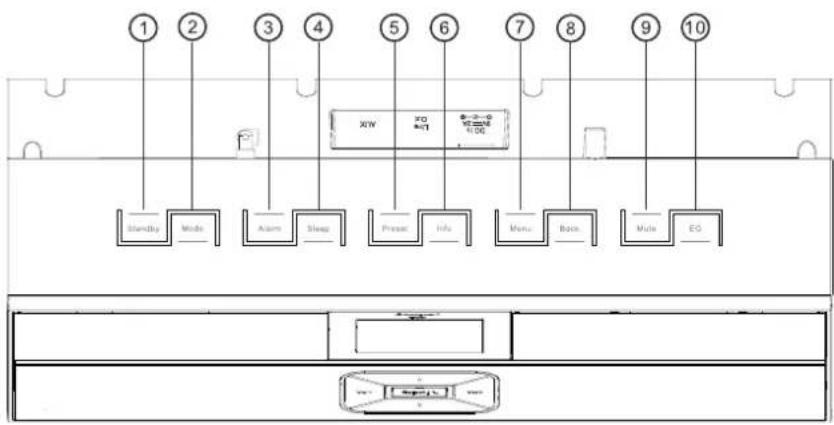

TOP VIEW

1 On/Off
2 Mode
3 Alarm
4 Sleep
5 Preset
6 Info
7 Menu
8 Back
9 Mute
10 EQ

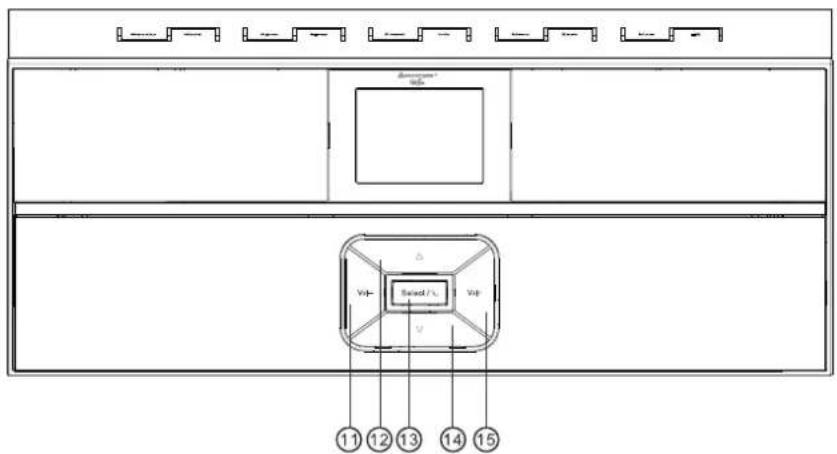

FRONT VIEW

11 Volume -
12 Selection
13 Select
14 Selection
15 Volume +

SIDE VIEW

A USB jack

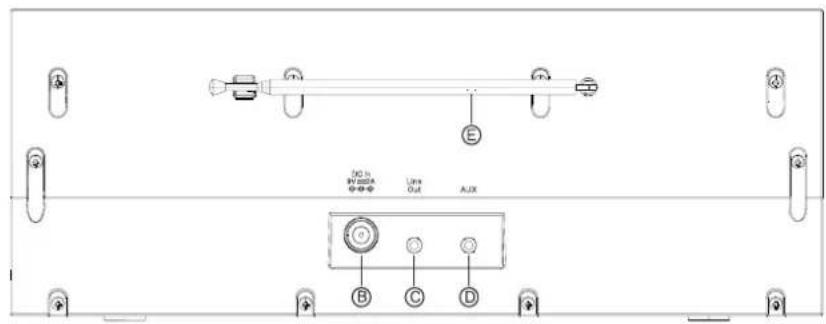

BACK VIEW

B DC Power input
C Line-Out
D Aux In
E Antenna

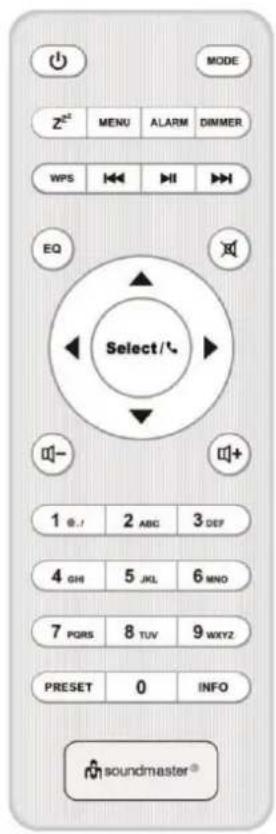

REMOTE CONTROL

Button

Function

On/Off button

MODE

Mode button

Z

Sleep / Snooze button

MENU

Menu button

ALARM

Alarm button

DIMMER

Dimmer button

WPS

WPS button

Tune down station, skip back button

Play/Pause button

Tune up station, skip forward button

EQ

EQ button (Equalizer)

Navigate buttons

Select / handsfree button

Mute button

Volume + /-button

1-0

Numbers

PRESET

Preset button

INFO

Info button

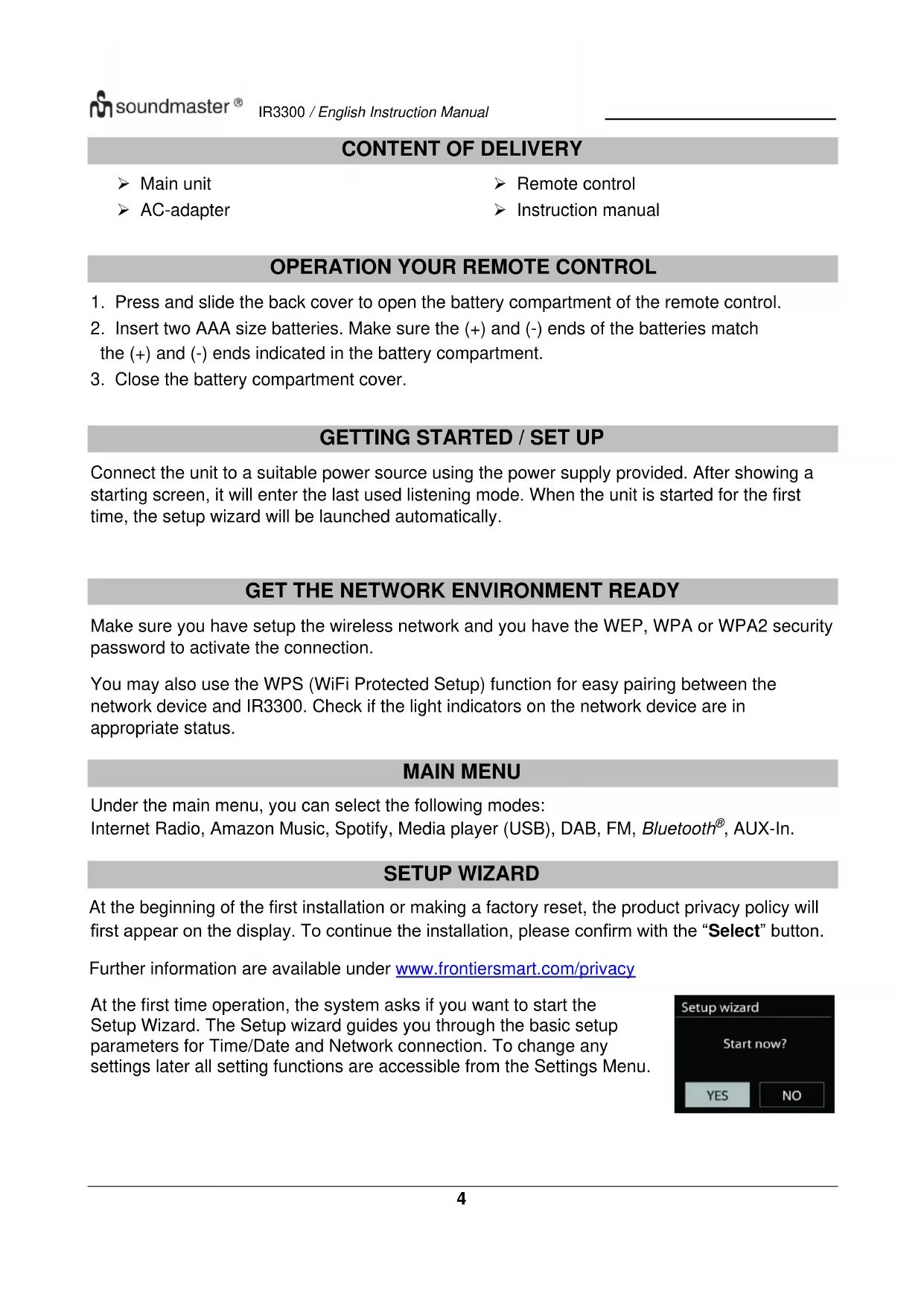

CONTENT OF DELIVERY

Main unit

Remote control

AC-adapter

Instruction manual

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

GETTING STARTED / SET UP

Connect the unit to a suitable power source using the power supply provided. After showing a starting screen, it will enter the last used listening mode. When the unit is started for the first time, the setup wizard will be launched automatically.

GET THE NETWORK ENVIRONMENT READY

Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection.

You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and IR3300. Check if the light indicators on the network device are in appropriate status.

MAIN MENU

Under the main menu, you can select the following modes:
Internet Radio, Amazon Music, Spotify, Media player (USB), DAB, FM, Bluetooth® AUX-In.

SETUP WIZARD

At the beginning of the first installation or making a factory reset, the product privacy policy will first appear on the display. To continue the installation, please confirm with the "Select" button.

Further information are available under www.frontiersmart.com/privacy

At the first time operation, the system asks if you want to start the Setup Wizard. The Setup wizard guides you through the basic setup parameters for Time/Date and Network connection. To change any settings later all setting functions are accessible from the Settings Menu.

1. Time/Date Display format

Select 12 or 24 as the time format.

2. Auto update

The time and date can be updated manually or automatically from DAB, FM or network.

Auto update works with data sent over DAB, FM or the Internet. The clock is only updated when it is in a corresponding mode, so it is suggested to select a mode you use regularly.

DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet radio portal when in any network connected mode.

3. Time zone/daylight

Set your time zone. If your country uses daylight saving and it is in effect, turn on the Daylight saving option (only available when Auto update from Internet is selected).

4. Manual update

If you set No update, the wizard prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy and hh:mm.

The active value appears as flashing. Adjust each value with the / button. Once the value is set, press the "Select" button to continue setting with next value.

5. Network

Keep Network connected

Select this option when the unit should the network connection in standby keep, when the function is confirmed, the unit wills faster connecting the internet and it is possible to switch on the unit with the "UNDOK" app.

Note: The standby power consumption is slightly increased with this function.

WLAN region

Select the WLAN region to obtain the optimal WLAN connectivity: Europe.

Scanning for the network

IR3300 is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you.

There will be hints for the type of network - if your network devices support WPS function, it will be [WPS] before the SSID (the name of the network device). Select the one you want to connect.

For the wireless connection, you will be asked for input the encryption in the next step. To enter the network's key, use the / button to move the cursor through the characters and press "Select" to confirm. As each character is selected, the key is built up near the top of the display.

There are three options accessible by tuning the navigate reel back before the first characters - Backspace, OK and Cancel.

WPS encrypted network

WPS encrypted networks are identified by WPS at the start of the network name when the

IR3300 searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit.

Push button

IR3300 prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.

Pin

IR3300 generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar.

Skip WPS

Enter key as for a standard encrypted network.

For more information on setting up a WPS encrypted network, see your WPS router's instructions.

Completion

IR3300 attempts to connect to the selected network.

It will show connected if the setup is successful. If connecting fails,

IR3300 returns to a previous screen to try again.

Press "Select" to quit the setup wizard.

EQUALISER

Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop News and My EQ.

In the My EQ settings, you can create your own EQ with custom bass, treble and loudness settings.

NETWORK

Network wizard

Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

PBC Wlan setup

Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

View settings

View the information of current connected network: Active connection, MAC address, Wlan region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

- WLAN region

Select the WLAN region to obtain the optimal WLAN connectivity: Europe or Australia.

- Manual settings

Choose wireless network connection and enable or disable DHCP (Dynamic Host Configuration Protocol).

Network profile

IR3300 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete.

- Keep network connected

If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available in internet radio and music player modes. This option allows IR3300 to be ready for DLNA streaming in any operating modes.

When Keep network connected is selected the standby power consumption is raised.

TIME/DATE

Set the time manually or automatically update, time format, time zone and daylight.

BRIGHTNESS

You may change the backlight for standby in 2 steps and for on-mode in 3 steps.

LANGUAGE

Change it as your preference.

SOFTWARE UPDATE

From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set IR3300 to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that IR3300 is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

INFO

View the firmware version and the radio ID.

INTERNET RADIO

IR3300 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection.

When you select Internet radio, IR3300 directly contacts the Frontier Silicon Internet radio portal (which is supported by Airable) to get a list of stations.

The portal also enables multiple lists of favorite stations that you can personalize.

If you are already listening to an Internet radio station, you can press "Back" or "<" button to quickly return to the last visited branch of the menu tree, rather than "MENU" to go to the first menu of Internet radio mode.

- Last listened

When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select the listed station. Most recent stations appear at the top of the list.

- Station list

Browse Internet broadcasts that organized into different categories, Location, Genre, Popular and New. You can also find the station with Search by keyword.

- Presets

To store an Internet radio preset, press and hold the "PRESET" key on Remote Control until the display shows the "Save preset" screen. Select a preset to save the current station and press "Select" to confirm or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET" button on remote Control, then select one of the listed preset stations and press "OK" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

Now playing information

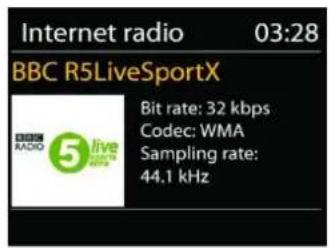

While the stream is playing, the screen shows its name and description. To view further information, press "INFO" button on the radio or Remote Control. Each time you press "INFO" button, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today's date.

AMAZON MUSIC

Your IR3300 supports control via an Alexa Voice Service (AVS) enabled device, such as an Amazon Echo.

To install your IR3300 for Alexa Voice Control you will need to link your Amazon account with a Frontier Nuvola account which in turns linked to your IR3300 audio device.

Once successfully configured you will be able to use the Alexa Voice Assistant to direct content to your IR3300 device.

For example (if you have named your speaker device 'Kitchen'): "Alexa, play Band on the run on kitchen". Will play Band on the run on your named speaker device, provided it is available on a music service available to your Amazon account.

Frontier Nuvola user account

1. Login/Create a Frontier Nuvola user account

Start your UNDOK app and navigate to the 'Frontier Nuvola Account' screen in the UNDOK settings.

Note: If no Amazon Connected Speaker API capable devices are available, the 'Frontier Nuvola Account' screen is not visible.

When you are not logged into your Frontier Nuvola Account a simple screen is presented with a prompt to login. Tap on the option to Login to Frontier Nuvola.

If you are already have a Frontier Nuvola account enter your email and password to login.

If you don't have a Frontier Nuvola account, tap on the Sign-up option at the foot of the screen. This will present a further screen to enter your details and Sign-up to an account.

2. Adding devices to your Frontier Nuvola account

In your UNDOK app, navigate to your 'Frontier Nuvola Account' screen in the UNDOK settings (and, if you are not already logged in, log in).

When you are logged into your Frontier Nuvola account, you are presented with four options:

Add device: This option will list the audio devices on your network available to linked to your account. Select the desired device and add them.

My devices: This option lists the devices that are already linked to your Frontier Nuvola account.

FAQ: Presents frequently asked questions and their answers.

Log out: To log out your Frontier Nuvola account.

3. Link your Frontier Nuvola Account with your Amazon account

Using either the Amazon Alexa Android or iOS app, or the dashboard on the Alexa website:

1. Ensure the app (Or dashboard) is logged into the same Amazon account as your Amazon Voice Service enabled device.
2. Ensure the Frontier Nuvola skill is enabled on your Alexa app.
3. Navigate to 'Skills' and select 'Your Skills'.
4. Tap on the 'Frontier Nuvola' option.
5. You will be directed to the login page for Frontier Nuvola, enter the details for your Frontier Nuvola account. Linking the accounts is complete and you will be returned to the Alexa App or Dashboard webpage.
6. Discover devices for your Amazon account: Using either the Amazon Alexa Android or iOS app, or the dashboard on the Alexa website.

7. Note: If the Friendly name of your IR3300 device is changed you will need to repeat this process to rediscover the device.

8. Ensure the app (or dashboard) is logged into the same Amazon account as your Amazon Voice Service enabled device.

9. Navigate to "Smart Home" and select "Devices".
10. Tap on the "Discover" option or alternatively ask your AVS device "Alexa, discover my devices".
11. When discovery is complete, your device will be listed in the app or dashboard Smart Home Devices screen.

Voice Commands

Once your Frontier Nuvola account is successfully linked to your Amazon account, you can use your Alexa enabled smart device to control your IR3300 speaker.

Typically, after using the Amazon wake word "Alexa" (alternative wake words are: "Echo", "Amazon" or "Computer") a command will need to specify what you want doing, on which device .

For example:

"Alexa, change input to DAB on kitchen"

Note: Supported command words are controlled by Amazon and will develop over time as the capabilities of Alexa are expanded. The commands listed here merely examples, which work at the time of publication, to familiarize you with a voice control environment.

For voice control the volume is defined in steps between 0 (min) and max (10). The steps are mapped to the equivalent values in the volume range 0 (min) to 32 (max) supported by IR3300 speakers.

Note: The "Mute" state cuts audio output to the speaker without changing the current volume setting and is not the same as reducing volume to 0 (min). The "unmute" command removes a "mute" state but does not change a volume setting of 0 (min).

"Alexa, set volume to 5 on kitchen"

Set volume accordingly to the appropriate value.

"Alexa, mute kitchen"

Set speaker to mute.

"Alexa, switch input to Internet Radio on kitchen"

Switch the mode on the selected speaker. The modes can be: IR or Internet Radio, Spotify, FM, DAB, Bluetooth, Aux In.

Further commands can be found here, for example:

https://www.amazon.com/gp/help/customer/display.html?nodeld=201601830

SPOTIFY

The IR3300 is compatible with Spotify Connect, so the IR3300 device can act as a wireless speaker controlled by the Spotify App, which is available for iOS, Android smart devices and a desktop client for PCs.

Use your phone, tablet or computer as a remote control for Spotify.

Go to Spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here:

https://www.spotify.com/connect/third-party-licenses

MEDIA PLAYER

Music player mode plays audio files in MP3, WMA, WAV, AAC, FLAC or ALAC format from a computer on the local network. If you are already playing a music file, you can press "Back" button on the radio to quickly return to the last visited branch of the menu tree.

You can use "▶" button or "▶" button to play the previous or the next track.

- Shared media

If you have set up shared media, you should see an entry consisting of : . If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play.

From this point on, the menus are generated from the shared media server. The first menu shows a list of media types, for example Music, Video, Pictures and Playlists. IR3300 can only play music and playlists.

There is also a search function which finds tracks in a similar way to Internet radio search.

From Music, there are numerous ways of selecting tracks including Genre, Artist, Album,Composer and Rating. Once you have found a track you want to play, press the "Select" button.

A short press plays the track immediately.

- Prune Server

From time to time, it is maybe necessary to remove server displaying question marks in front of the server name from the server list. For example, if the device is moved to a new network or if a Wake-on-line is removed from your current network.

To perform this function: go to menu by using the Menu button > Prune servers > and select Yes.

- USB playback

From this point on, menus are generated from the folders on the USB device. Browse folders with the / " , "Back" und "<" button, or by using the UNDOK app. The display shows folder and file names (not necessarily track names).

Once you have found a track you want to play, press the "Select" button on the device or click on the song title in UNDOK app.

Repeat/Shuffle

Allow you to repeat tracks or play them in random order.

Now playing information

While a track is playing, the screen shows its track and artist (UPnP). There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates UPnP depending on the source. To view further information, press "INFO" button.

Each time you press "INFO" button, another set of information is displayed, cycling through the information: track/artist/progress bar/track times, album, codec/sampling rate, playback buffer and today's date

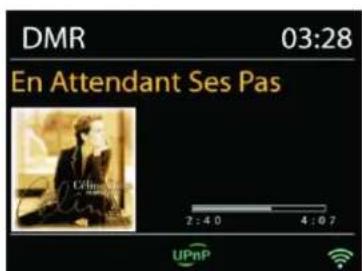

- DMR (DLNA Streaming)

Shared music is a way of music streaming which you look for the music list and control playback from IR3300. This topic will introduce another way to do the music streaming which is not necessary to control playback on IR3300.

You can share the music files from PC, Android mobile or tablet, and directly use your PC,

Android mobile, tablet or iPhone / iPad to control music playback on the IR3300. It is simple called DLNA streaming.

Control on PC

The PC system requirements for DLNA are Windows 7 or above, together with Windows Media Player 12. Setup as below:

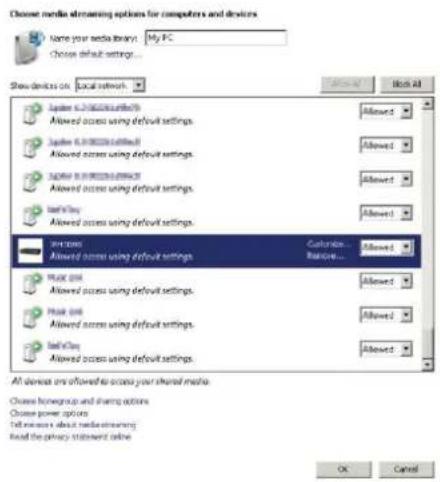

Firstly, share the media on your PC to IR3300.

Control Panel > Network and Internet > Network and Sharing Center > Media streaming options

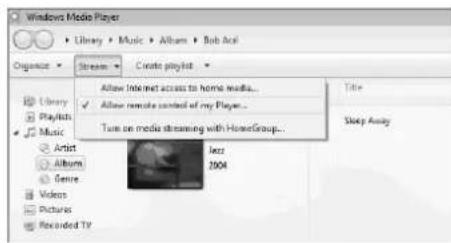

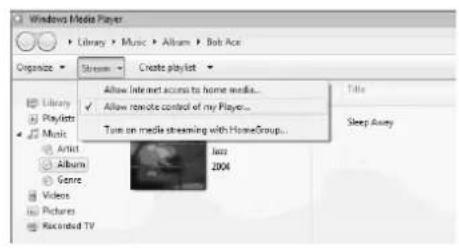

Open Windows Media Player to enable Allow remote control of my Player.

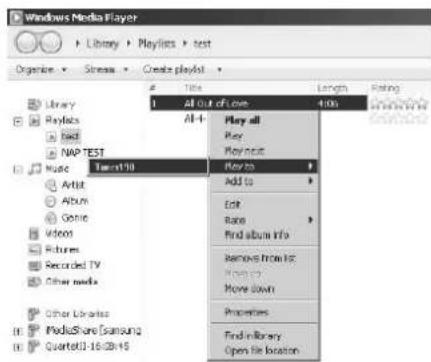

Right click any music in the library and choose Play to IR3300. Then a box of music playback pops up for the streaming.

Then a box of music playback pops up for the streaming.

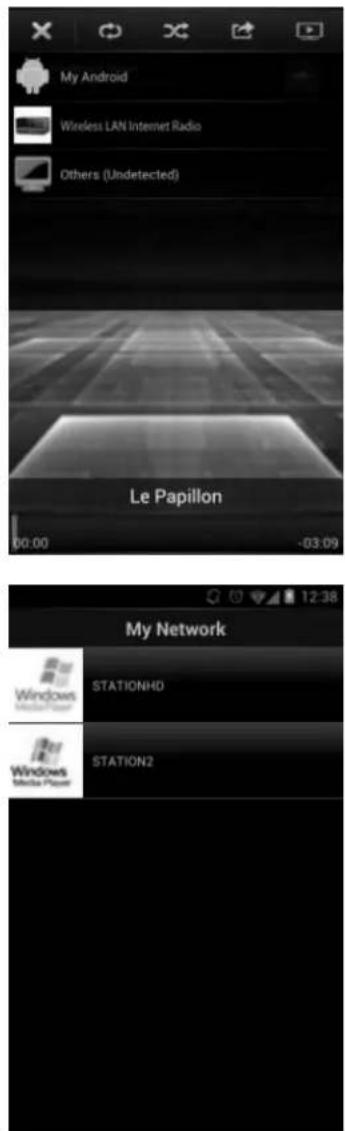

- Control on Smartphone / Tablet

You may search (with keyword: DLNA) and install any free or commercial DLNA Apps from Google Play or Apple Store if you are using Android mobile, tablet or iPhone / iPad.

It is suggested to use iMediaShare on Android mobile, tablet or iPhone/iPad.

Procedures for playing shared music on the app are as follows:

1. Select IR3300 as the player.
2. Select music server and choose the music.

NOTE: Some Apps may not support streaming music from iPhone/iPod but iPhone/iPod could still be used to control streaming music from other servers.

Some Apps may allow to play the music to multi players at the same time.

Some Apps can create a playlist if you choose several music.

Study the own instruction of the software or Apps you use to enjoy DLNA streaming if necessary.

DAB+ (DIGITALRADIO)

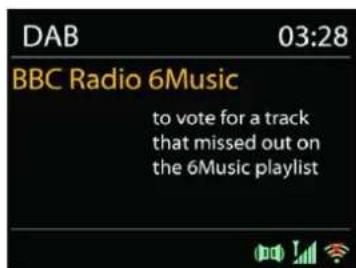

DAB mode receives DAB or DAB plus digital radio signal and displays information about the station, streaming audio and the program details.

- Scanning for stations

The first time you select DAB radio mode, or if the station list is empty, IR3300 automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons:

Available stations change from time to time.
- If reception was not good for the original scan, this may result in an empty or incomplete list of available stations.
- If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.

To start a scan manually, choose Full scan. To scan only stations with good signal strength, select "Local scan".

Once the scan is complete, the radio shows a list of available stations.

To remove stations that are listed but not unavailable, choose Prune invalid.

Press the "Back" button to view a list of stations and press "Select" to select. Once selected, the station plays and the screen shows information about station, track or show as broadcast.

- Presets

To store an DAB radio station, press and hold the "PRESET" on Remote Control until the display shows the "Save preset" screen. Select one of the presets to save the current station and press "Select" to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET" button, then select one of the listed preset stations and press "Select" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

Now playing information

While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as program name, track title and contact details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press "INFO" button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through DLS text, program type, ensemble name/frequency, signal strength/errror rate, bite rate/codec/channels and today's date.

SETTINGS

- Dynamic range compression (DRC)

If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.

- Station order

You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid.

Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphabetically, then off-air stations.

FM

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

To full scan, press "Select" button. The frequency display starts to run and scans the FM full band.

To manual tune press the / . The unit search in 0.05 MHz steps.

- Preset

To store an FM radio station, press and hold the "PRESET" on Remote Control until the display shows the "Save preset" screen. Select one of the presets to save the current station and press "Select" to confirm. Or press 0 to 9 on the Remote Control to store the current playing station into the preset directly.

To select a preset, press briefly the "PRESET" button, then select one of the listed preset stations and press "Select" to confirm. Or press 0 to 9 on the Remote Control to directly recall the presets.

Now playing information

While the stream is playing, the screen shows its frequency, or if RDS signal is available, station name and any further RDS information such as program name, title and other details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press "INFO" button.

Each time you press "INFO" button, another set of information is displayed, cycling through Radio text, program type, frequency and today's date.

SETTINGS

- Scan settings

Choose FM at first, it will go to a specific station playing. Then press "MENU" to get above table.

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select "Yes" after choosing Strong station only.

Audio settings

All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only and then YES.

BLUETOOTH

When you select the Bluetooth mode, the device is entering to pairing and the BT icon at the bottom of the screen will flash.

Turn on your smartphone, tablet or other Bluetooth devices to search for the device.

The Bluetooth pairing name is "IR3300".

When pairing is successful, the Bluetooth indicator will light up and stop flashing.

To release BT pairing, turn off or unpair your smartphone, table or other Bluetooth devices.

Press "▶" on the Remote Control or the "Select" button on the unit to start or interrupt the playback. You can press "▶" or "▶" on the Remote Control or the / button on the unit to play the previous or next track.

HANDS FREE CALLING

When your Mobile phone is connected with your device by Bluetooth® and you are in Bluetooth® mode, you can answer and end the call by pressing the "Select" button. When the call is coming and you press and hold the "Select" button the call will be rejected.

AUX IN

Connecting DVD player / Set-Top Box / TV outputs to analogue inputs from the sound board.

Use a RCA audio cable to connect the DVD player/TV outputs with the AUX (L/R) input socket from the sound board.

SLEEP

To set the sleep timer, press "ZZZ" on the Remote Control or "Sleep" on the unit. Choose from Sleep OFF, 15mins, 30mins, 45mins or 60mins.

Once you select a sleep period, the system returns to the "Now playing" screen.

ALARM

There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode.

Press "ALARM" button or select Alarm under Main menu to set or change an alarm.

Alarm 1

Enable: Daily

Time: 07:30

Mode: Internet Radio

Preset: Last listened

Volume: 10

Select the alarm number (1 or 2) then configure the following parameters:

• Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,
  Time
  Mode: Buzzer, Internet Radio, DAB or FM,
• Preset: Last listened, 1 - 10,
  Volume:0-32

To activate the new settings, scroll down and select Save.

The screen shows active alarms with an icon at the bottom left.

UNDOK

The IR3300 supports remote control from Apple iPhone, iPad and Android using the UNDOK app. The apps are available in Apple's app store and Google's android play.

The UNDOK app allows you to:

Create a group
- Rename a group
- Edit a group - add or remove one or more products
- Delete a group
Control a group - choose operating mode and browse for content
- Adjust volume for an entire group or for individual products within a group
- Control products which have not been assigned to any group
- Control all the modes of the IR3300, including Internet Radio, Media Player, USB playback, DAB, FM, Bluetooth and AUX-In
- Adjust the volume level of current playback
- Setting EQ for various audio presets
- Setting Sleep timer
- Editing the displayed name of the radio.

FACTORY RESET

A factory reset resets all user settings to default values, so that time and date, network configuration and presets are lost. However, the IR3300 's current software version is maintained, as is registration with the Internet radio portal. Internet radio favourites therefore remain unless you re-register your IR3300 with another account on the portal website.

TROUBLESHOOTING

Error	Remedy
The device does not switch on.	Check it the power adaptor is connected properly.
Switch automatically off	Due to ErP2 requirements and environmental protection, the unit automatically switches to standby mode when no music is played for more than 15 minutes.
No sound.	1. Turn on the sound as it may be muted 2. Increase the volume. 3. Pull any connected headphone or speaker from the connector jack.
No network connection can be established.	1. Check the LAN cable or the WLAN function. 2. Try to set an IP address at the device. 3. Activate the DHCP function on the router and make the connection again at the device. 4. A firewall is activated on the network – set the respective program in such a way that access is possible. 5. Reboot the router
WiFi connection cannot be established.	1. Check the availability of WLAN network on the router. 2. Place the device closer to the router. 3. Make sure the password is correct.
Wired connection cannot be established.	1. Check the availability of LAN network on the access point. 2. Reconnect or even replace the LAN cable.
No station is found.	1. Check the network as well as the access point and firewall. 2. The station may not be available currently, try it again later or select another station. 3. The link of the station is changed or the station no longer transmits – ask the provider for information. 4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in FM mode	Check/move the FM antenna or move the radio
No stations available / burbling / intermittent in DAB mode.	1. Move the radio. 2. Rescan local stations only (high-strength). 3. Check the local DAB coverage.
Alarm does not work.	1. Switch on the alarm. 2. Due to the volume setting, refer to the solutions of “No sound”. 3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
USB driver or MP3 player is not detected.	1. Check if the USB driver or MP3 player is plugged properly. 2. Some USB hard disks need external power supply, make sure it is connected to the power. 3. Not all MP3 players can be read directly on the device – use an USB drive instead.
NetRemote does not show or connect to IR3300	1. Reopen the App. 2. If you have several streaming from several devices at the same time, it may cause crash, reboot IR3300 and/or your device.
All other undetermined cases.	IR3300 may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot IR3300 if necessary.
	The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
	The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
	Under the environment with Conducted Immunity disturbance, the sample may malfunction. It will automatically recover to normal when the Conducted Immunity disturbance stopped.

TECHNICAL SPECIFICATIONS

Power supply	: Use only the supplied adapter
Power input	: 100-240V~50/60Hz
Power output	: DC 9V 2A- ∘- +
DAB+ range	: Band III 174.928 - 239.200 MHz
FM range	: 87.5 - 108MHz
Bluetooth® Version	: Version 4.2
Connectivity	: 2.4GHz
Battery remote control	: 2x AAA (UM-4, LR03)
Preset station	: 10 Internet radio, 10 DAB+, 10 FM
Audio power output	: 2x 10 W
Standby consumption	: 1.8W
with "Keep network in standby" setting

Technical changes and misprints reserved
Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de
Duplication only with the permission of Woerlein GmbH

PROTECTION DE L'ENVIRONNEMENT

https://www.spotify.com/connect/third-party-licenses

LECTEUR MULTIMÉDIA

Scannenaarhetnetwork

Setup wizard voltooid

https://www.amazon.com/gp/help/customer/display.html?nodeld=201601830

SPOTIFY

Open Windows Media Player om Allow remote control of my Player in te schakelen.

- Scannenaar stations

https://www.amazon.it/gp/help/customer/display.html?nodeId=201601830

SPOTIFY

:2x AAA (UM-4, LR03)

battery

Push WPS button at the other end

Press SELECT to continue

Códio pin

Enter PIN 98467583 at the other end

Press SELECT to continue

Omitir una red WPS

Press SELECT to exit

ECUALIZADOR

https://www.amazon.com/gp/help/customer/display.html?nodeId=201601830

SPOTIFY

Control Panel > Network and Internet > Network and Sharing Center > Media streaming options

Abra Windows Media Player active Allow remote control of my Player.

Mode: Internet Radio

Preset: Last listened

Volume: 10

Enter PIN 98467583 at the other end

Press SELECT to continue

Brug okay WPS

https://www.amazon.com/qp/help/customer/display.html?nodeld=201601830

SPOTIFY

Spotify-softwareer underlagt tredjepartslicensor, der findes her: https://www.spotify.com/connect/third-party-licenses

MEDIEAFSPILLER

Then a box of music playback pops up for the streaming.

DAB

- Søgning after stationer

INNHOLDET I LEVERANSEN

Hovedenheten

Fjernkontroll

Nettadapter

Bruksanvisning

BRUK DIN FJERNKONTROLL

Push WPS button at the other end

Press SELECT to continue

Pin

Enheten generatorer et 8-sifret kodenummer som du legger inn i den tradlose ruteren, akssesspunktet aller en ekstern registrar.

WPS Setup

Enter PIN 98467583 at the other end

Press SELECT to continue

Hopp over WPS

https://www.amazon.com/gp/help/customer/display.html?nodeId=201601830

SPOTIFY

https://www.spotify.com/connect/third-party-licenses

MEDIEAVSPILLER

Musikkspillermodus lar deg spille lydfiler i formatene MP3, WMA, WAV, AAC, FLAC aller ALAC som er lagret på en datamaskin eller på lokalnettverket.

Control Panel > Network and Internet > Network and Sharing Center > Media streaming options

Apne Windows Media Player og aktiver Allow remote control of my Player.

Dynamic range compression (DRC)

NULLSTILLING TIL FABRIKKINNSTILLING

*) markerade Cd = kadmium, Hg = kvicksilver, Pb = bly

Push WPS button at the other end

Press SELECT to continue

Pin

Enheten skapar en 8-siffrig kod som du skriver in i den tradlosa routern, atkomstpunkten, aller pa den externa registeringsenheten.

WPS Setup

Enter PIN 98467583 at the other end

Press SELECT to continue

Skippa WPS

Angekodenforettstandardkrypteratnatverk.

Please wait Connecting..

Setup wizard completed

Press SELECT to exit

EQUALIZER

https://www.amazon.com/gp/help/customer/display.html?nodeId=201601830

SPOTIFY

https://www.spotify.com/connect/third-party-licenses

MEDIESPELARE

:2x AAA (UM-4, LR03)

Forvalsminnet

:10 Internetradio,10 DAB+,10 FM

Ljudutgangseffekt

:2x10W

Standby-konsumption

:1.8W

medinstallingen

"Behçal nätverket i

vänteläge"

Wörlein GmbH

Gewerbesteße 12

D 90556 Cadolzburg, Germany

Tel: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.soundmaster.de

Hereby, Worlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
