| Product type | Rechargeable Wi-Fi video doorbell |
| Brand | Nedis |
| Model | WIFICDP30WT |
| Dimensions (L x W x H) | 141 x 50 x 32 mm |
| Weight | Approximately 200 g (with batteries) |
| Power supply | 5 V DC, 2 A (Micro USB port) |
| Battery type | 1 x Li-ion 18650, 2600 mAh |
| Standby battery life | Up to 2 months or 200 recordings |
| Video resolution | 1280 x 720 px (HD) |
| Viewing angle | 100° |
| Night vision | 5 meters (6 infrared LEDs) |
| Connectivity | Wi-Fi 2.4 GHz (2412-2472 MHz) and 433 MHz |
| Local storage | microSD card up to 128 GB (not included) |
| Protection rating | IP54 (splash-resistant) |
| Operating temperature | -20 °C to 50 °C |
| Motion detection | PIR sensor, range 3 m |
| Compatible indoor chime | Nedis WIFICDPC10xx (max distance 20-30 m) |
| Mobile app | Nedis SmartLife (iOS and Android) |
| Package contents | Doorbell, mounting bracket, Micro USB cable, batteries, screws |
| Maintenance | Clean with a soft, dry cloth. Avoid abrasive products. |
| Safety | Follow the safety instructions in the manual. Do not expose to fire. |
| Repairability | No user-serviceable parts. Contact customer service. |
Frequently Asked Questions - WIFICDP30WT NEDIS
User questions about WIFICDP30WT NEDIS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Doorbells in PDF format for free! Find your manual WIFICDP30WT - NEDIS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WIFICDP30WT by NEDIS.
USER MANUAL WIFICDP30WT NEDIS
Rechargeable Video Doorbell
100% wireless solution
WIFICDP20WT / WIFICDP20GY


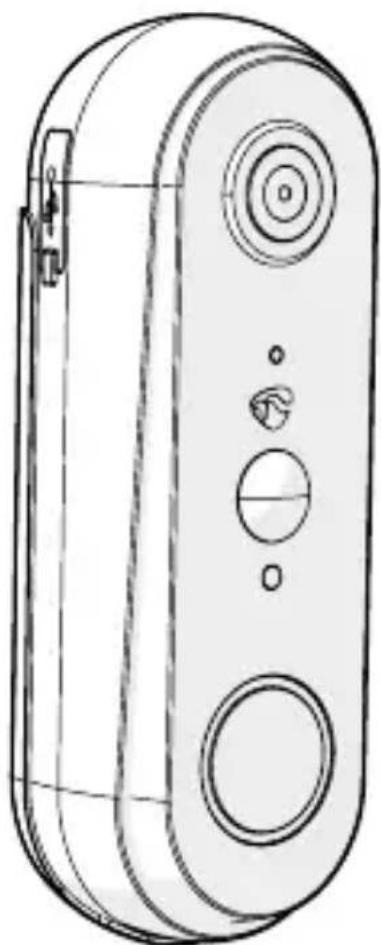

Line drawing of a portable electronic device with three circular buttons and a handle (no text or symbols)
ned.is/wificdp20wt
ned.is/wificdp20gy
EN
Quick start guide 4
DE
Kurzanleitung 8
FR
Rechargeable Video Doorbell
WIFICDP20WT
WIFICDP20GY
For more information see the extended manual online:
ned.is/wificdp20wt ned.is/wificdp20gy
Intended use
The Nedis WIFICDP20XX is a Wi-Fi based Video Doorbell that streams recorded video and audio directly to your smartphone or tablet.
This product is intended for indoor and outdoor use.
Consult the local laws and regulations for security cameras before using and installing.
The product is not intended for professional use.
Any modification of the product may have consequences for safety, warranty and proper functioning.
Specifications
| Product Rechargeable Video Doorbell | ||
| Article number WIFICDP20WT WIFICDP20GY | ||
| Dimensions (l x w x h) 141 x 50 x 32 mm | ||
| Video resolution 1280 px - 720 px 1920 px - 1080 px | ||
| Video Compression H.264 | ||
| Viewing angle 100 ° 180 ° | ||
| Image sensor 1/4" CMOS sensor 1/2.9" CMOS sensor | ||
| Night vision range 5.0 m | ||
| Memory MicroSD card: Up to 128 GB (not included) | ||
| IP rating IP54 (splash proof) | ||
| Working temperature -20 - 50 °C | ||
| Battery type | 1 x 18650 (Li-ion) | 2 x 18650 (Li-ion) |
| Battery capacity | 2600 mAh | 5200 mAh |
| Battery lifetime Up to 2 months in standby or 200 recordings | Up to 4 months in standby or 400 recordings |
| Power input 5 VDC; 2 A (Micro USB) | |
| Standby power 2 mA | |
| Wi-Fi frequency range 2412 - 2472 MHz | |
| Wireless connections Wi-Fi & 433 MHz | |
| Max. radio transmit power | 18 dBm |
| Compatible indoor chime | WIFICDPC10xx |
| Max. distance between doorbell and indoor chime | 20 - 30 m |
| Infrared LEDs 6pcs Infrared LEDs with 5 meters visibility | |
| PIR sensor 3 m | |
Main parts (image A)
1 Battery cover
2 Mounting holes
3 Mounting bracket
4 Hexagonal bolt
5 Micro USB port
6 Reset button
7 Charging indicator
LED
8 Camera lens
9 Microphone
10 PIR sensor
11 Call button
12 Status indicator LED
13 Speaker
14 MicroSD card slot
15 Battery compartment
16 Micro USB cable

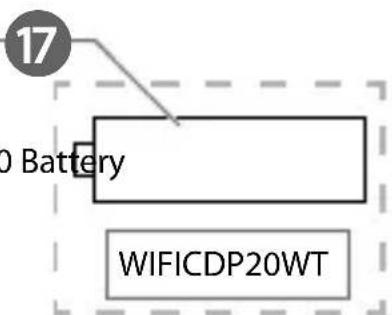

17 Batteries
Safety instructions
WARNING
- Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
- Only use the product as described in this document.
-
Disconnect the product from the power source and other equipment if problems occur.
-
Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
- Do not drop the product and avoid bumping.
- In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Do not use any cell or battery that is not designed for use with the product.
- Do not dismantle, open or shred secondary cells or batteries.
- Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
- Seek medical advice immediately if a cell or a battery has been swallowed.
- Do not short-circuit a cell or a battery.
- Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
- Do not subject cells or batteries to mechanical shock.
- Use only the cell or battery in the application for which it was intended.
- Do not mix cells of different manufacture, capacity, size or type within a product.
- Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
- Battery usage by children should be supervised.
- Observe the plus (+) and minus (−) marks on the cell, battery and equipment and ensure correct use.
- Do not use any charger other than that specifically provided for use with the equipment.
- Do not leave a battery on prolonged charge when not in use.
- After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
- Disconnect the power supply before making or breaking the connections to the battery.
- During charging, the battery must be placed in a well-ventilated area.
- Dispose of the cell or battery properly.
- When possible, remove the battery from the product when not in use.
- Clean the product regularly with a soft, clean, dry cloth. Avoid abrasives that can damage the surface.
- Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product.
- Consult the local laws and regulations for this product before installing and using.
Preparing the product
- Unscrew the hexagonal bolt A4 from the bottom of the bracket
- Unscrew the battery cover A 1 to open the product.
- Optional: insert a microSD card (not included) into the microSD card slot A14, to locally store recordings.
- Insert the required batteries into the battery compartment A ^15 .
Observe the plus (+) and minus (−) marks on the cell, battery and equipment and ensure correct use.
The status indicator LED A12 blinks red to indicate the product is ready for installation.
If A12 doesn't blink blue, reset the product by holding the reset button A6 with a pin for 5 seconds.
Installing the Nedis SmartLife app
- Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.
- Open the Nedis Smartlife app on your phone.
- Create an account with your e-mail address and tap Continue.
You will receive a verification code on your e-mail address. - Enter the received verification code.
- Create a password and tap Done.
- Tap Add Home to create a SmartLife Home.
- Set your location, choose the rooms you want to connect with and tap Done.
Connecting the app
- Tap + in the top right corner in the Nedis SmartLife app.
- Select the product type you want to add from the list.
- Confirm the status indicator LED A 12 is blinking.
- Enter the Wi-Fi network data and tap Confirm.
- Tap Continue and a QR-code will appear.
- Hold your phone with a 15 – 20 cm distance in front of the camera.
If the camera has detected the QR-code, you will hear a sound.
- Tap to confirm you heard the sound.
- Give the product a name and tap Done. A ^12 turns blue. The product is now ready for use.
If A12 doesn't blink blue, reset the product by holding the reset button A6 with a pin for 5 seconds.
Making video recordings and screenshots
- You can make video recordings and screenshots on your phone, by tapping Record and Screenshot.
Playing back motion detected videos
Motion detected videos are automatically saved on the microSD card, if inserted.
- Tap Playback to open the stored videos.
- Select the day of the recording.
- Zoom and drag the timeline to select the recording.
Declaration of Conformity
We, Nedis B.V. declare as manufacturer that the product WIFICDP20WT | WIFICDP20GY from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.
The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/WIFICDP20WT#support nedis.com/WIFICDP20GY#support
For additional information regarding the compliance, contact the customer service:
Web: www.nedis.com
E-mail: service@nedis.com
Nedis B.V., de Tweeling 28
5215 MC 's-Hertogenbosch, the Netherlands
