Product type	Rechargeable Wi-Fi video doorbell
Brand	Nedis
Model	WIFICDP20WT
Color	White
Dimensions (L x W x H)	141 x 50 x 32 mm
Video resolution	1280 x 720 pixels (HD)
Viewing angle	100°
Night vision	Yes, up to 5 meters (infrared LED)
Image sensor	CMOS 1/4"
Protection rating	IP54 (splash resistant)
Power supply	5 V DC, 2 A via micro USB port
Battery type	Lithium-ion 18650, 1 x 2600 mAh
Standby time	Up to 2 months
Usage time	Up to 200 recordings
Local storage	MicroSD up to 128 GB (not included)
Wireless connectivity	Wi-Fi 2.4 GHz (2412-2472 MHz)
Compatible indoor chime	WIFICDPC10xx (sold separately)
Doorbell-chime distance	20-30 meters
Functions	Motion detection, two-way communication, video recording, smartphone alerts via Nedis SmartLife app
Operating temperature	-20 °C to 50 °C
Maintenance	Clean with a soft dry cloth, avoid abrasive and chemical products
Safety	Do not expose to excessive moisture, check regularly, use only supplied batteries
Box contents	Doorbell, bracket, micro USB cable, 18650 batteries, screws, manual

Frequently Asked Questions - WIFICDP20WT NEDIS

How to install the WIFICDP20WT doorbell?

Unscrew the hex bolt at the bottom of the bracket, then unscrew the battery compartment cover. Insert the supplied 18650 batteries observing polarity, then close. To mount the doorbell, use the mounting holes and the supplied bracket. Ensure the doorbell is at a height of approximately 1.2 meters for optimal detection. Refer to the quick start guide for more details.

How to connect the doorbell to the Nedis SmartLife app?

Download the Nedis SmartLife app from Google Play or the App Store. Create an account and log in. Press the + at the top right, select the device type, then confirm that the LED indicator flashes blue. If not, press and hold the reset button for 5 seconds. Enter your Wi-Fi password, then follow the instructions to scan the QR code displayed on your phone with the doorbell's camera. Once you hear a sound, confirm in the app and name the device.

What to do if the doorbell does not connect to Wi-Fi?

Check that your Wi-Fi network is on 2.4 GHz (5 GHz networks are not supported). Ensure the password is correct and the signal is strong enough. Reset the doorbell by pressing and holding the reset button with a pin for 5 seconds until the LED flashes blue. Restart the connection procedure in the app. If the problem persists, temporarily move the doorbell closer to the router.

How to record videos on the microSD card?

Insert a microSD card (up to 128 GB, not included) into the slot under the battery cover. Motion detection videos are automatically recorded to the card. To view them, open the app and tap Playback. You can select the date and drag the timeline to view recordings.

What is the battery life?

The lithium-ion 18650 battery of 2600 mAh provides up to 2 months in standby or approximately 200 motion detection recordings. Battery life may vary depending on usage and event frequency. When the battery is low, a red LED lights up and you receive a notification on your smartphone.

How to recharge the battery?

Use the supplied micro USB cable to connect the doorbell to a 5V/2A power adapter (not included). The charging LED lights up red during charging and turns green when fully charged. Full charging takes about 4 to 6 hours. Do not leave the battery charging for extended periods unattended.

How to reset the doorbell?

Press and hold the reset button (located next to the micro USB port) with a pin or paperclip for about 5 seconds. The LED will flash blue indicating the doorbell is reset and ready to be reconnected.

Is the doorbell rain resistant?

Yes, the doorbell has an IP54 rating, meaning it is resistant to water splashes and dust. It can be installed outdoors, but avoid direct exposure to heavy rain or immersion. Ensure the battery cover is tightly closed to maintain waterproofing.

Can I use a 128 GB microSD card?

Yes, the doorbell accepts microSD cards up to 128 GB capacity, formatted as FAT32 or exFAT. Insert the card into the slot before closing the battery compartment. The card is not included in the box.

What to do if the indoor chime does not ring?

Check that the compatible indoor chime WIFICDPC10xx is synchronized with the doorbell. The distance between the doorbell and the chime should not exceed 20-30 meters. Ensure the chime batteries are charged. In the app, check the ringtone settings and that the chime is properly associated. If necessary, reset both devices and re-pair them.

USER MANUAL WIFICDP20WT NEDIS

Rechargeable Video Doorbell

100% wireless solution

WIFICDP20WT / WIFICDP20GY

EN Quick start guide 4

DE Kurzanleitung 8

Rechargeable Video Doorbell

WIFICDP20WT

WIFICDP20GY

For more information see the extended manual online:

ned.is/wificdp20wtned.is/wificdp20gy

Intended use

The Nedis WIFICDP20XX is a Wi-Fi based Video Doorbell that streams recorded video and audio directly to your smartphone or tablet.

This product is intended for indoor and outdoor use.

Consult the local laws and regulations for security cameras before using and installing.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Rechargeable Video Doorbell
Article number WIFICDP20WT WIFICDP20GY
Dimensions (I x w x h) 141 x 50 x 32 mm
Video resolution 1280 px - 720 px 1920 px - 1080 px
Video Compression H.264
Viewing angle 100° 180°
Image sensor 1/4" CMOS sensor 1/2.7" CMOS sensor
Night vision range 5.0 m
Memory MicroSD card: Up to 128 GB (not included)
IP rating IP54 (splash proof)
Working temperature -20 - 50 °C
Battery type	1 x 18650 (Li-ion)	2 x 18650 (Li-ion)
Battery capacity	2600 mAh	5200 mAh

Battery lifetime Up to 2 months in standby or 200 recordings	Up to 4 months in standby or 400 recordings
Power input 5 VDC; 2 A (Micro USB)
Standby power 2 mA
Wi-Fi frequency range 2412 - 2472 MHz
Wireless connections Wi-Fi & 433 MHz
Max. radio transmit power	18 dBm
Compatible indoor chime	WIFICDPC10xx
Max. distance between doorbell and indoor chime	20 - 30 m
Infrared LEDs 6pcs Infrared LEDs with 5 meters visibility
PIR sensor 3 m

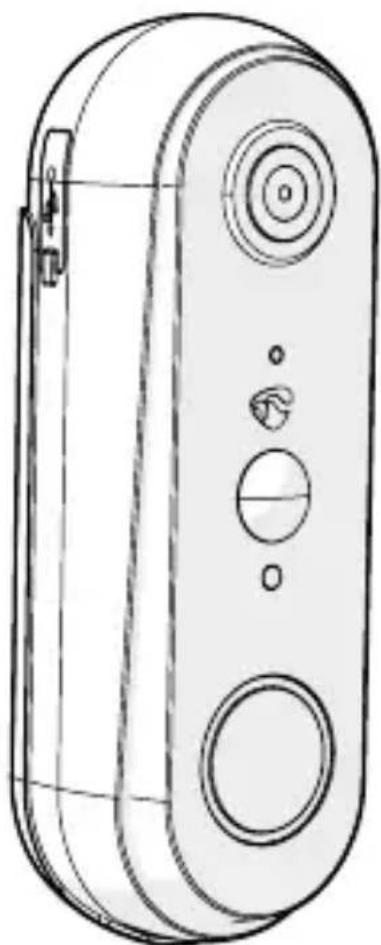

Main parts (image A)

1 Battery cover
2 Mounting holes
3 Mounting bracket
4 Hexagonal bolt
Micro USB port
6 Reset button

7 Charging indicator LED
8 Camera lens
9 Microphone
10 PIR sensor
11 Call button
Status indicator LED

13 Speaker
14 MicroSD card slot
15 Battery compartment
Micro USB cable
17 Batteries

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.

• Disconnect the product from the power source and other equipment if problems occur.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not drop the product and avoid bumping.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Do not use any cell or battery that is not designed for use with the product.
• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Seek medical advice immediately if a cell or a battery has been swallowed.
• Do not short-circuit a cell or a battery.
• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
• Do not subject cells or batteries to mechanical shock.
• Use only the cell or battery in the application for which it was intended.
• Do not mix cells of different manufacture, capacity, size or type within a product.
• Wipe the cell or battery terminals with a clean dry cloth if they become dirty.
• Battery usage by children should be supervised.
• Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
• Disconnect the power supply before making or breaking the connections to the battery.
• During charging, the battery must be placed in a well-ventilated area.
• Dispose of the cell or battery properly.
• When possible, remove the battery from the product when not in use.
• Clean the product regularly with a soft, clean, dry cloth. Avoid abrasives that can damage the surface.
• Do not use aggressive chemical cleaning agents such as ammonia, acid or acetone when cleaning the product.
• Consult the local laws and regulations for this product before installing and using.

Preparing the product

1. Unscrew the hexagonal bolt A4 from the bottom of the bracket
2. Unscrew the battery cover A to open the product.
3. Optional: insert a microSD card (not included) into the microSD card slot A14, to locally store recordings.
4. Insert the required batteries into the battery compartment A 15.

Observe the plus (+) and minus (-) marks on the cell, battery and equipment and ensure correct use.

Installing the Nedis SmartLife app

1. Download the Nedis Smartlife app for Android or iOS on your phone via Google Play or the Apple App Store.
2. Open the Nedis Smartlife app on your phone.
3. Create an account with your e-mail address and tap Continue.

You will receive a verification code on your e-mail address.

1. Enter the received verification code.
2. Create a password and tap Done.
3. Tap Add Home to create a SmartLife Home.
4. Set your location, choose the rooms you want to connect with and tap Done.

Connecting the app

1. Tap + in the top right corner in the Nedis SmartLife app.
2. Select the product type you want to add from the list.
3. Confirm the status indicator LED A 12 is blinking.

If A12 doesn't blink blue, reset the product by holding the reset button A6 with a pin for 5 seconds.

1. Enter the Wi-Fi network data and tap Confirm.
2. Tap Continue and a QR-code will appear.
3. Hold your phone with a 15 - 20cm distance in front of the camera.

If the camera has detected the QR-code, you will hear a sound.

1. Tap to confirm you heard the sound.
2. Give the product a name and tap Done. A12 turns blue. The product is now ready for use.

Making video recordings and screenshots

• You can make video recordings and screenshots on your phone, by tapping Record and Screenshot.

Playing back motion detected videos

Motion detected videos are automatically saved on the microSD card, if inserted.

1. Tap Playback to open the stored videos.
2. Select the day of the recording.
3. Zoom and drag the timeline to select the recording.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product WIFICDP20WT | WIFICDP20GY from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/WIFICDP20WT#support

nedis.com/WIFICDP20GY#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC's-Hertogenbosch, the Netherlands
