WIFICDPC11CBK - Doorbells NEDIS - Free user manual and instructions

Product type	Wireless door chime
Brand	Nedis
Model	WIFICDPC11CBK
Usage	Indoor use only
Compatibility	Nedis Wi-Fi video doorbells
Number of chimes	38 melodies
Power supply	Mains via adapter
Input voltage	100-240 V AC, 50/60 Hz
Operating frequency	Wi-Fi 2.4 GHz
Dimensions (approx.)	8 x 6 x 4 cm
Weight (approx.)	100 g
Housing material	Plastic
Color	Black
Protection rating	IP20
Operating temperature	0 °C to 40 °C
Care and cleaning	Clean with a dry cloth; do not use harsh chemicals
Safety	Do not immerse in water; do not use if damaged
Spare parts and repairability	Product not user-repairable; no replaceable parts available
General information	Full manual available at ned.is/wificdpc11cbk; CE declaration of conformity

Frequently Asked Questions - WIFICDPC11CBK NEDIS

How to pair the chime with my Nedis Wi-Fi video doorbell?

Refer to the detailed online manual at ned.is/wificdpc11cbk for the pairing procedure specific to your doorbell model.

How to change the chime melody?

The chime offers 38 melodies. Selection is done via the Nedis video doorbell mobile app. Refer to the manual for instructions.

Does the chime work on battery?

No, the Nedis WIFICDPC11CBK chime is mains powered via an included adapter. It must be plugged into an electrical outlet.

What is the range of the chime?

The range depends on the Wi-Fi network strength. Indoors, it can reach 30 to 50 meters in open space. Make sure the chime is within range of your Wi-Fi access point.

Can the chime be used outdoors?

No, this chime is designed for indoor use only. It is not protected against moisture or weather.

How to reset the chime?

To reset the chime, press and hold the reset button (usually located on the back) for 5 seconds until the LED flashes. See the manual for details.

Is the chime compatible with other doorbell brands?

This chime is specifically designed to be compatible with Nedis Wi-Fi video doorbells. It may not work with other brands.

How to adjust the chime volume?

The volume can be adjusted via the Nedis mobile app or sometimes directly on the chime using a wheel. The online manual provides detailed instructions.

What to do if the chime does not ring when called?

First check that the chime is properly plugged in and powered on. Make sure the video doorbell is paired and the Wi-Fi network is working. If the problem persists, restart both devices.

Where to find the declaration of conformity and the full manual?

The full manual and CE declaration of conformity are available for download at ned.is/wificdpc11cbk or via the QR code on the packaging.

USER MANUAL WIFICDPC11CBK NEDIS

Wireless Plug-in Chime

Safety instructions

WIFICDPC11CBK

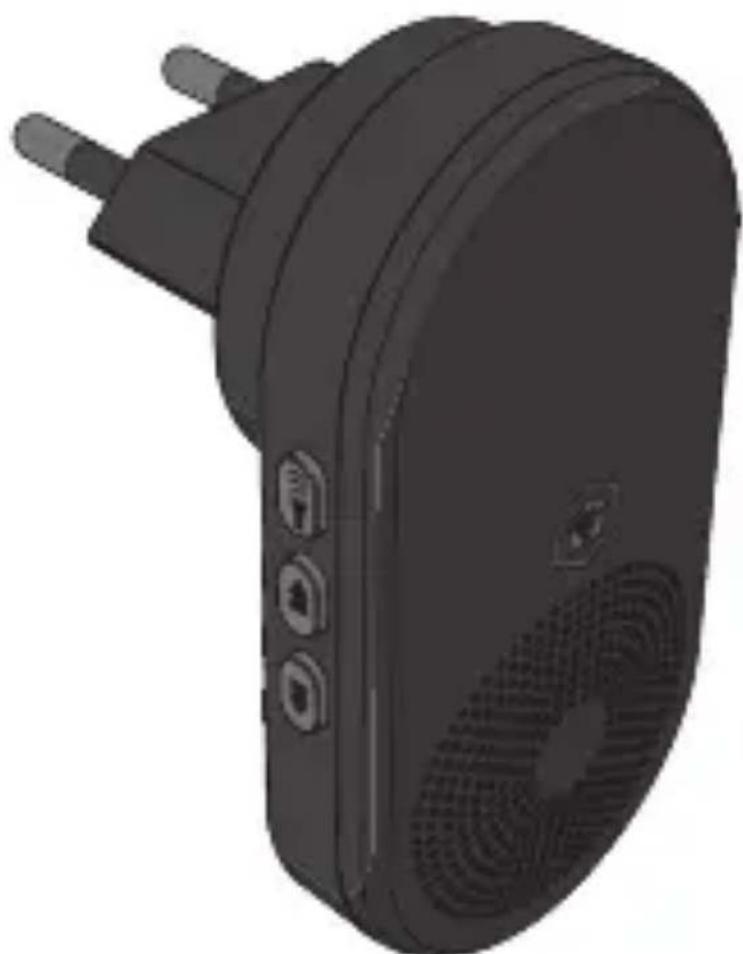

3D rendering of a black electrical plug with three ports and a mesh grille (no text or symbols visible)

EN Safety instructions 3

Wireless Plug-in Chime

WIFICDPC11CBK

For more information see the extended manual online: ned.is/wificdpc11cbk

Aboutthisdocument

This document is the user manual and contains all the information for correct, efficient, and safe use of the product.

Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

Symbolsused

WARNING!

Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION!	Signal word used to indicate a potentially hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE	Signal word used to address practices not related to physical injury.

Intendeduse

This product is intended as a door chime to pair with Nedis Wi-Fi video doorbells.

This product has 38 different chimes.

This product is intended for indoor use only.

Only use the product as described in this user manual.

The following is considered as foreseeable unintended use:

• Failure to comply with the instructions in this user manual.
• Unauthorised modifications to the product.
• Use of spare parts or accessories not recommended by the manufacturer.
• Failure to eliminate defects of the products that increase the safety risks.

- Use in that differs from the specified operational conditions.

Safetyinstructions

WARNING!

Chokinghazard:

- Do not let children play with the packaging material. Always keep the packaging material out of the reach of children.

CAUTION!

Safetyhazard:

- Do not use the product if a part is damaged or defective. Always replace a damaged or defective product immediately.

NOTICE

Risk of damaging the product:

• Make sure that the voltage of your mains wall outlet matches the voltage required by the adapter.
• Do not immerse the product in water or other liquids.

• Do not make any adjustments to the product.
  Adjustments may affect safety, warranty and proper operation.

• Do not use aggressive chemical cleaning agents when cleaning the product.

• Do not drop the product and avoid bumping.

Disposal

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste.

For more information, contact the retailer or the local authority responsible for the waste management.

DeclarationofConformity

We, Nedis B.V. declare as manufacturer that the product WIFICDPC11CBK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/WIFICDPC11CBK#support
