Product type	Quartz wall clock
Model	WS 8002
Brand	TECHNOLINE
Display	Positive LCD with time, date, day of week, temperature
Time format	12/24 hours (adjustable)
Calendar	Continuous until year 2099 with date and day of week
Built-in thermometer	Range -9.9 °C to 59.9 °C, display in °C or °F
Daily alarm	1 alarm with snooze function (5 minutes) and crescendo volume
Power supply	2 AA (LR6) 1.5 V batteries
Estimated battery life	Approximately 12 months with alkaline batteries
Housing material	Plastic
Dimensions	Approximately 28 x 28 x 5 cm (estimated)
Weight	Approximately 300 g (without batteries)
Usage	Indoor only
Maintenance and cleaning	Wipe with a soft, dry cloth; do not immerse in water
Battery safety	Observe polarity, do not recharge, keep out of reach of children
Repairability	Do not open the housing; contact customer service in case of malfunction
General information	Manual available in multiple languages; compliance with WEEE legislation

Frequently Asked Questions - WS 8002 TECHNOLINE

How to set the time on the WS 8002 clock?

Press and hold the SET button for 2 seconds. Then, follow the flashing to set the 12/24h format, hours, minutes, year, month, date, and language. Use the ▲ and ▼ buttons to change each value. Press SET to confirm.

How to set the alarm?

In clock mode, press the ALARM button to display the alarm time. Press and hold ALARM for 2 seconds, then set the hours and minutes with ▲ and ▼. Confirm with ALARM.

How to enable or disable the alarm?

Briefly press the ALARM button in clock mode to enable or disable the alarm. The ☉ icon appears when it is active.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button to delay the alarm by 5 minutes. The snooze icon is displayed. You can deactivate snooze by pressing any other button.

How to change the temperature display to °C or °F?

Press the ▼ (down arrow) button to toggle between Celsius and Fahrenheit units.

What batteries to use for the WS 8002 clock?

The clock operates with 2 AA (LR6) 1.5 V batteries. Use alkaline batteries for optimal life. Observe polarity (+/-) when installing.

What to do if the clock displays incorrect time or does not work?

Remove the batteries from the compartment, wait a few seconds, then reinsert them observing polarity. This will reset the clock to default settings. You will then need to perform the settings again.

How to clean the clock?

Use a soft, dry cloth to wipe the screen and housing. Do not use chemicals and never immerse the device in water.

How long does the alarm sound if no one intervenes?

The alarm sounds for a maximum of 2 minutes. If no button is pressed, it stops automatically and reactivates at the same time the next day.

Can the clock be used outdoors?

No, this clock is designed for indoor use only. Avoid exposure to sunlight, humidity, and extreme temperatures.

USER MANUAL WS 8002 TECHNOLINE

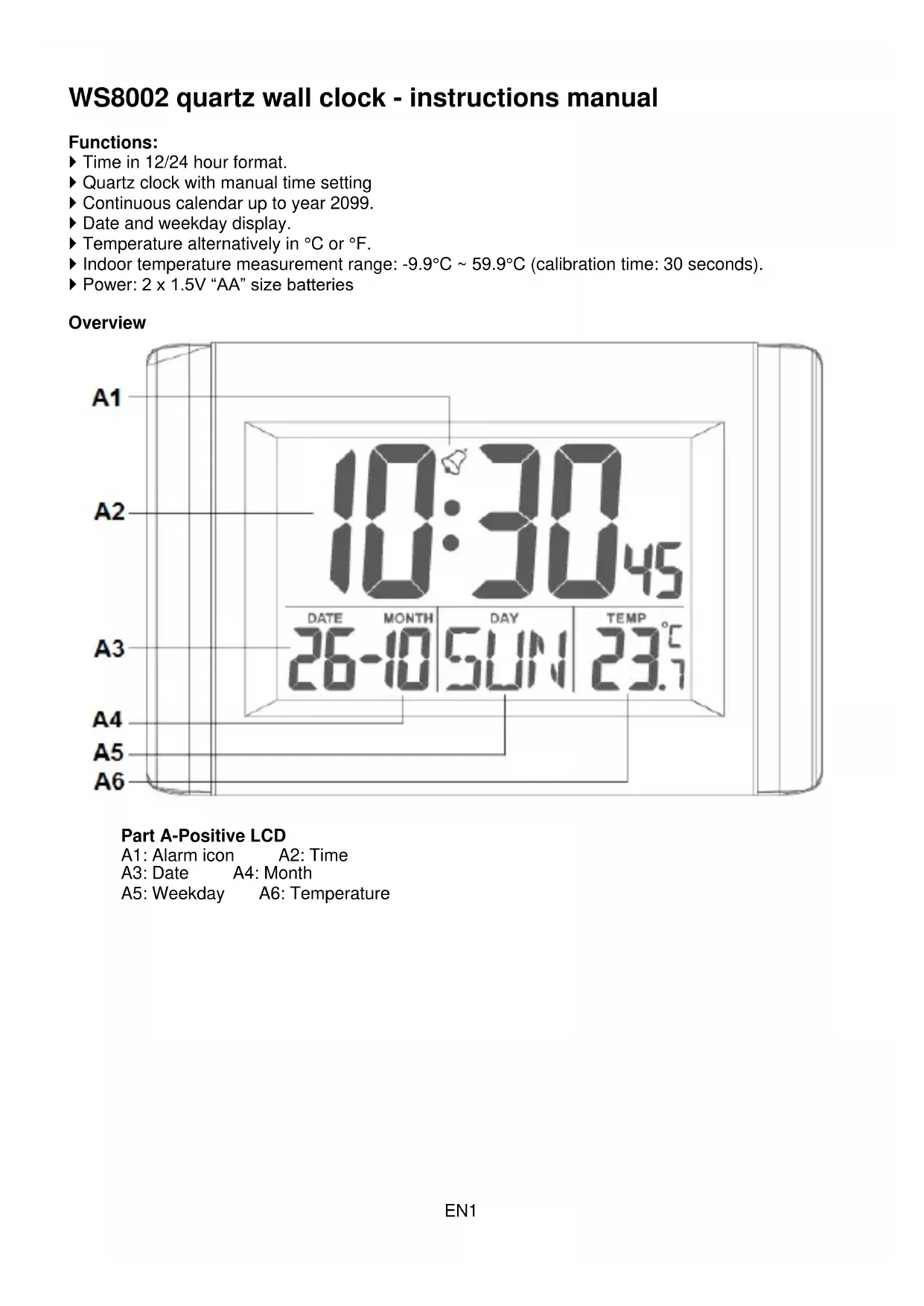

WS8002 quartz wall clock - instructions manual

Functions:

Time in 12/24 hour format.
Quartz clock with manual time setting
Continuous calendar up to year 2099.
Date and weekday display.
Temperature alternatively in ^ C or ^
Indoor temperature measurement range: -9.9^ 59.9^ (calibration time: 30 seconds).
Power: 2 x 1.5V "AA" size batteries

Overview

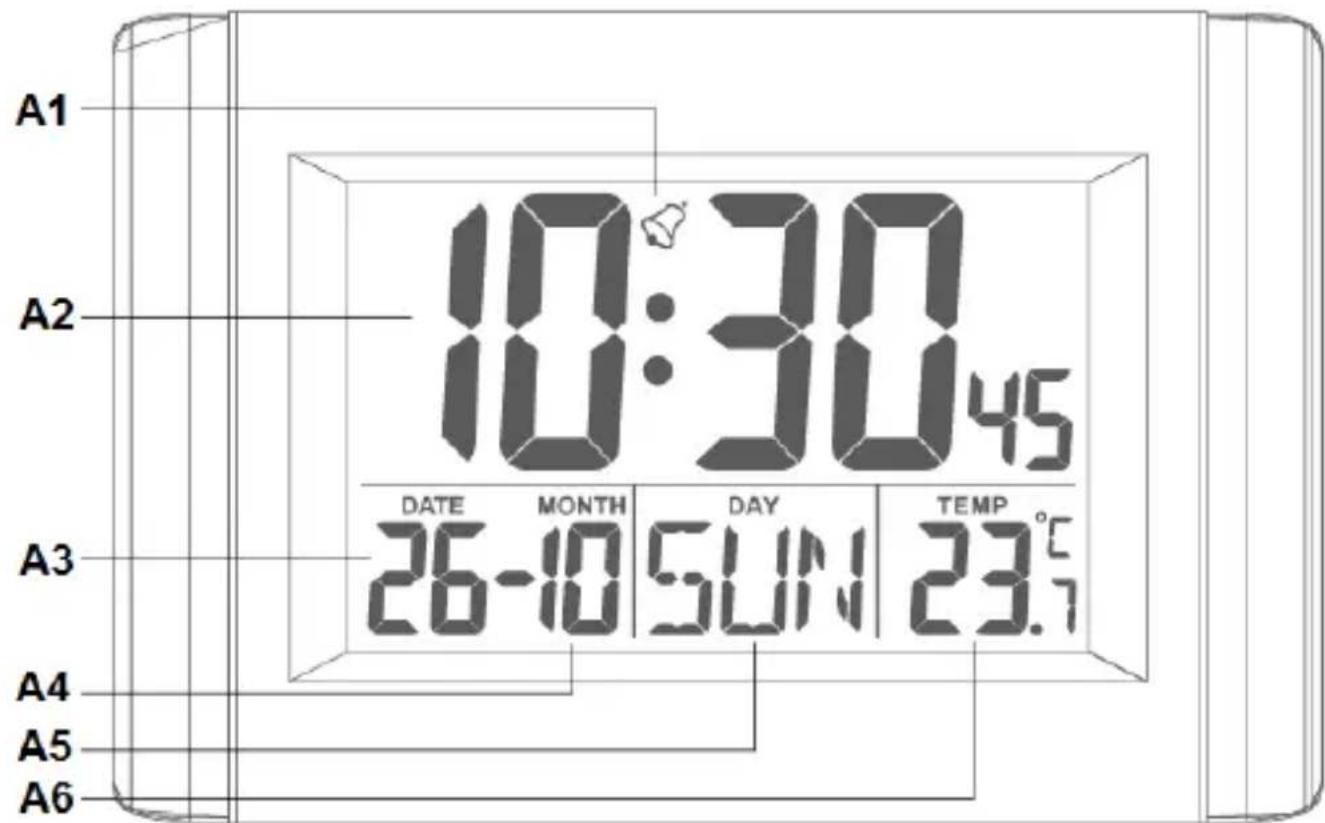

Part A-Positive LCD

A1: Alarm icon

A2: Time

A3: Date

: Month

A5: Weekday

A6: Temperature

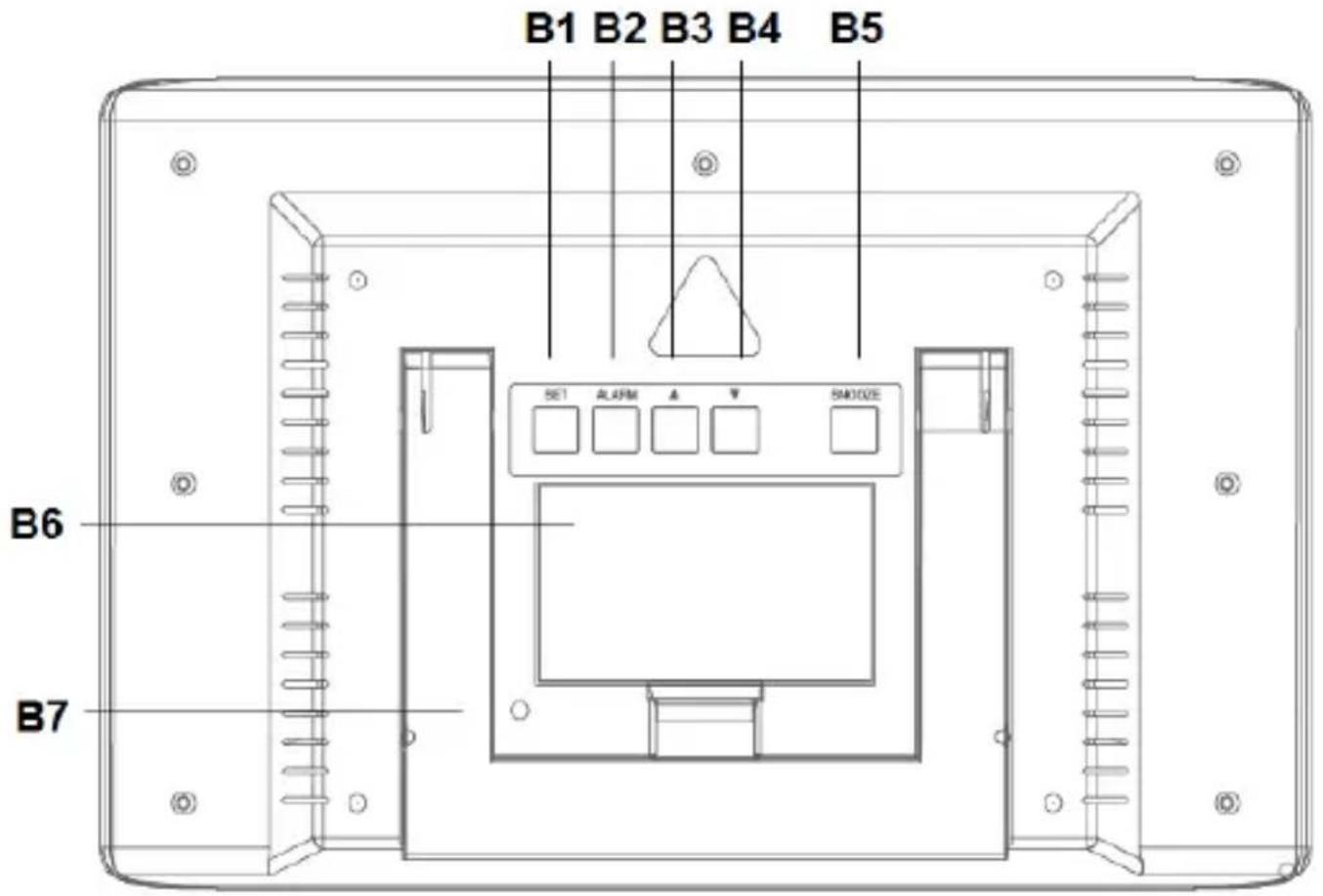

Part B - Buttons and Framework

B1: "SET" button

B2: "ALARM" button

B3:"UP"button(▲)

B4:“DOWN”button（

B5: "SNOOZE" button

B6: Battery compartment

B7: Stand

Initial operation:

Open the clock battery compartment cover
Insert 2 x AA batteries observing correct polarity [ "+" and "-" marks]
- When you insert the batteries, all the icon on the LCD display will briefly light up for 3 seconds, you will hear a beep tone and the clock is powered

Manual time setting:

Press and hold down the "SET" button for 2 seconds, the 12/24 hour mode display starts to flash. Press the "▲" or "▼" button to set the correct 12/24 hour mode.
Press the "SET" button to confirm your setting, the hour display starts to flash. Press the "▲" or "▼" button to set the correct hour.
Press the "SET" button to confirm your setting, the minute displays starts to flash. Press the "▲" or "▼" button to set the correct minute.
Press the "SET" button to confirm your setting, the year display 2009 starts to flash. Press the "▲" or "▼" button to set the correct year.
Press the "SET" button to confirm your setting, the month display starts to flash. Press the "▲" or "▼" button to set the correct month.
Press the "SET" button to confirm your setting, the date display starts to flash. Press the "▲" or "▼" button to set the correct date.
Press the "SET" button to confirm your setting, the language display starts to flash. Press the "▲" or "▼" button to set the correct weekday language.
Press the "SET" button to confirm your setting and to end the setting procedures, enter the clock mode.

Notes:

After 30 seconds without pressing any button, the clock switches automatically from Set Mode to Normal Time Mode.

Setting the daily alarms:

This clock possesses 1 daily alarm. To view the set alarm time, under the clock mode, press the

"ALARM" button, LCD display the " " icon.

To activate or deactivate the daily alarms, briefly press the "ALARM" button once.

Press and hold down the "ALARM" button for 2 seconds until alarm time flashing icon is displayed.
The hour display of the Alarm time starts to flash. Use the “▲” and “▼” buttons to set the required hour. Press the “ALARM” button to confirm your setting
The minute display of the Alarm time starts to flash. Use the “▲” and “▼” buttons to set the required minute. Press the “ALARM” button to confirm your setting and to end the setting procedure.
While the alarm is sounding, press any button except the "SNOOZE" button to stop the alarm sound. The alarm will be repeated automatically on the next day at the same time.

Notes:

After 30 seconds without pressing any button the clock switches automatically from setting mode to Normal clock mode.
The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

°C/°F temperature display:

The temperature is displayed either in ^ C or ^ . Pressing the "▼" button allows you to switch between the individual models.

Snoopze function:

Proceed as follows to activate the snooze function: While the alarm is sounding, press the

"SNOOZE" button to activate snooze function. The snooze function is active and the " 空 " icon appears on the display.

This operation moves the alarm by 5 minutes and the alarm will restart at this time.
The Snooze function can be interrupted by pressing any button.

Trouble shooting

If your clock displays irrelevant time or does not function properly, which maybe caused by electrostatic discharge or other interference, slide open the battery cover, take out the batteries and reinstall them by observing the correct + / - polarity. Your unit will be reset to default settings and you need to set it again.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

Install batteries correctly by matching the polarities (+ / - )
Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.
- Do not recharge and do not dispose of batteries in fire as the batteries may explode.
- Ensure batteries are stored away from metal objects as contact may cause a short circuit.
- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points.

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
