Product type	Decorative wall hood
Brand	Mx Onda
Model	MXCDP2686
Dimensions (W × D × H)	895 × 505 × 923 mm
Weight	12.25 kg
Power supply	220-240 V ~ 50 Hz
Maximum power consumption	193 W
Motor power	190 W
Extraction capacity	700 m³/h
Noise level	≤ 68 dB
Number of speeds	3 speeds
Energy class	B
Lighting	LED 2 × 1.5 W
Filters	Aluminum filters with 5 filtration levels
Air outlet diameter	150 mm
Material	Stainless steel (housing and chimney)
Controls	Touch controls with acoustic warning
Additional functions	Digital 24h clock, automatic shut-off timer (up to 60 min), 3 min quick stop mode
Care and cleaning	Clean with a damp cloth and degreasing soap; filters dishwasher safe
Safety	Automatic shut-off, non-return valve, mandatory grounding
Spare parts and repairability	LED bulbs replaceable by a professional; filters available
General information	Warranty subject to proper domestic use; MX ONDA technical service

Frequently Asked Questions - MXCDP2686 Mx Onda

What is the minimum installation height above the hob?

The bottom of the hood must be at a minimum height of 65 cm from the hob. For a gas hob, follow the distance specified in the hob manual.

How to clean the aluminum filters?

Remove the filters by pressing the retaining tabs. Soak them in hot water with degreasing soap, rinse and dry completely before replacing. You can also use a specific degreasing product.

How to replace the LED bulbs?

Unplug the hood. Remove the filters to access the bulbs. Gently press the bulb outward to release it, then disconnect the connector. Insert the new original bulb with gentle pressure and reconnect. Only an authorized technical service can perform this replacement.

How to set the clock?

With the hood off, press button 4 ( ) until the hour digits flash. Use button 3 ( ) to set the hour. Press button 4 again to set the minutes, then wait 5 seconds to save.

How to use the automatic shut-off timer?

For a quick stop (3 min): with the hood on, briefly press button 1 (Ⓞ). For a programmable stop (10 to 60 min): long press button 3 ( ) until the clock flashes, then press button 3 several times to increase the time. Wait 3 seconds to confirm.

Can I use the hood with a gas hob?

Yes, but the kitchen must be well ventilated. The negative pressure created by the hood must not exceed 4 Pa. Keep a minimum distance of 65 cm (or more if specified in the hob manual). Never leave open flames under the hood.

What is the noise level of the hood?

The noise level is ≤ 68 dB, measured at maximum extraction power.

What is the energy class of this appliance?

The hood is rated B on a scale from A+++ to D, with a fluid dynamic efficiency class A and a lighting efficiency class A.

Where to find spare parts or technical service?

Contact the official MX ONDA service at [phone] or by email at [e-mail]. Use only original accessories.

What to do in case of power outage?

The clock will reset to 12:00. You will need to set it again. If a persistent fault occurs, do not repair yourself; contact the authorized technical service.

USER MANUAL MXCDP2686 Mx Onda

USER AND INSTALLATION MANUAL

MxOnda

DECORATIVE WALL-MOUNTED RANGE HOOD

MODEL: MX-CDP2686

CE

PLEASE READ THIS MANUAL BEFORE OPERATION

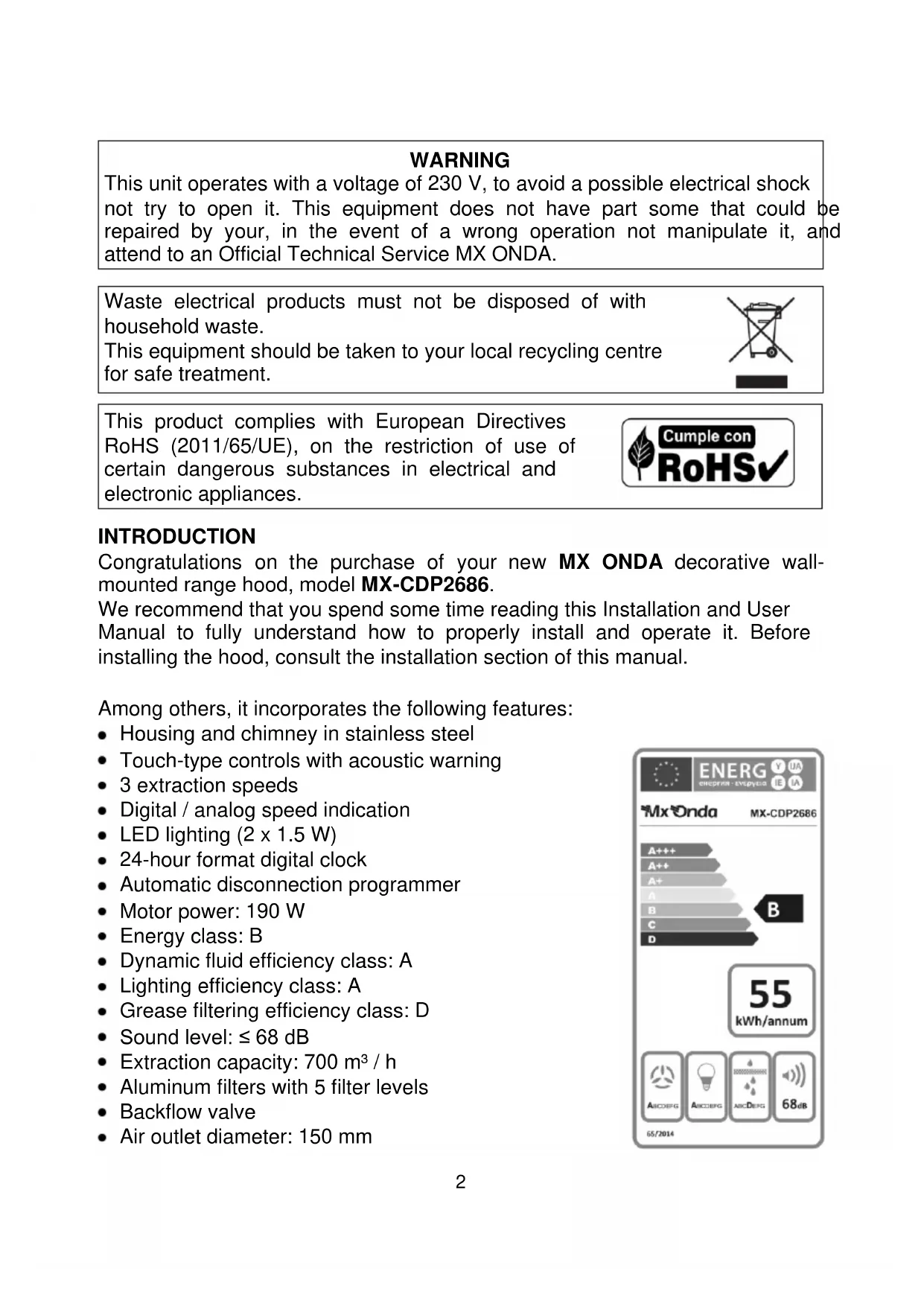

WARNING

This unit operates with a voltage of 230V , to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

INTRODUCTION

Congratulations on the purchase of your new MX ONDA decorative wall-mounted range hood, model MX-CDP2686.

We recommend that you spend some time reading this Installation and User Manual to fully understand how to properly install and operate it. Before installing the hood, consult the installation section of this manual.

Among others, it incorporates the following features:

• Housing and chimney in stainless steel
• Touch-type controls with acoustic warning
  3 extraction speeds
  Digital / analog speed indication
  LED lighting (2× 1.5W)
  24-hour format digital clock
  Automatic disconnection programmer
• Motor power: 190 W
  Energy class: B
• Dynamic fluid efficiency class: A
• Lighting efficiency class: A
  Grease filtering efficiency class: D
  Sound level: ≤ 68 dB
• Extraction capacity: 700 m^3/h
• Aluminum filters with 5 filter levels
  Backflow valve
  Air outlet diameter: 150mm

BEFORE CONNECTING THE APPLIANCE

Your security is important for us. Please read all safety instructions carefully before using and installing the range hood and keep this user and installation manual for future reference.

• After removing the packaging, check that the appliance is not damaged. If in doubt do not install it and contact technical support staff.
• Keep packaging materials (bags, polystyrene pieces, etc.) out of the reach of children, as they are a potential source of danger.
• Check that the voltage of your electrical outlet is 220 - 240V 50Hz and that it is grounded. The electrical safety of this appliance is guaranteed only if it is connected to a socket with an effective earth connection, as foreseen by the safety regulations in force.
• The manufacturer declines any responsibility for damages derived from the lack of grounding in the installation. When in doubt, consult a professional.
• This appliance must be connected to a circuit that incorporates an omnipolar isolation switch that provides a total disconnection from the electrical network.
• If the electrical connection is made with the mains plug and this is accessible after installation, it will not be necessary to install a circuit that incorporates an isolation switch.
• Before installing the extractor hood, consult the regulations and legal provisions regarding the current regulations on air and smoke evacuation in your area.
• To improve the evacuation and performance of the cooker hood, we recommend that the flexible tube be as short as possible and avoid right angles.

• The lower part of the hood must be at a minimum height of 65 cm from the hob. If a gas hob is to be used and a greater distance is indicated in its installation instructions, this distance must be respected.

• The hood exhaust pipe must not be connected to the smoke exhaust duct of appliances powered by gas or other fuel.

• Do not connect the exhaust pipe of the hood to the ventilation duct or hot air.
• To avoid damage to the cooker hood, use only the supplied screws.
• The manufacturer declines any responsibility for damages and injuries resulting from improper installation, incorrect or reckless use of the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• Due to the suction of hot air and smoke from cooking, the hood and its accessible parts can become hot.
• This device can be used by children from 8 years and people with reduced physical, sensory or mental capacities or lack of experience and knowledge, if they have been given supervision or instructions on using the device safely and they understand the dangers involved, and provided they have the supervision of a person who is responsible for their safety.
• Children must not play with the appliance. Cleaning and maintenance must not be carried out by children.
• The kitchen must have adequate ventilation if the extractor hood is used in conjunction with gas or other fuel hobs.
• Do not leave open flames, for example a gas cooking zone without a container or flaming food when the extractor hood is operating.
• NEVER use the cooker hood without the filters or if they are excessively greasy.
• DO NOT leave pans or containers of oil unattended during use, as oil can heat up and catch fire.

• To avoid the risk of fire and improve performance, regularly clean the filters as well as the interior of the hood, the accumulation of grease on the filters reduces the air flow.

• During the installation, cleaning or maintenance of the extractor hood, the electricity supply must be cut off (isolation switch in the off position or the hood unplugged from the mains socket).

• To avoid injury during installation or cleaning, use extreme caution and pay attention to the sharp edges inside the cooker hood (wear gloves).
• When the extractor hood and kitchen appliances that run on gas or other fuel are running simultaneously, the negative pressure in the kitchen should not exceed 4 Pa (4 x 10-5 Bar).
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other services must be performed by a qualified technician.
• Do not use scourers or any other abrasive cleaning product to clean the cooker hood, and do not use steam cleaners as this could damage the electrical and electronic parts.
• In case of breakdown, abnormality, if the plug, power cord or other parts show deterioration, do not plug in the appliance and do not try to repair it yourself. Contact the closest MX ONDA Official Technical Service.
• This appliance is designed for household, non-professional use only. MX ONDA will not accept any responsibility and the guarantee will not be valid in case of improper use or non-compliance with the instructions.

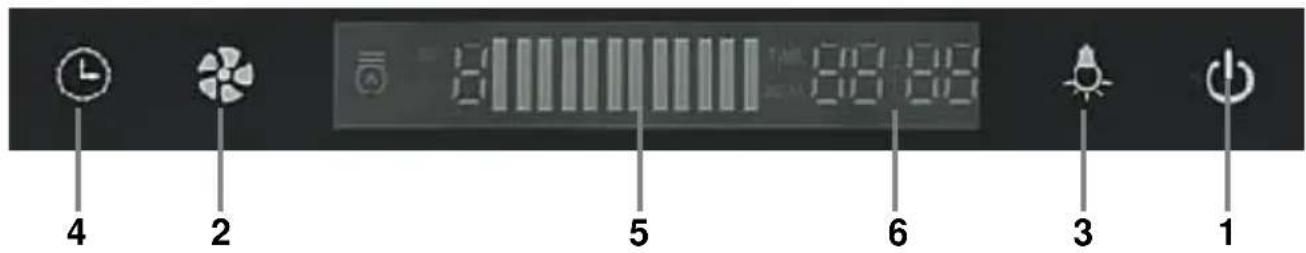

CONTROL PANEL

1. Range hood on / off button and indicator.
2. Extraction speed selector button.
3. Light on / off button.
4. Setting the clock.
5. Digital indicator of the selected extraction speed.
6. Clock and sleep timer indicator.

The controls are responsive to touch, so there is no need to apply any pressure.
- Use the entire part of the fingertip, not the tip.
- Make sure controls are always clean, dry. Even a thin layer of water can make the controls difficult to operate.

SETTING THE CLOCK

The clock in this unit is designed to indicate the time in "24 hour" format. To set the time, follow the following process:

1. The range hood must be off.
2. Touch the 4 (C) button and the digits for the hour will begin to flash.
3. Repeatedly touch the 3 (A) button and set the current time.
4. Touch the 4 (C) button and the minute digits will flash.
5. Repeatedly touch the 3 (A) button and set the minute.
6. After setting the hour and minutes, allow 5 seconds to elapse without touching any button or touch button 4 (C) to memorize the time.

Note:

In the event of a power failure or when the hood is disconnected from the mains power, the current time will be erased immediately. Once the power is restored, the display will show the digits "12:00" so you will have to set the clock again.

USE OF THE RANGE HOOD

We recommend that a few minutes before starting to cook, turn on the extractor hood in order to create a constant air flow, the air flow will prevent smoke and odors from being distributed throughout the different rooms.

1. To turn on the cooker hood, touch button 1 (D), this button will light up and an acoustic warning will sound indicating that the hood is on.
2. Momentarily touch button 2 ( ) and the engine will run at full speed, indicator 5 will display speed digitally “ 3 ” and analog ( ).
3. Touch button 2 (2) again to select average speed, indicator 5 will show speed digitally “2” and analog (1).
4. To select the minimum speed, touch button 2 ( ) again and the indicator 5 will show the speed digitally "1" and analog ( ).
5. Touching button 2 ( ) again will turn the engine off.
6. To turn off the extractor hood, touch button 1 ( Ⓞ) this button will turn off and an acoustic warning will sound indicating that the hood has been turned off.

Range hood lighting

Regardless of whether the cooker hood is off or on, repeatedly touch button

3 (A) to turn the cooker hood lighting on or off.

Sleep timer

It is advisable that when you finish cooking, leave the range hood running for a few minutes in order to eliminate any traces of smoke and odors that remain in the kitchen.

This device incorporates an automatic power off system, which automatically turns off after a certain time. To turn off the sleep timer and turn off the range hood, touch the on / off button 1 ( Ⓞ).

Quick auto shut-off mode

In this mode the automatic switch-off time is 3 minutes.

With the range hood on and the engine running, momentarily touch the on / off button 1 ( Ⓞ), the illumination of this button will flash, an acoustic warning will sound and the clock 6 will show the automatic switch-off time, after the time has elapsed the range hood will turn off automatically.

Programmable automatic shut-off

In this mode, the automatic switch-off can be programmed from 10 minutes to 60 minutes, in steps of 10 minutes.

With the range hood turn on and the engine running, touch and hold your finger on the light on / off button 3 ( ), an acoustic warning will sound and clock 6 will flash the switch-off time “ 10:00 ” ten minutes.

When the sleep time is flashing, repeatedly touching the 3 ( ) button will increase the sleep time.

After choosing the sleep time, allow 3 seconds to elapse without touching any button and the sleep timer will start.

CLEANING AND MAINTENANCE

Before cleaning, disconnect the extractor hood from the mains, turn off the omnipolar isolation switch or unplug it from the mains socket.

Cleaning the outside and inside of the range hood

Clean the outside and inside with a damp cloth with warm water and degreasing soap, then dry them carefully.

Do not use scourers, alcohol or abrasive products and do not allow the appliance to come into contact with volatile agents such as gasoline, solvents, insecticides, etc.

Cleaning the filters

To remove the filters, press the retention tabs and gently pull the filters down. Soak the filters in hot water with degreasing soap and let the solution work, then rinse the filters with hot water and let them dry.

If you wish, you can use specific products with high degreasing power to remove grease, in which case you should read the instructions for the degreaser product and follow the advice for use.

Do not put wet filters in the hood, make sure they are completely dry before putting them back.

Do not use abrasive or metal scourers that can scratch the surfaces, use specific products for grease.

To insert the filters into the hood, match the fixed tabs (the ones opposite the retainer) into the grooves of the cooker hood, then press the retaining tabs and snap the filter into place by releasing the retaining tabs. Make sure the filters are properly retained.

INSTALLATION

Remember... Before proceeding with the installation, the extractor hood must be disconnected from the mains, turn off the omnipolar isolation switch or unplug it from the mains socket.

The hood must be placed just below the kitchen smoke outlet hole. To obtain the best performance, the optimum height of the hood with respect to the worktop must be between 65 and 75~cm .

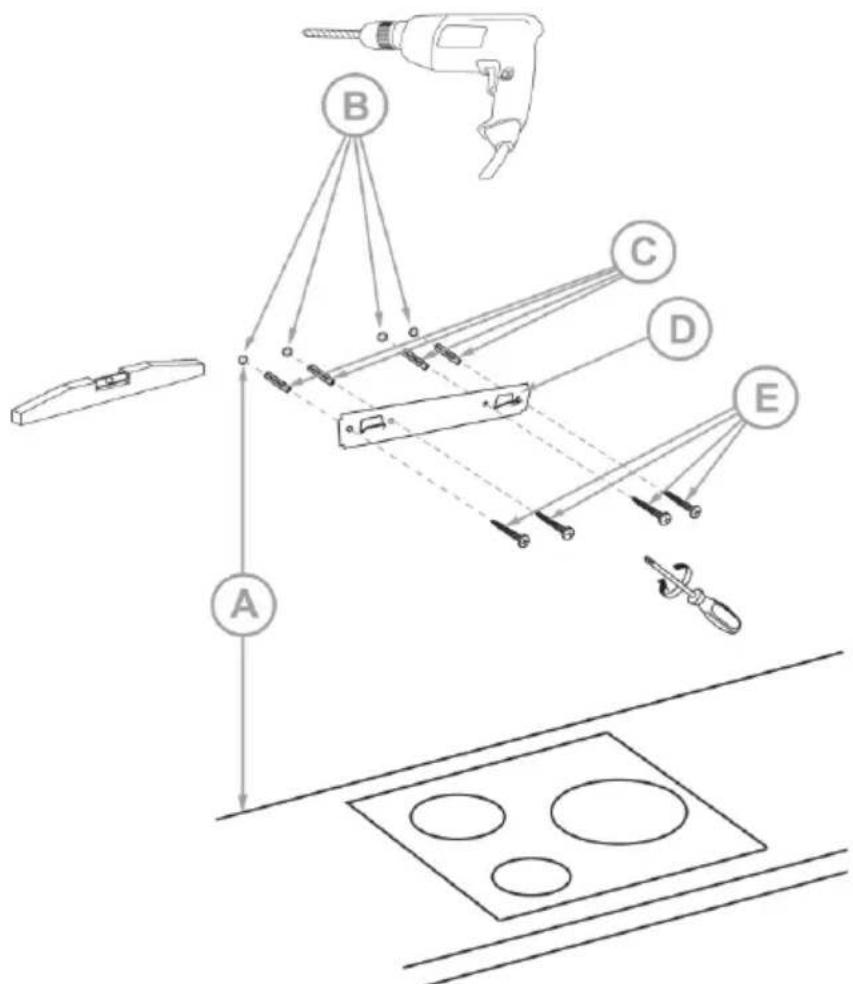

1. Installing the cooker hood bracket

a) With the help of a level mark the four holes B of the support D. The distance A must be the recommended height (65 to 75 cm) plus the height of the hood, that is, you must add the necessary centimeters so that when the hood is hanging from the support, it is at the recommended height (65 to 75 cm) from the worktop.
b) Drill four 10mm holes at marks B.
c) Insert the supplied plugs C.
d) Attach the bracket D and fix it to the wall using the supplied screws E.

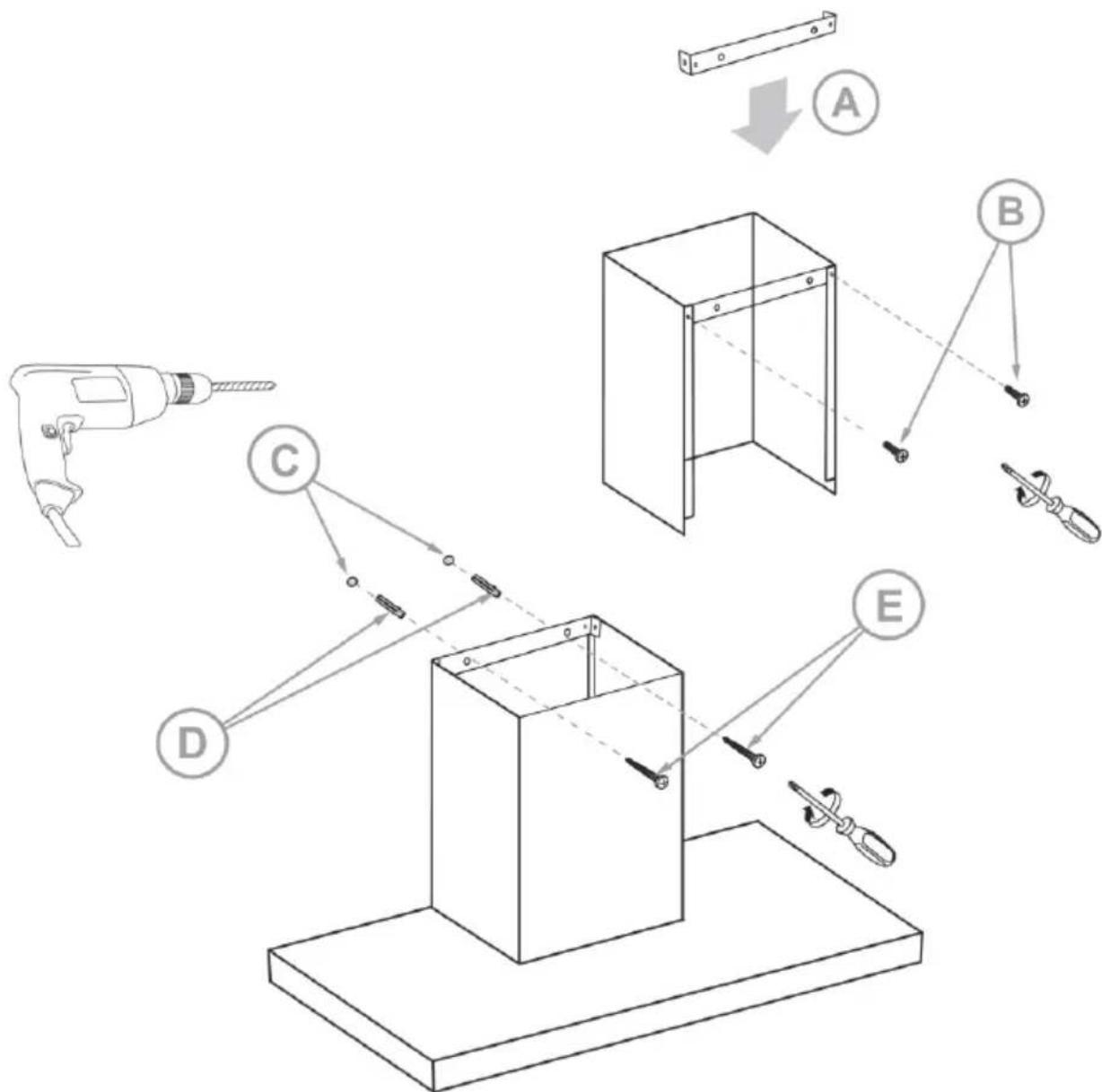

2. Installation of the chimney supports (first section)

The chimney of the range hood is made up of two pieces, which are inserted one inside the other to adapt to the height between the ceiling and the main body of the range hood.

a) Fix the support A using the metric thread B screws to the first section of the chimney (the one without ventilation grilles).
b) Fit the first section of the chimney into the main body of the extractor hood, make sure that it is correctly fitted.
c) Mark the two holes C of the chimney bracket.
d) Drill two 10mm holes at marks C.
e) Insert the supplied plugs D.
f) Place the first section of the chimney with the support and fix it to the wall using the screws E supplied.

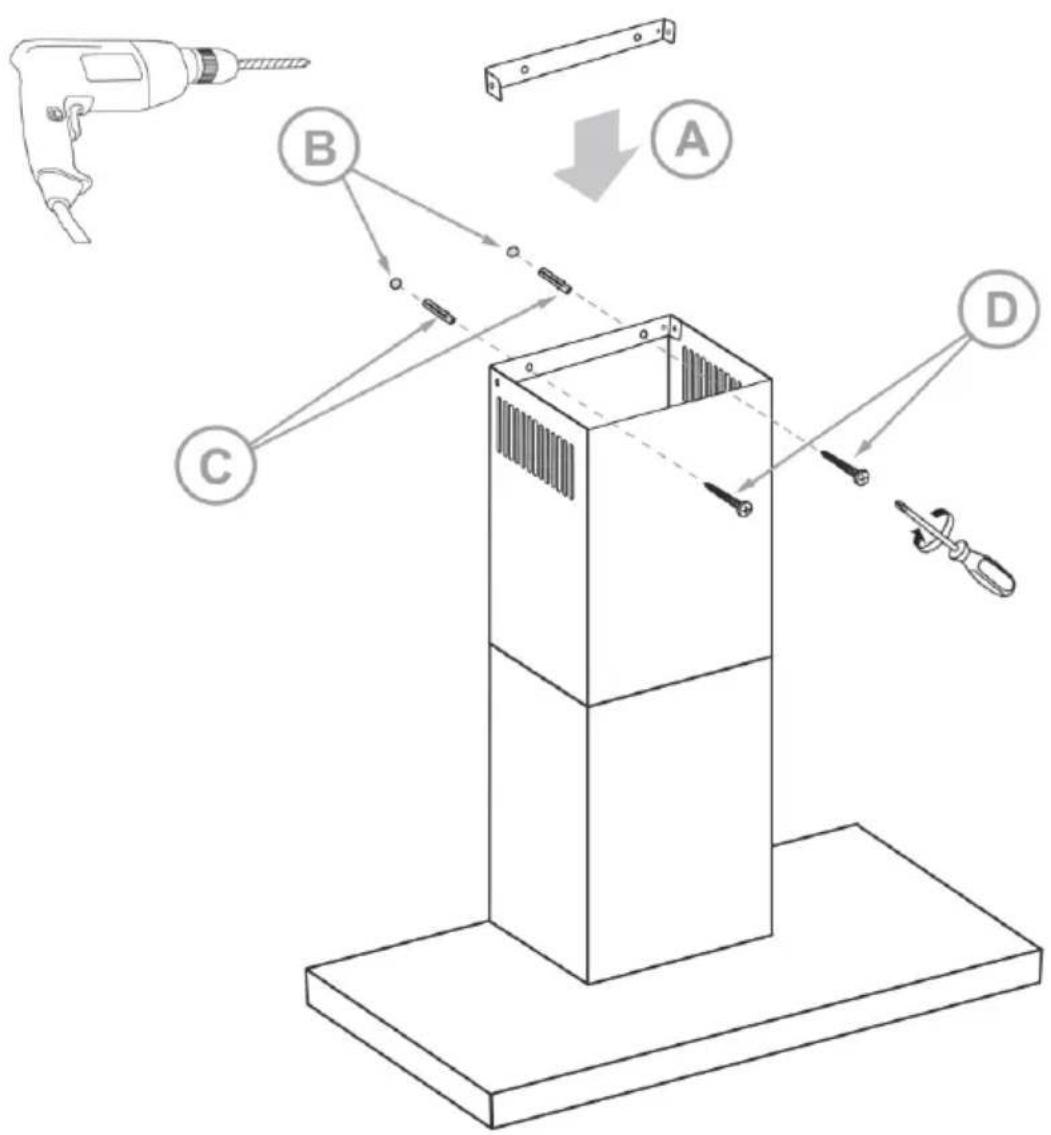

3. Installation of the chimney supports (second section)

a) Place the second section of the chimney and align it with the first section of the chimney, mark its position on the wall next to the ceiling, then remove the two sections of the chimney and place bracket A.
b) Mark the two holes B of the chimney bracket.
c) Drill two 10mm holes at marks B.
d) Insert the supplied plugs C.
e) Attach the bracket and fix it to the wall using the supplied screws D.

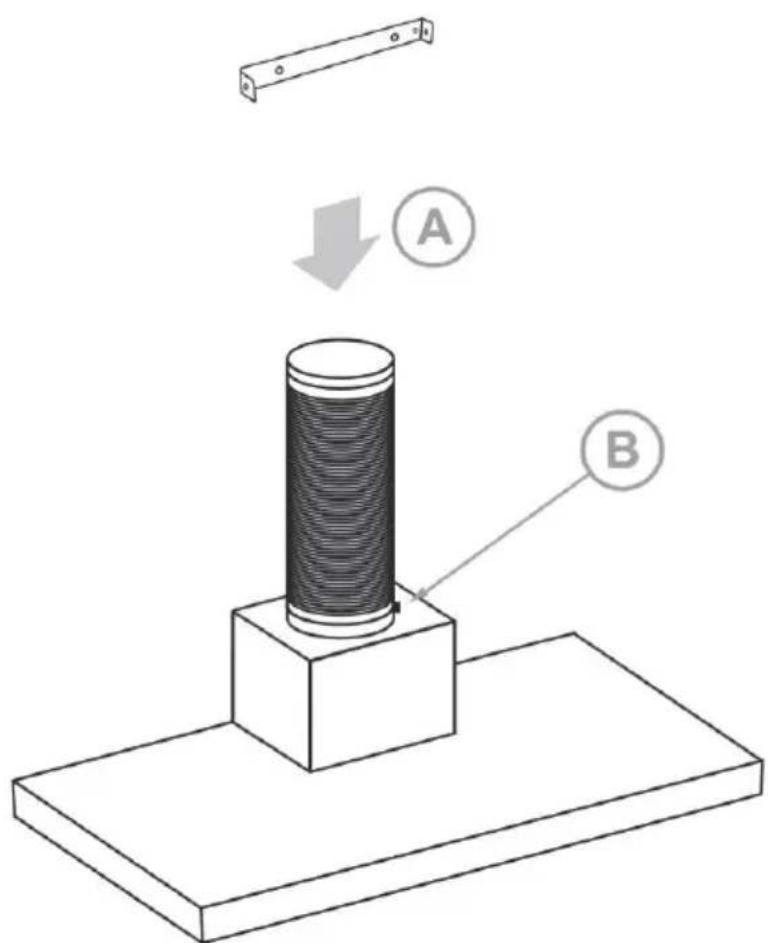

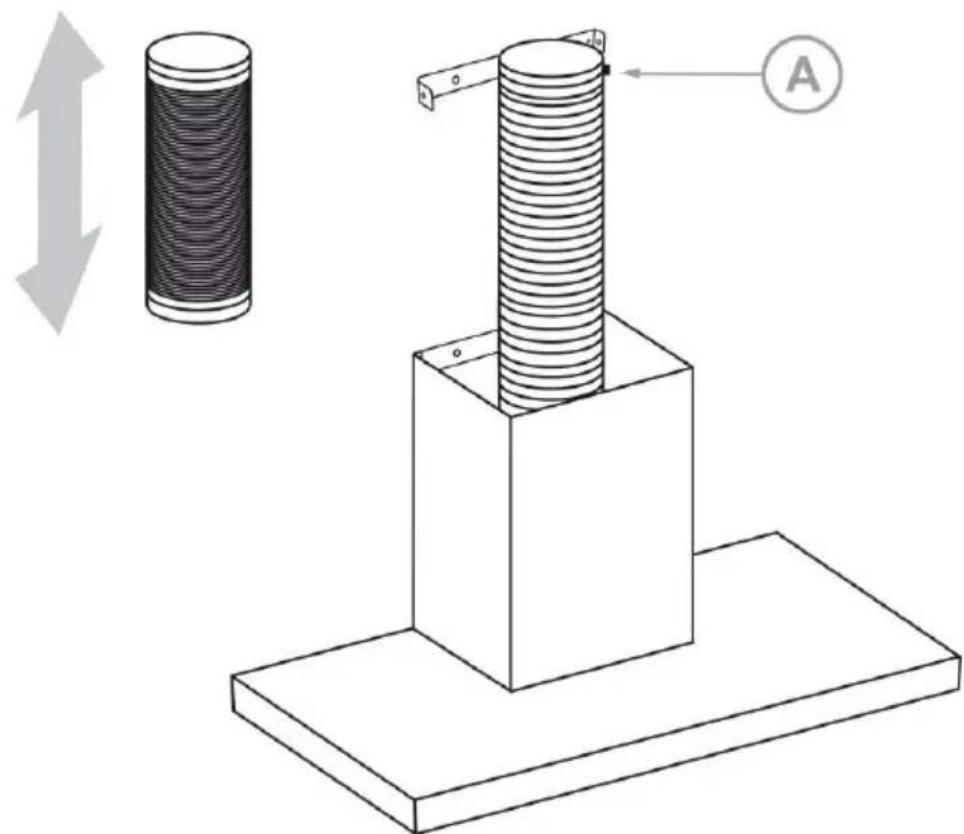

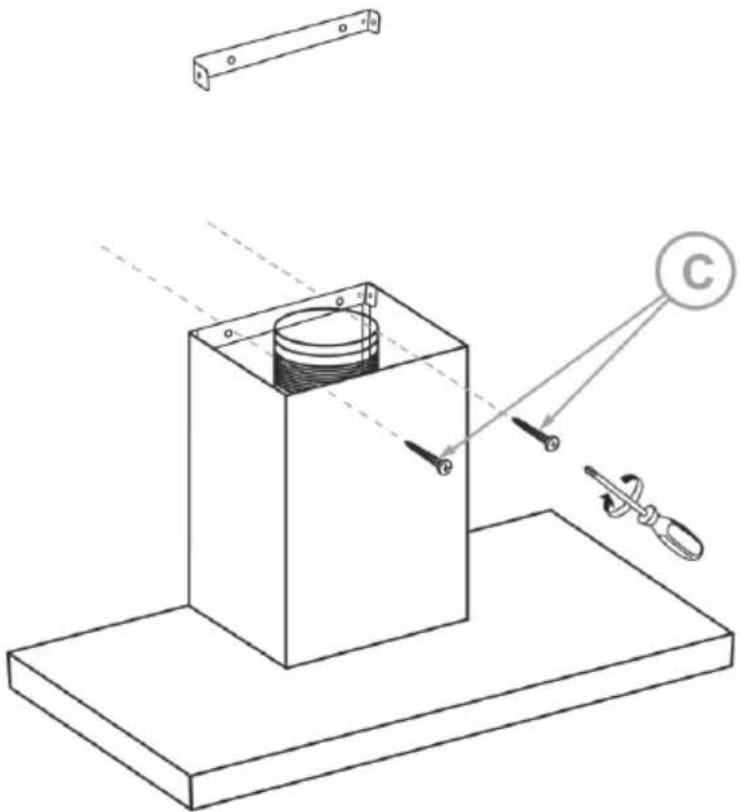

4. Installation of the extendable evacuation tube

The extendable evacuation tube has a diameter of 150~mm , if the smoke outlet hole has a different diameter, you will have to attach a suitable adapter to the required diameter.

a) Once the upper support of the chimney is installed, remove the two sections of the chimney.
b) Without extending the flexible tube A, fix it to the outlet of the extractor hood, you can use plastic ties or metal clamps B. You can also use silicone or adhesive paste in order to fix and improve the tightness.

c) Connect or plug the extractor hood into the mains socket, if it is hidden by the chimney. Then mount the first section of the chimney and fix it to the wall using screws C.

d) Extend the extension tube and lead it from the hood to the ceiling flue. To fix the tube you can use plastic ties or metal clamps A. You can also use silicone or adhesive paste in order to fix and improve the tightness.

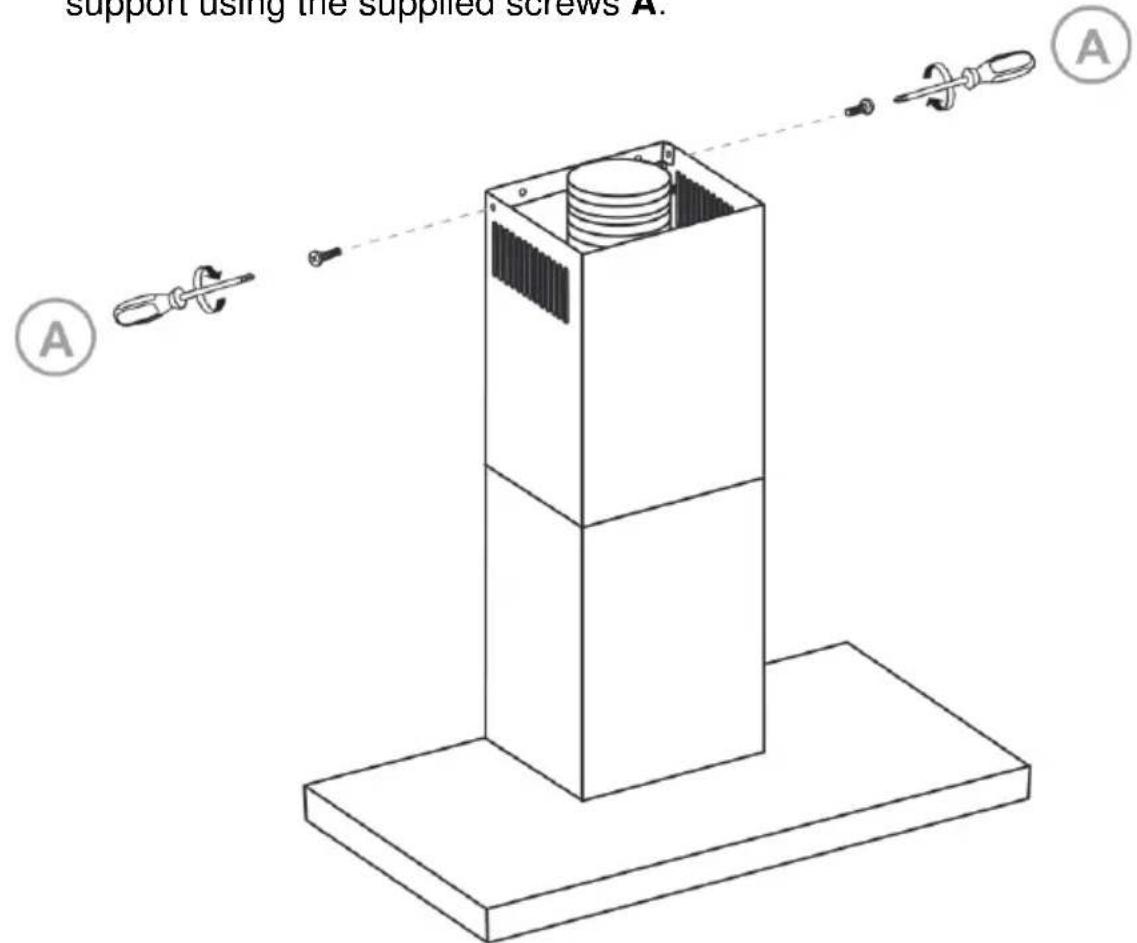

5. Placement of the sections that form the chimney

a) Check that the range hood works correctly.
b) Insert the second section of the chimney so that it is inserted inside the first section of the chimney and is glued to the ceiling, then fix it to the support using the supplied screws A.

REPLACING THE LED BULBS

The hood LED bulbs must only be replaced by an Official Technical Service or by qualified personnel. To change the LED bulbs:

1. Before proceeding with the replacement of the LED bulbs, disconnect the cooker hood from the mains, turn off the omnipolar isolation switch or unplug it from the mains socket.
2. Remove the filters to access the interior of the cooker hood.
3. The bulbs are held by pressure plates, so by applying a slight pressure from the inside of it towards the outside the bulb will come out, then disconnect the power connector from the bulb to be able to extract it completely.
4. Insert the new bulb with slight pressure on it and reconnect the power connector.

Note: Use original accessories, otherwise it could damage the cooker hood and the warranty will not be valid.

TECHNICAL SPECIFICATIONS

Supply voltage 220 - 240 V ~ 50 Hz

Maximum consumption 193 W

Extraction capacity 700m^3 /h

Motor power 190 W

LED lighting 2 × 1.5 ~W

Number of extraction 3 speeds

Energy class B (within the range A ^+ + + to D)

Dynamic fluid efficiency class A

Lighting efficiency class A

Grease filtering efficiency class D

Sound level ≤ 68 dB

Air outlet diameter 150 mm Ø

Measures 895 × 505 × 923 mm

Weight 12,25 Kg

Specifications subject to change without notice.

This product complies with the European Directives 2014/30/EU (EMC - Electromagnetic Compatibility) and the 2014/35/EU (LVD - Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S. A.

C/Matabueyes,7 nave 1A

19171 - Cabanillas del Campo

(Guadalajara - Spain)

E-MAIL: [e-mail]

http://www.mxonda.es

MANUEL D'UTILISATION ET D'INSTALLATION

Mx Onda

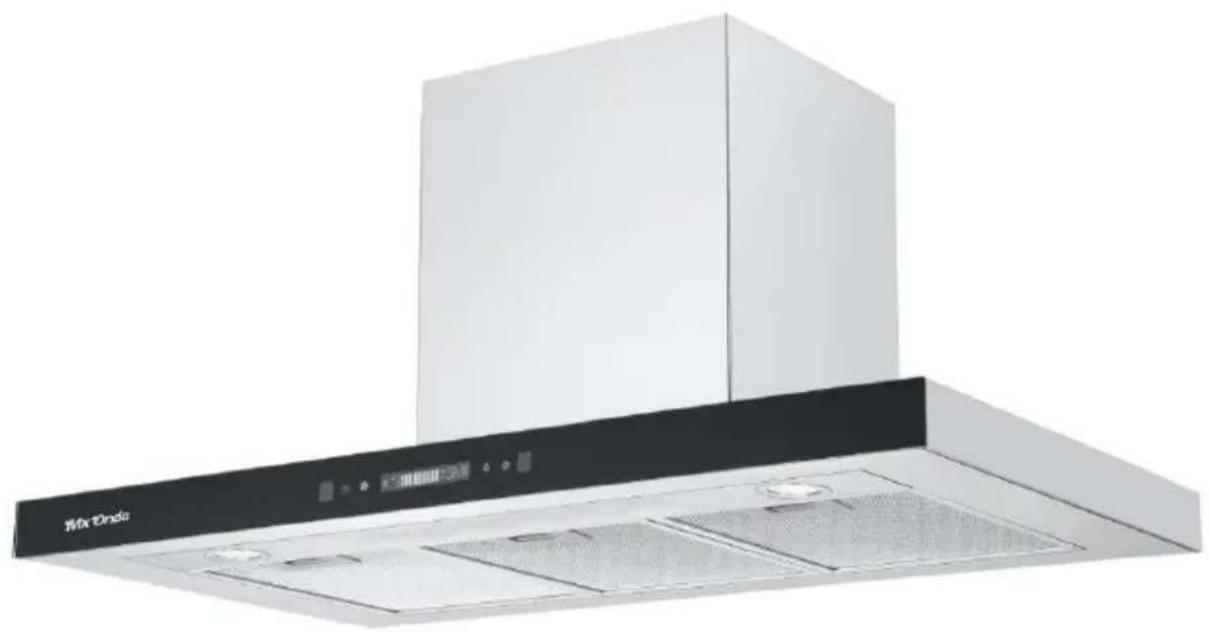

HOTTE ASPIRANTE MURALE DÉCORATIVE

MODELE: MX-CDP2686

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

REPLACEMENT DES AMPOULES LED
