Product Type	Decorative wall-mounted range hood
Brand	Mx Onda
Model	MXCDP2692
Dimensions (W x D x H)	895 x 400 x 1170 mm
Weight	15.55 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Power Consumption	193 W
Motor Power	190 W
Extraction Capacity	700 m³/h
Number of Speeds	3 (low, medium, high)
Noise Level	≤ 68 dB
Lighting	LED, 2 x 1.5 W
Energy Class	B (scale A+++ to D)
Fluid Dynamic Efficiency Class	A
Lighting Efficiency Class	A
Grease Filtering Efficiency Class	D
Air Outlet Diameter	150 mm
Filter Type	Aluminum filters with 5 filtration levels
Special Functions	Folding tempered glass front, touch controls, analog clock, automatic shut-off timer
Minimum Height Above Cooking Surface	65 cm (for gas, follow hob instructions)
Maintenance	Clean inside and outside with a damp cloth and degreasing soap; soak filters in hot soapy water
Safety	Mandatory earthing, automatic shut-off in case of overheating, backflow flap
Installation	Wall mounting, requires exhaust duct (diameter 150 mm), supplied with support and telescopic chimney
General Information	Compliant with European directives 2014/30/EU and 2014/35/EU; household use only

Frequently Asked Questions - MXCDP2692 Mx Onda

What is the recommended installation height between the hood and the cooking surface?

The minimum distance is 65 cm for electric and induction cooktops. For gas hobs, follow the distance indicated in the hob's manual, which may be greater.

How to clean the grease filters of the MXCDP2692 hood?

Remove the filters by pressing the retaining tabs. Soak them in hot water with degreasing soap, rinse, and dry completely before putting them back. Do not use abrasive pads.

How to set the clock on the hood?

With the hood off, press button 7 (Ø) for about 3 seconds until all lights come on. Then use button 2 to select hours, then minutes, and adjust with buttons 3 or 4. Wait 5 seconds to save.

What to do if the clock shows 12:00 after a power outage?

After a power failure, the clock resets to 12:00. You must reset the time by following the setting procedure described in the manual.

How to use the automatic shut-off timer?

With the hood on and the motor running, briefly press button 7 (①). The indicator flashes and the clock displays the stop time in 15-second increments. The hood automatically turns off after 3 minutes. To cancel, press the on/off button.

Why does the hood seem to not extract properly?

Check that the folding front is open before use. Make sure the filters are clean and the exhaust duct is not blocked or too long. Also check that the hood is at the correct height.

Can I use the hood without the filters?

No, never use the hood without the filters or if they are excessively greasy. This reduces performance and increases fire risk.

How to replace the LED bulbs of the hood?

Unplug the appliance. Remove the filters to access the inside. Gently push the bulb outward to release it, then disconnect the connector. Insert the new original bulb and reconnect. If necessary, contact the official MX ONDA technical service.

What is the diameter of the exhaust duct?

The air outlet diameter is 150 mm. If your exhaust hole has a different diameter, use an appropriate adapter.

Is the hood compatible with a gas hob?

Yes, but maintain a minimum distance of 65 cm or more if indicated by the hob manufacturer. Ensure the kitchen has adequate ventilation and that the depression does not exceed 4 Pa.

USER MANUAL MXCDP2692 Mx Onda

Para trocar as lampadas LED:

USER AND INSTALLATION MANUAL

Mx Onda

DECORATIVE WALL-MOUNTED RANGE HOOD

MODEL: MX-CDP2692

CE

PLEASE READ THIS MANUAL BEFORE OPERATION

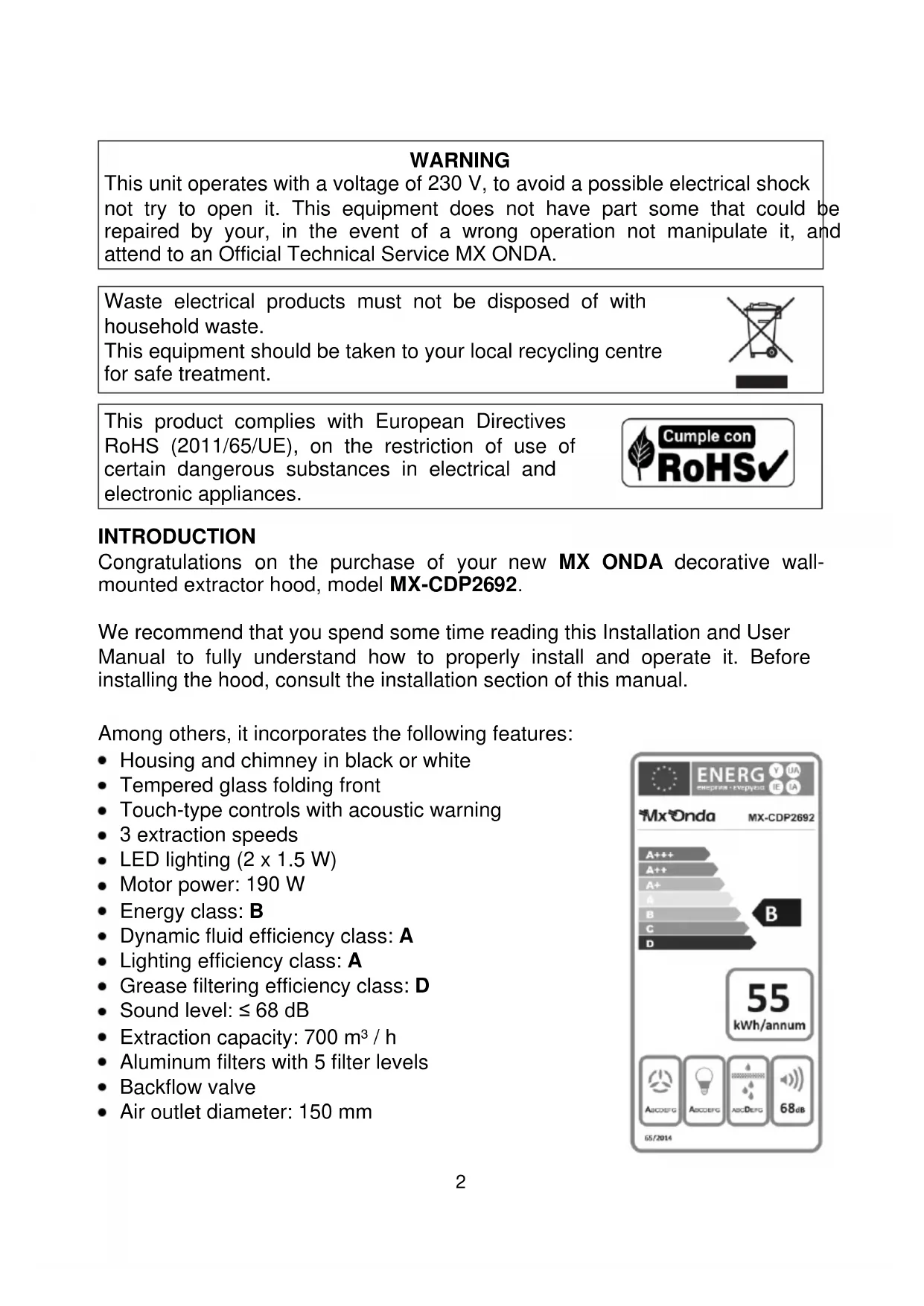

WARNING

This unit operates with a voltage of 230V , to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

INTRODUCTION

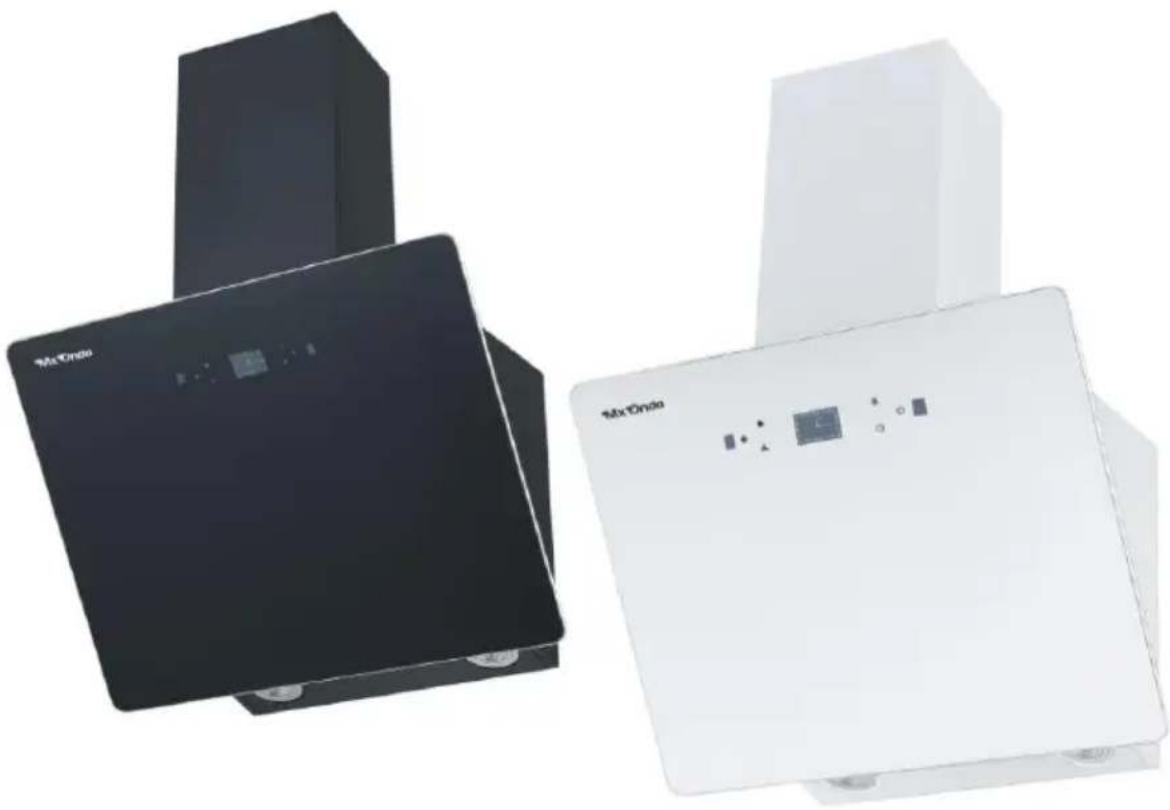

Congratulations on the purchase of your new MX ONDA decorative wall-mounted extractor hood, model MX-CDP2692.

We recommend that you spend some time reading this Installation and User Manual to fully understand how to properly install and operate it. Before installing the hood, consult the installation section of this manual.

Among others, it incorporates the following features:

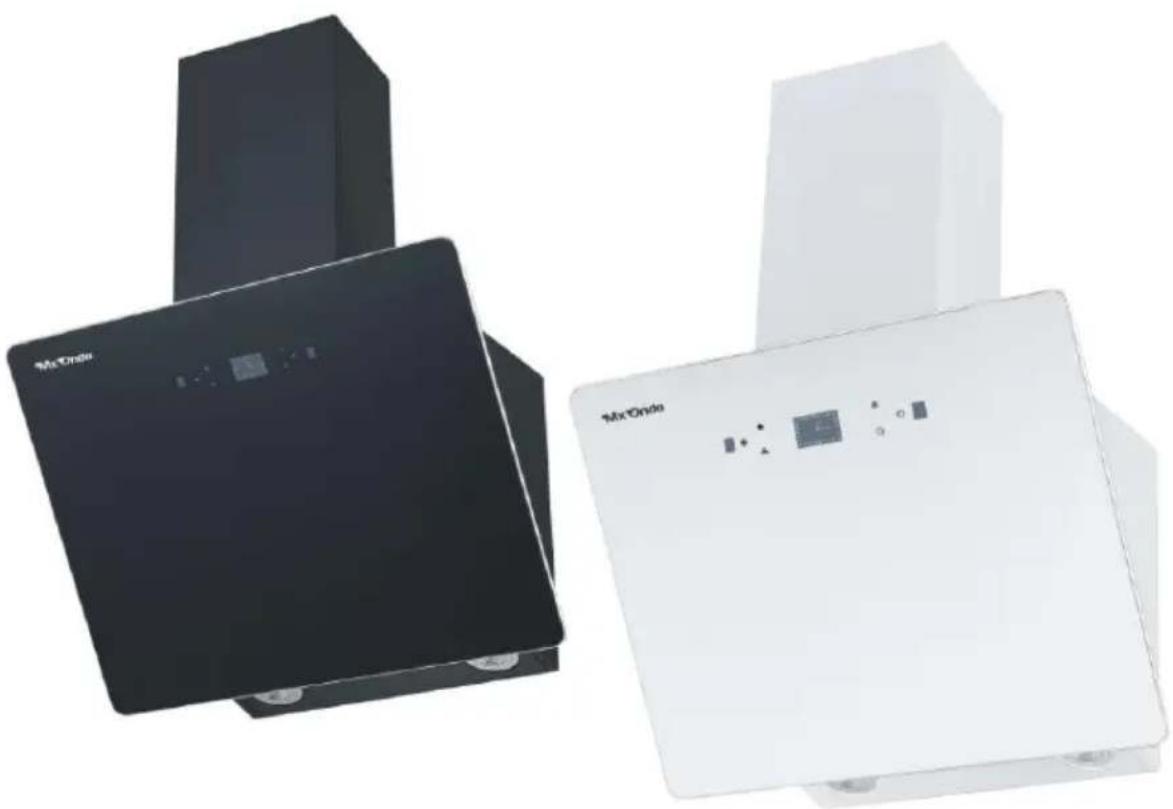

• Housing and chimney in black or white
• Tempered glass folding front
• Touch-type controls with acoustic warning
  3 extraction speeds
  LED lighting (2× 1.5W)
• Motor power: 190 W
• Energy class: B
• Dynamic fluid efficiency class: A
• Lighting efficiency class: A
  Grease filtering efficiency class: D
  Sound level: ≤ 68 dB
• Extraction capacity: 700 m^3/h
• Aluminum filters with 5 filter levels
• Backflow valve
  Air outlet diameter: 150mm

BEFORE CONNECTING THE APPLIANCE

Your security is important for us. Please read all safety instructions carefully before using and installing the range hood and keep this user and installation manual for future reference.

• After removing the packaging, check that the appliance is not damaged. If in doubt do not install it and contact technical support staff.
• Keep packaging materials (bags, polystyrene pieces, etc.) out of the reach of children, as they are a potential source of danger.
• Check that the voltage of your electrical outlet is 220 - 240V 50Hz and that it is grounded. The electrical safety of this appliance is guaranteed only if it is connected to a socket with an effective earth connection, as foreseen by the safety regulations in force.
• The manufacturer declines any responsibility for damages derived from the lack of grounding in the installation. When in doubt, consult a professional.
• This appliance must be connected to a circuit that incorporates an omnipolar isolation switch that provides a total disconnection from the electrical network.
• If the electrical connection is made with the mains plug and this is accessible after installation, it will not be necessary to install a circuit that incorporates an isolation switch.
• Before installing the extractor hood, consult the regulations and legal provisions regarding the current regulations on air and smoke evacuation in your area.
• To improve the evacuation and performance of the cooker hood, we recommend that the flexible tube be as short as possible and avoid right angles.

• The lower part of the hood must be at a minimum height of 65 cm from the hob. If a gas hob is to be used and a greater distance is indicated in its installation instructions, this distance must be respected.

• The hood exhaust pipe must not be connected to the smoke exhaust duct of appliances powered by gas or other fuel.

• Do not connect the exhaust pipe of the hood to the ventilation duct or hot air.
• To avoid damage to the cooker hood, use only the supplied screws.
• The manufacturer declines any responsibility for damages and injuries resulting from improper installation, incorrect or reckless use of the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• Due to the suction of hot air and smoke from cooking, the hood and its accessible parts can become hot.
• This device can be used by children from 8 years and people with reduced physical, sensory or mental capacities or lack of experience and knowledge, if they have been given supervision or instructions on using the device safely and they understand the dangers involved, and provided they have the supervision of a person who is responsible for their safety.
• Children must not play with the appliance. Cleaning and maintenance must not be carried out by children.
• The kitchen must have adequate ventilation if the extractor hood is used in conjunction with gas or other fuel hobs.
• Do not leave open flames, for example a gas cooking zone without a container or flaming food when the extractor hood is operating.
• NEVER use the cooker hood without the filters or if they are excessively greasy.
• DO NOT leave pans or containers of oil unattended during use, as oil can heat up and catch fire.

• To avoid the risk of fire and improve performance, regularly clean the filters as well as the interior of the hood, the accumulation of grease on the filters reduces the air flow.

• During the installation, cleaning or maintenance of the extractor hood, the electricity supply must be cut off (isolation switch in the off position or the hood unplugged from the mains socket).

• To avoid injury during installation or cleaning, use extreme caution and pay attention to the sharp edges inside the cooker hood (wear gloves).
• When the extractor hood and kitchen appliances that run on gas or other fuel are running simultaneously, the negative pressure in the kitchen should not exceed 4 Pa (4 x 10-5 Bar).
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other services must be performed by a qualified technician.
• Do not use scourers or any other abrasive cleaning product to clean the cooker hood, and do not use steam cleaners as this could damage the electrical and electronic parts.
• In case of breakdown, abnormality, if the plug, power cord or other parts show deterioration, do not plug in the appliance and do not try to repair it yourself. Contact the closest MX ONDA Official Technical Service.
• This appliance is designed for household, non-professional use only. MX ONDA will not accept any responsibility and the guarantee will not be valid in case of improper use or non-compliance with the instructions.

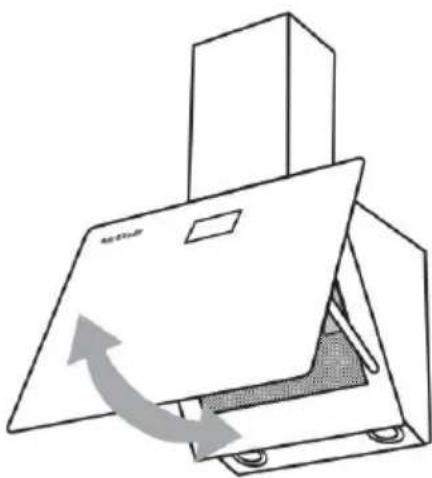

FOLDING FRONT

Before starting the extractor hood, you must open the folding front, otherwise the evacuation and its performance will be considerably reduced.

To open the folding front, hold it by the lower corners and pull gently towards you, the shock absorbers will facilitate the opening.

To close the folding front, hold it by the lower corners and press the front towards the hood, at all times you must hold the front, ensuring that it does not hit the rubber buffers.

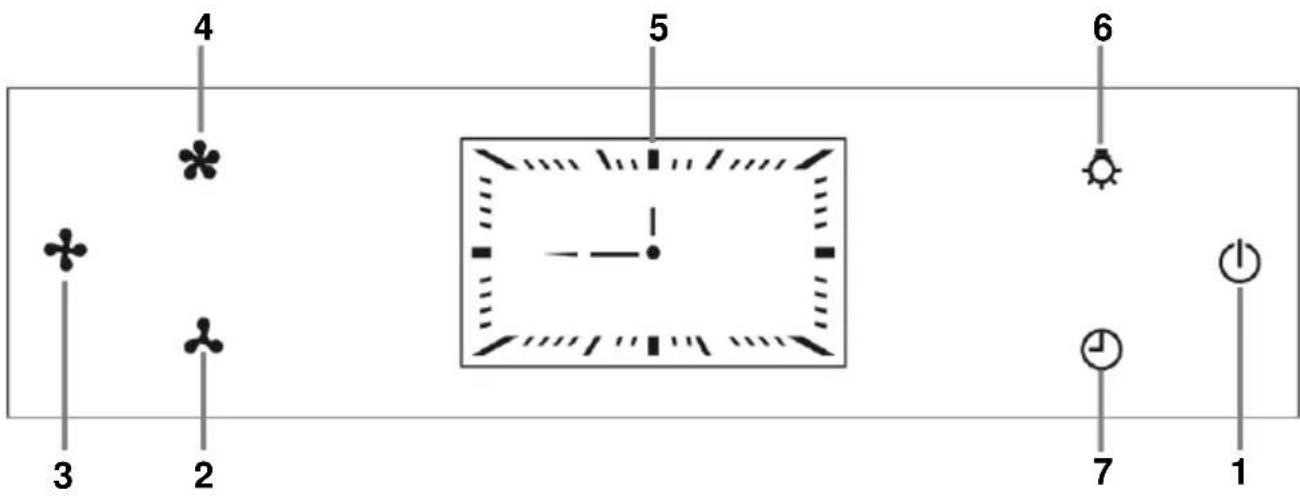

CONTROL PANEL

1. Extractor hood on / off button and indicator.
2. Low speed selector: Touching this button will cause the range hood motor to run at low speed.
3. Medium speed selector: If you touch this button, the extractor hood motor will run at medium speed.
4. High speed selector: Touch this button to make the range hood motor run at full speed.
5. Analog clock (with jumps of 5 minutes).
6. Light on / off button.
7. Setting the clock and automatic switch-off timer.

• The controls are responsive to touch, so there is no need to apply any pressure.
• Use the entire part of the fingertip, not the tip.
• Make sure controls are always clean, dry. Even a thin layer of water can make the controls difficult to operate.

SET THE CLOCK

1. The range hood must be off.
2. Touch and hold your finger (about three seconds) on the 7 ( Ⓞ ) button until all indicators light and a beep sounds.
3. Touch and hold your finger on button 2 ( ) until the hour hand indication starts to flash.
4. Repeatedly touch the 3 () or 4 () button and set the current time.
5. Momentarily touch button 2 ( ) and the minute hand indication will begin to flash.
6. Repeatedly touch the 3 ( ) or 4 ( ) button and set the minute.
7. After setting the hour and minute, allow 5 seconds to elapse without touching any button or touch button 2 ( ) to memorize the time.

Notes:

• In the event of a power failure or when the hood is disconnected from the mains power, the current time will be erased immediately. Once the power is restored, the display will show 12:00 so you will need to set the clock again.
• The clock shows the minutes in jumps of 5 minutes, this is due to the design of the screen and is not a malfunction.

USE OF THE RANGE HOOD

We recommend that a few minutes before starting to cook, turn on the range hood in order to create a constant air flow, the air flow will prevent smoke and odors from being distributed throughout the different rooms.

USO DE LA CAMPANA EXTRACTORA

1. To turn on the extractor hood, touch button 1 ( Ⓞ ), this button will light up and an acoustic warning will sound indicating that the hood is on.
2. Touch one of the three speed selection buttons 2 ( ), 3 ( ) or 4 ( ) depending on the speed you want to select, low speed, medium speed or high speed respectively. The button corresponding to the selected speed will remain illuminated indicating the chosen speed.
3. At any time you can change the speed, simply touch the button corresponding to the speed you want to select.
4. If you want to stop the engine but not turn off the hood, touch the button corresponding to the chosen speed and the engine will turn off but the hood will remain on.
5. To turn off the extractor hood, touch button 1 ( Ⓞ ) this button will turn off and an acoustic warning will sound indicating that the hood has been turned off.

Range hood lighting

Regardless of whether the cooker hood is off or on, repeatedly touch button 6 ( ) to turn the cooker hood lighting on or off.

Sleep timer

It is advisable that when you finish cooking, leave the extractor hood operating for a few minutes in order to eliminate any traces of smoke and odors that remain in the kitchen.

This extractor hood incorporates an automatic disconnection system, which automatically switches off after 3 minutes.

With the extractor hood on and the engine running, momentarily touch button 7 (①), the illumination of this button will flash, an acoustic warning will sound and clock 5 will show the automatic switch-off time in steps of 15 seconds, after the time the hood will turn off automatically.

To deactivate the sleep timer and turn off the hood, touch the on / off button 1 ( ⋅ ).

CLEANING AND MAINTENANCE

Before cleaning, disconnect the extractor hood from the mains, turn off the omnipolar isolation switch or unplug it from the mains socket.

Cleaning the outside and inside of the range hood

Clean the outside and inside with a damp cloth with warm water and degreasing soap, then dry them carefully.

Do not use scourers, alcohol or abrasive products and do not allow the appliance to come into contact with volatile agents such as gasoline, solvents, insecticides, etc.

Cleaning the filters

To remove the filters, press the retention tabs and gently pull the filters down.

Soak the filters in hot water with degreasing soap and let the solution work, then rinse the filters with hot water and let them dry.

If you wish, you can use specific products with high degreasing power to remove grease, in which case you should read the instructions for the degreaser product and follow the advice for use.

Do not put wet filters in the hood, make sure they are completely dry before putting them back.

Do not use abrasive or metal scourers that can scratch the surfaces, use specific products for grease.

To insert the filters into the hood, match the fixed tabs (the ones opposite the retainer) into the grooves of the cooker hood, then press the retaining tabs and snap the filter into place by releasing the retaining tabs. Make sure the filters are properly retained.

REPLACING THE LED BULBS

The hood LED bulbs must only be replaced by an Official Technical Service or by qualified personnel.

To change the LED bulbs:

1. Before proceeding with the replacement of the LED bulbs, disconnect the cooker hood from the mains, turn off the omnipolar isolation switch or unplug it from the mains socket.
2. Remove the filters to access the interior of the cooker hood.
3. The bulbs are held by pressure plates, so by applying a slight pressure from the inside of it towards the outside the bulb will come out, then disconnect the power connector from the bulb to be able to extract it completely.
4. Insert the new bulb with slight pressure on it and reconnect the power connector.

Note: Use original accessories, otherwise it could damage the cooker hood and the warranty will not be valid.

INSTALLATION

Remember... Before proceeding with the installation, the extractor hood must be disconnected from the mains, turn off the omnipolar isolation switch or unplug it from the mains socket.

The hood must be placed just below the kitchen smoke outlet hole. To obtain the best performance, the optimum height of the hood with respect to the worktop must be between 65 and 75~cm .

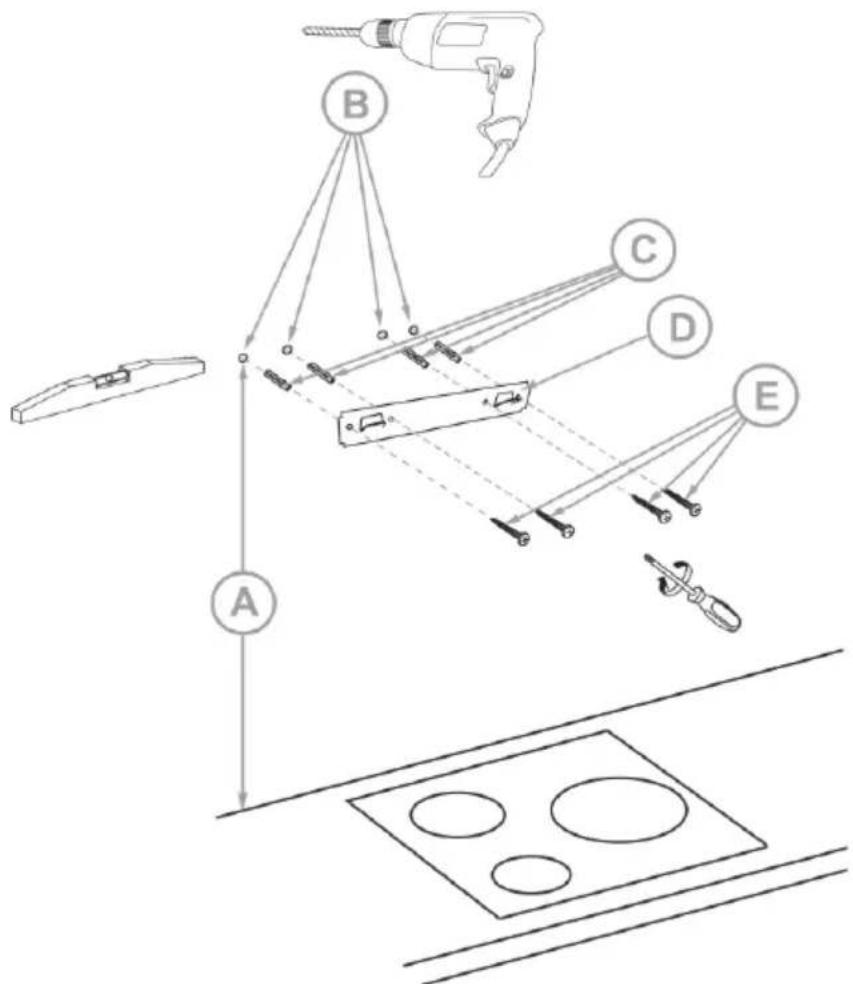

1. Installing the cooker hood bracket

a) With the help of a level mark the four holes B of the support D. The distance A must be the recommended height (65 to 75 cm) plus the height of the hood, that is, you must add the necessary centimeters so that when the hood is hanging from the support, it is at the recommended height (65 to 75 cm) from the worktop.
b) Drill four 10mm holes at marks B.
c) Insert the supplied plugs C.
d) Attach the bracket D and fix it to the wall using the supplied screws E.

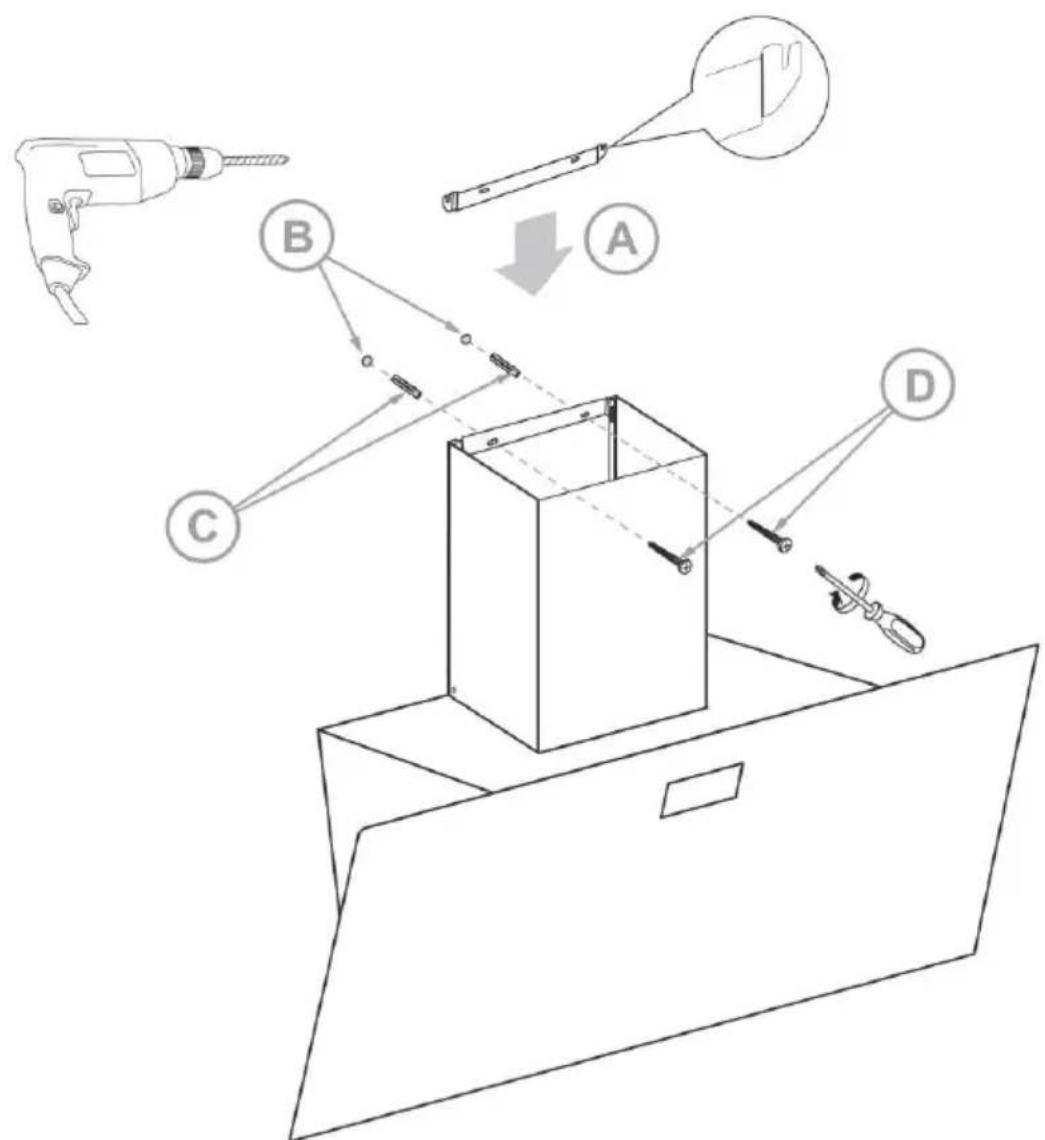

2. Installation of the chimney supports (first section)

The chimney of the extractor hood is made up of two pieces, which are inserted one inside the other to adapt to the height between the ceiling and the main body of the extractor hood.

a) Position the first chimney section (the one without vents) so that the screw holes are at the bottom.
b) Insert support A into the interior of the fireplace, matching the tabs on the support with the slots on the inside of the fireplace.
c) Mark the two holes B of the chimney bracket.
d) Drill two 10mm holes at marks B.
e) Insert the supplied plugs C.
f) Attach the bracket and fix it to the wall using the supplied screws D.

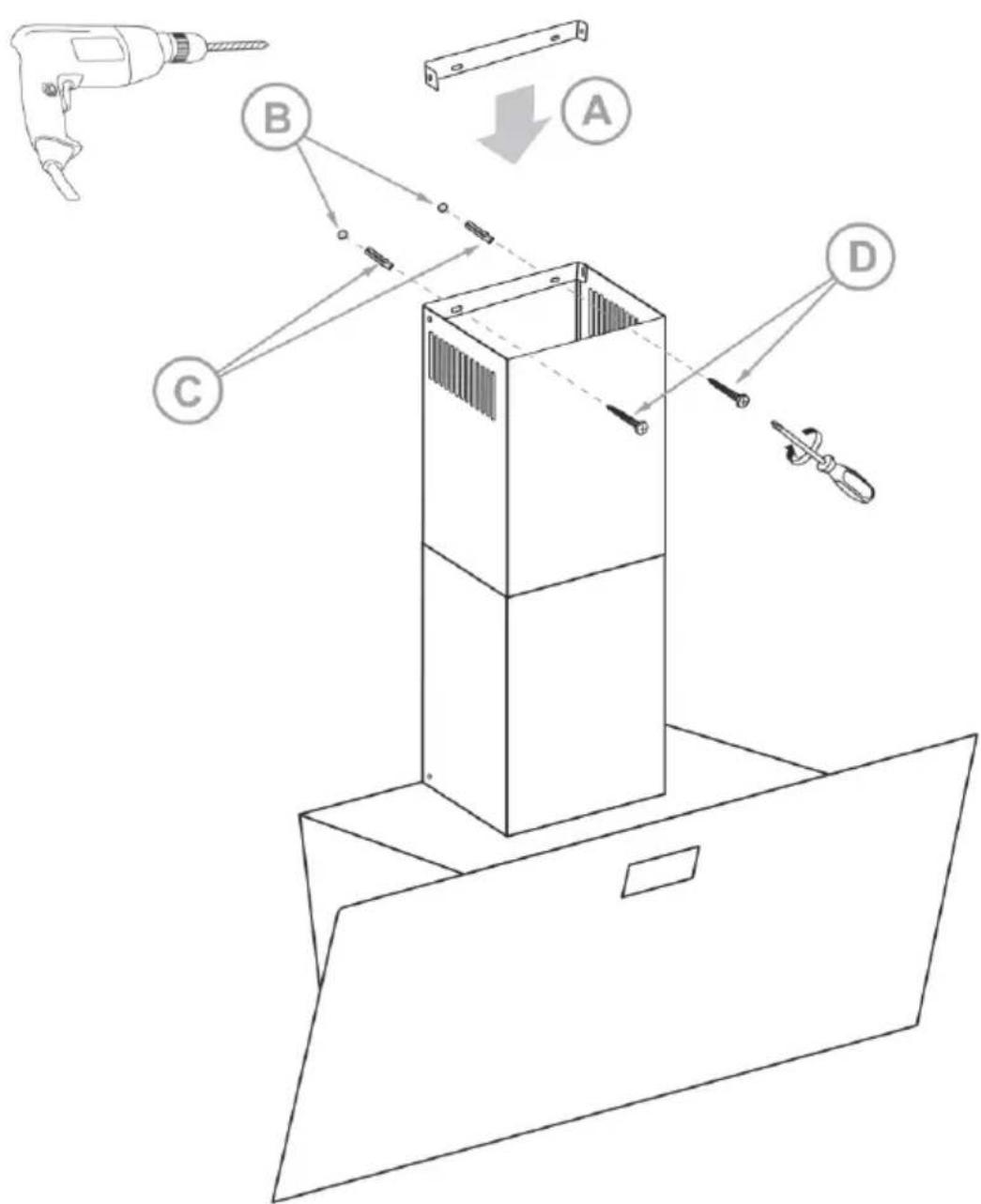

3. Installation of the chimney supports (second section)

a) Place the second section of the chimney and align it with the first section of the chimney, mark its position on the wall next to the ceiling, then remove the two sections of the chimney and place bracket A.
b) Mark the two holes B of the chimney bracket.
c) Drill two 10mm holes at marks B.
d) Insert the supplied plugs C.
e) Attach the bracket and fix it to the wall using the supplied screws D.

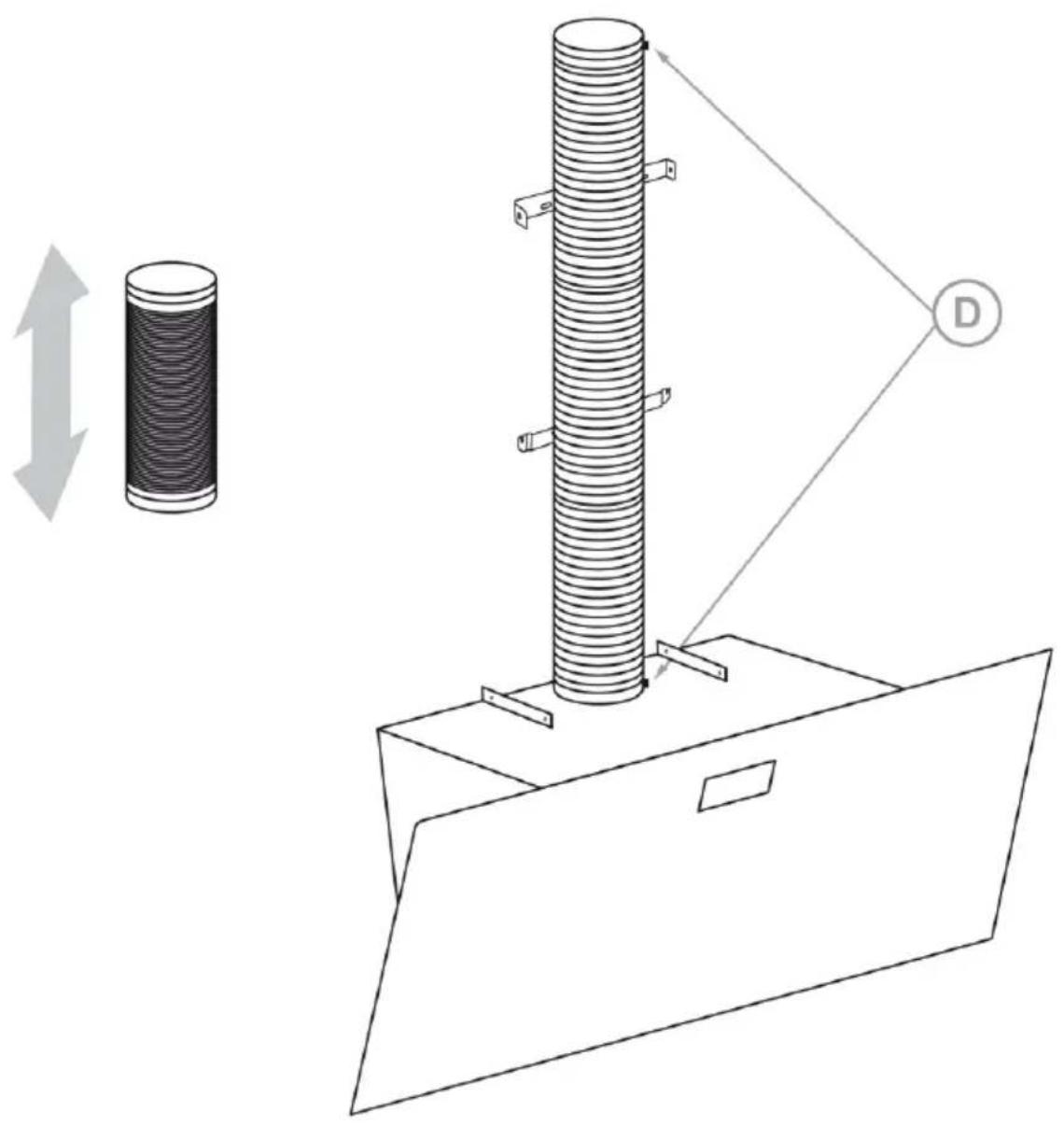

4. Installation of the extendable evacuation tube

The extendable evacuation tube has a diameter of 150~mm , if the smoke outlet hole has a different diameter, you will have to attach a suitable adapter to the required diameter.

a) Once the chimney supports have been installed, remove the two sections of the chimney.
b) Extend the extendable tube and lead it from the main body of the hood to the smoke outlet in the ceiling.
c) To fix the tube you can use plastic ties or metal clamps D. You can also use silicone or adhesive paste in order to fix and improve the tightness.

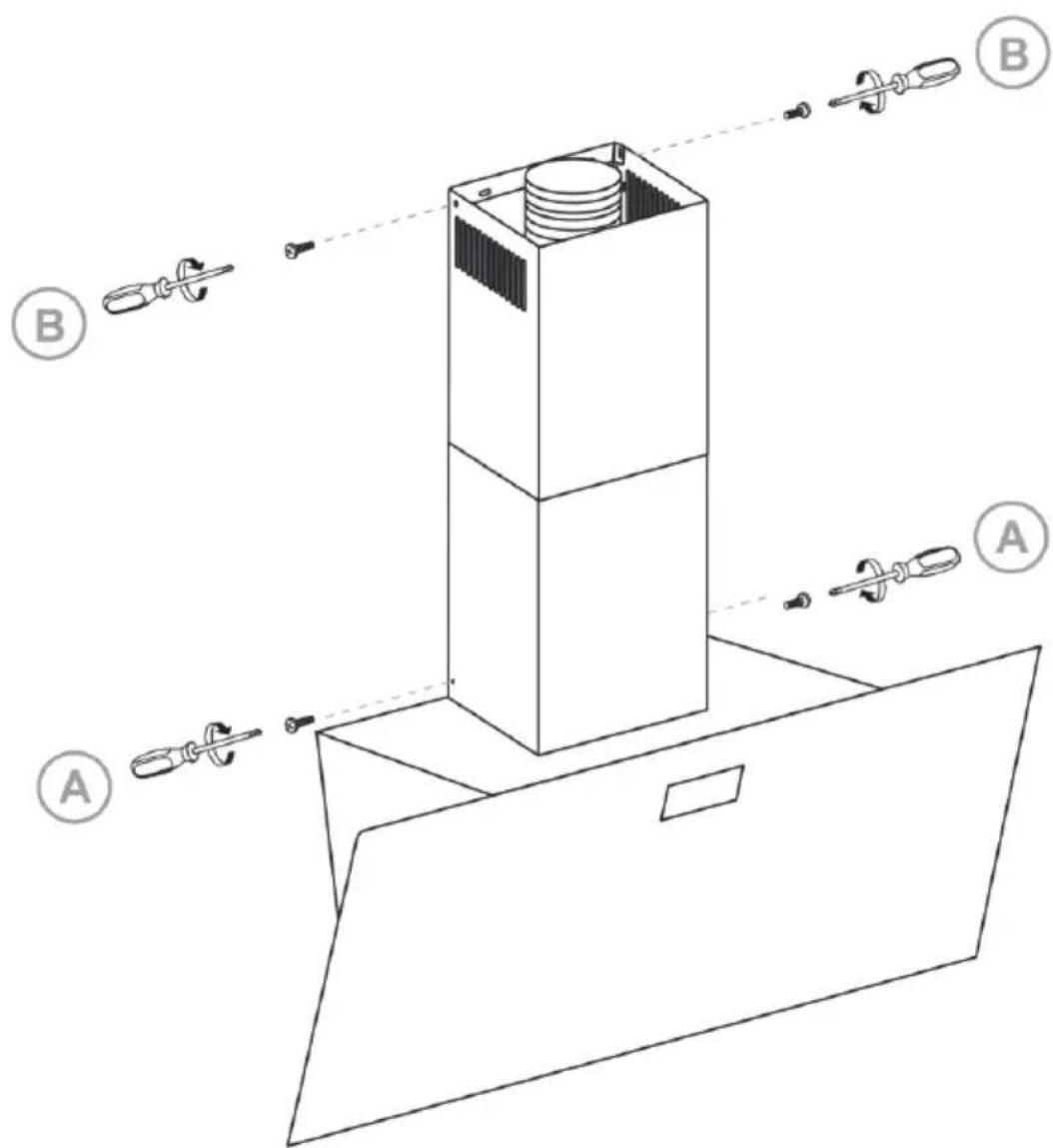

5. Placement of the sections that form the chimney

a) Connect or plug the cooker hood into the mains outlet and turn on the omnipolar isolation switch.
b) Check that the extractor hood works correctly.
c) Attach the first section of the chimney and fix it to the hood using the supplied screws A.
d) Insert the second section of the chimney so that it is inserted inside the first section of the chimney and is glued to the ceiling, then fix it to the support using the supplied screws B.

TECHNICAL SPECIFICATIONS

Supply voltage 220 - 240 V ~ 50 Hz

Maximum consumption 193 W

Extraction capacity 700m^3 /h

Motor power 190 W

LED lighting 2 × 1.5 ~W

Number of extraction 3 speeds

Energy class B (within the range A ^+ + + to D)

Dynamic fluid efficiency class A

Lighting efficiency class A

Grease filtering efficiency class D

Sound level ≤ 68 dB

Air outlet diameter 150 mm Ø

Measures 895 x 400 x 1170 mm

Weight 15.55 Kg

Specifications subject to change without notice.

This product complies with the European Directives 2014/30/EU (EMC - Electromagnetic Compatibility) and the 2014/35/EU (LVD - Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S. A.

C / Matabueyes, 7 nave 1A

19171 - Cabanillas del Campo

(Guadalajara - Spain)

E-MAIL: [e-mail]

http://www.mxonda.es

MANUEL D'UTILISATION ET D'INSTALLATION

Mx Onda

HOTTE ASPIRANTE MURALE DÉCORATIVE

MODELE: MX-CDP2692

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

REEMPLACEMENT DES AMPOULES LED
