USER MANUAL Taylor IV PRESIDENT

SIMPLIFIED EU DECLARATION OF CONFORMITY 40

GENERAL WARRANTY CONDITIONS 41

FREQUENCY TABLES. 54-56

NORMS-F 59

SPIS TRESCI POISKI

INSTALACJA 43

JAK UZYWAC CB RADIO 45

FUNKCJA WlACZANIE URZADZENIA 47

MENU 47

CHARAKTERYSTYKA TECHNICZNA 50

ROZWIAZYWANIE PROBLEMOW 51

SPOSOB NADAWANIA I ODBIERANIA KOMUNIKATOW

GLOSOWYCH 51

SLOWNICZEK 51

UPROSZCZONA DEKLARACJA ZGODNOSCI UE 52

OGOLNE WARUNKI GWARANCJI 53

TABLECZESTOTLIWOSCI 54~56

NORMY-F 59

ATTENTION!

MODE (pression breve)

13) PÉDALE D'ÉMISSION PTT (Push To Talk)

H Hotel
India
J. Juliett
K Kilo
L Lima
M Mike
N November

Oscar
P Papa
Q Queb
R Romeo
Sierra
Tangac
U Uniform

VVictor
WWhiskey
X X-ray
YYankee
Z Zulu

LANGUAGE TECHNIQUE

AM Amplitude Modulation (modulation d'amplitude)

CH : Channel (canal)

CQ : Appel général

CW Continuous waves (morse)

SWR Standing Waves Ratio

SW : Short waves (ondes courtes)

TONTON
TPH
M
VISU
VX
WHISKY
WX
XYL
YL
51
73
88
00
144
318
600 ohms
813

QRM: Parasites, brouillage

QRM DX : Parasites lointains

QRM22：Police

https://president-electronics.com/DC/TXPR403.

CONDITIONS GENÉRALES DE GARANTIE

Type: Radio CB TAYLOR IV

N° de série :

SANS LE CACHET DU DISTRIBUTEUR

LA GARANTIE SERA NULLE

13) PALANCA DE EMISION PTT (Push To Talk)

A Alpha H Hotel Oscar V Victor
B Bravo India P Papa W Whiskey
C Charlie J Jullett Q Quebec X X-ray
D Delta K Kilo Romeo YYankee
E Echo L Lima S Sierra Z Zulu
F Foxtrott M Mike T Tango
G Golf N November U Uniform

TERMINOS DEL ARGOT CEBEISTA:

Tip: Radio CB TAYLOR IV

Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "F" on page 35 and the Configuration table on page 58.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance transceiver equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT TAYLOR IV is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT TAYLOR IV.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose a well ventilated place most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

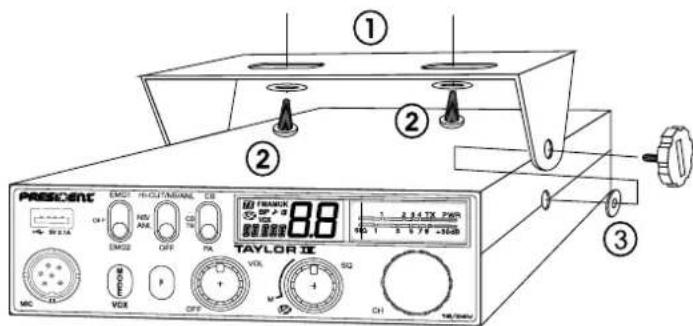

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2mm ). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Do not forget to insert the rubber joints (3) between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.

N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXTSP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna

• For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.

• If you already have a radio-telephone antenna installed, the transceiver antenna should be higher than this.

• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § HOW TO ADJUST SWR below).

• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

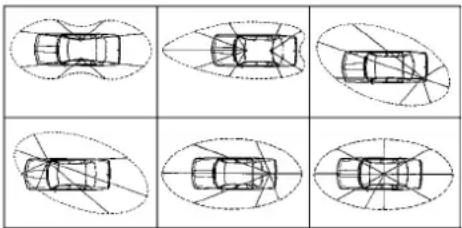

OUTPUT RADIUS PATTERN

c) Fixed antenna

• A fixed antenna should be installed in as clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

3) POWER CONNECTION

Your PRESIDENT TAYLOR IV 12/24 V is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 or 24 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

a) Check that the battery is of 12 or 24 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.

c) It is necessary to connect your CB to a permanent (+) and (-) . We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.

e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse by one of a different value.

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone.
b) Check the antenna connections.
c) Turn the set on by turning the volume knob VOL (1) clockwise.
d) Turn the squelch knob SQ (2) to minimum M.
e Adjust the volume to a comfortable level.
f) Go to channel 20 by using rotary CH knob (3) or UP/DN buttons (14) on the microphone.

5) HOW TO ADJUST SWR (Standing Wave Ratio)

Warning: This must be carried out when you use your radio for the first time and whenever you re-position your antenna. This adjustment must be carried out in an obstacle-free area.

* Adjustment with internal SWR-meter

NEW, EASY AND VERY HANDY- Adjustment of SWR meter by beep tones See menu SWR ADJUSTMENT function page 37.

* Adjustment with external SWR-meter (e.g. TOS-1 PRESIDENT)

a) To connect the SWR meter :

• Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40~cm cable, type President CA 2C).

b) To adjust the SWR meter:

• Set the CB on channel 20 in AM.
  Put the switch on the SWR-meter to position FWD (calibration).
  Press the PTT "push-to-talk" switch (13) on the microphone to transmit.
• Bring the index needle to by using the calibration key.
• Change the switch to position REF (reading of the SWR level). The reading on the Meter should be as near as possible to 1. If this is not the case, readjust your antenna to obtain a reading as close as possible to 1. (A SWR reading between 1 and 1.8 is acceptable).
• It will be necessary to recalibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m .

Your transceiver is now ready for use.

B) HOW TO USE YOUR TRANSCEIVER

1) ON/OFF ~ VOLUME

Turn on: turn VOL knob (1) clockwise. If the function KEY BEEP is active (see menu KEY BEEP page 36), the radio emits a beep. The radio is "on".

Display briefly shows the microphone type setup (see menu MIC TYPE page 38) and frequency band (see § FREQUENCY BAND SELECTION page 34).

Turn Off: turn VOL knob (1) counterclockwise until radio emits click sound. Your radio is "off".

Volume Adjustment: rotate VOL knob (1) clockwise to adjust volume. Turn the same knob counterclockwise to reduce the sound level.

2) ASC (Automatic Squelch Control) ~ SQUEELCH

Suppresses undesirable background noises when there is no communication.
Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: AUTOMATIC SQUEELCH CONTROL

Worldwide patent, a PRESIDENT exclusivity.

Turn the SQ knob (2) anti-clockwise into ASC position. As appears on LCD. No repetitive manual adjustment and a permanent improvement between the sensitivity and the listening comfort when ASC is active. This function can be disconnected by turning the switch clockwise. In this case the squelch adjustment becomes manual again. As disappears from LCD.

b) MANUAL SQUEELCH

Turn the SQ knob (2) clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum (fully clockwise), only the strongest signals will be received.

3) ROTARY CH KNOB

In normal operation, turn rotary CH knob (3) to adjust channel. Clockwise to increase, counterclockwise to decrease the channel.

In MENU mode (long press F knob (9) to activate this mode (see § MENU page 35)).

1. Turn rotary CH knob (3) to select the function to set.
2. Press F knob (9) to validate. The parameter of the chosen functions blinks on LCD.
3. Turn rotary CH knob (3) to change the value of the parameter.
4. New press F knob (9) to validate the chosen value. The parameter stops blinking and if the function has more than one parameter, the next parameter blinks.

See UP/DN BUTTONS ON THE MICROPHONE page 35.

4) S-METER

Indicates the reception level and the emitted power level.

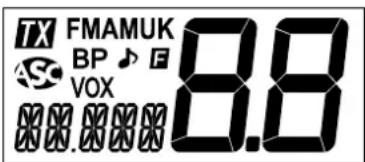

5) LCD

IMdicates transmission

AM AM mode selected (blinks in PA mode)

FM FM mode selected (blinks in PA mode)

UK FM mode selected (only in U configuration / ENG) (blinks in PA mode)

ROGER BEEP function activated

BP KEY BEEP function activated

Automatic Squelich Control activated

VOX VOX function activated

SCAN function activated (the dot blinks)

F MENU mode activated

88 Indicates the channel or band selected

Indicates frequency or menu

6) CB/PA CB TB

3 position switch: CB, CB TB and PA.

CB/PA

Switch between CB and PA (Public Address) mode.

An external optional speaker can be connected to the unit to the PA.SP. Jack on the rear panel. (D). LCD indicates PA mode by blinking the modulation mode (AM/FM/UK).

For more details on operating in PA mode, see the PA SETTING menu on page 37.

CB TB

Allows the activation of the TALKBACK function.

TALKBACK function

This function allows you to hearyour own modulation in the optional internal or external speaker connected to the EXT jack. MS. (C).

When activated, LCD shows the TALKBACK level during 3 seconds.

TALKBACK level

Press and hold the PIT switch (13) then turn the rotary CH knob (3) to increase (clockwise) / decrease (counterclockwise) the volume level of the TALKBACK. Release the PIT switch (13).

7) NB/ANL - HI-CUT FILTERS

3 positions switch: Low position: no filter is activated. Central position: only ANL and NB filters are enabled. High position: all filters (ANL, NB and HI-CUT) are activated.

NB: Noise Blanker / ANL: Automatic Noise Limiter. These filters allow reducing back ground noises and some reception interferences.

HI-CUT: Cuts out the high frequency interferences and has to be used in accordance with the reception conditions.

Note: ANL filter works only in AM mode

8) PRIORITY CHANNELS

Priority channels will be automatically selected by switching this key (8). 3 positions switch: EMG1/ Priority channel 1 is activated. EMG2 / Priority channel 2 is activated. OFF / No priority channel is activated.

The default priority channels are channel 9/AM (EMG1) and channel 19/ AM (EMG2).

See the EMG SET 1 and EMG SET 2 menus page 37 to set priority channels.

Note: Activating a priority channel prevents changing the modulation mode (AM / FM / UK), scanning the channels or activating the PA mode. If the KEY BEEP function is activated, an error beep sounds. "EMG" and the channel blink to indicate unauthorized handling. Turn the switch (11) to the OFF position to use these functions.

Press MODE key (10) to select the modulation mode: AM or FM. Selected mode is displayed on LCD.

Your modulation mode has to correspond to the one of your correspondent.

Frequency Modulation / FM: for nearby communications on a flat open field.

Amplitude Modulation / AM: communication on a field with relief and obstacles at middle distance (the most used).

In U configuration only: The MODE key (10) allows to select the ENG or CEPT frequency band. "UK" is displayed when the ENG frequency band is selected. When the CEPT frequency band is selected, "UK" disappears from the display (see table on page 54).

VOX(long press)

The VOX function allows transmitting by speaking into the original microphone (or in the optional vox microphone) without pressing the PTT switch (13). The use of an optional vox microphone connected to the rear panel of the transceiver (E) disables the original microphone. Press shortly VOX key (10) in order to activate the VOX function. "VOX" appears on the display. Press shortly again the VOX key (10) to disable the function. "VOX" disappears.

11) USB CHARGING SOCKET

The USB socket (16) can be used to charge smartphones, tablets or other rechargeable devices with 5 V - 2.1 A.

12) 6 PIN MICROPHONE PLUG

The plug is located on the front panel of the transceiver and makes the setting of the equipment into the dashboard easier.

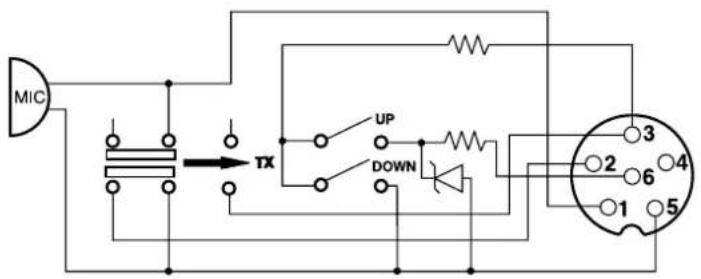

See Cabling Diagram page 57.

13) PTT (Push To Talk)

Transmission key, press to transmit a message, is displayed and release to listen to an incoming communication, disappears.

TOT (Time Out Timer)

If the PTT switch (13) key is pressed for more than 3 minutes, the display starts blinking and the transmission ends. A beep will sound until the PTT switch (13) key is released.

14) UP/DN BUTTONS ON MICROPHONE SCAN

UP/DN BUTTONS ON MICROPHONE (short press)

Press UP/DN buttons (14) on the microphone to change the channel. UP to increase and DN to decrease the channel.

See ROTARY CH KNOB page 33.

SCAN (very long press)

Press and hold the UP or DN button (14) for ± 7 seconds or until a beep sounds to activate the SCAN function. The dot between the two channel digits flashes to indicate that the function is active.

The scanning stops as soon as there is a busy channel. The scanning automatically starts 3 seconds after the end of the transmission and no key is activated during 3 s. In SCANNING mode, turn the F rotary knob (9) or

press the UP/DN buttons (14) on the microphone to change scan direction. Press PTT switch (13) to exit SCAN. The dot between the two channel digits disappears from LCD.

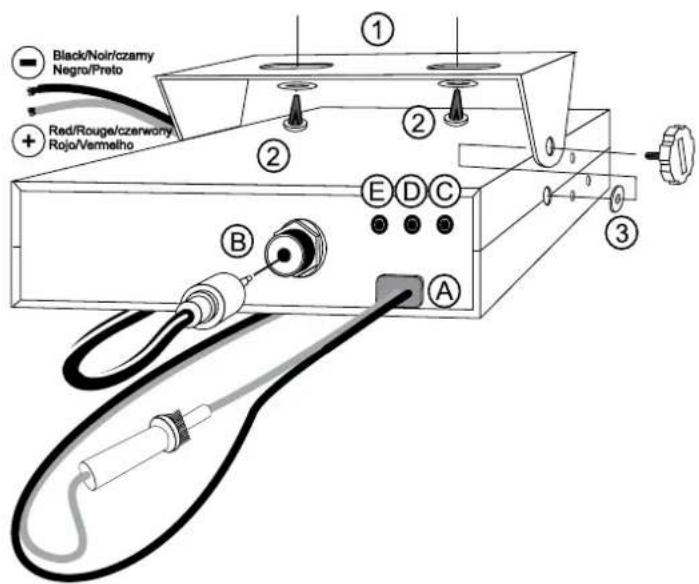

A) DC-POWER TERMINAL (13,2 V / 26,4 V)

B) ANTENNA CONNECTOR (SO-239)

C) JACK FOR EXTERNAL OPTIONAL SPEAKER (8 Ω, Φ 3.5 mm)

D) JACK FOR PA OPTIONAL SPEAKER (Public Address) (8 Ω, 0.35 mm)

E) JACK FOR OPTIONAL VOX MICROPHONE (8 , 2.5mm)

To select the FREQUENCY BAND turn off the unit. Press and hold the F key (9) and then turn the unit on.

(Conflguration:EU;PL;dEC;U;In)

The frequency bands have to be chosen according to the country of use. Don't use any other configuration. Some countries need a user's licence. See table page 59.

1. Turn on the power while pressing the F key (9). The letter corresponding to the current configuration is blinking.
2. In order to change the configuration, use the rotary CH knob (3) on the unit or the UP/DN buttons (14) on the microphone.
3. When the configuration is selected, press the F key (9) during 1 second. The letter corresponding to the configuration is continuously displayed and a confirmation beep sounds.
4. At this point, confirm the selection by switching off the transceiver and then switching it on again.

See the frequency bands table at pages 54 to 56 / configuration table page 58.

D) MENU

The order of 11 functions is as described in this manual. However, the function displayed by entering the MENU will be the last function modified by user.

The procedure is the same Whatever the function is: Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the menu.

2. Press F knob (9) to validate. The parameter of the chosen function blinks on the display.

3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to modify the value of the parameter.
4. New press F knob (9) to invalidate the chosen value. The parameter stops blinking and if the function has more than one parameter, the next parameter blinks.
5. If no key is pressed, the unit exits MENU after 10 seconds. F disappears from the display.

Note: UP/DN buttons (14) on the microphone have the same effect as the rotation of the rotary CH knob (3). PTT switch (13) validates the last setting and exists MENU. ±b disappears.

1) COLOR

This function allows to choose the backlight color of the LCD. Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the COLOR function.
2. Press F knob (9) to validate. The current COLOR blinks on LCD.
3. Turn the rotary CH knob (3) or use UP/DN buttons (11) on the microphone to select the color. 7 available colors over and over:

red / green / blue / cyan / yellow / purple / cyan light

rC / 9r / bL / Cy / yC / PU / CL

1. New press F knob (9) to validate the chosen color. The parameter stops blinking. a) Go to point 1 to adjust another function or b) Press the PTT switch (13) to validate and exit MENU. disappears in the display.
2. If no key is pressed, the unit exits MENU after 10 seconds, ±b disappears in the display.

Default COLOR is rC(red).

2) DIM

The DIM function (dimmer) allows to adjust the brightness (from 1 to 9) of the backlight or DF (no backlight). Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the IM function.
2. Press F knob (9) to validate. The current value blinks on LCD.
3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select a new value.

4. New press F knob (9) to validate. The parameter stops blinking. a) Go to point 1 to adjust another function or b) Press the PTT switch (13) to validate and exit MENU. F disappears.

5. If no key is pressed, the unit exits MENU after 10 seconds, ±b disappears in the display.

Default DIMMER value is 9.

3) KEY BEEP

When the function is activated, a beep sounds when a key is pressed, by changing the channel etc. "BP" appears on the display when the function is active.

Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the KCP function.
2. Press F knob (9) to validate. The current status blinks on LCD.
3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to activate On / deactivate Off the function.
4. New press F knob (9) to validate. The parameter stops blinking. a) Go to point 1 to adjust another function or b) Press the PTT switch (13) to validate and exit MENU. f disappears.
5. If no key is pressed, the unit exits MENU after 10 seconds, F disappears in the display.

Default KEY BEEP is n.

4) ROGER BEEP

When the function is active, the icon appears on the display.

The Roger Beep sounds when the PTt switch (13) on the microphone is released in order to let your correspondent speak. Historically as transceiver is a "simplex" communication mode, it is not possible to speak and to listen at the same time (as it is the case with a telephone). Once someone had finished talking, he said "Roger" in order to prevent his correspondent that it was his turn to talk. The word "Roger" has been replaced by a significant beep. There comes "Roger beep" from.

Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the R5 MP function.
2. Press F knob (9) to validate. The current status blinks on LCD.
3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to activate On / deactivate Off the function.
4. New press F knob (9) to validate. The parameter stops blinking. a) Go to point 1 to adjust another function or b) Press the PTT switch (13) to validate and exit MENU. f disappears.
5. If no key is pressed, the unit exits MENU after 10 seconds, F disappears in the display.

Default ROGER BEEP is DF.

5) SWR ADJUSTMENT

This function allows to adjust the SWR (Standing Wave Ratio) by beep tones. Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use the UP/DN buttons (14) on the microphone to select the SWR function.
2. Press the F knob (9). The radio automatically goes to TX mode without pressing PTT switch (13). The SWR measurement starts. Measurement time is 5 minutes maximum. The remaining time is displayed.
3. Adjust your antenna.
4. The beep tone* is continuous when SWR value is equal to 10. The space between two beeps became longer when SWR value moves away from 10. Volume of the beep tone is adjustable with VOLUME knob (1). Display shows the SWR value. For example 25.
5. Press PTT switch (13) to exit MENU mode. ±b disappears in the display. *Please check that the beep volume is set to a comfortable listening level.

See § HOW TO ADJUST SWR page 32.

6) EMG SET 1

Allows to set the channel and mode for Priority Channel 1. Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the EM5 2 function.
2. Press F knob (9) to validate. The first parameter, channel blinks on LCD.
3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the channel.
4. New press F knob (9) to validate. The channel stops blinking. The second parameter, mode blinks on LCD.
5. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the mode AM, FM or FM UK (only in U configuration).
6. New press F knob (9) to validate. The mode stops blinking. a) Go to point 1 to adjust another function or b) Press the PTt switch (13) to validate and exit MENU. 1 disappears.
7. If no key is pressed, the unit exits MENU after 10 seconds, ±b disappears in the display.

Default Priority channel 1 is 9/AM.

See § PRIORITY CHANNELS page 34.

7) EMG SET 2

Allows to set the channel, band and mode for Priority Channel 2. Press F knob (9) to enter MENU. is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the EMG2 function.

Points 2 to 7 are identical to EMG SET 1.

Default Priority channel 2 is 19/AM.

See PRIORITY CHANNELS page 34.

8) VOX SET

Press F knob (9) to enter MENU. F is displayed.
1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the V/R function. Three adjustments are possible: Sensitivity L / Anti-vox level R / Vox delay time 1 (over and over).
2. Press F knob (9). The current setting (L, R or t) blinks on the LCD.
3. Turn the rotary CH knob (3) or press the UP/DN (14) keys on the microphone to move to next setting.
4. Press F knob (9). The value of the current setting blinks on the LCD.
5. Turn the rotary CH knob (3) or press the UP/DN (14) keys on the microphone to adjust the setting.
6. Press F knob (9) to store and validate the setting
7. Go to point 2 to set both others adjustments of VOX.
8. Once the settings done, press the PTt switch (13) to exit the VOX Adjustment mode. If no adjustment is made for 10 seconds, the unit automatically exits the function.

Sensitivity L: allows the adjustment of the microphone (original one or optional vox) for an optimum transmission quality. Adjustable level from 1 (high level) to 9 (low level). Default value: 5.
- Anti-Vox R: allows disabling the transmission generated by the surrounding noise. The level is adjustable. DF (according the squieich level) and from D (without anti-vox) to G (low level). Default value: DF.
Delay time: allows avoiding the sudden cut of the transmission by adding a delay at the end of speaking. The level is adjustable from 1 (short delay) to 9 (long delay). Default value: I.

9) PA SETTING

This function allows to select the operating mode of Public Address. Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the PRSET function.
2. Press F knob (9) to validate. The current value blinks on LCD.

3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the operating mode of the PA: In, OF or PR or.

4. New press F knob (9) to validate. The parameter stops blinking. a) Go to point 1 to adjust another function or b) Press the PTT switch (13) to validate and exit MENU. B disappears.

5. If no key is pressed, the unit exits MENU after 10 seconds, ±b disappears in the display.

In: the modulation of the microphone is transmitted to external loudspeaker connected to jack PA.SP. (D). The received signals transmitted to the internal loudspeaker (or external optional loudspeaker connected to jack EXT.SP (C)). The used modulation mode (AM, FM or FM UK) blinks on the LCD.

DF: The reception is no more functional. Only the modulation of the microphone is transmitted to the Public Address loudspeaker connected to jack PA.SP. (D). PR and PA volume level are displayed.

PR: the modulation of the microphone and the received signal are transmitted to the Public Address loudspeaker connected to Jack PA.SP. (D). The used modulation mode (AM, FM or FM UK) blinks on the LCD.

Default PA setting Is: In

See CB/PA (Public Address) page 34.

10)MIC TYPE

The PRESIDENT TAYLOR IV can be used with an electret microphone as well as with the dynamic one, 6-pin PRESIDENT (see the cabling diagram page 57). Turning on the unit, the type of the microphone is briefly displayed. Press F knob (9) to enter MENU. F is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the MICP function.
2. Press F knob (9) to validate. The current parameter blinks on LCD.
3. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the type on the microphone EL (electret) or d4 (dynamic).
4. New press F knob (9) to validate. The parameter stops blinking. a) Go to point 1 to adjust another function or b) Press the PTT switch (13) to validate and exit MENU. f disappears.
5. If no key is pressed, the unit exits MENU after 10 seconds, ±b disappears in the display.

Default type of microphone is EL (electref).

11) RESET

Restores all factory settings.

Press F knob (9) to enter MENU. is displayed.

1. Turn the rotary CH knob (3) or use UP/DN buttons (14) on the microphone to select the PRESET function.

2. Press F knob (9) to validate. RL blinks on LCD.

3. New press F knob (9) to reset. The unit exits MENU. F disappears.
4. If no key is pressed, the unit exits MENU after 10 seconds or by a new long press on F knob(9) key.

-Channels:40
- Modulation modes : AM / FM
Frequency ranges : from 26.965 MHz to 27.405 MHz
- Antenna impedance : 50 ohms
- Power supply
- Dimensions
Weight
- Accessories supplied
:13.2V/26.4V
:±0.750kg

: 150 (L) x 165 (P) x 45 (H) mm
: 1 microphone electret UP/DOWN with support, mounting cradle, screws and fused power cord.

2) TRANSMISSION

Frequency allowance
- Carrier power
Transmission interference
- Audio response
- Emitted power in the adj. channel
- Microphone sensitivity
-Drain
- Modulated signal distortion

：+/-200Hz
:4WAM/4WFM
: inferior to 4 nW (-54 dBm)
: 300 Hz to 3 KHz in AM/FM
: inferior to 20~ W
:3.0mV
: <2A@13.2V/<1.5A@26.4V
:2%

3) RECEPTION

Maxi. sensitivity at 20 dB sinad
Frequency response
- Adjacent channel selectivity
Maximum audio power
Squelch sensitivity

:0.5μV-113dBm (AM)
0.35 μV - 116 dBm (FM)
300 Hz to 3 kHz in AM/FM
:60dB
:3W
: minimum 0.2 V - 120 dBm maximum 1 mV - 47 dBm

Frequency image rejection rate
- Intermediate frequency rej. rate
-Drain

60dB

:70dB
150\~500mA(13.2V) 100\~300mA(26.4V)

F) TROUBLE SHOOTING

1) YOUR RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

• Check that the antenna is correctly connected and that the SWR is properly adjusted.
• Check that the microphone is properly plugged in.
• Check that the programmed configuration is the correct one (see table page 58).

2) YOUR RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

• Check that the squelch level is properly adjusted.
• Check that the volume (1) is set to a comfortable listening level.
• Check that the antennas is correctly connected and that the SWR is properly adjusted.
• Check that you are using the same modulation mode as your correspondent.
• Check that the programmed configuration is the correct one (see table page 58).

• Check the power supply.
• Check the connection wiring.
• Check the fuse.

G) HOW TO TRANSMIT OR RECEIVE AMESSAGE?

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Press the «push-to-talk» switch (13) and announce your message «Attention stations, transmission testing» which will allow you to check the cleanness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

H) GLOSSARY

INTERNATIONAL PHONETIC ALPHABET

A Alpha
B Bravo
C Charlie
D Delta
E Echo
F Foxtrott
G Golf

H Hotel
1 India
J Jullett
K Kilo
L Lima
M Mike
N November

Oscar
P Papo
Quebec
R Rome
Sierra
Tango
U Uniform

V Victor
Whiskey
X X-ray
YYankee
Z Zulu

TECHNICAL VOCABULARY

AM : Amplitude Modulation
CB : Citizen's Band
CH : Channel
CW : Continuous Wave
DX : Long Distance Liaison
DW : Dual Watch
FM : Frequency Modulation
GMT: Greenwich Meantime
HF : High Frequency
LF : Low Frequency
LSB : Lower Side Band
RX : Receiver
SSB : Single Side Band
SWR : Standing Wave Ratio
SWL : Short Wave Listening
SW : Short Wave
TX :CBTransceiver
UHF : Ultra High Frequency
USB : Upper Side Band
VHF : Very High Frequency

CB LANGUAGE

Advertising
Back off
Basement
Base station
Bear
Bear bite
Bear cage
Big slab
Big 10-4

: Flashing lights of police car
: Slow down
:Channel1
: A CB set in fixed location
:Policeman
:Speeding fine
:Police station
Motorway
: Absolutely

Bleeding : Signal from an adjacent channel interfering with the transmission Blocking the channel : Pressing the PTT switch without talking

Blue boys : Police

Break: Used to ask permission to join a conversation

Breaker : A CBer wishing to join a channel

Clean and green : Clear of police

Cleaner channel : Channel with less interference

Coming in loud and proud : Good reception

Doughnut : Tyre

Down and gone : Turning CB off

Down one:Go to a lower channel

Do you copy? : Understand?

DX : Long distance

Eighty eights : Love and kisses

Eye ball : Cbers meeting together

Good buddy : Fellow CBer

Hammer Accelerator

Handle : CBer's nickname

Harvey wall banger : Dangerous driver

How am I hitting you? : How are you receiving me?

Keying the mike : Pressing the PTT switch without talking

Kojac with a kodak : Police radar

Land line Telephone

Lunch box : CB set

Man with a gun : Police radar

Mayday SOS

Meat wagon Ambulance

Midnight shopper

Modulation : Conversation

Negative copy : No reply

Over your shoulder : Right behind you

Part your hair : Behave yourself - police ahead

Pull your hammer back : Slow down

Rat race Congested traffic

Rubberbander : New CBer

Soil boat fuel :Wind

Smokey dozing : Parked police car

Smokey with a camera : Police radar

Spaghetti bowl

Stinger

Turkey

Up one

Wall to wall

What am I putting to you?

:Interchange
: Antenna
Dumb CBer
: Go up one channel
: All over/everywhere
: Please give me an S-meter reading

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Groupe President Electronics, declares that the CB radio equipment :

Brand: PRESIDENT

Type: TXPR403

Commercial Name: TAYLOR IV

is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://president-electronics.com/DC/TXPR403.

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit.

• To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.
• Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.
• Any repair under warranty will be free and the return delivery costs will be borne by our company.
• A purchase proof must be necessarily included with the device to be repaired.
• The dates listed on the warranty certificate and proof of purchase must match.
• Do not proceed with the installation of the device without reading the user manual.
  No spare part will be sent nor exchanged by our services under warranty.

The warranty is only valid in the country of purchase.

Exclusions (are not covered):

• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...)
• The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

• Check the power supply of your device and the quality of the fuse.

• Check that the antenna, the microphone.... are correctly connected.

• Check that the squelch level is properly adjusted; the programmed configuration is the correct one...

• In case the device is not under warranty, the repair and return of the device will be charged.
• All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.
• In case of real malfunction, please contact your dealer first; they will decide action to be taken.
• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

Technical Manager and Quality Manager

Date of purchase :

Type: CB Radio TAYLOR IV

Serial N°:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

UWAGA!

TRYB (AM / FM / FM UK)

H.Hotel
1. India
J Jullett
K Kilo
L Lima
M Mike
N November

Oscarg
P Papp
Quebec
R Romeo Y. Yankee
Sierra ZZulu
T Tango
U Uniform

TERMINOLOGIA TECHNICZNA

https://president-electronics.com/DC/TXPR403

OGOLNE WARUNKI GWARANCJI

FREQUENCY TABLE for d

TABLEA CZESTOTLIWOSCI dl a d

N° du canal FréquenceN° Canal Frecuencel Channel Frecuency Channel FrequencyKanal Częstotiwość Kanal Czȩstotiwość
1 26,965 MHz 21	27,215 MHz
2	26,975 MHz 22	27,225 MHz
3	26,985 MHz 23	27,235 MHz
4	27,005 MHz 24	27,245 MHz
5	27,015 MHz 25	27,25 MHz
6	27,025 MHz 26	27,265 MHz
7	27,035 MHz 27	27,275 MHz
8	27,055 MHz 28	27,285 MHz
9	27,065 MHz 29	27,295 MHz
10	27,075 MHz 30	27,305 MHz
11	27,085 MHz 31	27,315 MHz
12	27,105 MHz 32	27,325 MHz
13	27,115 MHz 33	27,335 MHz
14	27,125 MHz 34	27,345 MHz
15	27,135 MHz 35	27,355 MHz
16	27,155 MHz 36	27,365 MHz
17	27,165 MHz 37	27,375 MHz
18	27,175 MHz 38	27,385 MHz
19	27,185 MHz 39	27,395 MHz
20	27,205 MHz 40	27,405 MHz

N° du canal FréquenceN° Canal Frecuencel Channel Frequencynanal Częstotliwość Kanat Czȩstotliwość
41	26,565 MHz 61	26,75 MHz
42	26,575 MHz 62	26,775 MHz
43	26,585 MHz 63	26,785 MHz
44	26,595 MHz 64	26,795 MHz
45	26,605 MHz 65	26,805 MHz
46	26,615 MHz 66	26,815 MHz
47	26,625 MHz 67	26,625 MHz
48	26,635 MHz 68	26,635 MHz
49	26,645 MHz 69	26,645 MHz
50	26,655 MHz 70	26,655 MHz
51	26,665 MHz 71	26,665 MHz
52	26,675 MHz 72	26,675 MHz
53	26,685 MHz 73	26,685 MHz
54	26,695 MHz 74	26,695 MHz
55	26,705 MHz 75	26,705 MHz
56	26,715 MHz 76	26,715 MHz
57	26,725 MHz 77	26,725 MHz
58	26,735 MHz 78	26,735 MHz
59	26,745 MHz 79	26,745 MHz
60	26,755 MHz 80	26,755 MHz

FREQUENCY TABLE for In

TABLEA CZESTOTLIWOSCI dla In

N° du canal FréquenceN° Canal Frecuencel Channel Frequency Channel FrequencyKanal Częstotliwość Kanal Czȩstotliwość
1	26,960 MHz	21	27,210 MHz
2	26,970 MHz	22	27,220 MHz
3	26,980 MHz	23	27,250 MHz
4	27,000 MHz	24	27,230 MHz
5	27,010 MHz	25	27,240 MHz
6	27,020 MHz	26	27,260 MHz
7	27,030 MHz	27	27,270 MHz
8	27,050 MHz	28	27,280 MHz
9	27,060 MHz	29	27,290 MHz
10	27,070 MHz	30	27,300 MHz
11	27,080 MHz	31	27,310 MHz
12	27,100 MHz	32	27,320 MHz
13	27,110 MHz	33	27,330 MHz
14	27,120 MHz	34	27,340 MHz
15	27,130 MHz	35	27,350 MHz
16	27,150 MHz	36	27,360 MHz
17	27,160 MHz	37	27,370 MHz
18	27,170 MHz	38	27,380 MHz
19	27,180 MHz	39	27,390 MHz
20	27,200 MHz	40	27,400 MHz

N° du canal FréquenceN° Canal FrecuenceChannel Frequency Channel FrequencyKanal Częstotiwość Kanat Czȩstotiwość
1 26,965 MHz 2		27,2	15 MHz
2	26,975 MHz	22	27,225 MHz
3	26,985 MHz	23	27,255 MHz
4	27,005 MHz	24	27,235 MHz
5	27,015 MHz	25	27,245 MHz
6	27,025 MHz	26	27,265 MHz
7	27,035 MHz	27	27,275 MHz
8	27,055 MHz
9	27,065 MHz
10	27,075 MHz
11	27,085 MHz
12	27,105 MHz
13	27,115 MHz
14	27,125 MHz
15	27,135 MHz
16	27,155 MHz
17	27,165 MHz
18	27,175 MHz
19	27,185 MHz
20	27,205 MHz

PRISE MICROA6 BROCHES · CONEXIONDELMICRO6 PINS 6-PINMICROPHONEPLUG · WTYKMIKROFONU6-PIN

The frequency band and the transmission power of your transceiver must correspond with the configuration authorized in the country where it is used.

Countries in which there are particular restrictions (Licence/Register)

Please see updated table on website www.president-electronics.com, page 1The CB radios" then President Radio CB and Europe.
